New Arrivel: SoM FETMX8MM-C with Supporting of OS Android9.0 and QT5.10, 10+ Years Product Life Time



1. Introduction

FETMX8MM-C is a system on module designed by Forlinx based on NXP 64-bit featuring processor i.MX8M Mini, and it has below features

  • Frequency up to 1.8GHz
  • ARM Cortex-A53 architecture
  • 2GB DDR4 RAM
  • Has a general purpose Cortex®-M4 400 MHz core processor is for low-power processing
  • A wide range of audio interfaces are available, including I2S, AC97, TDM, and S/PDIF.
  • A number of other interfaces for connecting peripherals, such as USB, PCIe, and Ethernet.

2. Highlights

01. Superior performance with cool system experience
The i.MX 8M Mini family of processors features advanced implementation of a quad Arm® Cortex®-A53 core, which operates at speeds of up to 1.8 GHz and also on-board 2GB  DDR4 RAM take users lightsome system experience.

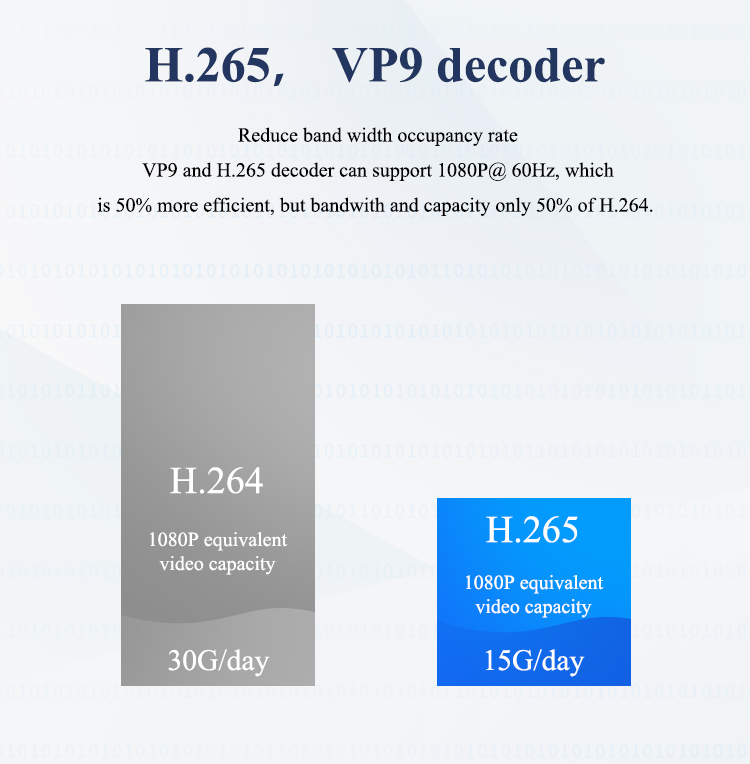

02. H.265, VP9 decoder
It can support H.265 and VP9 decoding up to 1080P@ 60FPS, compared with H.264, mean decode efficiency improved by 50%, while band width and capacity is only half of  H.264.



03. Later operation system with higher security level
Forlinx SOM FETMX8MM-C can support Android9.0 and Linux4.14(QT5.10) both are 64-bit systems, later optimized systems and UI take uses higher security and better HMI  experience.




04. A wide range of audio interfaces
The FETMX8MM-C has a wide range of audio interfaces are available, including I2S, AC97, TDM, and S/PDIF; It can support five SAI channels which can be configured to  IIS, AC97 and TDM; It can also support FLAC7.1 output and ring audio input which is appliable for hi-fi music system and sound recognition system solutions.
05. Hybrid architecture and multi-core
FETMX8MMX-C system on module consists of a Cortex-M4 core with frequency up to 400MHz,it can communicate with Cortex-A53 by internal AHB, it can be used for for low- power processing and real-time task processing


06. 10+ years product life time
i.MX8M Mini processor's life time is more than 10 years, which ensures users of stability of product supplying.


3. Product features

Basic information of SoM FETMX8MM-C
 CPU  NXP i.MX8M Mini
 Architecture

 Quad-core Cortex-A53

 Single-core Cortex-M4

 Frequency  ≤1.8GHz
 RAM  2GB DDR4  Flash  8GB eMMC
 OS

 Android9.0,

 Linux4.14.78+ QT5.10.1

 Voltage Input  5V
 Connection  ultra-thin connector (3x 80pin, pitch 0.5mm)
 Working Temp Width  0℃ to +70℃ / -40℃ to +75℃      Dimensions         56x 36mm



SoM FETMX8MM-C Features
 Peripheral QTY  Spec.
 Camera 1  4-lane, up to 1.5Gbps
 SD/ SDIO ≤2  1.8V and 3.3V modes
 USB 2  USB2.0 (up to 480Mbps), can be configured to OTG
 SAI ≤5



 UART ≤4  each can support up to 4.0Mbps
 eCSPI ≤3  up to 52Mbit/s, can be configured to host/ slave mode
 IIC ≤4  320Kbps
 Ethernet ≤1  10/ 100/ 1000Mbps auoto-negotiation
 PWM ≤4  16-bit
 JTAG supported
 FlexSPI 1  single pad/ dual pad/ quad pad mode
 Display 1  4-lane MIPI, up to 1.5Gbps
 PDM ≤1  up to 4-lane 8 channels
 PCIe 1  PCIe2.0

4. Target application
Facial recognition, video intercom, smart lamp, advertising machine, vending machine, filter, hi-fi music system, edge computing gateway, medical, PDA.
