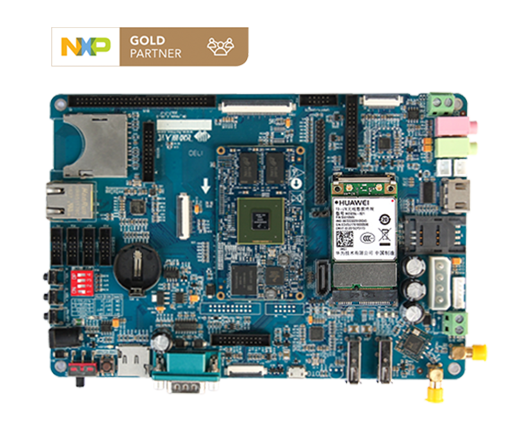

OKMX6Q-C Single Board Computer

CPU: i.MX6 Quad

Architecture: Cortex-A9

Frequency: 1.0GHz

RAM: 1GB DDR3,2GB DDR3(optional)

ROM: 8GB eMMC

System: Linux3.0.35,Linux4.1.15,Android4.2,Android6.0

Download Message Compare

Single Board Computer OKMX6Q-C based on NXP iMX6 Quad

Single board computer(SBC) OKMX6Q-C to evaluate system on module(SoM) FETMX6Q-C, which can serve both as a development platform and as an end product. The carrier board was designed as a 4-layer PCB and board-to-board connectors, with rich peripheral interface resources, including Gigabit Ethernet, CAN bus, parallel camera, WIFI&BT, etc. What's more, the CPU featured MIPI, MLB and EMI are also drawn out. Tested by EMC and high & low temp to guarantee the SoM to run stable in harsh working environment.

OKMX6Q-C Single Board Computer(SBC) is based on NXP Cortex-A9 processor i.MX6 quad @ 1GHz. Adopt SoM + Carrier Board structure, board-to-board connectors, while SoM is only 40*70mm, widely used in ndustrial control, medical, multimedia, charging piles, smart home, consumer electronics, handheld devices, display control and other fields.


Smaller system on module(SoM) with unique ultra-thin connectors

The SoM uses 4 sets of ultra-thin 80P board-to-board connectors,
which are only 2mm high and 40mm x 70mm gold size ratio, so that the product design is not limited to any mechanical structure

iMX6 Quad SoM system on module
iMX6 Quad SoM system on module

The system on module adopts the 12-layer PCB deposition process design,
taking full account of electromagnetic compatibility and signal integrity design, to ensure the stable operation of the system!

SoM 12 layers PCB designing
SoM 12 layers PCB designing

The CPU pins are all drawn out to meet the different functional requirements of different products in various fields

The system on module leads all pins out of the CPU, supporting gigabit Ethernet, DVP, MIPI camera , audio, SDHC, and more.
It also supports MIPI cameras, MIPI screens, MLB buses, EIM BUS 27-bit addresses, 32-bit data buses, and more.

iMX6 quad Cortex-A9 ARM core board
iMX6 quad Cortex-A9 ARM core board

Supports a variety of display screen interfaces and image collectors

Supports a variety of display screen
Supports a variety of display screen

iMX6 Quad development board

The two-screen era of iMX6 takes you into a whole new experience

Forlinx embedded FETMX6Q-C SoM supports dual-screen synchronous display, dual-screen asynchronous display.
Asynchronous display supports LVDS and LCD, HDMI and LVDS, HDMI and LCD, LVDS0 and LVDS1.

iMX6 quad core board with dual-screen
iMX6 quad core board with dual-screen

Interface-rich supporting base plate

OKMX6Q-C development board using the core board and bottom plate structure design, full function, pins, to meet a variety of product development needs,
product evaluation can be carried out with greater flexibility to quickly design more competitive products.

iMX6 Quad development board iMX6 Quad development board block diagram

▊ Hardware Features


FETMX6Q-C System on Module Features
CPU NXP quad-core i.MX6Q(compatible with i.MX6DL)
Architecture Cortex-A9
Main Frequency commercial grade: 1GHzl, industrial grade 800MHz
RAM 1GB DDR3 (2GB DDR3 optional)
ROM 8GB eMMC
Voltage Input DC 4.2V
2D/3D supported
GPU Vivante GC355 / Vivante GC320
PMU MMPF0100NPEP
Dimensions 40mm*70mm
Package board-to-board connector
OS Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5
Display RGB 24-bit, dual 8-bit LVDS interface, HDMI, MIPI
MIPI 3x MIPI_CSI MIPI_DSI MIPI_HSI
IIC 3x IIC
SPI 5x SPI
CAN 2x CAN
USB HOST 1x USB HOST 2.0
USB DEVICE 1x USB OTG 2.0
SD/MMC/SDIO 3x SD/MMC
Ethernet 1x 1000M
UART/IrDA 5(contains one debug port)
EINT/GPIO supported
Video Codec hardware codec
EBI BUS 27-bit address bus, 32-bit data bus
JTAG 1x JTAG
Camera 1x DVP, 1x MIPI
PWM 3x PWM
SATA 1x SATA
8X8 Keyboard 1-ch
Audio IIS≤3
MLB 1x MLB
SPDIF 1x SPDIF
mini PCIe 1x mini PCIe

OKMX6Q-C Carrier Board Features
Audio 1x Phone, 1x MIC, 2x Speaker
I2C 3x IIC
SPI 1x SPI
CAN 1x CAN
MIPI Camera 1x MIPI camera
Camera 1x camera, 5.0MP, OV5640
SD/MMC/SDIO 2x SD/ MMC/ SDIO
USB HOST 2x USB host, USB2.0
USB OTG 1x USB OTG, USB2.0
Ethernet 1x 10/100/1000M, auto-negotiation
UART 5x UART(1x debug, 3x 3-wire serial, 1x 5-wire)
IrDA 1x IrDA, not solderred
Power In 5V main power, 12V auxiliary power
RTC supported
ADC for expanding resistive touching controller
Key 3x key
DIP booting mode selection
Reset 1x reset
WiFi& BT 1x WIFI& BT
LCD 1x LCD, capacitive/ resistive
EINT supported
GPIO supported
LVDS 2x LVDS
HDMI 1x HDMI
MIPI DSI 1x MIPI DSI
SATA 1x SATA(only for FETMX6Q-C)
EIM BUS 32-bit data bus, 27-bit address bus
3G/4G mini-PCIE, 3G/4G wireless module
JTAG supported

▊ Software Features


OS Android

OS

Android4.4

Android6.0



Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2, JDK1.6.0-45

arm-fsl-linux-gnueabi-gcc-4.9, JDK1.7.0-131

Flash OS image by SD card or USB OTG

Flash OS image by USB OTG

EXT4 file system is supported

EXT4 file system is supported

MFT Tools are supported on Windows XP/Windows Vista/ Windows 7

MFT Tools are supported on Windows XP/Windows Vista/ Windows 7



UBOOT

boot mode(eMMC/SD/USB OTG)

boot mode(eMMC/SD/USB OTG)

UBOOT LOGO

UBOOT LOGO

RAM(1G/2G)

RAM(1G)







































Android Kernel

Version: Android-KK4.4.2

Version: Android 6.0.1_2.1.0

EXT4/NFS/FAT32/NTFS file system

EXT4/NFS/FAT32/NTFS file system

eMMC(8G)

eMMC(8G)

Watchdog

Watchdog

RTC

RTC, RX8010

IO

IO

user key: 2(VOL+, VOL-)

user key: 2(VOL+, VOL-)

SPI, can communicate with MCP2515

SPI

I2C

I2C

DVP OV5640

DVP OV5640

MIPI OV5640

MIPI OV5640

USB UVC

USB UVC

PWM

PWM

capacitive touching(GT9XX, GT928)

capacitive touching(GT9XX, GT928)

LCD, 255 ratio adjustable

LCD, 255 ratio adjustable

LCD

1. RGB 4.3'' LCD(480x272)

2. RGB 7'' LCD(800x480)

3. mipi 7''(1024x600 not supported presently)

4. LVDS10.1''(1280x800)

5. HDMI 1920x1080M@60

6. HDMI 1280x720M@60

7. LVDS 1024x768

8. LVDS 1920x1080

9. RGB 5''(640x480)

A. RGB 7''(1024x600)

LCD

1. RGB 7'' LCD(800x480)

2. RGB 7'' LCD(1024x600)

3. LVDS 10.1''(1280x800)

4. HDMI 1920x1080M@60

5. MIPI 1024x600 7''

MIPI-DSI(7'' 1024*600)

MIPI-DSI(7'' 1024*600)

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Device

USB Device

TF/SD/MMC card: 64GB tested

TF/SD/MMC card: 64GB tested

UART: 5

UART

WM8962 audio: record and playback, ALSA, speaker (D amplifier), earphone output
WM8960 audio: record and playback, ALSA, speaker (D amplifier), earphone output

WM8960 audio: record and playback, ALSA, speaker (D amplifier), earphone output

Ethernet(AR8031, 1000/100/10Mbps)

Ethernet(AR8031, 1000/100/10Mbps)

3G


4G, ME909s-821, EC20

4G, ME909s-821

WiFi, RTL8723BU, STA

WiFi, RTL8723BU, STA

BT, RTL8723BU

BT, RTL8723BU

GPS, VK1613

GPS, VK1613

CAN 2.0B

CAN 2.0B

HDMI

HDMI

USB to UART


SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q

SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q

LVDS single/ dual channel

LVDS single/ dual channel(10.1'' 1280*800)


















Testing APP

WIFI

WIFI

RTC

RTC

SPI to CAN MCP2515


Flexcan

Flexcan

IP address setting

IP address setting

sleeping mode waken up

sleeping mode waken up

TTL to RS232

TTL to RS232

RS485

RS485

audio record/ playback

audio record/ playback

3G wireless network


4G wireless network

4G wireless network

Speaker

Speaker

RGB backlight adjusting

RGB backlight adjusting

Watchdog

Watchdog

MMC/TF/SD card and U-disk auto-mounting and unintalling; SATA2 ext4 hard disk auto-mounting and uninstalling

MMC/TF/SD card and U-disk auto-mounting and unintalling;SATA2 hard disk auto-mounting and uninstalling

OS Linux Console

Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2

ARMv7 architecture, support hard floating-point calculation




Booting Mode

USB, SD download flashing

USB, SD card one-key to start OS image flashing

Single/multiple files automatic flashing


Support system files flashing in EXT4 format


MFG tools are supported by WindowsXP/Vista/Windows7




UBoot

boot mode selection(eMMC/USB OTG)


RAM


UBOOT LOGO














Linux Kernel

Version: Linux-3.0.35

LCD backlight, adjustable up to 255-grade

File system form: EXT4/ NFS/ FAT32/NTFS

LCD driver(7''800x 480, 10.1'' 1024x 800, 4.3'' 480x 272)

eMMC

USB Host driver: U-disk, USB Hub, USB keypad and mouse

watchdog

USB Device

RTC

TF/SD/MMC card

IO

UART

user key

WM8962 audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output

SPI

Ethernet(AR8031, 1000/100/10Mbps)

I2C

3G

EIM 4G(EC20)

OV5640 OV5640-MIPI

USB to UART

PWM

SATA hard disk driver

Capacitive touching driver, resistive touching(Linux)

LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon)













Testing APP

WiFi

3G wireless network

telnet

USB camera

RTC

Audio recording/ playing back

SPI to CAN MCP2515

IIC

Flexcan

GPU

IP/Mac address setting

IPU

Sqllite

VPU

sleeping mode waken up

Speaker

TTLto RS232

RGB display backlight adjusting

RS485

Playing of 1080P video and MP3 file

Audio recording/ playing back

Watchdog

GPRS wireless network

MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling

GPS

FTP

SPI

Boa Web Server

Linux QT4.8.5

Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2

ARMv7 architecture, support hard floating-point calculation





OS Flashing


OS flashing by SD card or USB

USB, SD card one-key flashing

Single/multiple files automatic flashing


Support system files flashing in EXT4 format


MFG tools are supported by WindowsXP/Vista/Windows7




UBoot

boot mode selection(eMMC/USB OTG)


RAM


UBOOT LOGO




















Linux Kernel

Version: Linux-3.0.35

LCD backlight, adjustable up to 255-grade

File system form: EXT4/ NFS/ FAT32/NTFS


LCD

1. RGB 4.3'' LCD(480x272)

2. RGB 7'' LCD(800x480)

3. mipi 7''(1024x600 not supported presently)

4. LVDS10.1''(1280x800)

5. HDMI 1920x1080M@60

6. HDMI 1280x720M@60

7. LVDS 1024x768

8. LVDS 1920x1080

9. RGB 5''(640x480)

A. RGB 7''(1024x600)

eMMC

USB Host: U-disk, USB Hub, USB keyboard and mouse, etc

Watchdog

USB Device

RTC

TF/SD/MMC card

IO

UART: 4

User key: 4

audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output

default chip is WM8960, WM8962 is compatible, users can select in uboot menu

SPI

Ethernet(AR8031, 1000/100/10Mbps)

I2C

3G

EIM

4G(Huawei ME909S, Quetel EC20)

camera DVP OV5640 MIPI OV5640

USB to UART

PWM

SATA hard disk

Capacitive touching driver(GT9xx, GT928 and FT5x06), resistive touching(Linux)

LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon)

LVDS

Testing APP

WiFi

3G wireless network

telnet

USB camera

RTC

Audio recording/ playing back

SPI to CAN MCP2515

IIC

Flexcan

GPU

IP/Mac address setting

IPU

SQLite

VPU

sleeping mode waken up

Speaker

TTL to RS232

RGB display backlight adjusting

RS485

Playing of 1080P video and MP3 file

Audio recording/ playing back

Watchdog

GPRS wireless network

MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling

GPS

FTP

SPI

Boa Web Server

Configuration sheet

Name

Configuration

Frequency

Grade

Temp Width

Note

FETMX6Q-C SoM

i.MX 6Quad

Cortex-A9

1G DDR3, 8GB eMMC

1GHz commercial

0℃~+70℃

-20℃~+70℃

1G DDR3, 8GB eMMC

800MHz

industrial

-40℃~+85℃


2G DDR3, 8GB eMMC

1GHz

commercial

0℃~+70℃

optional

2G DDR3, 8GB eMMC 800MHz industrial -40℃~+85℃ optional

▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »


Optional Module
4.3 inch Resistive LCD Module 7.0-inch LCD Module with MIPI display Forlinx 5G Module
4.3 inch Resistive LCD Module 7.0-inch LCD Module with MIPI display 7.0-inch TFC LCD Module with Capacitive Touch Panel
7.0-inch TFT LCD Module with Resistive Touch Panel 10.1-inch LVDS Display with Capacitive Touch Panel
7.0-inch TFT LCD Module with Resistive Touch Panel 10.1-inch LVDS Display with Capacitive Touch Panel

Evaluation Kit
FETMX6Q-C System On Module 1
OKMX6Q-C Single Board Computer 1
Kits Pack
5.5*2.1mm AC220V DC5V 3.0A power adapter 1
Two-hole crossover serial cable 1
Other Packing box, Warranty card, Anti-static bag, Certificate

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(i.MX6Q reference manual), schematic documentations to help customer start their development rapidly.

Forlinx provides embedded hardware reference manual, embedded software reference manual, including NXP i.MX6Q embedded software Android system reference manual, and Linux system reference manual.

For more details on solution design with i.MX6 Quad SBC

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering


2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.

▊ Related News


▊ Other Forlinx iMX6 Series Products


FETMX6Q-S System on Module
FETMX6Q-S System on Module
CPU: NXP i.MX6 Quad
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35,Linux4.1.15,Android4.2,Android6.0
Learn More
Single Board Computer OKMX6Q-S3 based on NXP i.MX6Q
OKMX6Q-S3 Single Board Computer
CPU: NXP i.MX6 Quad
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35,Linux4.1.15,Android4.2,Android6.0
Learn More
OKMX6ULL-C Single Board Computer
OKMX6ULL-C Single Board Computer
CPU: NXP i.MX6ULL
Architecture: Cortex-A7
Frequency: 800MHz
RAM: 512MB DDR3
ROM: 8GB eMMC
System: Linux4.1.15+QT5.6
Learn More
Single Board Computer OKMX6DL-C based on NXP i.MX6DL
OKMX6DL-C Single Board Computer
CPU: NXP i.MX6DualLite
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux4.1.15,Android4.4,Android6.0
Learn More
