FETMX6ULL-S System on Module

CPU: i.MX6ULL

Architecture: Cortex-A7

Frequency: 800MHz

RAM: 256MB DDR3,512MB LvDDR3(optional)

ROM: 256MB NandFlash,4GB eMMC

System: Linux4.1.15+QT5.6

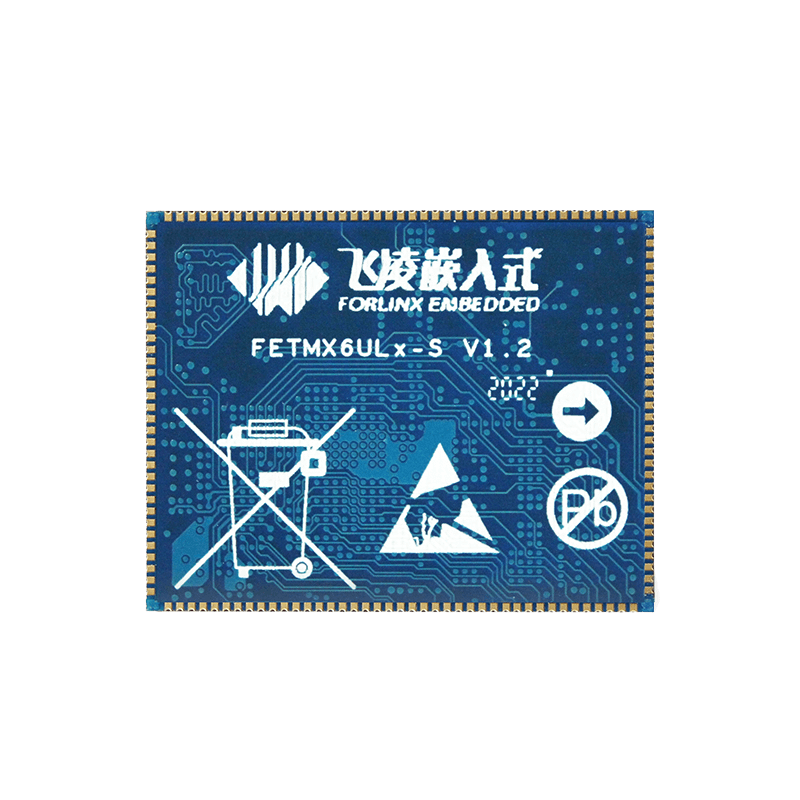

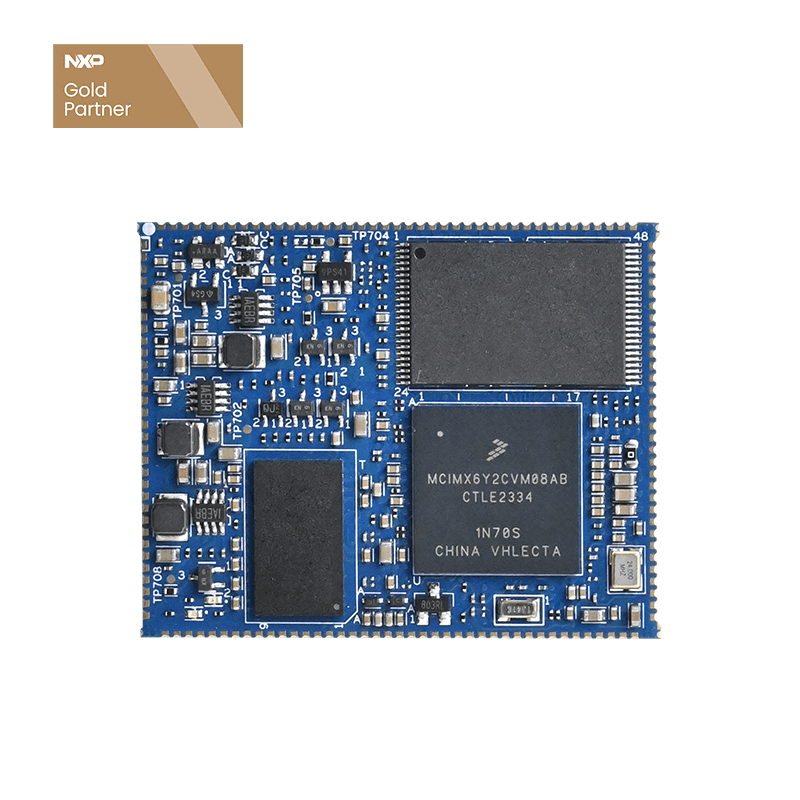

FETMX6ULL-S System on Module ( SoM)


FETMX6ULL-S system on module is based on NXP Cortex -A7 low power featuring processor i.MX6UL L@ 800MHz, it has two native Ethernet ports, two CAN controller and eight serial ports, both industrial grade and expanding commerce grade are optional to users, and the SoM is well supported with Linux4.1.15 with QTGUI.

Compact size, optimized performance


8-layer ENIG SoM PCB designing{link8 31 }edge soldering package, compact size by 44*35mm;

i.MX6ULL system on module SoM
iMX6ULLsystem on module SoM

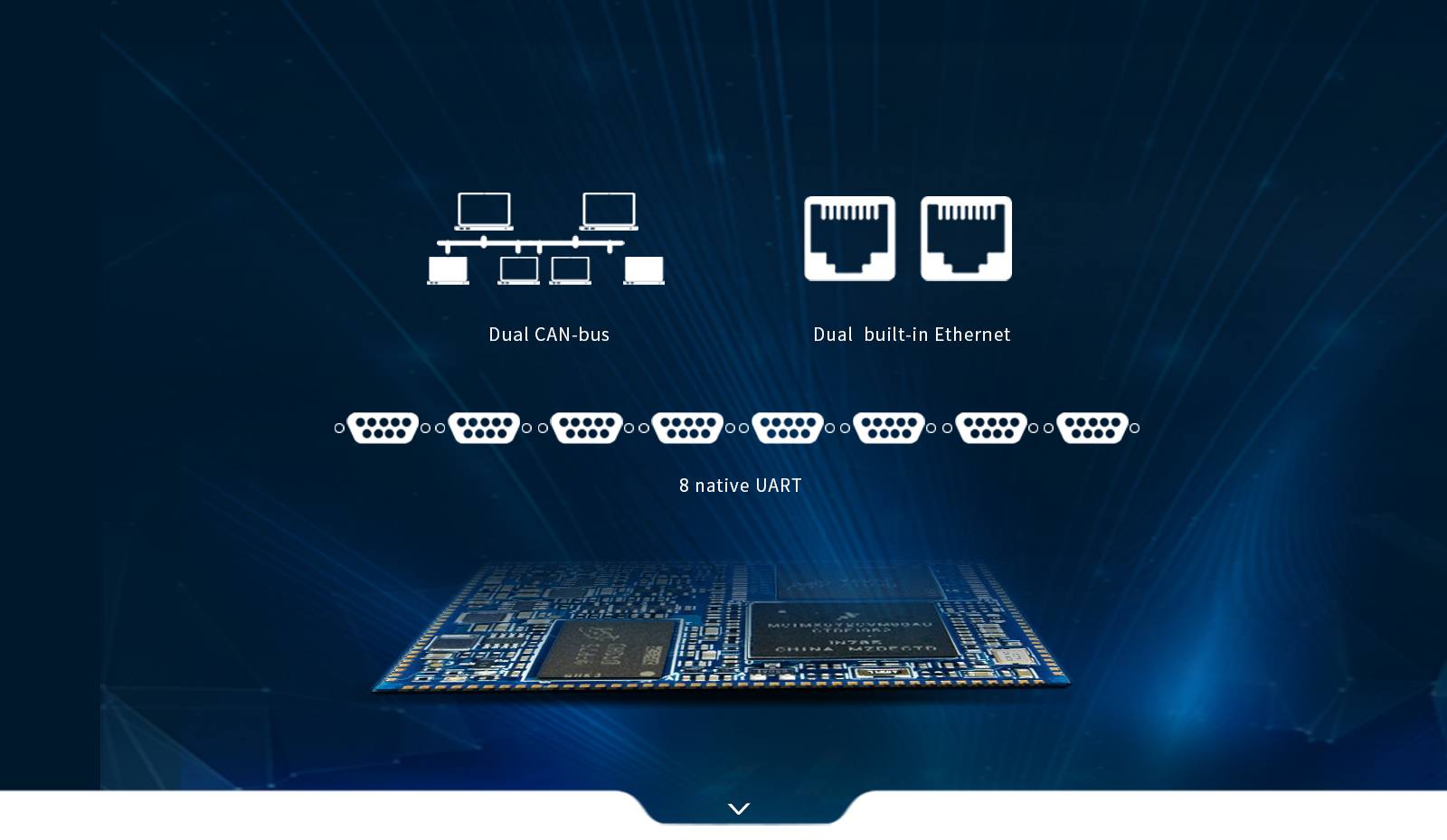

Dual Ethernemt, Dual CAN, Octa UART


CPU integraded with two real-time CAN, dual fast Ethernet ports and eight UART for multiple peripherals

i.MX6ULL SoM dual ethernet, two can, eight serial
iMX6ULL SoM dual ethernet, two can, eight serial

Media playing, digital camera, WXGA display


24-bit parallel LCD output up to WXGA (1366x768); 8/10/16/24-bit parallel camera sensor OV9650; three IIS interfaces, ALSA audio form

i.MX6ULL system on module
i.MX6ULL system on module

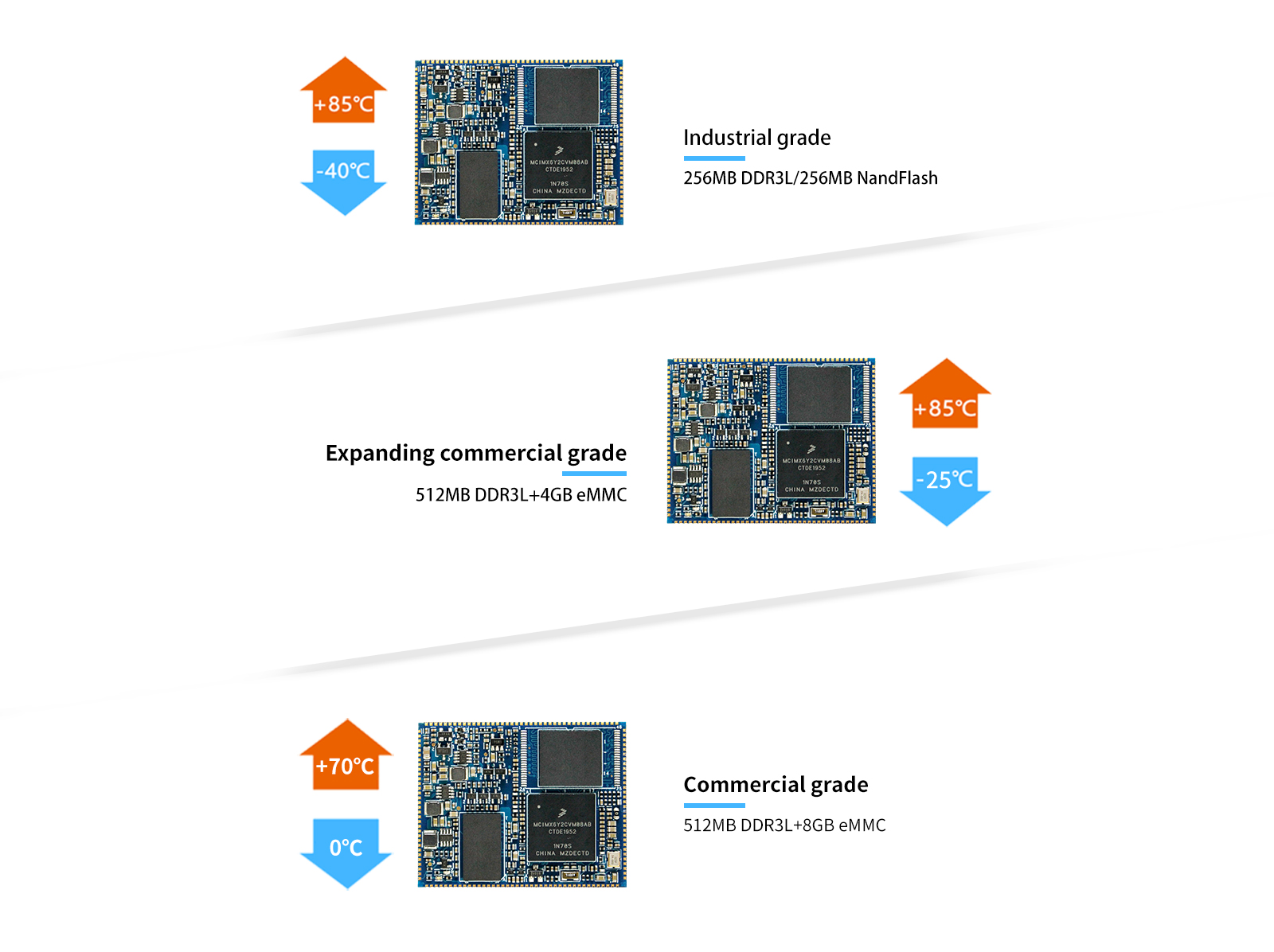

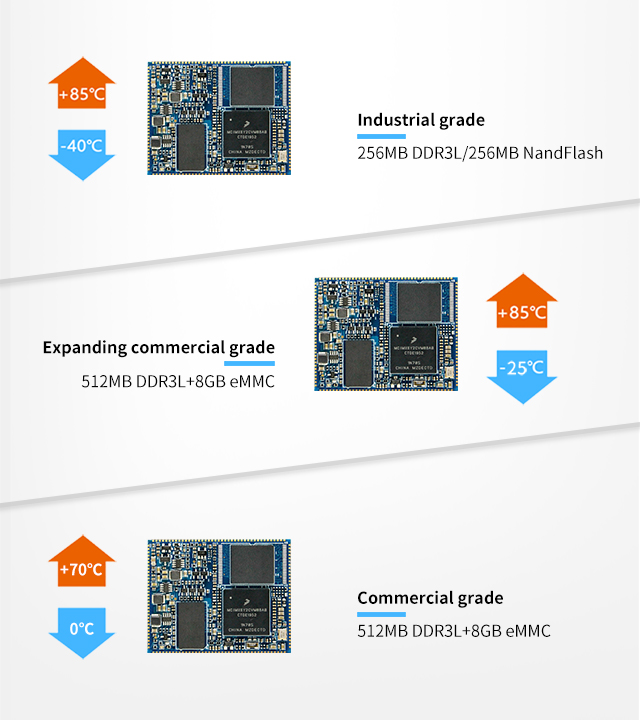

Flexible options


Both industrial grade and commerce grade are optional, 256MB DDR3L/512MB DDR3L RAM, 256MB NandFlash/4GB eMMC

i.MX6ULL system on module
iMX6ULL system on module

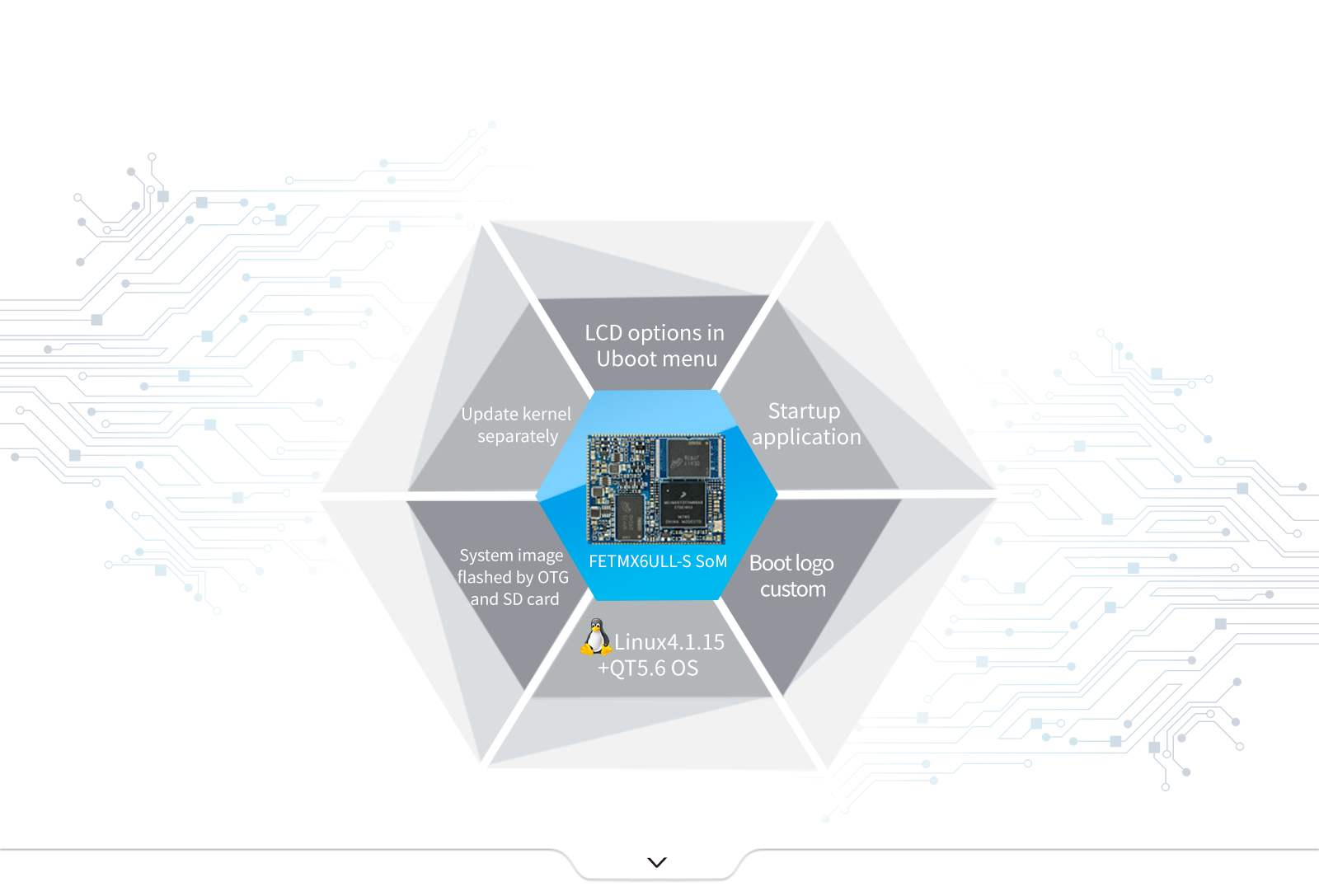

High software accessiblity


SoM supported with Linux4.1.15/ QT5.6, can support OTG, SD/ TF card flashing mode, and can support separately update kernel

i.MX6ULL cpu module



Target Application


Widely applicable for medical, power industry , security, car electronics, rail transportation, communication, EV chasrger, smart home, commerce electronics, portable device, HMI and other fields

i.MX6ULL arm core board
iMX6ULL arm core board


▊ Hardware Features


FETMX6ULL-S System on Module
CPU NXP i.MX6ULL CAN 2
Architecture Cortex-A7 USB 2
Frequency 800MHz SD/MMC/SDIO 2
RAM 256MB DDR3 / 512MB DDR3 Ethernet 2x 10/100M
ROM 256MB NandFlash / 4GB eMMC UART/IrDA 8
Voltage input 5V EINT/GPIO supported
GPU PXP Video Coder software codec
Dimensions 35mm*44mm Camera 1, 8-bit(DVP),up to 5-Megapixel;
Package edge soldering PWM 8
OS Linux4.1.15+QT5.6 ADC 10
LCD RGB 24-bit, up to WXGA (1366 x 768) eSAI 1
Audio 3 Keypad Port 8*8
I2C 4 SPDIF 1
SPI 4 QSPI 1

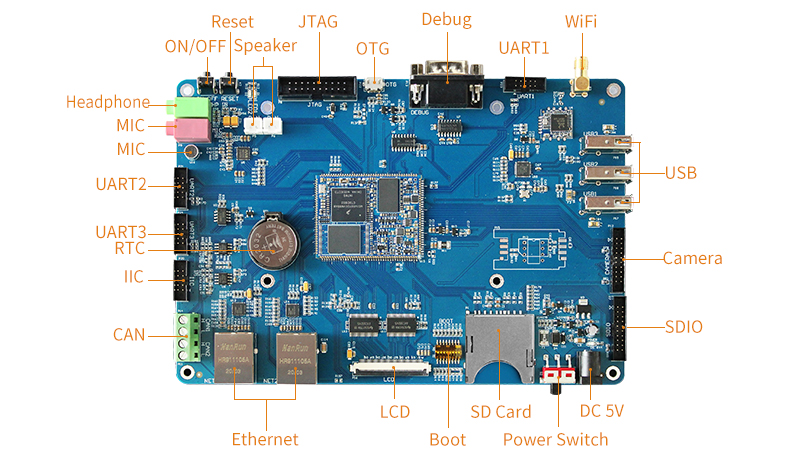

OKMX6ULL-S Single Board Computer
Audio 1x Phone, 1x MIC, 2x Speaker JTAG supported
I2C 2 ADC 4, for resistive touch
CAN 2 DIP switch boot mode selection
Camera 1, 13.0MP parallel Reset 1
SD/MMC/SDIO 1 PWM 1, for backlight control
USB Host 3x USB2.0 LCD 1, can support touch function
USB OTG 1x USB micro 2.0 WiFi& BT 1
Ethernet 2x 10/100M, RJ45 GPS serial port
UART 3 3G/4G USB 3G/4G
Power input 5V RTC supported
Camera OV9650(preview, photograph) LED 2
