FET5718-C System on Module

CPU: TI AM5718

Architecture: Cotex-A15,Heterogeneous

Frequency: 1.5GHz

RAM: 1GB DDR3L+ECC

ROM: 8GB eMMC

System: Linux4.9.41+Wayland

Download Message Compare

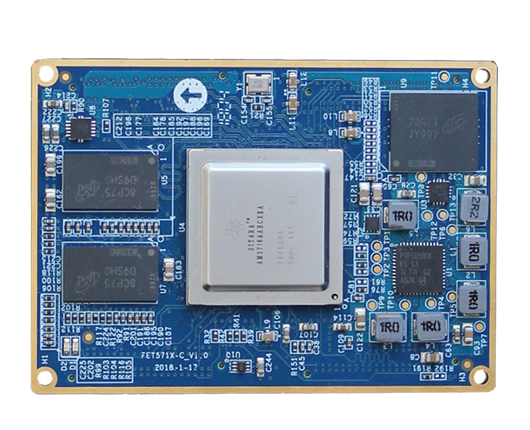

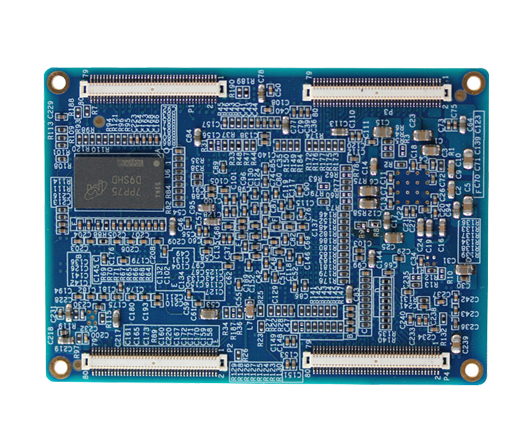

System on Module FET5718-C based on TI Sitara AM5718

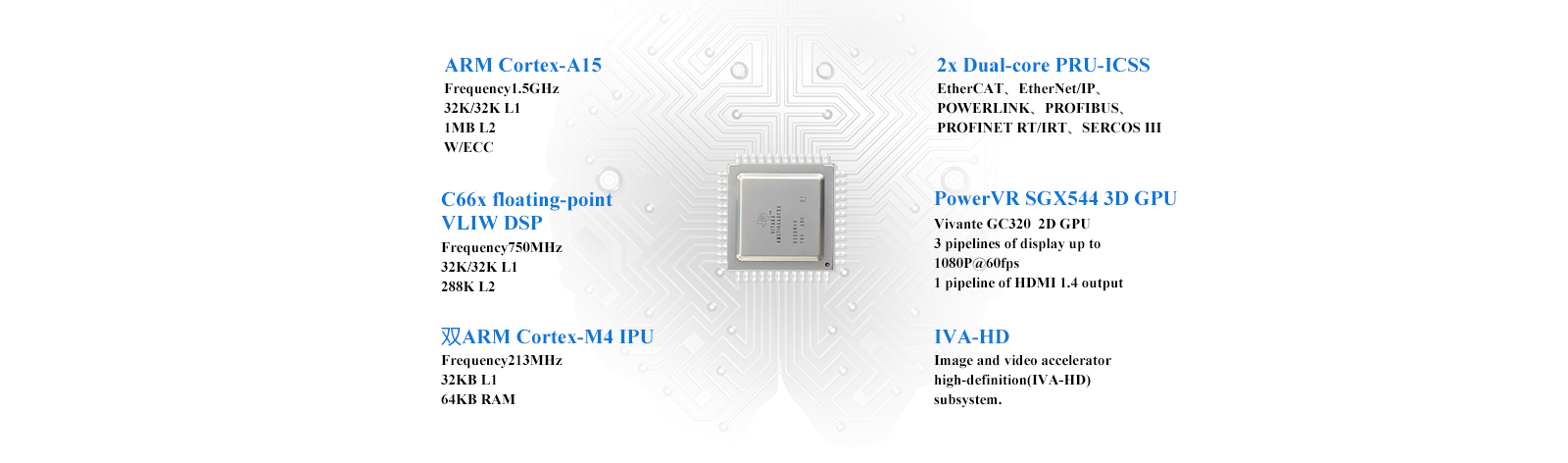

FET5718-C is an SoM (system on module) designed by Forlinx based on TI AM5718 SoC, AM571x Sitara™ processors are Arm® applications processors built to meet the intense processing needs of modern embedded products.

AM571x devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The devices also combine programmable video processing with a highly integrated peripheral set.


System on Module FET5718-C Features:

  1. ARM Cortex-A15, frequency up to 1.5G Hz;
  2. DSP C66x with frequency of 750MHz
  3. 2x dual-core ARM Cortex -M4 with frequency of 213MHz;
  4. 2x dual-core PRU with frequency of 200MHz;
  5. High-speed transmission interfaces like USB 3.0, PCIe 3.0, HDMI 1.4, UART*10, QSPI*1, CAN*2, Gagibit Ethernet*2 are available and also powerful multi-media performance, wide range of applications;
  6. OS options: Linux 4.9.41 + QT5.6, TI-RTOS;
  7. 12-layer EINT PCB designing;
  8. the development board consists of carrier board and SoM, and the carrier board designed with 4-layer PCB and SoM with 12-layer PCB;
  9. carrier board dimensions of 130*190mm, and connector hight between SoM and carrier board is just 2mm
  10. SoM with 320 pins that all functions of CPU are available;
  11. Industrial grade temp width: -40℃ to +85℃

AM5718 system on module

Multi-core heterogeneous development platform

Demos including command line and QT demos such as OpenCV, OpenCL, OpenGL demos, and also DSP and PRU environment build up and development demos

AM5718 system on module AM5718 DSP AM5718 PRU

Powerful Multi-media Performance

The development board is integrated with SGX544 3D and GC320 2D GPU which are applicable for senior graphic UI, meanwhile, Cortex-M4 GPU IPU2 is specially used in IVA image and video hardware codec

perfectly supports H.264, MPEG4 multiple encoding forms and video hardware decode playing, supports multiple video together with decoding playing, multiple decoding channels up to 1080P@60FPS,
supports MJPEG iamge hardware codec, and also the VPE can well support hardware image, video zooming and color spacing converting.

1080P H.264

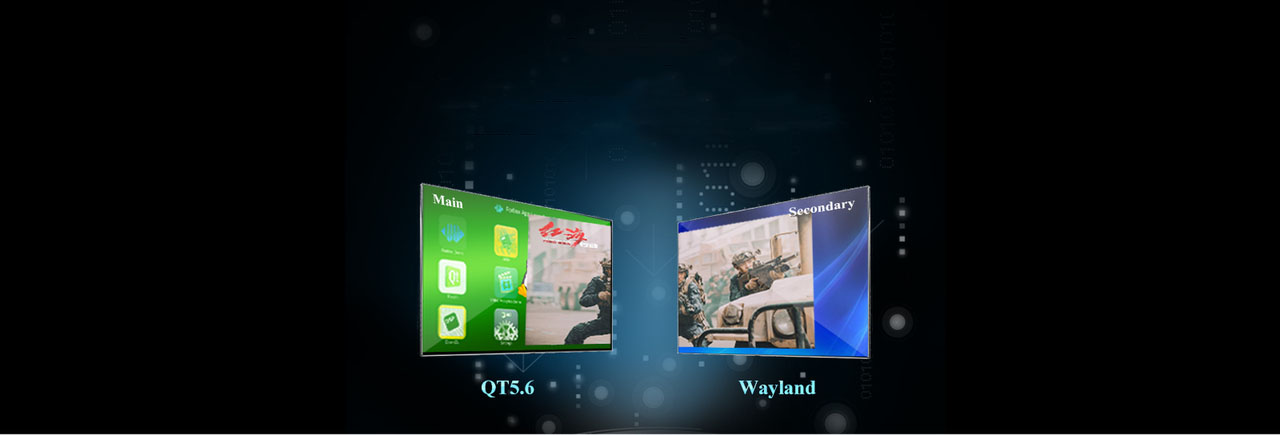

Dual-screen Display

Support Linux 4.9.41, image system with QT5-wayland architecture, can be QT5.6 independent operation,

Also supports LCD and HDMI extended display, supports home screen sub-screen settings, exclusively provides waylandsink (hardware decoded video playback)

Window fixed-point display; Qt, OpenCV window fixed-point display solution

Dual-screen

Multiple Expanding Functions

Set LCD resolution and boot logo in UBOOT,

flash OS image just by an SD card, WIFI, MIPI camera , CPU frequency auto adjusting and appoint a fixed frequency

Deeply optimized operating system

Forlinx chose a high-version Linux kernel and QT system to support Linux 4.9.41 plus QT5.6 and to optimize in depth.

Deeply optimized operating system


Availabe Demos

TESTING DEMO
Forlinx Demo
BackLight
Keypad
RTC
Network
Ping
DemoBrowser
Calculato
WatchDog
Musicplayer
Audiorecorder
WIFI
Terminal
Can     4G
ARM ralted
DDR Bandwidth
Memory Latency
NBench
Linpack
Posix_SMP
Communication Bandwidth
Communication Latency
Whetstone
3D
Chameleon
KMS Cube
Coverflow
Navigation
ExampleUI
Multimedia
IVAHD H.264 Decode
VIP VPE IVAHD MPEG4 Encode and Decode
Audio Capture
H.265 (HEVC) Decode
DSP C66 Image Processing
AAC Decode
IVAHD MJPEG Encode
IVAHD H.264 Encode
Settings
Network Settings
System Shutdown
Task Info
Refresh Matrix
Memory
atrix Shutdown
system Info
Video Analytics Demo
OpenCV+OpenCL+OpenGL Demo
USB
USB Bonnie
CPU frequency testing
Command Line Testing

system information inquiry

key test

UART test

Watchdog test
WIFI test
Screen shot test
RTC test
Temp sensor test
CAN test
USB mouse test
USB2.0 test
USB 3.0 test
HDMI test

LCD backlight adjusting

camera test
SD card test
Ethernet test
Web service test
Audio record/ playback test
Sobel test
Facial recognition test
PCIe test
QSPI test
4G test
SATA test
SPI test
BT test
Hardware Codec Testing
Video playing
VPE
Gstreamer
Video zoom
Video amplication
Color space converting
Image codec
MJPEG decode
MJPEG encode
Video codec
H264 decode H264 encode
MPEG4 decode MPEG4 encode
PRU Testing
CSS tutorial
CCS installation
Install PRU to CCS
PRU firmware start and stop
Build new CCS
TI official demo compiling and testing
Import project Compile project
Demo testing Start PRU
Forlinx demo compiling and testing
Import project Compile project
LED demo test UART test
DSP and IPU Testing
Multiple cores communication test DSP test
Re-compile testing demo by CCS A15 application compiling

▊ Features


Overview of FET5718-C System on Module
CPU TI Sitara AM5718
Architecture Cortex-A15-1.5GHz
2xDual-Core PRU-200MHz
RAM 1GB DDR3L
Dimensions 50*70mm
PMU TPS659162RGZR
Working Temp Width -40℃~+85℃
OS Linux4.9.41+ QT5.6+Wayland
DSP-C66X-750MHZ 2xDual Cortex-M4-213MHz
PowerVR SGX544 3D GPU Vivante GC320 2D GPU
Flash/ Storage 8GB eMMC
Pakcage board to board connector
Voltage Input 5V
RH 10-90%RH non-condensing

FET5718-C System on Module Features
Peripheral QTY Spec.
LCD ≤3 GB888 24-bit


HDMI


1

HDMI 1.4a, 1080P@60Hz;

36-bit RGB display;

HDCP 1.4 encryption;

Deep color mode (10-bit, 12-bit color depth are both supported by pixel clock of 148.5MHz)



CAMERA



≤4


2x 8-bit DVP, up to 5.0MP


2x 8/ 16/ 24-bit DVP




MIPI CSI-2



2


CSI-2_PHY1: 1 clock lane+ 4 data lane


CSI2_PHY1: 1 clock lane+ 2 data lane




SD/MMC/SDIO




≤4

1-bit or 4-bit transferring mode is supported by SD and SDIO card with UHS-I SDR104 mode (up to 104MB/s)


SD/ MMC/ SDIO1: 4-bit data


SD/ MMC/ SDIO2: 8-bit data (used as eMMC on SoM)


SD/ MMC/ SDIO3: 8-bit data


SD/ MMC/ SDIO4: 4-bit data


IIC


≤5

IIC1/ 2: up to 400Kbps, standard OD


IIC3/ 4/ 5: up to 3.4Mbps, analogy OD

HDQ1W ≤1

Support TI/ Benchmarq HDQ master device function


Comply with Dallas 1-Wire protocol

UART ≤10

can support 5/ 6/ 7/ 8 data bits, parity bit, 1, 1.5, 2 stop bits

UART1: full serial interface is supported

UART3: IrDA 1.4, CIR are supported

others are standard interface

SPI ≤4

up to 4x SPI, each with up to 4 master channel

QSPI ≤1

work as master mode only


6 signal pins

McASP ≤8

supports 8-ch audio at most


McASP1/2: up to 16 separate TX/ RX channel


McASP3-8: up to 4 separate TX/ RX channel

USB3.0 ≤1

super speed USB3.0 Dual-Role-Device, Host is supported

USB2.0 1

high-speed USB 2.0 Dual-Role-Device, Host is supported

SATA 1 SATA Gen2
PCIe ≤2

PCI Express 3.0 subsystem, with 2x 5-Gbps channel


1x Dual-channel interface with GEN2 standard, 2x Single-channel interface with Gen2 standard

CAN ≤2

two CAN controller at most, complys with CAN2.0 protocol

Ethernet ≤2

3-port gigabit ethernet switch subsystem provides ethernet packet communication and can be configured as an ethernet switch. It provides two network ports and available for RGMII/ RMII/ MII interface, 10M/ 100M/ 1000M adaptive

PWMSS ≤3

supports up to 3x PWMSS, each is available for:


eHRPWM: 16-bit timer, up to 2 separate PWM output


eCAP: 32-bit timer, one channel is special for input capture pin


eQEP: rotating decode unit

JTAG supported standard IEEE1149.1
KeyPad Port supported 9*9 keyboard
GPMC 1

8-bit/ 16-bit data bus width


up to 28-bit address bus


up to 8-bit chip selection bus
