FETA40i-C System on Module

CPU: A40i

Architecture: Cortex-A7

Frequency: 1.2GHz

RAM: 1GB DDR3,2GB DDR3(optional)

ROM: 8GB eMMC

System: Linux3.10,Android7.1

Download Message Compare

System on Module FETA40i-C based on Allwinner A40i

FETA40i-C is a system on module designed based on Allwinner Cortex-A7 quad-core industrial grade processor A40i with frequency up to 1.2GHz, it integrates with GPU MALI400MP2, RAM 1GB/ 2GB DDR3L and 8GB eMMC. Mostly popular video and iamge encode forms are perfectly supported. It is a superior item with advantages of excellent performance in industrial grade stability but low power and cost effcient performance. Supported with OS Linux and Android systems, applicable for industrail control vision interactive products, such as smart terminals, industrial control , data collection, machine vision, industrial IoT, portable devices, digital signage, etc.

The SoM has below features:

  • 1. Allwinner Cortex-A7 industrial grade quad-core processor A40i, frequency up to 1.2GHz, integrated with Mali400MP2 GPU;
  • 2. Supports dual-screen displaying both sync. and async, various display interfaces RGB/ MIPI/ dual 8-bit LVDS/ HDMI/ TV out are all support and available for 1920x 1080@ 60FPS;
  • 3. One Gigabit Ethernet and one fast Ethernet are supported and available for WIFI/ BT4.0, 4G is also supported;
  • 4. Can support multiple camera inputs, 2-ch DVP camera up to 5.0MP, 4-ch TVIN can support NTSC and PAL;
  • 5. CPU integrates with audio codec, can support one differential PHONEOUT, one stereo earphone output, and one microphone input;
  • 6. Various peripherals: UARTx 8, SDx 4, USBx 3, SPIx 4, IICx 5, SATAx 1, PWMx 8;
  • 7. Supports OS Linux and Android

Allwinner Cortex-A7 A40i

Cost efficient, expand commercial grade and industrial grade optional,
superior product performance in stability

A40i Cortex-A7 quad core 1.2GHz system on module pc
A40i Cortex-A7 quad core 1.2GHz system on module pc Pc Phone

SoM 10-layer ENIG PCB designing

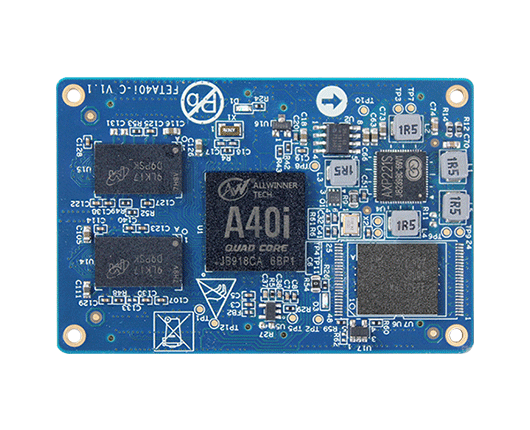

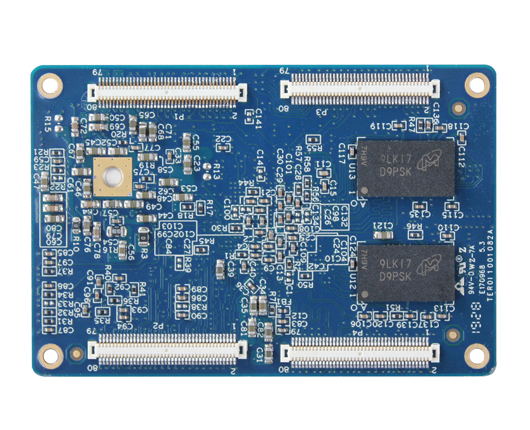

SOM FETA40i-C is based on a 10-layer PCB designing

A40i cortex a7 quad core system on module Pc
A40i cortex a7 quad core system on module Pc Phone

Stereo timbre, high-definition output
and multiple hardware video codec forms. The processor is built in with audio coder.

dual screen Pc
dual screen Pc Phone

A wide range of peripherals

The SoM is scalable form one Gigabit Ethernet, one fast Ethernet, eight UART,
four SD, three USB, four SPI, five IIC, eight PWM, one SATA and two ISO-7816 interfaces

3 USB2.0, 1 SATA, 8 UART, 4 SPI, 5 IIC, 2 MAC Pc
3 USB2.0, 1 SATA, 8 UART, 4 SPI, 5 IIC, 2 MAC Pc Phone

Multiple video capture channels

5.0MP DVP OV5640 camera is supported,
four CVBS-IN analog cameras can be supported syncronously
in NTSC and PAL forms for video recording and previewing

TVIN CVBS DVP OV5640 5.0MP Pc
TVIN CVBS DVP OV5640 5.0MP Pc Phone

Versatile power solutions

The SoM is specially designed with low-power PMU AXP221s for precisely control of complex power,
and available for external power mode, Li-ion power mode and USB power mode.

low power PMU, external power supply, Li-battery power supply, USB power supply Pc
low power PMU, external power supply, Li-battery power supply, USB power supply Pc Phone

Optimized system supporting

The SoM is supported with optimized Linux3.10 with QT5.9

Linux3.10 QT5.9 Pc
Linux3.10 QT5.9 Pc Phone

Certificate

Complies with CE, FCC and RoHS

A40i, CE, FCC, RoHS Pc
A40i, CE, FCC, RoHS Pc Phone

OKA40i-C SBC Pin Diagram

OKA40i-C single board computer consists of SoM FETA40i-C and carrier board

▊ Product Video


OKA40i-C SBC Demo | Allwinner A40i processor based

▊ FCU2401 Embedded Computer


FCU2401 Embedded Computer

FCU2401 embedded computer is designed based on Allwinner Cortex-A7 featuring quad-core processor A40i @1.2GHZ, it integrates with MAli400MP2 GPU, RAM 1GB(2GB upgradable) and 8GB eMMC. It has a variety of peripheral sources, such as RS485, CAN, ESAM, USB, Ethernet, 4G, WiFi, GPS, LVDS, HDMI, DI, DO, audio and SATA.


Can support HDMI and LVDS, up to 1080P, dual analog cameras input can be used for video monitoring and image analysis, external standard 3.5mm stereo headphone seat, can support a 4Ω 1w speaker.



▊ Hardware Features


Overview of FETA40i-C System on Module
CPU Allwinner A40i
Main Frequency 1.2GHz
RAM 1GB /2GB DDR3
Dimensions 68*45mm
PMU AXP221S
Working Temp Width

Industrial grade: -40℃~+85

Expand commercial grade: -25℃~ +85℃

Architecture ARM Cortex-A7
Core Number 4
Flash 8GB eMMC
Package board to board connector
Voltage Input DC4.2V
RH 10-90%RH non-condensing
OS Linux3.10, QT5.9

FETA40i-C Hardware Features
Peripheral QTY Spec.
LCD ≤2

RGB888, up to 1920x 1080@ 60FPS

HDMI 1

HDMI1.4, 1080P@ 60FPS

HDCP1.2 encryption

LVDS 1

two 8-bit data lanes, two clock lanes, up to 1920x 1080@ 60FPS

MIPI_DSI TBD 1

MIPI DSI V1.01& MIPI D-PHY V1.00, 4 data lanes, up to 1080P@ 60FPS

TVOUT 4

4 CVBS output channels, supports NTSC and PAL

CAMERA ≤2

CSI0: one 8/ 16-bit DVP, up to 5.0MP, 1080P@ 30FPS

CSI1: one 8/ 16/ 24-bit DVP, up to 5.0MP, 720P@ 30FPS

TVIN 4

4 CVBS input channels, supports NTSC and PAL



SD/MMC/SDIO



≤4

SD/ SDIO 1-bit or 4-bit transfer modes up to 50MHz


SD/ MMC/ SDIO0: 4-bit data bus(for system image flashing)


SD/ MMC/ SDIO1: 4-bit data bus


SD/ MMC/ SDIO2: 8-bit data bus(for eMMC)


SD/ MMC/ SDIO3: 4-bit data bus

USB HOST 2

USB2.0 (up to 480Mbps)

USB OTG 1

USB2.0 (up to 480Mbps)

IIS/PCM ≤2

up to two IIS audio

AUDIO CODEC 1

1-ch differential PHONEOUT, 1-ch stereo earphone output, 1-ch MIC, 1-ch LineIN



UART



≤8

Each up to 115200


UART0: 3-wire, debug


UART1: 8-wire


UART2/ UART3: 5-wire


UART4/ UART5/ UART6/ UART7: 3-wire

SPI ≤4

Full duplex serial interface, maximum clock frequency 100MHz, it can be configured to be master or slave mode, two chip selections for multiple peripherals

IIC ≤5 up to 400Kbps
Ethernet ≤2

1x 10/ 100Mbps, auto-negotiation


1x 10/ 100/ 1000Mbps, auto-negotiation

PWM ≤8 can support PWM output and capture input
JTAG supported
KeyPad Port supported Up to 8*8;
KEYADC ≤2

6-bit, 2 channels, input voltage 0-2V, for analogy key detection, transfer rate up to 250Hz

SMC TBD ≤2 can support ISO/IEC 7816-3:1997(E) and EMV2000(4.0)
CIR ≤2
SATA TBD 1 up to 3.0Gbps

▊ Software Features


OS Linux 3.10
Cross-compiler arm-linux-gnueabihf-gcc  5.3.1
OS Installation by SD card by USB












Linux Kernel

Version: Linux3.10 LCD backlight, 255-adjustable
File system: EXT/NFS/VFAT, etc. LCD driver(7") 1024x600
eMMC driver USB Host driver: U-disk, USB Hub, USB keyboard and mouse
Watchdog driver USB Device driver
RTC driver TF/SD/MMC card driver
IO driver UART driver
Key driver Soc sound card driver
SPI driver Ethernet driver
I2C driver 4G driver
OV5640 driver USB to serial driver
PWM driver HDMI 1080p@60Hz driver
CVBS driver(analogy camera input)x 4 TVOUT driver
Capacitive touch driver LVDS driver (1280x800)















Testing APP

WiFi settings SDIO WiFi STA
USB WiFi module: STA/AP install OS by USB
Telnet IP settings
sshd/sftp server Watchdog
vsftpd FTP backlight adjust
web server--boa key test
4G wireless network touch
SPI test audio record/ play test
UART test hardware decode for video playing
TTL to RS232 camera test
4 analogy cameras input UVC camera
RTC test CPU FM
TVOUT output HDMI output
Qt5.9 Qt5.9 OpenGL ES
hardware encode lib, decode lib hardware floating compiler
gdb adb shell remote log in

▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(A40i reference manual), schematic documentations to help customer start their development rapidly.
