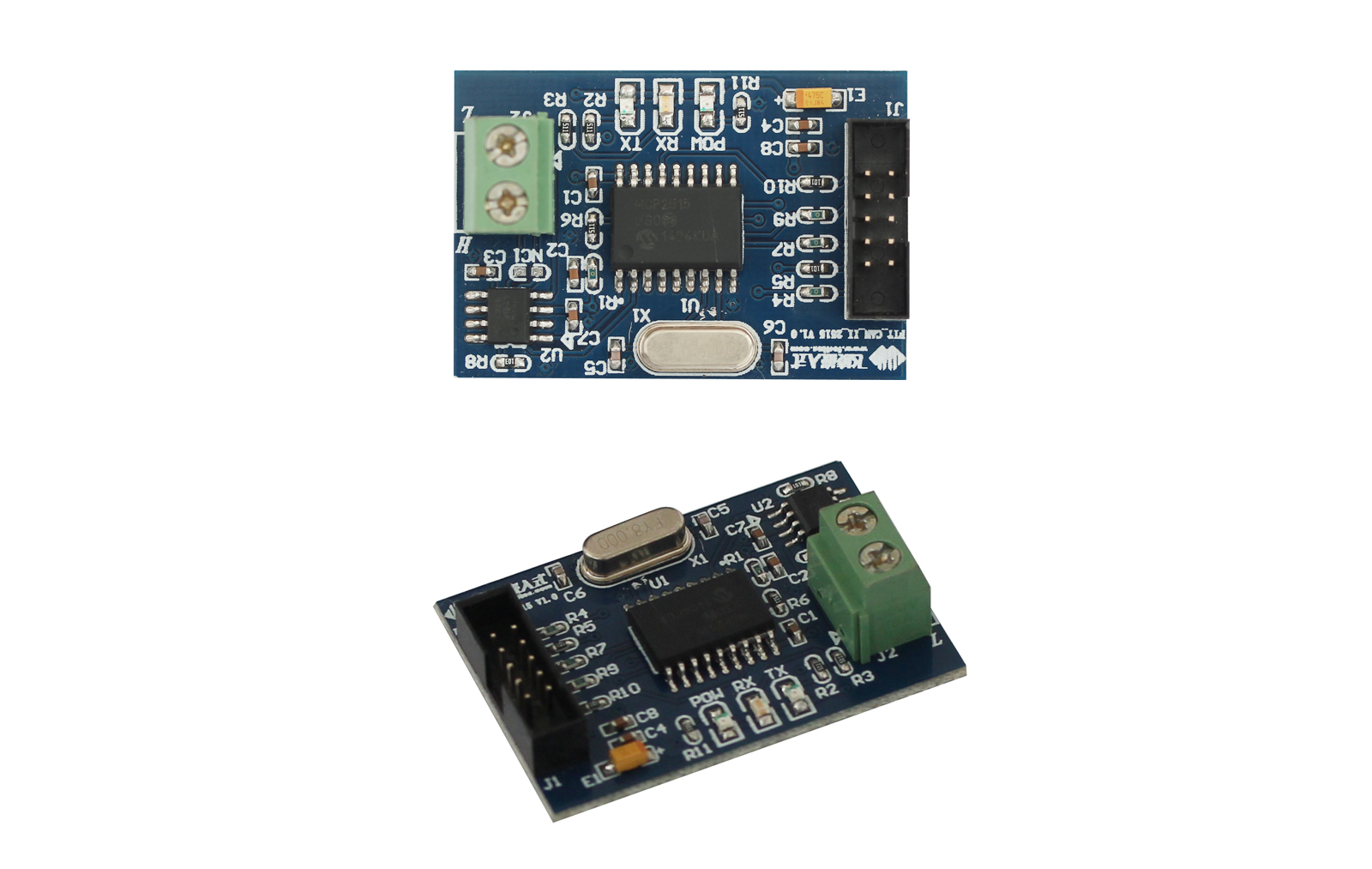

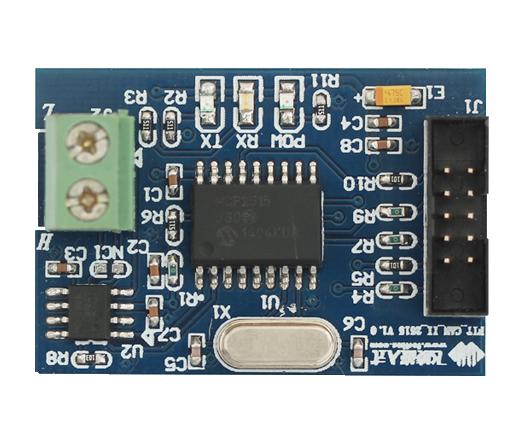

CAN Module

Product model: FIT-CAN-II_2515

Product interface:

Product features: convert SPI on single board computer to CAN

Download Message Compare

CAN bus Module Converted by SPI


CAN bus Module Converted by SPI

SPI to CAN Module
Name CAN module(converted by SPI)
Model FIT-CAN-II_2515
Interface SPI
Spec. rate: Supports a run rate of 1 Mb/s; Meet ISO-11898 standard physical layer requirements, suitable for 12V and 24V systems; Slope external control to reduce RFI; Automatic detection of ground errors at the TXD input (constant appearance); Power-on reset and voltage event undervoltage protection; Failure to power up nodes or undervoltage does not affect the CAN bus; Low current standby operation; Short-circuit protection (positive and negative battery voltage); High-pressure transient protection; Automatic thermal shutdown protection; Up to 112 nodes can be connected; The differential bus is used and has strong noise resistance.
Applicable
Model OS
OK335xD Linux3.2, Android2.3/4.2
OK335xS Linux3.2, Android2.3/4.2
OK335xS-II Linux3.2
OKMX6Q-C Linux3.0.35, Linux4.1.15, Android4.4
OKMX6DL-C Linux3.0.35, Linux4.1.15, Android4.4
OKMX6Q-S3 Linux3.0.35, Linux4.1.15, Android4.4
OKMX6DL-S3 Linux3.0.35, Linux4.1.15, Android4.4
OKMX6DL-S3 Linux3.0.35, Linux4.1.15, Android4.4
OKMX6UL-C Linux3.14.38
OK210 Linux2.6.35.7, Android4.0/2.3
OK4418/6818-C Linux3.4.39
OKMX8MM-C Linux4.14.78, Android9.0
Packling List
SPI to CAN module x1 2.0-10P-15cm cable x 1

▊ How to buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering

2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.
