FETMX6Q-S System on Module

CPU: i.MX6 Quad

Architecture: Cortex-A9

Frequency: 1.0GHz

RAM: 1GB DDR3,2GB DDR3(optional)

ROM: 8GB eMMC

System: Linux3.0.35,Linux4.1.15,Android4.2,Android6.0

Download Message Compare

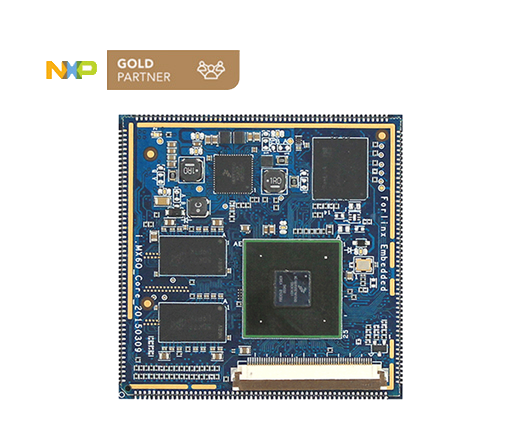

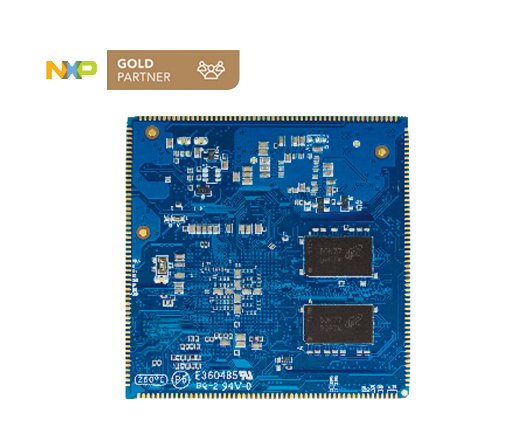

System on Module FETMX6Q-S based on i.MX6 Quad

FETMX6Q-S system on module(SoM) based on NXP quad-core ARM Cortex-A9 i.MX6 Quad-core high-performance processor design, main frequency 1GHz, 8 layers of PCB gold process, stamp hole connection to ensure the best electrical characteristics and anti-jamming, the core board itself is the smallest system, with its own LCD interface, without the bottom plate, power can start and debug, minimize development difficulties.

The supporting base plate OKMX6Q-S3 is rich in resources, on-board 5M pixel digital camera interface, standard two-way 8-bit LVDS interface and HDMI-1.4 interface can bring out the powerful multimedia performance; Standard SD card interface, SATA hard disk interface storage capacity easily improved to TB level, RS232, CAN, RS-485 interface, are equipped with protective devices, easy to deal with industrial environments, perfect lithium battery management circuitry, support infrared reception, Comes with a stereo audio amplifier and an on-board three-axis acceleration sensor for easy development of portable devices. Forlinx Embedded FETMX6Q-S SoM is divided into industrial and commercial grade, commercial grade operating temperature of 0 ℃ to 70 ℃, industrial grade operating temperature of -40 ℃ to 85 ℃.

Main Feature of FETMX6Q-S SoM

  • Stamp Hole Connection, More Stable Performance
  • Vivante GC355 graphics processor;
  • RGB, 2x LVDS, HDMI, MIPI;
  • 4x IIS, 3x IIC, 5x UART, 2x CAN, 5x SPI;
  • 1x DVP, 1x MIPI CSI;
  • 1x USB 2.0 Host, 1x USB 2.0 OTG;
  • SATA, PCIe, PWM, JTAG, GPIO;
  • 10/100/1000Mbps Ethernet;

Advantage

SoM is the smallest system with LCD interface, without baseboard support.

Supports a variety of display screen interfaces and image collectors.

Supports industrial, commercial, and multiple storage configurations.

Supports dual-screen synchronous display, two-screen asynchronous display.


FETMX6Q-S SoM and base plate are connected by stamp holes, which have the advantages of anti-seismic, antioxidant, anti-jamming and low cost.

The number of system on module pins is 220PIN (55 x 4) size 60mm x 60mm square structure design, easy for customers to design PCB layout.

iMX6 Quad core board with 220PIN
iMX6 Quad core board with 220PIN

Support for mainstream operating systems

Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5

i.MX6Q with operating systems

Target Applications

Widely used in industrial control , medical, multimedia, security, automotive, finance,
teaching, electricity, communications, charging piles, smart home, consumer electronics, handheld devices, display control and other fields.

OKMX6Q-S SBC with Industry Applications

Hardware and software references manual

Embedded hardware design manual, embedded Linux development manual
Embedded development environment construction manual, interface driver
Application development examples, etc., everything is more convenient for you to develop products.

Hardware and software references

▊ Hardware Specs


FETMX6Q-S System on Module Specs
CPU NXP i.MX6 Quad
Architecture Cortex-A9
Frequency 1GHz
RAM 1GB DDR3 / 2GB DDR3
Flash 8GB eMMC
Voltage Input 4.2V
2D/3D supported
GPU Vivante GC355/Vivante GC320
PMU MMPF0100NPEP
Dimensions 60mm*60mm
Package edge soldering

OS

Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5

LCD RGB 24-bit(dual 8-bit LVDS)
Audio IIS≤3
I2C 3-ch
SPI 2-ch
CAN 2-ch
USB HOST 1-ch USB HOST 2.0
USB OTG 1-ch USB OTG 2.0
SD/MMC/SDIO 2-ch SD/MMC
Ethernet 1-ch, 1000M
miniPCIE 1-ch
UART/IrDA 4-ch(contains one debug port)
EINT/GPIO supported
Video Encoder hardware codec
HDMI 1-ch
Camera 1-ch, 5.0MP
SATA 1-ch(only available on FETMX6Q-S)

▊ Software Specs


Android OS

OS

Android4.4

Android6.0




Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2, JDK1.6.0-45

arm-fsl-linux-gnueabi-gcc-4.9, JDK1.7.0-131

flash OS image by SD card and USB OTG

flash OS image by USB OTG

file system EXT4

file system EXT4

flash tool MFG Tools is supported by Windows XP/ 7 and Vista

flash tool MFG Tools is supported by Windows XP/ 7 and Vista



UBOOT

boot mode selection(eMMC/SD/USB OTG)

boot mode selection(eMMC/SD/USB OTG)

UBOOT boot LOGO(7'' LCD or 10.1'' LVDS display)

UBOOT boot LOGO(7'' LCD or 10.1'' LVDS display)

RAM(1G/2G)

RAM(1G)


























Android Kernel

Version: Android-KK4.4.2

Version: Android 6.0.1_2.1.0

file system: EXT4/ NFS/ FAT32/ NTFS

file system: EXT4/ NFS/ FAT32/ NTFS

eMMC(8G)

eMMC(8G)

watchdog

watchdog

RTC

RTC, RX8010

IO

IO

user key: 2(VOL+,VOL-)

user key: 2(VOL+,VOL-)

SPI

SPI

I2C

I2C

DVP OV5640 camera driver

DVP OV5640 camera driver

USB UVC camera driver

USB UVC camera driver

PWM

PWM

capacitive touching driver

capacitive touching driver

LCD backlight, 255-rating

LCD backlight, 255-rating

LCD(7'' LCD 800*480, 10.1 LVDS 1280*800)

LCD(7'' LCD 800*480, 10.1 LVDS 1280*800)

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Device

USB Device

TF/SD/MMC card: up to 64GB

TF/SD/MMC card: up to 64GB

UART: 5

UART

WM8962 audio: audio record and playback, ALSA interface, can support speaker(D amplifier),earphone output
WM8960 audio: audio record and playback, ALSA interface, can support speaker(D amplifier), earphone output

audio: audio record and playback, ALSA interface, can support speaker(D amplifier), earphone output

Ethernet (AR8031, 1000/100/10Mbps)

Ethernet (AR8031, 1000/100/10Mbps)

3G


4G, ME909s-821

4G, ME909s-821

WiFi, RTL8723BU, STA

WiFi, RTL8723BU, STA

BT, RTL8723BU

BT, RTL8723BU

GPS, VK1613

GPS, VK1613

CAN 2.0B

CAN 2.0B

HDMI

HDMI

USB to UART


SATA disk: SATA II, 3.0 Gbps

SATA disk: SATA II, 3.0 Gbps

LVDS single/ dual channel

LVDS single/ dual channel(can support 10.1'' LVDS display: 1280*800)













Testing APP

WIFI tool

WIFI tool

RTC

RTC

SPI to CAN MCP2515


Flexcan

Flexcan

IP address setting

IP address setting

sleeping mode waken up

sleeping mode waken up

TTL to RS232

TTL to RS232

RS485

RS485

audio record/ playback

audio record/ playback

3G wireless network


4G wireless network

4G wireless network

Speaker

Speaker

RGB backlight adjusting

RGB backlight adjusting

Watchdog

Watchdog

MMC/ TF/ SD card and U-disk auto mounting and unloading;

SATA2ext4 hard disk auto mounting and unloading

MMC/ TF/ SD card and U-disk auto mounting and unloading;

SATA2ext4 hard disk auto mounting and unloading


Linux Console
Compiler arm-fsl-linux-gnueabi-gcc-4.6.2

ARMv7 architecture, support hard floating-point calculation




OS Image Flashing

USB download and flash USB

Single/multiple files automatic flashing


file system: EXT4

Flashing tool: MFG tools,

Support WindowsXP/Vist/Windows7 PC environment


UBoot boot mode selection(eMMC/USB OTG)
RAM
UBOOT boot LOGO(not provided)
Linux Kernel Version: Linux-3.0.35

LCD backlight driver, 255-rating

Support file systems in EXT4/NFS/FAT32/NTFS, etc format

LCD driver(7'' 800*480, 10.1'' 1280*800, 4.3'' 480*272)
eMMC(4G/8G) USB Host: U-disk, USB Hub, USB keyboard and mouse
watchdog USB Device
RTC TF/SD/MMC card
IO UART
user key driver WM8962 audio: audio record and playback, ALSA interface, can support speaker(D amplifier), earphone output
SPI Ethernet(AR8031, 1000/100/10Mbps)
IIC

3G, 4G wireless module

OV5640 camera driver USB to serial
PWM SATA disk driver
capacitive touching driver

LVDS single/ dual channel, up to 1920×1080












Testing APP

WiFi tool 3G wireless network
telnet USB camera testing
RTC audio record/ playback test
SPI to CAN MCP2515 IIC test
Flexcan GPU test
IP/Mac address setting IPU test
Sqllite VPU test
Sleeping mode waken up Speaker test
TTL to RS232 RGB display backlight adjusting
RS485 test 1080p video and mp3 file playing
audio record/ playback test watchdog
GPRS wireless network MMC/TF/SD card and U-disk SATA2ext4 auto mounting and uninstalling
GPS test FTP
SPI test Boa Web Server


OS Linux Qt4.8.5
Compiler arm-fsl-linux-gnueabi-gcc-4.6.2 ARMv7 architecture, support hard floating-point calculation
Programming method USB download and flash USB
Single/multiple files automatic flashing
file system: EXT4

Flashing tool: MFG tools,

Support WindowsXP/Vist/Windows7 PC environment


UBoot boot mode selection(eMMC/USB OTG)
RAM
UBOOT LOGO(not provided)










Linux Kernel

Version: Linux-3.0.35 LCD backlight driver, 255-rating
Support file systems in EXT4/NFS/FAT32/NTFS,etc format

LCD driver(7'' 800*480, 10.1'' 1280*800, 4.3'' 480*272)

eMMC(4G/8G)

USB Host: U-disk, USB Hub, USB keyboard and mouse

watchdog

USB Device

RTC TF/SD/MMC card
IO UART: 4
user key: 4 WM8962 audio: audio record and playback, ALSA interface, can support speaker(D amplifier), earphone output
SPI Ethernet(AR8031, 1000/100/10Mbps)
IIC

3G, 4G wireless module driver

OV5640 camera driver USB to serial
PWM SATA hard disk driver
capacitive touching driver LVDS single/ dual channel(single channel up to 1366×768, dual channel up to 1920×1080 coming soon)













Testing APP

WiFi tool 3G wireless network
telnet USB camera test
RTC audio record and playback
SPI to CAN MCP2515 I2C
Flexcan GPU
IP/Mac address setting IPU
Sqllite VPU
sleeping mode waken up Speaker
TTL to RS232 RGB baklight adjusting test
RS485 1080p video and mp3 file playing
audio record and playback watchdog
GPRS wireless network MMC/TF/SD card and U-disk SATA2ext4 auto mounting and uninstalling
GPS FTP
SPI Boa Web Server


FETMX6Q-S SoM list

Name

Configuration

Frequency

Grade

Working temp

Note



FETMX6Q-S system on module

1G DDR3, 8GB eMMC

1GHz

commercial grade

0℃~+70℃


1G DDR3, 8GB eMMC

800MHz industrial grade

-40℃~+85℃

optional

2G DDR3, 8GB eMMC

1GHz

commercial grade

0℃~+70℃

optional


i.MX6Q VS i.MX6DL
Item i.MX6Q i.MX6DL
Core number 4 2
Internal RAM(KB) 256 128
On-chip SRAM(KB) 256 128
DRAM Frequency(Max)(MHz) 533 400
SATA S-ATA II(3Gbps) -
Package Dimension(LxWxZ)(mm) 21*21*1.45 21*21*1.5
Main CPU: L2 Cache (Max)(KB) 1024 512

▊ Accessories


Provides the modules and accessories used in Forlinx's OKMX6Q-S SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(reference manual), schematic documentations to help customer start their development rapidly.

For more details on solution design with FETMX6Q-S SOM.

▊ Design Service


1. Hardware Designing

Provide carrier board, core board, industry product custom, etc. Read More+

2. Hardware Related Software Custom

Provide software custom service including kernel cutting, driven development, and system transplantation. Read More+

▊ How to buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering


2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance), Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.
