OK-MX95xx-C Single Board Computer
CPU: NXP i.MX95xx
Architecture: [email protected] + 1xCortex-M7@800MHz + 1xCortex-M33@333MHz
Frequency: 333MHz ，800MHz，1.8GHz
RAM: 8GB LPDDR4x
ROM: 64GB eMMC
System: Linux
OK-MX95xx-C Single Board Computer Based on NXP i.MX95xx Processor
OK-MX95xx-C single board computer(SBC) features a SoM + Carrier Board split design with 320 pins. It uses four 80-pin board-to-board connectors to lead out the processor's functional pins in the most convenient way, optimizing for different functions, which simplifies user design and provides a solid basis for project evaluation and design.
OK-MX95xx-C SBC
NXP New Flagship Chip
NXP i.MX95xx combines high-performance application cores, independent MCU real-time domain, Energy Flex architecture,
advanced security supported by EdgeLock® secure zone, and dedicated multi-sensor data processing engines (graphics, imaging, display, audio, and voice),
accelerating edge machine learning applications.
High-performance GPU

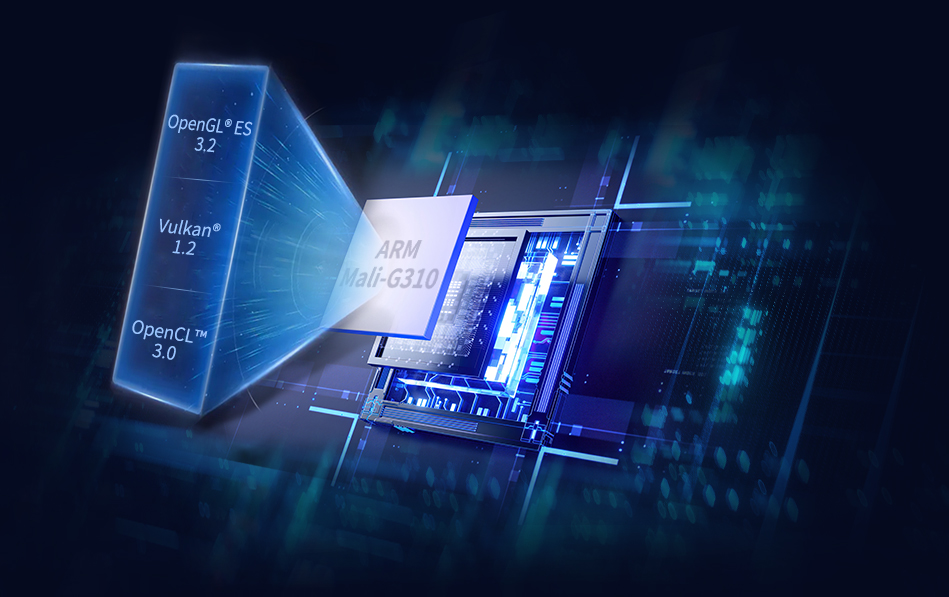

New generation ARM Mali-G310 enhances support for high dynamic range and provides AFBC uncompressed buffer, selected ARM fixed-rate compression (AFRC),
and foveation rendering technology to enhance augmented/virtual reality effects, supporting OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0.
High Computing Power to Empower Edge Applications
i.MX95xx chip integrates a built-in neural processing unit (NPU) with a high computational power of up to 2 TOPS,
providing excellent machine learning and deep learning capabilities, thus offering robust support for edge computing applications.

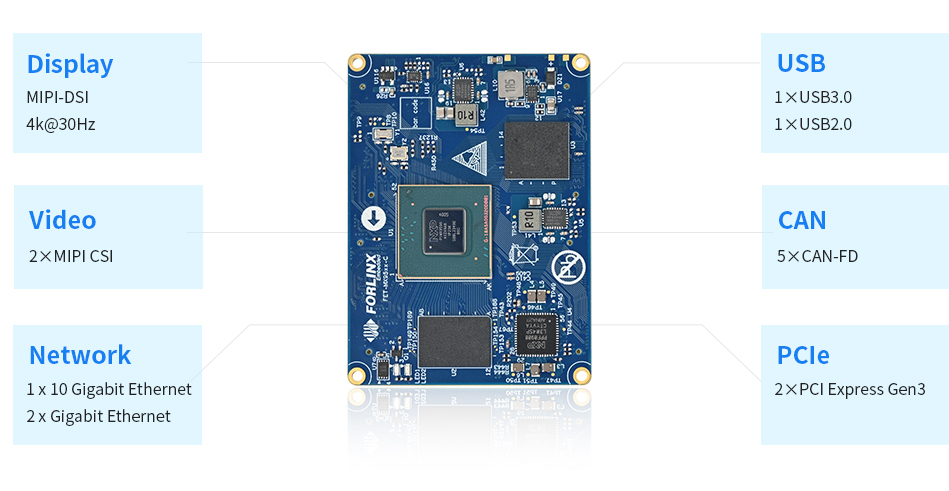

Rich CPU Interfaces
ISP Significantly Enhances Image Quality

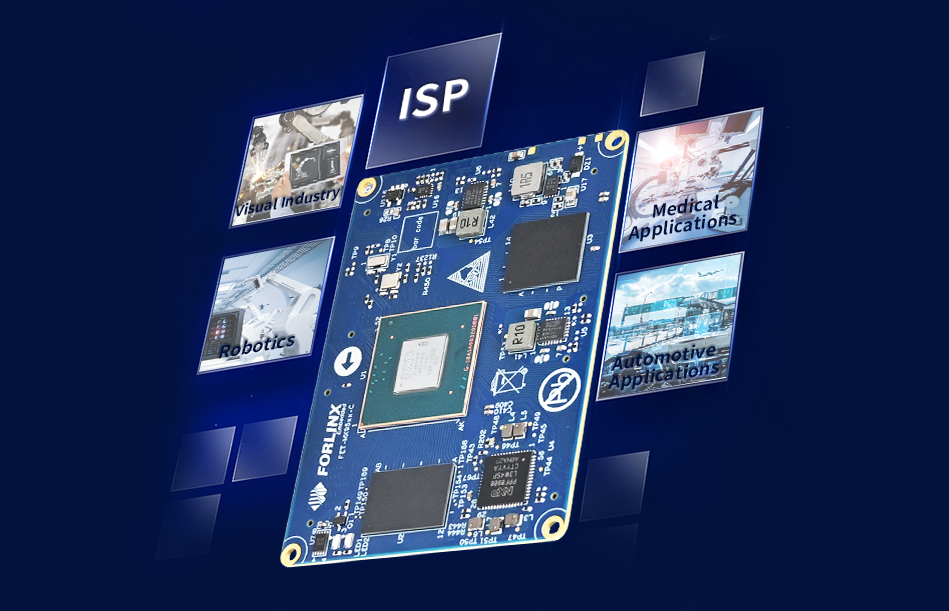

ISP technology integrated in the i.MX95xx chip supports various imaging sensors and is optimized for various application scenarios.
Whether it's industrial inspection, robot vision, or automotive autonomous driving applications, i.MX95xx can provide clear and accurate image data.
High Definition Decoding and Display Enhancement
i.MX95xx chip supports H.264 encoding & decoding and H.265 decoding, with resolution up to 4K, easily meeting the demands of playing high-definition videos.
At the same time, the chip also utilizes advanced display enhancement technology,
which can further improve the contrast and color saturation of the picture, bringing users a more stunning visual experience.
Safety Features
i.MX 95 series has safety features that comply with the ISO 26262 ASIL-B and IEC 61508 SIL-2 functional safety standards to support basic safety measures
in automobiles and functional safety in
industrial control systems.
Continuously Updated User Profiles
Broad Industry Applications
In multiple industries including industrial, medical, power, automotive transportation, environmental monitoring, smart cabins,
and IoT, the FET-MX95xx-C SoM, with its high performance, multifunctionality, and industrial-grade advantages, coupled with Forlinx's competitive pricing
and comprehensive after-sales technical support, will help your products quickly enter the market and stay ahead in the industry.
▊ Hardware Features
|
FET-MX95xx-C System on Module Basic Features |
|
|---|---|
|
CPU |
NXP i.MX9596 Clock: 6× [email protected] + 1x Cortex-M7@800MHz + 1x Cortex-M33@333MHz NPU: 2TOPS GPU: Mali-G310; OpenGL ES 3.2, Vulkan 1.2, OpenCL 3.0 VPU:
|
|
RAM |
8GB LPDDR4X |
|
ROM |
64GB eMMC |
| Voltage input | DC 12V |
|
Operating temp |
-40℃~+85℃ |
|
Connection |
Board to board connector(4x 80 pins, 0.5mm pitch, Stack Height: 2.0mm) |
|
OS version |
Linux |
|
FET-MX95xx-C System on Module Functional Parameters |
||
|---|---|---|
|
Peripheral |
NUM |
Spec. |
|
JTAG |
1 |
4-pin (JTAG) for debug purpose |
|
UART 1 |
≤8 |
Up to 5 Mbps |
|
SPI |
≤8 |
Master/ slave optional |
|
XSPI |
≤1 |
2x Serial NOR flash and Serial NAND flash |
|
CAN-FD |
≤5 |
Complies with ISO11898-1, CAN 2.0B |
|
SAI |
≤5 |
|
|
SD Card |
≤1 |
SD card 3.0 |
|
SDIO |
≤1 |
SDIO3.0 |
|
ADC |
≤8 |
1x 12-bit 8-lane 1MS/s ADC |
|
1 Gbps Ethernet |
≤2 |
1.8 V RMII/RGMII, TSN |
|
10 Gbps Ethernet |
≤1 |
XFI, SGMII (2.5 G and 1G), and 10 G-USXGMII (10GE),TSN |
|
USB3.0 |
1 |
USB host or USB device |
|
USB2.0 |
1 |
USB host or USB device |
|
PCIe |
2 |
PCI Express Gen3 |
|
MIPI-DSI |
≤1 |
1x 350 MHz 4-lane MIPI-DSI, up to 2.5 Gbps Supports 4k@30Hz or 3840 x 1440@60Hz |
|
MIPI CSI-2 |
≤2 |
Compatible with MIPI DSI v1.2 and MIPI D-PHY v1.2 |
|
LVDS |
1 |
Up to 1080P@60Hz (2x 4-lane or 1x 8-lane) |
|
I2C |
≤7 |
|
|
PDM |
≤1 |
8-lane MIC |
|
SPDIF |
≤1 |
|
|
PWM |
≤6 |
|
|
GPIO |
≤111 |
|
▊ OK-MX95xx-C Carrier Board
| OK-MX95xx-C Single Board Computer Features | |||
|---|---|---|---|
|
Peripheral interfaces |
NUM |
Spec. |
|
|
LVDS |
1 |
Dual 8-bit, up to 1080p@60Hz |
|
|
MIPI DSI |
1 |
4lanes，each lane rating up to 2.5Gbps and resolution up to 4kp30 or 3840 x 1440p60 |
|
|
XFI |
1 |
10G SFP cage |
|
|
Ethernet |
2 |
10/100/1000Mbps adaptive, RJ45 connector |
|
|
TYPE-C（DEBUG） |
1 |
UART1/2/3 converted to USB for A53/M33/M7 cores debug purpose |
|
|
TYPE-C（USB1） |
1 |
USB1, TYPE-C，supports OTG |
|
|
USB Host |
3 |
Expanded by hub,USB 2.0(up to 480 Mbps) |
|
|
PCIE3.0 |
2 |
PCIE X1 slot, supports both RC and EP |
|
|
TF |
1 |
SD3.0, 4-bit |
|
|
MIPI CSI |
1 |
OV13850 is well supported |
|
|
WiFi&BlueTooth |
1 |
On-board AW-CM358SM，2.4G/5G dual-band Wi-Fi，BT5.0，supports audio features 1x SDIO for WiFi 1x UART for BT 1x I2S for audio |
|
|
RTC |
1 |
Recommended battery model: CR2032 |
|
| SPI |
1 |
SPI3，by pin headers |
|
|
KEY |
7 |
Contains Reset, Sleeping mode, power switch and 4 user-defined keys |
|
|
Audio |
3 |
Contains 1x 4-stage headphone socket with built-in HP and MIC 1 on-board separate electret MIC 1 dual-channel speaker |
|
|
CAN |
5 |
CAN FD with isolated circuit, complies with CAN 2.0B up to 5Mbps |
|
|
RS485 |
2 |
Auto transceiving control, with isolated circuit |
|
|
SARADC |
8 |
1.8V, on-board sliding rheostat |
|
|
4G |
1 |
Mini PCIe slot, EC20/ EC25 4G networking can be well supported |
|
|
BUZZER |
1 |
Active buzzer |
|
|
JTAG |
1 |
For debug purpose |
|
|
QSPI FLASH |
1 |
XSPI, 4-bit，FLASH |
|
|
EARC |
1 |
By pin headers, for audio transmitter |
|
|
TAMPER |
1 |
By pin headers, for tamper detecting |
|
|
FAN |
1 |
SoM cooling solution |
|
|
LED |
4 |
User-defined LED |
|
