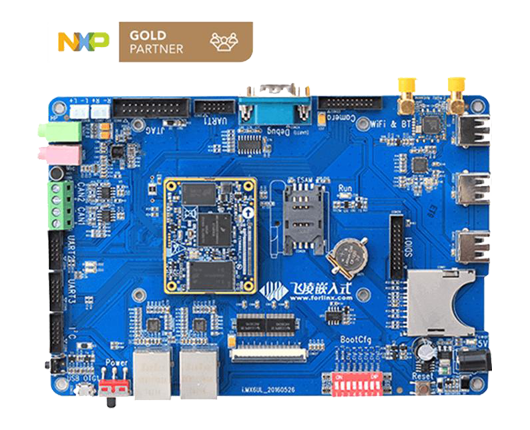

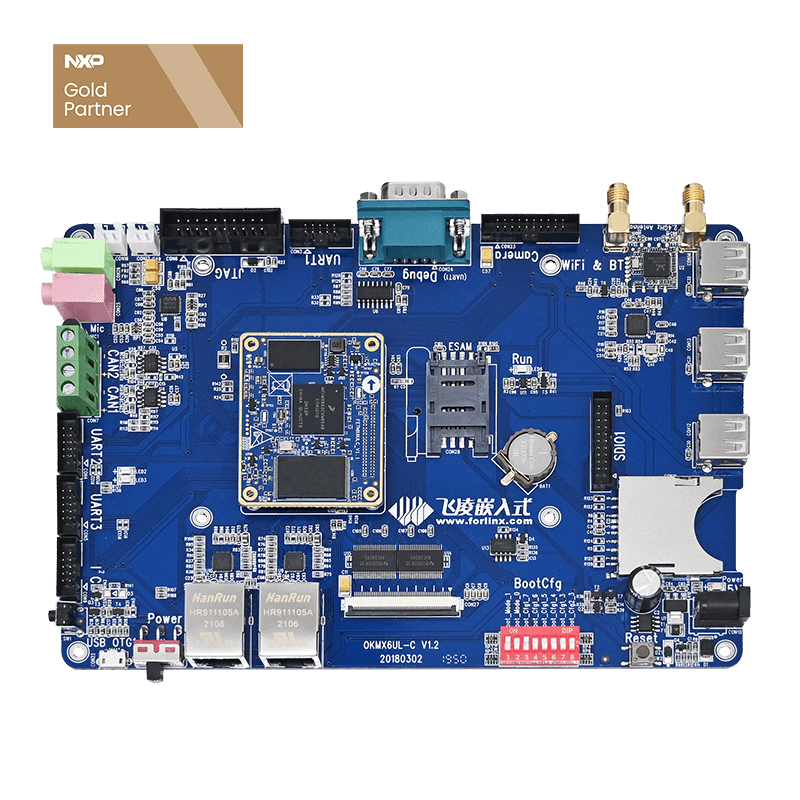

Single Board Computer OKMX6UL-C1 based on NXP i.MX 6UltraLite
OKMX6UL-C1 is an embedded Linux ARM technology-based development board/single-board computer (SBC) featuring the NXP (Freescale) i.MX 6UltraLite ARM Cortex-A7 processor. It is a complete, ready-to-use embedded system development board consisting of a CPU module FETMX6UL-C1 with a based board. Its CPU module is compact, even smaller than NXP's original SoM. The Linux OS is well supported. It is widely used in automotive telematics, IoT gateway HMI, home energy management systems, smart energy concentrators, intelligent industrial control systems, electronics POS devices, smart appliances, financial payment systems, and other fields.
The OKMX6UL-C1 single-board computer is used to evaluate the SoM FETMX6UL-C1 (eMMC, commercial grade, 40mm * 50mm, 0℃ to +70 ℃) and FETMX6UL-C2(NAND Flash, industrial grade, 40mm * 50mm, -40℃ to +85 ℃), which can serve both as a development platform and an end product. With rich peripheral interface resources, including Ethernet, CAN, UART, 130w parallel camera, WIFI&BT, etc.

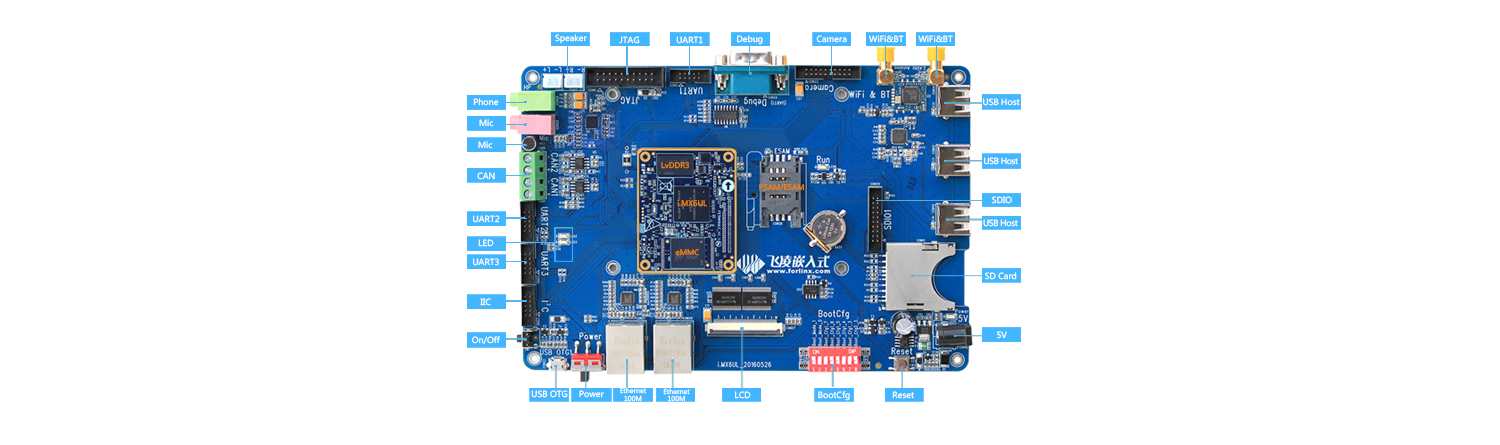

OKMX6UL-C1 Single Board Computer Pin Diagram (FETMX6UL-C1 SoM)

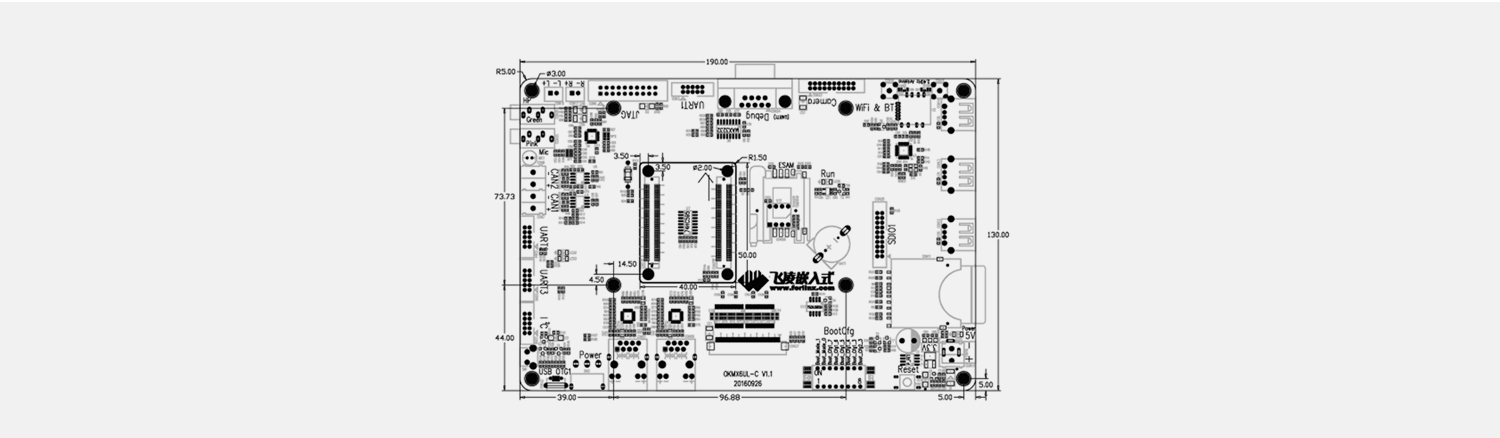

▊ Hardware Spec.
| FETMX6UL-C1 System on Module Features | |
|---|---|
| CPU | NXP i.MX 6UltraLite |
| Architecture | Cortex-A7 |
| Frequency | 528MHz |
| RAM | 512M LvDDR3 |
| Flash | 4GB eMMC |
| Voltage Input | 5V |
| GPU | PXP |
| Dimensions | 50mm* 40mm |
| Package | board to board connector |
| OS | Linux3.14.38+QT4.8 |
| LCD | RGB 24-bit |
| Audio | 3x audio |
| I2C | 4x IIC |
| SPI | 4x SPI |
| QSPI | 1x QSPI |
| CAN | 2x CAN |
| USB | 2x USB |
| SD/MMC/SDIO | 2x SD/ MMC/ SDIO |
| Ethernet | 2x 10/100M Ethernet |
| UART/IrDA | 8x UART/ IrDA |
| EINT/GPIO | supported |
| Video Coder | software codec |
| EBI BUS | supported |
| JTAG | supported |
| Camera | 1x 5.0MP parallel |
| PWM | 8x PWM |
| ADC | 10x ADC |
| ISO7816-3 | 2x ISO7816-3 |
| Keypad Port | 8*8 |
| SPDIF | 1x SPDIF |
| OKMX6UL-C1 Single Board Computer Features | |
|---|---|
| Audio | 1x Phone, 1x MIC, 2x Speaker |
| I2C | 2x IIC |
| CAN | 2x CAN |
| Camera | 1x camera, 5.0MP parallel |
| SD/MMC/SDIO | 1x SD/ MMC/ SDIO |
| USB Host | 3x USB2.0 |
| USB OTG | 1x USB micro 2.0 |
| Ethernet | 2x 10/100M Ethernet, RJ45 |
| UART | 3x UART |
| Power In | 5V |
| Camera | OV9650(preview, photo taking) |
| JTAG | supported |
| ADC | 4x ADC, for resitive touching |
| DIP | booting mode selection |
| Reset | 1x reset |
| PWM | 1x PWM, backlight adjusting |
| LCD | 1x LCD, resistive touching |
| WiFi& BT | 1x WIFI& BT |
| GPS | serial interface |
| 3G/4G | USB 3G/4G wireless module |
| RTC | supported |
| LED | 2x LED |
▊ Software Spec.
| OS Linux | ||
|---|---|---|
| OS | Linux-3.14.38+ Qt4.8.5 | Linux-4.1.15+ Qt5.6(only supported by the one with 1GB NandFlash) |
| Compiler | arm-fsl-linux-gnueabi-gcc-4.6.2 | arm-poky-linux-gnueabi-gcc gcc-5.3.0 |
|
OS Flashing |
flash OS image by SD card, USB OTG |
flash OS image by SD card, USB OTG |
| flash single/ multiple files |
flash single/ multiple files |
|
| can support yaffs file system |
can support ext3/ yaffs file system |
|
| UBOOT | booting mode(eMMC/SD/USB OTG/NAND) | booting mode(eMMC/SD/USB OTG/NAND) |
| RAM(256M) | RAM(256M) | |
| UBOOT LOGO | UBOOT LOGO | |
|
Linux Kernel |
Version: Linux-3.14.38 | Version: Linux-4.1.15 |
| file system: EXT3/NFS/FAT32/NTFS | file system: EXT3/NFS/FAT32/NTFS | |
| eMMC driver(8G/4G) | eMMC driver (8G/4G), nandflash(1G) | |
| watchdog driver | watchdog driver | |
| RTC driver | RTC driver | |
| IO driver | IO driver | |
| I2C driver | ||
| SPI driver | SPI driver | |
| wifi driver | wifi driver | |
| camera driver | camera driver | |
| PWM driver | PWM driver | |
| LCD backlight driver, 255-rating | LCD backlight driver, 255-rating | |
| LCD driver | LCD driver | |
| USB Host driver: U-disk, USB Hub, USB keyboard, mouse | USB Host driver: U-disk, USB Hub, USB keyboard, mouse | |
| USB Device driver | USB Device driver | |
| TF/SD/MMC card driver: up to 32GB | TF/SD/MMC card driver: up to 32GB | |
| UART driver | UART driver | |
| WM8960 audio driver: record/ playback | WM8960 audio driver: record/ playback | |
| Ethernet(RJ45, 100/10Mbps) | Ethernet(RJ45, 100/10Mbps) | |
| 3G/4G driver | 4G driver | |
| USB to serial driver | ||
|
Testing APP |
WIFI configution toold | WIFI configution toold |
| Telnet | Telnet | |
| RTC | RTC | |
| Flexcan | Flexcan | |
| IP/Mac address setting | IP/Mac address setting | |
| Sqllite | Sqllite | |
| TTL to RS232 | TTL to RS232 | |
| audio record/ playback(ALSA) | audio record/ playback(ALSA) | |
| GPRS wireless network | GPRS wireless network | |
| 3G/4G wireless network | 4G wireless network | |
| USB camera testing | USB camera testing | |
| Speaker testing | Speaker testing | |
| RGB backlight adjusting | RGB backlight adjusting | |
| video playing and mp4 file testing | video playing and mp4 file testing | |
| watchdog testing | watchdog testing | |
| MMC/TF/SD card and U-disk auto-mounting and uninstalling | MMC/TF/SD card and U-disk auto-mounting and uninstalling | |
| FTP | FTP | |
| Boa Web Server |
|
|
▊ Accessories
Provides the modules and accessories used in Forlinx's SBC.
See here for communication modules, LCD screen, SBC expansion module and further accessories »
Technical Support
Forlinx provides software resources including kernel and driver source code, together with detailed user manual(i.MX 6UltraLite reference manual), schematic documentations to help customer start their development rapidly.
Forlinx provides embedded hardware reference manual, embedded software reference manual, including NXP i.MX 6UltraLite embedded software Android system reference manual, and Linux system reference manual.
For more details on solution design with i.MX 6UltraLite SBC
