7.0'' Resistive LCD Module

Resolution: 800*480


Type: resistive touching

Range: -20℃~+70℃

Download Message Compare

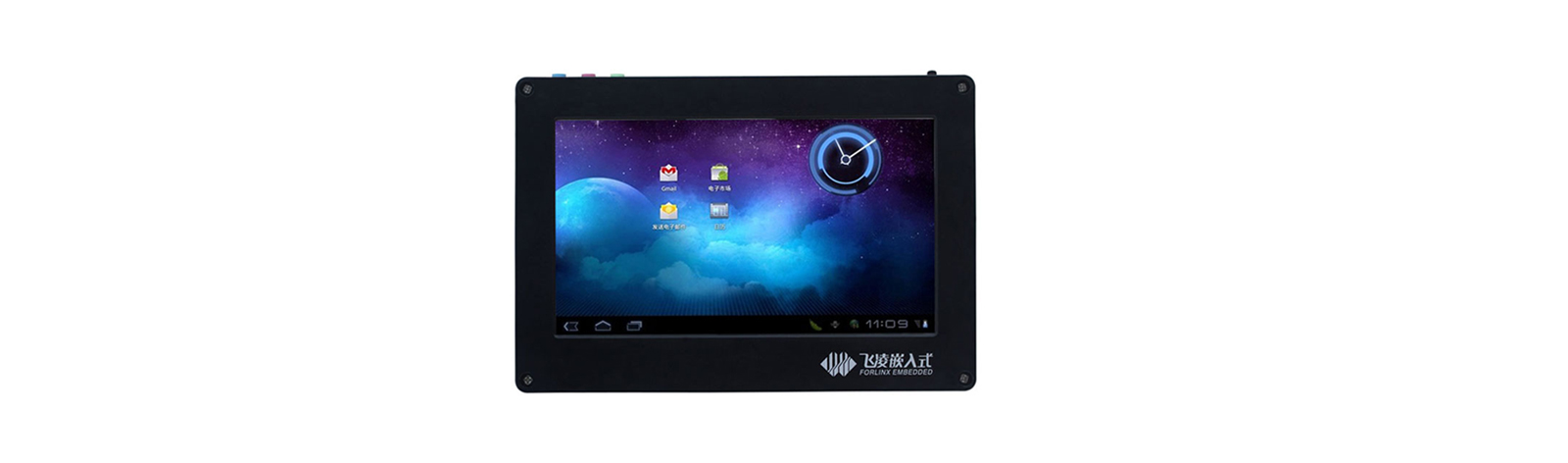

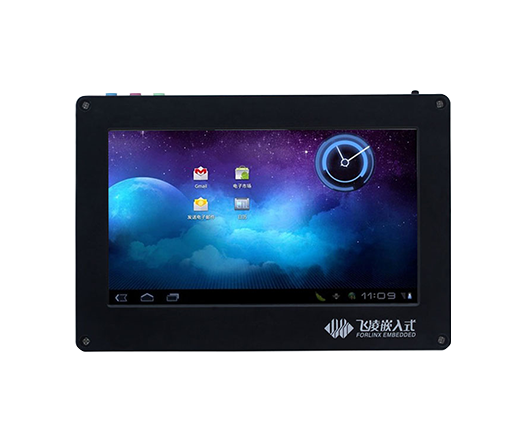

7.0-inch TFT LCD Module with Resistive Touch Panel

TFT LCD display 7.0 inch is a color TFT LCD display panel which is made with 800RGBx480 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. This very small TFT display is only 7.0" in diagonal, packed with RGB pixels, for making very small high-density displays.

The 7.0'' TFT LCD panel FIT-LCD7.0 is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit.

This 7.0'' TFT LCD screen is with 12 o'clock viewing angel display and built in with HX8664 and HX8264 controller IC, it supports RGB interface.

The 7.0-inch TFT LCD module is often used for any embedded systems, industrial device, security, and hand-held equipment which requires display in high quality and colorful images.

Package Included:

7'' TFT LCD module

1x FPC cable (54-pin or 40-pin)

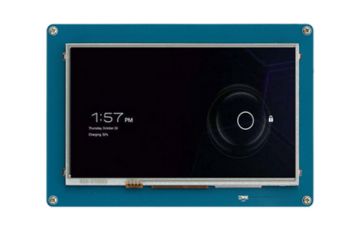

7.0-inch TFT LCD Module with Resistive Touch Panel

▊ Feature of 7.0-inch TFT LCD module

7.0-inch TFT LCD Module with Resistive Touch Panel

Resolution 800*480 Touching Type resistive
Interface RGB
Backlight White LED Color 16777216


5:3 Active Area(mm) 154.08(W)x 85.92(H)
Pitch(μm) 0.179 Angel(U/D/L/R) 50/70/70/70
Brightness(cd/m2) 250 Contrast 500:1
Response Time(ms) Ton 10  Toff 15 Pin Number 54
Working Temperature -20℃~+70℃
Applicable: Most Forlinx development board
Packing List
7'' LCD module 1x FPC cable (54-pin or 40-pin)
