OKT507-C Single Board Computer

CPU: Allwinner T507

Architecture: Cortex-A53

Frequency: 1.5GHz

RAM: 2GB DDR3L

ROM: 8GB eMMC

System: Linux4.9,Android10,ForlinxDesktop 18.04

Brief Message Compare

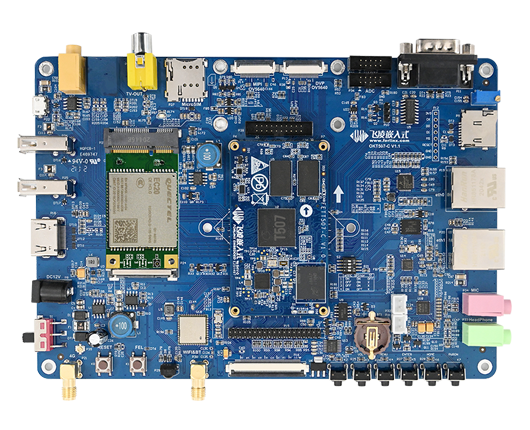

OKT507-C Single Board Computer Bases on Allwinner T507

OKT507-C single board computer(SBC) consists of SoM and carrier board, the SoM could be mounted on carrier board by ultra thin connectors. It's designed based on Allwinner a quad-core industrial grade SoC T507 which belongs to Cortex-A53 architecture and runs at speed up to 1.5GHz. It's integrated with G31 GPU and carries 2GB DDR3L and 8GB eMMC on-board. It has plenty of peripherals ready-to-use, such as dual NIC, built-in Codec, external IIS Codec, ADC, TF card, LVDS, RGB, HDMI, WiFi, BT, 4G, MIPI-CSI, MIPI-DSI and other useful ports. Meanwhile, it's reserved with 4 lances of AHD to MIPI-CSI interface for connection with Forlinx expanding module for AHD camera testing and estimating.

▊ FDU Medical HMI


HMI for Medical

Forlinx launched FDU070K02 & FDU101K02, an HMI specially designed for medical. It supports touch with medical gloves, dual screen simultaneous display or differential display, taking into account the scene flexibility and convenience of use.

The FDU medical HMI support network, display, RS232/485, and USB, it also support communication interfaces such as CAN, 4G, and WIFI. All of them are equipped with ESD4 electrostatic protection.

Adapted to a variety of screen sizes, not limited by usage scenarios and space. It currently supports 10.1-inch screen (1280 * 800 resolution) and 7.0-inch screen (1024 * 600 resolution).



▊ Specification


Overview of FETT507-C System on Module
CPU Allwinner T507
Architecture quad-core Cortex-A53
Freequency 1.5GHz
RAM 1/ 2GB DDR3L
ROM 8GB eMMC
Working Temperature 0℃~ +70℃, -40℃~ +85℃
Dimensions 40mm*70mm
Package ultra thin board-to-board connector
Voltage input 5V
OS

Linux4.9+QT5.12, Android10, ForlinxDesktop18.04 *

GPU G31 MP2 available for OpenGL ES 3.2/2.0/1.0, Vulkan1.1, OpenCL 2.0

FETT507-C System on Module Features
Peripheral QTY Spec.
TVOUT 1 CVBS output, NTSC mode and PAL mode
HMDI 1

Video:

- 2D Video up to  4K@60fps;

- 3D Video up to 4K@30fps;

Audio:

-IEC60985 L-PCM unpressed audio form, up to 192 kHz;

-IEC61937 pressed audio form, up to 1536 kHz

LCD/LVDS 1

LCD and LVDS are multiplexed;

LCD:

- RGB(DE/SYNC) up to 1920x1080@60fps;

- Serial RGB/dummy RGB up to 800x480@fps;

- i8080 up to 800x480@60fps;

- BT656 up to 1280x720@60fps or 1920x1080@30fps;

- RGB888, RGB565, RGB666;

- can support R/G/B separate Gamma correcting

LVDS:

- dual-lane up to 1920x1080@60fps;

- single-lane up to 1366x768@60fps

MIPI_CSI 1

supports image tailoring;

supports MIPI Version 1.0;

up to 1.0Gbps/Lane;

video capturing rate up to 8M@30fps or 4*1080p@25fps;

CSI_DVP 1

can support 8/10/12/16 bit DC;

supports BT656, BT601, BT1120;

supports ITU-R BT.656 TDM, up to 4*720p@30fps id DDR sampling mode;

supports progress and interlace video input;

video capturing rate up to 5M@15fps and 1080p@30fps;

pixel clock up to 148.5MHz

USB2.0 4

OTG:

- can support 1* OTG;

- High-Speed (HS,482), Full-Speed(FS,12Mbit/s) and Low-Speed (LS,1.5Mbit/s) in master mode;

- High-Speed (HS,482 Mbit/s) and Full-Speed (FS,12Mbit/s) in slave mode

HOST:

- can support 3* host;

- can support High-Speed (HS,482 Mbit/s),Full-Speed(FS,12Mbit/s) and Low-Speed(LS,1.5Mbit/s) devices

SD 2

SDHC0(SD3.0):

- 4bit BUS width;

- SDR mode [email protected] IO pad;

- SDR mode [email protected] IO pad;

- DDR mode [email protected] IO padSDHC1(SDIO3.0):

- 4bit BUS width;

- SDR mode [email protected] IO pad;

- DDR mode [email protected] IO pad

RMII 1 10/100Mbps auto-negotiation
RGMII 1 10/100/1000 Mbps auto-negotiation; RGMII could be multiplexed to RMII for dual fast Ethernet expanding
UART ≤6

UART0, UART5: 2-wire, UART1, UART2, UART3, UART4: 4-wire;

Comply with 16550 UARTs;

speed up to 4Mbit/s;

can support 5~8 data bit and 1/1.5/2 stop bit;

can support RS-485/9-bit mode

TWI ≤5 standard mode(up to 100kbit/s) and fast mode(up to 400kbit/s)
SPI ≤2 3-wire/ 4-wire SPI: up to 100MHz
SCR 1 ISO/IEC 7816-3:1997(E) and EMV2000(4.0)
PWM ≤6

3 couples of PWM: PWM01 consists of PWM0 and PWM1, PWM23 consists of PWM2 and PWM3, PWM45 consists of PWM4 and PWM5;

can support pulse(configurable), circle and complementary pair output;

can support capture input;

programmable dead zone output;

built-in programmable dead zone time generator, controllable dead zone time;

three types of output waves: continuous wave; pulse wave, complementary wave;

output reference range: 0~24MHz/100MHz; duty ratio: 0%~100%;

minimum resolution: 1/65536; supports PWM output and input interrupt

JTAG ≤1
CIR 1

supports NEC data;

supports remote controller or wirelesss keyboard CIR;

64x8 bit FIFO for data buffer;

sampling clock up to 1MHz

GPADC 4

can support 4 general purpose ADC, 12-bit resolution;

maximum sampling rate 1MHz;

can support data comprision and interrupt;

can support DMA transaction;

signal input range: 0~1.8V;

supports three working modes: single conversion, continuours conversion burst conversion

LRADC 1

6-bit resolution

sampling rate up to 2kHz

supports hold Key and general Key

supports normal mode, continuous conduction mode and single work mode;

Power supply voltage: 1.8V

Power reference voltage: 1.35V, analog input

detected voltage range: 0〜LEVELB(maximum 1.266V)

LINEIN TBD 1 reserved, not available
LINEOUT 1

supports dynamic range controller to adjust DAC playing;

2 DAC channels:

- can support 16-bit and 20-bit sampling rates;

- 8kHz ~ 192kHz sampling rate;

- 95±2db SNR@A-weight, -80±3db THD+N, output up to 0.55Vrms1 audio output:

- one differential LINEOUTP/N or single-end LINEOUTL/R

DMIC 1

can support up to 8 digital PDM micphones;

can support sampling rate 8kHz to 48kHz

OWA 1 1* OWA sending
I2S ≤4

one built-in audio HUB;

supports 2 Digital Audio MIXER(DAM);

supports 3* I2S/PCM peripherals and 1* I2S/PCM for connecting internal HDMI;

supports left-justifying, right-justifying, standard I2S, PCM, tdM;

I2S supports 8 channels, 32-bit/192kbit sampling rate;

I2S and TMD mode up to 16 channels, 32-bit/96kbit sampling rate

▊ Carrier Board

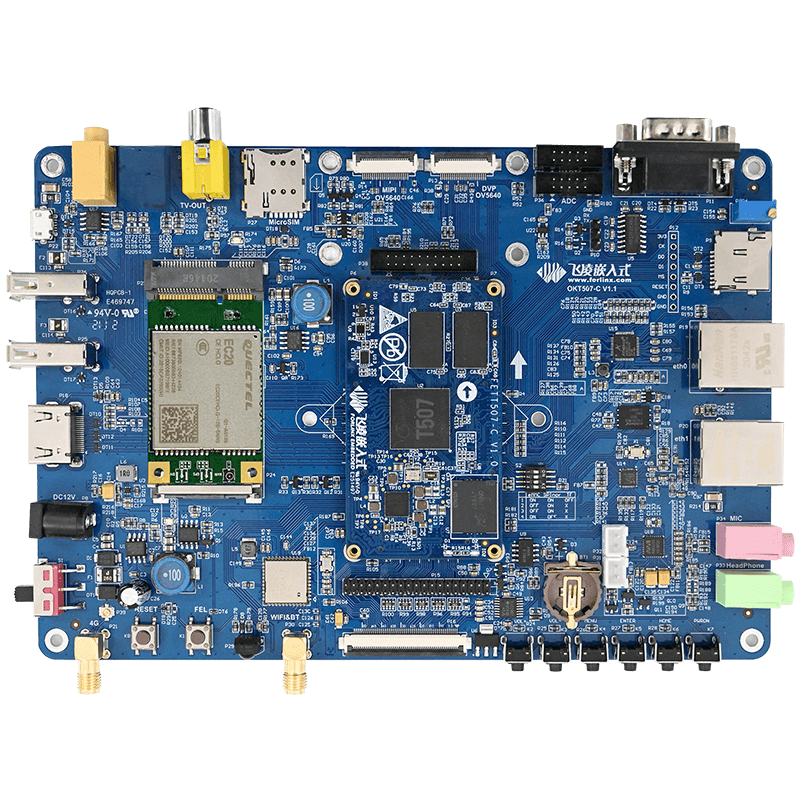

T507 development board
OKT507-C Single Board Computer Features
Peripheral QTY Spec.
LCD 1 RGB888, up to 1920x1080@60fps
LVDS 1

multiplexed with LCD;

single-lane 1366x768@60fps, dual-lane 1920x1080@60fps

HDMI 1

complies with HDCP2.2 and HDCP1.4; supports HDR10;

2D video 4K@60fps, 3D video 4K@30fps

TV-OUT 1 analog video output, supports NTSC and PAL mode
MIPI_CSI 1

4 lanes, up to 1.0Gbps/Lane;

maximum video capturing resolution 8M@30fps or 4*1080p@25fps

DVP_CSI 1

8-bit, resolution clock up to 148.5MHz;

maximum video capturing resolution 5M@15fps or 1080p@30fps

Audio LINE IN TBD 1 reserved, not available
LINE OUT 1 CPU built-in codec, differential output or single-end output
MIC 1 carrier board external codec, analog MIC
Headphone 1 carrier board external codec, earphone output
Speaker 2 carrier board external codec, D-amplifier can drive speakers
USB2.0 2 USB2.0 Type-A female connector, host mode, 480Mbit/s
OTG 1 microUSB, host/ slave mode, for firmware installation
4G 1 for mini-PCIe 4G wireless module
Ethernet 2 1 Gigabit Ethernet, 1 fast Ethernet, auto-negotiation
WiFi& Bluetooth 1

Model: AP6256

WLAN: IEEE 802.11b/g/n & Wi-Fi compliant 2.4GHz

IEEE 802.11a/n/ac& Wi-Fi compliant 5GHz

BT: BT 5.0 Module

TF Card 1 compatible with SD3.0
KEY 6 VOL+, VOL-, MENU, ENTER, HOME, PWRON
JTAG 1
SPI 1 SPI0 is not available for eMMC version, SPI1 can be multiplexed with I2S3
ADC 4 1.8V, 8-bit effective SAR type A/D converter, sampling rate up to 1MHz, one on-board adjustable resistor
PWM 1 for backlight adjusting
IR 1
RTC 1 external RTC, CR1220
UART 1 TTL voltage drawn out by a 10-pin simple horn seat
UART Debug 1 TTL by pin connectors with pitch of 2.54mm, RS232 by a DB9 male connetor

note: Ubuntu is coming
