FDU Medical HMI

CPU: T507

Architecture: Cortex-A53

Frequency: 1.5GHz

RAM: 2GB DDR3

ROM: 8GB eMMC

System: Android10,Linux4.9.170

Download Message Compare

HMI for Medical

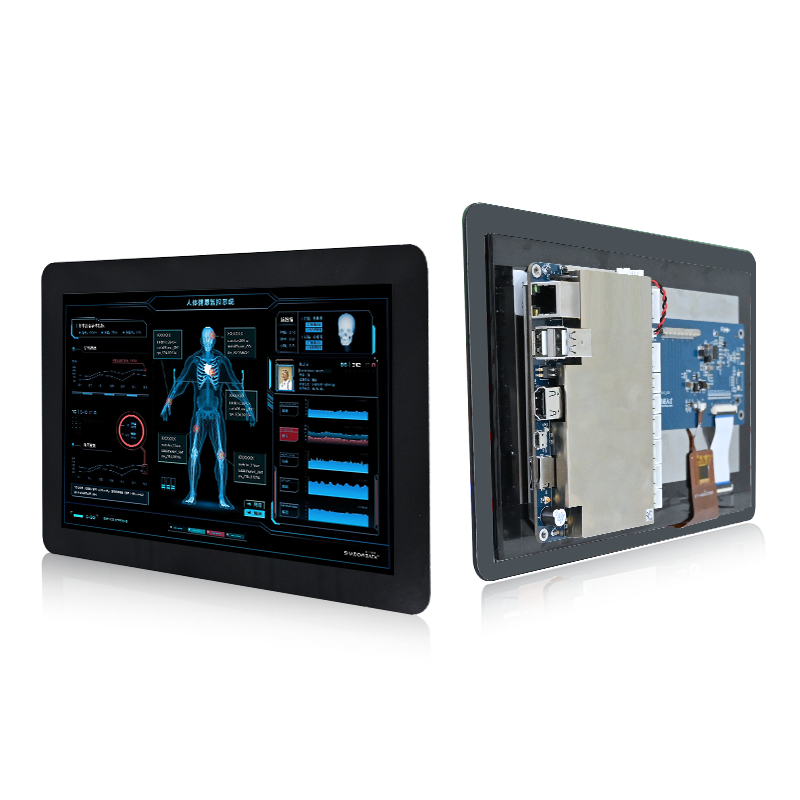

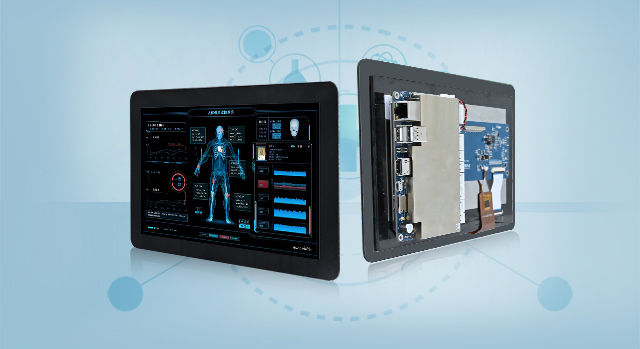

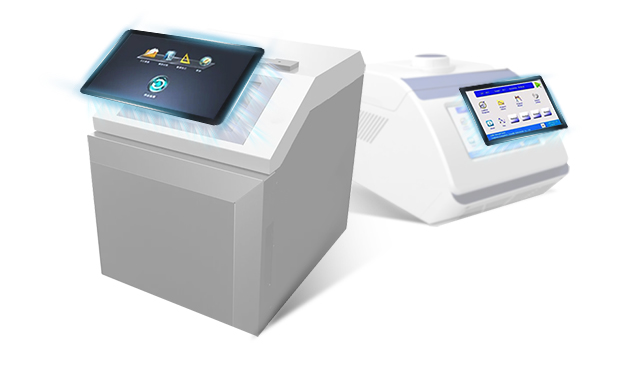

Forlinx recently launched FDU070K02 & FDU101K02, a HMI specially designed for medical. It supports touch with medical gloves, dual screen simultaneous display or differential display, taking into account the scene flexibility and convenience of use. Besides, Forlinx provides users with out-of-the-box hardware and operating system, simplifying development process. The product had passed EMC, with 10+ years life cycle, providing a stable and long-term supply guarantee for clients’ medical complete machine.

HMI for Medical
HMI for Medical

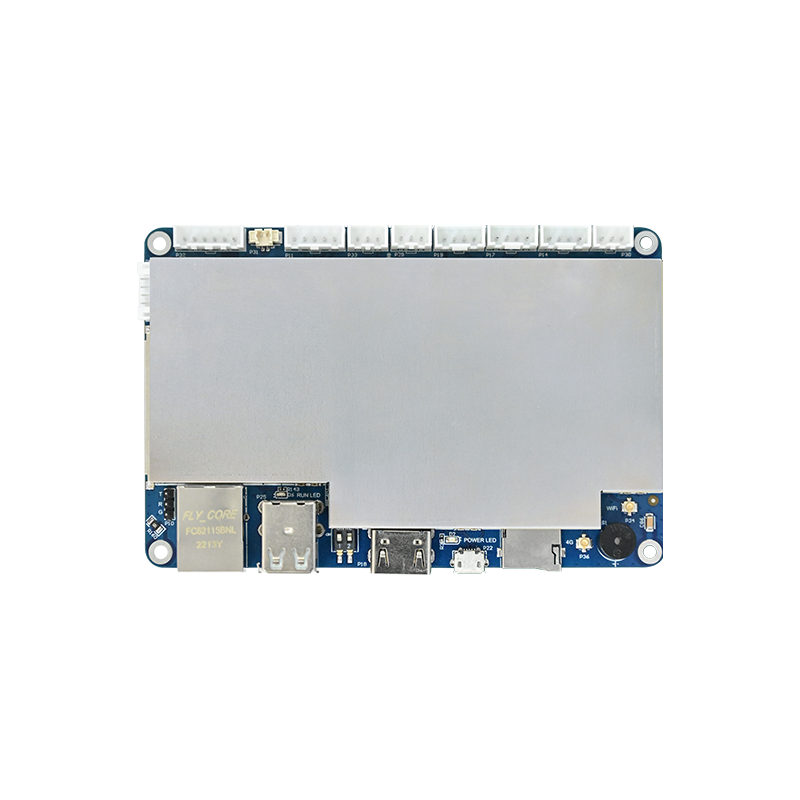

All-round interfaces, equipped with protective design

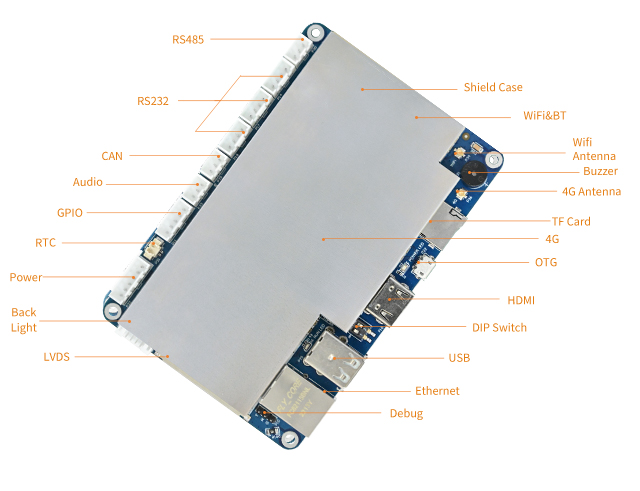

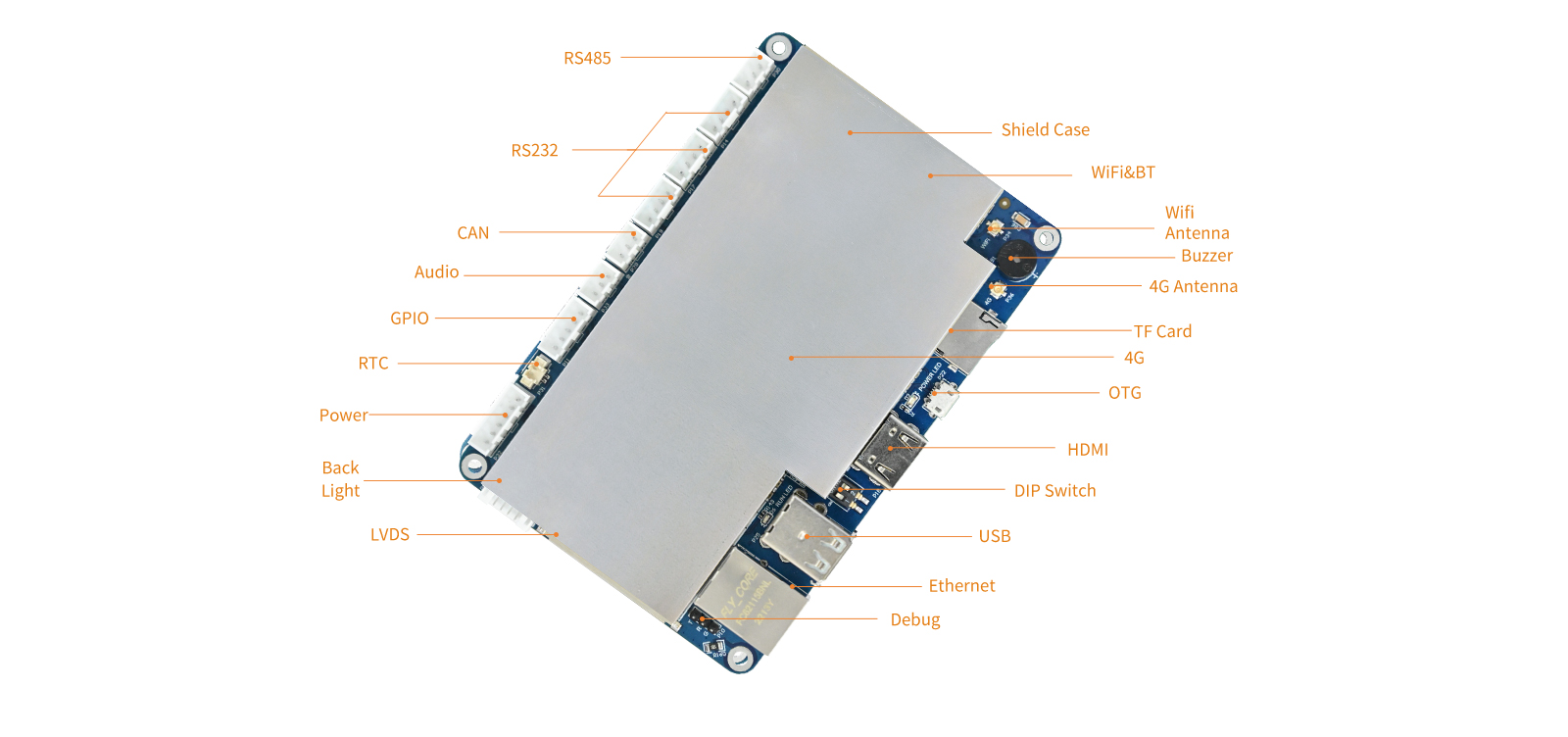

In addition to standard interfaces like network, display, RS232/485, and USB, it also supports communication interfaces such as CAN, 4G, and WIFI.
All of them are equipped with ESD4 electrostatic protection. Moreover, an additional shielding cover can effectively shield the influence of external electromagnetic waves on the internal circuit
and prevent the internal electromagnetic waves from radiating outward, making it safer and more reliable.

FDU Medical HMI interface
FDU Medical HMI interface

All-round interfaces, equipped with protective design

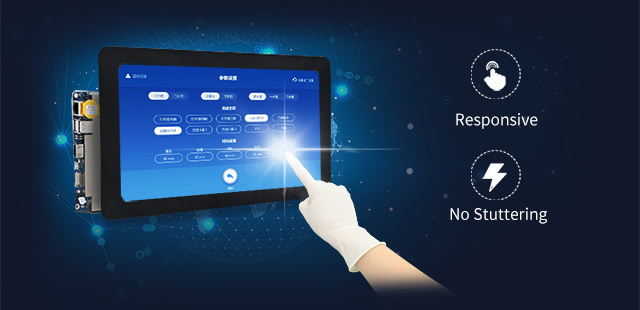

Capacitive touch, responsive, no stuttering, no blind spots, more stable. Support touch with medical rubber gloves, more scene-adaptable.

FDU Medical HMI capacitive touch
FDU Medical HMI capacitive touch

Customizable screen sizes

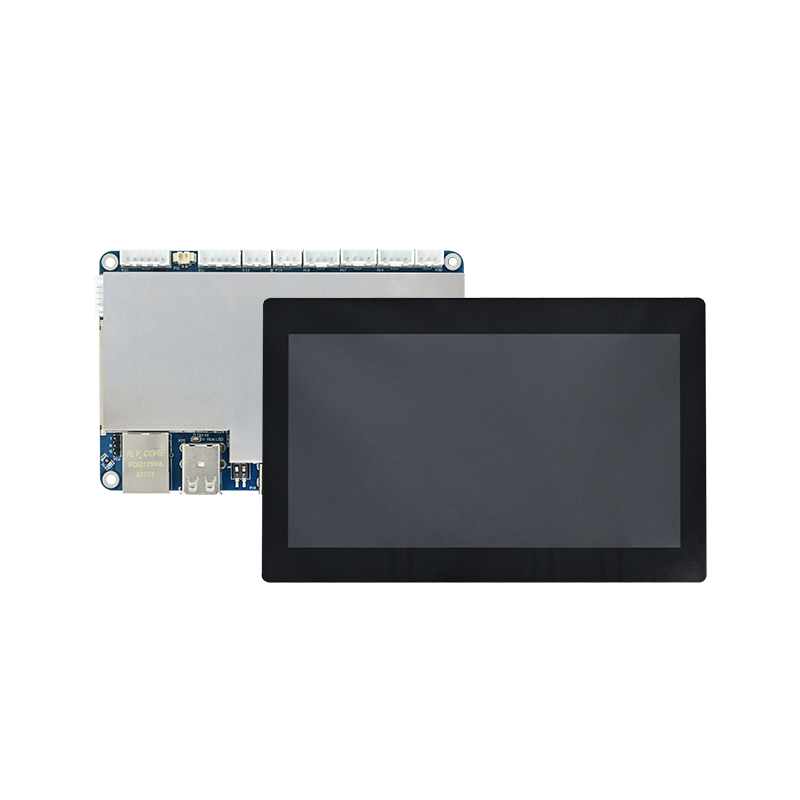

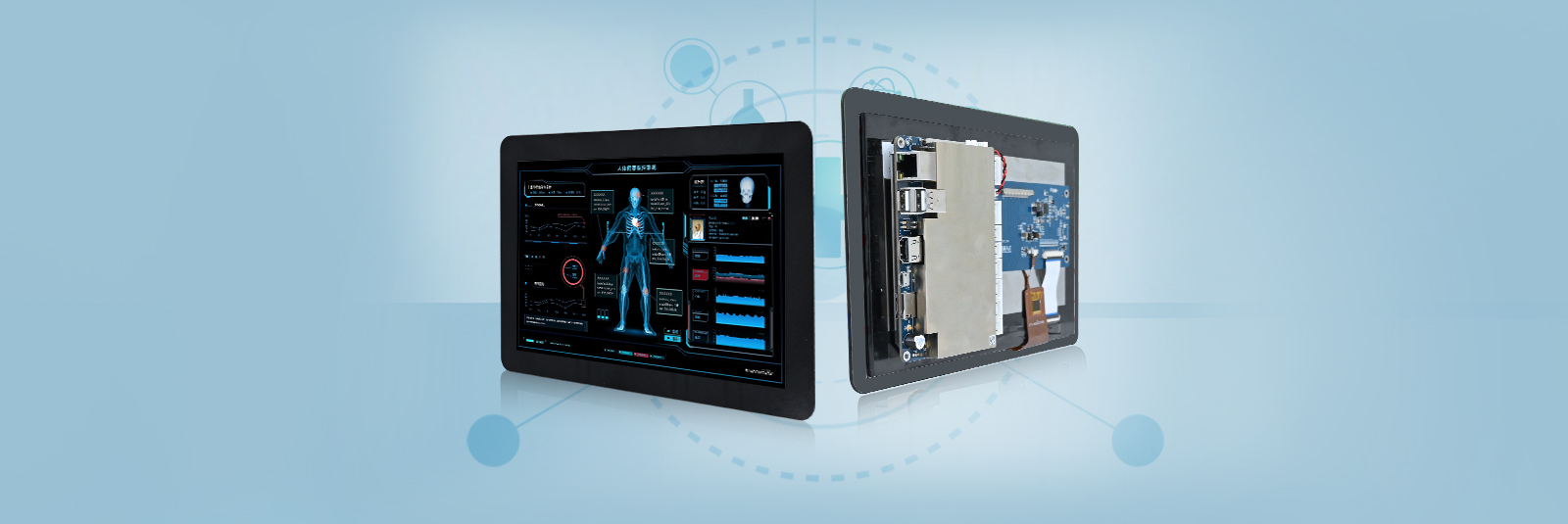

No shell design, the motherboard and screen can be installed separately, the installation structure is more flexible. Adapted to a variety of screen sizes, not limited by usage scenarios and space.
It currently supports 10.1-inch screen (1280 * 800 resolution) and 7.0-inch screen (1024 * 600 resolution).

Customizable FDU Medical HMI screen sizes
Customizable FDU Medical HMI screen sizes

Android/Linux System

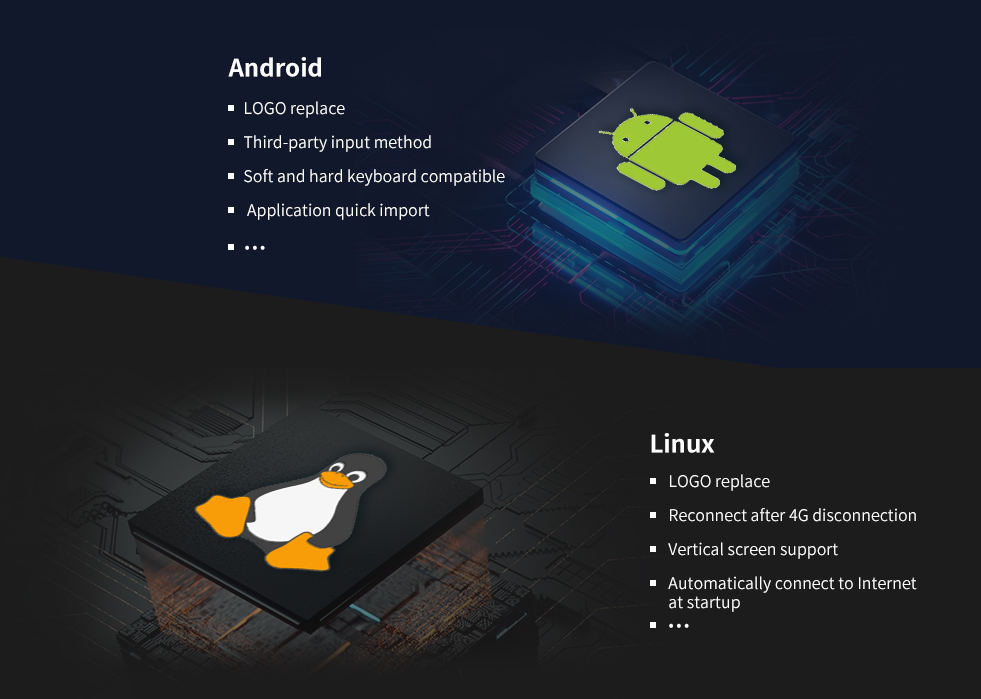

This medical HMI is a host computer designed by Forlinx for medical instruments.
Provide users with out-of-the-box hardware and operating systems, and users can directly develop upper-layer applications to quickly mass-produce.

FDU Medical HMI OS
FDU Medical HMI OS

Dual screen display, 4K HD Vision

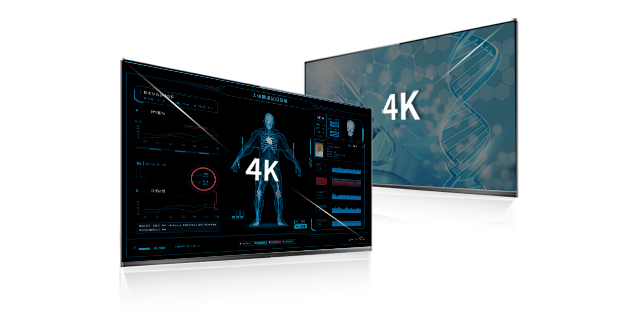

Support dual-screen simultaneous display or different display, to meet the needs of special occasions such as medical image display.
HDMI high-definition 4K signal output, providing high-definition image and restoring real images.

FDU Medical HMI support dual-screen
FDU Medical HMI support dual-screen

EMC Certificate

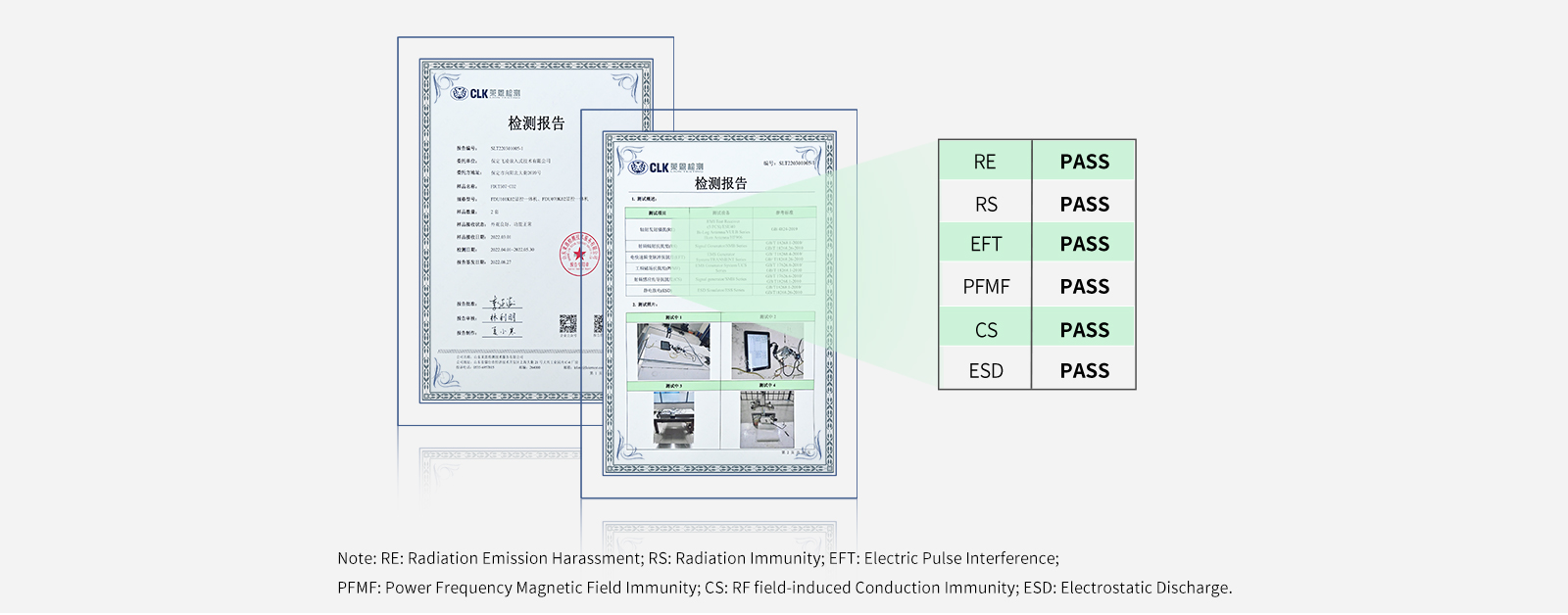

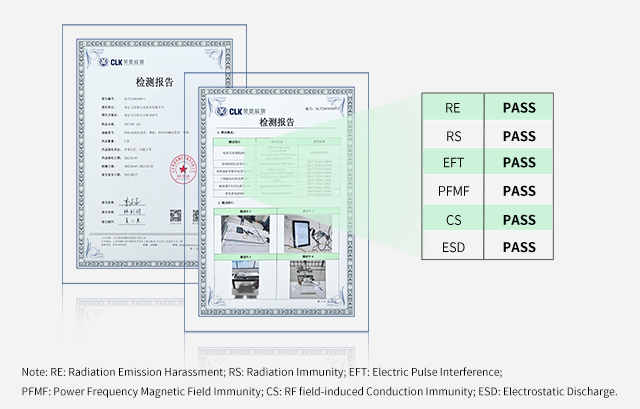

This medical HMI has passed certification tests such as RE, ES, EFT, PTMF, CS, and ESD...

FDU Medical HMI EMC Certificate
FDU Medical HMI EMC Certificate

Long life cycle

With industrial-grade processor, 10+ years life cycle, provide a stable supply guarantee.

FDU Medical HMI EMC Certificate
FDU Medical HMI EMC Certificate

▊ Spec.


Item

Spec.

Processor

T507, Quad-core, Cortex-A53 1.5GHz

GPU

G31 MP2

RAM

2GB DDR3

ROM

8GB eMMC

OS

Android10, Linux4.9.170

Extended Storage

TF Card

Ethernet

1x 10/100Mbps, auto-negotiation

WiFi

6221A-SRC, WiFi Bluetooth all-in-one, with support for dual-mode WiFi, Bluetooth calling is not supported

4G

EC20 (Optional)

USB

2x USB 2.0 Host; 1x USB Device (Only support for mirror burn in program andAndroid System ADB debugging)

HDMI

1pcs, Support dual screen identical or different display

LVDS

It can support a 1-way dual 8-bit LVDS screen, the maximum resolution was 1080P, Currently, the mirror only supports 1-way single 8-bit LVDS with a maximum resolution of 1280x800

LINE OUT

1-way, L / R double-channel

RS232

3-way, ESD level 4 protection (design value)

RS485

1-way, ESD level 4 protection (design value)

CAN

SPI to CAN, the maximum support of 1Mbps, ESD level 4 protection(design value)

RTC

CR2032 battery

GPIO

reserve 4-line GPIO

Buzzer

1 line, burn in program completion indication

Indicator light

Power supply and operation indicator light each way

Power

12/24V

Working Temperature

-

Size

130*85mm

▊ Packing List


Package Ⅰ: FDU101K02 Medical HMI (Standard)

FDUT507-C02 Mainboard

1













Get Price

10.1-inch LVDS Display with Capacitive Touch Panel

1

Package Ⅱ: FDU101K02 Medical HMI (4G)

FDUT507-C02 Mainboard

1

10.1-inch LVDS Display with Capacitive Touch Panel

1

4G Module

Insert EC20 4G module x1, IPEX wire jumper x1

Package Ⅲ: FDU070K02 Medical HMI (Standard)

FDUT507-C02 Mainboard

1

7.0-inch LCD Module with MIPI display

1

Package Ⅳ: FDU070K02 Medical HMI (4G)

FDUT507-C02 Mainboard

1

7.0-inch LCD Module with MIPI display

1

4G Module

Insert EC20 4G module x1, IPEX wire jumper x1
