i.MX6 Series

FETMX6Q-C System on Module

We're professional computer on module manufacturers and suppliers in China. FETMX6Q-C system on module/computer on module is also based on NXP/Freescale Cortex-A9 i.MX6Q core processor with main frequency up to 1.2GHz, this SoM is with 320 pins and it is designed with 12-layer ENIG PCB and ultra thin board-to-board connectors.


FETMX6ULL-S System on Module

We're professional computer on module manufacturers and suppliers in China. FETMX6ULL-S system on module/computer on module is based on NXP Cortex-A7 low power featuring processor [email protected] 800MHz, has two native Ethernet ports, two CAN controller and eight serial ports, both industrial grade and expanding commerce grade are optional to users, and the SoM is well supported with Linux4.1.15 with QTGUI.

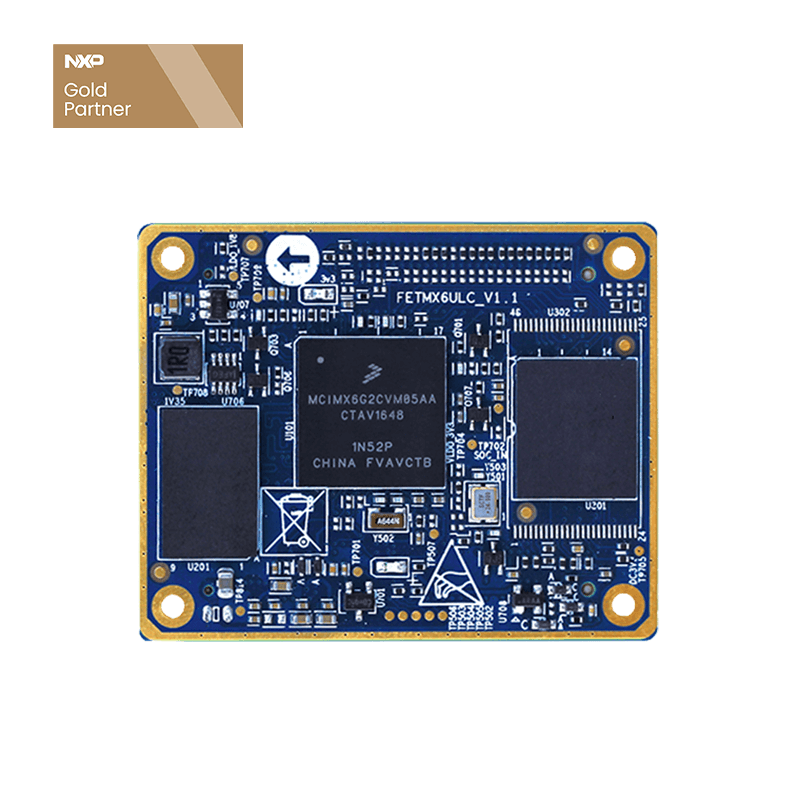

FETMX6UL-C1 System on Module

NXP i.MX6Ultra Lite, Forlinx commercial-grade iMX6UL core board uses NXP’s ARM Cortex-A7 i.MX6UL processor, onboard 512MB DDR3 memory and 4GB high-speed eMMC memory. Forlinx provides iMX6UL PCB files, including the schematic diagram and PCB files of the bottom board, i.MX6UL core board data manual, IMX6UL core board hardware manual.

FETMX6UL-C2 System on Module

FETMX6UL-C2 is an industrial-grade SoM based on NXP i.MX6 Ultra Lite microcontroller belongs to Cortex -A7 and is with main frequency of 528MHz, 256MB LvDDR3 and 256MB NAND Flash, the CPU module is with a couple of board-to-board connectors each with 80pins. Unique PMU design makes it lower power consumption than ARM 9 products. It's approved to work stably under environment temp ranges from -40℃ to +85 ℃.

FETMX6DL-S System on Module

Feiling embedded iMX6DL series core board adopts NXP Cortex-A9 dual-core i.MX6DL processor, clocked at 1.2 GHz, stamp hole connection method, strong stability, iMX6DL core board currently has two specifications of industrial grade and commercial grade, with selectivity Stronger.

FETMX6Q-S System on Module

System on Module FETMX6Q-S based on i.MX6Q FETMX6Q-S core board based on NXP quad-core ARM Cortex-A9 i.MX6Q high-performance processor design, main frequency 1GHz, 8 layers of PCB gold process, stamp hole connection to ensure the best electric

FETMX6DL-C System on Module

Cortex-A9 architecture, 1x 1000M Ethernet, 2x CAN, 5x SPI, 1x mini PCIe.
