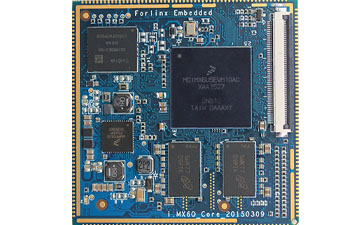

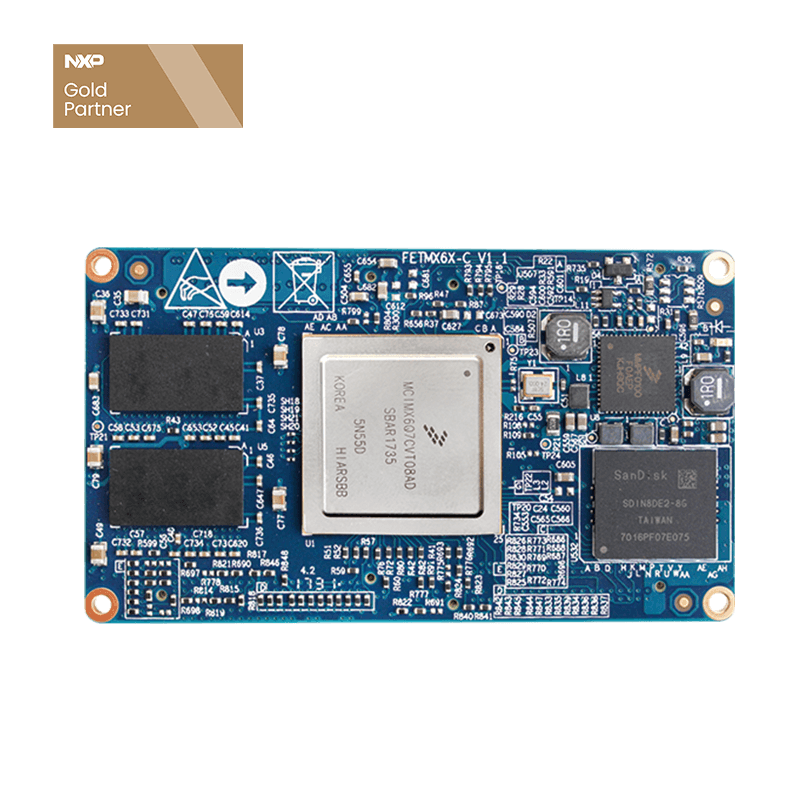

FETMX6DL-C System on Module

CPU: i.MX6DualLite

Architecture: Cortex-A9

Frequency: 1.0GHz

RAM: 1GB DDR3,2GB DDR3(optional)

ROM: 8GB eMMC

System: Linux3.0.35,Linux4.1.15,Android4.2,Android6.0

Brief Message Compare

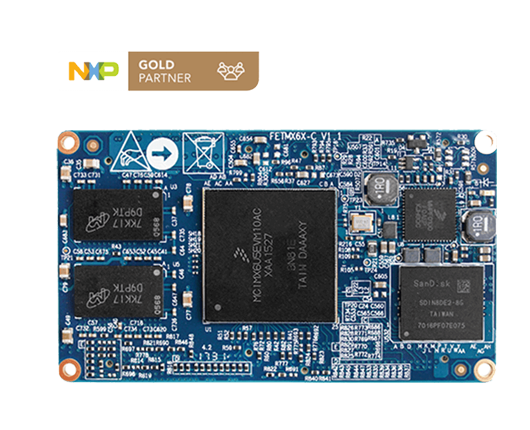

System on Module FETMX6DL-C based on i.MX6DL

FETMX6DL-C is a system on module(SoM) designed based on NXP /Freescale Cortex-A9 i.MX6Dual Lite processor with main frequency up to 1.2GHz, this SoM is with 320 pins and it is designed with 12-layer ENIG PCB and ultra thin board-to-board connectors.

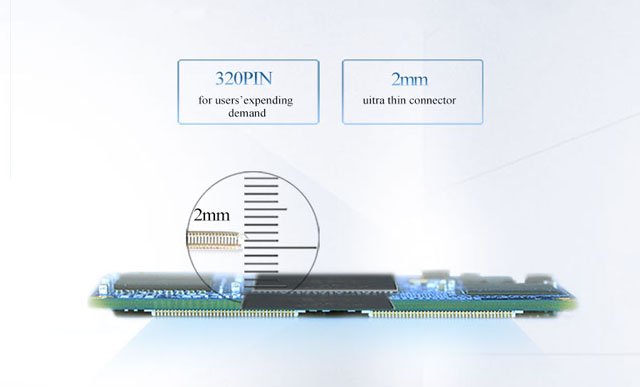

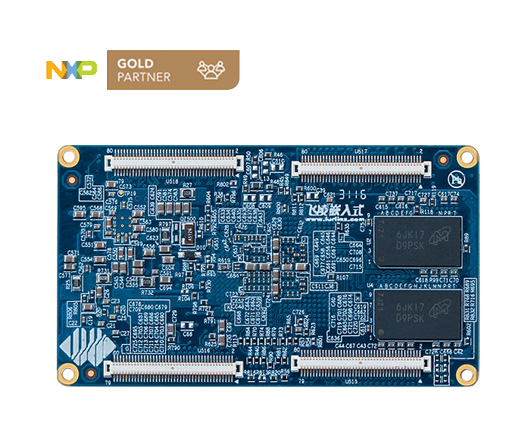

i.MX6DL System On Module Size

The SoM uses 4 sets of ultra-thin 80P board-to-board connectors,
which are only 2mm high and 40mm x 70mm gold size ratio, so that the product design is not limited to any mechanical structure

i.mx6dl system on module
i.mx6dl system on module Phone

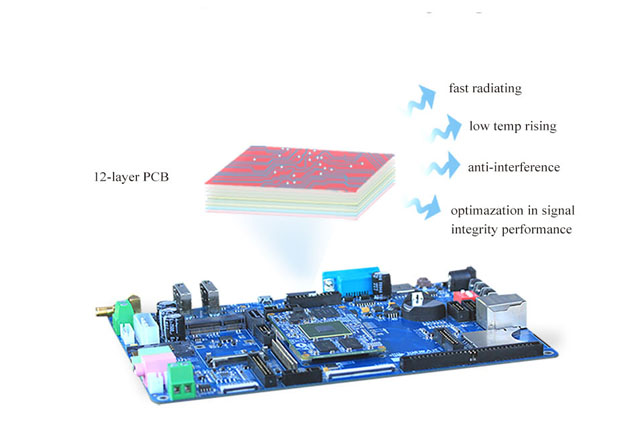

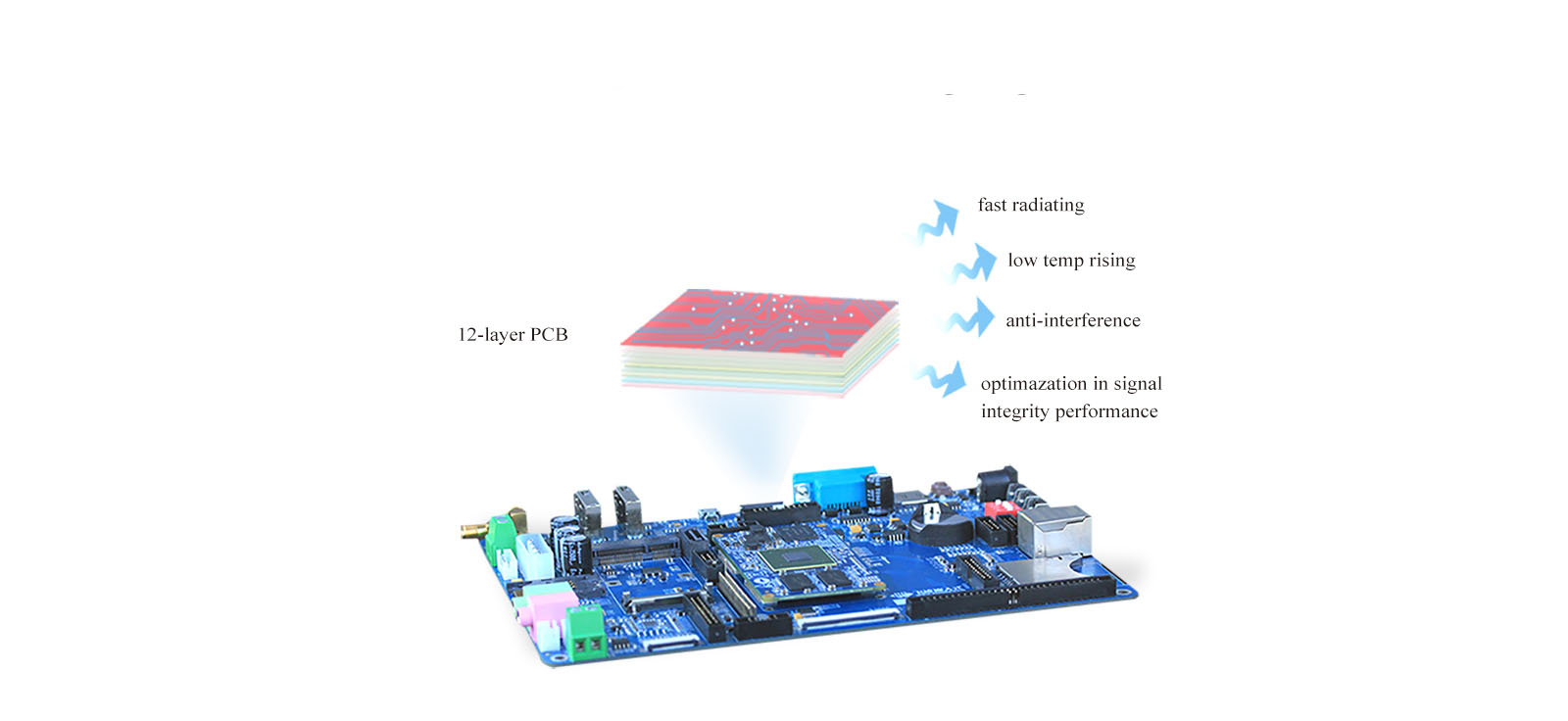

12-layer PCB gold deposition process, more stable operation!

The SoM adopts the 12-layer PCB deposition process design,
taking full account of electromagnetic compatibility and signal integrity design, to ensure the stable operation of the system!

i.mx6dl system on module
i.mx6dl system on module Phone

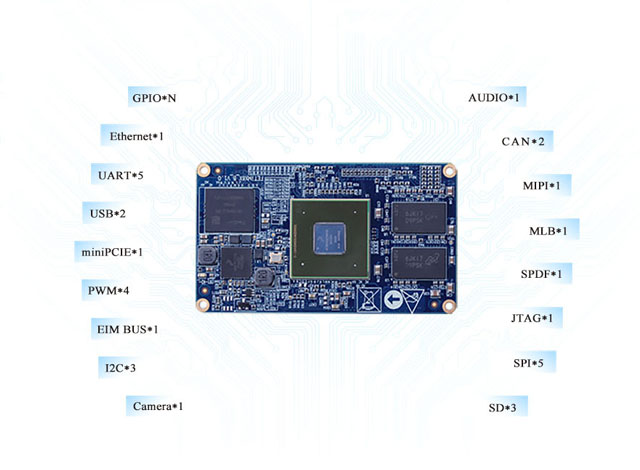

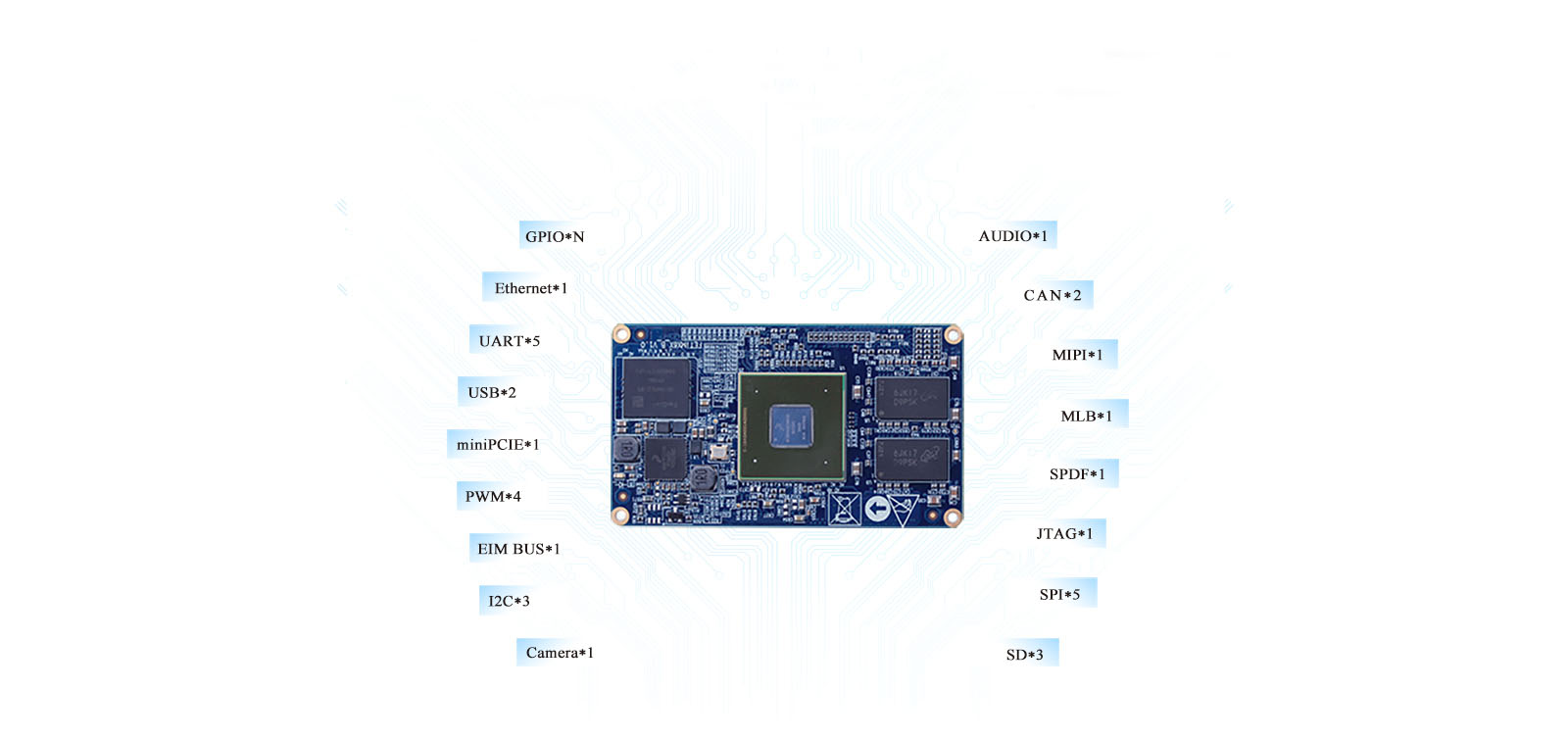

The CPU pins are all drawn out to meet
the different functional requirements of different products in various fields

The SoM leads all PINs out of the CPU,
supporting not only Gigabit Ethernet, DVP, MIPI camera s, audio, SDHC and other interfaces, but also MIPI cameras, MIPI screens, MLB bus, EIM BUS 27-bit address, 32-bit data bus, and more.

i.mx6dl system on module with CPU pins
i.mx6dl system on module with CPU pins

Supports a variety of display screen interfaces and image collectors

i.mx6dl SoM with display screen interfaces
i.mx6dl SoM with single board computer
i.mx6dl SoM with display screen interfaces
i.mx6dl SoM with single board computer

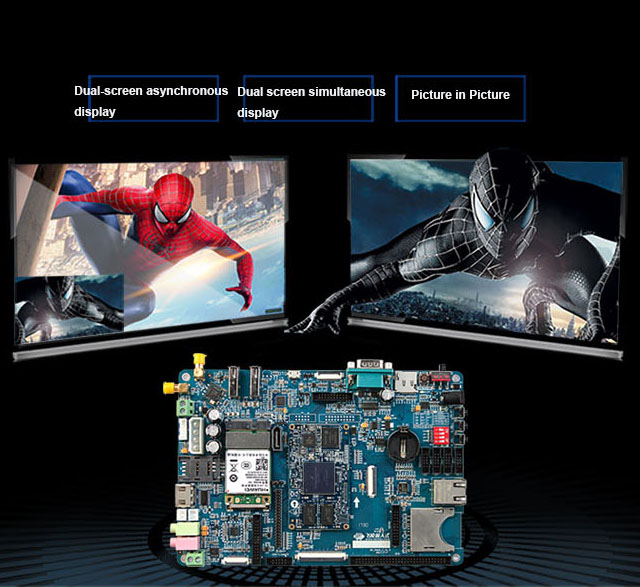

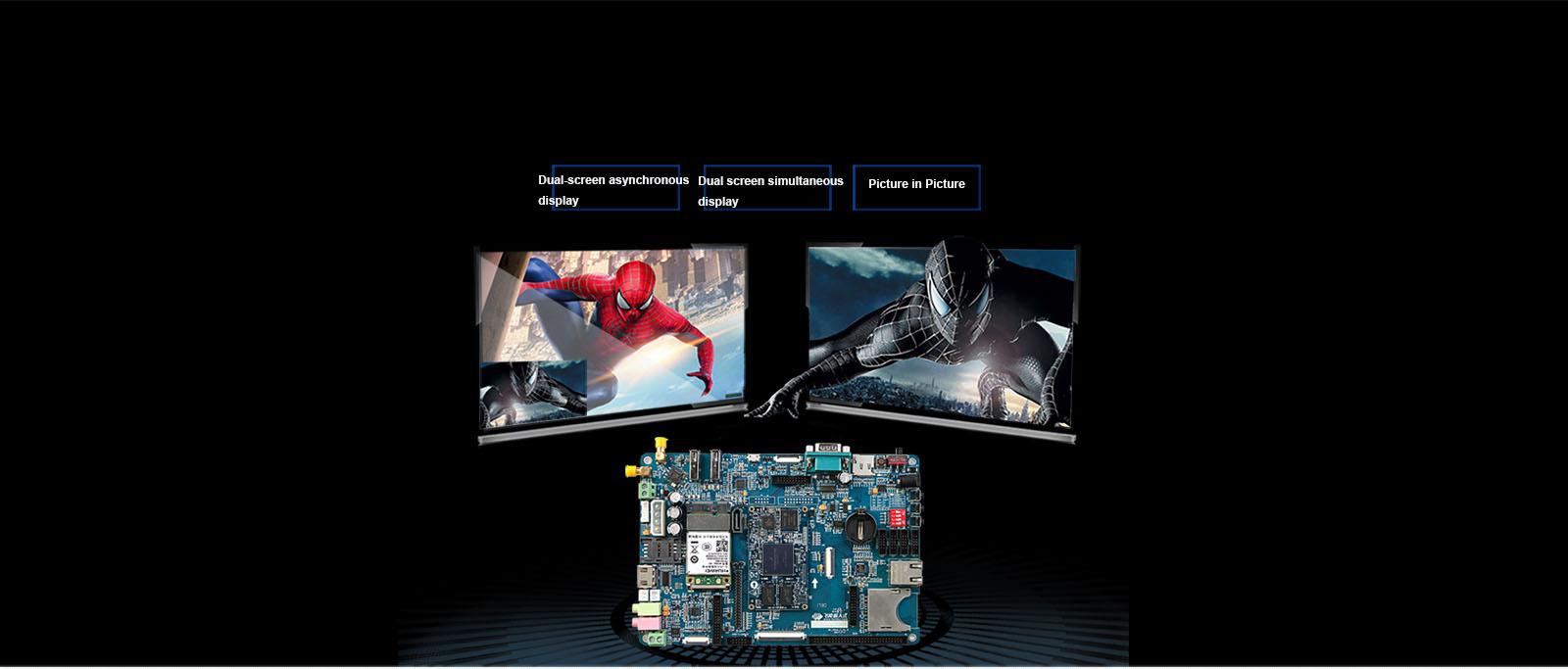

The two-screen era of i.MX6 takes you into a whole new experience

Forlinx embedded FETMX6DL-C SoM supports dual-screen synchronous display, two-screen asynchronous display.
Asynchronous display supports various modes of asynchronous display, including LVDS and LCD, HDMI and LVDS, HDMI and LCD, LVDS0 and LVDS1.

FETMX6DL-C core board with dual-screen synchronous display
FETMX6DL-C core board with dual-screen synchronous display

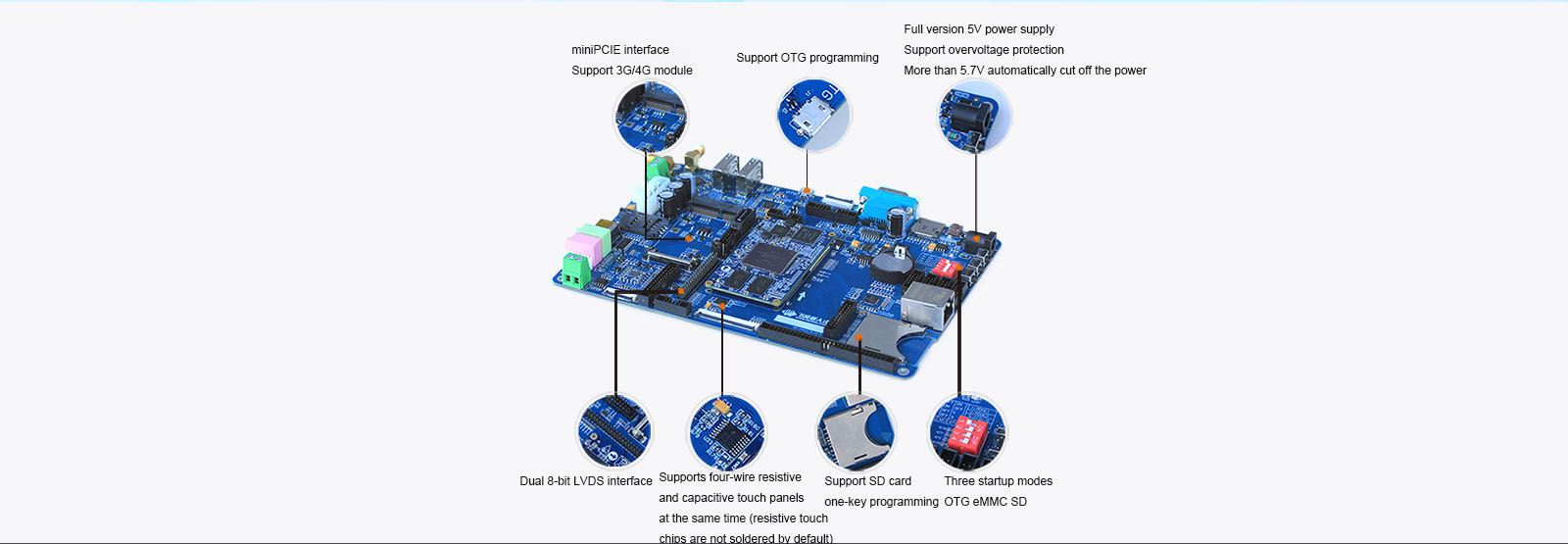

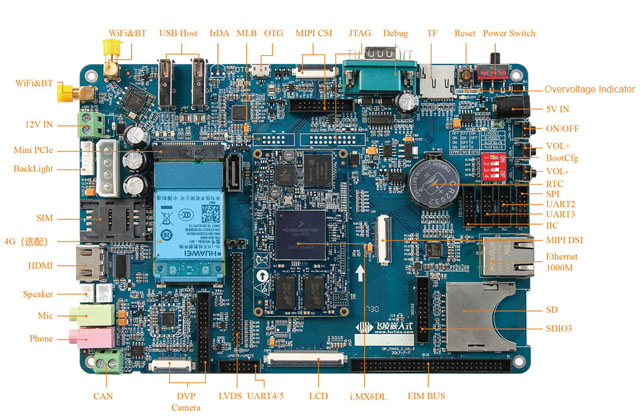

Interface-rich supporting base plate

OKMX6DL-C development board using the core board and bottom plate structure design, full function, more pins,
to meet a variety of product development needs, can be more flexible product evaluation, quickly design more competitive products.

OKMX6DL-C development board
OKMX6DL-C development board

Support for mainstream operating systems

Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5

iMX6DL development board with operating systems
iMX6DL development board with operating systems

Multiple security certifications

OKMX6DL-C development board is CE FCC RoHS certified

iMX6DL development board with multiple security certifications
iMX6DL development board with multiple security certificationss

Target Applications

Widely used in industrial control , medical, multimedia, security, automotive, finance,
teaching, electricity, communications, charging piles, smart home, consumer electronics, handheld devices, display control and other fields

OKMX6DL-C development board industry applications
OKMX6DL-C development board industry applications

▊ Hardware Features


FETMX6DL-C System on Module Features
CPU NXP i.MX6Dual Lite(compatible with i.MX6Q)
Architecture Cortex-A9
Main Frequency commercial grade: 1GHzl, industrial grade 800MHz
RAM 1GB DDR3 (2GB DDR3 optional)
ROM 8GB eMMC
Voltage Input DC 4.2V
2D/3D supported
GPU Vivante GC355 / Vivante GC320
PMU MMPF0100NPEP
Dimensions 40mm*70mm
Package board-to-board connector
OS Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5
Display RGB 24-bit, dual 8-bit LVDS interface, HDMI, MIPI
MIPI 3x MIPI_CSI MIPI_DSI MIPI_HSI
IIC 3x IIC
SPI 5x SPI
CAN 2x CAN
USB HOST 1x USB HOST 2.0
USB DEVICE 1x USB OTG 2.0
SD/MMC/SDIO 3x SD/MMC
Ethernet 1x 1000M
UART/IrDA 5(contains one debug port)
EINT/GPIO supported
Video Codec hardware codec
EBI BUS 27-bit address bus, 32-bit data bus
JTAG 1x JTAG
Camera 1x DVP, 1x MIPI
PWM 3x PWM
SATA 1x SATA
8X8 Keyboard 1-ch
mini PCIe 1x mini PCIe
SPDIF 1x SPDIF
MLB 1x MLB
Audio IIS≤3

▊ Software Features


OS Android

OS

Android4.4

Android6.0



Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2, JDK1.6.0-45

arm-fsl-linux-gnueabi-gcc-4.9, JDK1.7.0-131

Flash OS image by SD card or USB OTG

Flash OS image by USB OTG

EXT4 file system is supported

EXT4 file system is supported

MFT Tools are supported on Windows XP/Windows Vista/ Windows 7

MFT Tools are supported on Windows XP/Windows Vista/ Windows 7



UBOOT

boot mode(eMMC/SD/USB OTG)

boot mode(eMMC/SD/USB OTG)

UBOOT LOGO

UBOOT LOGO

RAM(1G/2G)

RAM(1G)







































Android Kernel

Version: Android-KK4.4.2

Version: Android 6.0.1_2.1.0

EXT4/NFS/FAT32/NTFS file system

EXT4/NFS/FAT32/NTFS file system

eMMC(8G)

eMMC(8G)

Watchdog

Watchdog

RTC

RTC, RX8010

IO

IO

user key: 2(VOL+,VOL-)

user key: 2(VOL+,VOL-)

SPI, can communicate with MCP2515

SPI

I2C

I2C

DVP OV5640

DVP OV5640

MIPI OV5640

MIPI OV5640

USB UVC

USB UVC

PWM

PWM

capacitive touching(GT9XX, GT928)

capacitive touching(GT9XX, GT928)

LCD, 255 ratio adjustable

LCD, 255 ratio adjustable

LCD

1. RGB 4.3'' LCD(480x272)

2. RGB 7'' LCD(800x480)

3. mipi 7''(1024x600 not supported presently)

4. LVDS10.1''(1280x800)

5. HDMI 1920x1080M@60

6. HDMI 1280x720M@60

7. LVDS 1024x768

8. LVDS 1920x1080

9. RGB 5''(640x480)

A. RGB 7''(1024x600)

LCD

1. RGB 7'' LCD(800x480)

2. RGB 7'' LCD(1024x600)

3. LVDS 10.1''(1280x800)

4. HDMI 1920x1080M@60

5. MIPI 1024x600 7''

MIPI-DSI(7'' 1024*600)

MIPI-DSI(7'' 1024*600)

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Device

USB Device

TF/SD/MMC card: 64GB tested

TF/SD/MMC card: 64GB tested

UART: 5

UART

WM8962 audio: record and playback, ALSA, speaker (D amplifier), earphone output
WM8960 audio: record and playback, ALSA, speaker (D amplifier), earphone output

WM8960 audio: record and playback, ALSA, speaker (D amplifier), earphone output

Ethernet(AR8031, 1000/100/10Mbps)

Ethernet (AR8031, 1000/100/10Mbps)

3G


4G, ME909s-821, EC20

4G, ME909s-821

WiFi, RTL8723BU, STA

WiFi, RTL8723BU, STA

BT, RTL8723BU

BT, RTL8723BU

GPS, VK1613

GPS, VK1613

CAN 2.0B

CAN 2.0B

HDMI

HDMI

USB to UART


SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q

SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q

LVDS single/ dual channel

LVDS single/ dual channel(10.1'' 1280*800)


















Testing APP

WIFI

WIFI

RTC

RTC

SPI to CAN MCP2515


Flexcan

Flexcan

IP address setting

IP address setting

sleeping mode waken up

sleeping mode waken up

TTL to RS232

TTL to RS232

RS485

RS485

audio record/ playback

audio record/ playback

3G wireless network


4G wireless network

4G wireless network

Speaker

Speaker

RGB backlight adjusting

RGB backlight adjusting

Watchdog

Watchdog

MMC/TF/SD card and U-disk auto-mounting and unintalling; SATA2 ext4 hard disk auto-mounting and uninstalling

MMC/TF/SD card and U-disk auto-mounting and unintalling; SATA2 hard disk auto-mounting and uninstalling

OS Linux Console

Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2

ARMv7 architecture, support hard floating-point calculation




Booting Mode

USB, SD download flashing

USB, SD card one-key to start OS image flashing

Single/multiple files automatic flashing


Support system files flashing in EXT4 format


MFG tools are supported by WindowsXP/Vista/Windows7




UBoot

boot mode selection(eMMC/USB OTG)


RAM


UBOOT LOGO














Linux Kernel

Version: Linux-3.0.35

LCD backlight, adjustable up to 255-grade

File system form: EXT4/ NFS/ FAT32/NTFS

LCD driver(7''800x 480, 10.1'' 1024x 800, 4.3'' 480x 272)

eMMC

USB Host driver: U-disk, USB Hub, USB keypad and mouse

watchdog

USB Device

RTC

TF/SD/MMC card

IO

UART

user key

WM8962 audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output

SPI

Ethernet(AR8031, 1000/100/10Mbps)

I2C

3G

EIM 4G(EC20)

OV5640 OV5640-MIPI

USB to UART

PWM

SATA hard disk driver

Capacitive touching driver, resistive touching(Linux)

LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon)













Testing APP

WiFi

3G wireless network

telnet

USB camera

RTC

Audio recording/ playing back

SPI to CAN MCP2515

IIC

Flexcan

GPU

IP/Mac address setting

IPU

Sqllite

VPU

sleeping mode waken up

Speaker

TTLto RS232

RGB display backlight adjusting

RS485

Playing of 1080P video and MP3 file

Audio recording/ playing back

Watchdog

GPRS wireless network

MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling

GPS

FTP

SPI

Boa Web Server

Linux QT4.8.5

Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2

ARMv7 architecture, support hard floating-point calculation





OS Flashing


OS flashing by SD card or USB

USB, SD card one-key flashing

Single/multiple files automatic flashing


Support system files flashing in EXT4 format


MFG tools are supported by WindowsXP/Vista/Windows7




UBoot

boot mode selection(eMMC/USB OTG)


RAM


UBOOT LOGO




















Linux Kernel

Version: Linux-3.0.35

LCD backlight, adjustable up to 255-grade

File system form: EXT4/ NFS/ FAT32/NTFS

LCD

1. RGB 4.3'' LCD(480x272)

2. RGB 7'' LCD(800x480)

3. mipi 7''(1024x600 not supported presently)

4. LVDS10.1''(1280x800)

5. HDMI 1920x1080M@60

6. HDMI 1280x720M@60

7. LVDS 1024x768

8. LVDS 1920x1080

9. RGB 5''(640x480)

A. RGB 7''(1024x600)

eMMC

USB Host: U-disk, USB Hub, USB keyboard and mouse, etc

Watchdog

USB Device

RTC

TF/SD/MMC card

IO

UART: 4

User key: 4

audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output

default chip is WM8960, WM8962 is compatible, users can select in uboot menu

SPI

Ethernet(AR8031,1000/100/10Mbps)

I2C

3G

EIM

4G(Huawei ME909S, Quetel EC20)

camera DVP OV5640 MIPI OV5640

USB to UART

PWM

SATA hard disk

Capacitive touching driver(GT9xx, GT928 and FT5x06), resistive touching(Linux)

LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon)

Testing APP

WiFi

3G wireless network

telnet

USB camera

RTC

Audio recording/ playing back

SPI to CAN MCP2515

IIC

Flexcan

GPU

IP/Mac address setting

IPU

Sqllite

VPU

sleeping mode waken up

Speaker

TTL to RS232

RGB display backlight adjusting

RS485

Playing of 1080P video and MP3 file

Audio recording/ playing back

Watchdog

GPRS wireless network

MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling

GPS

FTP

SPI

Boa Web Server

Configuration sheet

Name

Configuration

Frequency

Grade

Temp Width

Note

FETMX6Q-C SoM

i.MX6Quad

Cortex-A9

1G DDR3, 8GB eMMC

1GHz commercial

0℃~+70℃

-20℃~+70℃

1G DDR3, 8GB eMMC

800MHz

industrial

-40℃~+85℃


2G DDR3, 8GB eMMC

1GHz

commercial

0℃~+70℃

optional

2G DDR3, 8GB eMMC 800MHz industrial -40℃~+85℃ optional

▊ Download


Catalog: Forlinx Catalog Manual

Product Brief: FETMX6DL-C SoM and OKMX6DL-C SBC introduction

▊ Accessories


Please click here to get more information about the supported modules and accessories.

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

▊ Design Service


1. Hardware Designing

Provide carrier board, core board, industry product custom, etc. Read More+

2. Hardware Related Software Custom

Provide software custom service including kernel cutting, driven development, and system transplantation. Read More+

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.

▊ Other Forlinx iMX6 Series Products


OKMX6ULL-C Single Board Computer
OKMX6ULL-C Single Board Computer
CPU: NXP i.MX6ULL
Architecture: Cortex-A7
Frequency: 800MHz
RAM: 512MB DDR3
ROM: 8GB eMMC
System: Linux4.1.15+QT5.6
Learn More
NXP iMX6DL Single Board Computer
FETMX6DL-S System on Module
CPU: i.MX6DualLite
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35+QT4.8.5,Linux4.1.15+QT5.6,Android4.2,Android6.0
Learn More
FETMX6Q-C System on Module
FETMX6Q-C System on Module
CPU: NXP i.MX6 Quad
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35+QT4.8.5,Linux4.1.15+QT5.6,Android4.2,Android6.0
Learn More
Single Board Computer OKMX6DL-C based on NXP i.MX6DL
OKMX6DL-C Single Board Computer
CPU: NXP i.MX6DualLite
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux4.1.15,Android4.4,Android6.0
Learn More
