10.1'' LVDS Display

Resolution: 1280*800

Interface:

Type: capacitive touching

Range: -20℃~+70℃

Brief Message Compare

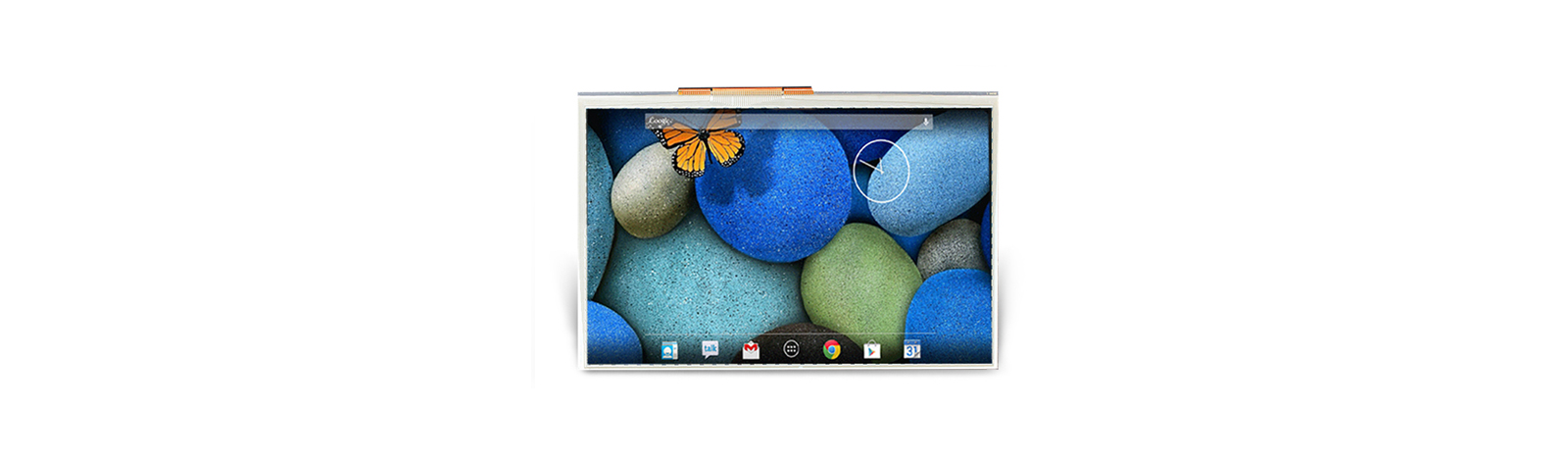

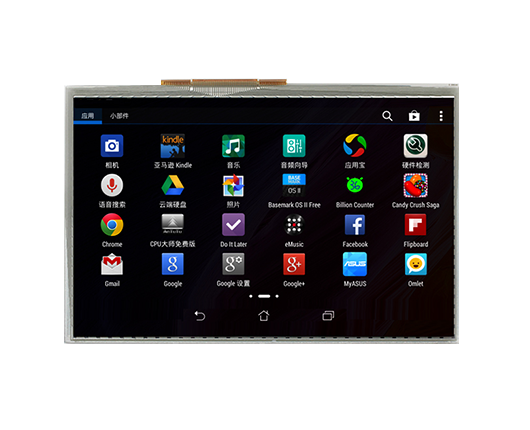

10.1-inch LVDS Display with Capacitive Touch Panel

10.1-inch LVDS capacitive touch screen display module featured with IPS panel which is having the advantage of wider viewing angle. In-Plane Switching (IPS) was one of the first refinements to produce significant gains in the light-transmissive characteristics of TFT panels. It is a technology that addresses the two main issues of a standard twisted nematic (TN) TFT display: colour and viewing angle.


Its resolution is 1280x800 pixels and the aspect ratio is 16:10. This LVDS touch display module adopts controller IC HX8288 + HX8695 supporting LVDS (low voltage differential signaling) Interface. It has high brightness, of 350 cd/㎡ and a contrast ratio (typical value) of 800:1.


Package Includes:

10.1'' LVDS display* 1

LVDS cable

10.1 inch lvds display

▊ Feature of 10.1-inch LVDS display


10.1-inch LVDS Display with Capacitive Touch Panel

Resolution 1280*800 Brand Forlinx
Touching Type capacitive Interface LVDS
Parameters
Backlight LED Color 16777216
Pixel Scale 16:10 Active Area(mm) 216.96(W) × 135.60(H)
Dot Pitch(μm) 0.1695 Visual Angel(U/D/L/R) (CR>10)  85
Brightness(cd/m2) 350 Contrast 800:1
Response Time(ms) Ton 10  Toff 15 Pin Number 40
Backlight Consumption(W) 1.8 (Typ.) Working Temperature -10℃~+50℃
Applicable for Forlinx single board computer: OKMX6UL-C, OKMX6ULL-C, OKMX6ULL-S, OK-MX9352-C, OK527N-C, OKT507-C, OKA40i-C, OKT3-C, OK113i-S, OKMX6Q-C, OKMX6DL-C

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How to buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering

2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.

▊ Related Products

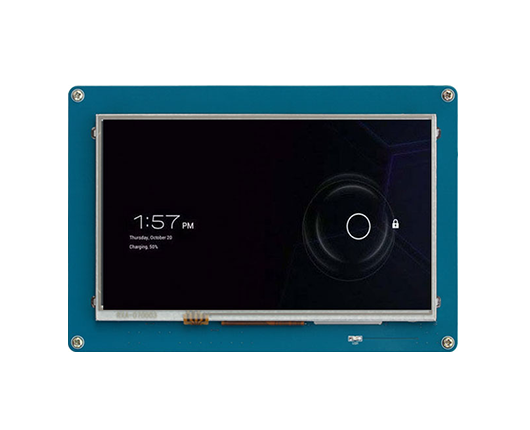

7.0 inch Capacitive LCD Module
7.0 inch Resistive LCD Modul

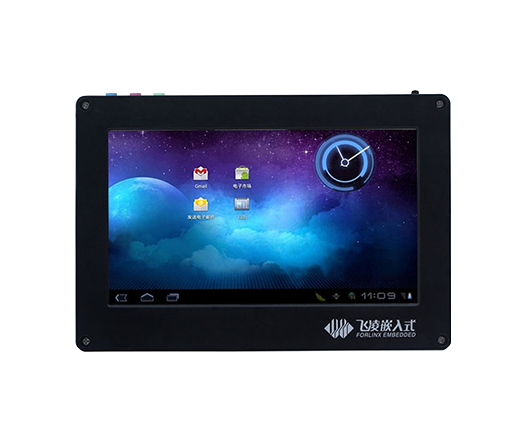

7.0 inch Capacitive LCD Module 7.0 inch Resistive LCD Module
