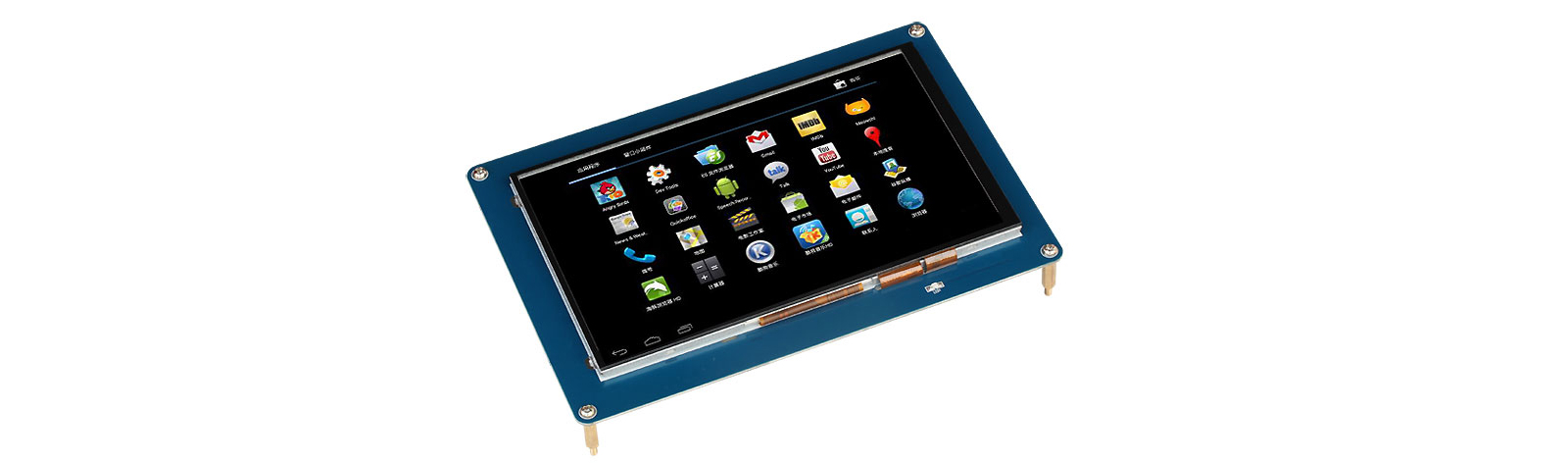

7.0'' Capacitive LCD Module

Resolution: 1024*768,800*480

Interface: FPC connector

Type: capacitive touching

Range: -20℃~+70℃

Brief Message Compare

7.0-inch TFC LCD Module with Capacitive Touch Panel

The 7.0-inch Capacitive LCD Module is designed to work with Forlinx's ARM development boards and single board computers. It has one 7.0 inch TFC LCD module including capacitive touch screen with 1024 by 768 pixels resolution. Forlinx has designed a special LCD adapter board to drive the display and enable touch features. One 50-pin 1.27mm pitch IDC cable and one 50-pin 0.5mm pitch FPC cable are provided for user selection to connect the LCD adapter board with MYIR's development board or single board computer. User can experience the high performance of Forlinx's board products through touching and watching the 7 inch LCD Module.

Key parameters of 7.0-inch TFC LCD module

This LCD display screen is 7 inch, 1024 x 768

Used for Forlinx's SBCs display

Operating voltage: 12V power supply current requirements of more than 1A, if you are using the car power supply, you need to add a regulator to prevent interference

Operating voltage: 12V power supply current requirements of more than 1A, if you are using the car power supply, you need to add a regulator to prevent interference

Support image up and down left and right flip, image 5: 3/16: 9 display format conversion

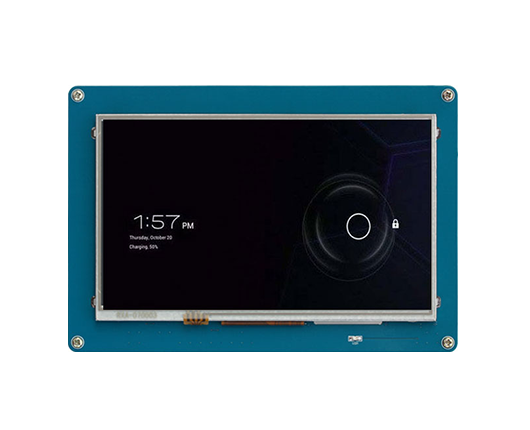

7.0 inch Capacitive LCD Module

▊ Feature of 7.0-inch TFC LCD module

7.0-inch TFC LCD Module with Capacitive Touch Panel

Model FIT-LCD7.0 1024* 768 FIT-LCD7.0 800* 480
Interface FPC connector FPC connector
Brand Forlinx Forlinx
Resolution 1024*768 800*480
Touch Panel capacitive capacitive
Parameters
Backlight LED LED
Color 16777216 16777216
Pixel Scale 16:9 5:3
Active Area(mm) 154.08(W) × 85.92(H) 154.08(W) × 85.92(H)
Dot Pitch(mm) 0.0642(W) x 0.1790(H) 0.0642(W) x 0.1790(H)
Visual Angel(U/D/L/R) 85/85/85/85 50/70/70/70
Brightness(cd/m2) 250 250
Contrast 800:1 500:1
Response Time(ms) Ton 13  Toff 15 Ton 10  Toff 15
Pin Number 50 50
Backlight Consumption(W) 1.386 (Typ.) 1.7 (Typ.)
Working Temperature -20℃~+70℃ -20℃~+70℃
Applicable to Forlinx single board computer: OKMX6UL-C, OK1052-C, OKMX6ULL-C, OKMX6ULL-S, OK62xx-C OK-MX9352-C, OK3568-C, OKT507-C, OKA40i-C, OKT3-C, OK113i-S, OK7110-C, OKMX6Q-C, OKMX6DL-C, OK-G2LD-C
Packing List
7'' LCD modulex 1 FPC cablex 1
