FET6818-C System on Module(Samsung S5P6818 SoC)

CPU: S5P6818

Architecture: Cortex-A53

Frequency: 1.4GHz

RAM: 1GB DDR3,2GB DDR3(optional)

ROM: 8GB eMMC

System: Linux3.14,Linux3.2,Linux3.4.39,Linux3.14.38,Android4.4.2

Download Message Compare

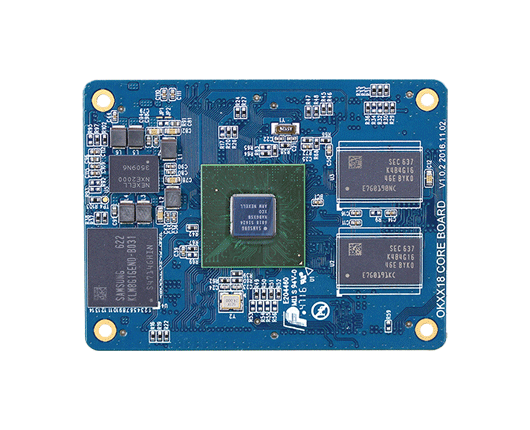

Samsung S5P6818 based System on Module FET6818-C

FET6818-C is a Cortex-A53 featuring octa core system on module. It is an RISC(32-bit) SoC-based starter kit featuring Samsung S5P6818. Its CPU is with main frequency of 1.4GHz. It has a powerful multi-media performance supporting 1080P hardware video codec and 3D graphical accelerator. RGB, HDMI, MIPI and LVDS display types are all available, what's more, DVP and MIPI camera s are both well supported. The CPU module is with 1GB DDR3, 8GB eMMC, dimensions of 60*45mm, it's connected to the carrier board by 4 ultra thin connectors with hight only 1.5mm to draw out mostly pins (320 pins). OS Android5.1, Linux 3.4.39 are well supported.

s5p6818 cpu board module cortex a53 8 core 64 bit arm core board s5p4418 s5p6818 development board development board can support lvds mipi dsi hdmi development board can support ota


▊ Spec.

Overview of FET6818-C System on Module
CPU S5P6818XCO-LA40 Architecture ARM Cortex-A53
Main Frequency 1.4GHz Core Number 8
RAM 1GB DDR3(2GB DDR3 optional) Flash 8GB eMMC
Dimensions 60*45mm Package board to board connector
PMU NXE2000 Voltage Input DC4.2V
Working Temp Width 0℃-70℃ RH 10-90%RH non-condensing
OS Android5.1.1, Linux3.4.39

FET6818-C System on Module Features
Peripheral QTY Spec.




Display

LCD 1

RGB 888, maximum resolution supporting: 2048*1280

LVDS 1

supporting JEIDA and VESA output, 4x data channel, 1x clock channel, maximum resolution supporting: 2048*1280

HDMI 1

HDMI 1.4, maximun resolution supporting: 1080*1920

MIPI_DSI 1

MIPI DSI SPEC V1.01r11, up to 4x data channel, resolution up to 1920*1200


CAMERA

MPEG 2

8-bit parallel interface, pixel up to 5-Megapixel

MIPI_CSI 1

D-PHY spec V1.00, pixel up to 5-Megapixel

SD/MMC/SDIO 2

3-ch supported by CPU, and 2x SD/MMC drawn out by SoM, while the eMMC channel was not drawn out

USB HOST 1

USB2.0 host (rate up to 480Mbps), integrated with HS USB Phy

USB OTG 1

USB2.0 OTG (rate up to 480Mbps), integrated with HS USB Phy

UART 6

each transferring rate up to 5.0Mbps

IIC 3

supporting 100kbit/s and 400kbit/s

IIS 3

supporting up to 3x IIS

SPI 3

supporting up to 3x SPI

Ethernet 1 10/100/1000Mbps auto-negotiation
PWM 4 4x PWM output
SPDIF 1 supported
ADC 7

12-bit resolution, maximum input frequency 100KHz, power input range: 0-1.8V

EBI 1

Maximum data bus width: 16-bit, maximum address bus: 17-bit

JTAG 1 standard JTAG connector

▊ Software Features


OS Android 5.1.1
Compiler arm-eabi-gcc-4.8, OpenJDK 7.0
OS Flashing by SD card
U-boot for boot mode selection
Kernel Version Linux 3.4.39
Android Version Android 5.1.1














Driver Source

eMMC UART/RS232
SD card RS485
LVDS display ADC
LCD accelerator
MIPI display IrDA
HDMI display RTC
LCD/MIPI/LVDS capacitive touching IO
PWM LED
LCD/MIPI/LVDS backlight, 255-rating adjustable user key
DVP OV5640 IIC
MIPI camera OV5645 SPI
Gigabit Ethernet USB HOST: mouse, keyboard, etc.
4G wireless module USB DEVICE
BT WM8960
Wifi sleeping mode waken up

OS Linux QT 4.8.6
Compiler arm-cortex_a9-eabi-4.7-eglibc-2.18
OS Imag Flashing SD card USB
UBoot booting mode selection











Linux Kernel

Version: linux3.4.39

LCD backlight, 255-rating

File system: EXT/ NFS/ VFAT

LCD driver (7'' by default)

eMMC

USB host driver: U-disk, USB HUB, mouse, keypad, etc

Watchdog USB Device
RTC TF/SD/MMC card
IO UART
user key WM8960 audio
SPI Ethernet
IIC 3G wireless network
camera module OV5640 USB converted to serial port
PWM MIPI 7'' display
capacitive touching LVDS







Testing APP

GPS testing GPRS wireless network
RTC testing audio recording/ playing back testing
camera testing ADC testing
IP/Mac address setting watchdog testing
touching/ mouse mode switching lighttpd Web Server
TTL to RS232 display backlight adjusting
UART testing video playing and mp3 file testing
SDIO wifi

Single Board Computer Consumption Sheet


Model


OS


Testing


Voltage

Current output
Instant peak value(Ma) Stable (Ma)





OK6818-C SBC





Andriod

with 7'' MIPI display+ video playing 5V±5% 1134 843
with 7'' MIPI display, no other operations 5V±5% 1134 711
with 7'' LCD+ video playing 5V±5% 1030 733
with 7'' LCD, no other operations 5V±5% 1030 624
no display and any other operations 5V±5% 714 351


▊ Accessories


Provides the modules and accessories used in Forlinx's Samsung S5P6818 SBC.

See here for communication modules, Evaluation Kit, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(OK6818-C reference manual), schematic documentations to help customer start their development rapidly.

Forlinx provides embedded hardware reference manual, embedded software reference manual, including Samsung S5P6818 embedded software Android system reference manual, and Linux system reference manual.

For more details on solution design with OK6818-C SBC.
