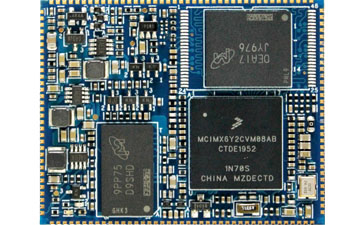

FETMX6Q-C System on Module

CPU: i.MX6 Quad

Architecture: Cortex-A9

Frequency: 1.0GHz

RAM: 1GB DDR3,2GB DDR3(optional)

ROM: 8GB eMMC

System: Linux3.0.35,Linux4.1.15,Android4.2,Android6.0

Download Message Compare

System on Module FETMX6Q-C based on i.MX6 Quad

FETMX6Q-C system on module(SoM) is also based on NXP/Freescale Cortex-A9 i.MX6 quad-core processor with main frequency up to 1.2GHz, this SoM is with 320 pins and it is designed with 12-layer ENIG PCB and ultra thin board-to-board connectors. The SoM is designed with ultra compact size and thin connecots to make designing free couples of ultrathin connectors 80 pins in total are available on SoM. with height only 2mm and golden ratio dimensions of 40*70mm, widely used in industrial control, medical, multimedia, security, automotive, finance, teaching, electricity, communications, charging piles, smart home, Consumer electronics, handheld devices, display control and other fields.


i.MX6Q Core Board With Ultra-thin Connectors

The core board uses 4 sets of ultra-thin 80P board-to-board connectors,
which are only 2mm high and 40mm x 70mm gold size ratio, so that the product design is not limited to any mechanical structure

i.MX6 quad SoM system on module
i.MX6 quad SoM system on module

12-layer PCB Gold Deposition Process

i.MX6Q core board adopts the 12-layer PCB deposition process design,
taking full account of electromagnetic compatibility and signal integrity design, to ensure the stable operation of the system!

SoM 12 layers PCB designing
SoM 12 layers PCB designing

The CPU pins are all drawn out to meet the different functional requirements of different products in various fields

i.MX6Q core board leads all pins out of the CPU, supporting gigabit Ethernet, DVP, MIPI camera s, audio, SDHC, and more.
It also supports MIPI cameras, MIPI screens, MLB buses, EIM BUS 27-bit addresses, 32-bit data buses, and more.

i.MX6Q Cortex-A9 ARM core board
i.MX6Q Cortex-A9 ARM core board

Supports a variety of display screen interfaces and image collectors

Supports a variety of display screen
Supports a variety of display screen

i.MX6Q development board

FETMX6Q-C SoM Supports Dual-screen Synchronous Display, Dual-screen Asynchronous Display

Forlinx embedded i.MX6Q core board supports dual-screen synchronous display, dual-screen asynchronous display.
Asynchronous display supports LVDS and LCD, HDMI and LVDS, HDMI and LCD, LVDS0 and LVDS1.

FETMX6Q-C core board with dual-screen
FETMX6Q-C core board with dual-screen

OS supporting

CE FCC RoHS certified

OKMX6Q-C development board CE FCC RoHS certified
OKMX6Q-C development board CE FCC RoHS certified

▊ OKMX6Q-C Development Board


iMX6Q single board computer

FETMX6Q-C supporting carrier board OKMX6Q-C is rich in interface resources, including mainstream interfaces such as Gigabit Ethernet, CAN-bus, camera, WIFI & Bluetooth, and also introduces CPU-specific functions such as MIPI, MLB, and EIM BUS. The module is ready to run Linux, Android and can support industrial operating temperature range from -40 to +85 Celsius.


Forlinx kindly provides related optional modules for OKMX6Q single board computer/ development kit testing, such as 4.3 inch Resistive LCD Module, 7.0-inch LCD Module with MIPI display, 7.0-inch TFC LCD Module with Capacitive Touch Panel, 7.0-inch TFT LCD Module with Resistive Touch Panel, 10.1-inch LVDS Display with Capacitive Touch Panel, etc.


▊ Hardware Features


FETMX6Q-C System on Module Features

CPU

NXP quad-core i.MX6 Quad(compatible with i.MX6 Dual Lite)

Architecture

Cortex-A9

Main Frequency

commercial grade: 1GHz, industrial grade 800MHz

RAM

1GB DDR3 (2GB DDR3 optional)

ROM

8GB eMMC

Voltage Input

DC 4.2V

2D/3D

supported

GPU

Vivante GC355 / Vivante GC320

PMU

MMPF0100NPEP

Dimensions

40mm*70mm

Package

board-to-board connector

OS

Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5

Display

RGB 24-bit, dual 8-bit LVDS interface, HDMI, MIPI

MIPI

3x MIPI_CSI MIPI_DSI MIPI_HSI

IIC

3x IIC

SPI

5x SPI

CAN

2x CAN

USB HOST

1x USB HOST 2.0

USB DEVICE

1x USB OTG 2.0

SD/MMC/SDIO

3x SD/MMC

Ethernet

1x 1000M

UART/IrDA

5(contains one debug port)

EINT/GPIO

supported

Video Codec

hardware codec

EBI BUS

27-bit address bus, 32-bit data bus

JTAG

1x JTAG

Camera

1x DVP, 1x MIPI

PWM

3x PWM

SATA

1x SATA

8X8 Keyboard

1-ch

Audio

IIS≤3

MLB

1x MLB

SPDIF

1x SPDIF

mini PCIe

1x mini PCIe

▊ Software Features


OS

Android4.4

Android6.0



Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2, JDK1.6.0-45

arm-fsl-linux-gnueabi-gcc-4.9, JDK1.7.0-131

Flash OS image by SD card or USB OTG

Flash OS image by USB OTG

EXT4 file system is supported

EXT4 file system is supported

MFT Tools are supported on Windows XP/Windows Vista/ Windows 7

MFT Tools are supported on Windows XP/Windows Vista/ Windows 7



UBOOT

boot mode(eMMC/SD/USB OTG)

boot mode(eMMC/SD/USB OTG)

UBOOT LOGO

UBOOT LOGO

RAM(1G/2G)

RAM(1G)







































Android Kernel

Version: Android-KK4.4.2

Version: Android 6.0.1_2.1.0

EXT4/NFS/FAT32/NTFS file system

EXT4/NFS/FAT32/NTFS file system

eMMC(8G)

eMMC(8G)

Watchdog

Watchdog

RTC

RTC, RX8010

IO

IO

user key: 2(VOL+,VOL-)

user key: 2(VOL+,VOL-)

SPI, can communicate with MCP2515

SPI

I2C

I2C

DVP OV5640

DVP OV5640

MIPI OV5640

MIPI OV5640

USB UVC

USB UVC

PWM

PWM

capacitive touching(GT9XX, GT928)

capacitive touching(GT9XX, GT928)

LCD, 255 ratio adjustable

LCD, 255 ratio adjustable

LCD

1. RGB 4.3'' LCD(480x272)

2. RGB 7'' LCD(800x480)

3. MIPI 7''(1024x600 not supported presently)

4. LVDS10.1''(1280x800)

5. HDMI 1920x1080M@60

6. HDMI 1280x720M@60

7. LVDS 1024x768

8. LVDS 1920x1080

9. RGB 5''(640x480)

A. RGB 7''(1024x600)

LCD

1. RGB 7'' LCD(800x480)

2. RGB 7'' LCD(1024x600)

3. LVDS 10.1''(1280x800)

4. HDMI 1920x1080M@60

5. MIPI 1024x600 7''

MIPI-DSI(7'' 1024*600)

MIPI-DSI (7'' 1024*600)

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Host: U-disk, USB Hub, USB keyboard and mouse

USB Device

USB Device

TF/SD/MMC card: 64GB tested

TF/SD/MMC card: 64GB tested

UART: 5

UART

WM8962 audio: record and playback, ALSA, speaker (D amplifier), earphone output
WM8960 audio: record and playback, ALSA, speaker (D amplifier), earphone output

WM8960 audio: record and playback, ALSA, speaker (D amplifier), earphone output

Ethernet(AR8031, 1000/100/10Mbps)

Ethernet(AR8031, 1000/100/10Mbps)

3G


4G, ME909s-821, EC20

4G, ME909s-821

WiFi, RTL8723BU, STA

WiFi, RTL8723BU, STA

BT, RTL8723BU

BT, RTL8723BU

GPS, VK1613

GPS, VK1613

CAN 2.0B

CAN 2.0B

HDMI

HDMI

USB to UART


SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q

SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q

LVDS single/ dual channel

LVDS single/ dual channel(10.1'' 1280*800)


















Testing APP

WIFI

WIFI

RTC

RTC

SPI to CAN MCP2515


Flexcan

Flexcan

IP address setting

IP address setting

sleeping mode waken up

sleeping mode waken up

TTL to RS232

TTL to RS232

RS485

RS485

audio record/ playback

audio record/ playback

3G wireless network


4G wireless network

4G wireless network

Speaker

Speaker

RGB backlight adjusting

RGB backlight adjusting

Watchdog

Watchdog

MMC/TF/SD card and U-disk auto-mounting and unintalling; SATA2 ext4 hard disk auto-mounting and uninstalling

MMC/TF/SD card and U-disk auto-mounting and unintalling; SATA2 hard disk auto-mounting and uninstalling

OS Linux Console

Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2

ARMv7 architecture, support hard floating-point calculation




Booting Mode

USB, SD download flashing

USB, SD card one-key to start OS image flashing

Single/multiple files automatic flashing


Support system files flashing in EXT4 format


MFG tools are supported by WindowsXP/Vista/Windows7




UBoot

boot mode selection(eMMC/USB OTG)


RAM


UBOOT LOGO














Linux Kernel

Version: Linux-3.0.35

LCD backlight, adjustable up to 255-grade

File system form: EXT4/ NFS/ FAT32/NTFS

LCD driver(7''800x 480, 10.1'' 1024x 800, 4.3'' 480x 272)

eMMC

USB Host driver: U-disk, USB Hub, USB keypad and mouse

watchdog

USB Device

RTC

TF/SD/MMC card

IO

UART

user key

WM8962 audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output

SPI

Ethernet(AR8031, 1000/100/10Mbps)

I2C

3G

EIM 4G(EC20)

OV5640 OV5640-MIPI

USB to UART

PWM

SATA hard disk driver

Capacitive touching driver, resistive touching(Linux)

LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon)













Testing APP

WiFi

3G wireless network

telnet

USB camera

RTC

Audio recording/ playing back

SPI to CAN MCP2515

IIC

Flexcan

GPU

IP/Mac address setting

IPU

Sqllite

VPU

sleeping mode waken up

Speaker

TTLto RS232

RGB display backlight adjusting

RS485

Playing of 1080P video and MP3 file

Audio recording/ playing back

Watchdog

GPRS wireless network

MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling

GPS

FTP

SPI

Boa Web Server

Linux QT4.8.5

Compiler

arm-fsl-linux-gnueabi-gcc-4.6.2

ARMv7 architecture, support hard floating-point calculation





OS Flashing


OS flashing by SD card or USB

USB, SD card one-key flashing

Single/multiple files automatic flashing


Support system files flashing in EXT4 format


MFG tools are supported by WindowsXP/Vista/Windows7




UBoot

boot mode selection(eMMC/USB OTG)


RAM


UBOOT LOGO




















Linux Kernel

Version: Linux-3.0.35

LCD backlight, adjustable up to 255-grade

File system form: EXT4/ NFS/ FAT32/NTFS

LCD

1. RGB 4.3'' LCD(480x272)

2. RGB 7'' LCD(800x480)

3. mipi 7''(1024x600 not supported presently)

4. LVDS10.1''(1280x800)

5. HDMI 1920x1080M@60

6. HDMI 1280x720M@60

7. LVDS 1024x768

8. LVDS 1920x1080

9. RGB 5''(640x480)

A. RGB 7''(1024x600)

eMMC

USB Host: U-disk, USB Hub, USB keyboard and mouse, etc

Watchdog

USB Device

RTC

TF/SD/MMC card

IO

UART: 4

User key: 4

audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output

default chip is WM8960, WM8962 is compatible, users can select in uboot menu

SPI

Ethernet(AR8031, 1000/100/10Mbps)

I2C

3G

EIM

4G(Huawei ME909S, Quetel EC20)

camera DVP OV5640 MIPI OV5640

USB to UART

PWM

SATA hard disk

Capacitive touching driver(GT9xx, GT928 and FT5x06), resistive touching(Linux)

LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon)

Testing APP

WiFi

3G wireless network

telnet

USB camera

RTC

Audio recording/ playing back

SPI to CAN MCP2515

IIC

Flexcan

GPU

IP/Mac address setting

IPU

Sqllite

VPU

sleeping mode waken up

Speaker

TTL to RS232

RGB display backlight adjusting

RS485

Playing of 1080P video and MP3 file

Audio recording/ playing back

Watchdog

GPRS wireless network

MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling

GPS

FTP

SPI

Boa Web Server

Configuration sheet

Name

Configuration

Frequency

Grade

Temp Width

Note

FETMX6Q-C SoM i.MX6 Quad Cortex-A9

1G DDR3, 8GB eMMC

1GHz commercial

0℃~+70℃

-20℃~+70℃

1G DDR3, 8GB eMMC

800MHz

industrial

-40℃~+85℃


2G DDR3, 8GB eMMC

1GHz

commercial

0℃~+70℃

optional

2G DDR3, 8GB eMMC 800MHz industrial -40℃~+85℃ optional

▊ Accessories


Provides the modules and accessories used in Forlinx's iMX6Q SBC.

See here for communication modules, Evaluation Kit, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(FETMX6Q-C reference manual), schematic documentations to help customer start their development rapidly.

For more details on solution design with FETMX6Q-C SOM

▊ Design Service


1. Hardware Designing

Provide carrier board, core board, industry product custom, etc. Read More+

2. Hardware Related Software Custom

Provide software custom service including kernel cutting, driven development, and system transplantation. Read More+

▊ How to buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering


2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.

▊ Related News


▊ Other Forlinx iMX6 Series Products


FETMX6Q-S System on Module
FETMX6Q-S System on Module
CPU: NXP i.MX6 Quad
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35,Linux4.1.15,Android4.2,Android6.0
Learn More
FETMX6DL-C System on Module
FETMX6DL-C System on Module
CPU: NXP i.MX6DualLite
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35+QT4.8.5,Linux4.1.15+QT5.6,Android4.2,Android6.0
Learn More
OKMX6Q-C Single Board Computer
OKMX6Q-C Single Board Computer
CPU: NXP i.MX6 Quad
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3,2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35+QT4.8.5,Linux4.1.15+QT5.6,Android4.2,Android6.0
Learn More
FETMX6ULL-S System on Module
FETMX6ULL-S System on Module
CPU: NXP i.MX6ULL
Architecture: Cortex-A7
Frequency: 800MHz
RAM: 256MB DDR3,512MB DDR3
ROM: 256MB NandFlash,8GB eMMC
System: Linux4.1.15+QT5.6
Learn More
