5G Industrial Gateway
FCU2303 is a fanless 5G industrial gateway with advanced computing performance based on NXP LS1043A , LS1046A running speed at up to 1.8GHz. super fast and low latency. It has 8 Gigabit Ethernet ports each with separate MAC and 8 RS485(4 are multiplexed with RS232 and RS485) and could be widely used in smart city, factory, water utility, agriculture, security monitoring, etc. Open software supporting of Ubuntu 18.04 integrated with third party clusters(Samba, Lighttpd, Docker, LXC, QEMU, IPSEC, OpenSSL) make it easy-to-go for development.

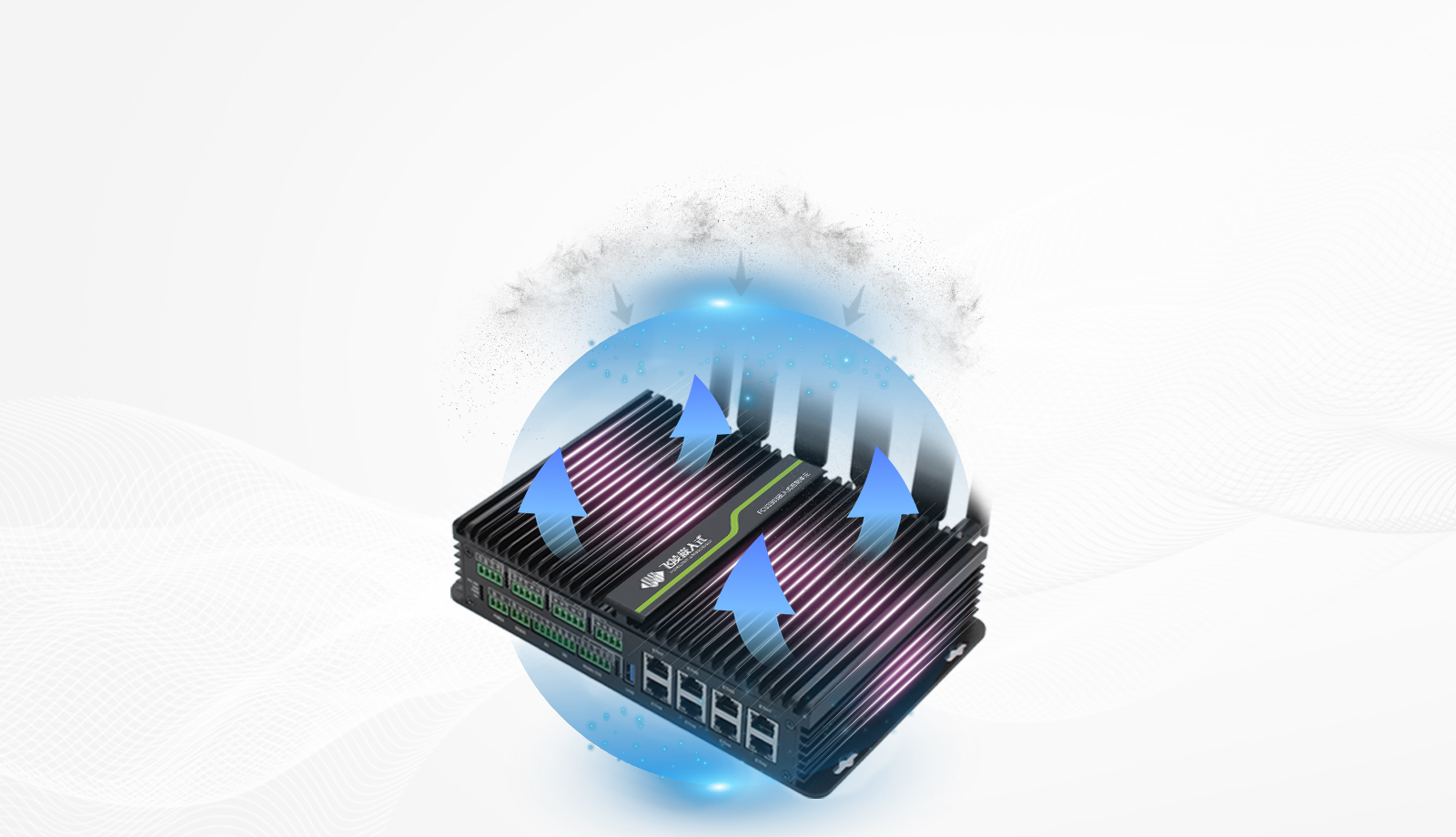

Industrial but fanless
Industrial but fanless designing to guarantee CPU with super advanced performance without interference
Various data acquisition interface
8 LAN and all with seperate MAC, 1* USB3.0, and 8 RS485/ RS232 for networking;
2* DI and 2* DO for equipment status monitoring and controlling
Flexible networking
M.2 for 5G, Mini PCIe for 4G, and dual-band WiFI are available and optional

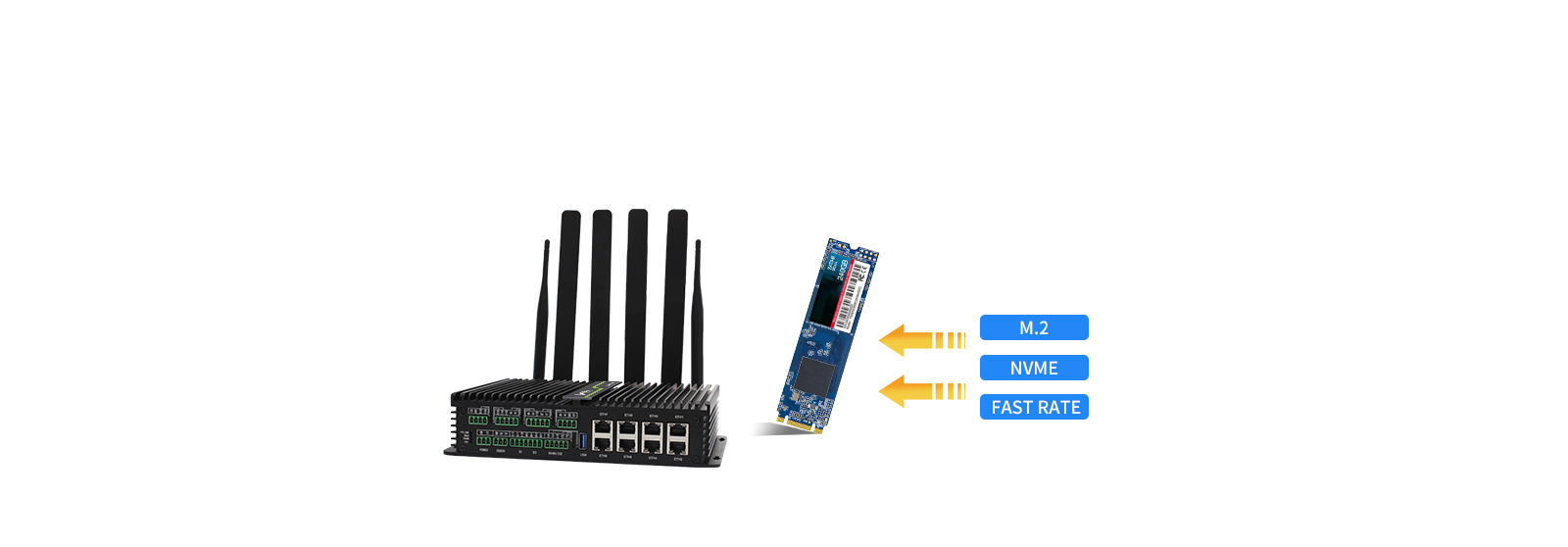

Compact size but high capacity
Compact SSD with high capacity; M.2 interface for SSD complies with NVME
Industrial designing
All components are industrial grade, robust aluminium alloy enclosure and EMC designing to make sure
the device running stably even in rough environment
Applicable for industrial router
Can convert 5G/ 4G to WiFi or Ethernet, flexible for field networking
Optimized system
Ubuntu18.04 supported with Samba, Lighttpd, Docker/ LXC/ QEMU, IPsec, OpenSSL and Python3 or above
Multiple networking protocols
Multiple network protocols, easy to go for users to do development work
Target Application
Applicable for smart factory, smart city, smart health, autopilot, virtual reality, etc.
Pin Diagram
▊ Product Video
FCU2303 5G Industrial Gateway | The demo is based on LS1046A
▊ Hardware Features
| Item | Spec. | |
| FCU2303+1046A-C | FCU2303+1043A-C | |
| CPU |
NXP LS1046A ARM Cortex-A72 quad-core 1.8GHz |
NXP LS1043A ARM Cortex-A53 quad-core 1.6GHz |
| RAM | 2GB DDR4 | |
| ROM | 8GB eMMC | |
| Mobile communication | Huawei MH5000-31 module; | |
| Ethernet | 6 Gigabit Ethernet ports, standard RJ45 connector, 10M/100/1000M auto-negotiation | |
|
DO |
2x DO, electromagnet relay output, Contact capacity: 5A 30VDC / 5A 250VAC Connector: terminal with pitch of 3.81mm |
|
| DI |
2x DI, optocoupler isolated, Connector: terminal with pitch of 3.81mm |
|
| RS485 | 2x RS485 | |
| USB | 1x USB host, standard USB type A connector, for system installation | |
| RTC |
RX8010SJ; on-board CR2032 for 1 year of consumption |
|
| Reset | 1x reset | |
| User-defined key | 1x user-defined key | |
| Power and consumption | Rated voltage: 12V5A, with anti-reverse protection | |
| Dimensions | 210x154x43mm | |
| Mounting | 4x Φ3mm screws | |
| Working Environment |
RH: 5％～95％, non-condencing Working temperature: -40℃～75℃ Storage temperature: -40℃～125℃ |
RH: 5％～95％, non-condencing Working temperature: -40℃～80℃ Storage temperature: -40℃～125℃ |
▊ Software Features
| Item | Spec. |
| OS | Ubuntu-18.04 |
| File system | Ext4 |
| GCC | 7.3.0 |
| Network protocol | TCP/IP, UDP, DHCP, TFTP, FTP, Telnet, SSH, Web, HTTP, IPtables |
| RTC | NTP supported |
| RS485 | supported with demo |
