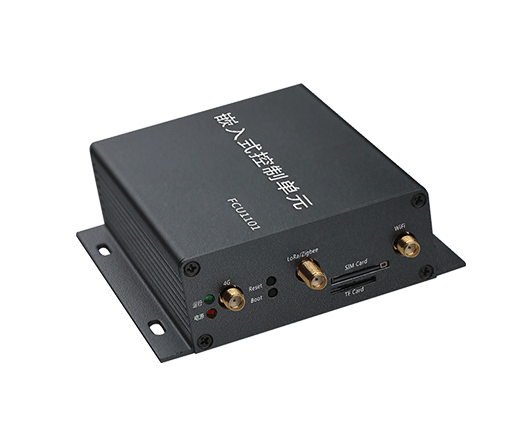

FCU1101 Embedded Computer
FCU1101 is an embedded computer designed based on NXP i.MX6UL processor with frequency of 528MHz, it has 256MB RAM and 256MB NAND Flash which could be upgraded to 1GB. Linux 3.14 is well supported with hardware float pointing. Prepherial interfaces such as RS485, Ethernet, WIFI, 4G, ZigBee/ LoRa are all available. It has stable performance under rough environment(-35℃ to +70℃)

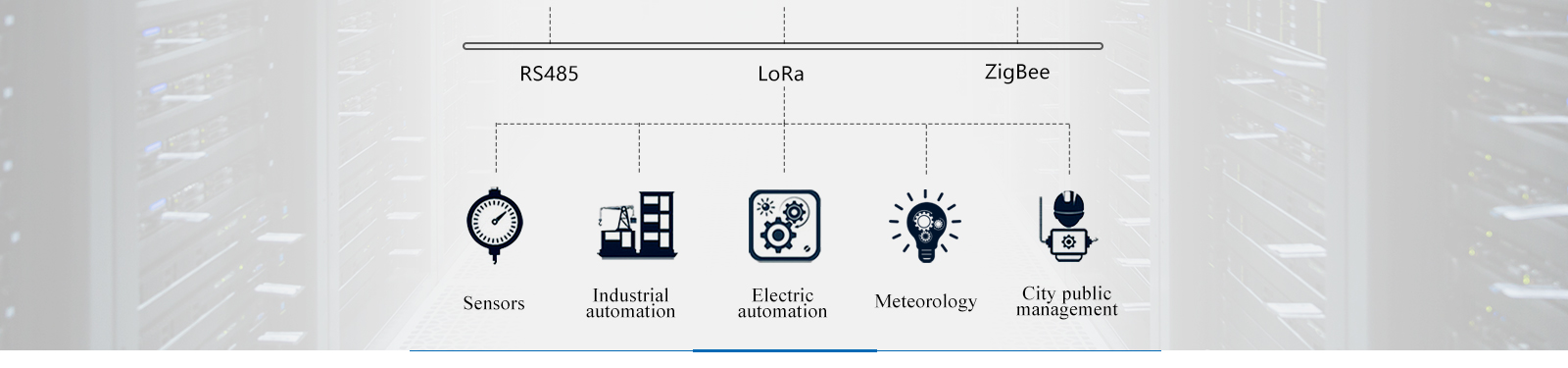

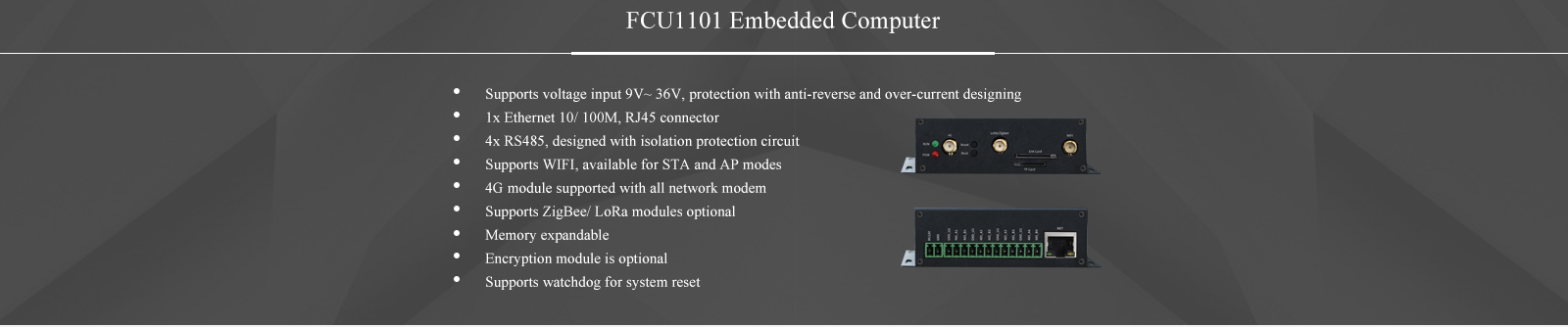

Powerful communication performance

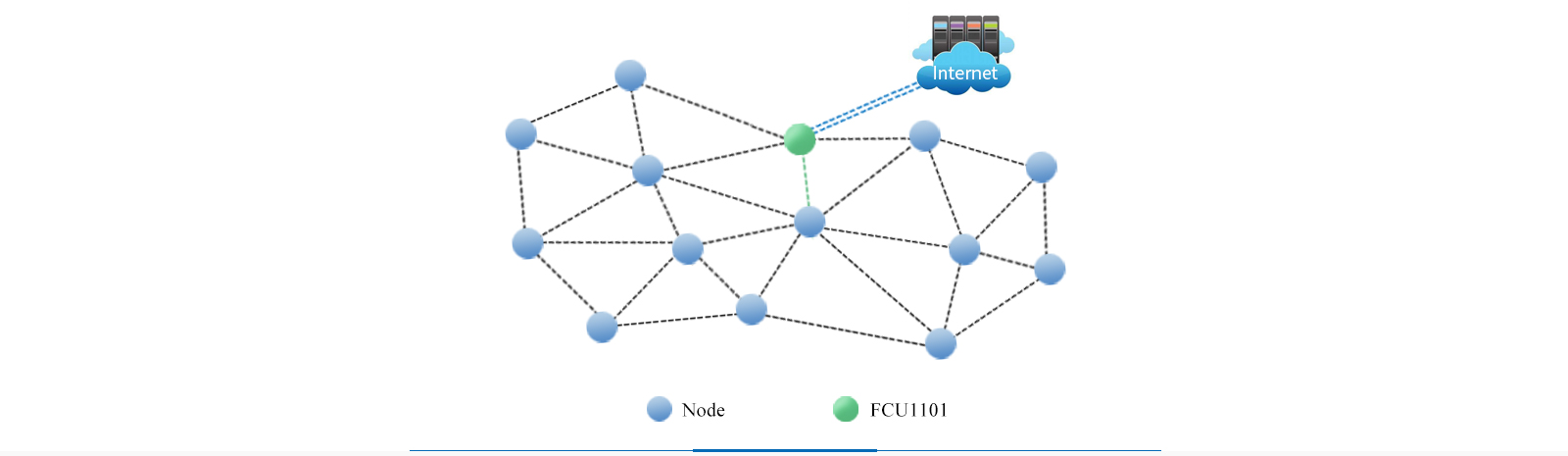

Flexible networking 2.4Ghz operating frequency
Supports fixed transmission, transparent transmission,
four online working modes switching freely, powerful penetrability, long distance communication and low power performance

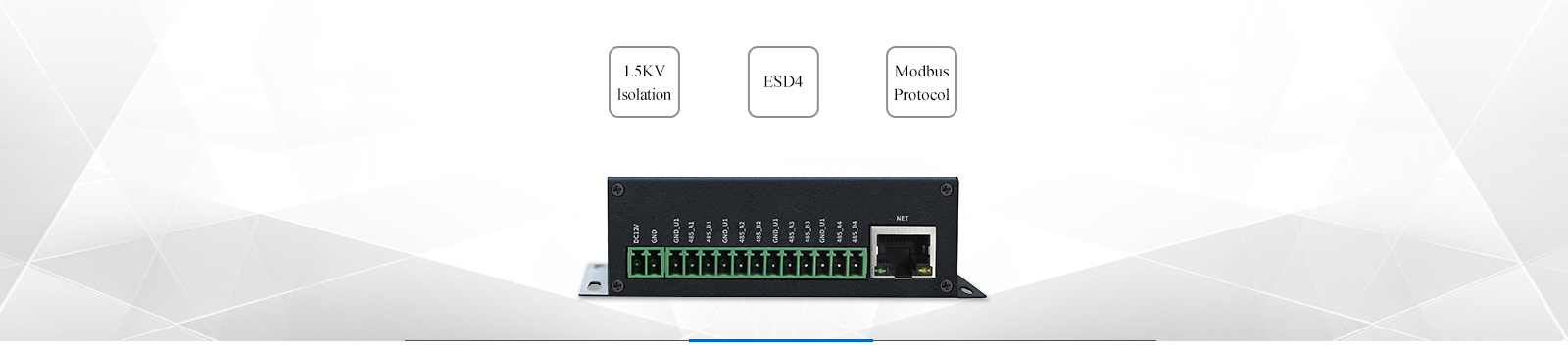

RS485 Communication
4x RS485, with 1.5KV isolation and ESD4 protection;
comply with Modbus protocol(RTU mode)

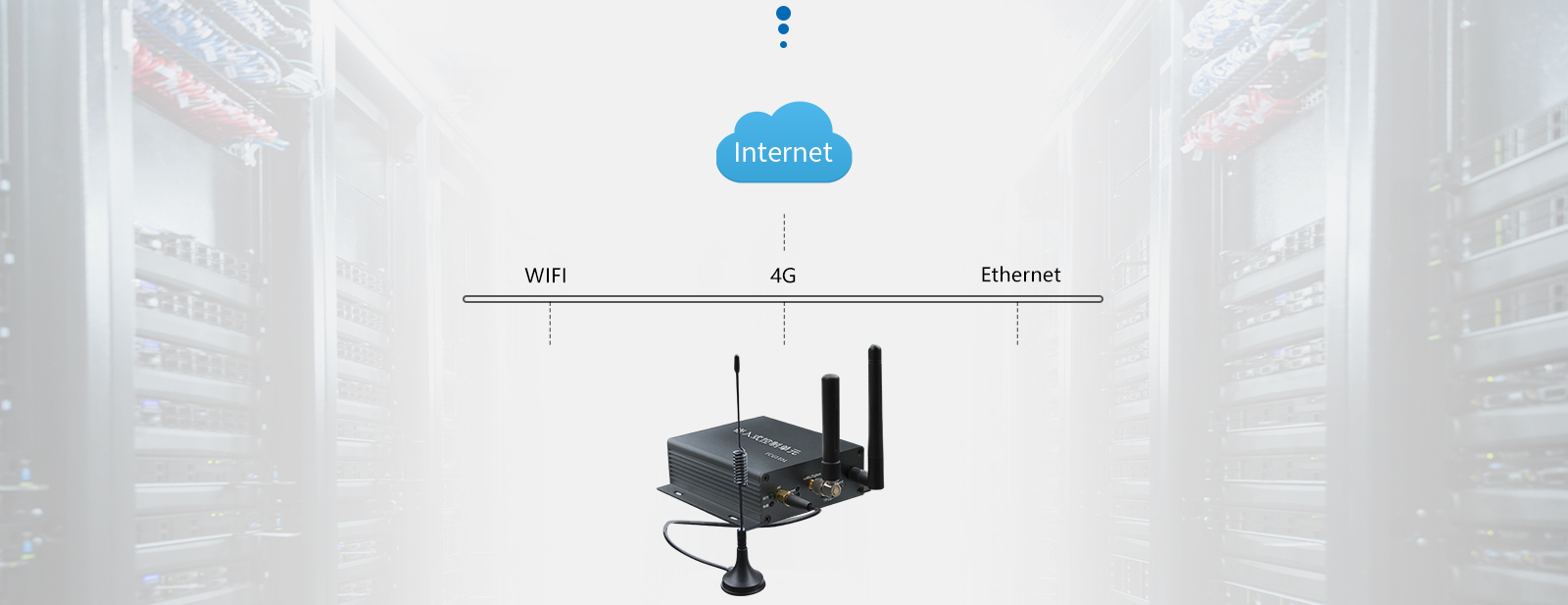

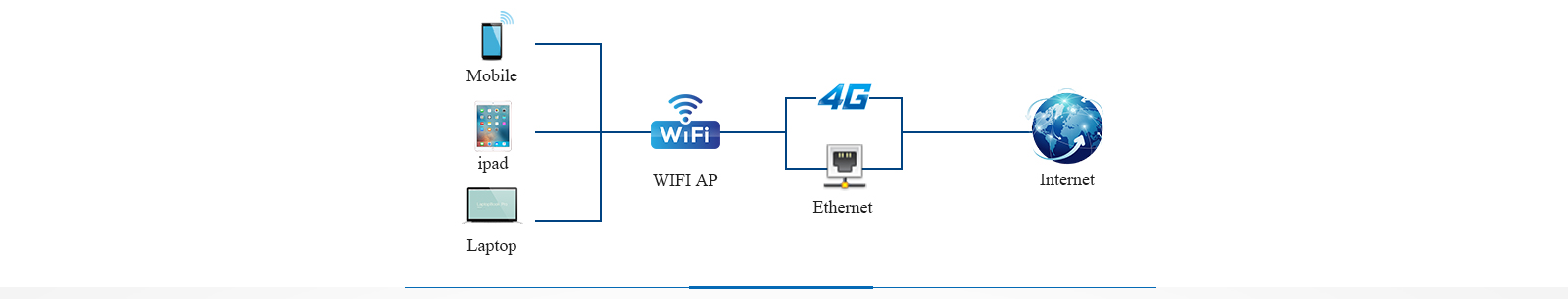

WIFI, 4G and Ethernet
4G module all Netcom
10/100M auto-negotiation Ethernet with RJ45 connctor
IEEE802.11b/g/n, STA and AP modes optional, available for WPA2 encryption mode
Multiple protocols

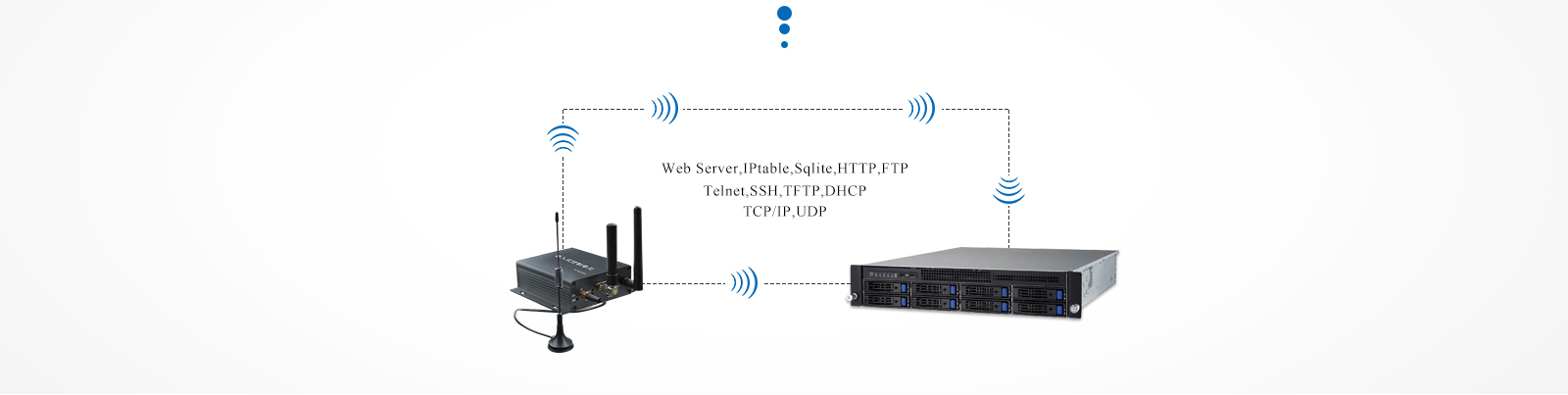

Web Server, IPtables, Sqlite, HTTP, FTP, Telnet, SSH, TFTP, DHCP, TCP/ IP
and UDP are all supported, convenient for remote debugging and maintenance

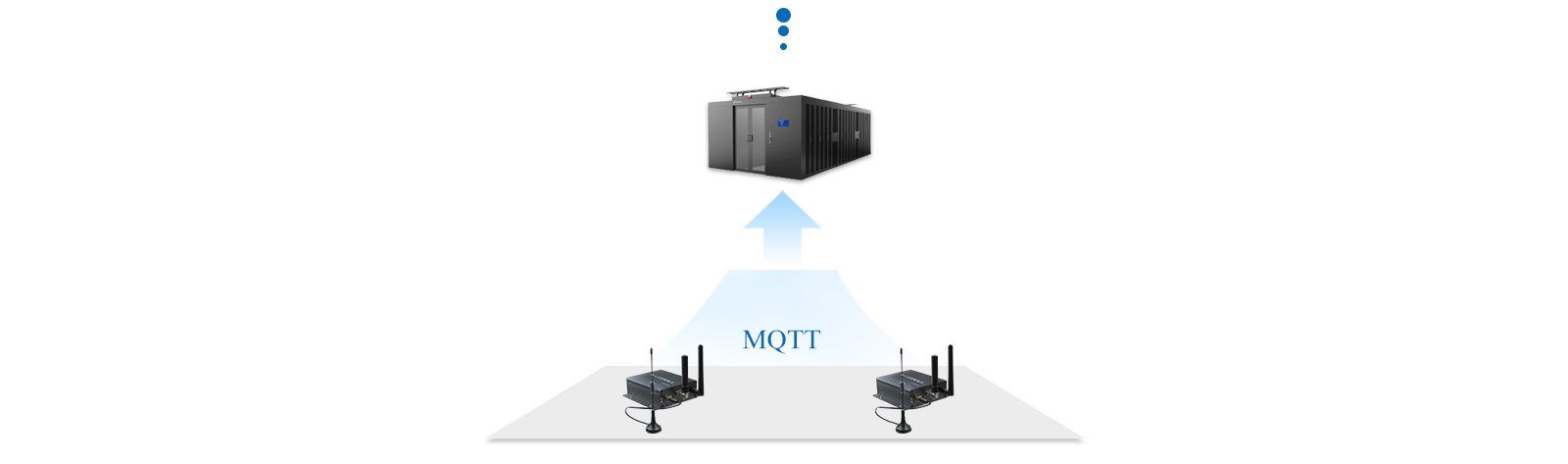

Standard MQTT
MOQQ is supported to visit Ali Cloud directly for news subscription or announcement
System with stable performance, easy for development

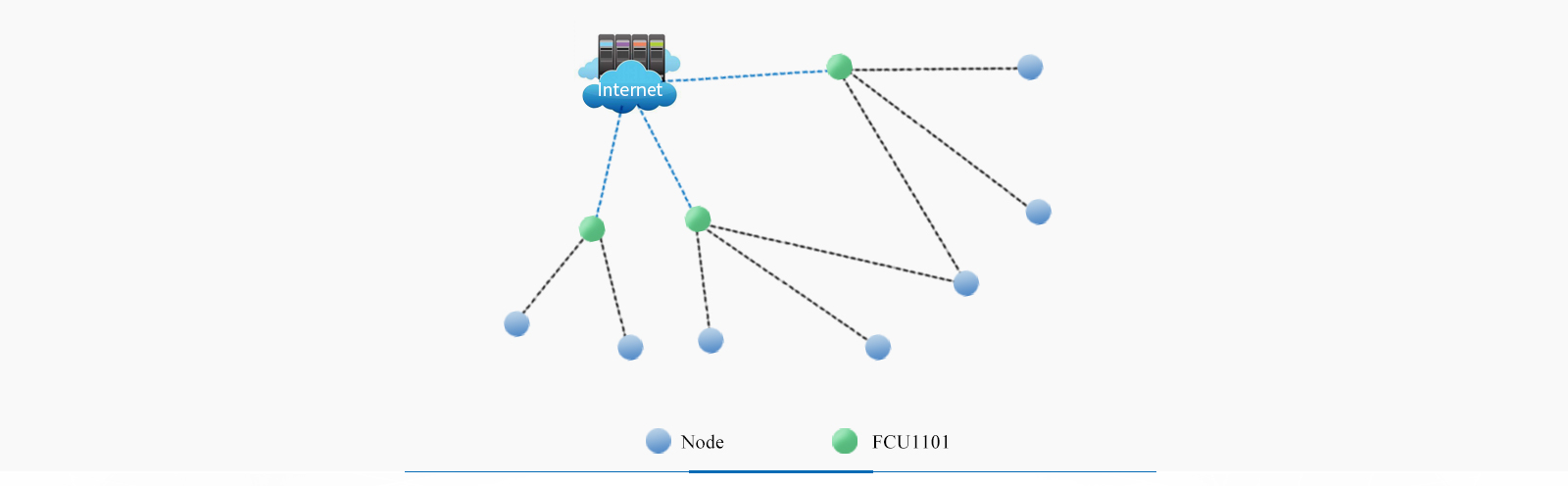

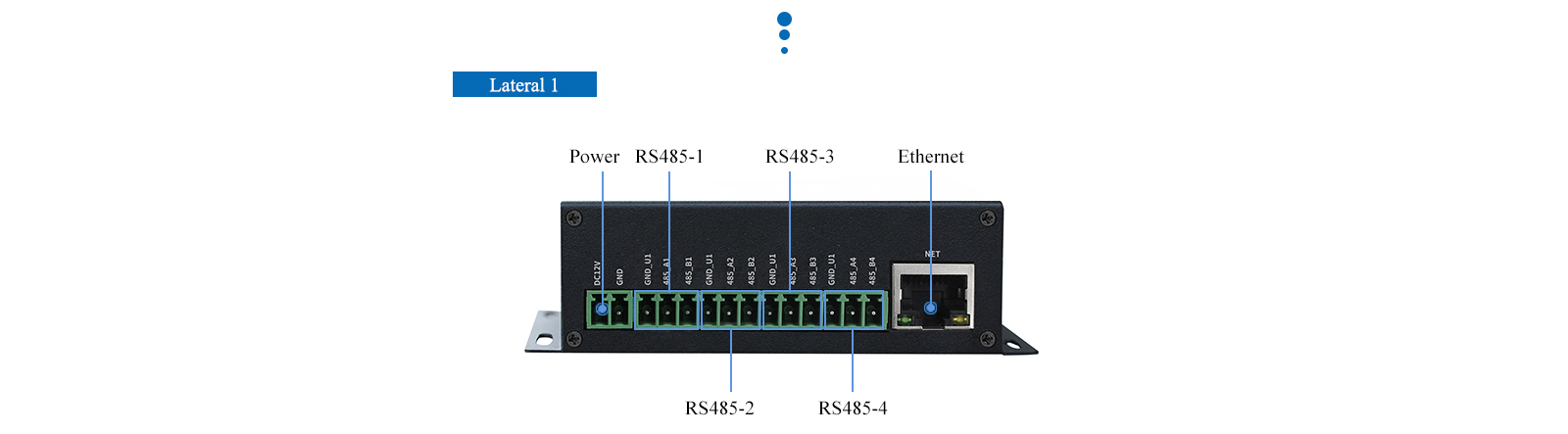

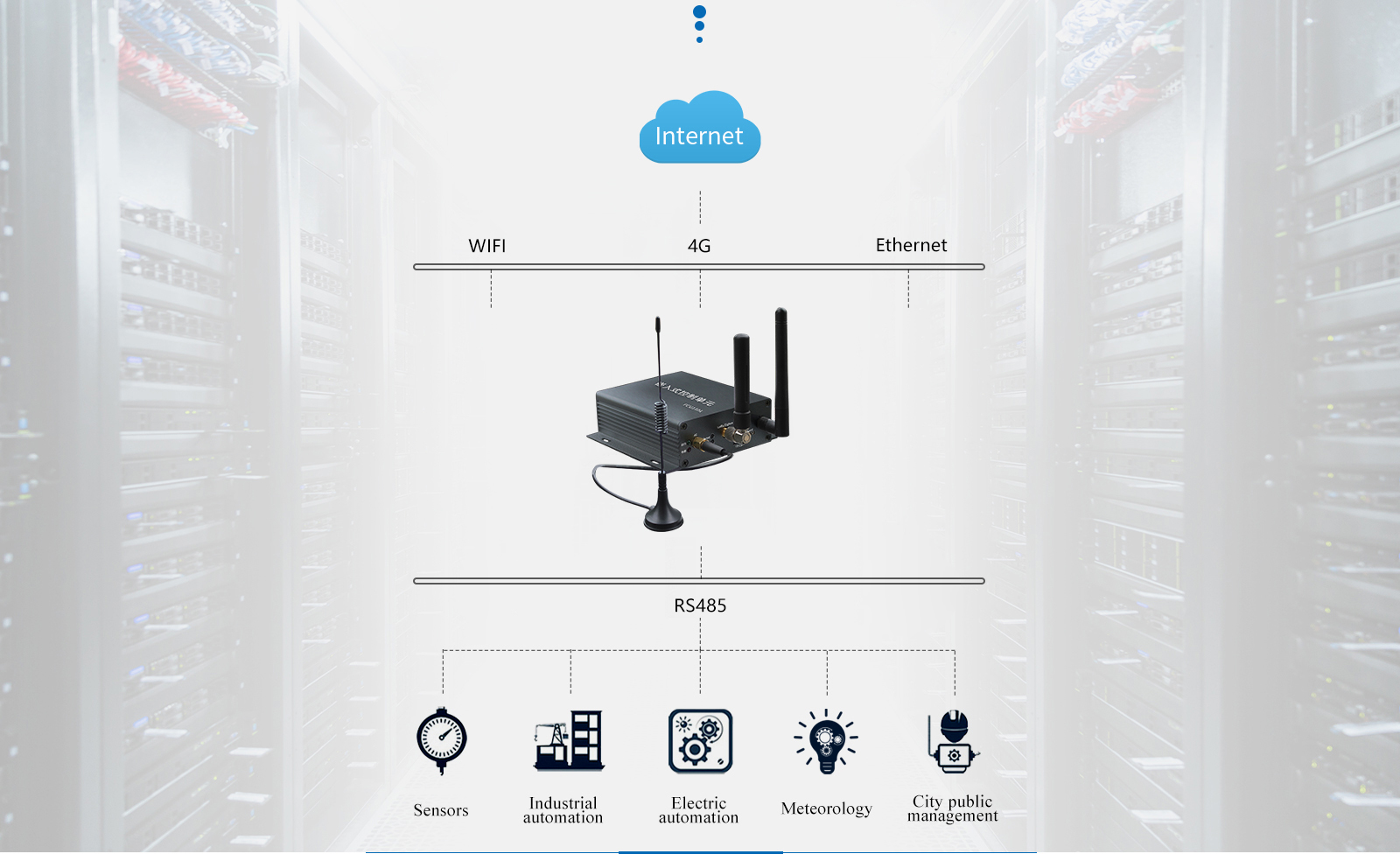

Diagram

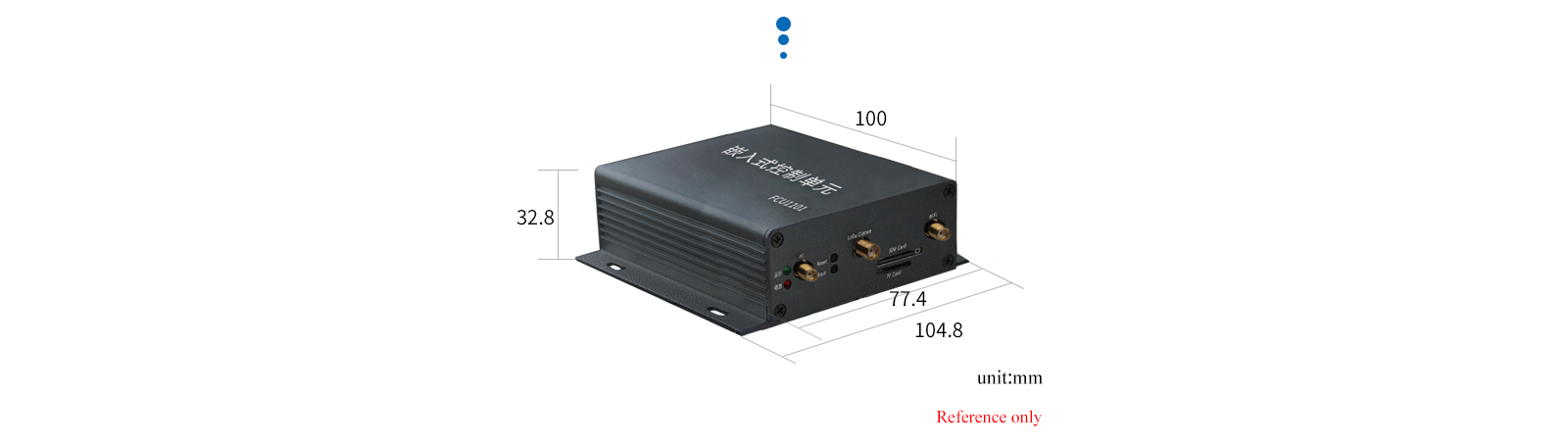

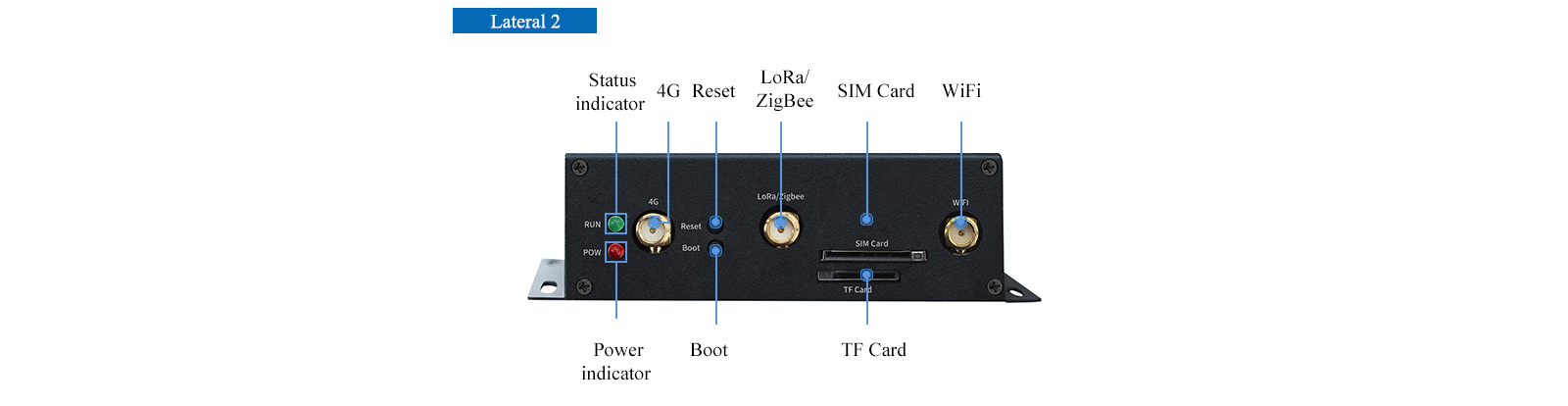

Mechainical dimensions
▊ Spec.
| FCU1101 Hardware Features | ||
|---|---|---|
| Item | Spec. | |
| CPU | NXP i.MX6UltraLite ARM Cortex-A7 528MHz | |
| RAM | DDR3 256MB | |
| ROM | NAND Flash 256MB(1GB upgradable) | |
| Ethernet | 1-ch, 10/100Mbps | |
| RS485 | 4-ch, 1.5KV isolation, ESD4 | |
| Reset | 1-ch, for system reset | |
| Boot Key | 1-ch, works together with reset to update firmware | |
| 4G |
Model: Quetel EC20(GPS and audio are not supported) Network: 4G/3G/2G |
|
| WiFi | can support STA and AP | |
| ZigBee | 1-ch, 2.4GHz, Model: WLT2408NZ |
Optional |
| LoRa |
1-ch, 433MHz, can support 20dBm, 27dBm, 30dBm. Model: E32-TTL-100(433T20DC) 20dBm (default) E32(433T27D) 27dBm E32-TTL-1W(433T30D) 30dBm |
|
| TF Card | expanding storage(32GB tested) | |
| RTC | can support NTP | |
|
Power IN |
main power: DC 12V, voltage input width: DC9V~36V, with anti-reverse protection and over-current protection |
|
| Working Environment | RH: 5％～95％, non-condensing; working temp: -35℃～70℃(note: WIFI temp width: 0℃～70℃), storage temp: -40℃～85℃ | |
| Software Features | |
|---|---|
| Source | Spec. |
| OS | Linux-3.14.38 |
| File System | Yaffs2 |
| GCC | 4.6.2 |
| RS485 | Demo provided, can support Modbus(RTU) |
| Network | TCP/IP, UDP, DHCP, TFTP, FTP, Telnet, SSH, Web, HTTP, IPtables, MQTT, SQLITE |
| Ethernet | 10M/100M auto-negotiation, can support static/ dynamic IP address, and MAC settings |
| WiFi | can support STA and AP |
| 4G Wireless Network | EC20, Network: 4G/3G/2G |
| RTC | NTP is supported |
| ZigBee Module | WLT2408NZ |
| LoRa Module | E32-TTL-100 |
| Watchdog | supported |
| Packing List | |||
|---|---|---|---|
| Item | Model | QTY | Unit |
| FCU1101 Embedded Computer | FCU1101+M9AA10 | 1 | piece |
| 2.4G antenna | SMA interface, internal thread, 3dB | 1 | piece |
| 4G antenna | 4G antenna (black color) | 1 | piece |
| Power adapter | 5.5*2.1mm AC220V DC12V 2A | 1 | piece |
| Forlinx packing box | 225*190*84 | 1 | box |
| Optional Modules | |||
|---|---|---|---|
| Name | Spec. | QTY | Unit |
| LoRa Module | E32-TTL-100 | 1 | piece |
| Antenna | 433M, 2.5dBi | 1 | piece |
| Name | Spec. | QTY | Unit |
| ZigBee Module | WLT2408NZ-U | 1 | piece |
| ZigBee Antenna | no IPX interface | 1 | piece |
Note: LoRa module and ZigBee module are optional, but can not supported together
