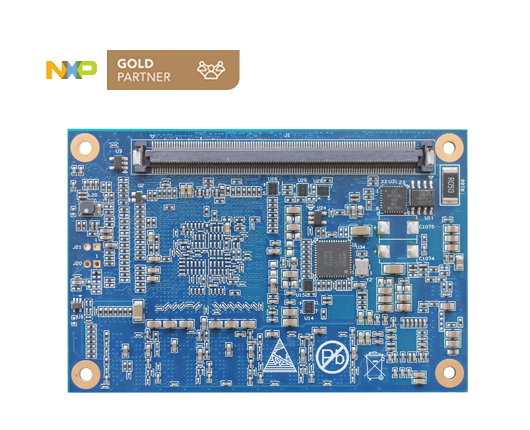

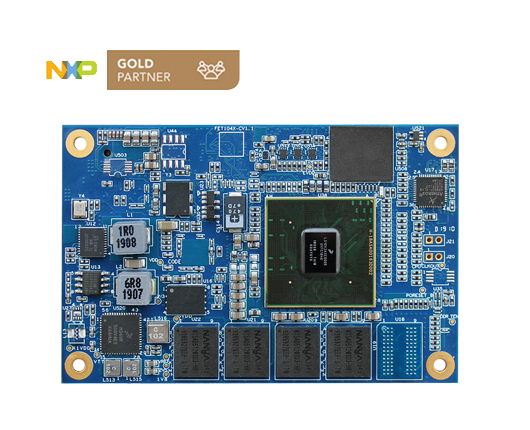

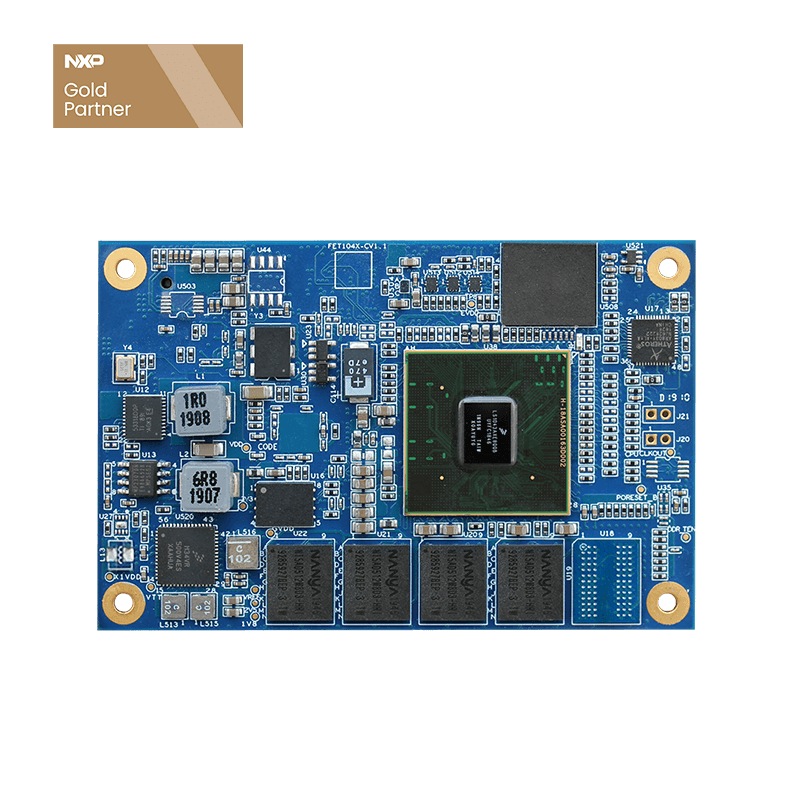

System on Module FET1043A-C based on LS1043A
FET1043A-C is a system on module(SoM) designed based NXP Cortex-A53 featuring quad-core processor LS1043A with frequency up to 1.6GHz has 7 native Ethernet interface(1x 10Gbps and 6x 1000Mbps), it has PCIe2.0, SATA3.0, USB3.0, UART, IIC and other periperals redy-to-use and supports both Ubuntu and OpenWRT. Widely used in router, IoT gateway, IP-PBX and other similar products, and fields such as edge computing, energy related gateway, smart city, industrial automation,video surveillance and other fields.
Ls1043A with Native Ethernet Interface
7x Ethernet with one up to 10Gbps and six up to 1000Mbps
High-speed Network
Data Path Acceleration Architecture(DPAA) incorporating acceleration for Packet parsing, classification,
and distribution(FMan), queue management for scheduling, packet sequencing,
and congestion management(QMan), and hardware buffer management for buffer allocation
and de-allocation(BMan). Software supported with DPDK and OVS-DPDK for high
performance in network related data packet processing
Various High-speed Interfaces
5Gbps PCIe2.0, 5Gbps USB3.0, 6Gbps SATA3.0, 10Gbps Ethernet
Flexible scalability
PCIe2.0(up to 5Gbps) scalable for Ethernet, dual-band WiFi and other high-speed peripherals
COM Express Package Designing

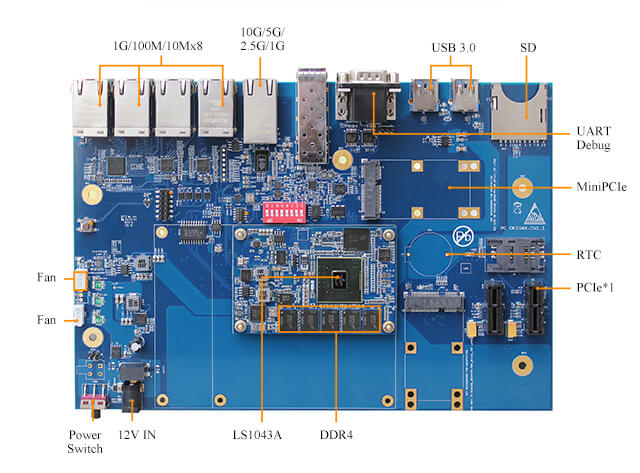

OK1043A-C single board computer(SBC) Pin Diagram

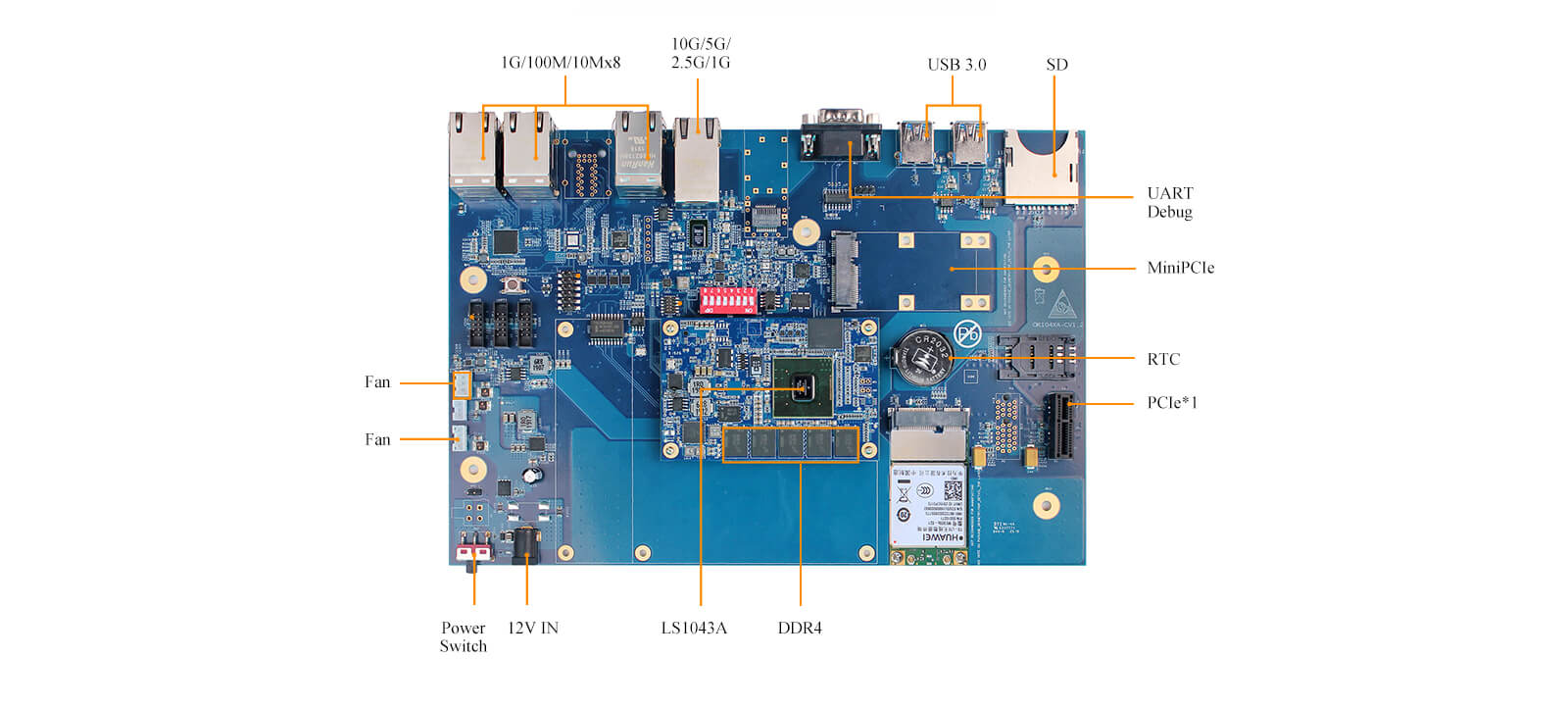

OK1043A-C single board computer consists of SoM FET1043A-C and carrier board

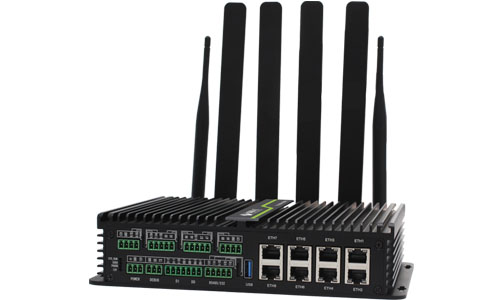

▊ FCU2303 5G Industrial Gateway
FCU2303 is a fanless 5G industrial gateway with advanced computing performance based on NXP LS1043A, LS1046A running speed at up to 1.8GHz. super fast and low latency. It has 8 Gigabit Ethernet ports each with separate MAC and 8 RS485(4 are multiplexed with RS232 and RS485) and could be widely used in smart city, factory, water utility, agricultrue, securiety monitoring, etc.
Open software supporting of Ubunut 18.04 integrated with third party clusters(Samba, Lighttpd, Docker, LXC, QEMU, IPSEC, OpenSSL) make it easy-to-go for development.
▊ Hardware Features
| Overview of FET1043A-C System on Module | |
|---|---|
| CPU | NXP LS1043A |
| Architecture | quad-core Cortex-A53 |
| RAM | 2GB DDR4 |
| OS | Ubuntu/OpenWrt |
| Package | COM Express |
| Working Temp Width | -40℃~ +80℃ |
| Main Frequency | ≤1.6GHz |
| Flash | 8GB eMMC; 16MB QSPI NorFlash |
| Voltage Input | 12V |
| Dimensions | 84mm×55mm |
| FET1043A-C System on Module Features | ||
|---|---|---|
|
Peripheral |
QTY |
Spec. |
|
Ethernet |
≤7 |
CPU has 7 native MAC, available for below combinations 7x 1Gbps Ethernet1x 2.5G/10Gbps and 6x 1Gbps Ethernet 2x 2.5Gbps and 2x 1Gbps Ethernet
|
|
PCIe2.0 |
≤3 |
SerDes configurable, can support X1, X2, X4 modes, each channel up to 5GT/s |
|
SATA3.0 |
≤1 |
SerDes configurable, up to 6Gbps |
|
SerDes2 |
4 |
4x SerDes for high speed peripherals: 3x PCI Express 2.0 controller 1x SATA 3.0 controller up to 4x SGMII with 1000 Mbit/s up to 2x SGMII with 2500 Mbit/s up to one XFI (10 GbE) up to 1x QSGMII |
|
USB3.0 |
≤3 |
up to 5Gbps |
|
UART |
≤6 |
2x DUART or 6x UART |
|
IIC |
≤3 |
|
|
eSDHC |
≤1 |
can support SD3.0 EMMC4.5, multiplexed with eMMC, it can be used for system booting or flashing, but can not be used for storage expanding |
|
JTAG |
1 |
NXP CodeWarrior TAP |
Note2: SerDes configuration sheet about Ethernet, PCIe and SATA, please refer to QorIQ LS1046A Reference
▊ Software Features
| Linux Ubuntu | ||
|---|---|---|
|
Cross-compiler |
aarch64-linux-gnu-gcc |
Ubuntu/Linaro 7.3.0-16ubuntu3~18.04, glibc-2.27, binutils-2.30-0, gdb-8.1 |
|
System Flashing |
SD card |
|
|
U-disk |
|
|
|
UBoot |
version: Uboot-2018.03 |
|
|
can support device tree |
|
|
|
can support TFTP NFS |
|
|
|
can support U-disk, eMMC, TF card, QSPI Flash, etc. |
|
|
|
Linux kernel MAC setting and saving |
|
|
|
Linux Kernel |
Version: Linux-4.14.47 |
|
|
File system |
EXT4/NFS/FAT32 |
|
|
eMMC |
HS200 mode |
|
|
Watchdog |
|
|
|
RTC |
Rx8010 |
|
|
IO |
|
|
|
QSPI |
4-wire mode high speed reading and writing |
|
|
PCIe |
can support WLE900VX 5G WIFI module with mini PCIe interface
can support RTL8111F Gigabit Ethernet module with MINI-PCIe interface |
|
|
USB 3.0 |
U-disk, USB Hub, USB keyboard and mouse, etc. |
|
|
TMU |
LS1043 internal temp sensor |
|
|
UART |
|
|
|
Ethernet, (10000/1000/100/10Mbps) |
1x 10-Gigabit Ethernet, 6x Gigabit Ethernet |
|
|
UART |
1x RS232 debug port, 3x RS232 general purpose UART |
|
|
Ubuntu File System |
Version: ubuntu-18.04.1 |
|
|
Samba |
|
|
|
Lighttpd |
|
|
|
Docker |
|
|
|
LXC |
|
|
|
QEMU |
|
|
|
OP-TEE OS |
|
|
|
OpenSSL |
|
|
|
IPSEC |
|
|
|
DPDK |
OVS-DPDK |
|
| Linux LEDEv17.01.6 Release | ||
|---|---|---|
|
Linux Kernel |
Version: Linux- 4.9.63 |
|
|
Openwrt System |
Version: v17.01.6 |
|
|
Sourpack and Version |
ath10k-firmware-qca988x_2017-03-29-956e2609-1_aarch64_generic |
|
▊ NXP Software Resource Recommendation ASK
ASK is an OpenWRT-based application solution kit for broadband routers from NXP, which utilizes the packet gas pedal in the LS1043A / LS1046A processor and delivers wire-speed performance with less than 5% ARM core load.
LS1043A ASK Download: NXP Special Single Chip Hardware Speeds Router/Switch Software
▊ Accessories
Provides the modules and accessories used in Forlinx's SBC.
See here for communication modules, LCD screen, SBC expansion module and further accessories »
Technical Support
Forlinx provides software resources including kernel and driver source code, together with detailed user manual(LS1043A reference manual), schematic documentations to help customer start their development rapidly.
For more details on solution design with FET1043A-C SOM
▊ How to buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
▊ Shipment
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
▊ Other Forlinx LS10xx Series Products
Architecture: Cortex-A53
Frequency: 1.0GHz
RAM: 512MB DDR3L
ROM: 16MB QSPI NorFlash，8GB eMMC
System: Ubuntu-18.04.1，OpenWrt v18.06.0-rc2
Architecture: Cortex-A72
Frequency: 1.5GHz
RAM: 2GB DDR4
ROM: 8GB eMMC
System: Ubuntu18.04+ QT5.9.5
Architecture: Cortex-A72
Frequency: 1.8GHz
RAM: 2GB/4GB LPDDR4
ROM: 16MB QSPI NorFlash，8GB eMMC
System: Ubuntu-18.04.1，OpenWrt v18.06.0-rc2
Architecture: Cortex-A53
Frequency: 1.6GHZ
RAM: 2GB DDR4
ROM: 16MB QSPI NorFlash，8GB eMMC
System: Ubuntu-18.04.1，OpenWrt v18.06.0-rc2
