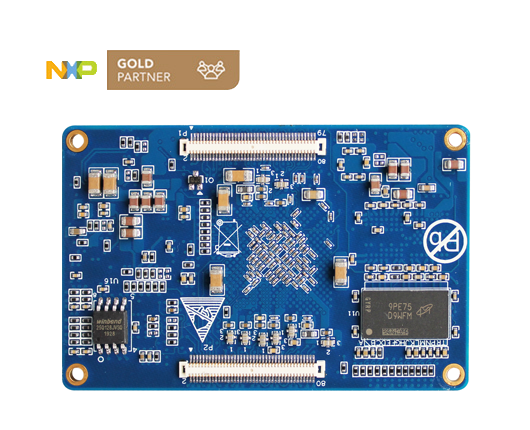

System on Module FET1028A-C based on NXP LS1028A
FET1028A-C is a system on module / computer on module designed based on Cortex-A72 featuring dual-core processor LS1028 A up to 1.5G Hz. It has functionality for Industry 4.0 including Time-Sensitive Networking (for deterministic Ethernet), 3D graphics for HMI and integrated security capabilities using NXP's Trust Architecture. The LS1028A is an SoC of the Layerscape family with integrated 3D GPU for HMI, and support for TSN in the integrated Ethernet switch and independent Ethernet controllers.
Key Features of the LS1028A SoM :
- 2GB DDR4 RAM
- Support 6x Gbit Ethernet
- Support TSN Ethernet switches and Ethernet controllers
- Support converged IT and OT network
- Support 2x CAN FD, 4x UART, 2x USB3.0, 2x PCIe3.0, 1x SATA3.0, 6x IIS, 6x IIC, 2x SPI and other common bus interfaces
- Up to 4K resolution
Application:
- Industrial IoT
- TSN
- SD-WAN
- 5G CPE
- Edge Computing Gateway
- IP-PBX
- Smart Factory
- Information Security
- Intelligent Transport
- Power Management
Various High Speed Peripheral Interfaces
FET1028A-C can support up to 6 Gigabit Ethernet ports, PCIe3.0, SATA3.0, USB3.0, CAN-FD are also available, which are preferable for industrial IoT, 5G gateway related applications.
Advanced Computing Performance
dual-core Cortex-A72, up to 1.5GHz preferable for edge computing, big data processing related applications
4K Display Output
Has one display interface, available for DP1.3 and eDP1.4,
output resolution up to 4Kp60
▊ Hardware Features
| Overview of SoM FET1028A-C | |
|---|---|
| CPU | NXP LS1028A |
| Architecture | Dual-core Cortex-A72 |
| RAM | 2GB DDR4 |
| OS | Ubuntu |
| Working temperature | -40℃~ +85℃ |
| Frequency | 1.5GHz |
| ROM | 8GB eMMC |
| Power input | DC 12V |
| Dimensions | 42mm×65mm |
| FET1028A-C System on Module Hardware Features | ||
|---|---|---|
| Interface | QTY | Spec. |
| Display Port | ≤1 | DP1.3 and eDP 1.4, up to 4Kp60 |
| eSDHC | ≤1 | SD3.0 |
| IIS | ≤6 | |
| Ethernet | ≤6 |
CPU has 6 native MAC up to 2.5Gbps, can support TSN and one of them has a 4-port TSN switch; 5 Ethernet ports can be configured by SerDes |
| PCIe 3.0 | ≤2 |
up to 8GT/s, configured by SerDes |
| SATA 3.0 | ≤1 | up to 6Gbps, configured by SerDes |
| USB 3.0 | ≤2 | up to 5Gbps |
| UART | ≤4 | can support 1x DUART or 4x UART |
| CAN FD | ≤2 | |
| IIC | ≤6 | |
| SPI | ≤2 | |
| SerDes | 1 |
1x 4Lane SerDes, available for SGMII, QSGMII, PCIe, SATA combinations as below: A. SGMII+QSGMII+PCIe2.0 x1+SATA3.0 B. PCIe3.0 x1+QSGMII+PCIe3.0 x2 C. SGMII+QSGMII+PCIe3.0 x2 D. PCIe3.0 x2+PCIe3.0 x2 E. SGMII+QSGMII+PCIe3.0 x1+PCIe3.0 x1 F. PCIe3.0 x4 more details refer to SerDes list 'LS1028ARM.pdf' |
| OK1028A-C Single Board Computer Features | |||
|---|---|---|---|
| Interface | QTY | Spec. | |
| Ethernet | 5 | RJ-45, 10/100/1000Mbps auto-negotiation, all can support TSN | |
| USB Host | 1 | USB 3.0, Super-speed (5 Gbit/s) | |
| LVDS | 1 | can support single 8-bit or dual 8-bit LVDS output | |
| Audio | 1 | Dry Soldering | |
| WiFi | 1 | M.2 key E connector, PCIe Gen2, can support 2.4G& 5G WiFi module | |
| SATA | 1 | SATA3.0, 1.5 Gb/s - 6.0 Gb/s | |
| 4G | 1 | mini PCIe connector, alternative with 5G module | |
| 5G | 1 | M.2 key B connector, alternative with 4G module | |
| UART | 1 | 3-wire serial, 3.3V voltage | |
| CAN | 2 | can support CAN2.0B, CAN FD; 5 Mbit/s | |
| SPI | 1 | full dulplex, can support host/ slave mode | |
| IIC | 2 | 100 /400 kbps | |
| TF Card | 1 | compatible with SD3.0（UHS-I） | |
| LED | 2 | programmable, controlled by GPIO | |
| PWM | 1 | LVDS backlight control | |
| UART Debug | 1 | RS232, DB9 header | |
