FET1012A-C System on Module

CPU: LS1012A

Architecture: Cortex-A53

Frequency: 1.0GHz

RAM: 512MB DDR3L

ROM: 16MB QSPI NorFlash,8GB eMMC

System: Ubuntu-18.04.1,OpenWrt v18.06.0-rc2

Download Message Compare

Forlinx is a Gold Partner of NXP, focusing on designing and manufacturing of cost-effective ARM board solutions.

Choose Forlinx, you will get more than just an embedded board and NXP SoC based ARM board solutions are especially recommended.

Moreover, Forlinx kinly provides customization service benefiting from 10+ years experience of desinging and supporting.

Anytime if you need, just please free to contact Forlinx.

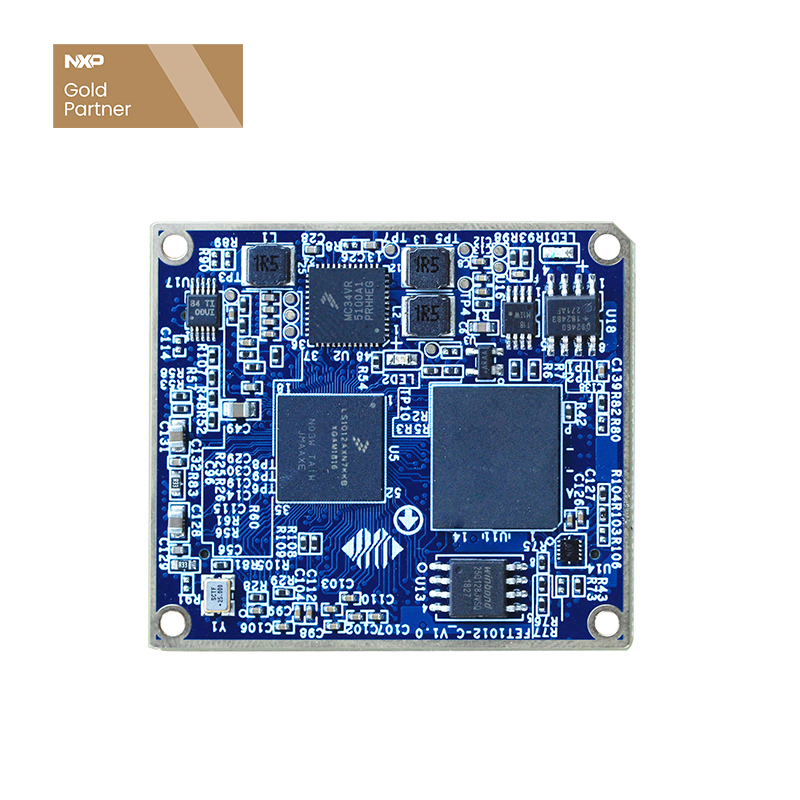

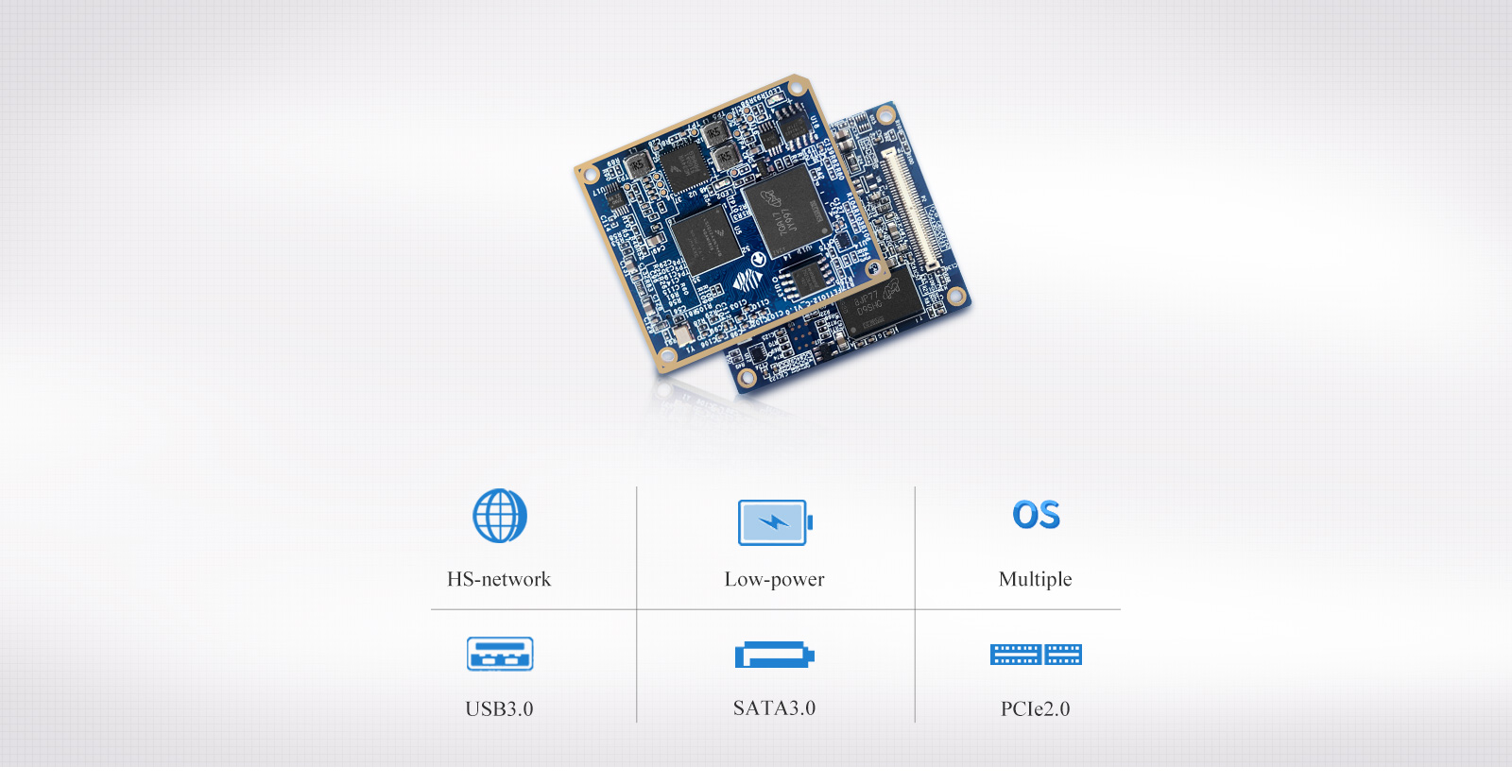

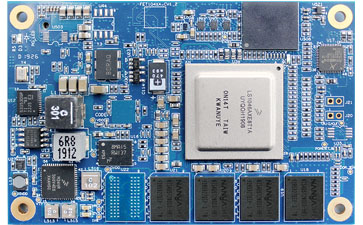

System on Module FET1012A-C based on LS1012A

FET1012A-C is a system on module(SoM) designed based on NXP Cortex -A53 featuring processor LS1012A @ 800MHz. It consists of carrier board and SoM and integrates with multiple high-speed peripherals include gual gigabit Ethernet PHYs with hardware packet acceleration engine, SATA3.0, PCIe2.0, USB3.0, TF card and other interfaces. It's specially supported with Ubuntu and OpenWRT and aimming at NAS, IoT gatway. broadband Ethernet gateway and industrial automation markets.

Ls1012A system on module

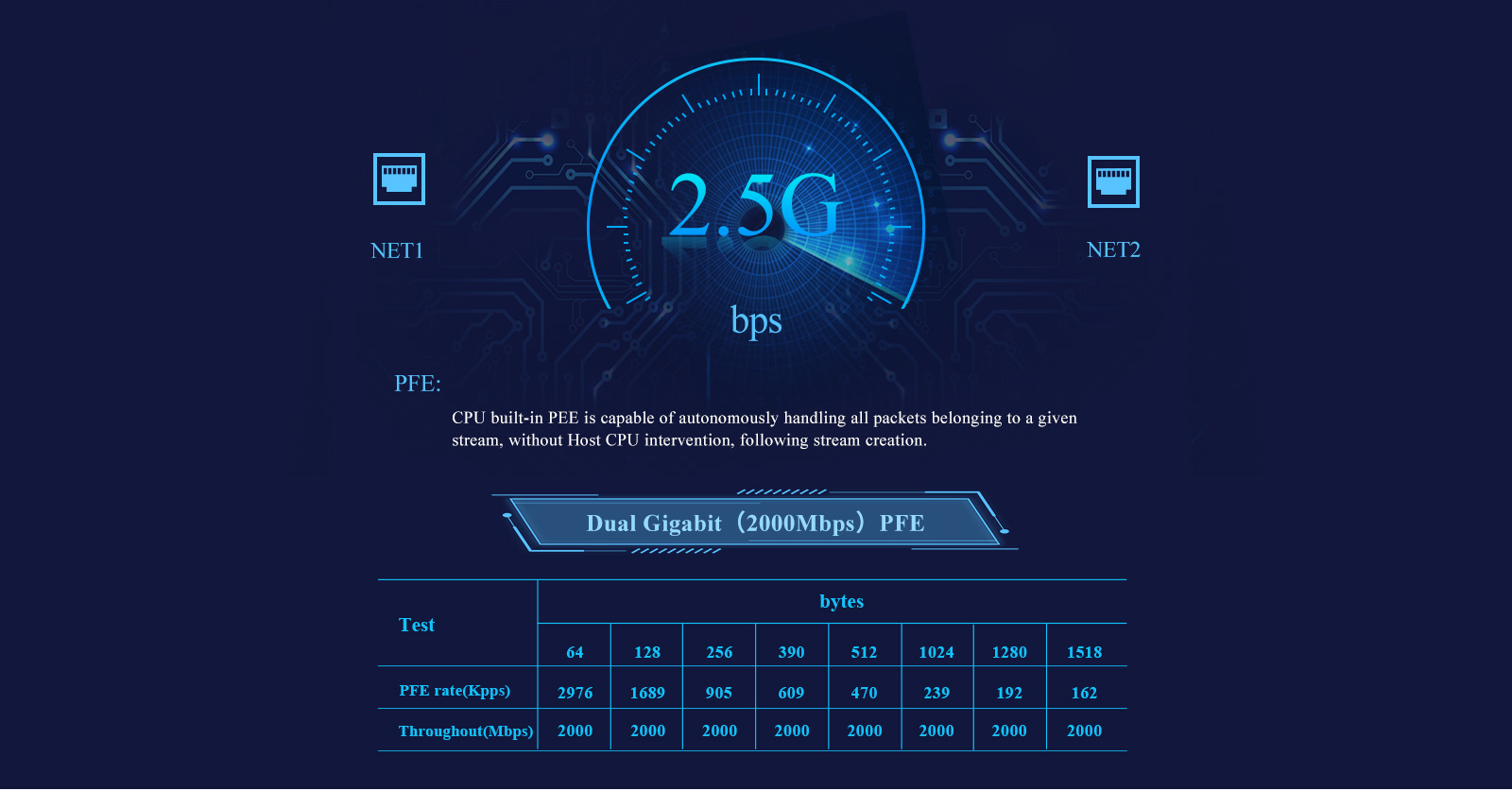

Superior Network Performance

Two SGMII Ethernet up to 2. 5G bps, supported with PFE,
can support data packet from 64-byte to 10240-byte

Ls1012A system on module superior network performance

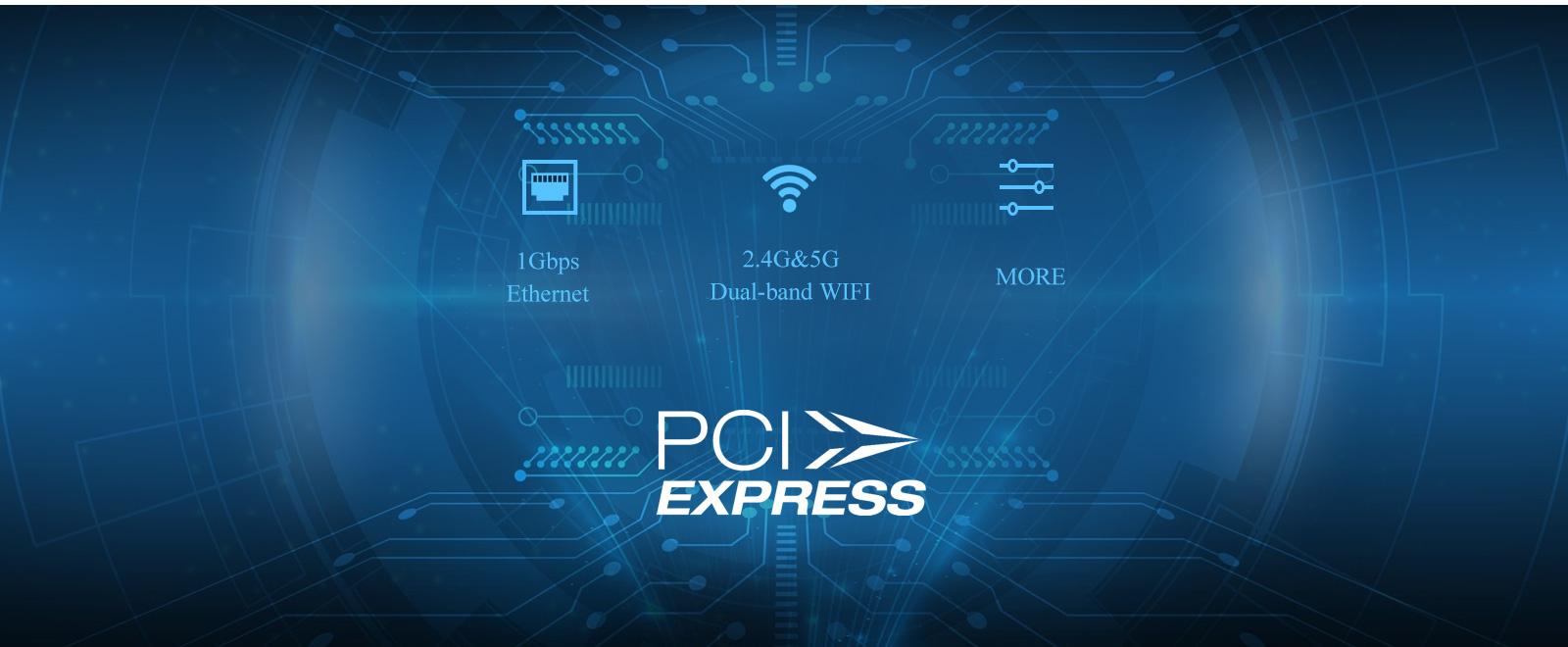

Powerful Scalability

One PCIe2.0 controller up to 5.0Gbps with powerful scalability for Gagibit Ethernet, dual-band WIFI and other high-speed peripherals

Ls1012A system on module Gagibit Ethernet

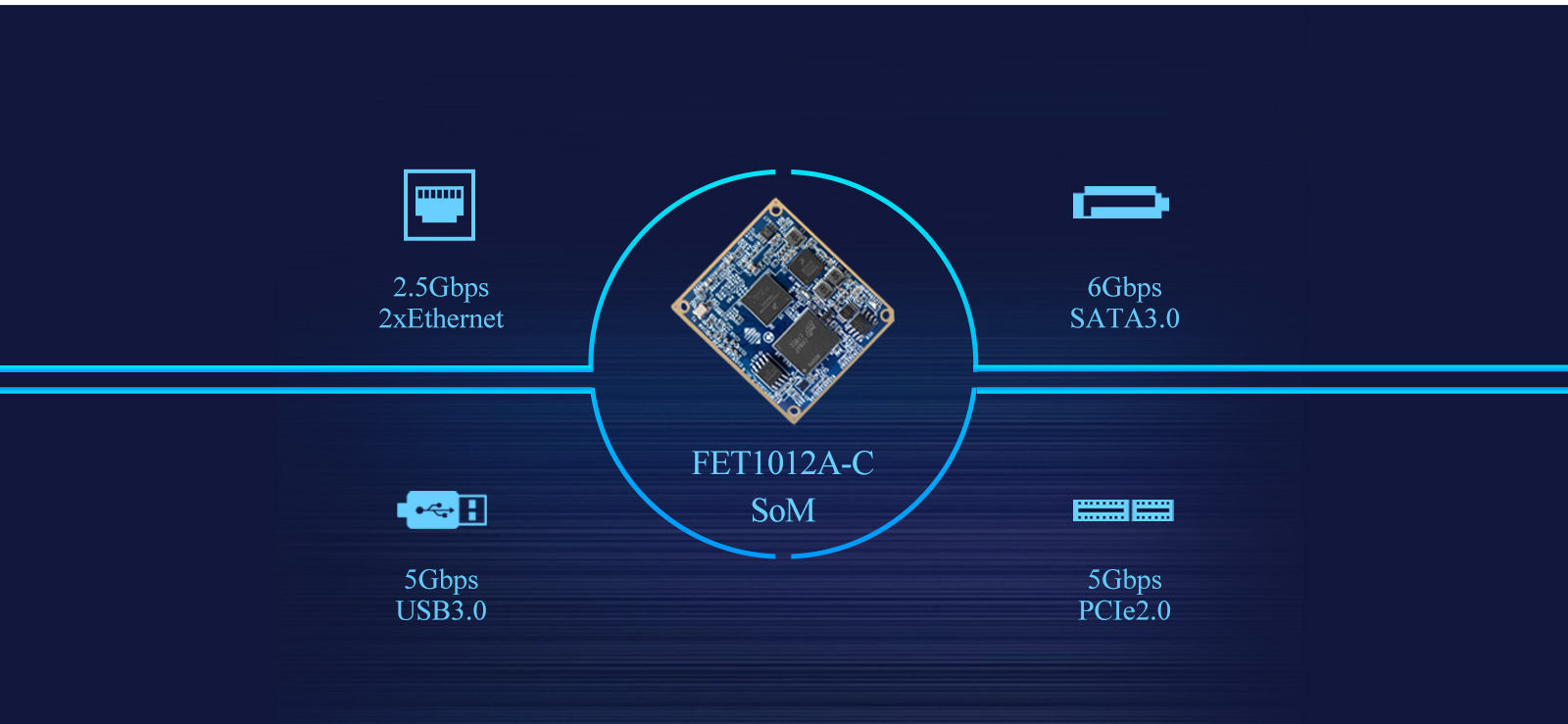

Variable High-Speed Peripherals

2.5Gbps Ethernet, PCIe2.0, SATA3.0, USB3.0

ls1012a SoM Variable High-Speed Peripherals

OS Supporting

OS Supporting

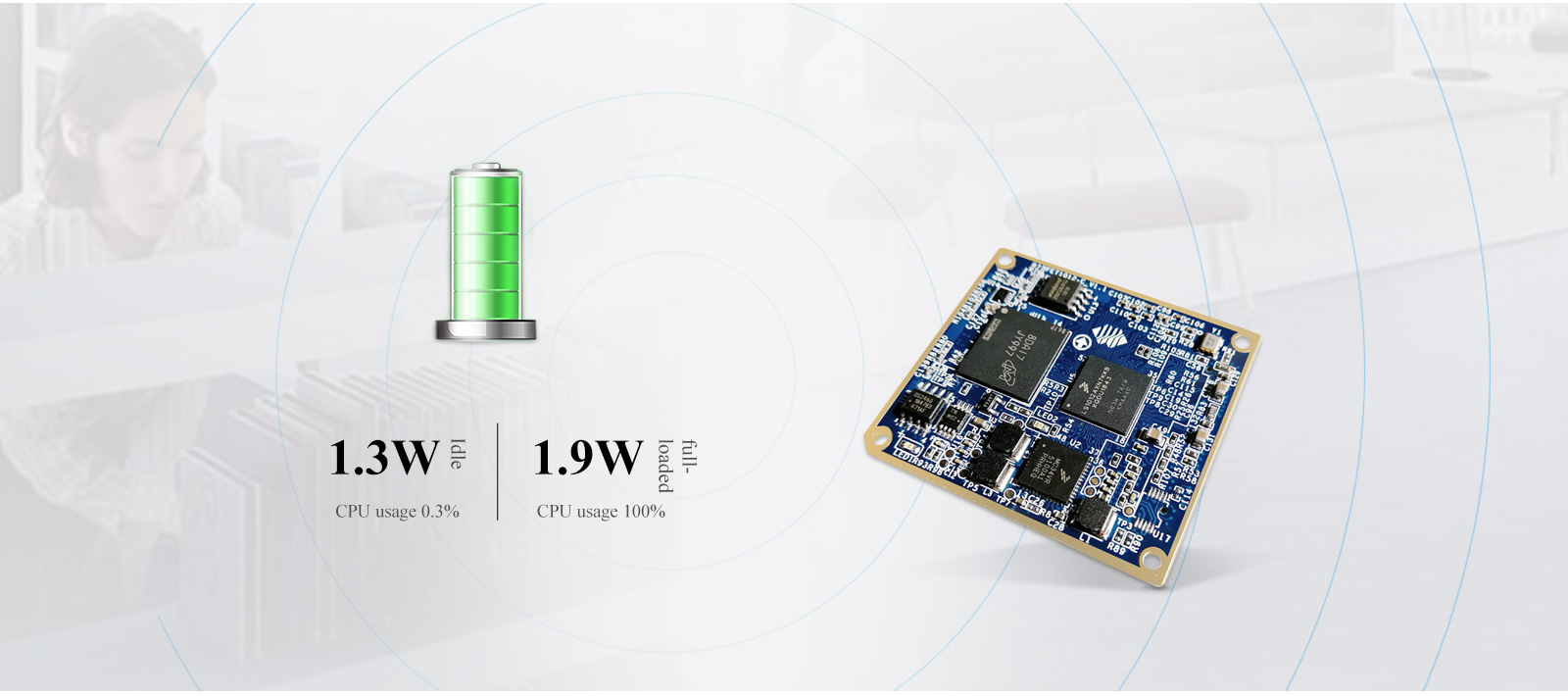

Lower-power Performance

CPU no-load(usage 0.3%) working consumption only 1.3W,
CPU full-load (usage 100%) working consumption only 1.9W

Lower-power ls1012A system on module

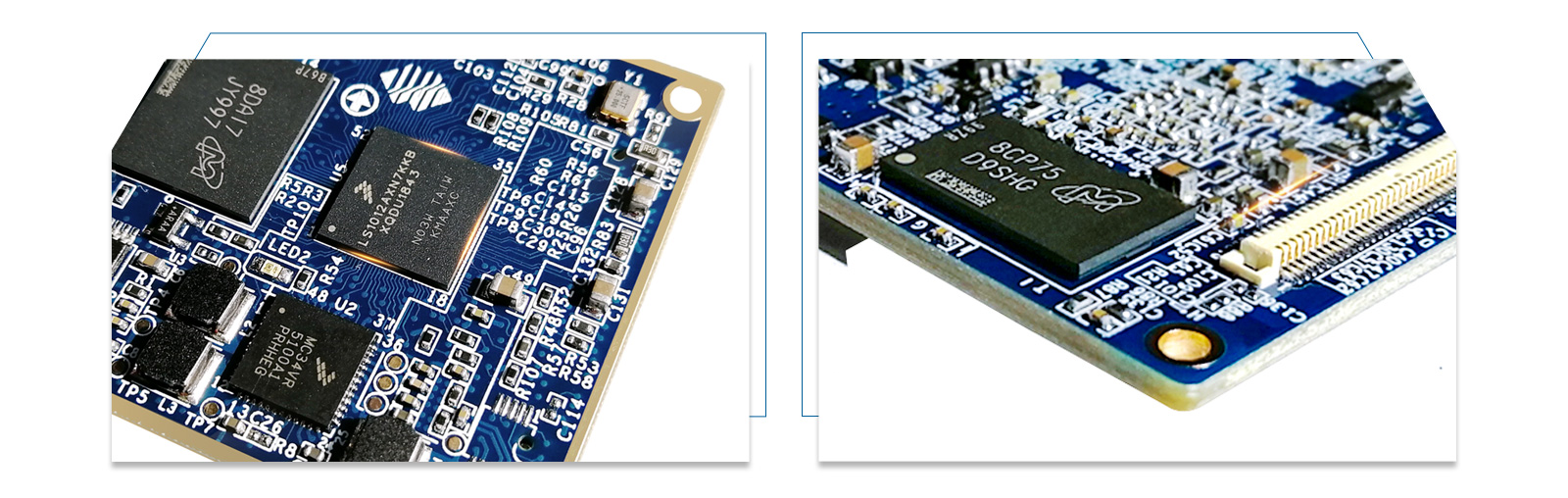

Designing Technology

SoM designed as 8-layer PCB EING with ultra thin(only 2mm for hight) connectors from Panoasic, transmission rate up to 6Gpbs, pins with EING designing make it excellent powerformance for anti-oxidation and stable connection

ls1012A system on module

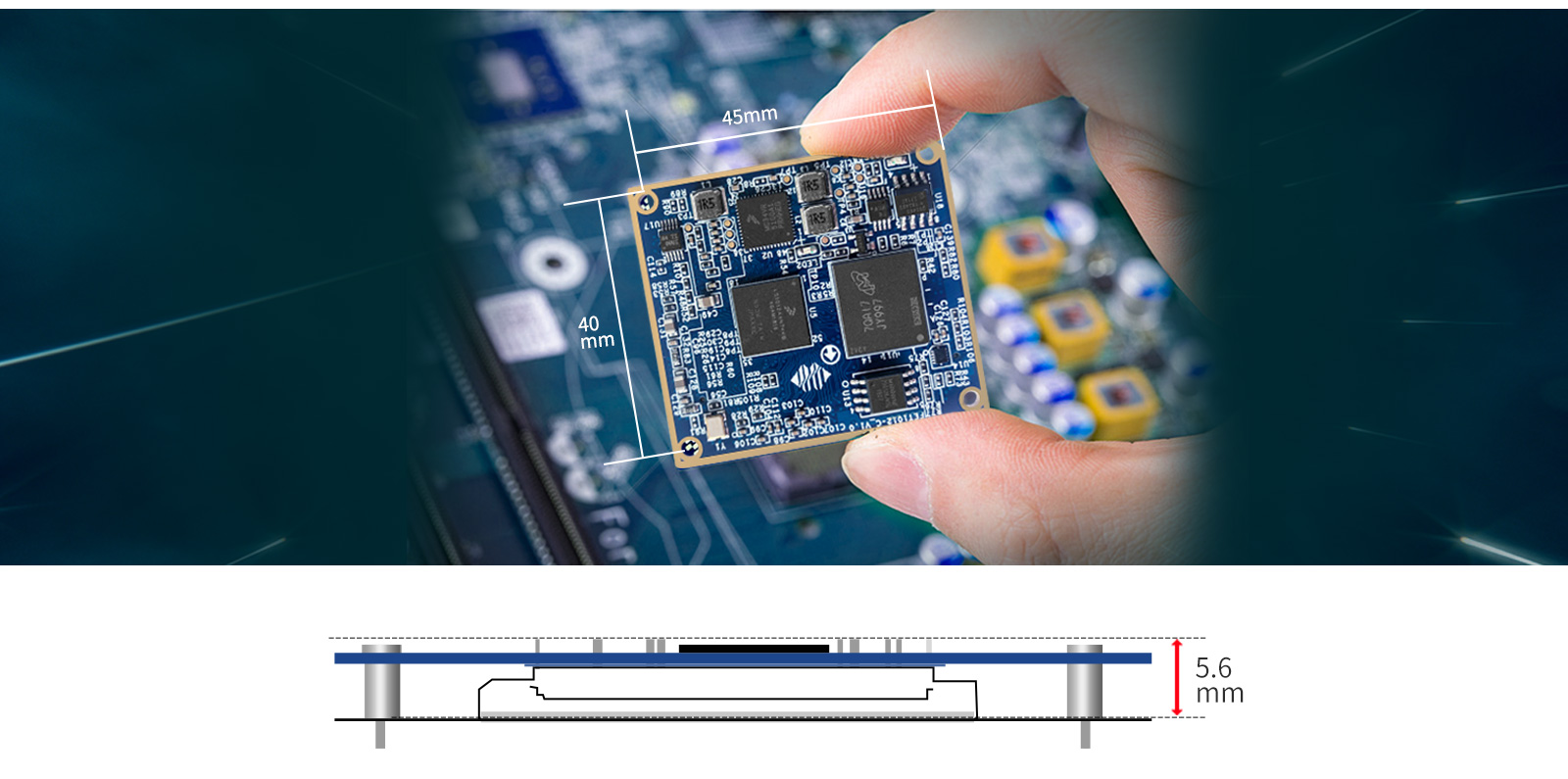

Compact Size

Connector only 2mm in hight, SoM with compact dimensions of 45x 40mm, and mounting hight only 5.6mm

ls1012a system on module compact size

Target Applications

ls1012a system on module application

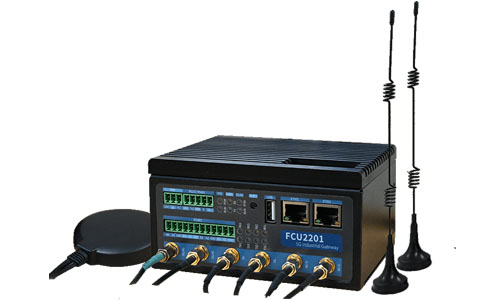

▊ FCU 2201 Embedded Computer


FCU2201 Embedded Computer

The FCU2201 cost-effective 5G industrial gateway is designed for industrial data acquisition and processing applications. It supports 5G, 4G, Ethernet, dual-band Wi-Fi, RS485, RS232 and other functions and interfaces. It can be used for uplink network access and connection of downlink sensors and other devices; support card-rail type and ear-mounted fixation methods, making installation more flexible; adopt industrial-grade fanless design, which can meet the EMC anti-interference requirements of industrial scenes, and is at -40 Keep stable operation for a long time under ambient temperature of ℃~+80℃.


FCU2201 supports two operating systems, Ubuntu 18.04 and OpenWrt, and users can choose flexibly according to development needs; shorten the development cycle and reduce the difficulty of development.


▊ Hardware Features


Overview of FET1012A-C System on Module
CPU NXP LS1012A
Architecture Cortex-A53
RAM 512MB DDR3L
OS Ubuntu/OpenWrt
Package board to board connector
Working Temp Width -40℃~ +80℃
MainFrequency ≤1GHz
ROM 8GB eMMC; 16MB QSPI NorFlash
Voltage Input 4.2V
Dimensions 45mm*40mm

FET1012A-C System on Module Features
Peripheral QTY Spec.
Ethernet ≤2

CPU can support one RGMII up to 1Gbps


two 2.5Gbps SGMII configurable by SerDes


CPU has two native MAC, dual gigabit Ethernet controllers are available


PCIe2.0 ≤1 up to 5Gbps
SATA3.0 ≤1 up to 6Gbps
USB3.0 1 up to 5Gbps
QSPI 1 used by QSPI nor flash on SoM
SAI ≤5
UART ≤2
IIC ≤2
SDHC ≤2 one is used by eMMC
JTAG 1 NXP CodeWarrior TAP

Note1:SGMII, PCIe and SATA can be configured by SerDes, Forlinx configuration solution is SGMII(1G)+PCIex1+SATA3.0, others please refer to below chart

SerDes
1 2 3
Unused PCI Express(x1)
sg.m1(2.5G) sg.m2(2.5G) SATA
Unused SATA
sg.m1(1G) PCI Express(x1) SATA
sg.m1(1G) sg.m2(1G) PCI Express(x1)
sg.m1(2.5G) sg.m2(2.5G) PCI Express(x1)
sg.m1(2.5G) sg.m2(1G) PCI Express(x1)
TX_CLK PCI Express(x1) SATA
sg.m1(1G) TX_CLK PCI Express(x1)
TX_CLK sg.m2(1G) PCI Express(x1)

▊ Software Features

Linux Ubuntu
Cross-compiler aarch64-linux-gnu-gcc Ubuntu/Linaro 7.3.0-16ubuntu3~18.04, glibc-2.27, binutils-2.30-0, gdb-8.1
System Flashing speficied flash tool to flash image to QSPI Flash
flash OS image by U-disk
UBoot version: Uboot-2018.03
can support device tree
TFTP, NFS are supported
U-disk, eMMC, TF card, QSPI Flash device are supported
MAC setting and saving
Linux Kernel Version: Linux-4.14.47
File system EXT4/NFS/FAT32, etc.
eMMC HS200 mode
TF card DDR50 mode
Watchdog
RTC Rx8010
IO
QSPI 4-wire mode high-speed reading and writing
PCIE

WLE900VX WIFI module

RTL8111F Gigabit Ethernet module

USB 3.0 U-disk, USB Hub, USB keyboard and mouse, etc.
TMU LS1012 internal temp sensor
UART
Ethernet(1000/100/10Mbps)
SATA
Ubuntu File System Version: ubuntu-18.04.1
Samba
Lighttpd
Docker
LXC
QEMU
OP-TEE OS
OpenSSL
IPSEC


Linux OpenWrt
Linux Kernel Version: Linux- 4.9.111
Openwrt Version: v18.06.0-rc2(kernel version: 4.9.111)

















































Source Pack and Version

ath10k-firmware-qca988x_2018-04-19-71e50312-1
base-files_190-r7141-e4d0ee5af5
block-mount_2018-04-16-e2436836-1
busybox_1.28.3-4
dnsmasq_2.80test2-3
dropbear_2017.75-5
ethtool_4.15-1
firewall_2018-05-14-b45e162e-1
fstools_2018-04-16-e2436836-1
fwtool_1
hostapd_2018-04-09-fa617ee6-5
hostapd-common_2018-04-09-fa617ee6-5
iperf_2.0.10-1
iperf3_3.5-1
iw_4.14-1
jshn_2018-04-12-6eff829d-1
jsonfilter_2018-02-04-c7e938d6-1
kernel_4.9.111-1-ced49591dc966c9bc9acb816df322464
kmod-ath10k_4.9.111+2017-11-01-9
kmod-ath_4.9.111+2017-11-01-9
kmod-cfg80211_4.9.111+2017-11-01-9
kmod-dma-buf_4.9.111-1
kmod-input-core_4.9.111-1
kmod-ipt-conntrack_4.9.111-1
kmod-ipt-core_4.9.111-1
kmod-ipt-nat_4.9.111-1
kmod-mac80211_4.9.111+2017-11-01-9
kmod-nf-conntrack_4.9.111-1
kmod-nf-conntrack6_4.9.111-1
kmod-nf-ipt_4.9.111-1
kmod-nf-nat_4.9.111-1
kmod-nf-reject_4.9.111-1
kmod-nls-base_4.9.111-1
kmod-ppfe_4.9.111-1
kmod-scsi-core_4.9.111-1
kmod-usb3_4.9.111-1
kmod-usb-core_4.9.111-1
kmod-usb-dwc3_4.9.111-1
kmod-usb-storage_4.9.111-1
kmod-video-core_4.9.111-1
kmod-video-uvc_4.9.111-1
kmod-video-videobuf2_4.9.111-1
layerscape-ppa-ls1012ardb_2018-01-18-cd295be2-1
layerscape-ppfe_2017-12-05-848002fe-1
libblobmsg-json_2018-04-12-6eff829d-1
libc_1.1.19-1
libgcc_7.3.0-1
libip4tc_1.6.2-1
libip6tc_1.6.2-1
libiwinfo_2018-02-15-223e09bf-1
libiwinfo-lua_2018-02-15-223e09bf-1
libjpeg_9a-1
libjson-c_0.12.1-1
libjson-script_2018-04-12-6eff829d-1
liblua_5.1.5-1
liblucihttp_2018-05-18-cb119ded-1
liblucihttp-lua_2018-05-18-cb119ded-1
libnl-tiny_0.1-5
libpthread_1.1.19-1
libubox_2018-04-12-6eff829d-1
libubus_2018-01-16-5bae22eb-1
libubus-lua_2018-01-16-5bae22eb-1
libuci_2018-03-24-5d2bf09e-1
libuclient_2017-11-02-4b87d831-1
libxtables_1.6.2-1
logd_2018-02-14-128bc35f-2
lua_5.1.5-1
luci-app-firewall_git-18.196.56128-9112198-1_all
luci-app-mjpg-streamer_git-18.196.56128-9112198-1_all
luci-app-samba_git-18.196.56128-9112198-1_all
luci-base_git-18.196.56128-9112198-1
luci_git-18.196.56128-9112198-1_all
luci-i18n-base-en_git-18.196.56128-9112198-1_all
luci-i18n-base-zh-cn_git-18.196.56128-9112198-1_all
luci-i18n-firewall-en_git-18.196.56128-9112198-1_all
luci-i18n-firewall-zh-cn_git-18.196.56128-9112198-1_all
luci-i18n-mjpg-streamer-zh-cn_git-18.196.56128-9112198-1_all
luci-i18n-samba-en_git-18.196.56128-9112198-1_all
luci-i18n-samba-zh-cn_git-18.196.56128-9112198-1_all
luci-lib-ip_git-18.196.56128-9112198-1
luci-lib-jsonc_git-18.196.56128-9112198-1
luci-lib-nixio_git-18.196.56128-9112198-1
luci-mod-admin-full_git-18.196.56128-9112198-1
luci-proto-ipv6_git-18.196.56128-9112198-1_all
luci-proto-ppp_git-18.196.56128-9112198-1_all
luci-theme-bootstrap_git-18.196.56128-9112198-1_all
luci-theme-freifunk-generic_git-18.196.56128-9112198-1_all
luci-theme-material_git-18.196.56128-9112198-1_all
luci-theme-openwrt_git-18.196.56128-9112198-1_all
mjpg-streamer_r182-10
mtd_21
netifd_2018-05-30-a580028d-1
openwrt-keyring_2018-05-18-103a32e9-1
opkg_2017-12-07-3b417b9f-2
procd_2018-03-28-dfb68f85-1
rcw-layerscape-ls1012ardb_2017-11-19-bf3ae3cb-1
rpcd_2018-05-13-82062195-1
rpcd-mod-rrdns_20170710
samba36-server_3.6.25-10
ubi-utils_2.0.2-1
ubox_2018-02-14-128bc35f-2
ubus_2018-01-16-5bae22eb-1
ubusd_2018-01-16-5bae22eb-1
uci_2018-03-24-5d2bf09e-1
uclibcxx_0.2.4-3
uclient-fetch_2017-11-02-4b87d831-1
uhttpd_2018-06-26-796d42bc-1
uhttpd-mod-ubus_2018-06-26-796d42bc-1
usign_2015-07-04-ef641914-1
wireless-regdb_2017-10-20-4343d359
wpa-supplicant_2018-04-09-fa617ee6-5


▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(LS1012A reference manual), schematic documentations to help customer start their development rapidly.
