Cost-effective 4G Industrial Gateway

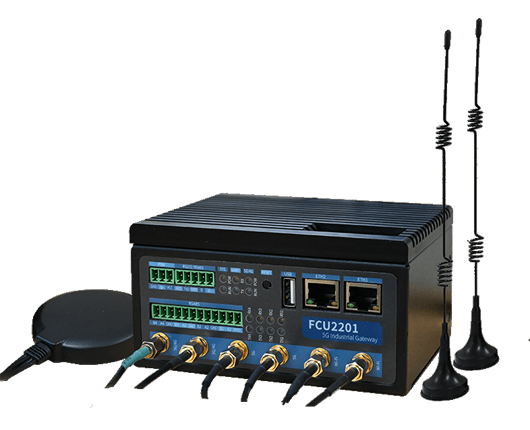

The FCU2201 cost-effective 5G industrial gateway is designed for industrial data acquisition and processing applications. It supports 5G, 4G, Ethernet, dual-band Wi-Fi, RS485, RS232 and other functions and interfaces. It can be used for uplink network access and connection of downlink sensors and other devices; it adopts ARM Cortex-A53 architecture processor with a main frequency up to 1GHz, can meet the performance requirements of local data processing, edge computing, etc.; supports card-rail type and ear-mounted fixation methods, making installation more flexible; adopt industrial-grade fanless design, which can meet the EMC anti-interference requirements of industrial scenes, and is at -40 Keep stable operation for a long time under ambient temperature of ℃~+80℃. It is an embedded computer product suitable for industrial applications such as the industrial Internet of Things, smart cities, smart environmental protection, smart factories, smart power, smart water, smart agriculture, and security monitoring.
Multiple wireless communications, multiple networking options

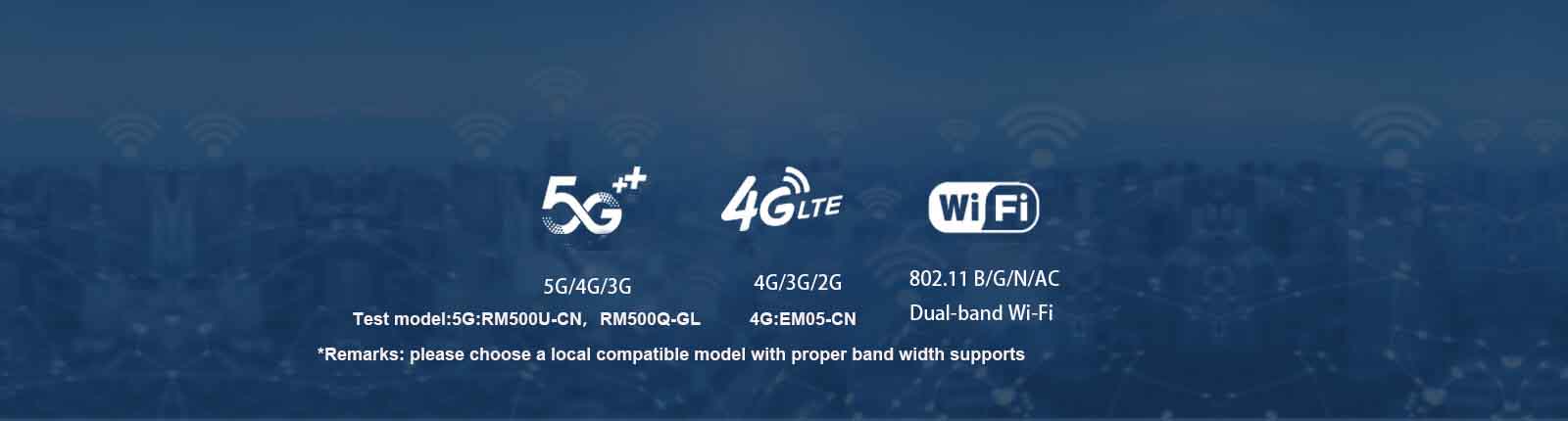

FCU2201 can choose to install 5G and 4G communication modules, and can also support dual-band WiFi, which is convenient to adapt to different networking requirements.
Fanless design, more reliable operation

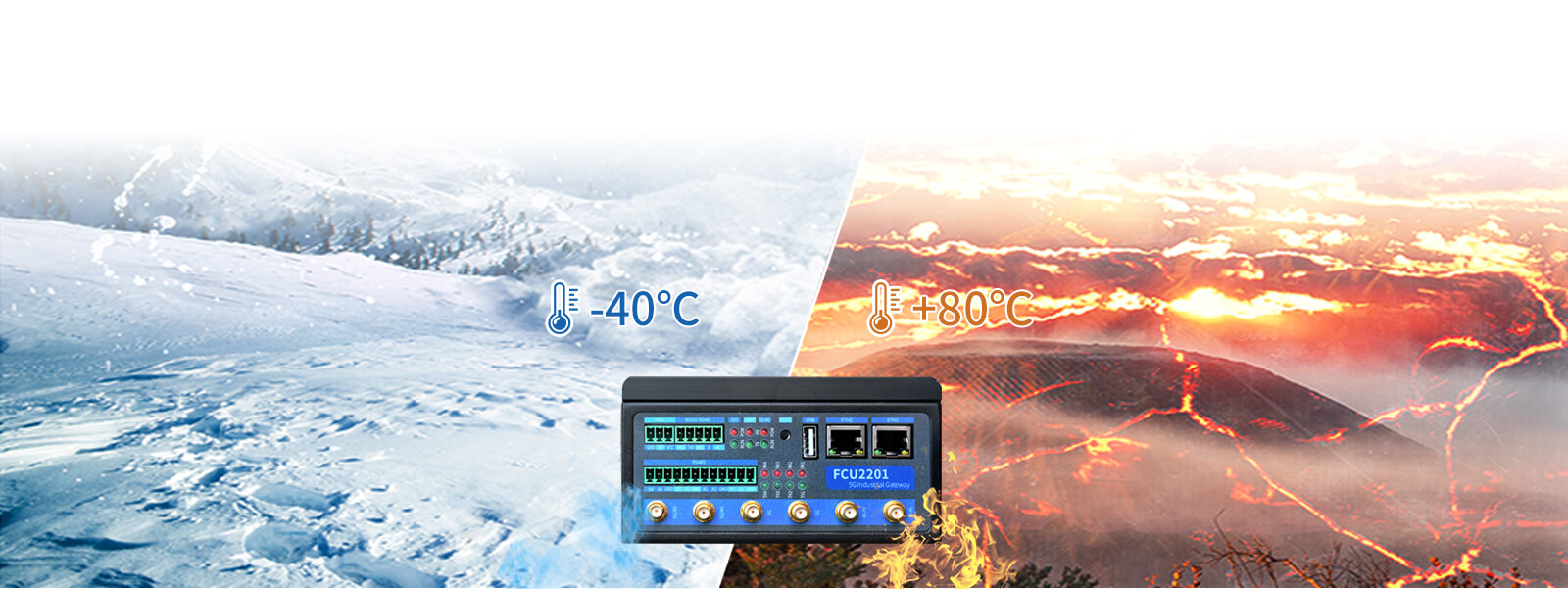

The industrial-grade fanless design reduces the points of failure and can operate reliably for a long time at an ambient temperature of -40°C to +80°C.
EMC protection design, enhanced anti-interference

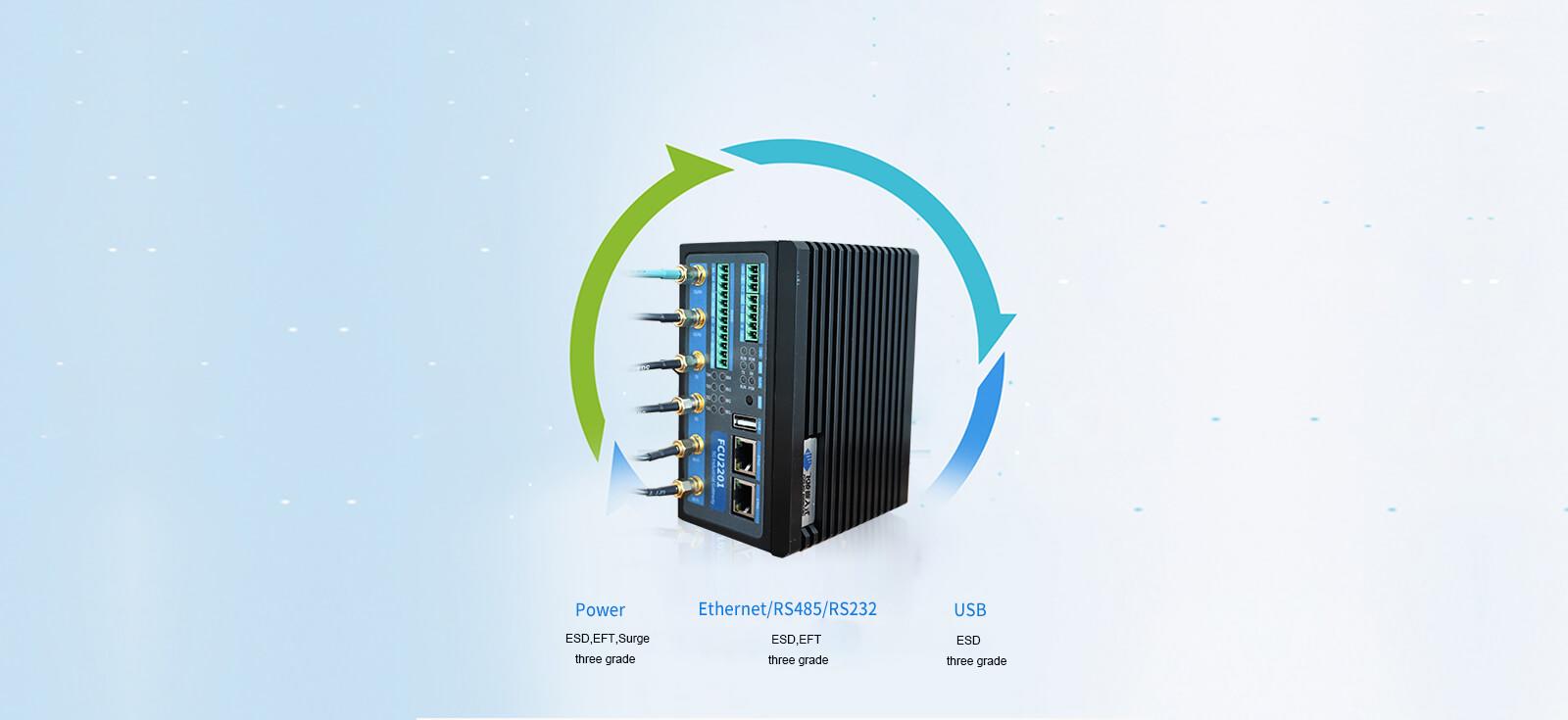

The Power, Ethernet, RS485, and RS232 interfaces have three-level ESD and EFT protection capabilities, and the power interface interface also has three-level surge protection capabilities.
Multiple operating systems, more flexible development

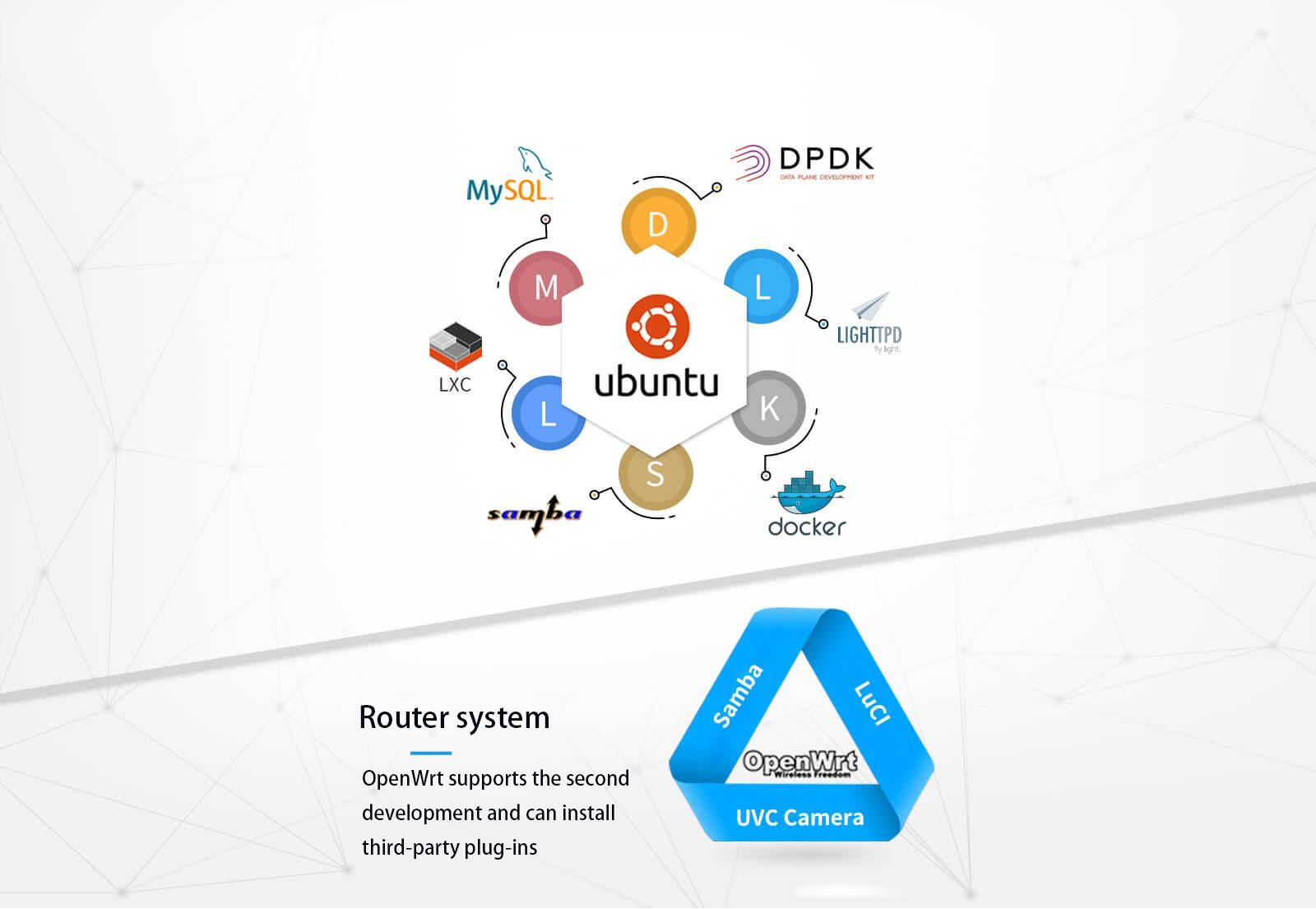

FCU2201 supports two operating systems, Ubuntu 18.04 and OpenWrt, and users can choose flexibly according to development needs;
shorten the development cycle and reduce the difficulty of development.
Multi-protocol support, reducing the difficulty of secondary development

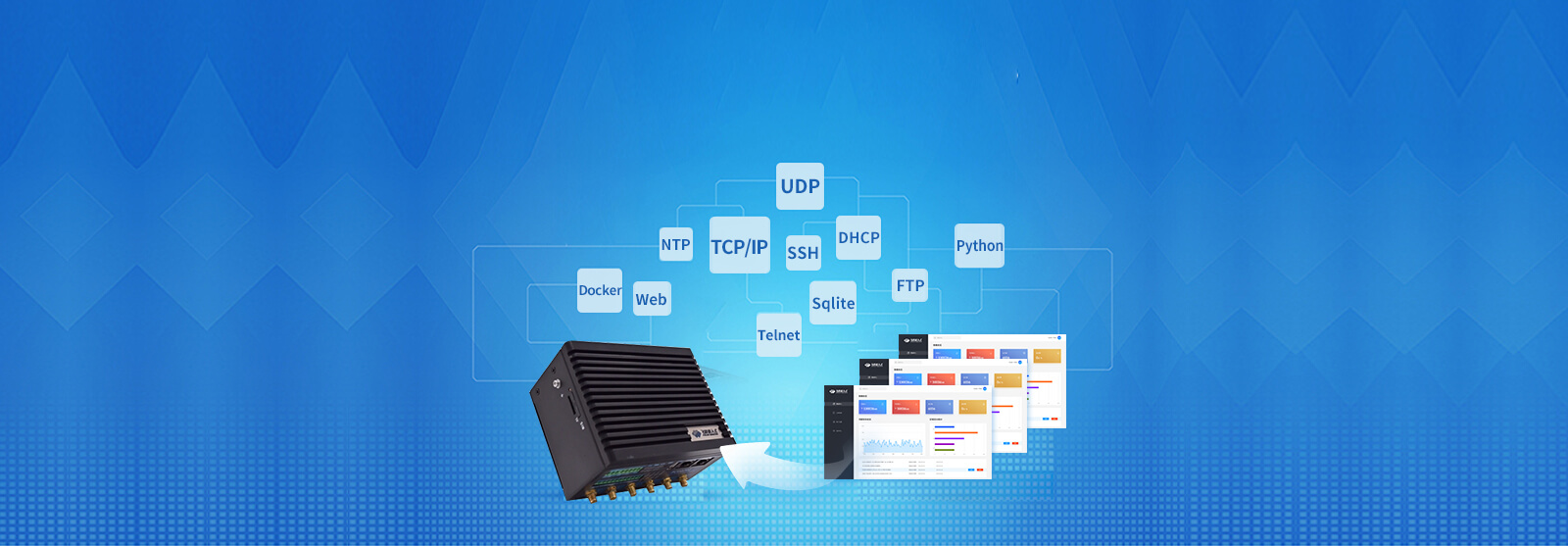

Support TCP/IP, UDP, NTP, DHCP, SSH, Telnet, Web, FTP, Docker, Python, Sqlite and other protocols and components,
and support the installation of other third-party protocol libraries, components, and applications; minimize the number of users Development difficulty
Product Interface Diagram
Product Size Chart
Product Installation Drawing
▊ Basic Parameters
| Architecture | ARM Cortex-A53 |
| Main Frequency | 1GHz |
| RAM | 512MB |
| ROM | 8GB |
| Extended Storage | TF Card Slot |
| Operating System | Ubuntu18.04, OpenWrt optional |
| Working Temperature | -40℃~+80℃ |
▊ Interface Parameters
| 5G/4G | can be equipped with 5G or 4G modules; or without communication modules. |
| Ethernet | 2 RJ45, 10M/100M/1000Mbps adaptive EMS: ESD, EFT, Level 3 |
| Wi-Fi | dual-band WiFi, 802.11 b/g/n/ac; can be used as STA or AP, and only 2.4GHz is supported in AP mode. |
| RS485 | 5 channels, EMS: ESD, EFT, Level 3 |
| RS232 | 1 channel, multiplexed with RS485, EMS: ESD, EFT, Level 3 |
| USB | 1 way, USB2.0, can be connected to U disk for expansion storage or update operating system. |
| TF | 1 way, used for expansion storage. |
| RTC | Support |
| LED | power supply, running status, 4G/5G networking status, RS485 |
| Button | operating system reset |
▊ 5G Support Frequency Band (*Remarks: 5G:RM500U-CN,RM500Q-GL, please choose a local compatible model with proper band width supports)
| Standard | Frequency Band |
| 5G NR NSA | n41/n78/n79 |
| 5G NR SA | n1/n28/n41/n77/n78/n79 |
| LTE-FDD | B1/B2/B3/B5/B7/B8/B20/B28 |
| LTE-tdD | B34/B38/B39/B40/B41 |
| WCDMA | B1/B2/B5/B8 |
▊ 4G Support Frequency Band (*Remarks: tested model: 4G EM05-CN, please choose a local compatible model with proper band width supports)
| Standard | Frequency Band |
| LTE-FDD | B1/B3/B5/B8 |
| LTE-tdD | B38/B39/B40/B41 |
| WCDMA | B1/B8 |
| EVDO/CDMA | BC0 |
▊ OS
| OS | Version |
| Ubuntu | 18.04 |
| OpenWrt | 21.02 |
▊ Power Parameters
| Input Voltage | 9~36V DC |
| Power Consumption |
WiFi+5G (startup state): 0.68A/12V (peak state) WiFi+5G (steady state): 0.51A/12V (steady state) Dual Gigabit WiFi+5G: 0.56A/12V (5G PING, Gigabit Network PING each other) Dual Gigabit WiFi+4G: 0.52A/12V (4G PING, Gigabit PING each other) |
| Protection | Anti-reverse connection protection; EMC: ESD, EFT, Surge, Level 3 |
▊ Working Environment
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 5% to 95% (non-condensing) |
▊ Mechanical Properties
| Shell | Metal |
| Installation | Rail-mounted installation, wall-mounted installation (optional kit) |
▊ Accessories
Provides the modules and accessories used in Forlinx's SBC.
See here for communication modules, LCD screen, SBC expansion module and further accessories »
▊ How to buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
▊ Shipment
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
▊ Other Forlinx LS10xx Series Products
|
|
|
| OK1012A-C Single Board Computer(SBC) | FET1012A-C System on Module(SoM) |
