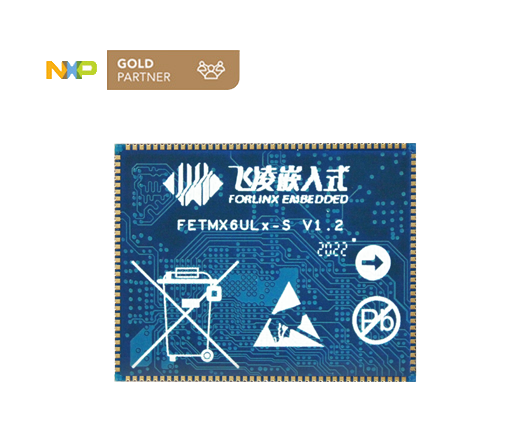

System on Module (SoM) FETMX6ULL-S based on i.MX6ULL
FETMX6ULL-S is a highly adaptable system on module(SoM) based on NXP Cortex-A7 low power featuring processor i.MX6ULL@ 800MHz has dual native Ethernet ports, dual CAN controller and octa UART, making it ideal for a wide range of applications in various embedded systems and domains. With its compact size of 44*35mm, the FETMX6ULL-S SoM is available in both industrial-grade and expansion commerce-grade options and is well-supported with Linux 4.1.15 with QTGUI.
FETMX6ULL-S Core Board Size

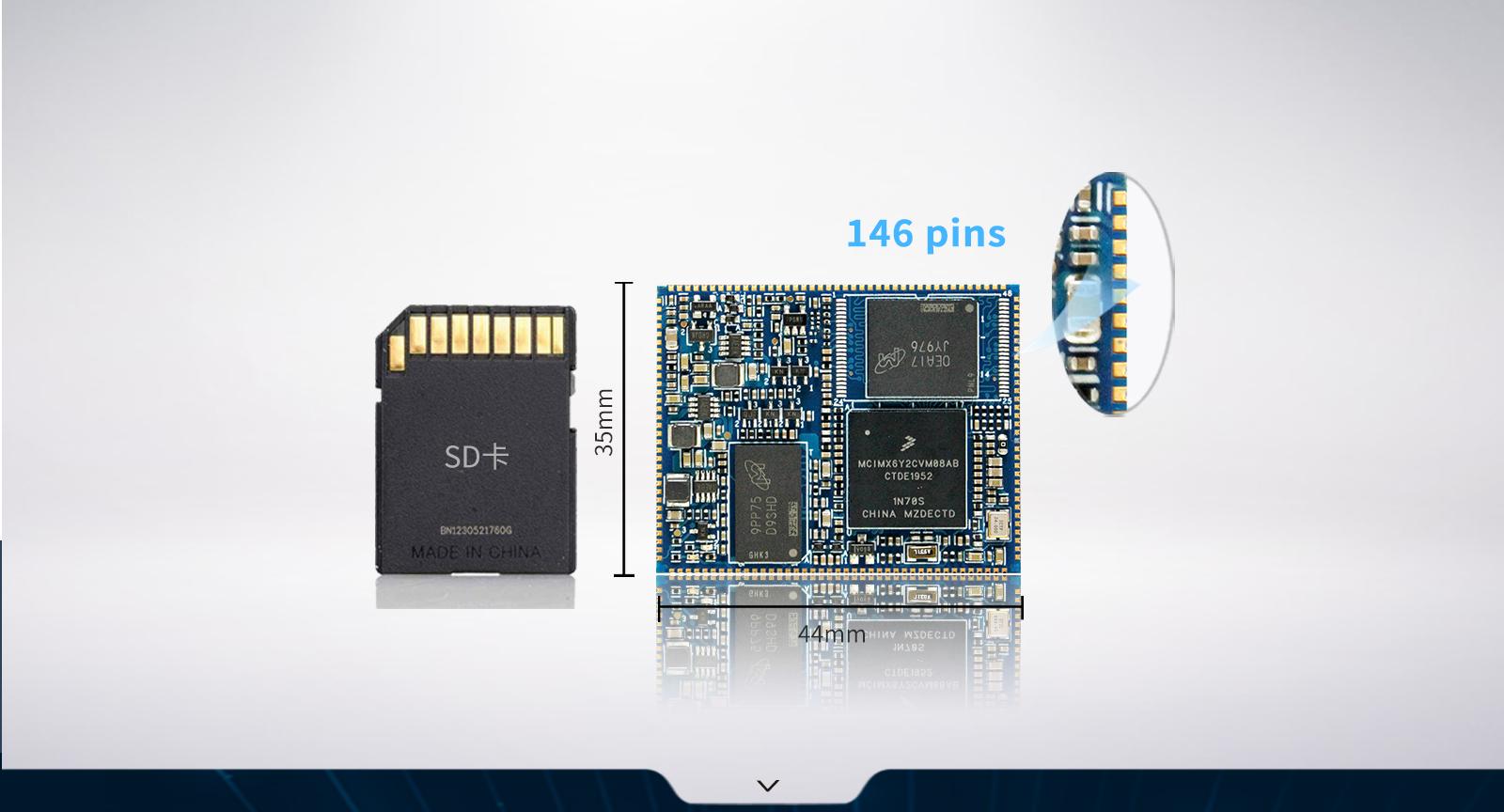

8-layer ENIG SoM PCB designing edge soldering package, compact size by 44*35mm.
Dual Ethernet, Dual CAN, Octa UART
CPU integrated with two real-time CAN, dual fast Ethernet ports and eight UART for multiple peripherals
Media Playing, Digital Camera, WXGA Display
24-bit parallel LCD output up to WXGA (1366x768), 8/10/16/24-bit parallel camera sensor OV9650, three IIS interfaces, ALSA audio form

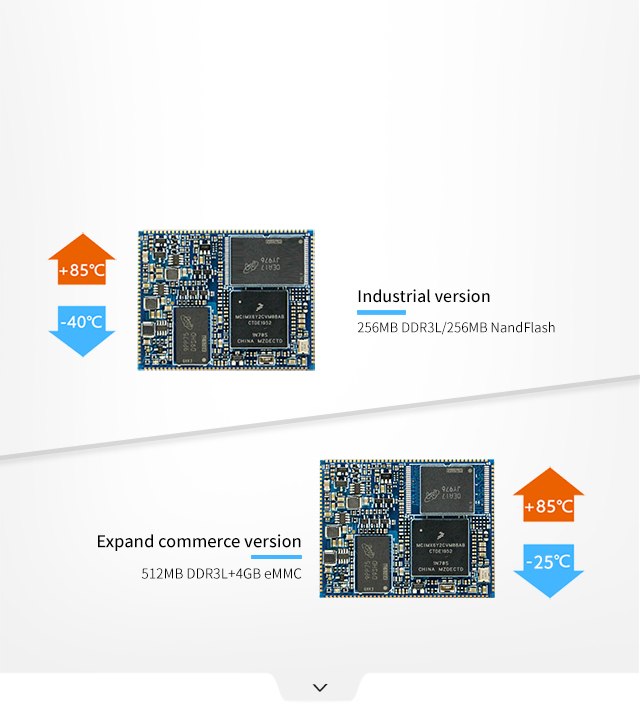

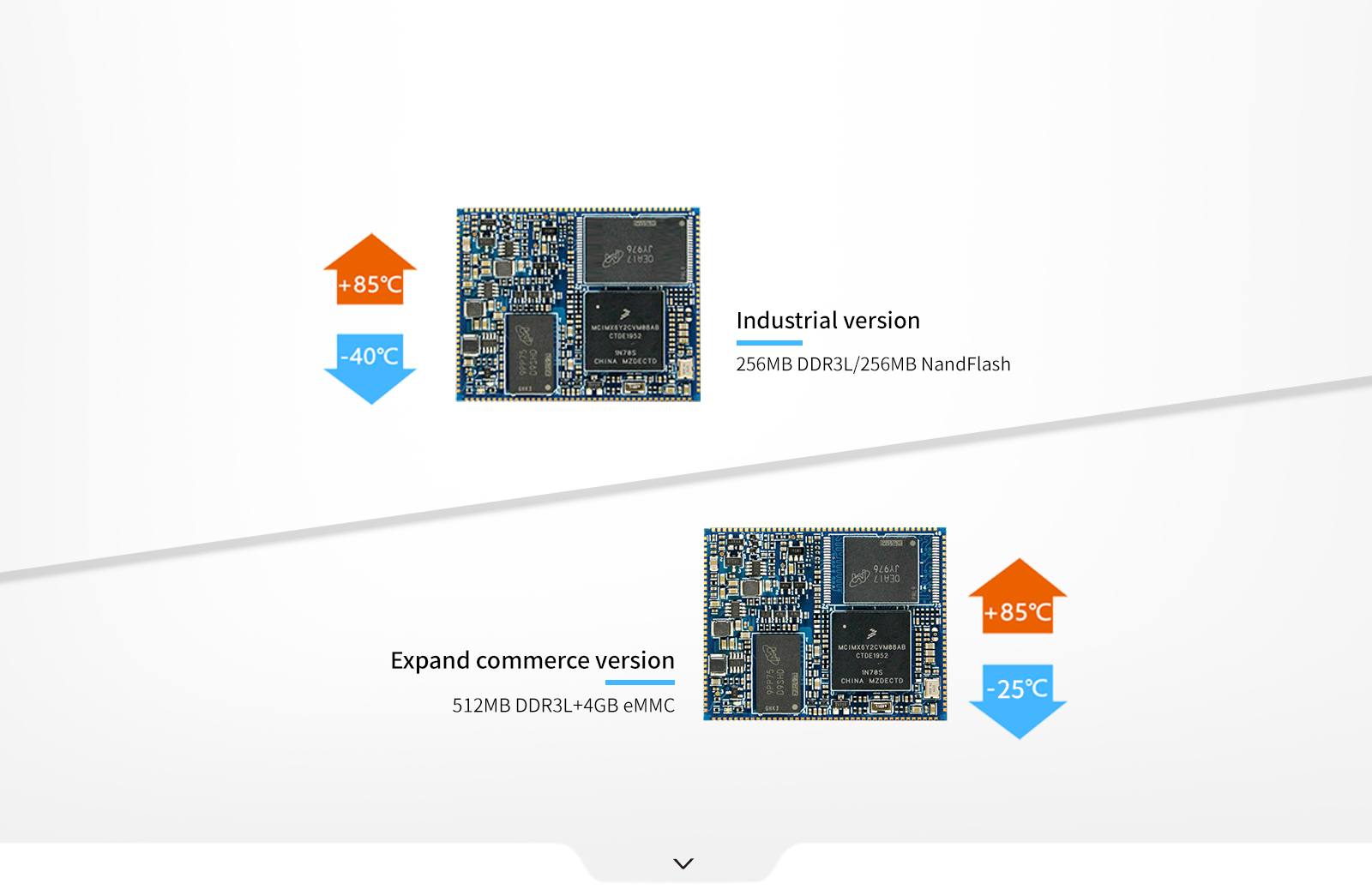

Industrial Grade and Commerce Grade Core Board
Both industrial grade and commerce grade are optional, 256MB DDR3L/512MB DDR3L RAM, 256MB NandFlash/4GB eMMC
Supported With Linux4.1.15, QT5.6 System
FETMX6ULL-S SoM supported with Linux4.1.15/ QT5.6, can support OTG, SD/ TF card flashing mode, and can support separately update kernel
▊ Hardware Features
| FETMX6ULL-S System on Module | |
| CPU | NXP i.MX6ULL |
| Architecture | Cortex-A7 |
| Frequency | 800MHz |
| RAM | 256MB DDR3 / 512MB DDR3 |
| ROM | 256MB NandFlash / 8GB eMMC |
| Voltage input | 5V |
| GPU | PXP |
| Dimensions | 35mm*44mm |
| Package | edge soldering |
| OS | Linux4.1.15+QT5.6 |
| LCD | RGB 24-bit, up to WXGA (1366 x 768) |
| Audio | 3 |
| I2C | 4 |
| SPI | 4 |
| CAN | 2 |
| USB | 2 |
| SD/MMC/SDIO | 2 |
| Ethernet | 2x 10/100M |
| UART/IrDA | 8 |
| EINT/GPIO | supported |
| Video Coder | software codec |
| Camera | 1, 8-bit(DVP), up to 5-Megapixel; |
| PWM | 8 |
| ADC | 10 |
| eSAI | 1 |
| Keypad Port | 8*8 |
| SPDIF | 1 |
| QSPI | 1 |
▊ Carrier Board
OKMX6ULL-S Single Board Computer
To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.
The OKMX6ULL-S Single Board Computer from Forlinx is based on NXP i.MX 6ULL SoC, with the SoM measuring 44*35mm. It has two native Ethernet ports, two CAN controller and eight serial ports, both industrial grade and expanding commerce grade are optional to users, and supports Linux 4.1.15 system with QTGUI. Featuring open system architecture design, it can provide technical information for your secondary development.
|
OKMX6ULL-S Single Board Computer |
|
| Audio | 1x Phone, 1x MIC, 2x Speaker |
| I2C | 2 |
| CAN | 2 |
| Camera | 1, 13.0MP parallel |
| SD/MMC/SDIO | 1 |
| USB Host | 3x USB2.0 |
| USB OTG | 1x USB micro 2.0 |
| Ethernet | 2x 10/100M, RJ45 |
| UART | 3 |
| Power input | 5V |
| Camera | OV9650(preview, photograph) |
| JTAG | supported |
| ADC | 4, for resistive touch |
| DIP switch | boot mode selection |
| Reset | 1 |
| PWM | 1, for backlight control |
| LCD | 1, can support touch function |
| WiFi& BT | 1 |
| GPS | serial port |
| 3G/4G | USB 3G/4G |
| RTC | supported |
| LED | 2 |
▊ Accessories
Provides the modules and accessories used in Forlinx's OKMX6ULL-S SBC.
See here for communication modules, Evaluation Kit, LCD screen, SBC expansion module and further accessories »
Technical Support
Forlinx provides software resources including kernel and driver source code, together with detailed user manual(i.MX6ULL reference manual), schematic documentations to help customer start their development rapidly.
