CAN Module

Product model: FIT-CAN-II_2515

Product interface: SPI

Product features: convert SPI on single board computer to CAN

Brief Message Compare

CAN bus Module Converted by SPI


CAN bus Module Converted by SPI

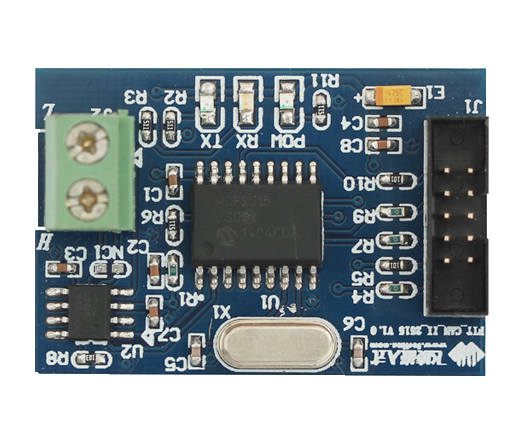

SPI to CAN Module
Name CAN module(converted by SPI)
Model FIT-CAN-II_2515
Interface SPI
Spec. rate: Supports a run rate of 1 Mb/s; Meet ISO-11898 standard physical layer requirements, suitable for 12V and 24V systems; Slope external control to reduce RFI; Automatic detection of ground errors at the TXD input (constant appearance); Power-on reset and voltage event undervoltage protection; Failure to power up nodes or undervoltage does not affect the CAN bus; Low current standby operation; Short-circuit protection (positive and negative battery voltage); High-pressure transient protection; Automatic thermal shutdown protection; Up to 112 nodes can be connected; The differential bus is used and has strong noise resistance.
Applicable
Model OS
OK335xD Linux3.2, Android2.3/4.2
OK335xS Linux3.2, Android2.3/4.2
OK335xS-II Linux3.2
OKMX6Q-C Linux3.0.35, Linux4.1.15, Android4.4
OKMX6DL-C Linux3.0.35, Linux4.1.15, Android4.4
OKMX6Q-S3 Linux3.0.35, Linux4.1.15, Android4.4
OKMX6DL-S3 Linux3.0.35, Linux4.1.15, Android4.4
OKMX6DL-S3 Linux3.0.35, Linux4.1.15, Android4.4
OKMX6UL-C Linux3.14.38
OK210 Linux2.6.35.7, Android4.0/2.3
OK4418/6818-C Linux3.4.39
OKMX8MM-C Linux4.14.78, Android9.0
Packling List
SPI to CAN module x1 2.0-10P-15cm cable x 1

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.
