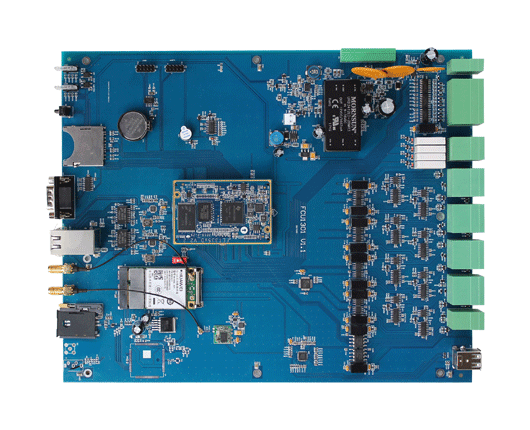

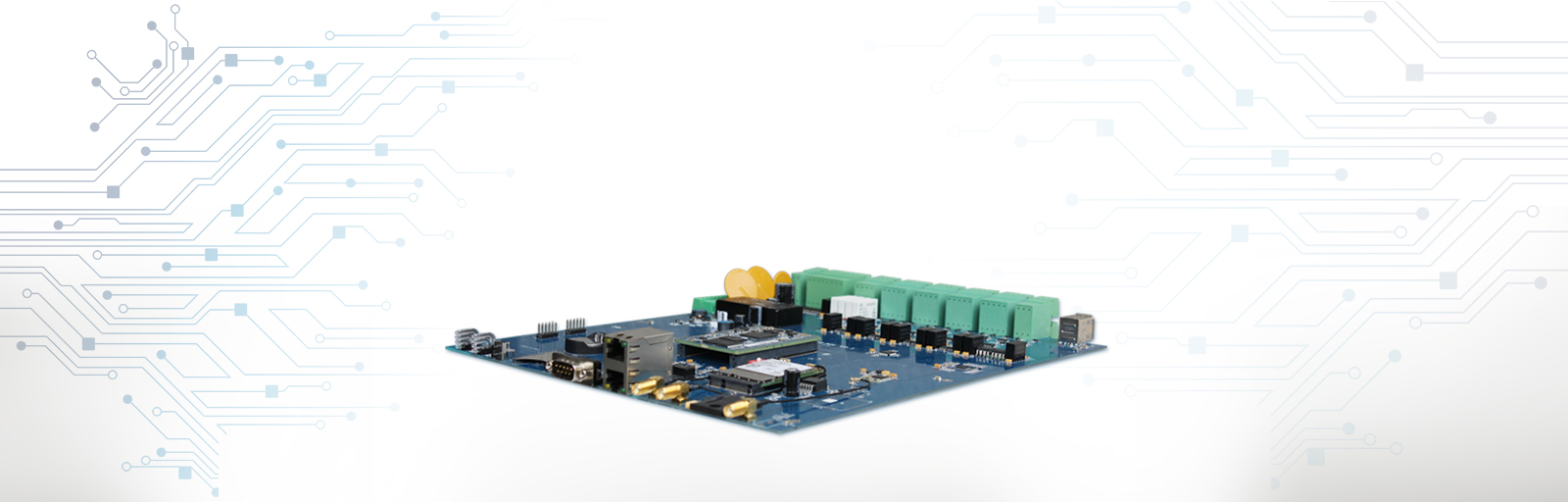

FCU1301 Embedded Computer

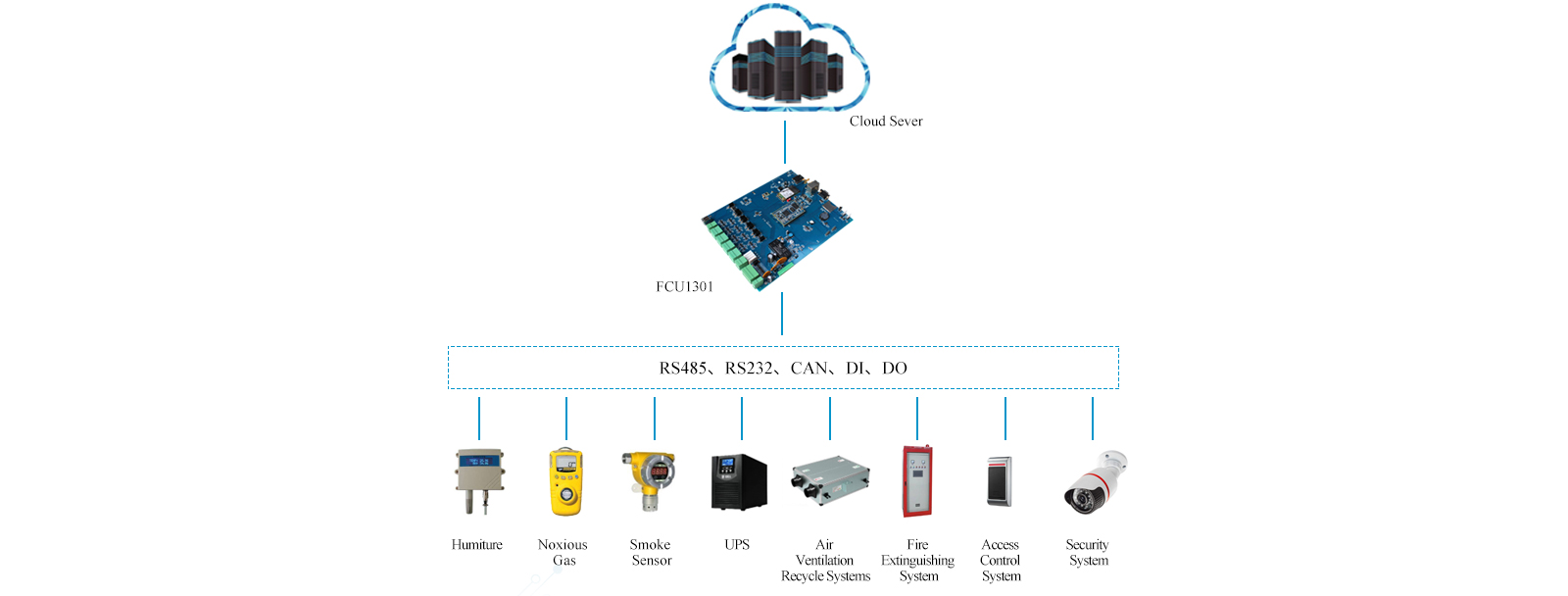

FCU1301 is an embedded computer designed specially for dynamic environment monitoring system, IoT for data collecting.

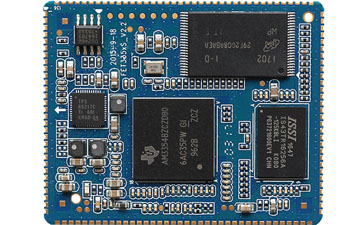

It consists of SoM and carrier board, it's designed based on SoM FET335xD which has been widely used in medical, electronical, rail transit, industrial control , etc.

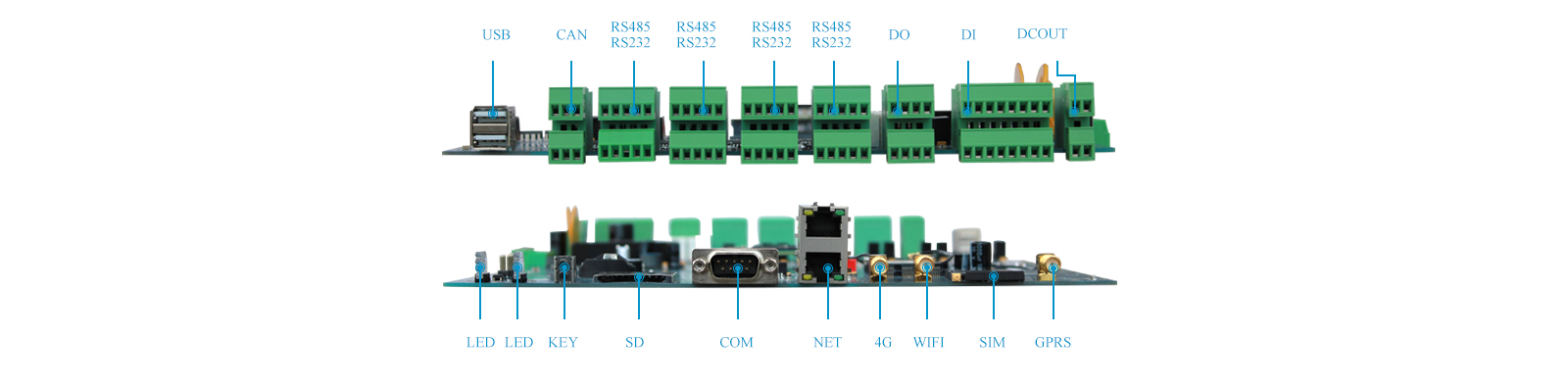

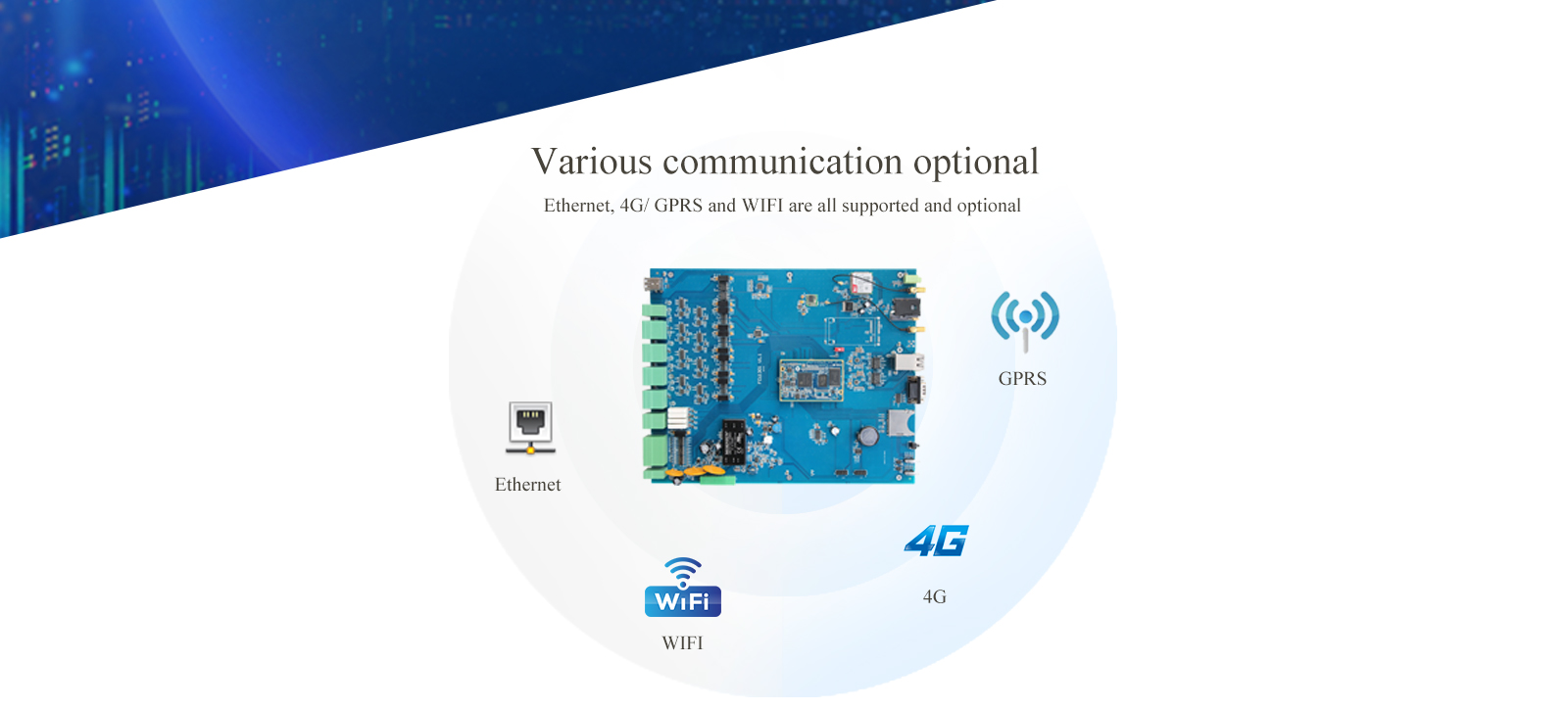

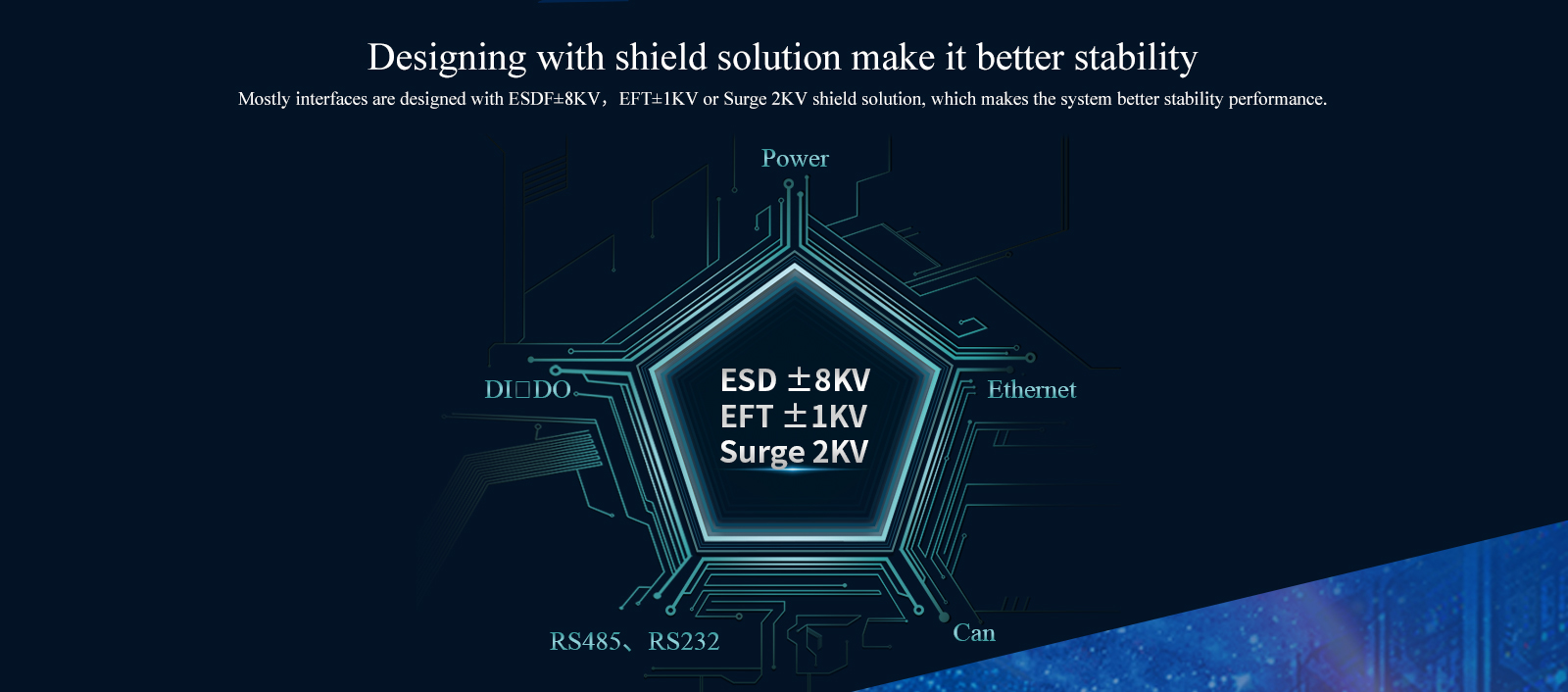

Optimized connector layout makes it very convenient to be integrated into 1U, meanwhile it's preserved with expanded connectors for WIFI, GPRS and 4G modules, its has below features:

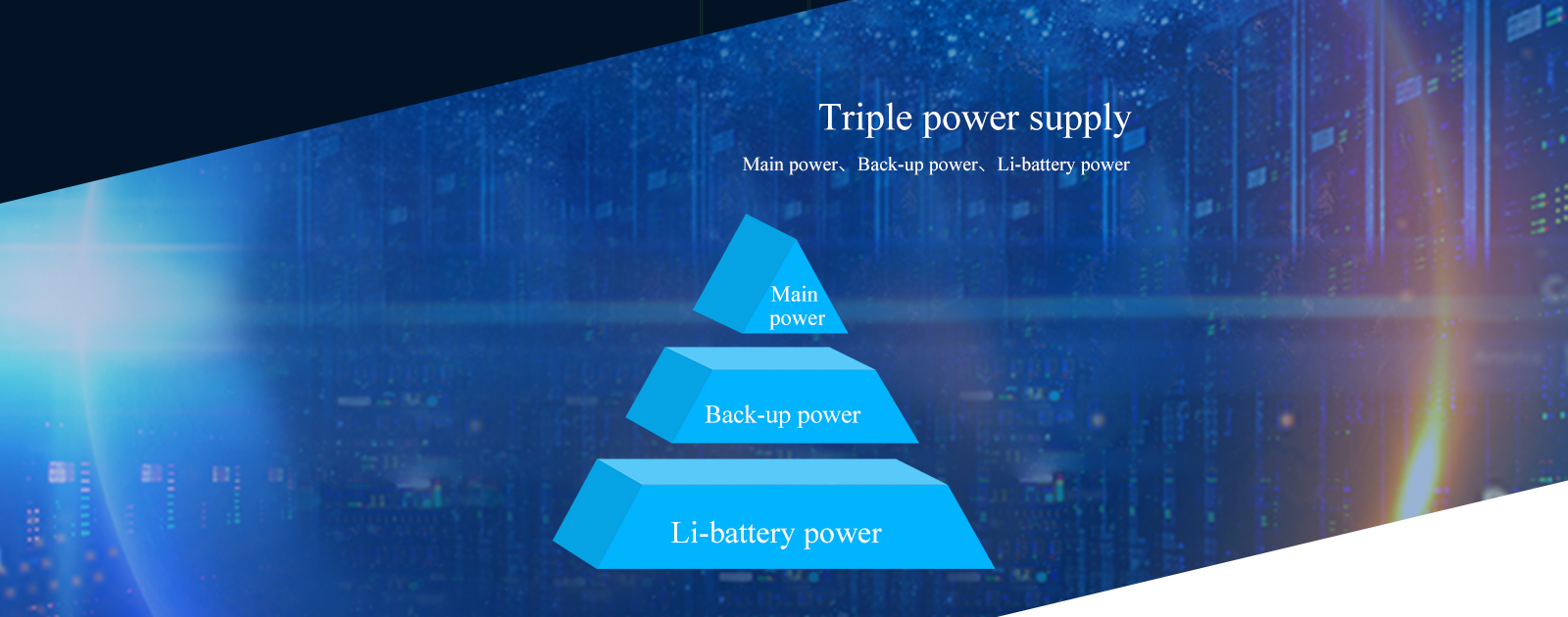

- 1. Power input from 9V to 36V, designed with main power, back-up power and Li-battery;
- 2. Dual Ethernet designed with isolated solution;
- 3. 8x RS485, which can be multiplexed with RS232, also designed with isolated solution;
- 4. 12x DI, dry contact input, designed with isolated solution;
- 5. 4x DO, relay output, contact capacity 5A 250VAC, 5V 30VDC;
- 6. 2x CAN designed with isolated solution;
- 7. 2x USB Host, for expanding usage;
- 8. WIFI STA and AP double moding supported (optional);
- 9. GPRS and 4G are both supported and optional;
- 10. Available for external storage expanding.
Diagram
▊ Hardware Features
| Hardware Features | |
|---|---|
| CPU | Model: TI AM3354 Sitara ARM Cortex-A8@ 800MHz |
| RAM | 512MB |
| FLASH | 1GB NAND Flash |
| External Storage | standard SD card slot |
| Mobile Communication |
interface: mini PCI-E, standard on-board SIM card slot(users need buy the module by themselves), module model: ME909S-821, it's available for China Mobile 4G/3G/2G, China Union 4G/3G/2G and China Telecom 4G |
| DO | 4x DO, 220V/5A relay isolated output by terminal bond with pitch of 3.81mm |
| DI | 12x DI, dry contact input, opto isolated and power isolated by terminal bond with pitch of 3.81mm |
| WIFI | USB WiFi, can support STA mode and AP mode |
| UART | 9x UART(8x RS232/RS485 multiplexed, 1x Debug) |
| USB HOST | 2x USB Host, standard USB type A connector, for U-disk mounting |
| CAN BUS | 2x CAN, CAN-0: CAN2.0 B, 125/250kbps; CAN-1: CAN2.0 B, 125/250kbps |
| IIC | 1x IIC, for display expanding |
| Ethernet | 2x 10/100M auto-negotiation, RJ45 connector, RJ45-01: 10/100M, for connection with upper system |
| Audio | none, on-board GPIO buzzer |
| Clock | on-board RTC CR2032, power failure for one year |
| Power | input rated voltage: DC12V, input range: DC9V-36V, reverse polarity connecting protection |
| Indicator | 1. power indicator, 2. status indicator |
| Reset Key | system reset |
| BOOT Key | can support Nand Flash booting and SD card booting mode |
| Dimensions | 240mm×296mm |
| Mounting | by screws |
| Work and Storage | RH: 5％～95％, non-condensing, working temp: -40℃～70℃, storage temp: -40℃～85℃ |
| Software Features | |
|---|---|
| U-boot | u-boot-2011-09 |
| System Version | Kernel: Linux-3.2.0, GCC: 4.5.3, QT: 4.8.5 |
|
Valid Driver |
NIC |
| USB | |
| CAN | |
| Flash ECC verification | |
| Nand Flash | |
| UBI file system | |
| SD card | |
| RTC | |
| 4G wireless network module | |
| UART | |
| RS485 | |
| GPIO | |
| SDID WIFI | |
Packing List
| Option 1: 4G version |
|---|
| FCU1301 x 1 |
| 4G wireless network module x 1 |
| 4G full-band antenna x 2 |
| 2.4G antenna x 1 |
| power adapter x 1 |
| serial interface cable x 1 |
| Option 2: GPRS version |
|---|
| FCU1301 x 1 |
| GPRS module x 1 |
| 2.4G antenna x 1 |
| GSM antenna x 1 |
| serial interface cable x 1 |
| power adapter x 1 |
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
2. Fast response after-sale technical support service
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us for details.
2. Order Offline
Please send your inquiry to [email protected];
3. Payment Terms
100% T/T in advance.
▊ Shipment
1. Delivery: Goods will be shipped by express upon the receipt of the payment;
2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;
3. Shipping charge: Buyers should bear the shipping cost.

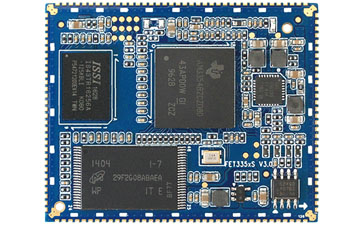

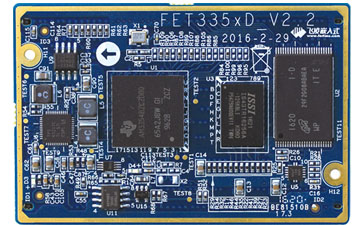

▊ Related Forlinx's TI AM335x SoM
|
|
|
|
