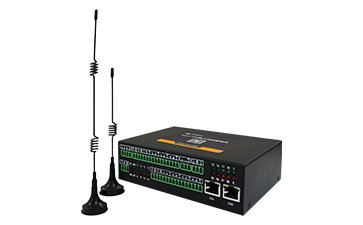

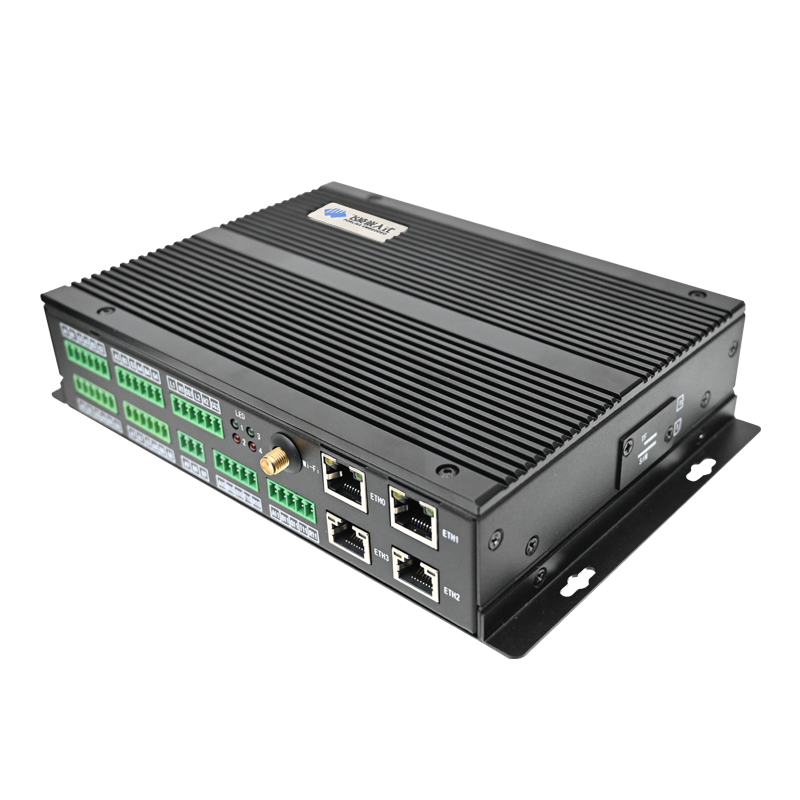

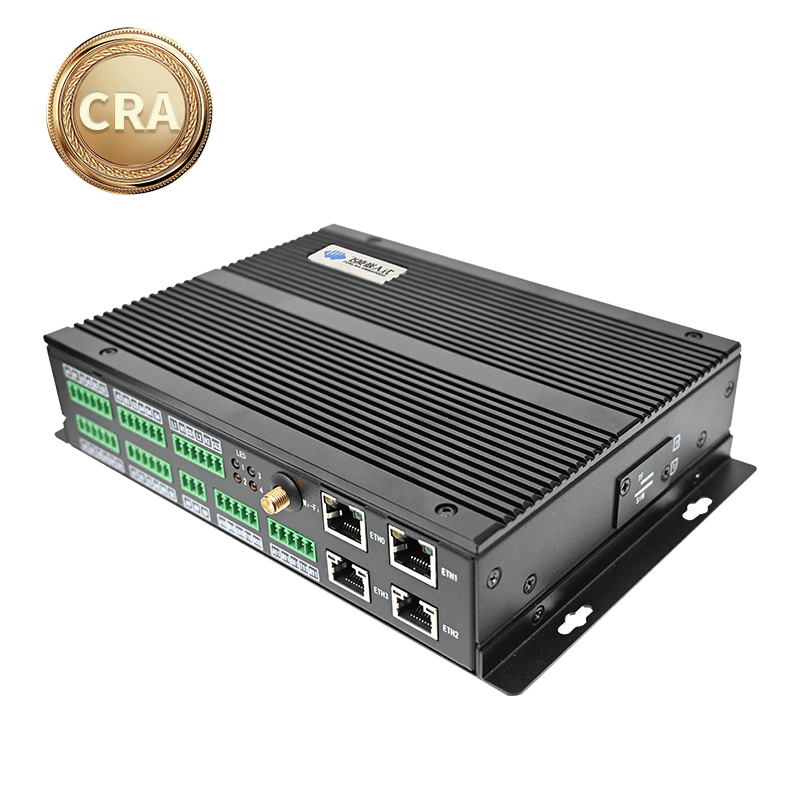

FCU2601 Embedded Computer: CRA-Compliant Energy Management Unit for C&I Energy Storage Systems
FCU2601 Embedded Computer is powered by Rockchip’s industrial-grade RK3568J SoC and is specially designed for Energy Management System (EMS) applications. With a fanless passive cooling architecture, it ensures stable and reliable operation in industrial environments while providing rich communication interfaces and flexible protocol support for energy storage and automation systems.
FCU2601 Embedded Computer Features:
- Industrial Processor: Rockchip RK3568J with 4× Cortex-A55 @ 1.8 GHz;

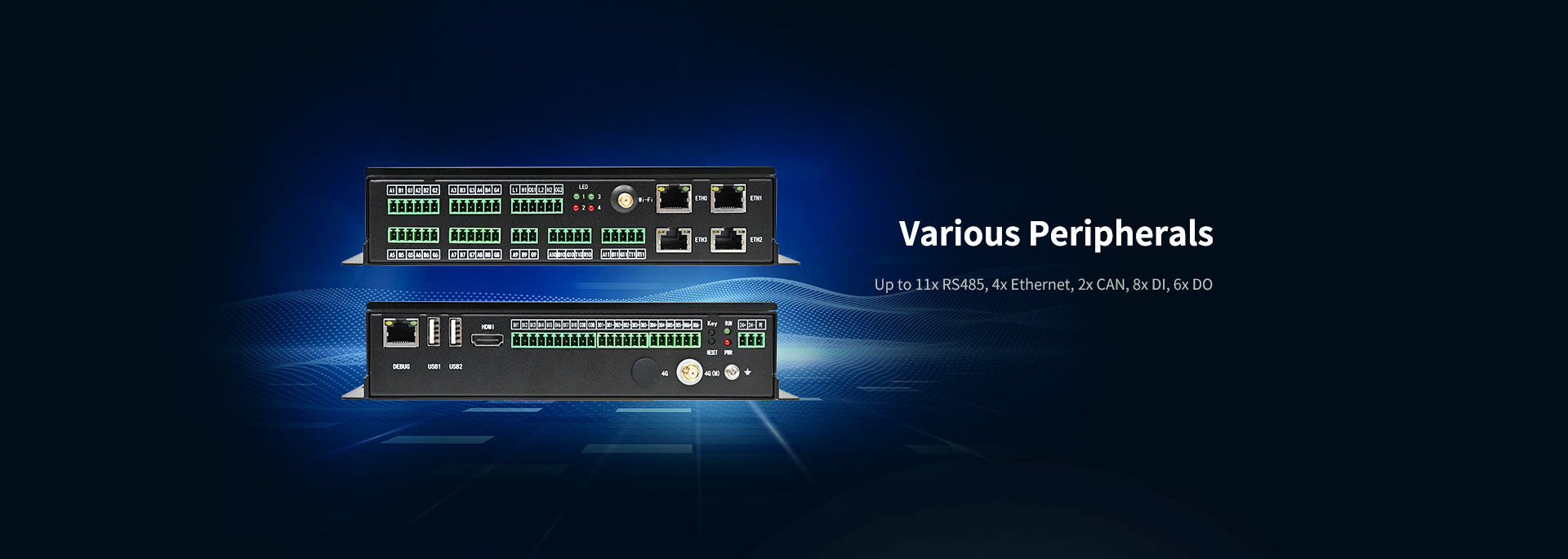

- Rich Industrial Interfaces: Supports 11× RS485, 4× Ethernet, and 2× CAN;
- Protocol Support: Docker, MySQL, FTP Server, MQTT, ModBus-TCP, ModBus-RTU, OpenVPN, OpenSSL, OpenSSH;
- Data Protection: Integrated power failure protection solution to enhance data security;

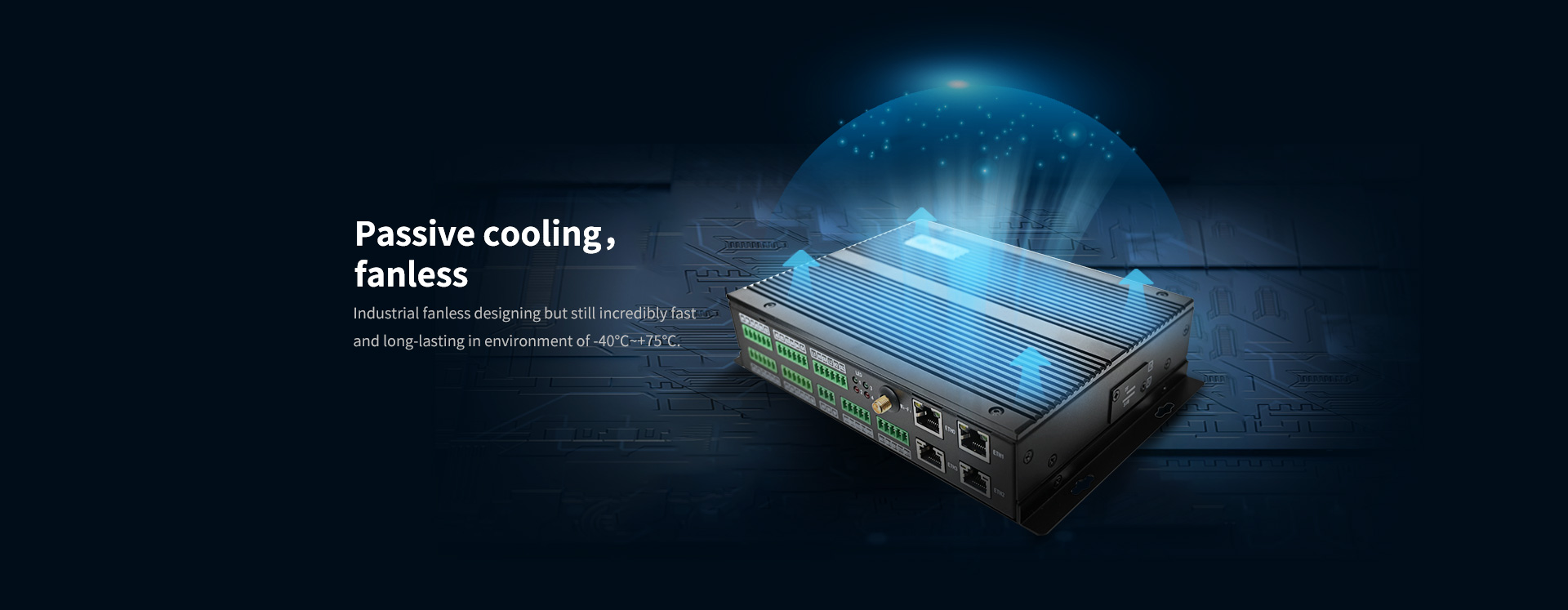

- Fanless Design: Passive cooling architecture for stable industrial operation;
- Certifications: Compliant with CE, FCC, and RoHS;
- Cybersecurity Certification: IEC 62443, EN 18031;
- Cybersecurity Readiness: Architecture designed to support requirements aligned with the EU Cyber Resilience Act framework for connected devices;
FCU2601 Embedded PC Video
FCU2601 Embedded Computer: Smart, Rugged, and Built for EMS Applications
▊ Product Features
|
Energy Control Unit for EMS Storage FCU2601 Basic Features |
|
|---|---|
|
CPU |
Rockchip RK3568J CPU: 4×[email protected] NPU: 1TOPS, supports INT8/INT16/FP16/BFP16 mix operation GPU: Mali-G52-2EE; OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.0,1.1, OpenCL 2.0 VPU:
•Hard Decoding: •Video Encoding: H.264/AVC, H.265/HEVC: up to 1920×1080@60fps |
|
RAM |
2GB/4GB DDR4 |
|
Flash |
16GB/32GB eMMC |
| Voltage input | DC 24V(9V~36V) |
|
Operating temp |
-40℃~+75℃ |
|
Dimensions |

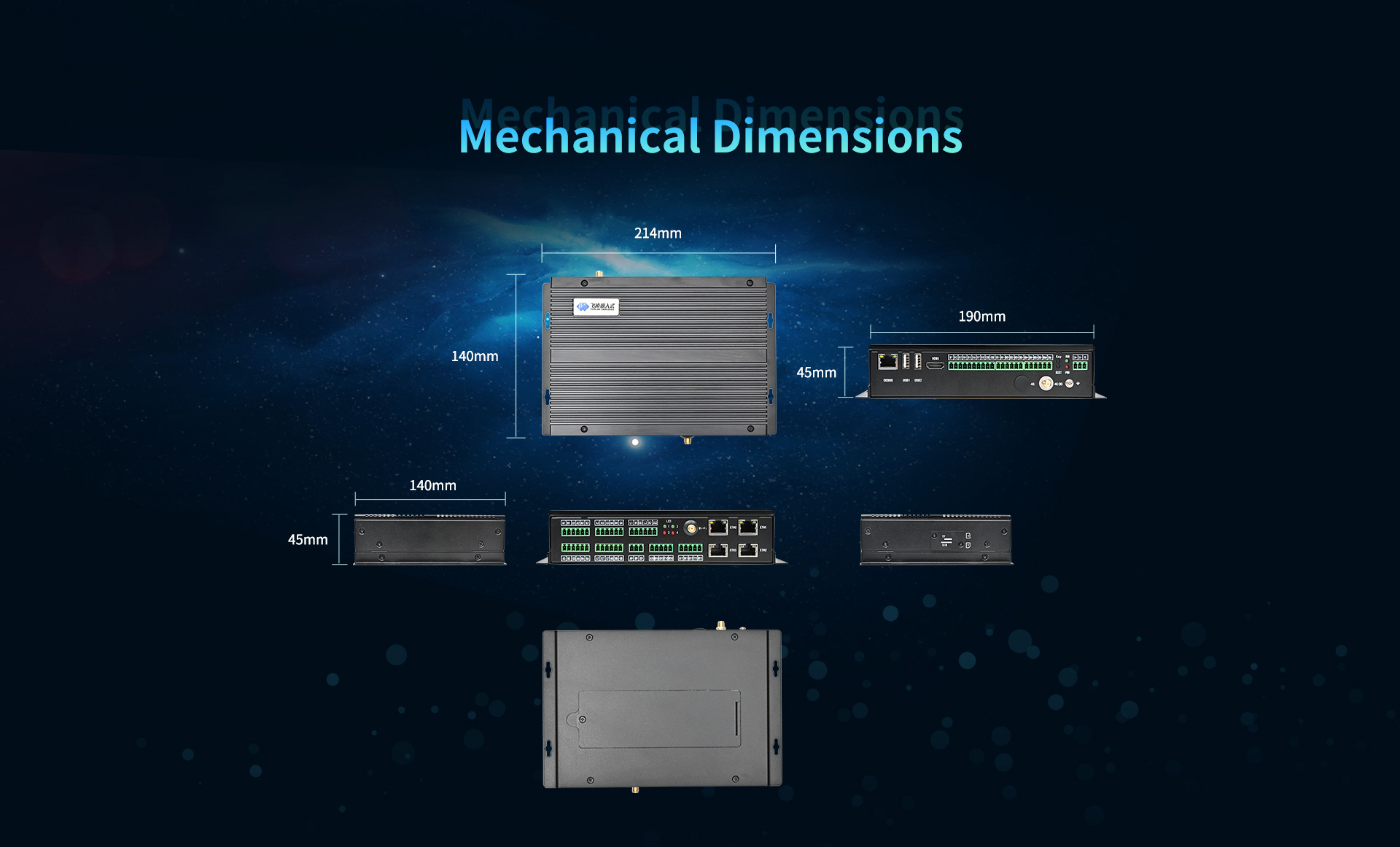

190x140x45mm |
|
Cooling solution |
Passive cooling, fanless |
|
Net Weight |
1.32KGs(for the expanding version, 4G is not contained) |
▊ Functional Parameters
|
FCU2601 Embedded Computer Functional Parameters |
|||
|---|---|---|---|
|
Peripheral |
Primary |
Advanced |
Spec. |
|
RS485 |
4 |
11 |
The primary option is with 4 RS485 and the advanced is with 11 RS485 |
|
RS232 |
0 |
2 |
2 RS232 for the advanced option are multiplexed with RS485 |
|
Ethernet |
2 |
4 |
The primary is with dual Gigabit Ethernet ports, and the advanced option has two more fast Ethernet ports |
|
CAN |
2 |
2 |
CAN2.0B |
|
DI |
8 |
8 |
Dry contact |
|
DO |
6 |
6 |
Always on, 30VDC/ 3A |
|
mSATA |
1 |
1 |

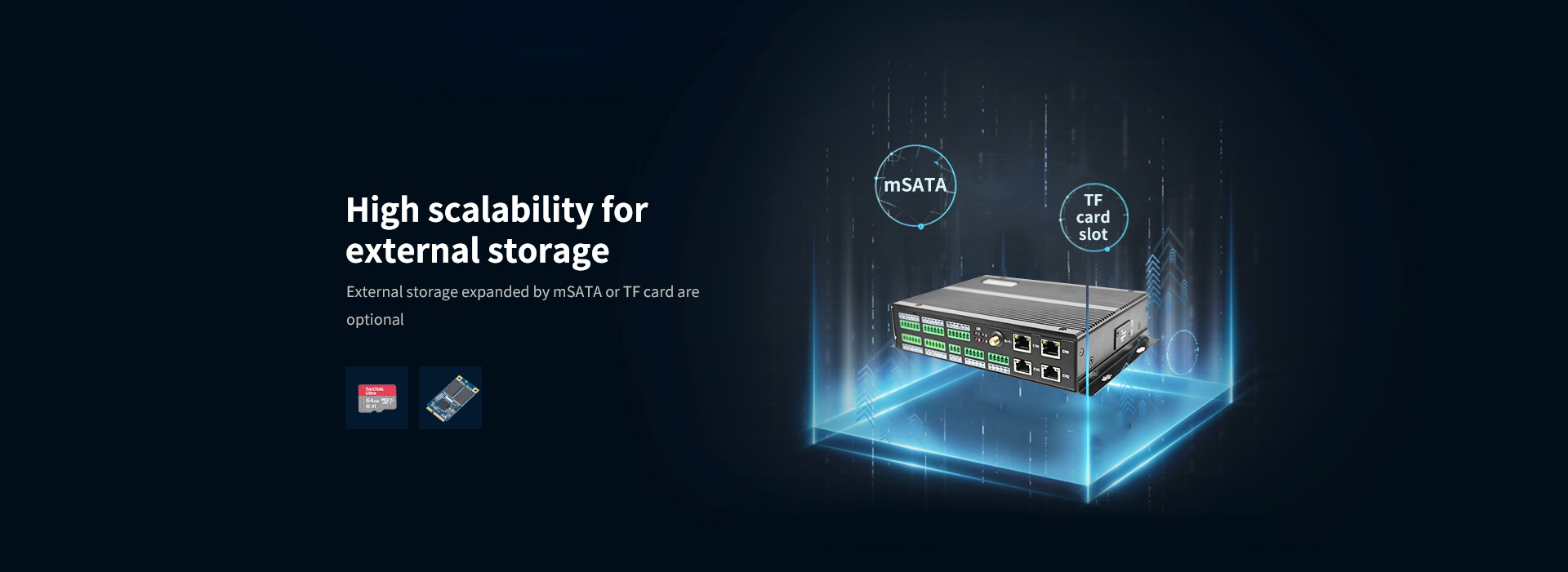

Compliant with SATA3.0 protocol, for storage expanding |
|
TF card |
1 |
1 |
Supports storage expanding and OS image flashing |
|
4G |
1 |
1 |
EC200N, EC20, EC25, EG25, Mini PCIE slot |
|
WiFi |
1 |
1 |
Supported |
|
HDMI |
1 |
1 |
|
|
USB |
2 |
2 |
USB2.0 Host, can be used for TP, U-disk, mouse, key board, etc. |
|
RTC |
1 |
1 |
Timing accuracy 1 min/month |
|
Buzzer |
1 |
1 |
Supported |
|
Super capacitor |
1 |
1 |
Can maintain Ethernet, 4G or WiFi online for 5 seconds after power failure |
|
Debug |
1 |
1 |
RJ45 connector, RS232 level, Cisco |
