AI Accelerator
FAI-ARA240-M AI Acceleration Card
NXP Ara240-powered 40 eTOPS M.2 Edge AI accelerator for real-time generative AI and industrial inference.
Ara240 AI Acceleration Card Parameters
| Category | Key Item | Technical Specifications | Core USPs & Advantages |
|---|---|---|---|
| Core Performance | AI Performance | Up to 40 eTOPS (Equivalent TOPS) | Top-tier computing power, easily handling complex industrial AI inference tasks. |
| Processor & Memory | Architecture | NXP Ara240 | 8GB / 16GB LPDDR4 | Global simultaneous launch; high-capacity memory options support complex model loading. |
| Model Compatibility | AI Architectures | CNN, Transformer, LLM, MMLM, VLM, VLA | Full support for Generative AI (GenAI), breaking through traditional vision limitations. |
| Interface | Hardware Form Factor | M.2 2280 (M-Key) | PCIe Gen4 x4 & USB 3.2 Gen1 | Standard size, plug-and-play; compatible with multiple high-speed protocols to lower integration costs. |
| Software Development | Frameworks & Compiler | TensorFlow, PyTorch, ONNX | INT4, INT8, MSFP16 | Includes robust tools and development examples to balance performance, storage, and accuracy. |
| Security | System Security | Secure Boot & Root-of-Trust | Industrial-grade security foundation ensures end-to-end data integrity at the edge. |
| Reliability | Thermal & Testing | Industrial Thermal Architecture & Rigorous Simulation | Optimized for 24/7 stable operation in demanding high-temperature industrial environments. |
| Ecosystem | Supported Platforms | Linux/Windows (Supports i.MX8MP, i.MX95, etc.) | NXP Gold Partner assurance with continuously updated documentation and expert support. |
Application Areas
- Industrial Control: Industrial Multimodal Sensing, Real-time Visual Processing;
- Smart Transportation: Roadside Edge Computing, Complex Traffic Flow Analysis;
- Smart Healthcare: AI-assisted Medical Imaging, Real-time Monitoring;
- Energy and Power: Equipment Status Inspection, New Energy Smart O&M.
NXP System on Module

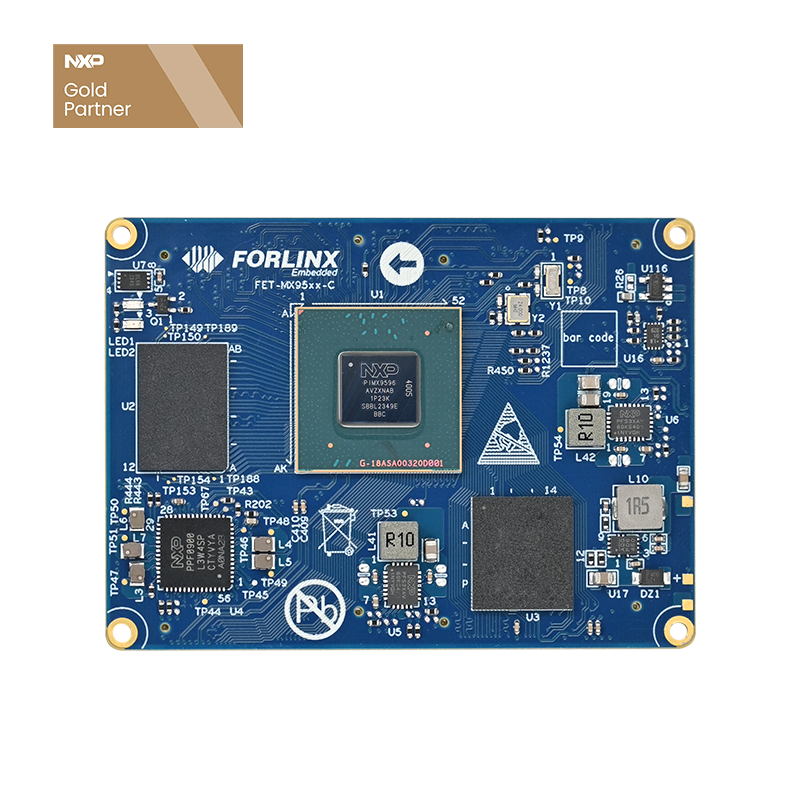

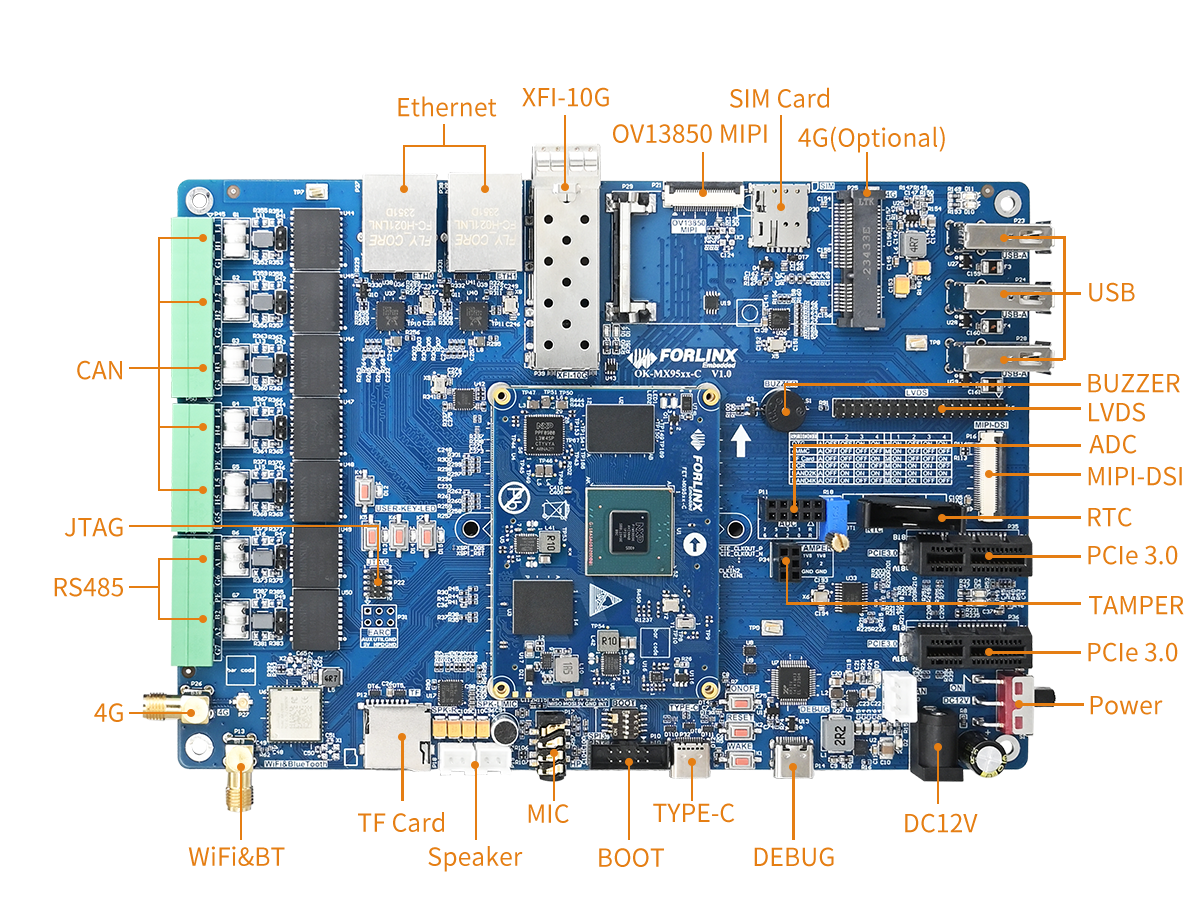

FET-MX9596-C SoM
| FET-MX9596-C | OK-MX9596-C |
|---|---|
|
|
SoM Parameter
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| CPU | NXP i.MX9596 | NPU | 2 TOPS |
| Architecture | 6 × Cortex-A55 + 1 × Cortex-M7 + 1 × Cortex-M33 | VPU | H.264/H.265 decoding and encoding, up to 4K@30fps |
| Clock | 1.8GHz + 800MHz + 333MHz | JTAG | 1 x, supporting 4-pin JTAG debugging interface |
| RAM | 8GB LPDDR4X | UART | ≤ 8 x, up to 5 Mbps |
| ROM | 64GB eMMC | SPI | ≤ 8 x, supporting master-slave mode |
| OS | Linux | XSPI | ≤ 1 x, supporting 2 x SPI Flash |
| Working Voltage | 12V | CAN-FD | ≤ 5 x, supporting ISO11898-1, CAN 2.0B |
| Operating Temperature | −40℃ ~ +85℃ | SD Card | ≤ 1 x（SD 3.0） |
| Connection | Board to board connector （40 × 80pin,0.5mm spacing） | SDIO | ≤ 1 x（SDIO 3.0） |
| Mechanical dimensions | 50mm × 68mm | USB 3.0 | 1 x, Host/Device |
| GPU | Mali-G310, supporting OpenGL ES 3.2, Vulkan 1.2, OpenCL 3.0 | USB 2.0 | 1 x, Host/Device |
| PCIe | 2 x, PCIe Gen3 | LVDS | Up to 1080P@60Hz, 2×4-lane or 1 × 8-lane |
| MIPI-DSI | 1 x, 350MHz 4-lane | PDM | ≤ 1 |
| IIC | ≤ 7 | PWM | ≤ 6 |
| SPDIF | ≤ 1 |
Application Areas
- Industrial Automation
- Medical Electronics
- Power Inspection
- Smart Cockpit
- Environmental Monitoring
- IoT Terminal

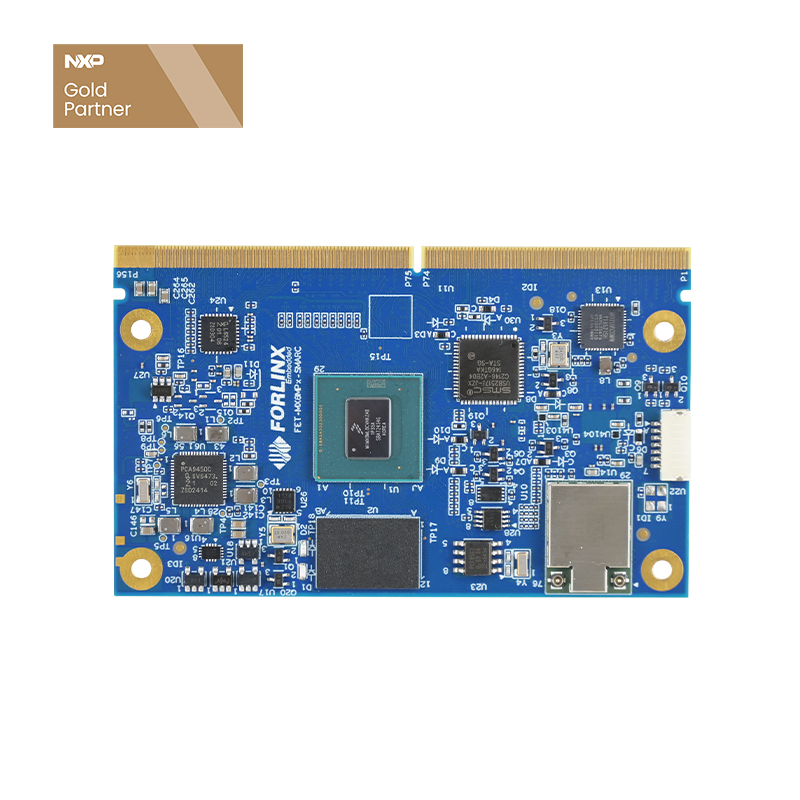

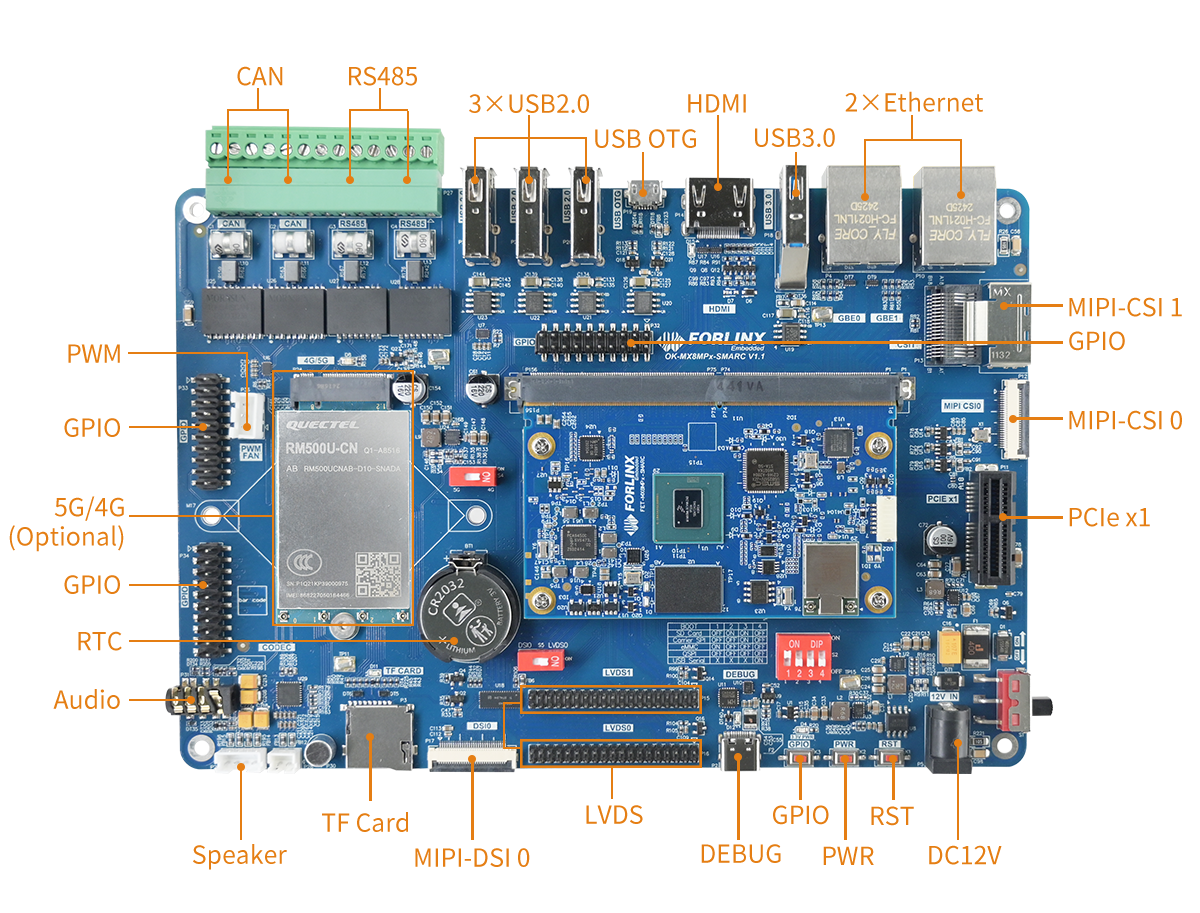

FET-MX8MPQ-SMARC SoM
| FET-MX8MPQ-SMARC | OK-MX8MPQ-SMARC |
|---|---|
|
|
SoM Parameter
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| CPU | NXP i.MX8MPQ | NPU | 2.3 TOPS |
| Architecture | 4 × Cortex-A53 + Cortex-M7 | Clock | 1.6GHz + 800MHz |
| RAM | 2GB / 4GB LPDDR4 | ROM | 16GB / 32GB eMMC |
| OS | Linux 6.1 | Working Voltage | 5V |
| Operating Temp. | -40℃ ~ +85℃ | Mechanical Size | 50mm × 80mm |
| Connection | SMARC 2.1 | PCIe | 1 x, PCIe Gen3 |
| Ethernet | 2 x Gigabit (1x TSN) | HDMI | 1 x, 4K@30 |
| LVDS | 2 x, up to 1920×1080p60 | MIPI-DSI | 1 x |
| MIPI CSI | ≤ 2 | USB 3.0 | ≤ 2 |
| USB 2.0 | ≤ 5 | CAN-FD | ≤ 2 |
| UART | 4 x, up to 4 Mbps | SDIO | 1 x (SDIO 3.0) |
| I2C (IIC) | ≤ 5 | I2S (IIS) | ≤ 2 |
| SPI | ≤ 2 | PWM | ≤ 3 |
| VPU | H.264/H.265/VP9/VP8 decoding 1080p@60fps; H.264/H.265 encoding 1080p@60fps | ||
Application Areas
- 5G Gateway
- High Definition Video Processing
- Industrial Internet
- Smart Home
- Medical Equipment
- Smart Transportation

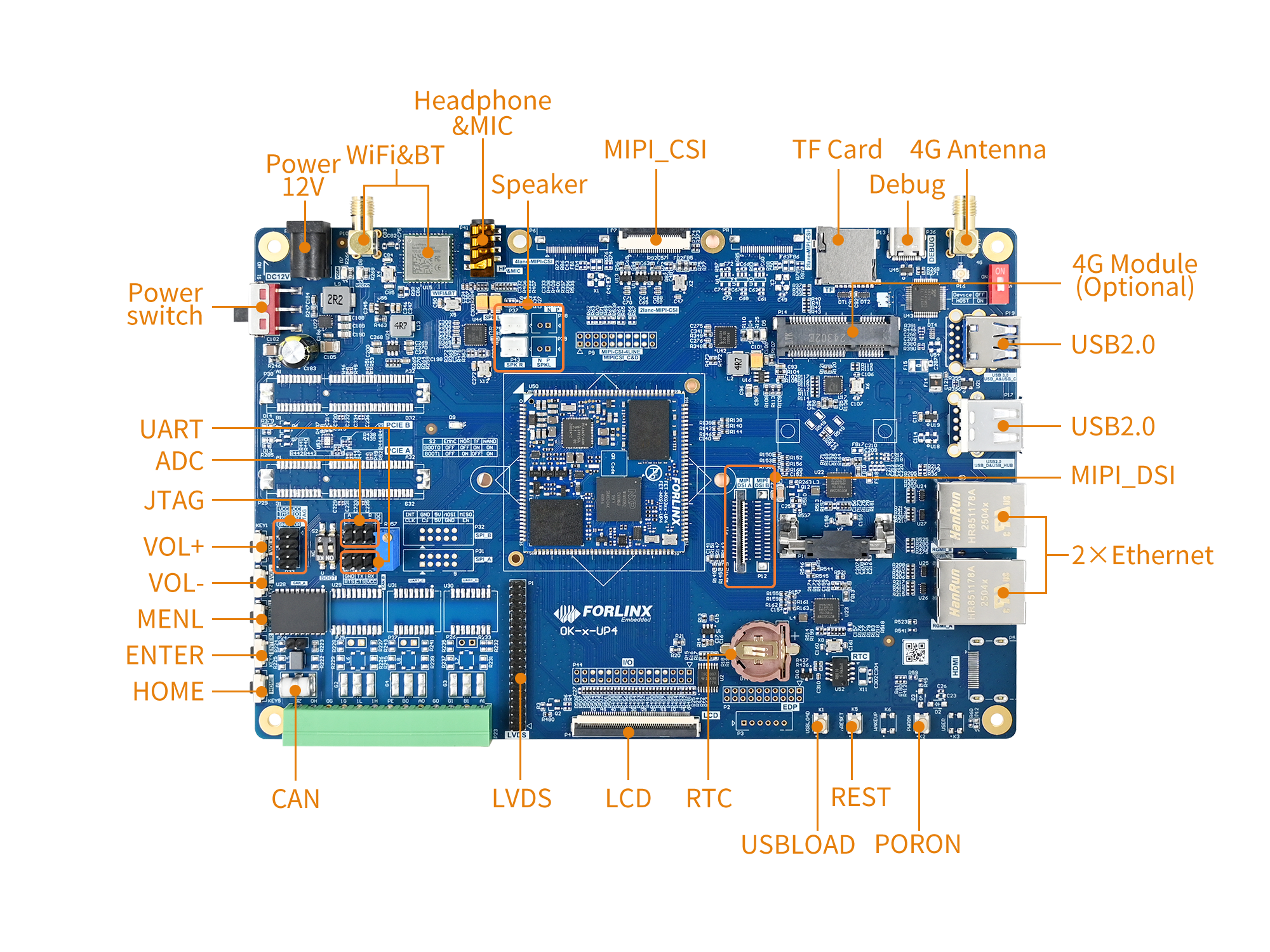

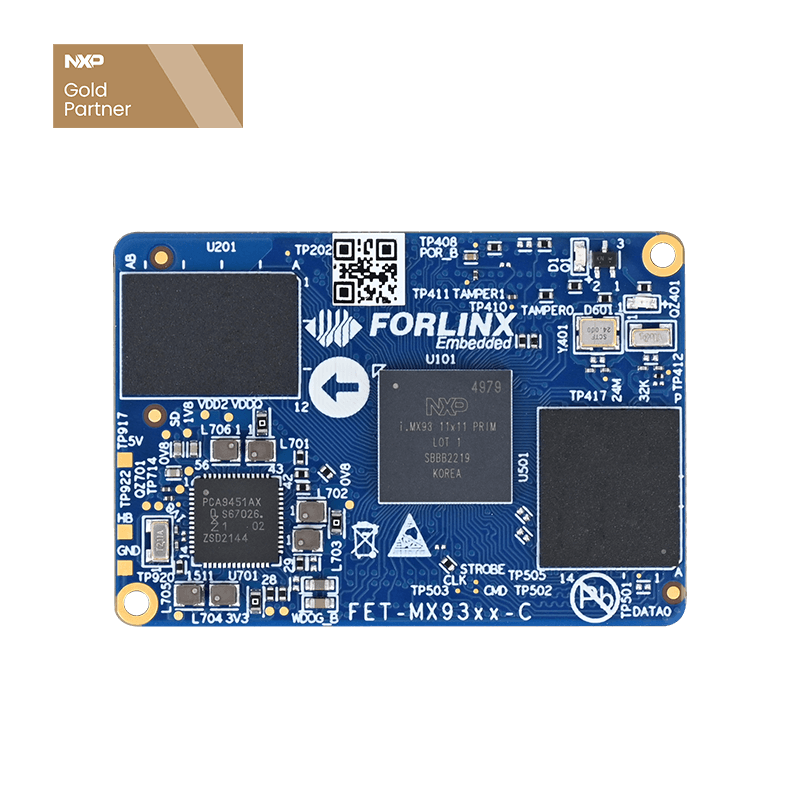

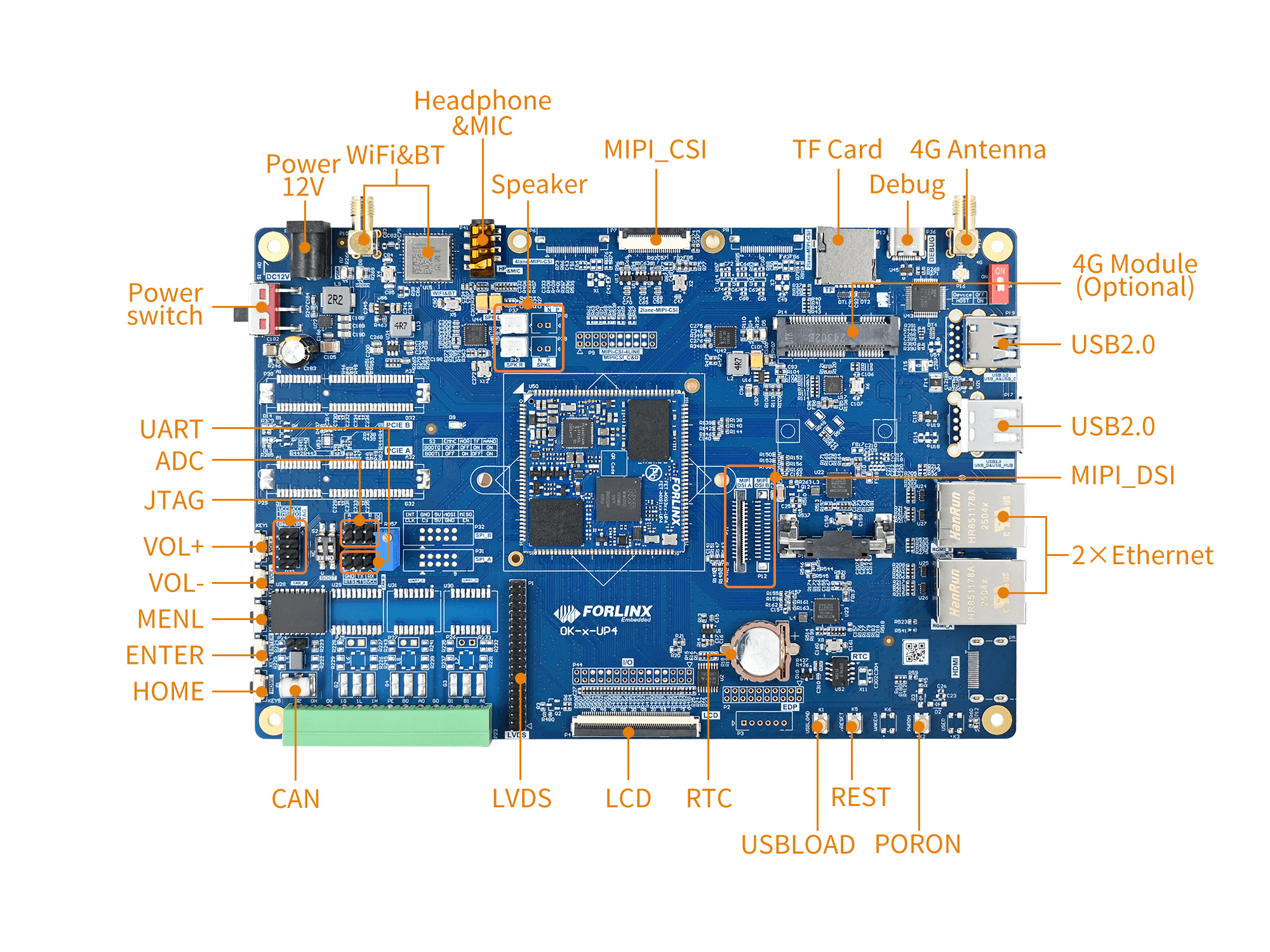

FET-MX9352-C SoM
| FET-MX9352-C | OK-MX9352-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX 9352 | NPU | 0.5 TOPS |
| Architecture | 2x Cortex-A55 + Cortex-M33 | UART | Up to 8x |
| Frequency | 1.7 GHz | CAN-FD | Up to 2x |
| RAM | 1GB LPDDR4 | USB | Up to 2x |
| ROM | 8GB eMMC | SDIO | Up to 1x |
| OS Support | Linux 5.15.52 | SPDIF | Native capture mode |
| Input Voltage | 5V | PDM | 24-bit (Linear phase response) |
| Operating Temp. | -40°C to +85°C | SPI | Up to 8x (Master/Slave mode) |
| Interconnect | 2x 100-pin B2B (0.4mm pitch) | I2C | Up to 8x (Standard/Fast/Ultra-fast) |
| Dimensions | 33mm x 48mm | ADC | Up to 4-ch (1x 12-bit, 1MS/s) |
| LCD Interface | 24-bit RGB (Up to 1366x768p60 / 1280x800p60) | JTAG | 1x (Cortex-M33 debug) |
| LVDS | 1x 4-lane (Up to 1366x768p60 / 1280x800p60) | ||
| MIPI DSI | 1x 4-lane (v1.2 / D-PHY v1.2), 200 MHz max pixel clock | ||
| Ethernet | 2x RGMII (10/100/1000 Mbps, 1x TSN support) |
Application Areas
- Edge Machine Learning Application Acceleration
- Automotive Electronics, Industrial Edge Gateway
- Smart Healthcare, Power Energy, Industrial Automation
- Security and Communication

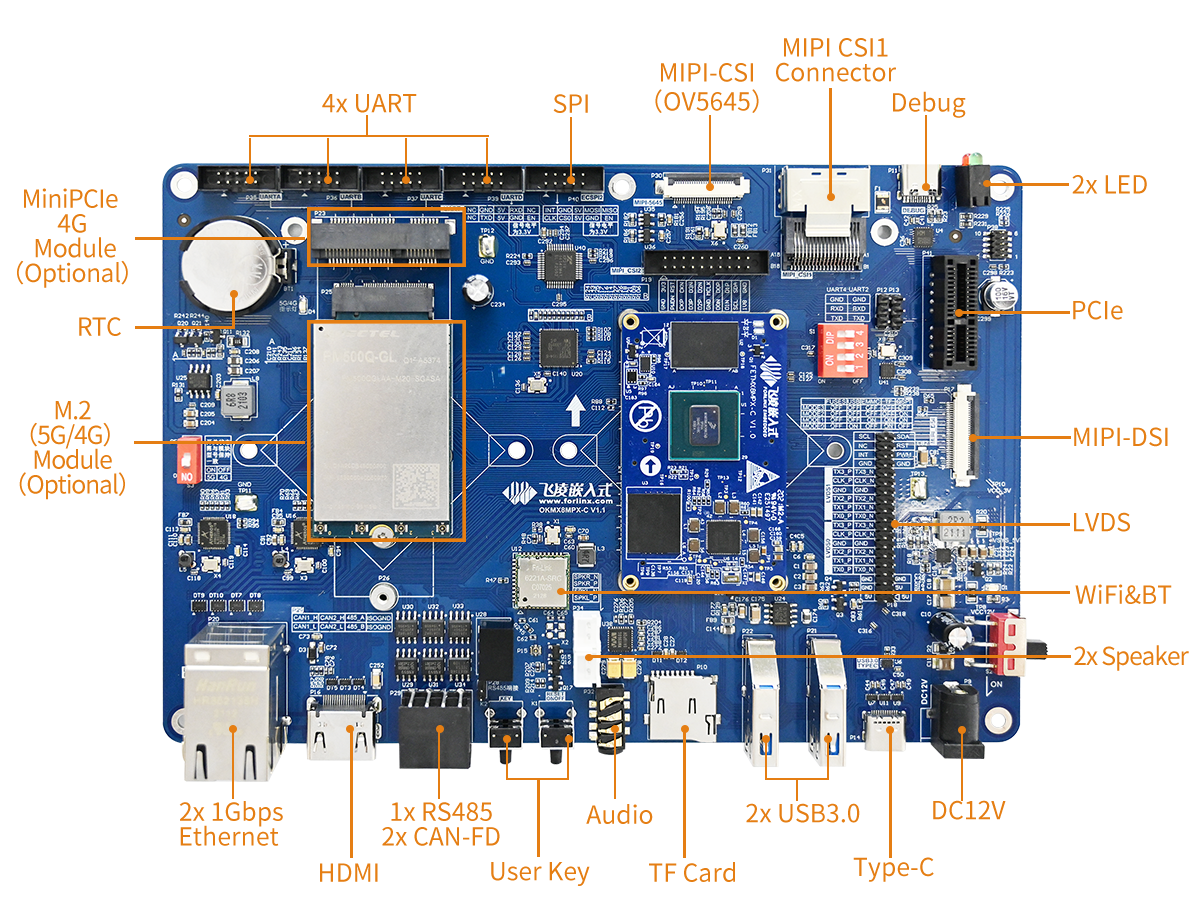

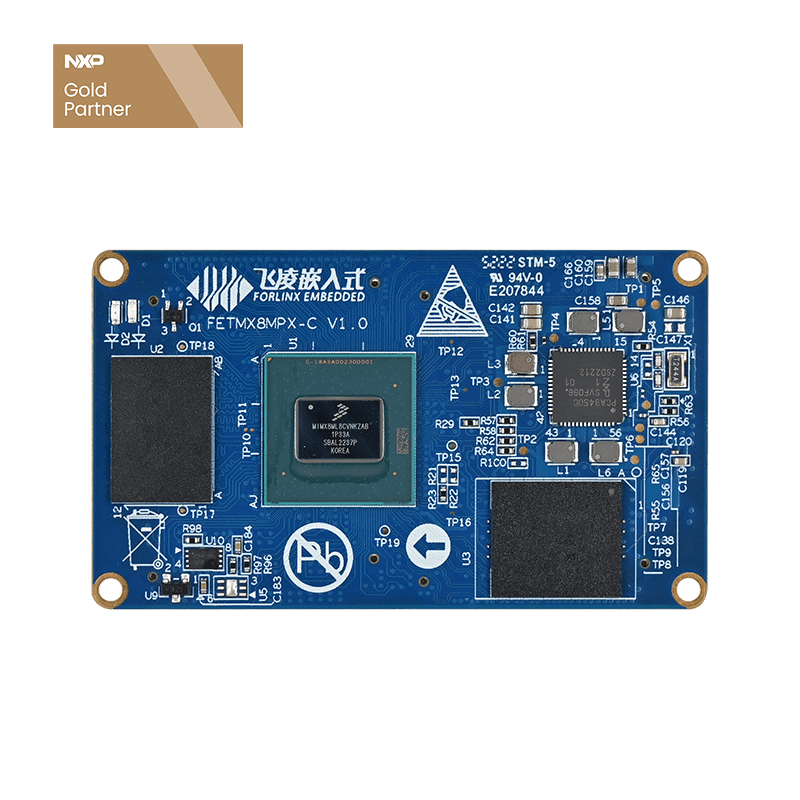

FET-MX8MP-C SoM
| FET-MX8MP-C | OK-MX8MP-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX8M Plus | Ethernet | 2x RGMII (1x TSN supported) |
| Architecture | 4x Cortex-A53 + Cortex-M7 | UART | Up to 4x |
| Frequency | 1.6 GHz | CAN-FD | Up to 2x |
| RAM | 1GB / 2GB / 4GB LPDDR4 | USB | 2x USB 3.0/2.0 Host |
| ROM | 8GB / 16GB eMMC | PCIe | 1x PCIe Gen3 |
| OS Support | Linux 5.4.70 / Android 11 | SDIO | 1x |
| Input Voltage | 5V | SPI | Up to 3x (Configurable Master/Slave) |
| Operating Temp. | -40°C to +85°C | I2C | Up to 5x (Up to 400Kbps) |
| Interconnect | 4x 80-pin B2B connectors (0.5mm pitch) | PWM | Up to 4x |
| Dimensions | 36mm x 62mm | Camera | 2x MIPI-CSI (4-lane each) |
| NPU | 2.3 TOPS | ISP | 375 Mpixel/s HDR |
| GPU | OpenGL ES 3.1/3.0, Vulkan, OpenCL | Audio | Up to 6x SAI (I2S, AC97, TDM support) |
| Display |
HDMI 2.0a (3840x2160@30Hz), LVDS (1920x1200@60Hz), MIPI-DSI (2560x1440); Triple-display support: 2x 1080p60 + 1x 4kp30 (via HDMI) |
||
| Video Codec |
Decode: 1080p60 HEVC/H.265, VP9, AVC/H.264 Encode: 1080p60 AVC/H.264, HEVC/H.265 |
||
Application Areas
- Machine Learning and Vision
- Advanced Multimedia Processing
- High Reliability Industrial Automation
- Smart City, Industrial Internet, Smart Healthcare, Smart Transportation

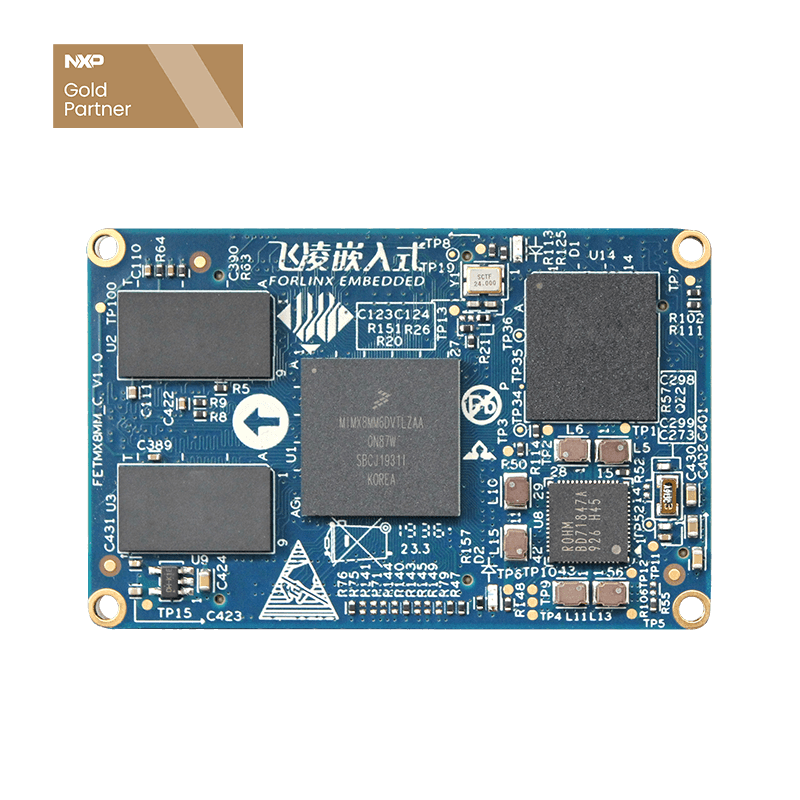

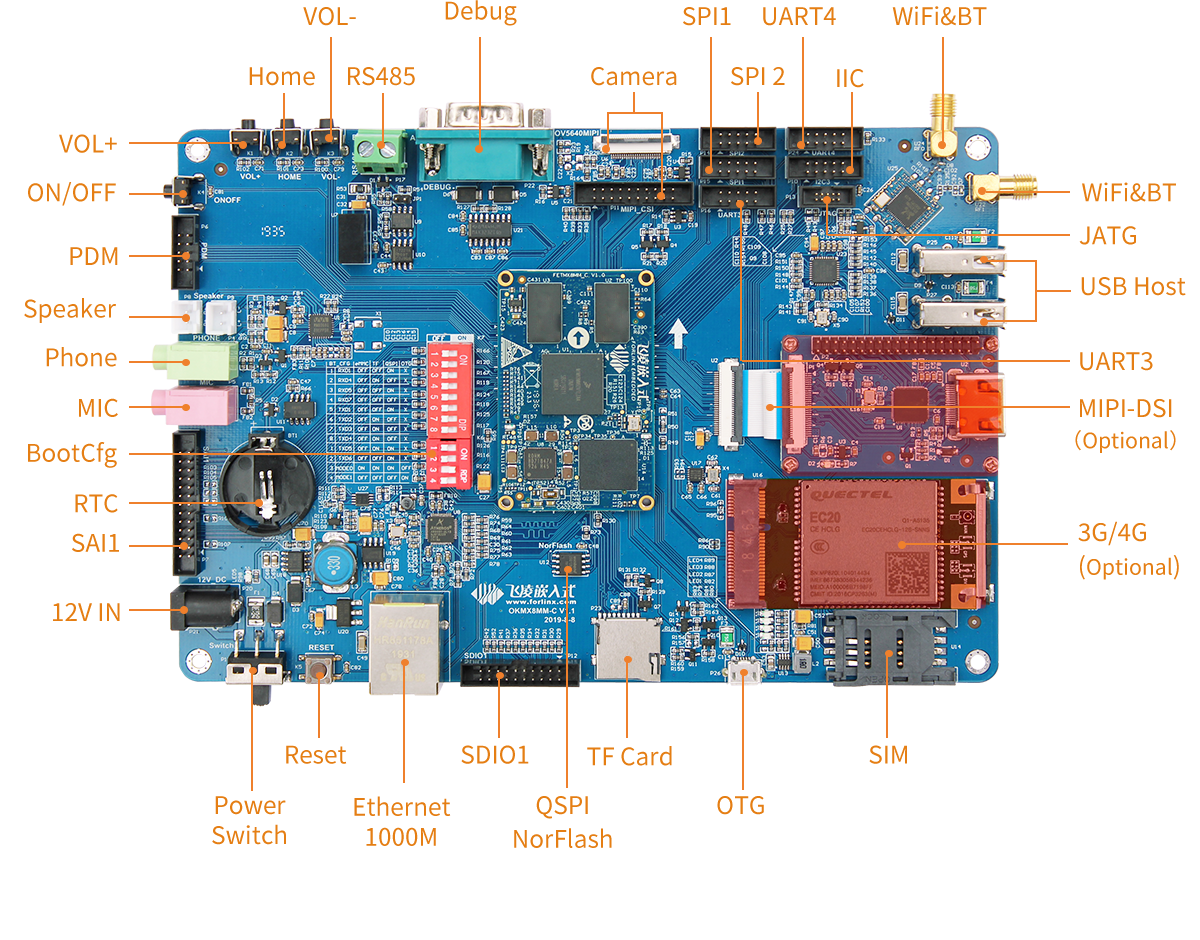

FET-MX8MM-C SoM
| FETMX8MM-C | OKMX8MM-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX8M Mini | Display | 1 x 4-wire MIPI-DSI |
| Architecture | 4×Cortex-A53 + Cortex-M4 | SAI | ≤ 5 |
| Clock | ≤1.8GHz | UART | ≤ 4 |
| RAM | 2GB DDR4 | IIC | ≤ 4 |
| ROM | 8GB eMMC | eCSPI | ≤ 3 |
| OS | Linux 4.14.78 / Android 9.0 | FlexSPI | 1 x |
| Working Voltage | 5V | Camera | 1 x 4-wire MIPI-CSI |
| Operating Temperature | 0℃~+70℃ / -40℃~+85℃ | SD/SDIO | ≤ 2 |
| Connection | Board to board connector (3 x 80Pin 0.5mm spacing ) | USB | 2 x USB 2.0, all configured as OTG |
| Mechanical Dimensions | 56mm x 36mm | PCIe | 1 x PCIe 2.0 |
| Power Management | BD71847AMWV-E2 | PWM | ≤ 4 |
| GPU | 3D: GC NanoUltra / 2D: GC320 | JTAG | 1 x |
| Video Coder |
1080p60 H.265, VP9, H.264, VP8,
Hardware decoding/hard encoding |
PDM | 1 x |
| Ethernet | 1 x 10/100/1000Mbps self-adaptive |
Application Areas
- HMI
- Streaming Media Playback
- Machine Learning
- Industrial Control and Automation

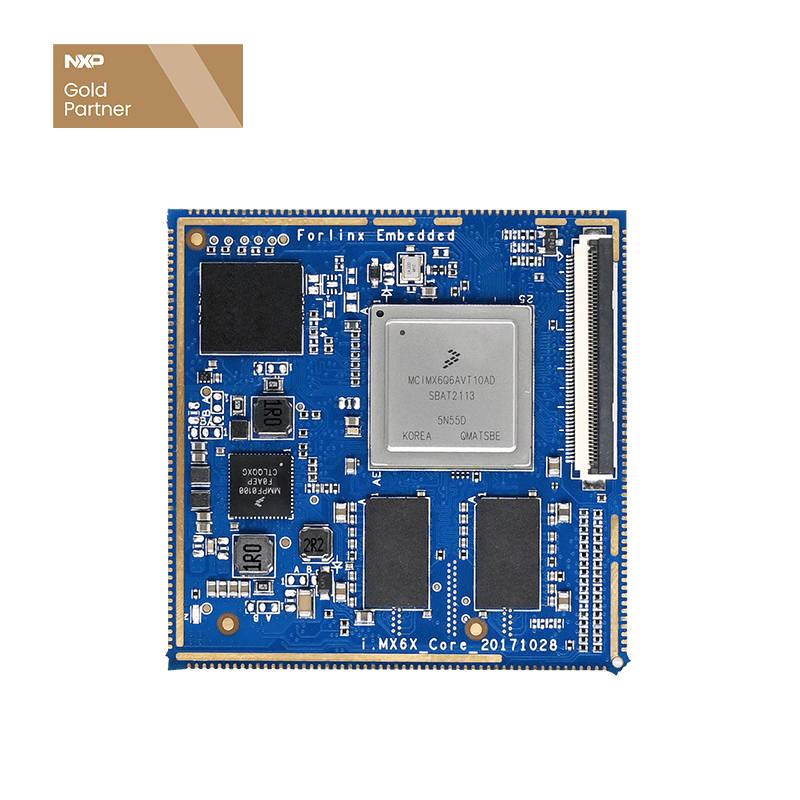

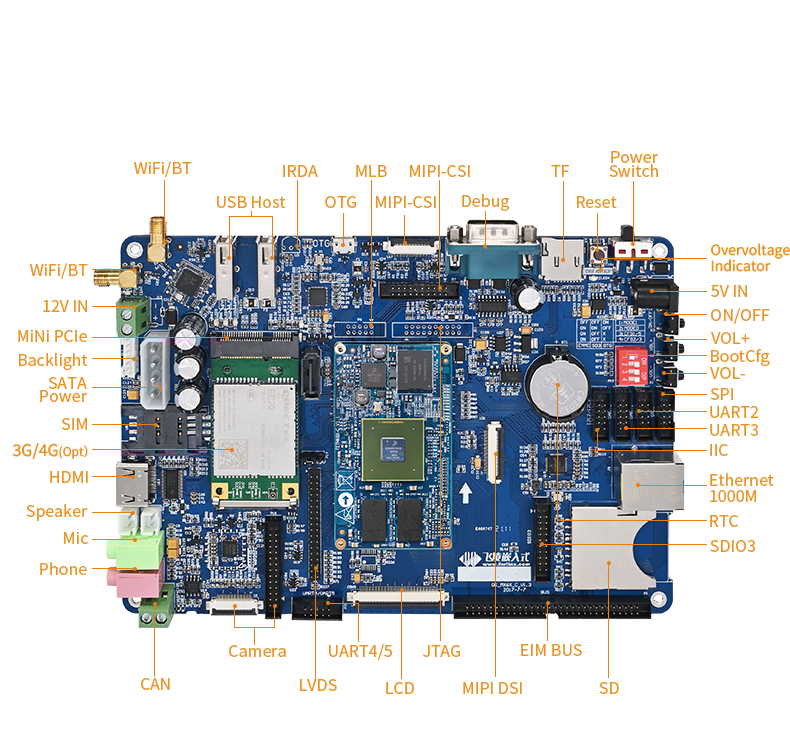

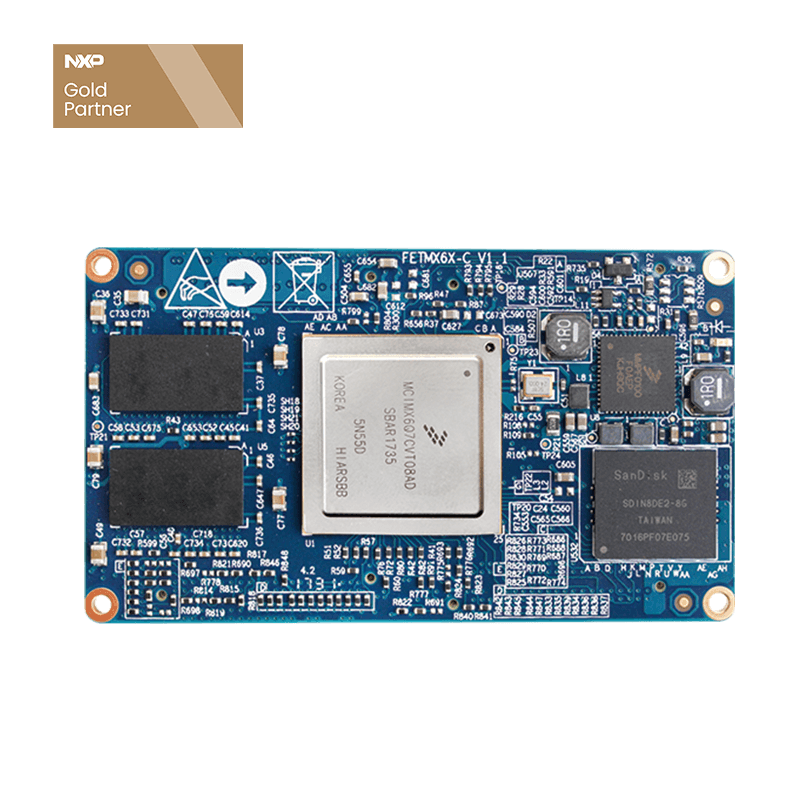

FETMX6Q-C / FETMX6DL-C SoM
| FETMX6Q-C / FETMX6DL-C | OKMX6Q-C / OKMX6DL-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6Quad / i.MX6Dual Lite | UART | ≤ 5 |
| Architecture | 4×Cortex-A9 / 2×Cortex-A9 | CAN | ≤ 2 |
| Clock | 1 GHz | IIC | ≤ 3 |
| RAM | 1GB DDR3（optional 2GB） | SPI | ≤ 5 |
| ROM | 8GB eMMC | EIM | 32-bit data bus, 27 bit address bus |
| OS | Android 4.4.2 / Android 6.0 / Linux3.0.35 / Linux4.1.15 | Camera | 1 x DVP, 1 x MIPI CSI |
| Working Voltage | 4.2V | SD/MMC/SDIO | ≤ 3 |
| Operating Temperature | -40℃~+85℃ / 0℃~+70℃ | USB | 1 x USB 2.0 Host, 1 x USB 2.0 OTG |
| Connection | Board to board connection （4 x 80Pin, 0.5mm spacing） | SATA | 1 x（only FETMX6Q-C） |
| Mechanical Dimensions | 40mm x 70mm | PCIe | 1 x |
| Battery Management | MMPF0100NPEP | PWM | ≤ 3 |
| GPU | Vivante GC355 / Vivante GC320 | MLB | 1 x Media Local Bus |
| Video Coder | Hardware encoding | SPDIF | 1 x |
| Display | 1 x RGB 24 bit, 2 x single 8-bit LVDS, 1x HDMI | JTAG | 1 x |
| IIS | ≤ 4 | EINT/GPIO | Support |
| Ethernet | 1 x 10/100/1000Mbps self-adaptive |
Application Areas
- Rich Multimedia Function, Powerful Encoding & Decoding;
- Industrial Control, Medical, Multimedia, Security, Automotive, Finance, etc.

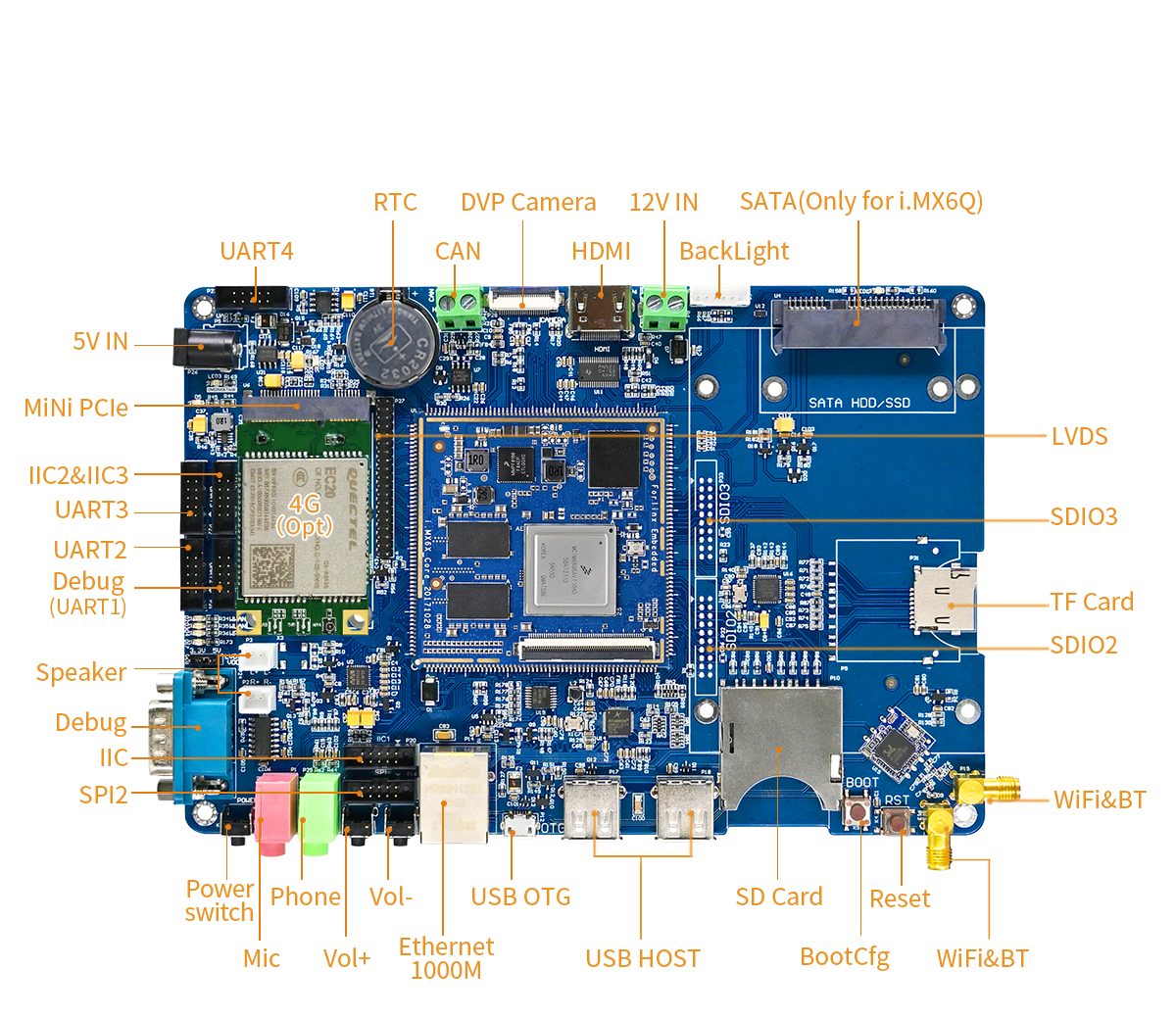

FETMX6Q-S / FETMX6DL-S SoM
| FETMX6Q-S / FETMX6DL-S | OKMX6Q-S / OKMX6DL-S |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6Quad / i.MX6Dual Lite | Display | 1 x RGB 24 bit, 2 x 8 bit LVDS, 1 x HDMI |
| Architecture | 4 × Cortex-A9 / dual-core Cortex-A9 | IIS | 1 x |
| Clock | 1 GHz | Ethernet | 1 x 10/100/1000Mbps self-adaptive |
| RAM | 1GB DDR3（optional 2GB） | UART | ≤ 4 |
| ROM | 8GB eMMC | CAN | ≤ 2 |
| OS | Android4.4 / Android6.0 / Linux3.0.35 / Linux4.1.15 | IIC | ≤ 3 |
| Working Voltage | 4.2V | SPI | ≤ 2 |
| Operating Temperature | -40℃~+85℃ / 0℃~+70℃ | Camera | 1 x DVP |
| Connection | Stamp-hole（220Pin, 1mm spacing） | SD/MMC/SDIO | ≤ 2 |
| Mechanical dimensions | 60mm x 60mm | USB | 1 x USB 2.0 Host, 1 x USB 2.0 OTG |
| Battery Management | MMPF0100NPEP | SATA | 1 x（Only FETMX6Q-S） |
| GPU | Vivante GC355 / Vivante GC320 | PCIe | 1 x |
| Video Coder | Hardware Encoding | EINT/GPIO | Support |
Application Areas
- Rich Multimedia Functions, Powerful Encoding and Decoding;
- Industrial Control, Medical, Multimedia, Security, Automotive, Finance, etc.

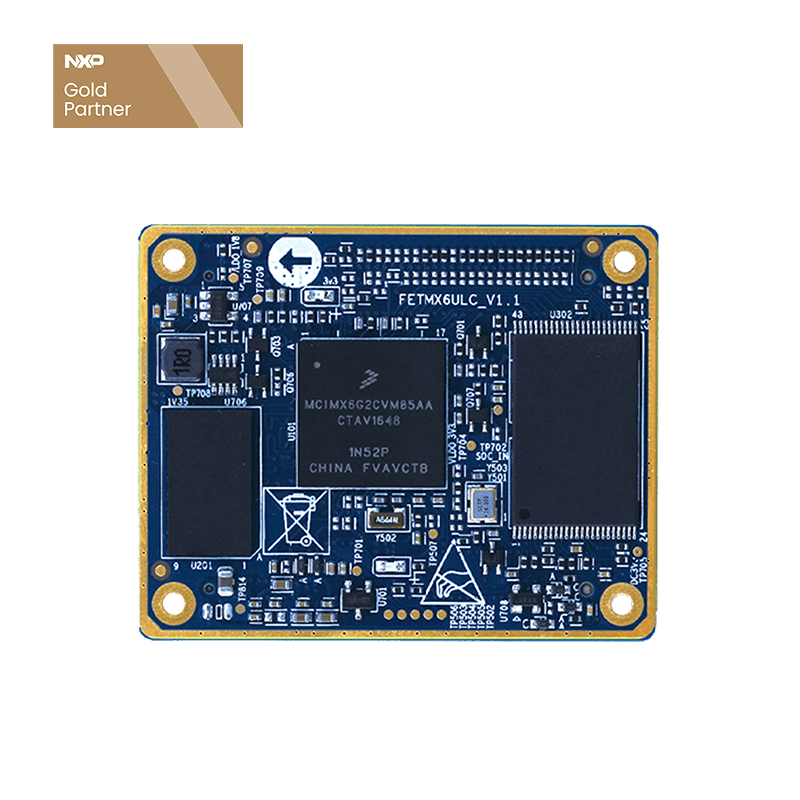

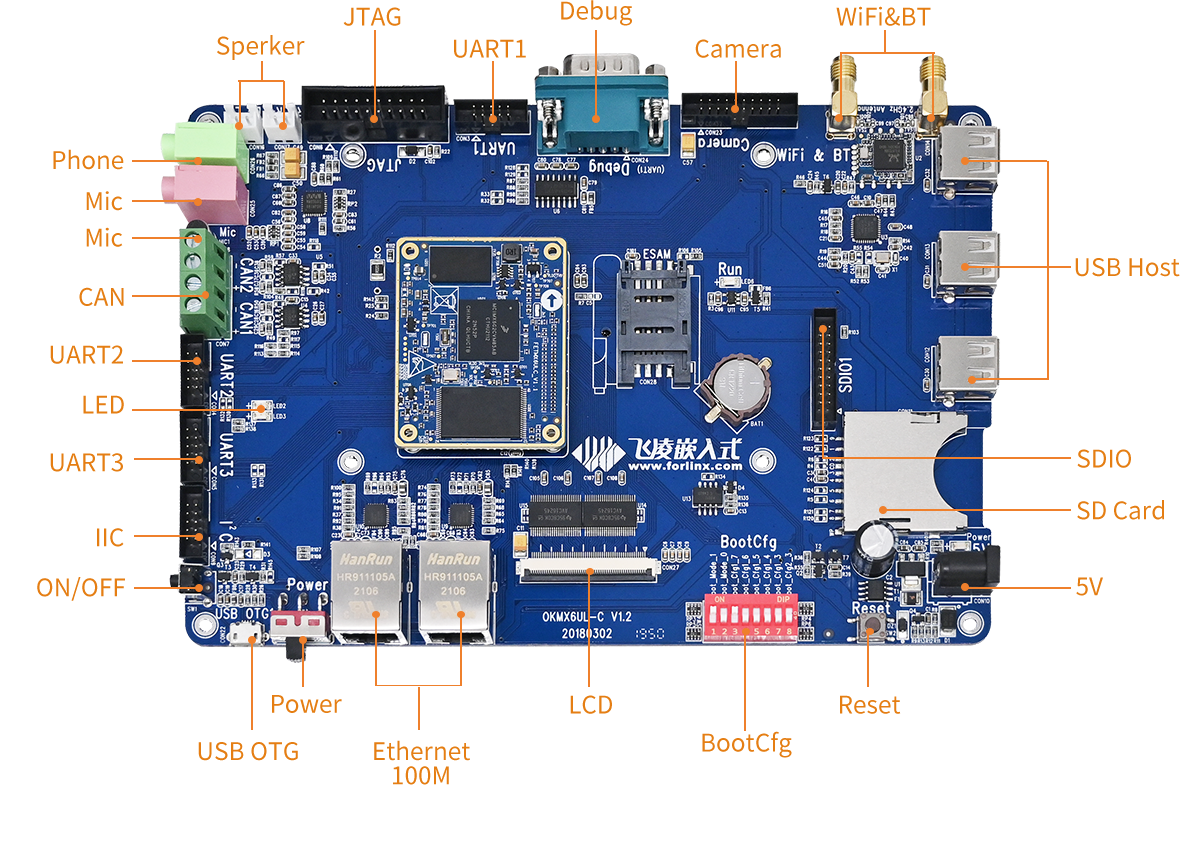

FETMX6UL-C SoM
| FETMX6UL-C | OKMX6UL-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6UltraLite | CAN | ≤ 2 |
| Architecture | Cortex-A7 | IIC | ≤ 4 |
| Clock | 528 MHz | SPI | ≤ 4 |
| RAM | 256MB / 512MB | EIM | 16-bit data bus, 16 bit address bus |
| ROM | 256MB NandFlash /1GB /8GB eMMC | Camera | 1 x DVP |
| OS | Linux3.14.38 / Linux4.1.15 | SD/MMC/SDIO | ≤ 2 |
| Operating Temperature | -40℃~+85℃ / 0℃~+70℃ | USB | 2 x USB 2.0 OTG |
| Working Voltage | 5V | PWM | 8 x |
| Connection | Board to board connector（2 x 80Pin 0.8mm spacing） | SPDIF | 1 x |
| Mechanical dimensions | 40mm x 50mm | JTAG | 1 x |
| Video Coder | Software encoding | EINT/GPIO | Support |
| Display | 1 x RGB 24 bit | Keypad Port | 1 x, supporting 8 × 8 matrix keyboard |
| IIS | ≤ 3 | ADC | ≤ 10 |
| Ethernet | 2 x 10/100Mbps self-adaptive | QSPI | 1 x |
| UART | 8 x | ISO7816-3 | ≤ 2 |
Application Areas
- SoM Version: Commercial Grade and Industrial Grade;
- Vehicle, Industrial Control, Teaching, Electric Power, Communication, Finance, Smart home, Display Control Equipment, etc.

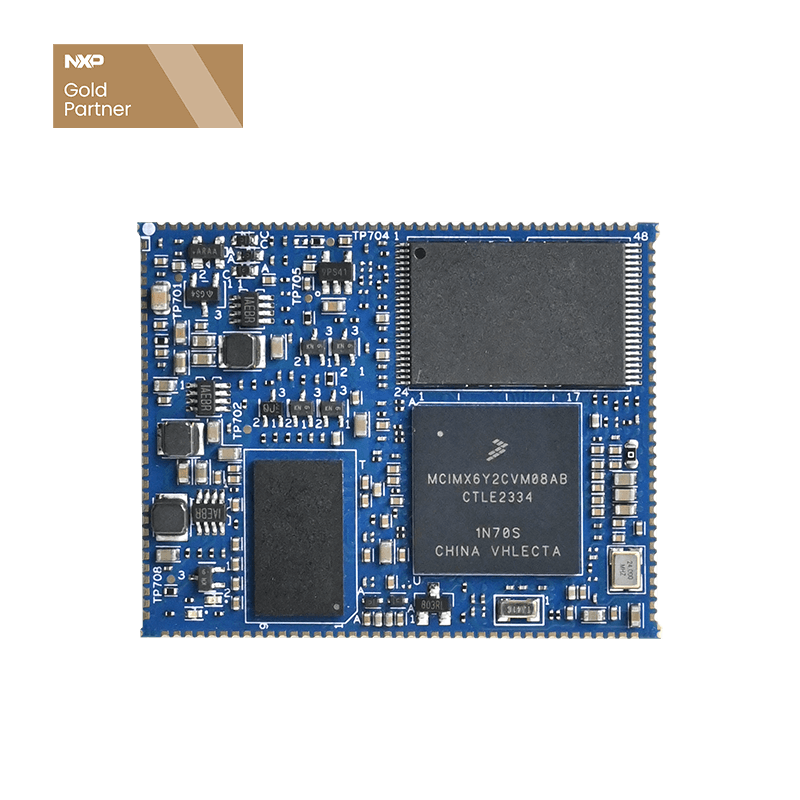

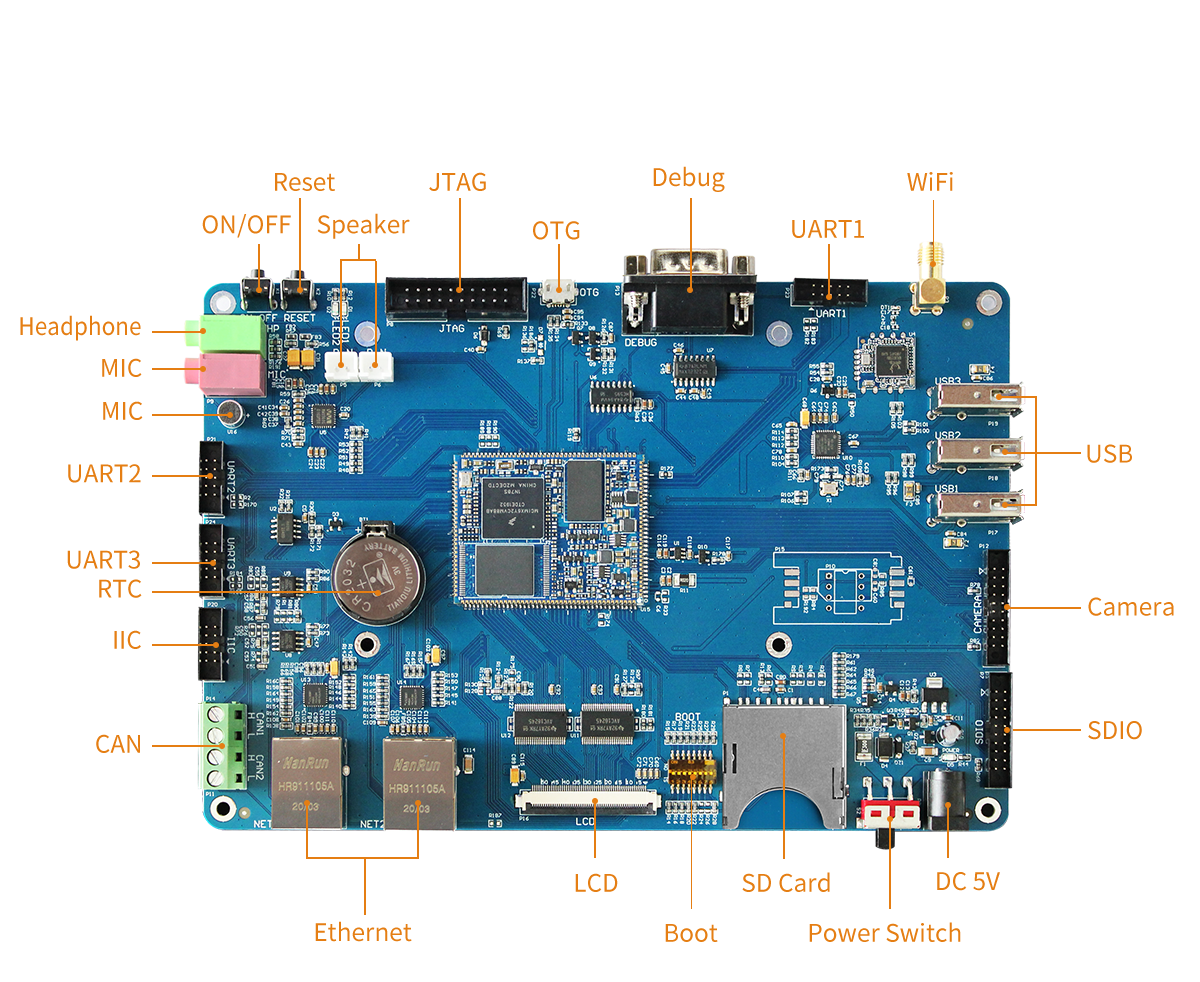

FETMX6ULL-S SoM
| FETMX6ULL-S | OKMX6ULL-S |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6ULL | UART | ≤8, each supports up to 5.0 Mbps |
| Architecture | Cortex-A7 | eCSPI | ≤ 4, supporting master/slave mode |
| Clock | 800 MHz | I2C | ≤4 |
| RAM | 256MB / 512MB | Camera | 1 x, 8-bit DVP |
| ROM | 256MB NandFlash / 8GB eMMC | SD/MMC/SDIO | ≤2, supporting 1-bit or 4-bit transfer modes |
| OS | Linux4.1.15 | USB | 2 x, USB 2.0 |
| Operating Temperature | -40℃~+85℃ / -25℃~+85℃ | CAN | ≤2, CAN 2.0B |
| Working Voltage | 5V | Ethernet | ≤2, 10/100Mbps self-adaptive |
| Connection | Stamp-hole | PWM | ≤8, 16 bit |
| Mechanical Dimensions | 44mm x 35mm | KeyPad Port | Supports 8 × 8 matrix keyboard |
| LCD | Supports up to RGB888, 1366×768@60Hz | ADC | ≤10, 12-bit analog-to-digital converter (ADC) |
| SAI | ≤3, supporting up to 3 x I2S Audio | SPDIF | 1 x |
Application Areas
- IoT, Power, Medical Equipment, Environmental Monitoring, HMI, Smart Agriculture, Charging Piles

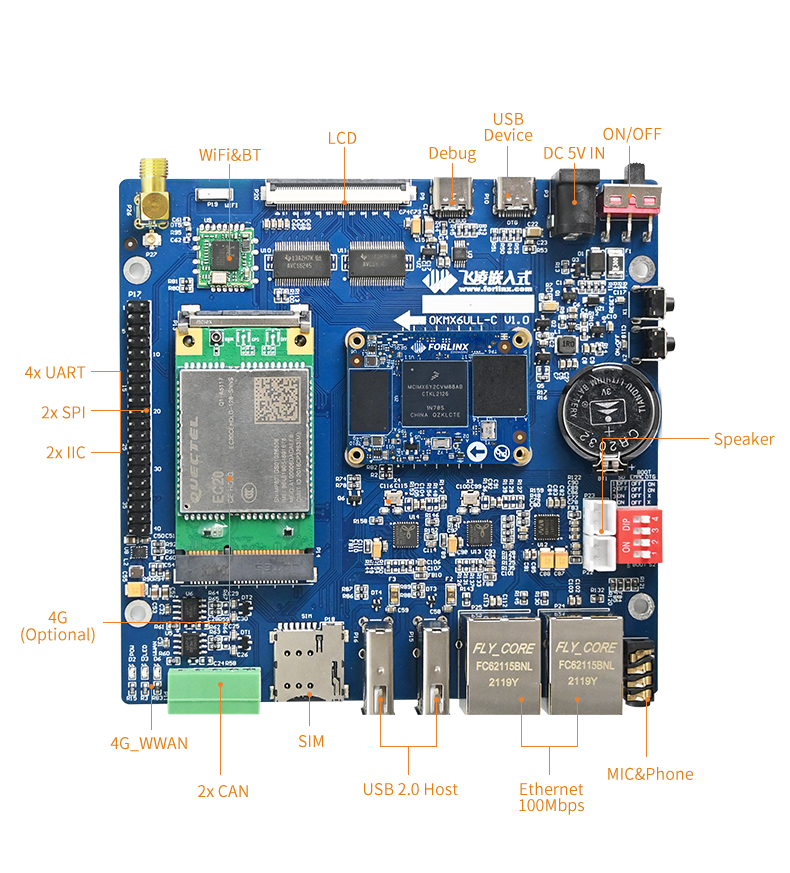

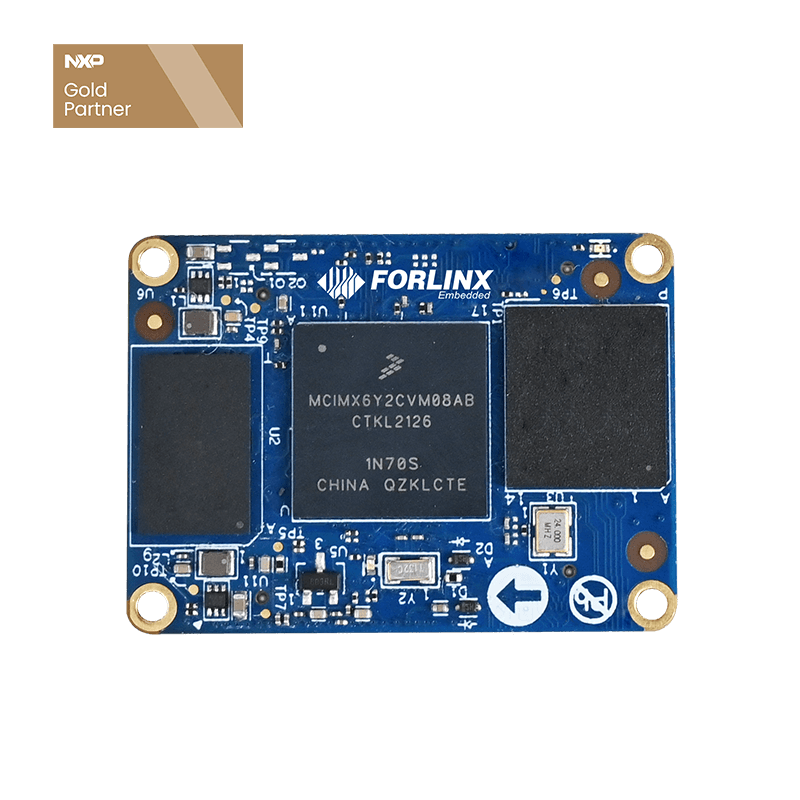

FETMX6ULL-C SoM
| FETMX6ULL-C | OKMX6ULL-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6ULL | I2C | ≤ 4 |
| Architecture | Cortex-A7 | SPI | ≤ 4 |
| Clock | 800 MHz | CAN | ≤ 2 |
| RAM | 512MB DDR3 | USB | ≤ 2 |
| ROM | 8GB eMMC | SD/MMC/SDIO | ≤ 2 |
| OS | Linux4.1.15 | Ethernet | 2 x 10/100 Mbps |
| Operating Temperature | -40℃~+85℃ | UART/IrDA | 8 x |
| Working Voltage | 3.3V | EINT/GPIO | Support |
| Connection | Board to board connector （2×80pin 0.5mm spacing） | Video Coder | Software encoding |
| Mechanical Dimensions | 29mm x 40mm | Camera | 1 x 8-bit parallel interface (DVP) |
| LCD | RGB 24 bit, supporting up to WXGA 1366×768 | PWM | 8 x |
| Audio | ≤ 3 | ADC | ≤ 10 |
| eSAI | 1 x | SPDIF | 1 x |
| Keypad Port | 8×8 |
Application Areas
- Electric Power, Medical Care, Industrial Control and Automation, Smart Home, Consumer Electronics, Handheld Devices, Gateways, HMI, etc.

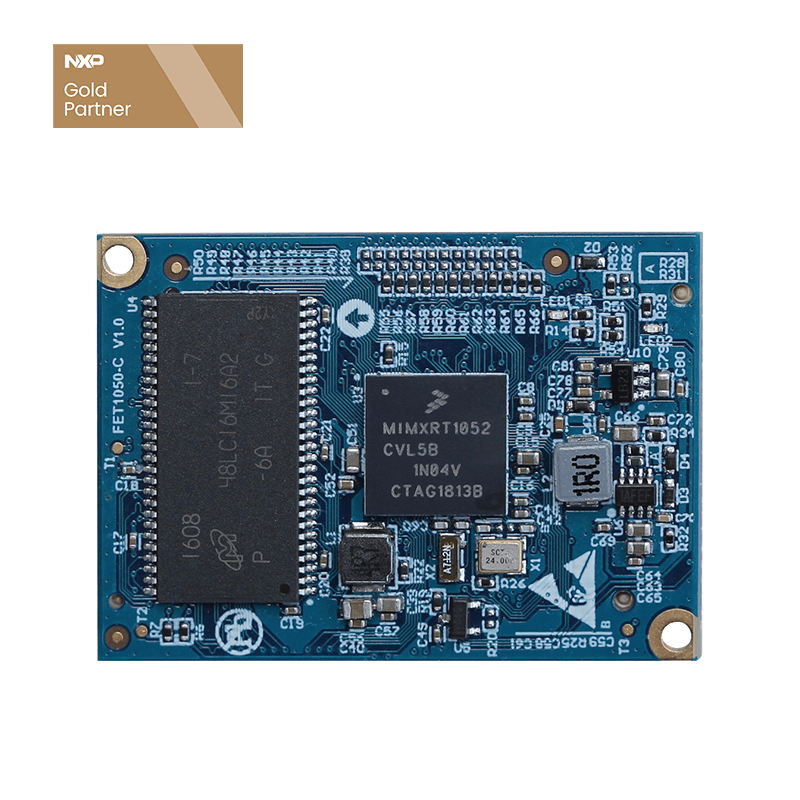

FET1052-C SoM
| FET1052-C | OK1052-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX RT1052 | UART | 8 x |
| Architecture | Cortex-M7 | CAN | ≤ 2 |
| Clock | 528 MHz | IIC | ≤ 4 |
| RAM | SRAM 512KB; SDRAM 16MB/32MB | SPI | ≤ 4 |
| ROM | QSPI Nor Flash 4MB/16MB | Camera | 1 x DVP |
| OS | uCLinux, FreeRTOS, RT-Thread, bare machine | SD/SDIO | ≤ 2 |
| Working Voltage | 5V | USB | ≤ 2 |
| Operating Temperature | -40℃~+85℃ | PWM | ≤ 32 |
| Connection | Board to board connector（2 x 80pin 0.8mm spacing ） | SPDIF | 1 x |
| Mechanical Dimensions | 31mm x 43mm | SWD | 1 x |
| Display | 1 x RGB | Keypad port | 1 x, 8 × 8 matrix keyboard |
| SAI | ≤ 3 | ADC | 20 x |
| Ethernet | 1 x 10/100Mbps self-adaptive | QSPI | ≤ 2 |
Application Areas
- The SoM integrates high performance, low power consumption and ease of use;
- It is widely used in PLC, motor control, indoor air conditioning systems, metering data concentrators, etc.

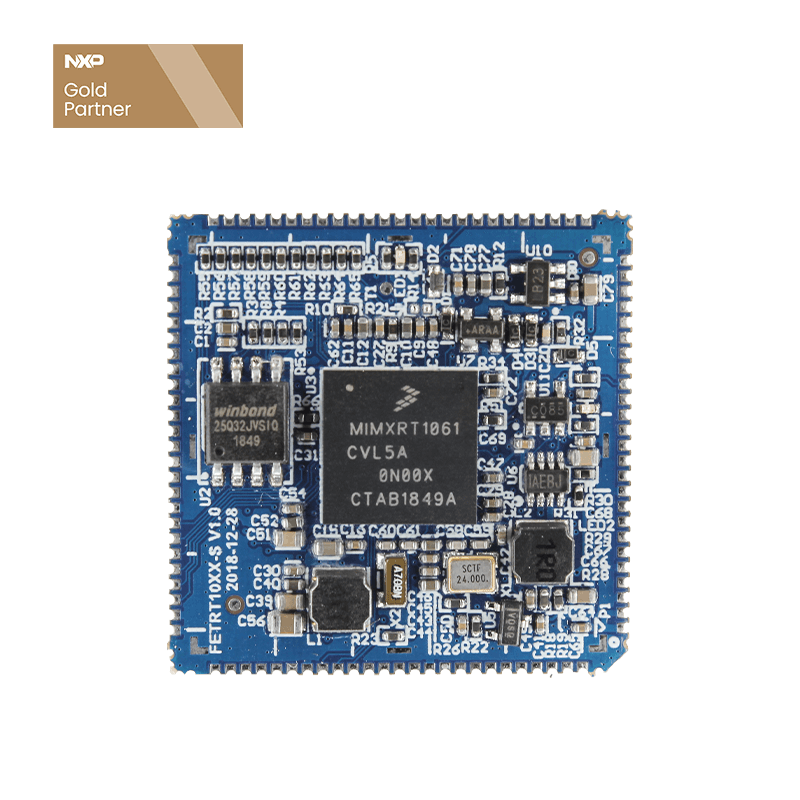

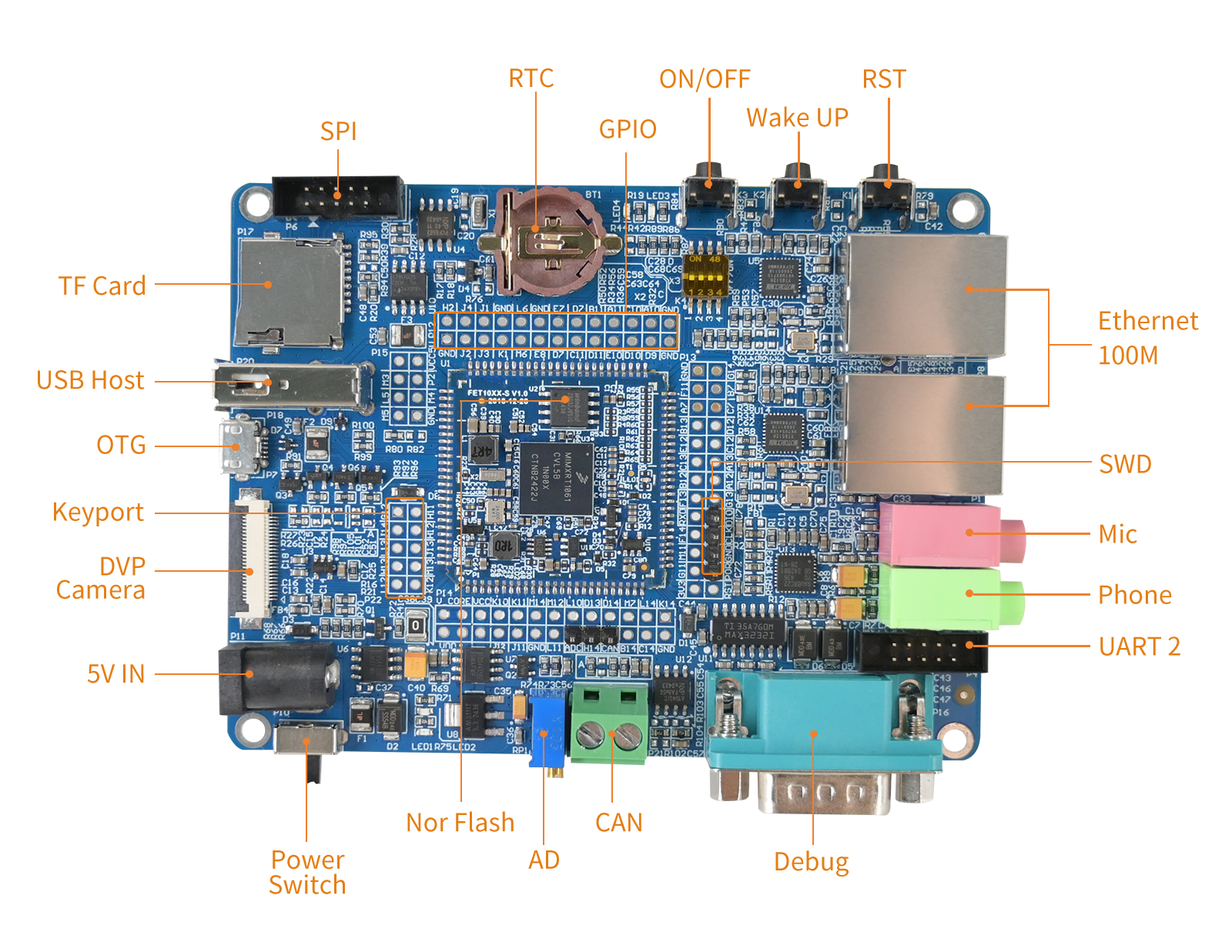

FET1061-S SoM
| FET1061-S | OK1061-S |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX RT1061 | CAN | ≤ 2 |
| Architecture | Cortex-M7 | IIC | ≤ 4 |
| Clock | 528 MHz | SPI | ≤ 3 |
| RAM | 1MB On Chip SRAM | SD/SDIO | ≤ 2 |
| ROM | 4MB（Optional 16MB） | USB | ≤ 2 |
| OS | FreeRTOS, RT-Thread, bare machine | PWM | ≤ 26 |
| Working Voltage | 5V | SPDIF | 1 x |
| Operating Temperature | -40℃~+85℃ | SWD | 1 x |
| Connection | Stamp-hole（4 x 25pin, 1.0mm spacing） | Keypad port | 1 x , 8 × 8 matrix keyboard |
| Mechanical Dimensions | 30mm x 30mm | ADC | 20 x |
| SAI | ≤ 2 | QSPI | 1 x |
| Ethernet | 2 x, 10/100Mbps self-adaptive | CAN FD | 1 x |
| UART | 7 x | HS-GPIO | ≤ 32 |
Application Areas
- High Performance, High Scalability;
- Drones, Motion Control and Robotics, Intelligent Lighting, Commercial Solar Inverters, etc.

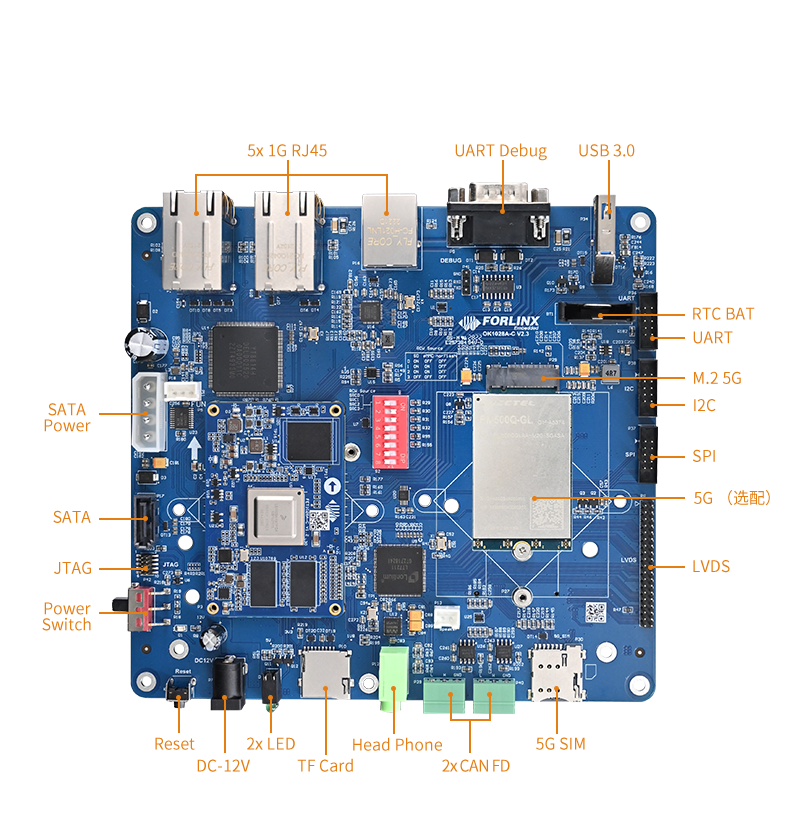

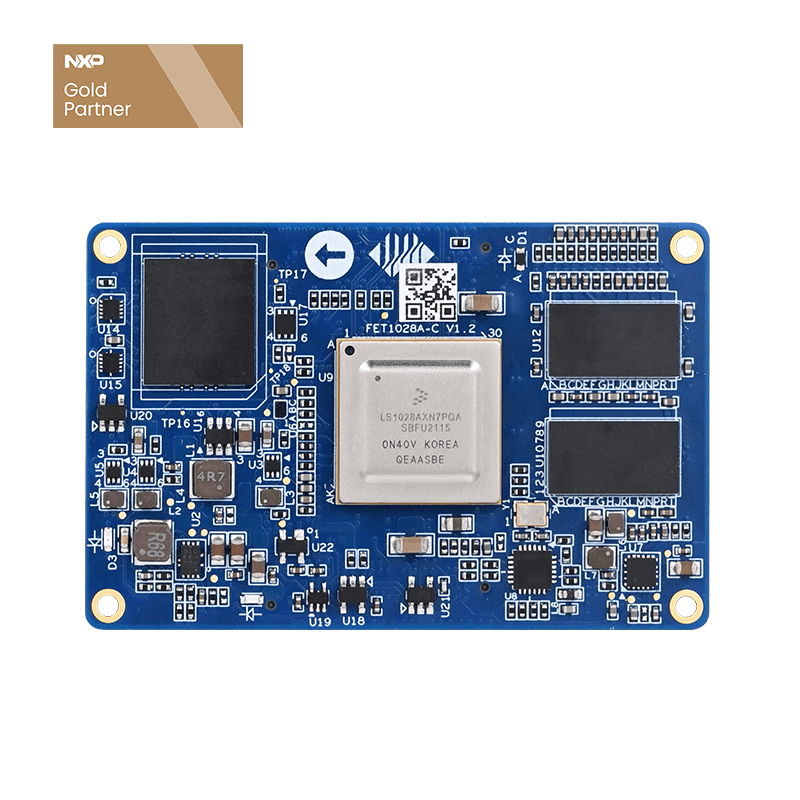

FET1028A-C SoM
| FET1028A-C | OK1028A-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP LS1028A | eSDHC | ≤1, supporting SD3.0 |
| Architecture | 2×Cortex-A72 | Ethernet | ≤6, the CPU has 6 x native MAC and supports TSN. |
| Clock | 1.5 GHz | PCIe3.0 | ≤ 2, the speed is up to 8GT/s |
| RAM | 2GB DDR4 | SATA3.0 | ≤1, the speed is up to 6Gbps |
| ROM | 8GB eMMC | USB3.0 | ≤2, up to 5Gbps. |
| OS | Ubuntu 20.04 | UART | ≤4, supporting 1 x DUART or 4 x UART |
| Power supply | DC 12V | CAN FD | ≤2 |
| Operating Temperature | -40℃~+85℃ | IIC | ≤6 |
| Connection | Board to board connector （2 x 80Pin, 0.5mm spacing ） | SPI | ≤2 |
| Mechanical Dimensions | 42mm x 65mm | IIS | ≤6 |
| Display Port | ≤1, supporting DP1.3 and eDP1.4, up to 4Kp60 | SerDes | 1 x 4Lane SerDes, can be configured multiple combinations |
Application Areas
- Industrial Routers TSN, SD-WAN, 5G CPE, Edge Computing Gateway IP-PBX.

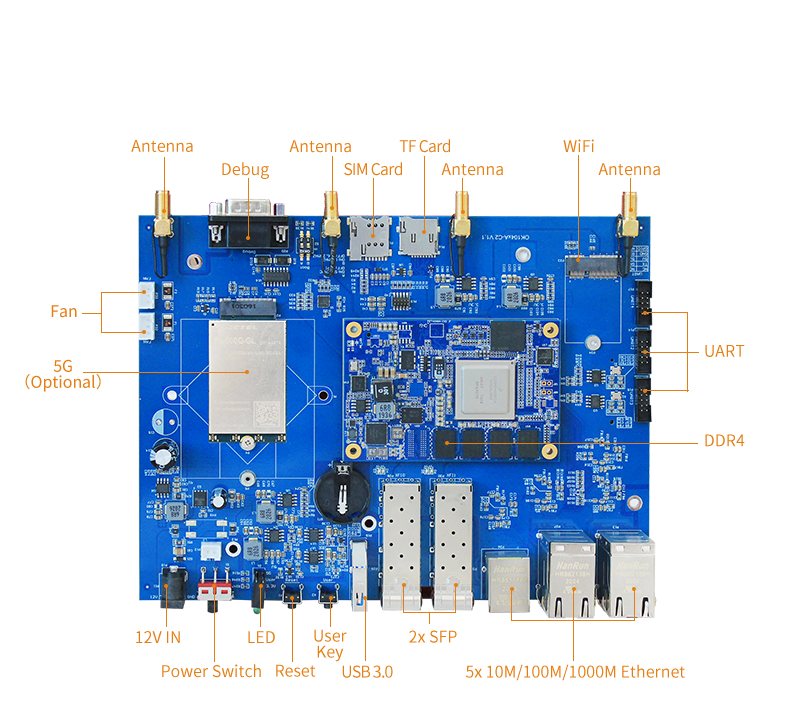

FET1046A-C SoM
| FET1046A-C | OK1046A-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|

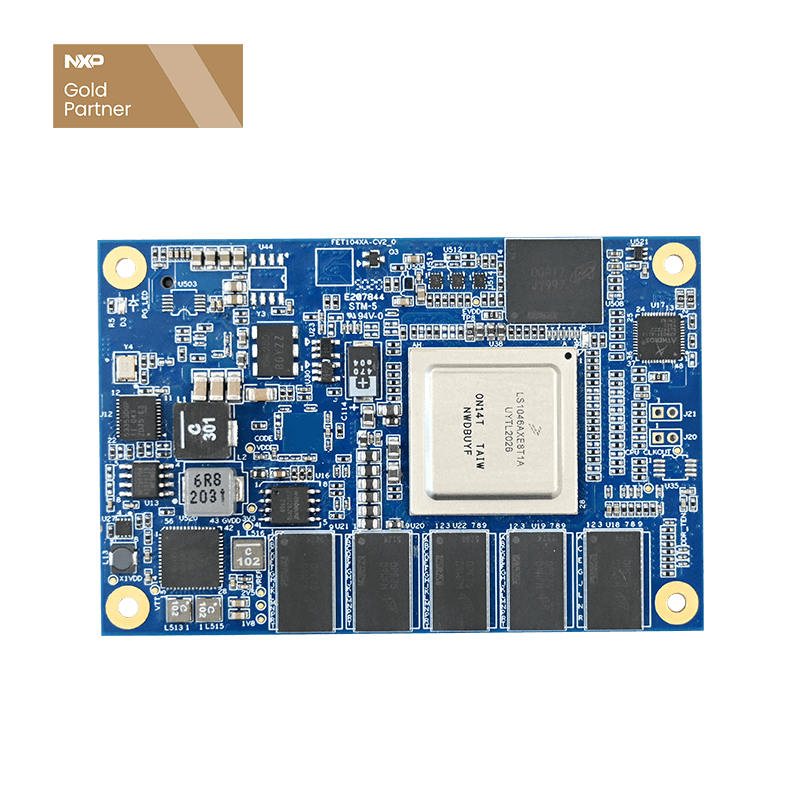

| CPU | NXP Layerscape LS1046A | Dimensions | 84mm x 55mm |
| Architecture | 4x Cortex-A72 | RAM | 2GB / 4GB DDR4 |
| Frequency | Up to 1.8 GHz | ROM | 8GB eMMC, 16MB QSPI, Nor Flash |
| OS Support | Ubuntu 18.04.1 / OpenWrt v18.06.0-rc2 | Input Voltage | 12V DC |
| Operating Temp. | -40°C to +75°C | Interconnect | COM Express (220-pin, 0.5mm pitch) |
| USB 3.0 | Up to 3x (5Gbps) | UART | Up to 4x (including 1x Debug port) |
| I2C | Up to 2x | eSDHC | 1x (SD 3.0 / eMMC 4.5 support; bootable) |
| JTAG | NXP CodeWarrior TAP support | ||
| Ethernet |
8x Native MACs. Configurable options: • 8x 1Gbps • 1x 10Gbps + 7x 1Gbps • 2x 10Gbps + 5x 1Gbps |
||
| PCIe 3.0 | Up to 3x (x1/x2/x4 configurations via SerDes); Max 8GT/s per lane | ||
| SerDes | 8x High-speed lanes: SATA 3.0 / SGMII / XFI / QSGMII / PCIe 3.0 | ||
| SATA 3.0 | 1x (Configured via SerDes), up to 6Gbps | ||
Application Areas
- Smart Light Poles, Industrial Safety, Information Security, Intelligent Transportation, Energy IoT, Smart Cities, Video Control, etc.

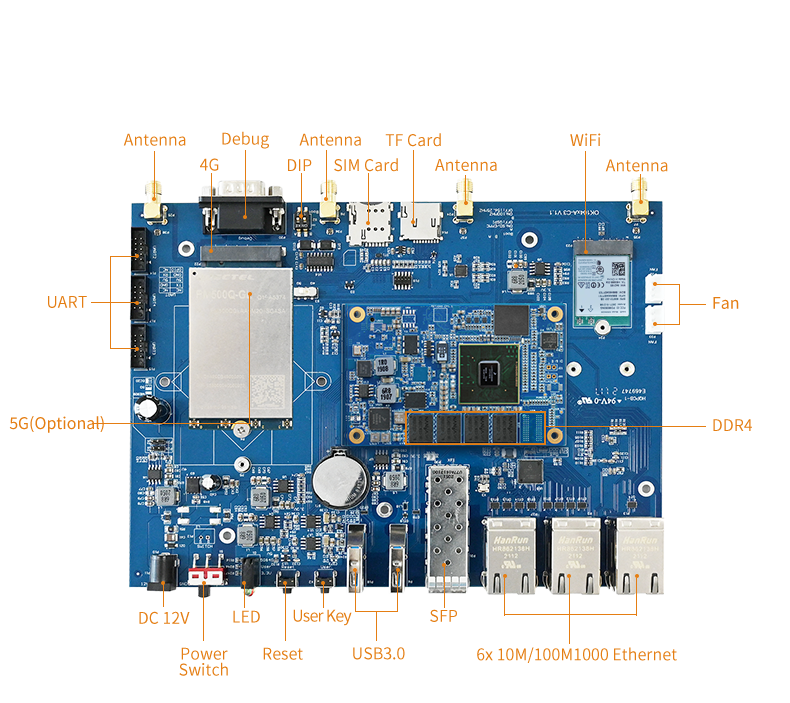

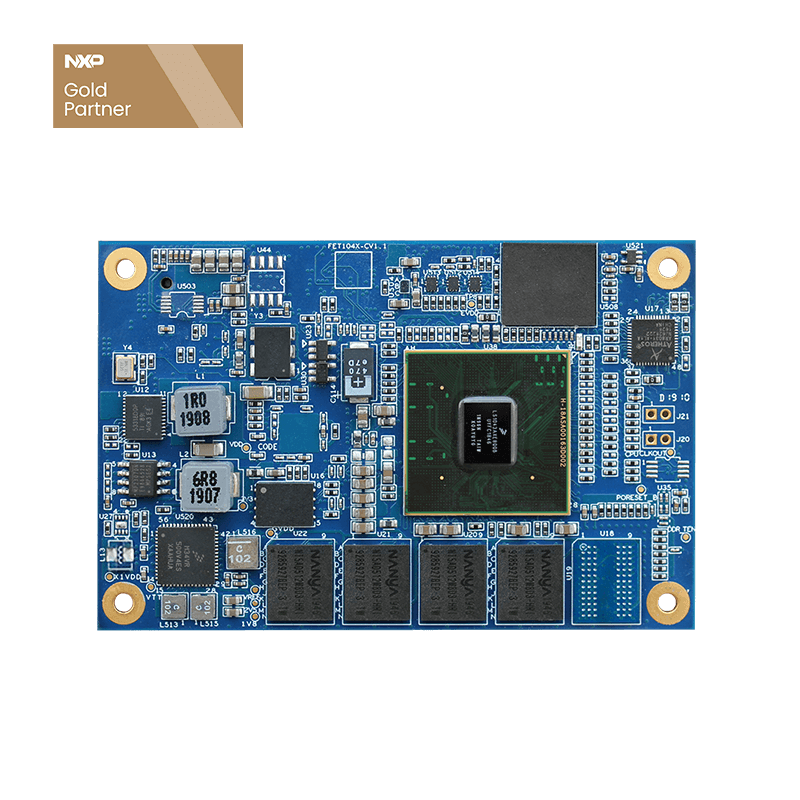

FET1043A-C SoM
| FET1043A-C | OK1043A-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP Layerscape LS1043A | Dimensions | 84mm x 55mm |
| Architecture | 4x Cortex-A53 | RAM | 2GB DDR4 |
| Frequency | Up to 1.6 GHz | ROM | 8GB eMMC, 16MB QSPI, Nor Flash |
| OS Support | Ubuntu 18.04.1 / OpenWrt v18.06.0-rc2 | Input Voltage | 12V DC |
| Operating Temp. | -40°C to +80°C | Interconnect | COMe (220-pin, 0.5mm pitch) |
| USB 3.0 | Up to 3x (5Gbps) | UART | Up to 4x (including 1x Debug port) |
| I2C | Up to 2x | eSDHC | 1x (SD 3.0 / eMMC 4.5; boot/flash support) |
| JTAG | NXP CodeWarrior TAP support | ||
| Ethernet | 7x Native MACs; Max configuration: 1x 10Gbps + 6x 1Gbps | ||
| PCIe 2.0 | Up to 3x (Configured via SerDes), up to 5Gbps | ||
| SerDes | 4x High-speed lanes: PCIe 2.0 / SATA 3.0 / SGMII / XFI / QSGMII | ||
| SATA 3.0 | 1x (Configured via SerDes), up to 6Gbps | ||
Application Areas
- Industrial Routers, Edge Computing Gateways, IP - PBX, Edge Computing, Energy IoT, Smart Cities, Industrial Automation

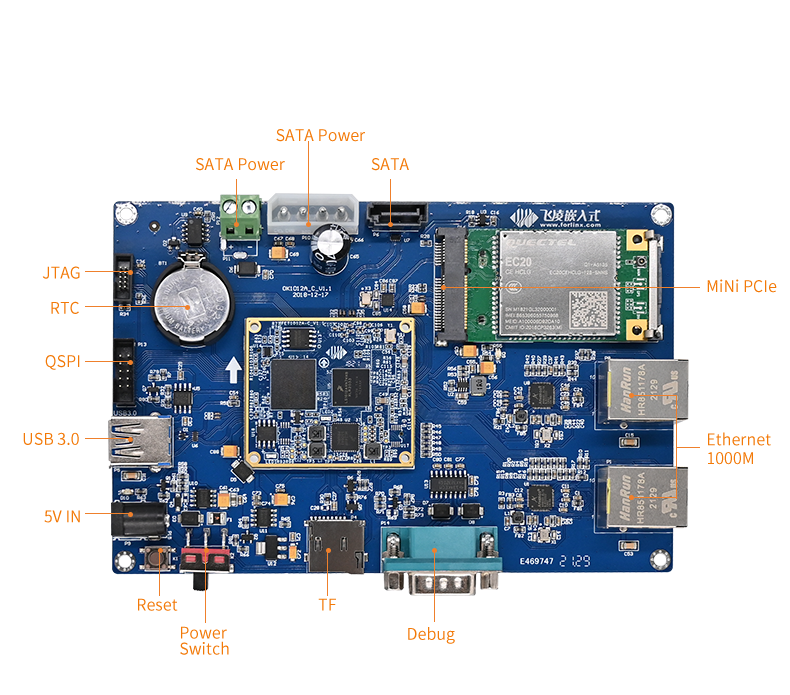

FET1012A-C SoM
| FET1012A-C | OK1012A-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP LS1012A | Ethernet | ≤2, 10/100/1000Mbps |
| Architecture | Cortex-A53 | PCIe2.0 | ≤ 1, up to 5Gbps, expandable Gigabit Ethernet or dual-band WiFi module |
| Clock | ≤1GHz | SATA3.0 | ≤1, up to 6Gbps |
| RAM | 512MB DDR3L | USB3.0 | 1 x, up to 5Gbps |
| ROM | 8GB eMMC, 16MB QSPI, NorFlash | QSPI | 1 x , SoM QSPI nor flash download program interface |
| OS | Ubuntu-18.04.1 / OpenWrt v18.06.0-rc2 | SAI | ≤5 |
| Working Voltage | 4.2V | UART | ≤2, 1 x is debug serial port |
| Operating Temperature | -40℃~+80℃ | IIC | ≤1 |
| Connection | Board to board connector | SDHC | 1 x, supporting SD storage card |
| Mechanical Dimensions | 45mm x 40mm | JTAG | 1 x |
Application Areas
- NAS, IoT Gateway, Industrial Router, Industrial Automation, and Low-power Market Applications
Rockchip Series System on Modules

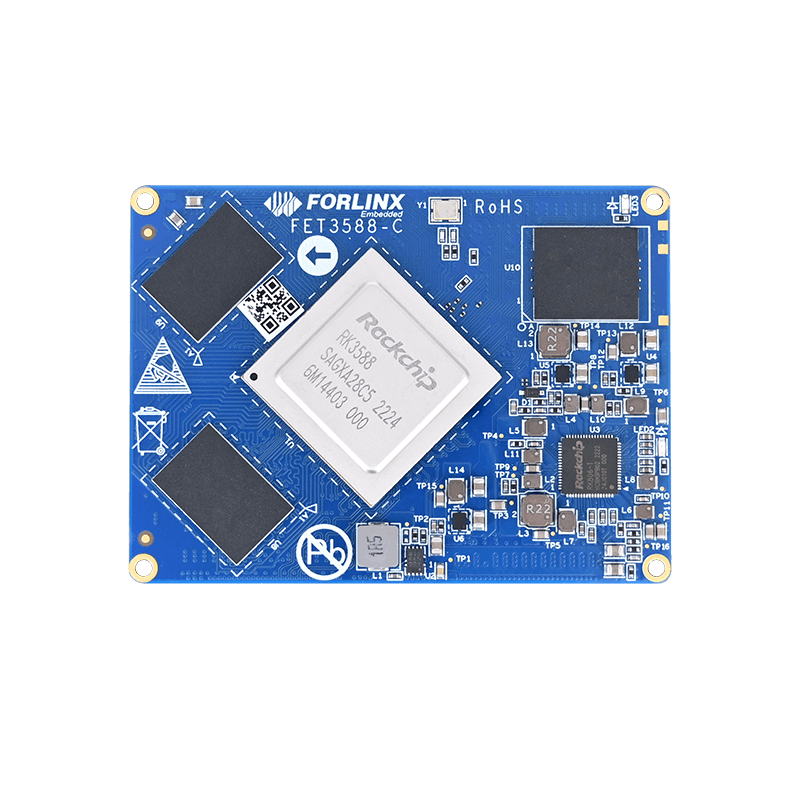

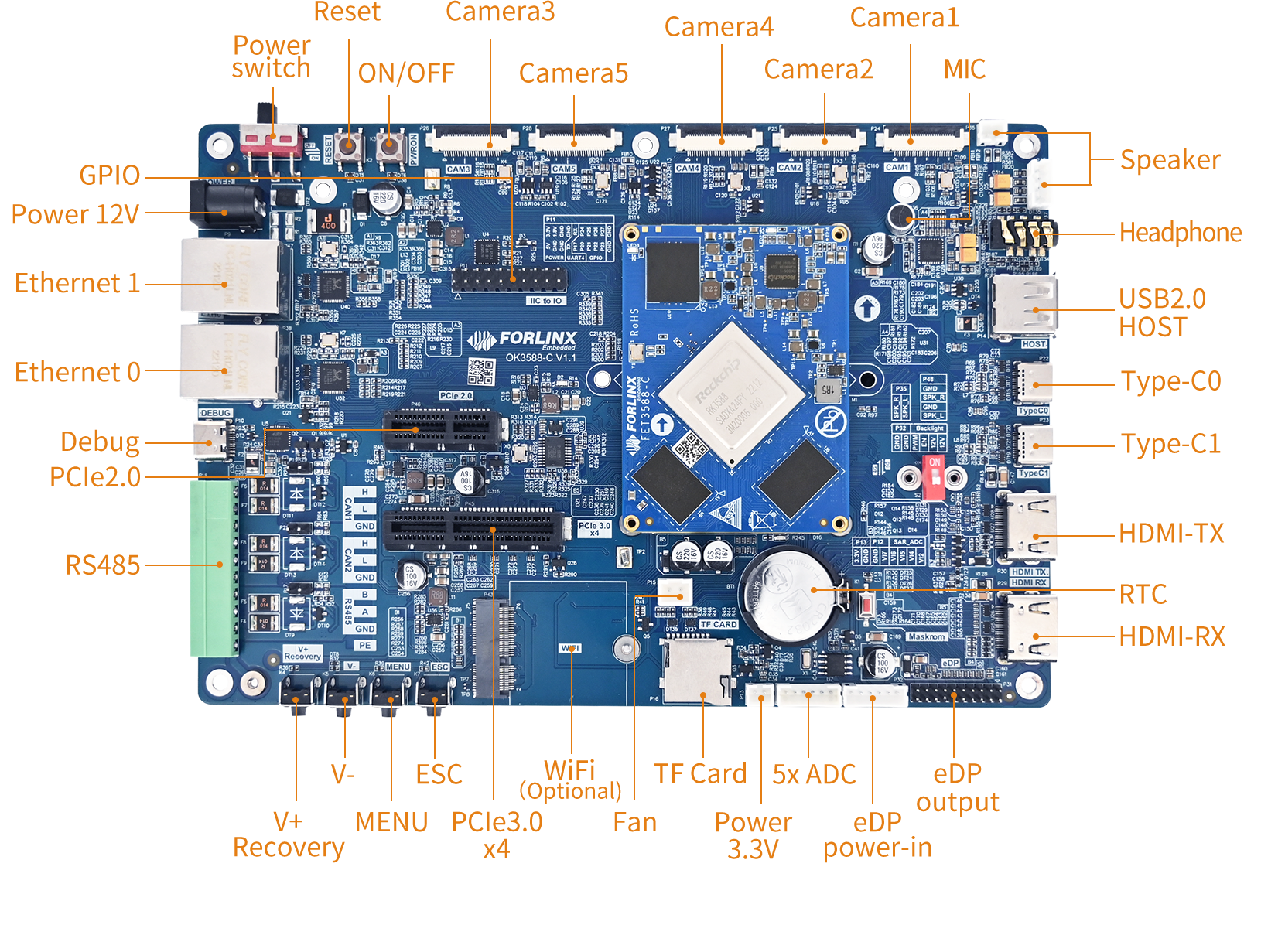

FET3588-C SoM
| FET3588-C | OK3588-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Rockchip RK3588/RK3588J | NPU | 6TOPS, supporting INT4/INT8/INT16/FP16 |
| Architecture | 4 × [email protected] + 4 × [email protected] | GPU | Mali-G610 MP4, OpenGLES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| RAM | 4GB/8GB LPDDR4x | ROM | 32GB/64GB eMMC |
| VPU | Dec: H.265/VP9 up to 8K@60fps, H.264 up to 8K@30fps; Enc: H.265/H.264 up to 8K@30fps | Display Out | 3-ch simultaneous: RGB, LVDS, MIPI DSI, HDMI, eDP (Up to 8K@30Hz) |
| Camera In | 2-ch MIPI DPHY V1.2 (or 4-lane combined); Supports DVP (8/10/12/16-bit) | MIPI DC PHY | DPHY V2.0 (4.5Gbps/line) or CPHY V1.1 (2.5Gbps/line) |
| PCIe 3.0 | 2 x PCIe3.0, 1x2 Lanes or 2x1 Lane (Up to 8Gbps, RC mode) | Ethernet | 2 x GMAC (RGMII/RMII), 10/100/1000Mbps |
| SATA / USB 3.0 | 3 x SATA3.0 (Multiplexed with PCIe2.0/USB HOST2) | USB 2.0 | 2 x USB2.0 Host + 1 x USB2.0 OTG |
| UART / CAN | 10 x UART (Auto flow control); 3 x CAN 2.0B | Other IO | 5 x I2C, 16 x PWM, SDIO 3.0 |
| Operating Temp. | 0℃~+80℃ / -20℃~+85℃ / -40℃~+85℃ | Connection | 4x100pin Board-to-board connector (0.4mm pitch) |
| Working Voltage | 12V | Dimensions | 50 x 68 mm |
Application Areas
- The FET3588 - C SoM has undergone rigorous testing and provides stable performance support for high - end applications;
- AGV, Edge Computing, Smart Large - screen Displays, High - end Tablets, Intelligent NVR, Visualization Gateways.
FET1126Bx-S SoM
| FET1126Bx-S | OK1126Bx-S |
|---|---|
|
|
SoM Parameter
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Core Specification | |||
| Processor | Rockchip RV1126B / RV1126BJ | ||
| CPU | Quad Cortex-A53 @ 1.6GHz (B) | CPU | Quad Cortex-A53 @ 1.3GHz (BJ) |
| NPU | 3 TOPS @ INT8 | GPU | 2D RGA |
| Memory | 1GB / 2GB / 4GB LPDDR4 | eMMC | 64GB (B) / 8GB–32GB (BJ) |
| OS | Linux 6.1.141 | Power | DC 5V |
| Vision & Video | |||
| ISP | VICAP, up to 12MP @ 30fps | AI ISP | Up to 8MP @ 30fps |
| Video Decode | H.264 / H.265, 4K @ 30fps | Video Encode | H.264 / H.265 / JPEG, 12MP @ 30fps |
| Display & Camera Interface | |||
| Display | RGB / MIPI-DSI / BT.656 / BT.1120 | Resolution | 1920 × 1080 @ 60fps |
| MIPI CSI | ≥ 2 × 4-lane | DVP | 1 × Parallel Input |
| Connectivity | |||
| Ethernet | 1 × MAC (10/100 or RGMII) | USB | USB Host + USB DRD |
| CAN | ≥ 2 × CAN 2.0 | UART | ≥ 8 |
| Expansion & IO | |||
| SD / SDIO | TF + SDIO 3.0 | I2C / SPI | I2C ≥ 5 / SPI ≥ 2 |
| PWM | ≥ 27 | ADC | ≥ 24, 13-bit |
| SAI | ≥ 3 | GPIO | ≥ 118 |
| Mechanical & Environment | |||
| Operating Temp. | -20℃ ~ +85℃ (B) | Operating Temp. | -40℃ ~ +85℃ (BJ) |
| Form Factor | 40 × 40 mm, Stamp Hole + LGA | ||
Application Areas
- Power Transmission Line Monitoring
- Intelligent Transportation
- Gas Station Monitoring
- Smart Construction Site
- See-through Kitchen
- Intelligent Warehouse

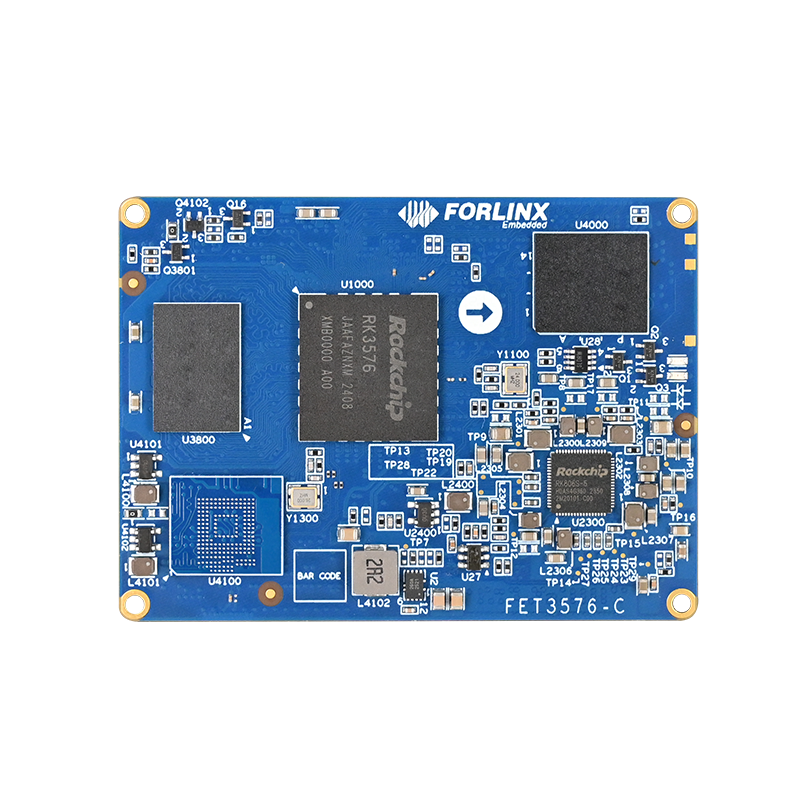

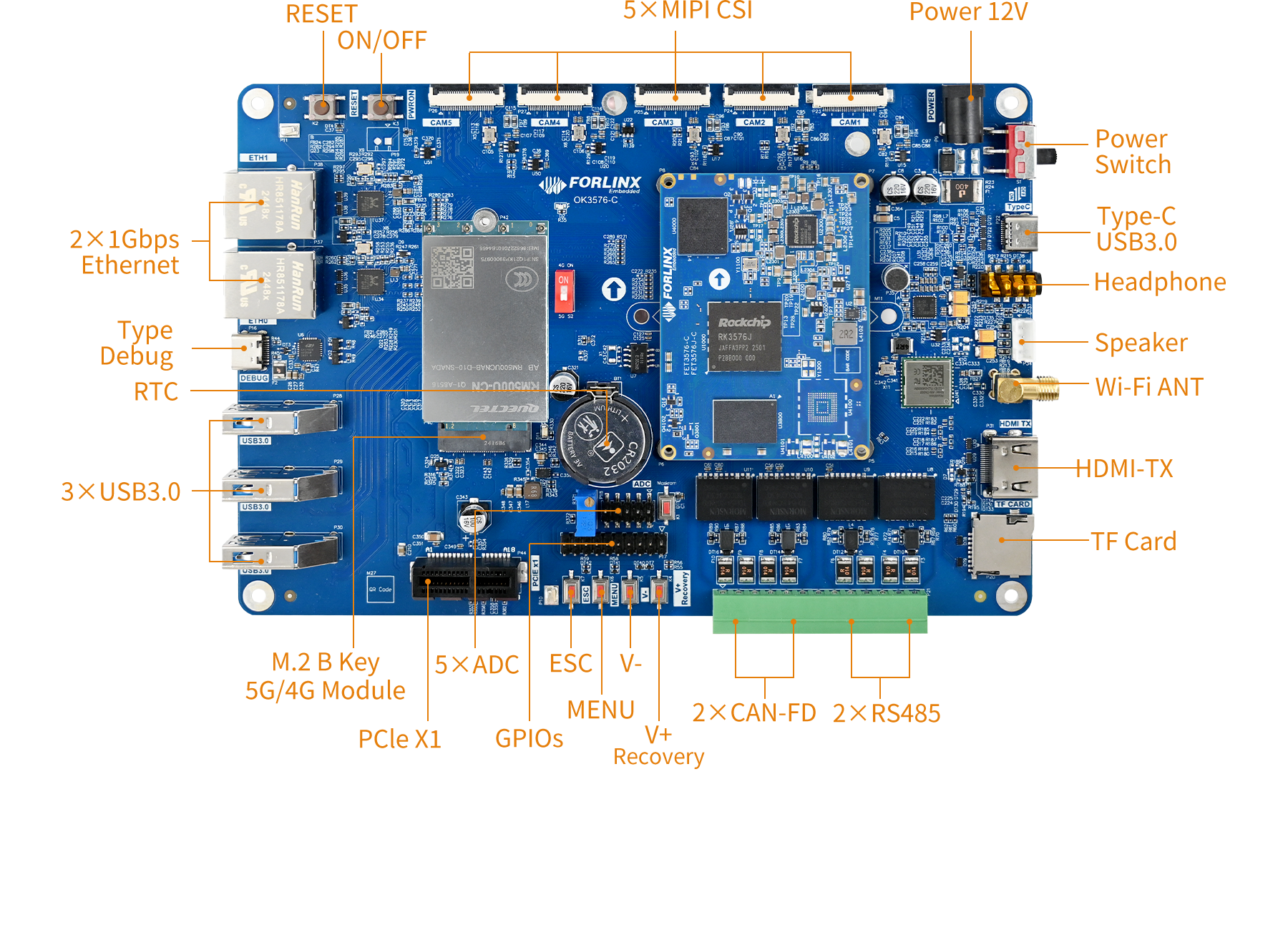

FET3576-C SoM
| FET3576-C | OK3576-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Rockchip RK3576 | GPU | Mali GPU + NPU 6 TOPS |
| Architecture | 4 × Cortex-A72 + 4× Cortex-A53 | NPU | 6 TOPS, supporting INT8/FP16 |
| RAM | 2/4GB LPDDR4 | ROM | 32GB eMMC |
| VPU | Supports H.264/H.265/VP9 4K video decoding | OS | Linux 6.1 / Android / Ubuntu / Debian |
| Working Voltage | 12V | Connection | Board to board connector（4×100pin） |
| Structural Dimensions | 68×50 mm | Operating Temperature | 0℃~+70℃ / -40℃~+80℃ |
| Audio | 5 x SAI, supporting I2S/TDM/PCM | Camera | 5 × MIPI-CSI |
| USB | 3 × USB3.0, Type-C supports DP AltMode | Ethernet | 2× 1Gbps |
| PCIe | 1 x PCIe2.1/SATA combo | CAN-FD | ≤ 2 |
| I2C | ≤ 10 | UART | ≤ 12 |
| SPI | ≤ 5 | Display | HDMI 2.1 / eDP 1.3 / MIPI-DSI / EPaper / RGB / LVDS |
Application Areas
- Industrial, AIoT, Edge Computation, Smart Mobile Terminal;
- Digital Multimedia Related Application

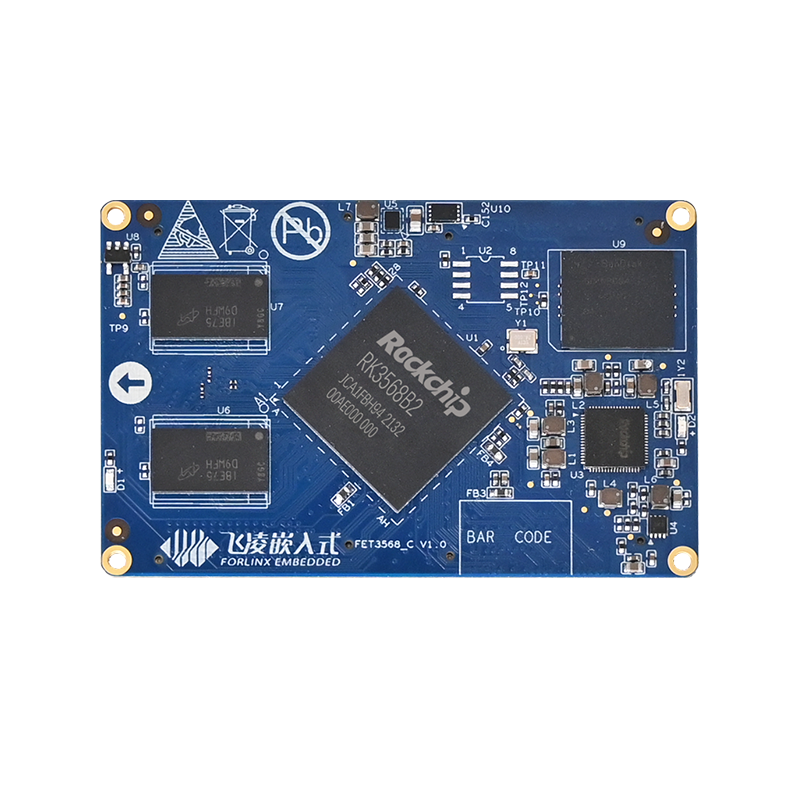

FET3568-C SoM
| FET3568-C | OK3568-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Rockchip RK3568 / RK3568J | GPU | Mali-G52-2EE (OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0) |
| Architecture | 4x Cortex-A55 @ 2.0/1.8 GHz | NPU | 1.0 TOPS (INT8/INT16/FP16/BFP16 mixed) |
| RAM | 1/2/4/8GB DDR4 (2GB standard) | ROM | 8/16/32GB eMMC |
| VPU |
Decoding: H.264/H.265/VP9 (Up to 4096x2304@60fps), VP8 (1920x1088@60fps), VC1/MPEG-4/2/1 (1920x1088@60fps), H.263 (720x576@60fps) Encoding: H.264/H.265 (Up to 1920x1080@60fps) |
||
| OS Support | Linux 4.19/5.10, Android 11, Ubuntu, Debian, OpenHarmony 4.1 | ||
| Input Voltage | 5V DC | Dimensions | 45mm x 70mm |
| Operating Temp. | 0°C to +80°C / -40°C to +85°C | Interconnect | 4x 80-pin B2B connectors (0.5mm pitch) |
| Display | Triple-display simultaneous output; Supports RGB, LVDS, MIPI DSI, HDMI, and eDP | ||
| Ethernet | 2x GMAC (RGMII/RMII) | Camera | 2x (1x DVP + 1x 4-lane MIPI-CSI) |
| USB 3.0 | 2x (1x Host + 1x OTG) | USB 2.0 | 2x (1x Host + 1x OTG) |
| PCIe 3.0 | 2x (1x2 lane or 2x1 lane), 8Gbps/lane; RC/EP | PCIe 2.1 | 1x PCIe 2.1 x1 (5Gbps), RC mode |
| SATA | 3x SATA 3.0 (Up to 6Gb/s), eSATA support | CAN | 3x CAN 2.0B |
| Audio | 4x (1x 8-ch I2S/TDM, 2x 2-ch I2S, 1x 8-ch PDM) | SDIO | 2x SDIO 3.0 (Up to 104MB/s) |
| SPI | 4x (Master/Slave mode, software-configurable) | PWM | 16x (32-bit timer/counter) |
| I2C | 5x I2C (7-bit/10-bit addressing, up to 1Mbit/s) | ||
Application Areas
- The FET3568-C SoM has comprehensive advantages of high performance, low cost, multi-function, and industrial grade;
- Industry, Medical, Power, Vehicle Transportation, Environmental Monitoring, Security, New energy, and Communication.

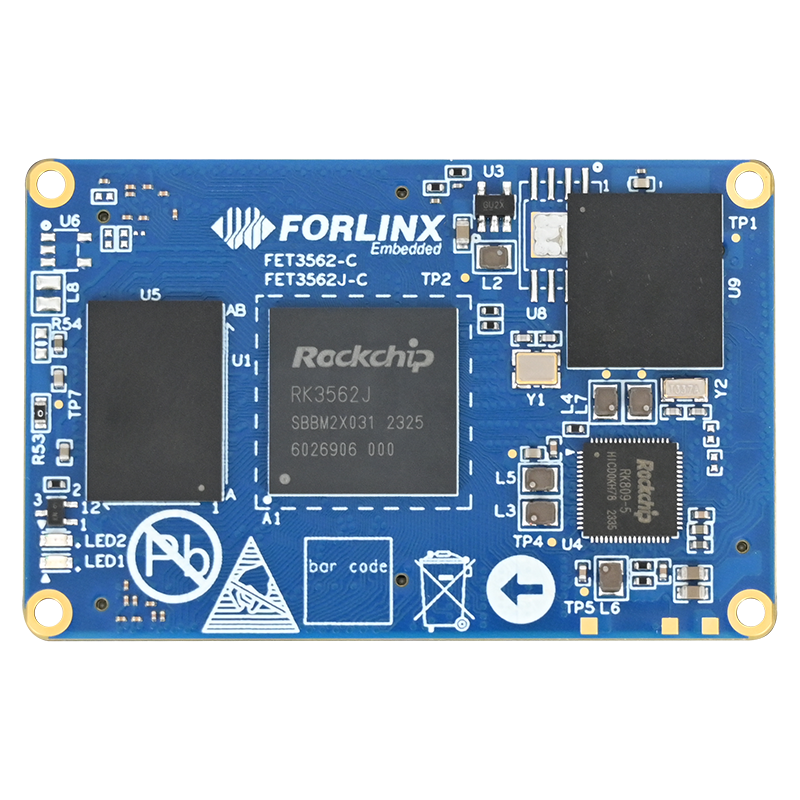

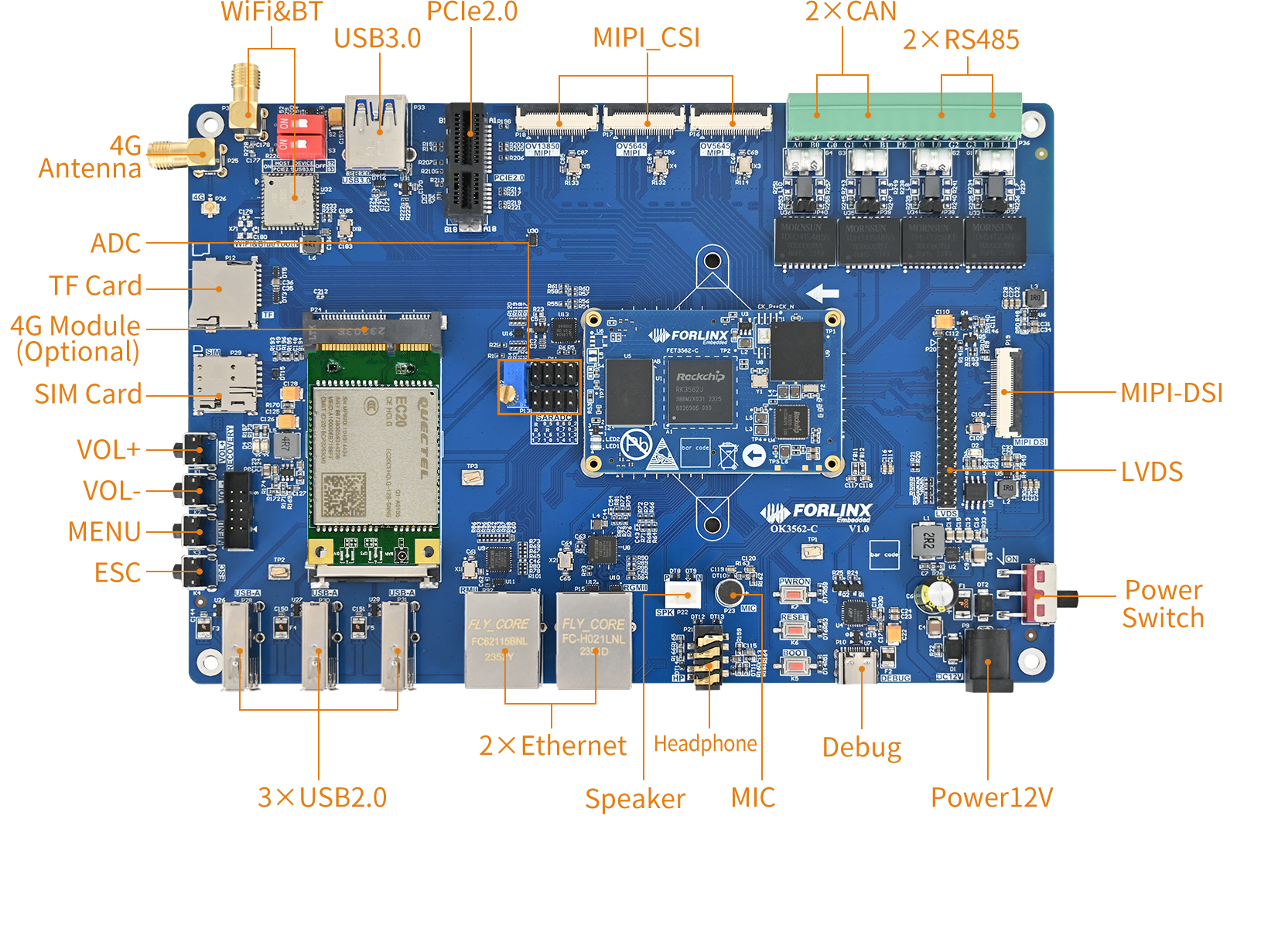

FET3562J-C SoM
| FET3562J-C | OK3562J-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Rockchip RK3562J | GPU | Mali GPU（On-board video decoding/encoding support） |
| Architecture | 4 × [email protected] | NPU | - |
| RAM | 1/2GB LPDDR4 | ROM | 8/16GB eMMC |
| VPU |
Hardware decoding: H.264/H.265 1080p@60fps, 4K@30fps;
Hardware encoding H.264 1080p@60fps |
OS | Linux 5.10/RT/AMP |
| Working Voltage | 12V | Connection | Board to board connector（various interfaces） |
| Structural Dimensions | 56×36 mm | Operating Temperature | -40℃~+80℃ |
| Audio |
SoM built-in codec, supporting Speaker,
MIC, headphone output |
Camera | 4 x MIPI-CSI |
| SDIO | 1 x | Ethernet | 2 x GMAC, supporting RGMII/RMII |
| USB 2.0 | 1 x | USB 3.0 | 1 x, supporting master-slave mode |
| PCIe | 1 x PCIe 2.0 | CAN | 2 x CAN |
| I2C | ≤5 | ADC | ≤16 10bit, the sampling rate is up to 1MS/s |
| SPI | ≤3 | LVDS | 1 x |
| Display | MIPI-DSI / RGB / LVDS | - | - |
Application Areas
- Industrial, Medical, Power, New Energy, Communications and Other Industries, Consumer Electronics, Power Systems, Environmental Monitoring, Security, Smart Cities, etc.

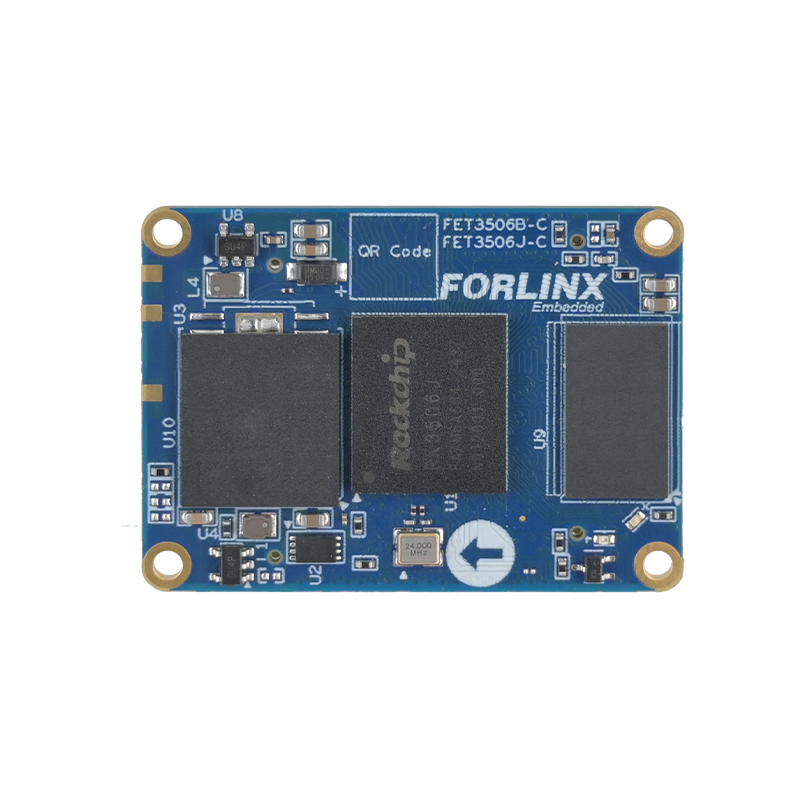

FET3506J-C SoM
| FET3506J-C | OK3506J-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Rockchip RK3506J: 3x Cortex-A7 (1.5GHz) + 1x Cortex-M0 (200MHz); 2D GPU | ||
| RAM | 256MB / 512MB DDR3 | ROM | 256MB Nand Flash / 8GB eMMC |
| OS Support | Linux 6.1 | Input Voltage | 5V DC |
| Operating Temp. | -40°C to +85°C | Dimensions | 40mm x 29mm |
| Interconnect | Board-to-board connector (2x 80-pin, 0.5mm pitch) | ||
| Display | 1x MIPI DSI, ≤1x RGB; Single VOP controller | ||
| Audio | 1x 4-ch PDM, 1x Audio ADC, 2x Audio DSM | ||
| Ethernet | 2x RMII (10/100 Mbps) | CAN-FD | 2x (Supports CAN 2.0 and CAN-FD) |
| UART | ≤6 (UART0 is debug port) | SAI | ≤3 |
| I2C | ≤3 | SPI | ≤3 |
| USB 2.0 | 2x (1x supports OTG) | SDMMC/SDIO | ≤1 (Unavailable with eMMC) |
| PWM | ≤11 | GPIO | ≤76 |
| SARADC | ≤4-ch (10-bit, 1MS/s) | Touch Key | ≤8 |
| SPDIF | 1x TX/RX | FSPI | ≤1 |
| FLEXBUS | 1x (High-speed IO switching) | JTAG | ≤1 |
| DSMC | ≤1 (Supports Master/Slave mode) | ||
Application Areas
- Industrial Automation
- Consumer Electronics
- Smart Medical
- New Energy
- Communication Device

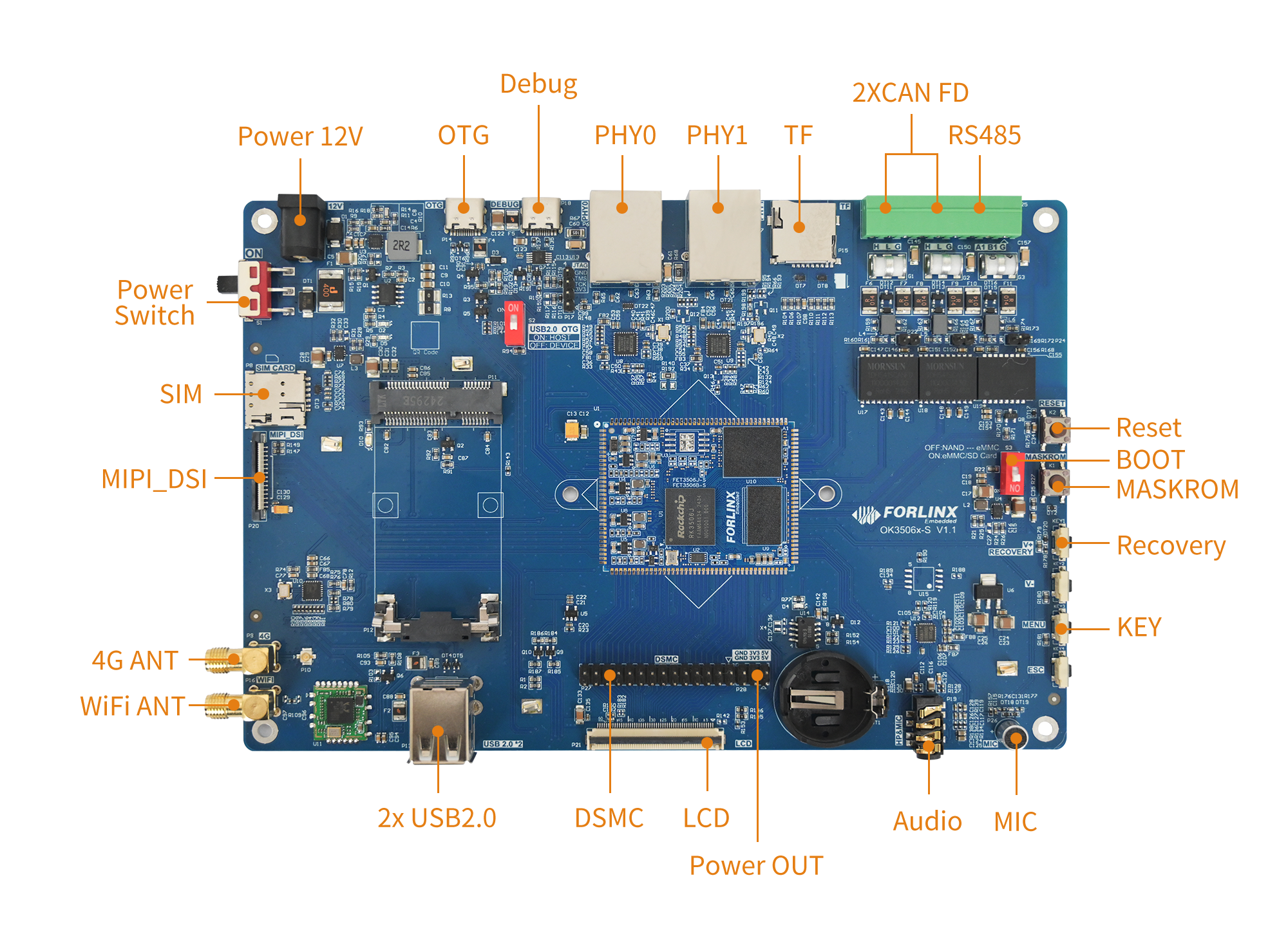

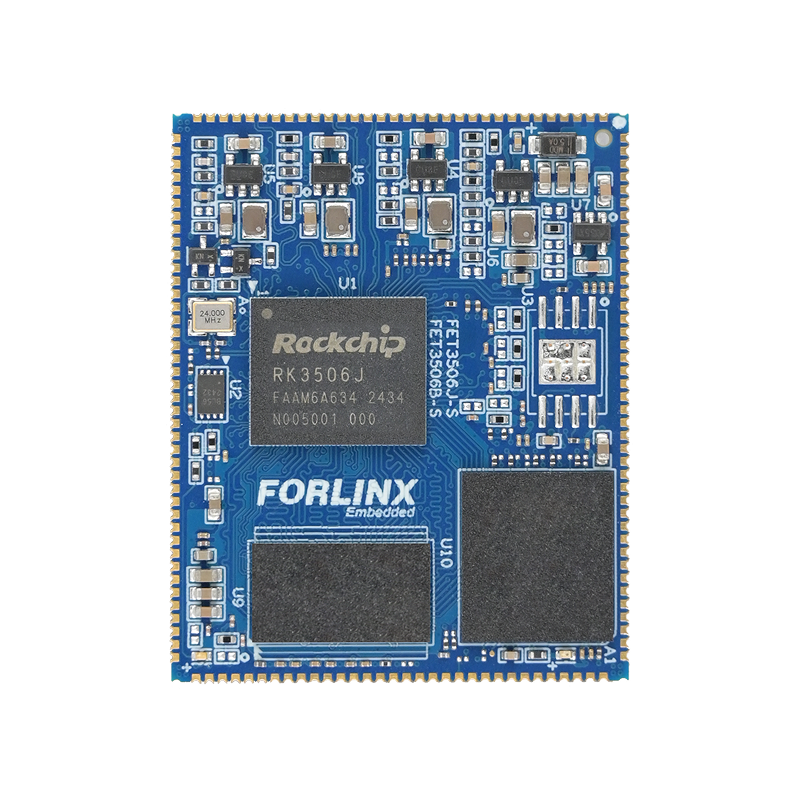

FET3506J-S SoM
| FET3506J-S | OK3506J-S |
|---|---|
|
|
SoM Parameter
| Item | Parameter Description | Item | Parameter Description |
|---|---|---|---|
| CPU | Rockchip RK3506J | Architecture | 3×Cortex-A7 up to 1.5GHz; 1×Cortex-M0 |
| RAM | 256MB / 512MB DDR3 | ROM | 256MB Nand Flash / 8GB eMMC |
| GPU | 2D GPU | Operating Temperature | −40℃ ~ +85℃ |
| Mechanical Dimensions | 44mm × 35mm | Connection | Stamp-hole |
| OS | Linux 6.1 | MIPI DSI | ≤1, 2-lane,1.5Gbps/Lane |
| RGB | ≤1, RGB888 24 bit, up to 1280×1280@60Hz | FLEXBUS | 1 x flexible parallel FLEXBUS, bus high-speed IO |
| DSMC | Supports PSRAM / FPGA expansion, master/slave mode ×8/×16 | USB 2.0 | 2 x, hight speed USB2.0, 1 x supports OTG |
| SDMMC | ≤1 x SDIO 4bits | Ethernet | 2 x RMI, 10/100Mbps, full-duplex/half-duplex |
| CAN-FD | 2 x, supports CAN2.0 & CAN-FD | SPI | 3x: SPI0/1 master-slave configurable; SPI2 slave mode |
| UART | ≤ 6, UART0 is the debugging port | I2C | 3 x, 7/10-bit address, master-slave mode, up to 1Mbps |
| FSPI | ≤1 | SARADC | ≤4 |
| PWM | ≤11 | JTAG | ≤1 |
| GPIO | ≤76 |
Application Areas
- Industrial Automation, Consumer Electronics, Intelligent Medical Treatment, Power, New Energy, Communications and Other Industries and Related Application Scenarios.

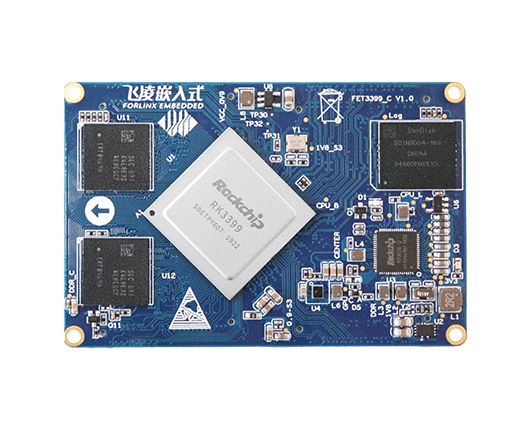

FET3399-C SoM
| FET3399-C | OK3399-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Rockchip RK3399 / RK3399K | GPU | Mali-T860MP4 |
| Architecture | 2x Cortex-A72 @ 1.8 GHz + 4x Cortex-A53 @ 1.4 GHz | ||
| RAM | 2GB / 4GB LPDDR3 | ROM | 16GB / 32GB eMMC |
| VPU | High-performance hardware decoding: H.264, H.265, VP8, VP9 | ||
| OS Support | Linux 4.4, Android 7.1, Forlinx Desktop, Ubuntu 18.04 | ||
| Input Voltage | 12V DC | Dimensions | 46mm x 70mm |
| Operating Temp. | 0°C to +80°C / -20°C to +80°C | Interconnect | Board-to-board connectors (4x 80-pin, 0.5mm pitch) |
| Display | HDMI 2.0, DP 1.2, MIPI-DSI, eDP; Dual-display engine (Up to 4K@60fps / 2560x1600) | ||
| PCIe | 1x PCIe 2.0 x4 | Camera | ≤2 MIPI-CSI (Supports 1x 13MP or 2x 8MP) |
| USB 3.0 | 1x Host | USB 2.0 | ≤2 |
| SD/MMC | 2x (SD/MMC/SDIO 3.0) | Audio | 3x IIS/PCM, 1x 8-ch I2S/TDM, 2x 2-ch I2S |
| UART | ≤5 | I2C | 7x |
| SPI | ≤5 | PWM | 3x 32-bit |
| ADC | 5x 10-bit | NPU | - |
Application Areas
- Self-service Equipment, Edge Computing, Facial Recognition, 5G Smart Terminals, 3D Printing, POS Machines, VOIP, Video Conferencing, and IoT.
Allwinner Series System on Modules

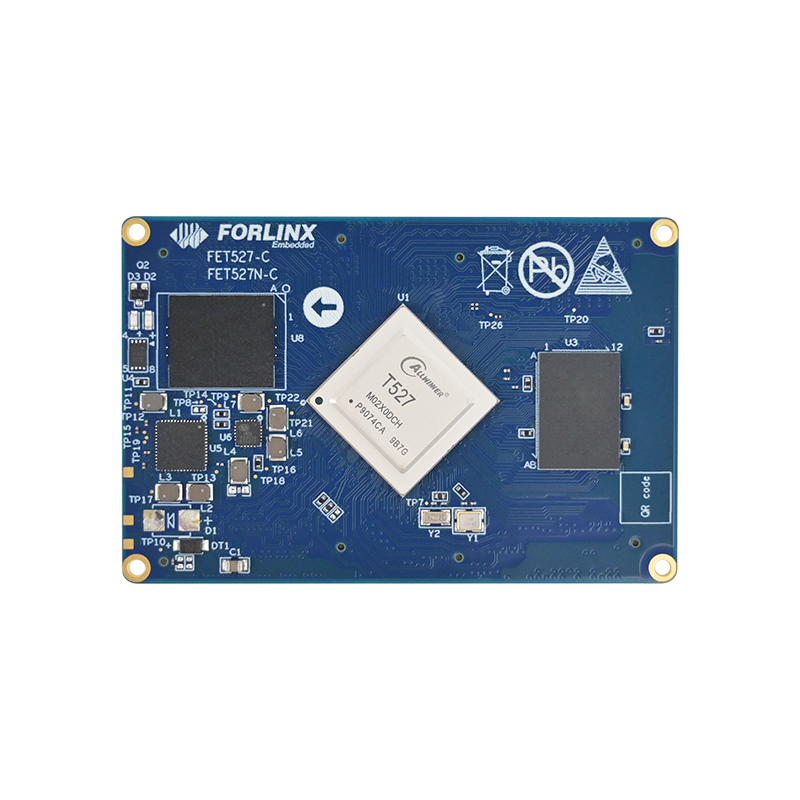

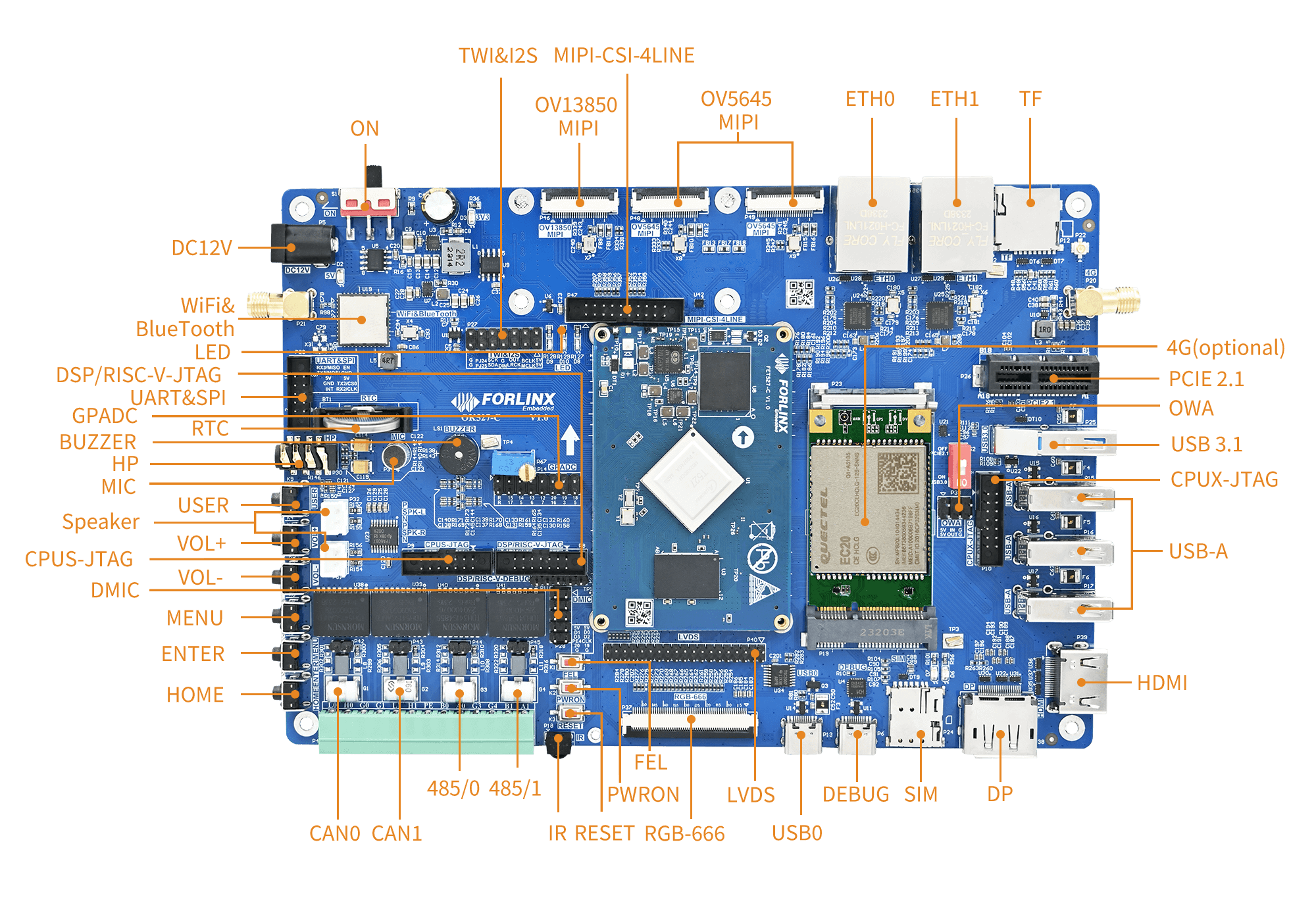

FET527N-C SoM

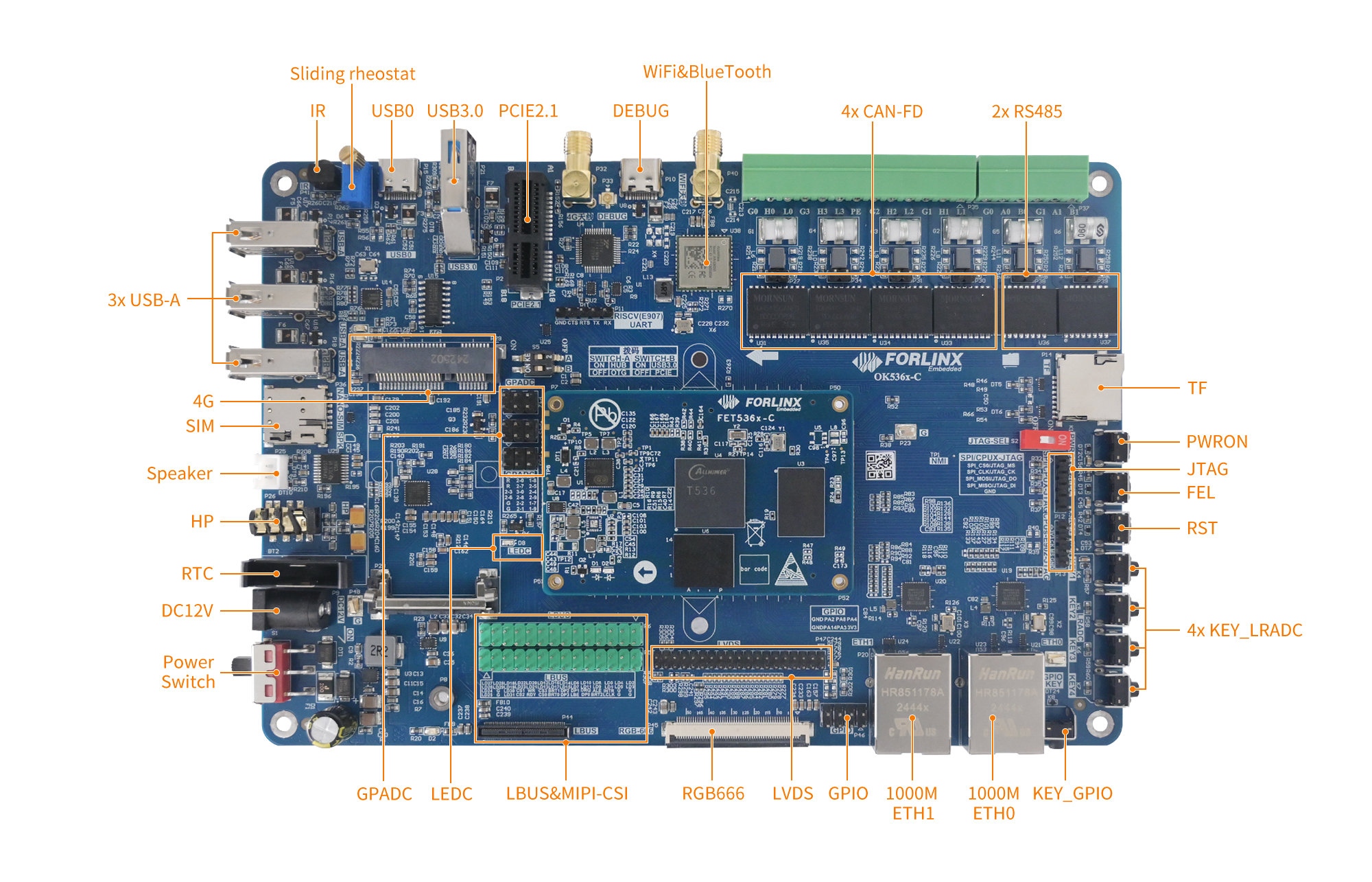

| FET527N-C | OK527N-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Allwinner T527 | RISC-V | 200 MHz |
| Architecture | 4 × Cortex-A55 + 4 × Cortex-A55 | RGB | ≤2 |
| Clock | 1.8GHz + 1.4GHz | LVDS | ≤2 |
| RAM | 2GB/4GB LPDDR4 | MIPI DSI | ≤2 |
| ROM | 16GB/32GB eMMC | HDMI2.0 | 1 x, supporting 2D/3D display, 4K@30/60fps |
| OS | Linux 5.15 | eDP1.3 | 1 x, supporting 2.5K@60fps and 4K@30fps |
| Working Voltage | 5V | MIPI CSI | ≤4 |
| Operating Temperature | -40℃~+85℃ | Parallel CSI | 1 x, supporting 8/10/12/16-bit width |
| Connection | Board to board connector （4×80Pin, 2.0mm spacing ） | Ethernet | ≤2 , GMAC, supporting RMII/RGMII |
| Mechanical Dimensions | 46mm x 70mm | UART | ≤10 |
| GPU | ARM G57 MC1 | CAN | ≤2, the baud rate is up to 1Mbps |
| NPU | 2TOPS | USB 2.0 | ≤2, USB0: USB2.0 OTG 480Mbps; USB1; USB2.0 Host 480Mbps |
| PCIe 2.1 | ≤1, only supporting RC mode, 1-lane 5Gbps | USB 3.1 | ≤1, USB3.1 DRD mode 5Gbps |
| SDIO | ≤ 2, used for SD card, up to 200MHz SDR mode | SPI | ≤ 4, supporting master-slave mode, up to 100MHz |
Application Areas
- Commercial Displays, Cash Registers, Cloud Computers, Robots, Industrial Intelligence, Edge Computing Gateways, Aftermarket Central Control Systems, Commercial Vehicles, Industrial Control Computers, etc.

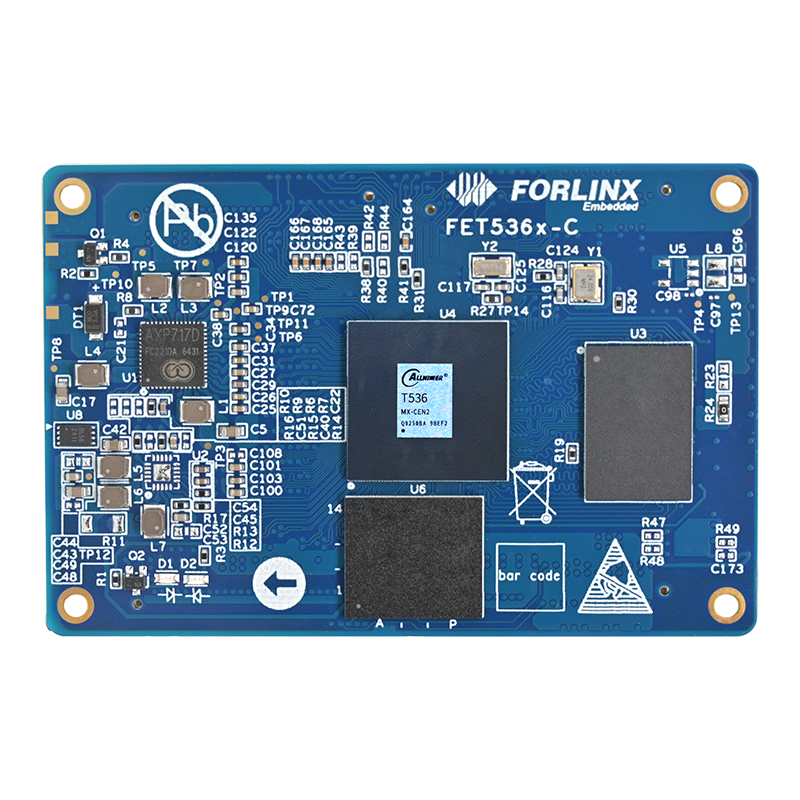

FET536-C SoM
| FET536-C | OK536-C |
|---|---|
|
|
FET536-C SoM Parameter
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| CPU | Allwinner T536 | ARM | 4 × Cortex-A55 @ 1.6GHz |
| RISC-V | XuanTie E907 @ 600MHz | NPU | 2 TOPS |
| Video Decoding | MJPEG 4K@15fps; JPEG 1080p@60fps | Video encoding | H.264 4K@25fps; MJPEG 4K@15fps |
| ISP | 8M@30fps; WDR; 3DNR | RAM | 1GB / 2GB LPDDR4 |
| ROM | 8GB / 16GB eMMC | Operating Temperature | −40℃ ~ +85℃ |
| Working Voltage | DC 5V | Display | MIPI DSI / RGB LCD / ≤2 LVDS |
| Camera | ≤1 Parallel CSI; ≤4 MIPI CSI | Audio | Codec / DMIC / I2S / Single line audio |
| GMAC | ≤2, 10/100/1000 Mbps | UART | ≤17 |
| CAN-FD | ≤4 | TWI | ≤8 （compatible with I2C） |
| SPI | ≤5, up to 100MHz | USB | USB3.1 ×1; USB2.0 HOST ×1; USB2.0 DRD ×1 |
| SDIO | ≤2 | PCIe2.1 | ≤1, 1-lane, 5Gbps |
| ADC | ≤28 GPADC; 1 x LRADC; 1 x TPADC | PWM | ≤34, 0~24MHz / 0~100MHz |
| Local Bus | ≤1, 8/16/32 bit width, 100MHz | Connection | Board to board connector （4×80Pin, 0.5mm spacing ） |
| OS | Linux 5.10 |
Application Areas
- Concentrator, DTU, Charging pile, Traffic, Robot, Industrial Control

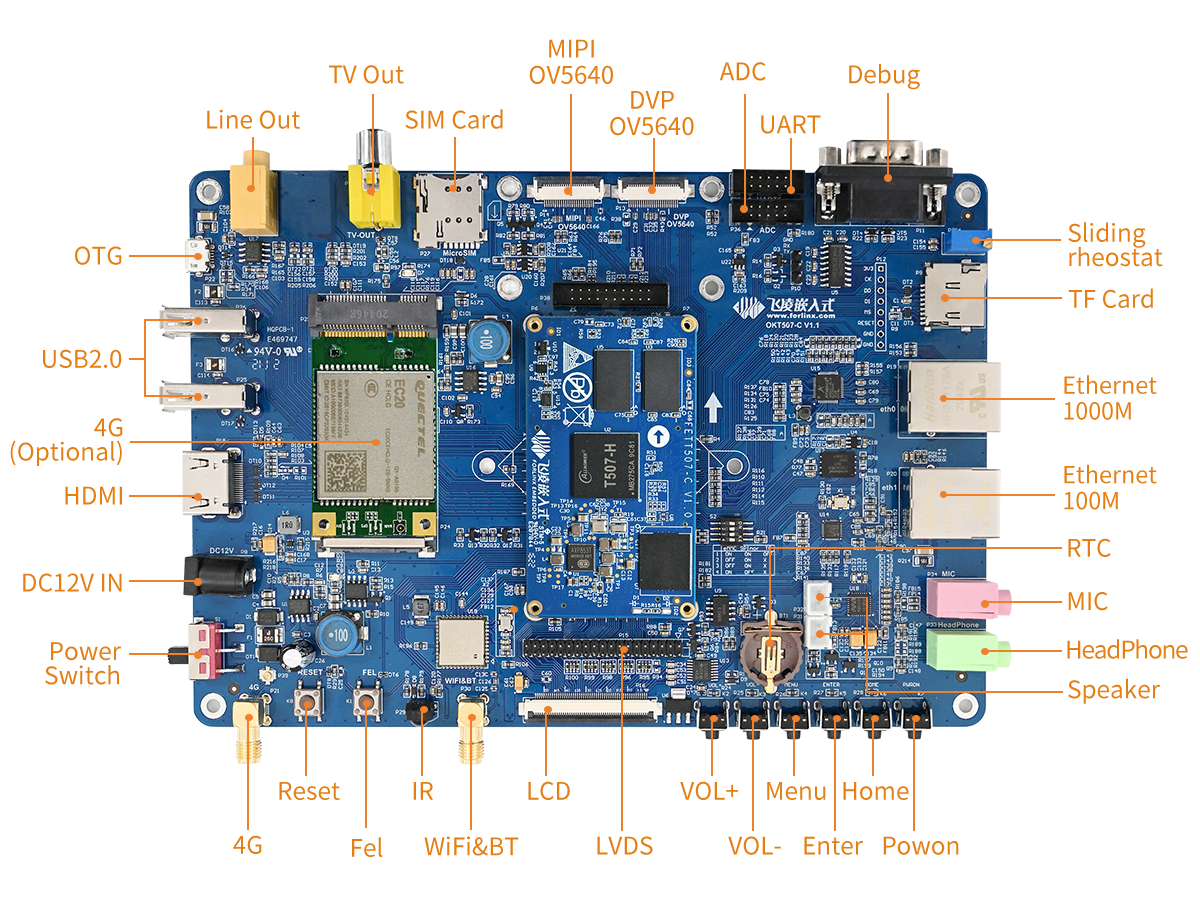

FETT507-C SoM
| FETT507-C | OKT507-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Allwinner T507 | GPU | G31 MP2 (OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0) |
| Architecture | 4x Cortex-A53 | Frequency | 1.5 GHz |
| RAM | 2GB DDR3L | ROM | 8GB eMMC |
| OS Support | Linux 4.9, Ubuntu 18.04, Android 10 | ||
| Input Voltage | 5V DC | Dimensions | 40mm x 70mm |
| Operating Temp. | -40°C to +85°C | Interconnect | Board-to-board connectors (3x 80-pin, 0.5mm pitch) |
| Display | HDMI 2.0a (4K@60fps), RGB/LVDS (1920x1080@60fps), CVBS (NTSC/PAL) | ||
| Video Codec |
Decoding: H.265, VP9, VP8, AVS2 (Up to 4K@60fps); H.264 (Up to 4K@30fps) Encoding: H.264 (Up to 4K@25fps); MJPEG (Up to 4K@15fps) |
||
| Ethernet | 2x: 1x 10/100/1000M RGMII, 1x 10/100M RMII | USB | 4x USB 2.0 (1x OTG + 3x Host) |
| Camera |
MIPI_CSI: 1x 4-lane (8M@30fps or 4x 1080p@25fps) DVP: 1x (5M@15fps or 1080p@30fps) |
||
| UART | ≤6 (Up to 4Mbit/s) | I2C | ≤5 |
| SPI | ≤1 | SD/MMC/SDIO | ≤2 |
| PWM | ≤6 | GPADC | 4x Channels |
| Audio CODEC | 1x | IIS/PCM | ≤4 (3x External + 1x Internal HDMI) |
| SCR | 1x (ISO/IEC 7816-3 support) | CIR | 1x (Remote control/Wireless keyboard support) |
Application Areas
- Automotive Electronics, Power Industry, Medical Electronics, Industrial Control, IoT, Intelligent Terminals and Other Fields With High Stability Requirements.

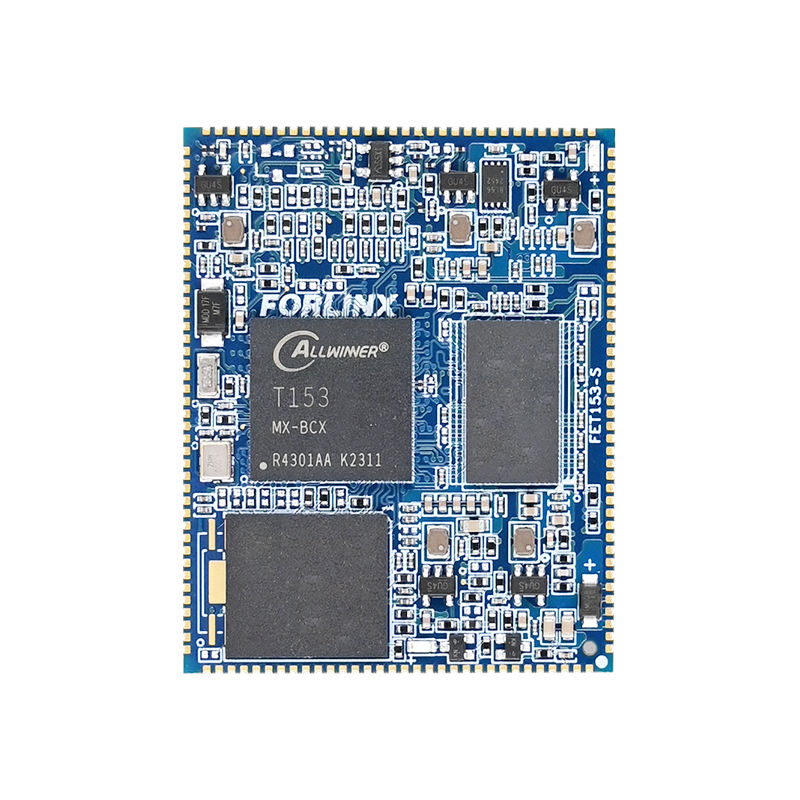

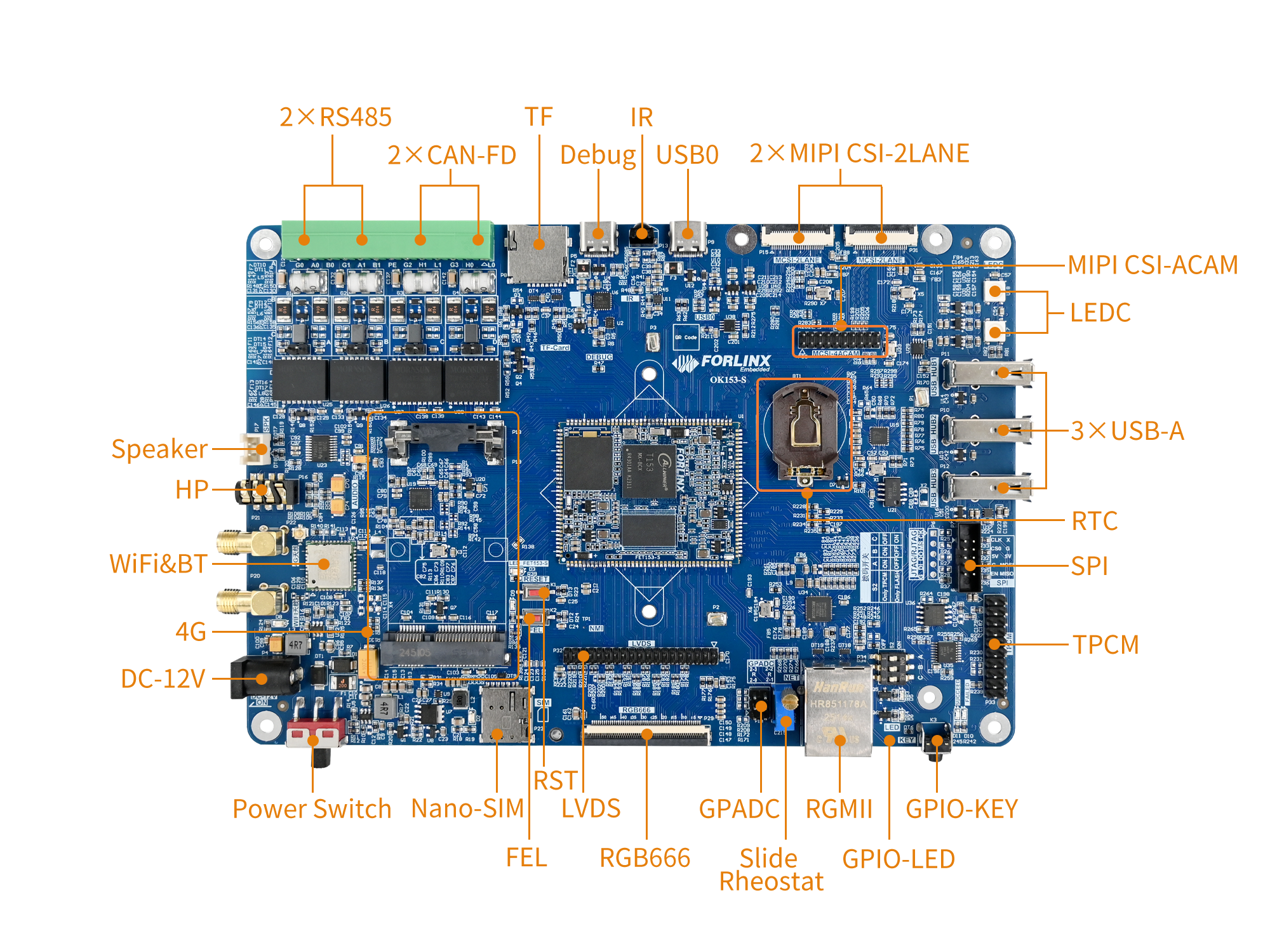

FET153-S SoM
| FET153-S | OK153-S |
|---|---|
|
|
SoM Parameter
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| CPU | Allwinner T153 | Architecture | 4× Cortex-A7 |
| Clock | 1.6 GHz | RISC-V | E907, up to 600MHz |
| GPU | G2D | RAM | 256MB / 512MB / 1GB DDR3 |
| ROM | 256MB/512MB NandFlash / 8GB eMMC | Operating Temperature | −40℃ ~ +85℃ |
| Connection | Stamp-hole + LGA | Mechanical dimensions | 44mm × 35mm |
| OS | Linux 5.10 | Parallel CSI | ≤1, 8/10/12/16 bit width |
| MIPI CSI | ≤2, 4-lane or 2+2-lane | MIPI DSI | ≤1, 4-lane, 1920×1200@60fps |
| RGB LCD | ≤1, RGB888/666/565 | LVDS | ≤2, 1920×1080@60fps（Dual link） |
| SDIO | ≤2, SMHC0 is applicable to SD card | Audio | ≤1, built-in Codec |
| I2S | ≤3, 8kHz~384kHz | DMIC | ≤1, 8ch,8kHz~48kHz |
| OWA IN/OUT | ≤1, single line audio | USB2.0 DRD | 1 x, both master & slave mode are OK. |
| USB OTG | 1 x, only supporting master mode |
Application Areas
- Industrial Control, Power, New Energy, Transportation, and Healthcare

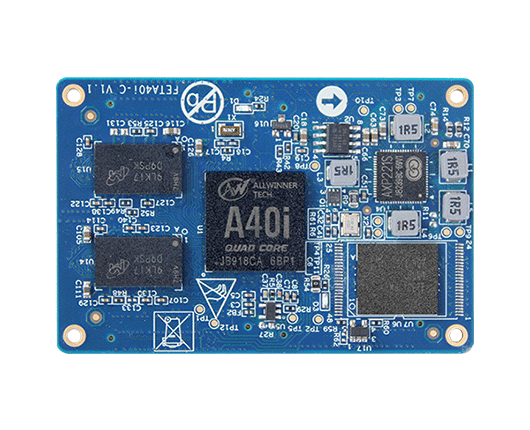

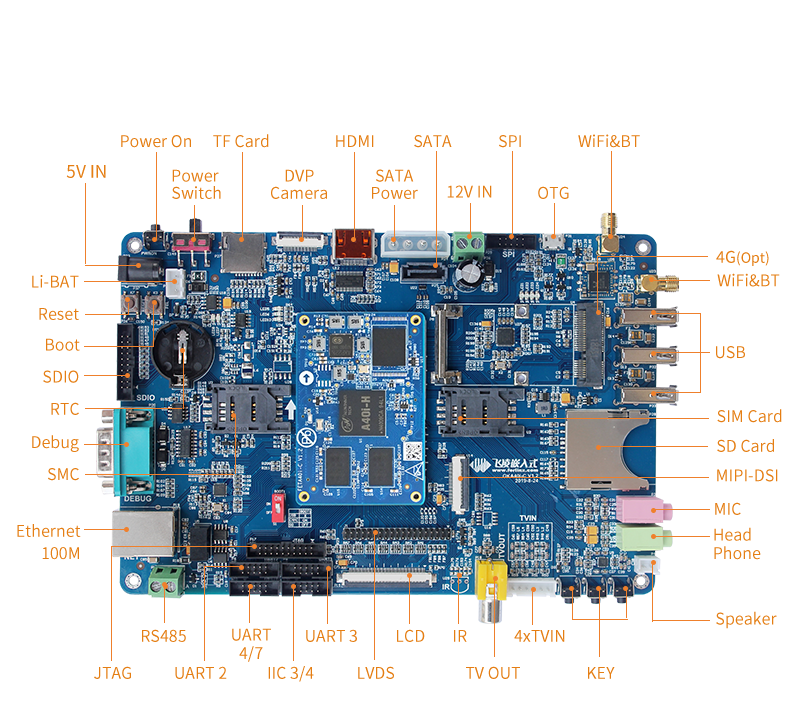

FETA40i-C SoM
| FETA40i-C | OKA40i-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Allwinner A40i | UART | 8 x |
| Architecture | 4 × Cortex-A7 | IIC | ≤ 5 |
| Clock | 1.2 GHz | SPI | ≤ 4 |
| RAM | 1GB DDR3（Optional 2GB） | Camera | 2 x DVP, 4 x TVIN |
| ROM | 8GB eMMC | SD/MMC/SDIO | ≤ 4 |
| OS | Linux5.10, Android7.1 | USB | 2 x USB 2.0 HOST, 1 x USB 2.0 OTG |
| Working Voltage | 5V | SATA | 1 x |
| Operating Temperature | -25℃~+85℃ / -40℃~+85℃ | PWM | 8 x |
| Connection | Board to board connector (4 x 80Pin 0.5mm spacing ) | AUDIO CODEC | 1 x |
| Mechanical Dimensions | 45mm x 68mm | JTAG | 1 x |
| Battery Management | AXP221S | KeyPad Port | 1 x |
| GPU | Mali400MP2 | KEYADC | ≤ 2 |
| Video Coder | Hardware video encoding | SMC | ≤ 2 |
| Display | 2 x RGB24 bit, 2 x 8 bit LVDS, 1x HDMI, 1x MIPI, 4 x TVOUT | PS2 | ≤ 2 |
| IIS/PCM | ≤ 2 | CIR | ≤ 2 |
| Ethernet |
1 x 10/100Mbps self-adaptive;
1 x 10/100/1000Mbps self-adaptive |
AC97 | 1 x |
Application Areas
- Advertising Machines, Digital Signage, Intelligent Self-service Terminals, O2O Intelligent Devices, In-vehicle Displays, etc.

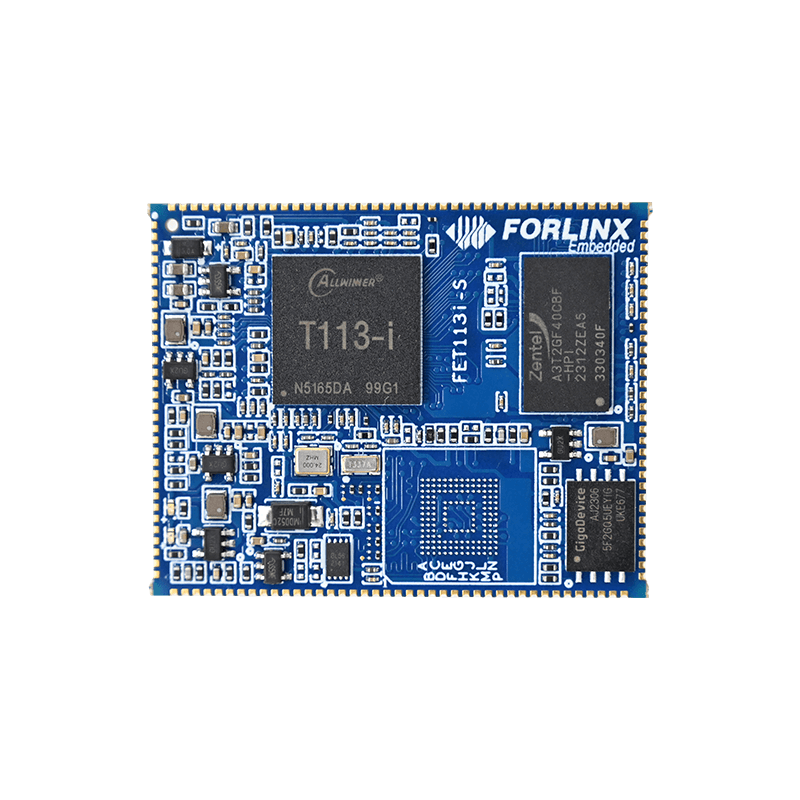

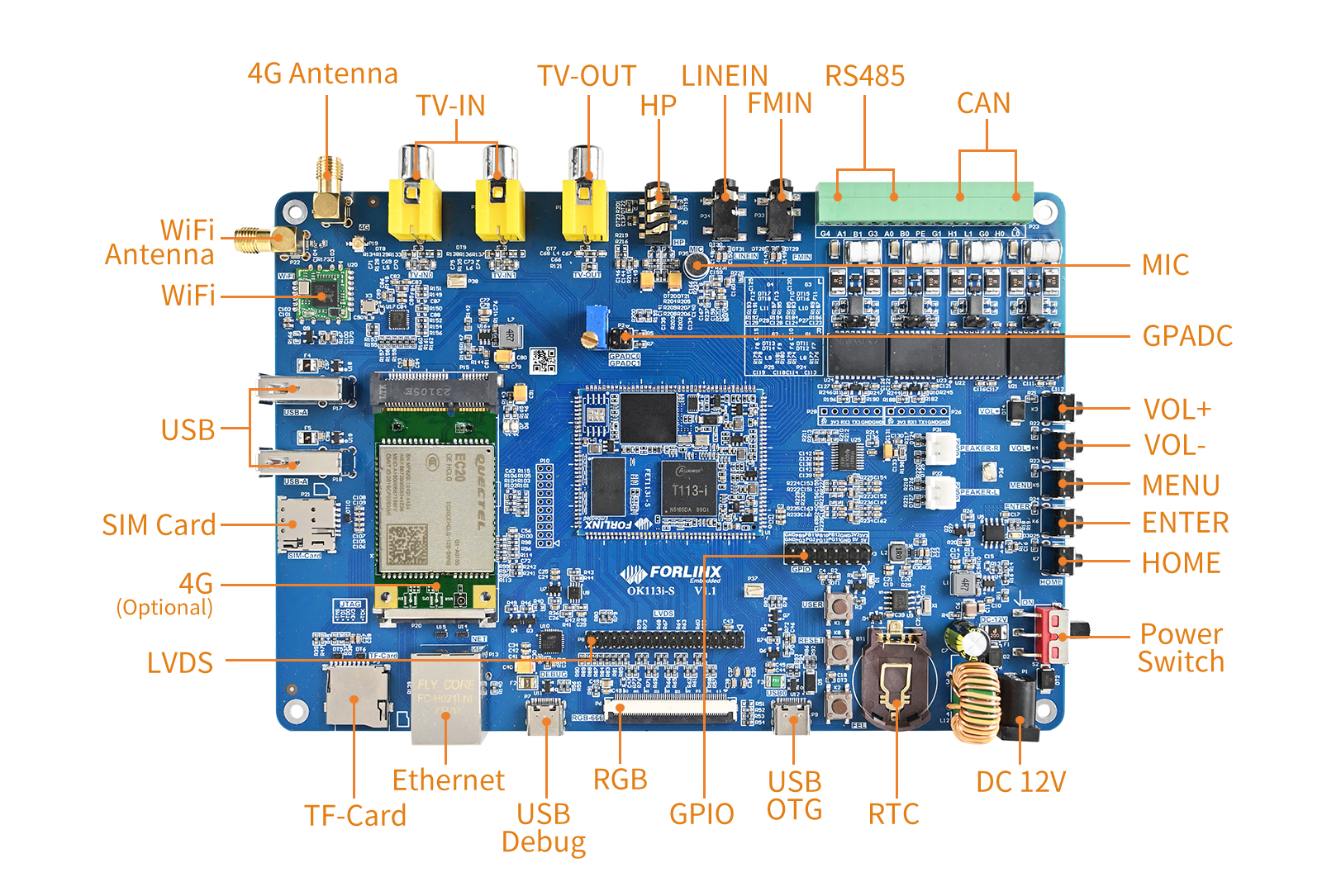

FET113i-S SoM
| FET113i-S | OK113i-S |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Allwinner T113-i (Dual-core Cortex-A7) | Frequency | 1.2 GHz |
| Coprocessor | RISC-V (XuanTie C906) | DSP | HiFi 4 DSP |
| RAM | 512MB DDR3 | ROM | 8GB eMMC / 256MB Nand Flash |
| OS Support | Linux 5.4.61 | Input Voltage | DC 5V |
| Operating Temp. | -40°C to +85°C | Interconnect | Stamp-hole connector (Castellated holes) |
| VPU |
Decoding: H.265 (4K@30fps), H.264 (4K@24fps), H.263/MPEG/JPEG/Xvid (1080p@60fps) Encoding: JPEG/MJPEG (1080p@60fps) |
||
| Display Output |
Multiplexed Interface (Select 1 of 3): 1x RGB, 1x LVDS, or 1x MIPI_DSI; Independent Output: 1x CVBS_OUT |
||
| Camera Interface | 1x CSI (Pixel clock up to 148.5MHz) | Video Input | 2x CVBS_IN (NTSC/PAL support) |
| Audio I/O | Audio Out ≤2, Audio In ≤5 | I2S / DMIC | I2S ≤3, DMIC 1x |
| UART | ≤5 | USB | 1x USB DRD, 1x USB HOST |
| Ethernet | 1x EMAC | OWA | 1x (One Wire Audio) |
Application Areas
- Rail Transit, Power Energy, Industrial Control, Security Monitoring, Conference Systems, Portable Devices, etc.
Texas Instruments Series System on Module

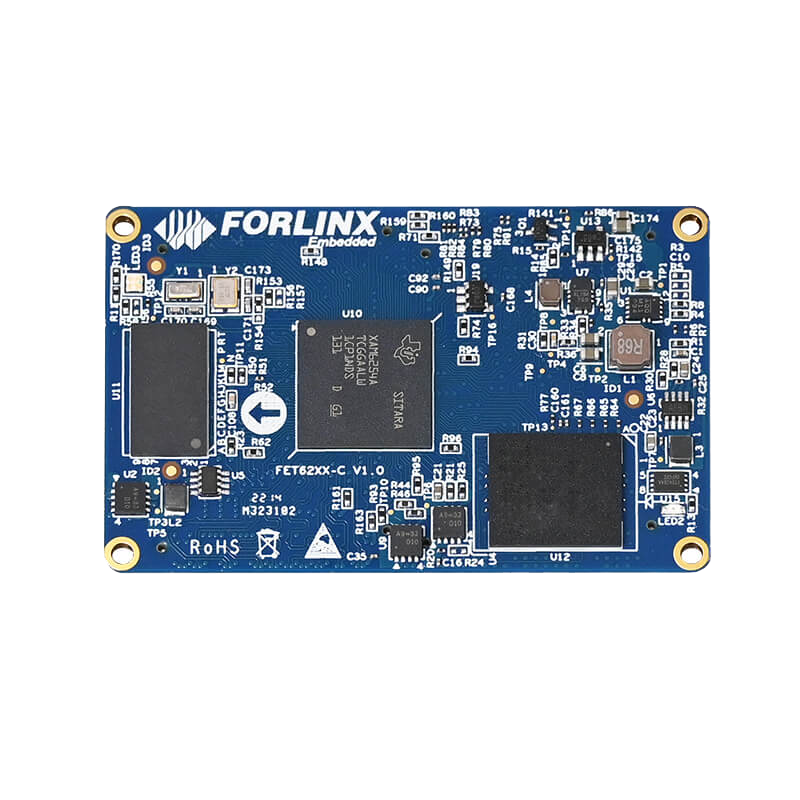

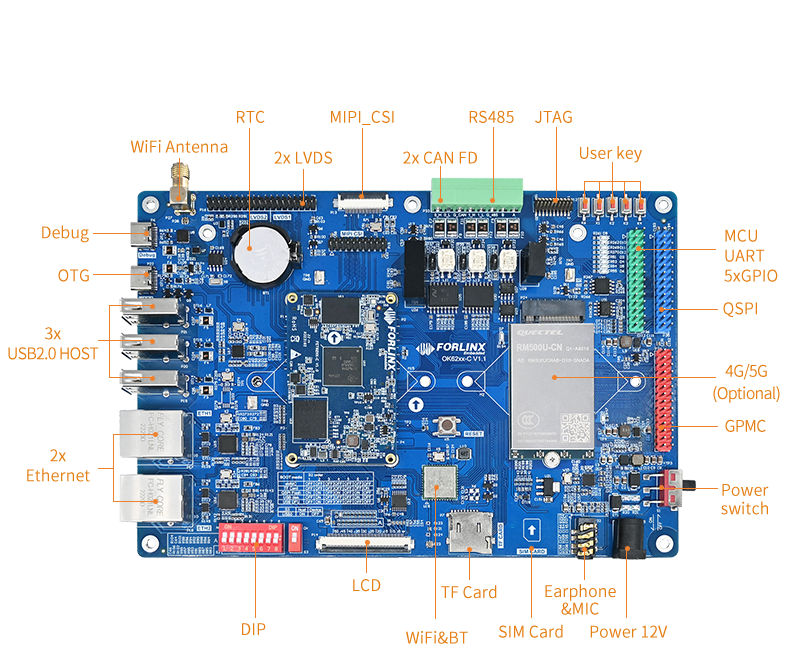

FET62xx-C SoM
| FET62xx-C | OK62xx-C |
|---|---|
|
|
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| Processor |
SoC: TI AM62x (AM6254/AM6231/AM6232), 1/2/4x Cortex-A53 @ 1.0/1.4GHz MCU: Cortex-M4F @ 400 MHz GPU: AXE1-16M @ 500MHz (OpenGL 3.x/2.0/1.1, Vulkan 1.2) |
||
| RAM | 1GB / 2GB DDR4 | ROM | 8GB eMMC |
| OS Support | Linux 6.1.33 | Input Voltage | 5V DC |
| Operating Temp. | -40°C to +85°C | Dimensions | 38mm x 60mm |
| Interconnect | Board-to-board connectors (4x 80-pin, 0.5mm pitch) | ||
| LVDS | 2x 4-lane Serial Display Port | RGB Parallel | 1x 24-bit Parallel RGB Interface |
| MIPI CSI | 1x 4-lane Camera Interface | SD/SDIO | 2x 4-bit (Up to UHS-I) |
| Ethernet | ≤2 | USB | 2x USB 2.0 |
| UART | ≤9 | CAN-FD | ≤3 |
| SPI | ≤5 | I2C | ≤6 |
| PWM | ≤3 | Audio | ≤3 |
| eQEP | ≤3 | eCAP | ≤3 |
| GPMC | 1x | OSPI/QSPI | 1x |
| JTAG | 1x | ||
Application Areas
- Industrial Automation, Power, Medical Instruments, Transportation, Industrial HMI, Charging Pile TCU, Industrial Controller, Data Acquisition Gateway, PCR, Blood Analyzer, etc.
Nuvoton Series System on Module

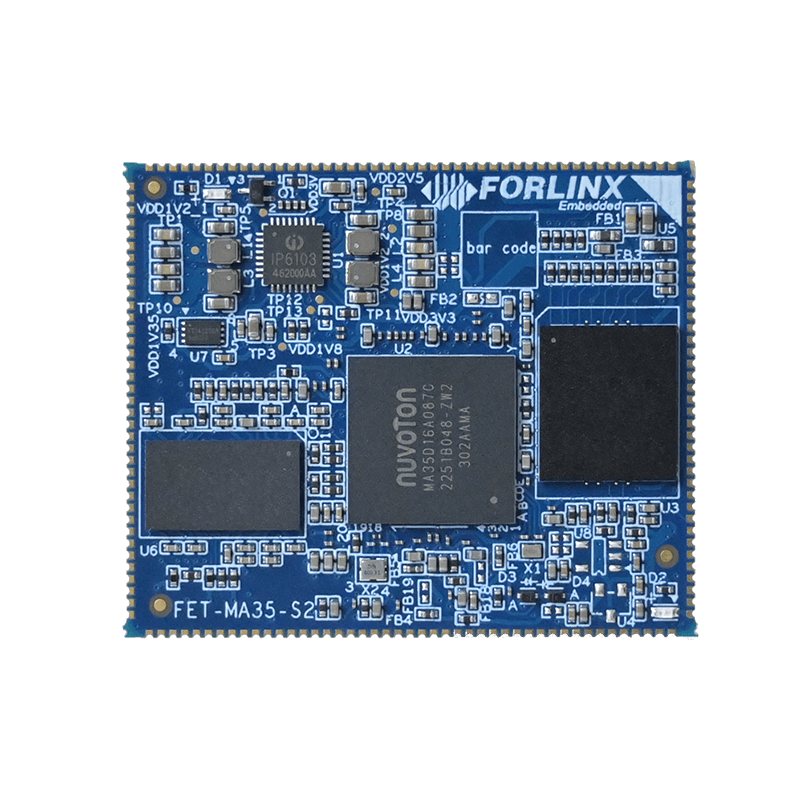

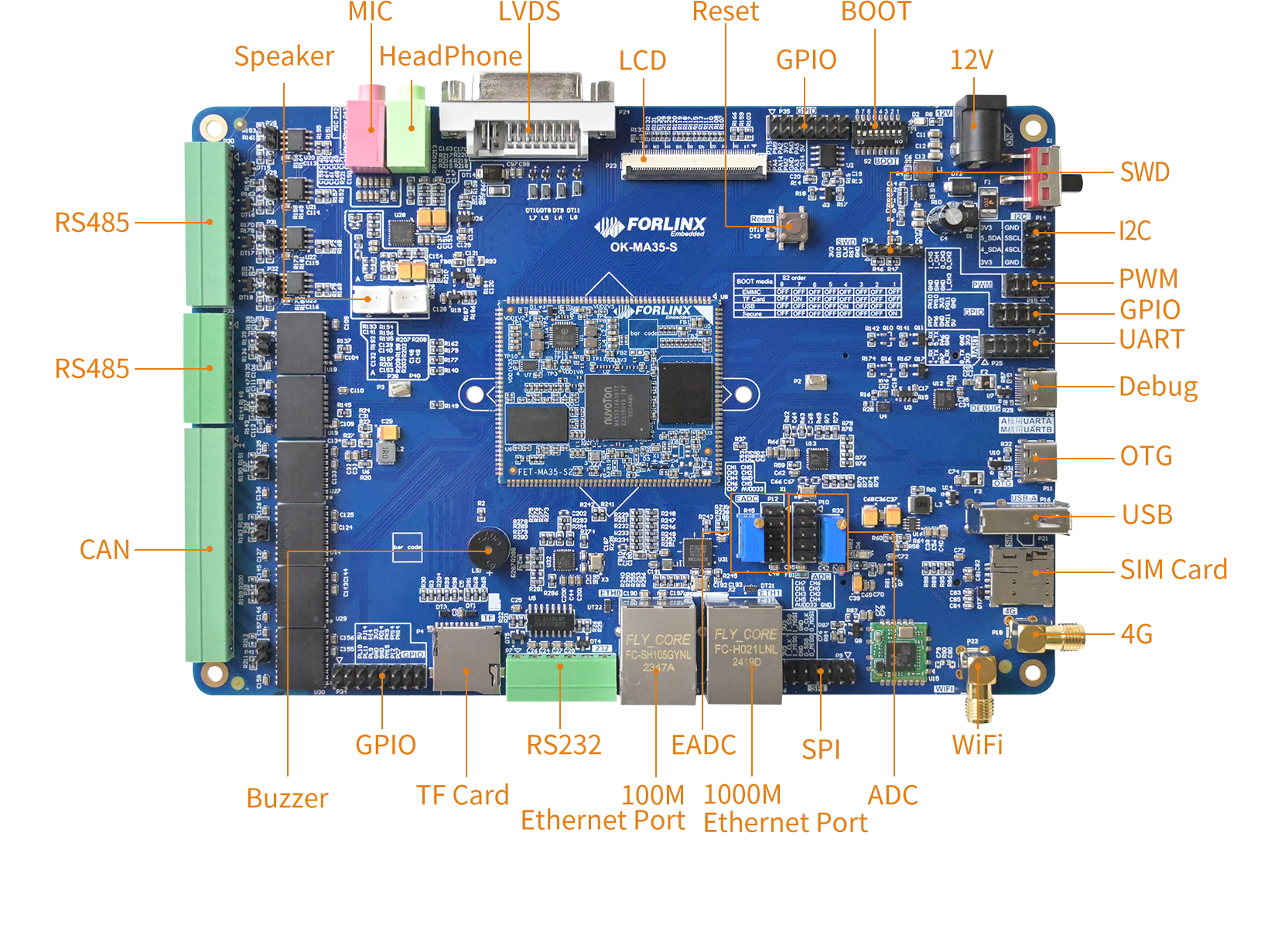

FET-MA35-S2 SoM
| FET-MA35-S2 | OK-MA35-S2 |
|---|---|
|
|
SoM Parameter
| Item | Parameter Description | Item | Parameter Description |
|---|---|---|---|
| Processor | Nuvoton MA3501 | CPU | 2 × Cortex-A35@800MHz + Cortex-M4@180MHz |
| GPU | 2D GPU | Decoding Capability | H.264 / MVC / SVC, up to 1080p@45fps |
| RAM | 512MB / 1GB DDR3L | ROM | 8GB eMMC |
| Working Voltage | DC 5V | Operating Temperature | −40℃ ~ +85℃ |
| Connection | LCC+LGA（260pin） | Dimensions | 40mm × 48mm |
| USB | 1 × USB2.0 Host, 1×USB2.0 OTG | RGB | 1 x RGB888, up to 1920×1080 |
| CSI | ≤2, up to 3MP | EPWM | ≤18 EPWM |
| ADC | 8 x, 10bit, 500K SPS, supporting resistive touch (4/5 wire) | EADC | ≤8, 10bit，4.7M SPS |
| OS | Linux 5.10 | Ethernet | ≤2, 10/100/1000M（RGMII/BMII） |
| UART | ≤17, up to 9.5Mbps | ISO7816 | ≤2, supporting ISO-7816-3 |
| QSPI | ≤2, master/slave mode, up to 100MHz | SPI | ≤4, master/slave mode, up to 100MHz |
| I2S | ≤2, supporting master and slave | I2C | ≤ 5, 7/10 bit address mode, up to 1Mbit/s |
| CAN-FD | ≤4, supporting CAN-FD 1.0 and CAN2.0A/B | SDIO | 1 x（SD0）, 4bit, only 3.3V |
Application Areas
- Charging Piles, Industrial Control, Edge Gateways, New Energy, Power, and Fire Protection
Pin2Pin UP4 System on Module

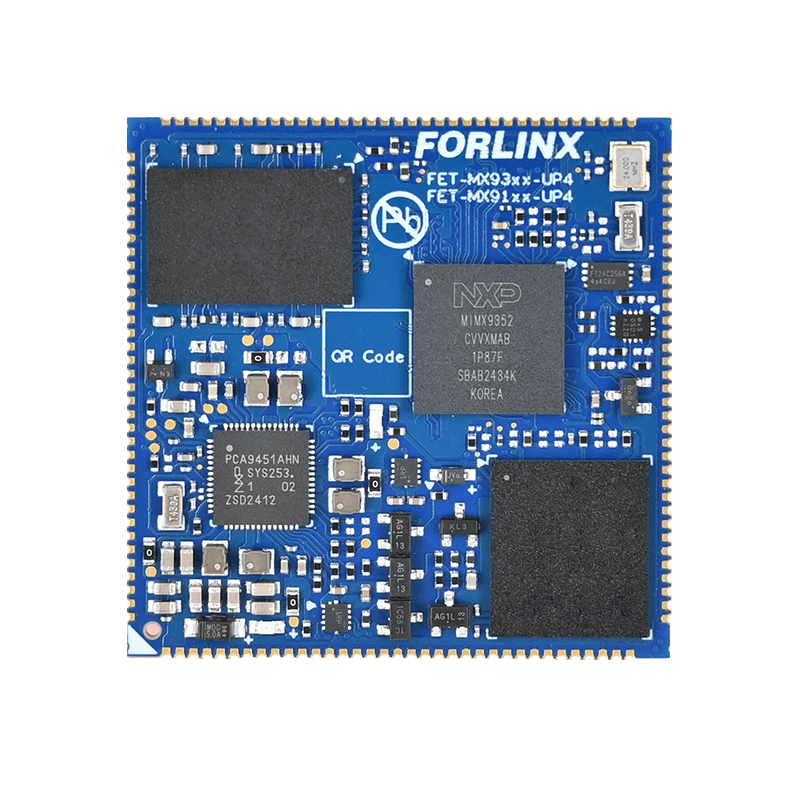

FET-MX9352-UP4 SoM
| FET-MX9352-UP4 | OK-MX9352-UP4 |
|---|---|
|
|
SoM Parameter
| Feature/Function | Max Support | UP4 Standard | Notes/Details |
|---|---|---|---|
| Processor | - | NXP i.MX9352 | 2×Cortex-A55 @1.7GHz + 1×Cortex-M33 @250MHz |
| AI Support | - | 0.5 TOPS NPU | Integrated NPU |
| Memory/Storage | - | 1GB / 8GB | LPDDR4 / eMMC |
| Operating Voltage | - | DC 5V | System power supply |
| Operating Temp | - | -40℃ ~ +85℃ | Industrial grade |
| Connection | - | LCC+LGA | 487 pins, LCC pitch 1.0mm, LGA pitch 1.27mm |
| MIPI CSI | 1 | 1 | Up to 2 Rx lanes, 1.5 Gbps per lane, 150Mpixel/s |
| Ethernet | 2 | 2 | RGMII, 1x TSN, 2x IEEE 1588 |
| LCD (RGB) | 1 | 1 | 24-bit parallel RGB, up to 1366x768p60 |
| LVDS | 1 | 1 | Single ch (4-lane), up to 1366x768p60 |
| MIPI DSI | 1 | 1 | 4-lane, up to 1920x1200p60, 1.5Gbps per lane |
| USB 2.0 | 2 | 2 | Integrated PHY, Master-Slave switch |
| SD/SDIO | 2 | 2 | uSDHC2 (4-bit SD3.0, 100MB/s), uSDHC3 (4-bit SDIO3.0) |
| CAN-FD | 2 | 1 | ISO11898-1 / CAN 2.0B |
| UART | 8 | - | Max baud rate 5Mbps |
| I2C | 8 | 3 | Supports modes up to 5000 Kbit/s |
| I3C | 2 | - | Improved I2C, Backward compatible |
| SPI | 8 | - | Support Master/Slave mode configurations |
| ADC | 4 | 4 | 12-bit, 4-ch, 1MS/s |
| SAI (Audio) | 3 | 1 | I2S, AC97, TDM, DSP, Sampling 8kHz-384kHz |
| MQS | 2 | - | Medium quality audio via GPIO |
| PDM | 3 | - | 24-bit, High AOP MIC support |
| TPM (PWM) | 6 | 3 | 16-bit Timer/PWM/Capture |
| JTAG | 1 | 1 | 2x4 2.54mm pin lead out |

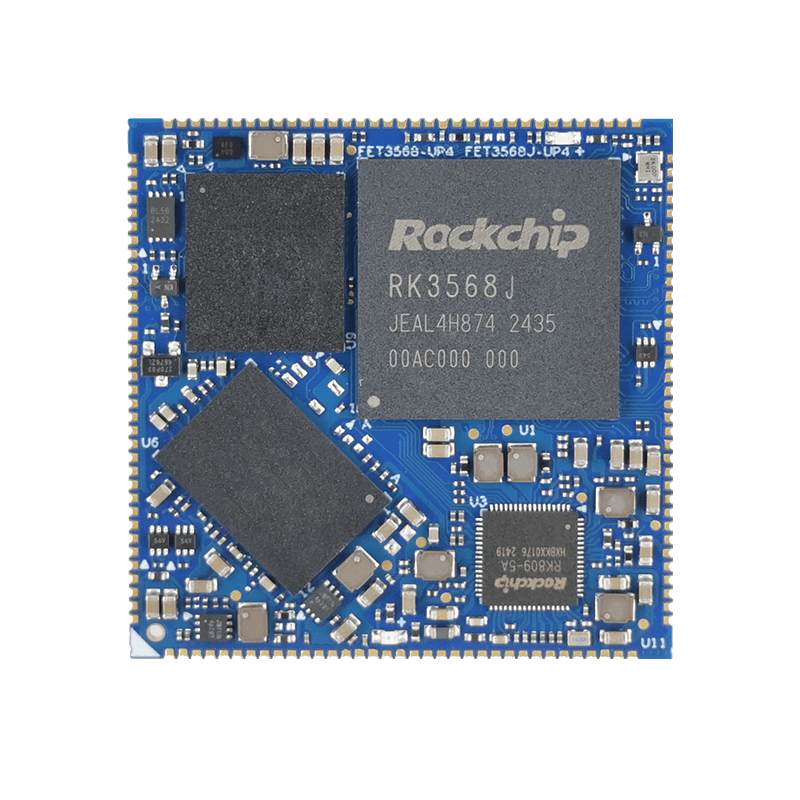

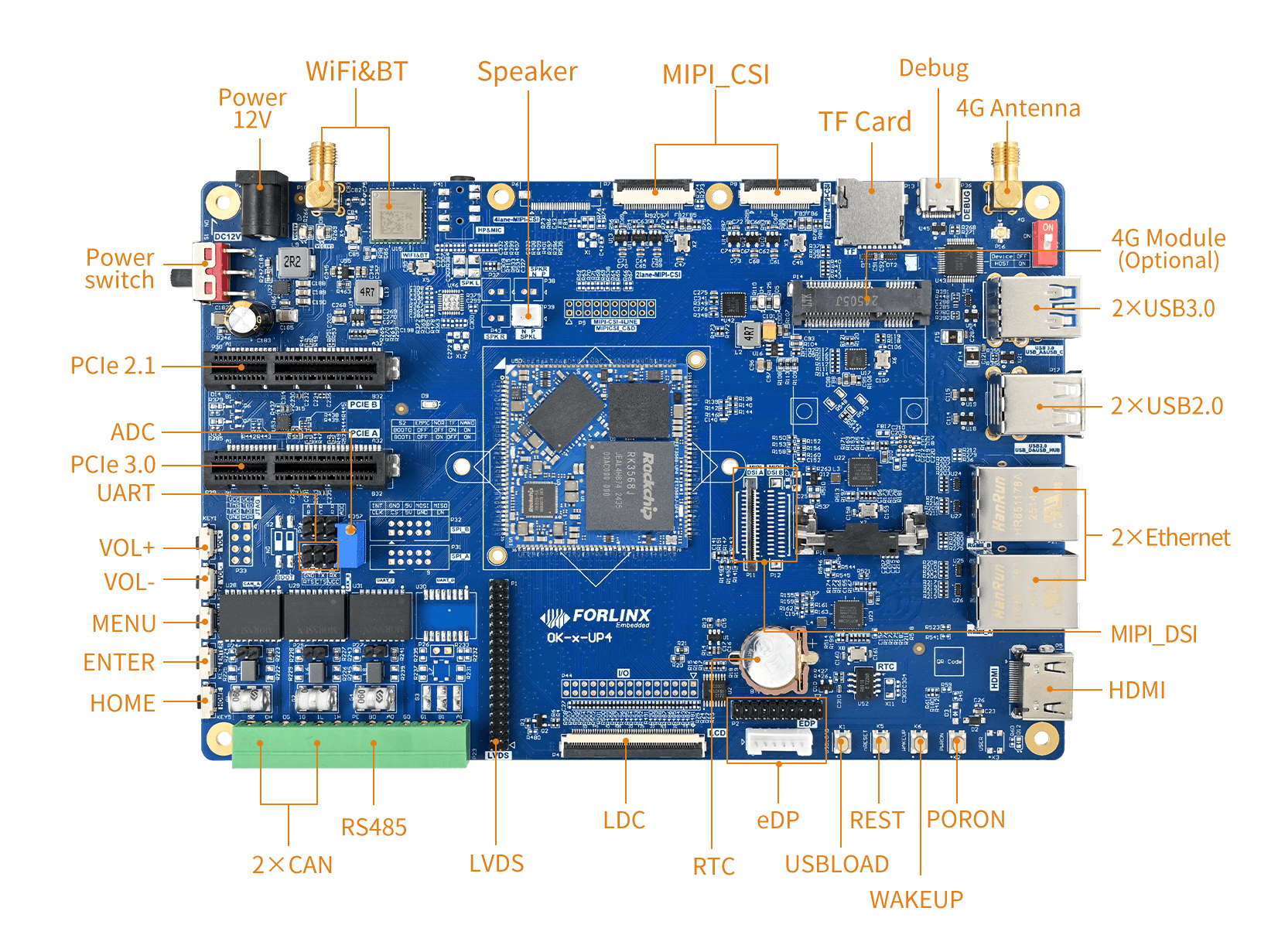

FET3568J-UP4 SoM
| FET3568J-UP4 | OK3568J-UP4 |
|---|---|
|
|
SoM Parameter
| Feature/Function | Max Support | UP4 Standard | Notes/Details |
|---|---|---|---|
| Processor | - | Rockchip RK3568B2/J | Quad-core Cortex-A55 @2.0GHz/1.8GHz |
| AI Support | - | 1 TOPS NPU | INT8/INT16/FP16/BFP16 |
| Memory/Storage | - | 4GB/8GB + 32GB/64GB | LPDDR4X / eMMC |
| Operating Temp | - | -40℃ ~ +85℃ | Industrial grade |
| Connection | - | LCC + LGA | 487 pins, Pin pitch 1mm |
| MIPI DSI | 2 | 1 | 4-lane, up to 1920x1080@60Hz |
| HDMI | 1 | 1 | HDMI 2.0, up to 4096x2304@60Hz |
| LVDS | 1 | 1 | Single ch (4-lane), up to 1280x800@60Hz |
| eDP | 1 | 1 | 4-lane eDP V1.3, up to 2560x1600@60Hz |
| LCD (RGB) | 1 | 1 | RGB 888, up to 1280x800 |
| MIPI CSI | 2 | 2 | 2x 2-lane MIPI-CSI |
| Ethernet | 2 | 2 | 2x GMAC, RGMII/RMII |
| USB 2.0 | 2 | 2 | Host, independent port |
| USB 3.0 | 2 | 2 | 1x Host, 1x OTG (operable as USB 2.0) |
| PCIe 2.1 | 1 | 1 | 1-lane, up to 5.0Gbps, RC mode |
| PCIe 3.0 | 2 | 1 | 2-lane, up to 8.0Gbps, RC/EP mode |
| SDIO | 2 | 2 | SDIO 3.0, up to 104MB/s |
| UART | 10 | 3 | Up to 4Mbps |
| CAN | 3 | 2 | CAN 2.0B, up to 1Mbps |
| I2C | 5 | 3 | 7/10-bit address, up to 1Mbit/s |
| PWM | 16 | 4 | 32-bit timer/counter |
| ADC | 8 | 8 | 10-bit, single-ended, 1MS/s |
| FSPI | 1 | 1 | Serial NOR/NAND Flash & Boot |
| Audio | 4 | 0 | Native MIC, phone, speaker |
| SPI | 4 | 0 | - |
| SATA | 3 | 0 | - |

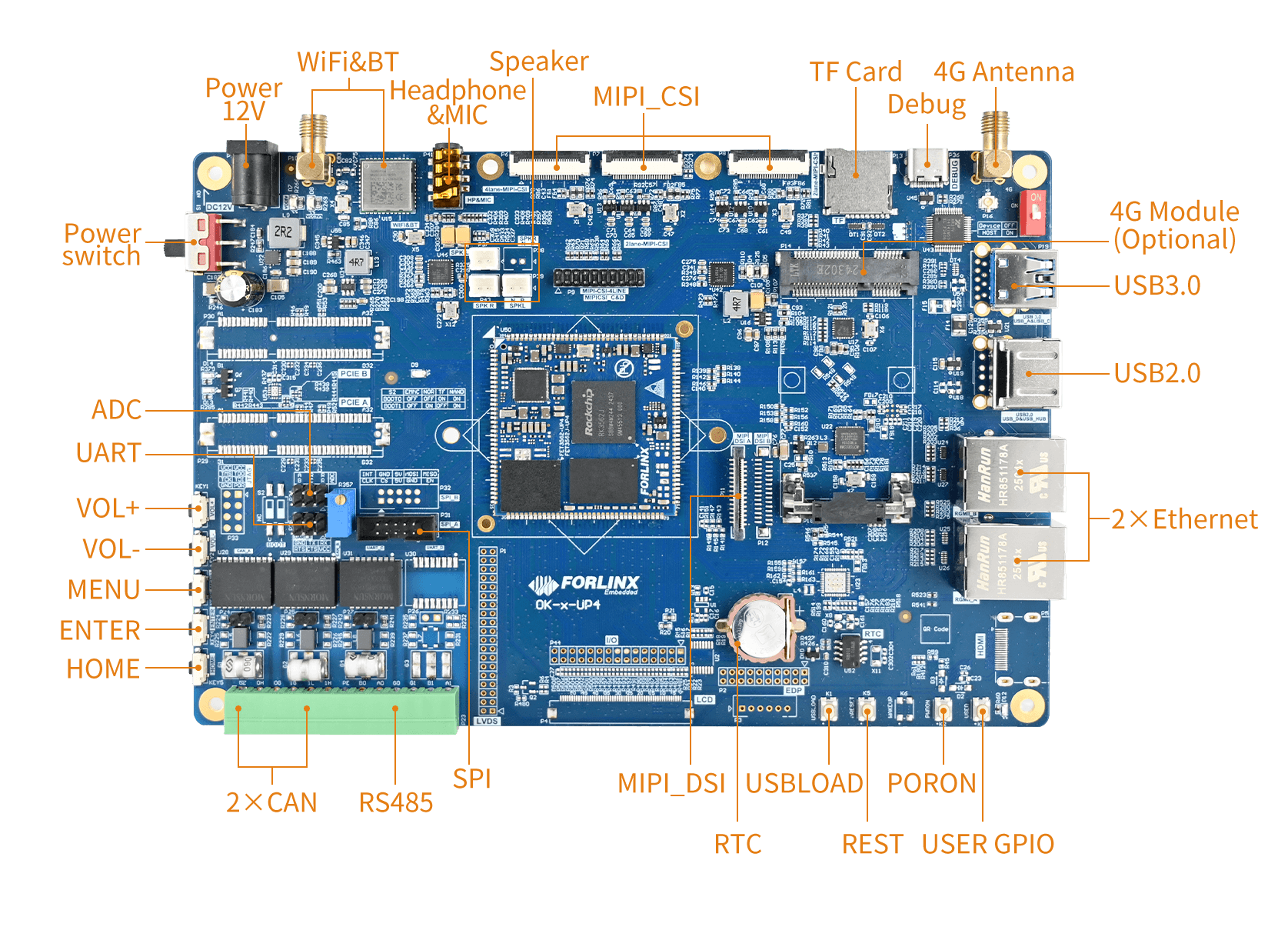

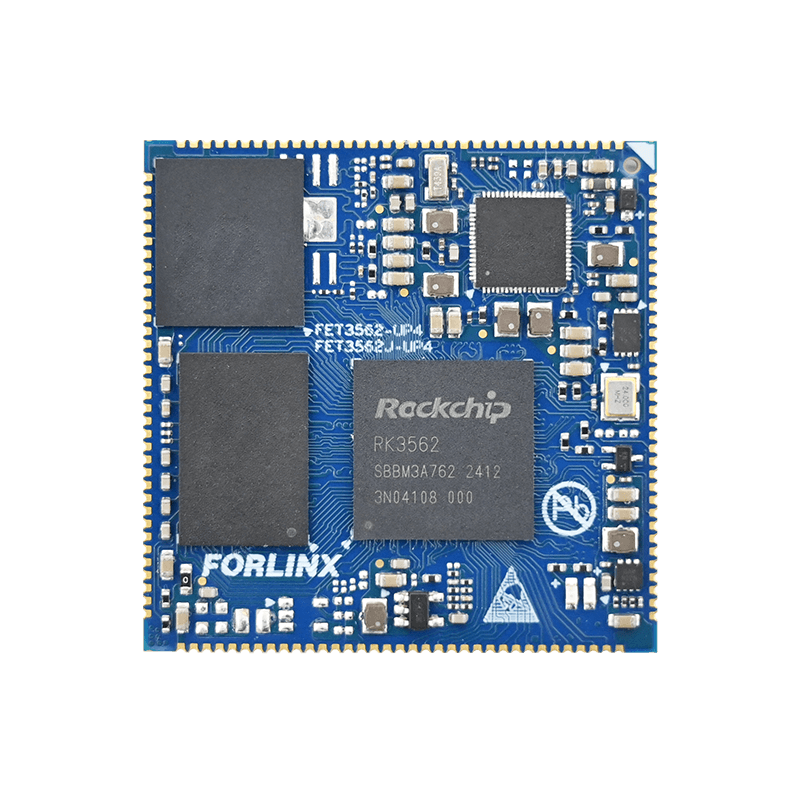

FET3562J-UP4 SoM
| FET3562J-UP4 | OK3562J-UP4 |
|---|---|
|
|
SoM Parameter
| Feature/Function | Max Support | UP4 Standard | Notes/Details |
|---|---|---|---|
| Processor | - | Rockchip RK3562J | 4×Cortex-A53 @1.8GHz |
| GPU | - | Mali-G52-2EE | OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.0/1.1 |
| VPU | - | H.264/H.265/VP9 | Enc: 1080p60; Dec: 4K@30fps / 1080p60 |
| AI Support | - | 1 TOPS NPU | INT8 (supporting INT4/INT8/INT16/FP16) |
| Memory/Storage | - | 1GB/2GB + 8GB/16GB | LPDDR4 / eMMC |
| Operating Temp | - | -40℃ ~ +85℃ | Industrial grade |
| Working Voltage | - | DC 5V | System power supply |
| Connection | - | LCC+LGA | 487 pins, LCC pitch 1mm, LGA pitch 1.27mm |
| USB 2.0 | 1 | 1 | Supports 1 x USB2.0 HOST, up to 480Mbps |
| USB 3.0 | 1 | 1 | Supports USB3.0 master and slave mode |
| Ethernet | 2 | 2 | Supports one RGMII and one RMII |
| PCIe | 1 | / | PCIe 2.1, RC mode only, 5Gbps, muxed with USB3.0 |
| LVDS | 1 | / | VESA/JEIDA format, up to 800 x 1280 @ 60Hz |
| MIPI-DSI | 1 | 1 | 1 x MIPI DSI TX, 4-lanes, up to 2048 x 1080 @ 60Hz |
| RGB | 1 | / | RGB 888 format, up to 1280 x 800 |
| MIPI-CSI | 4 | 4 | 2 ports total; 4-lanes @ 2.5 Gbps; can be split into 2-lanes |
| SD card | 1 | 1 | SDIO 3.0 protocol, 4-bit width |
| SDIO | 1 | 1 | SDIO 3.0 protocol, 4-bit width |
| UART | 10 | 3 | Flow control on A/B, max 4Mbps |
| SPI | 3 | 1 | Support master and slave modes |
| I2C | 5 | 3 | Standard (100kbit/s) and Fast (400kbit/s) modes |
| ADC | 16 | 4 | 3x 10-bit (1MS/s) + 1x 6-bit (key detection) |
| SAI | 2 | 1 | I2S, PCM, TDM, up to 192kHz |
| Audio | 1 | 1 | Built-in codec: Mono Speaker 1.3W, Headphone out, 2x MIC |
| PDM | 1 | / | Up to 8 channels, 192KHz, master receive |
| SPDIF | 1 | / | - |
| CAN | 2 | 2 | CAN2.0 B, 1Mbps |
| PWM | 16 | 1 | - |

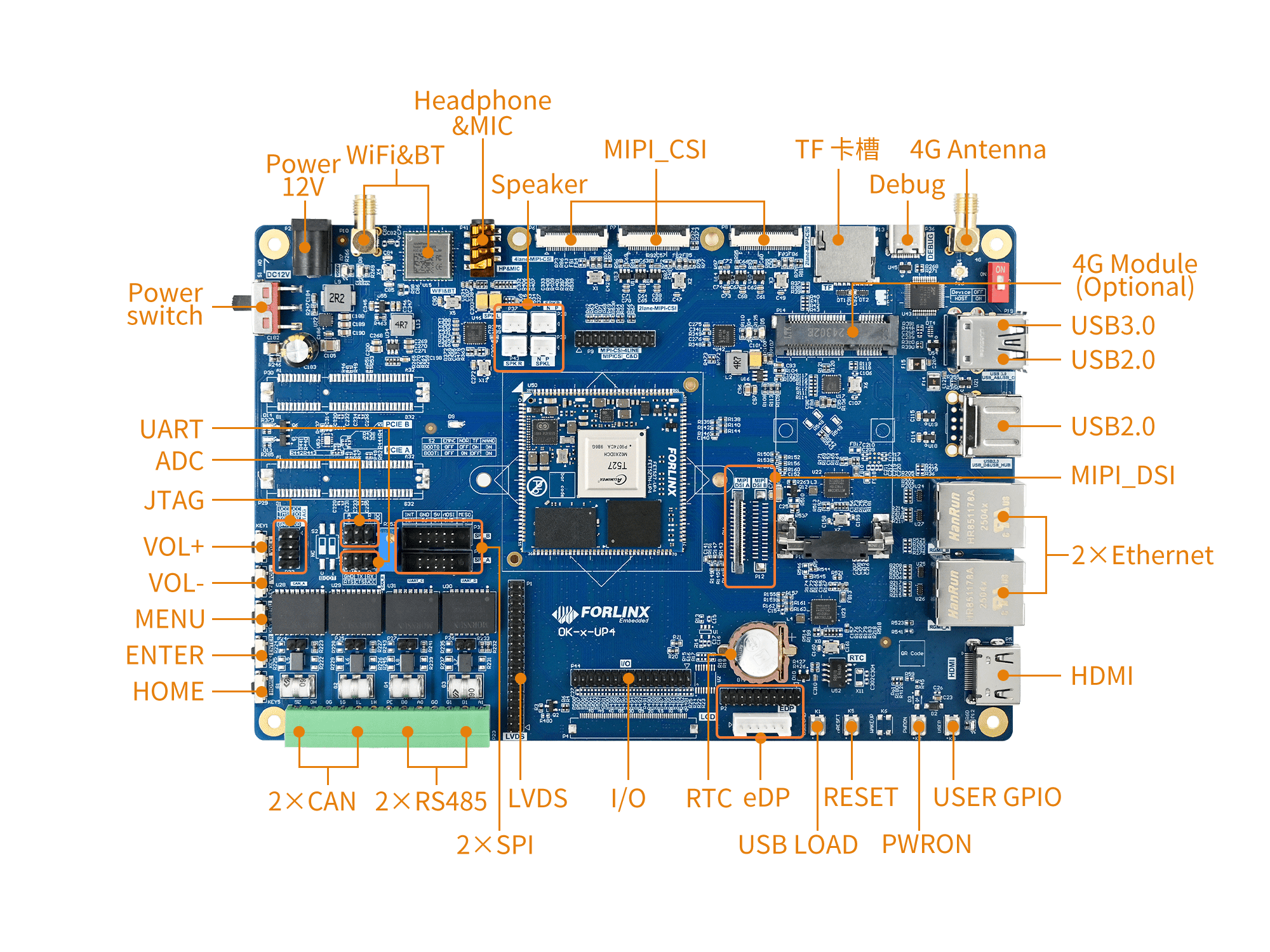

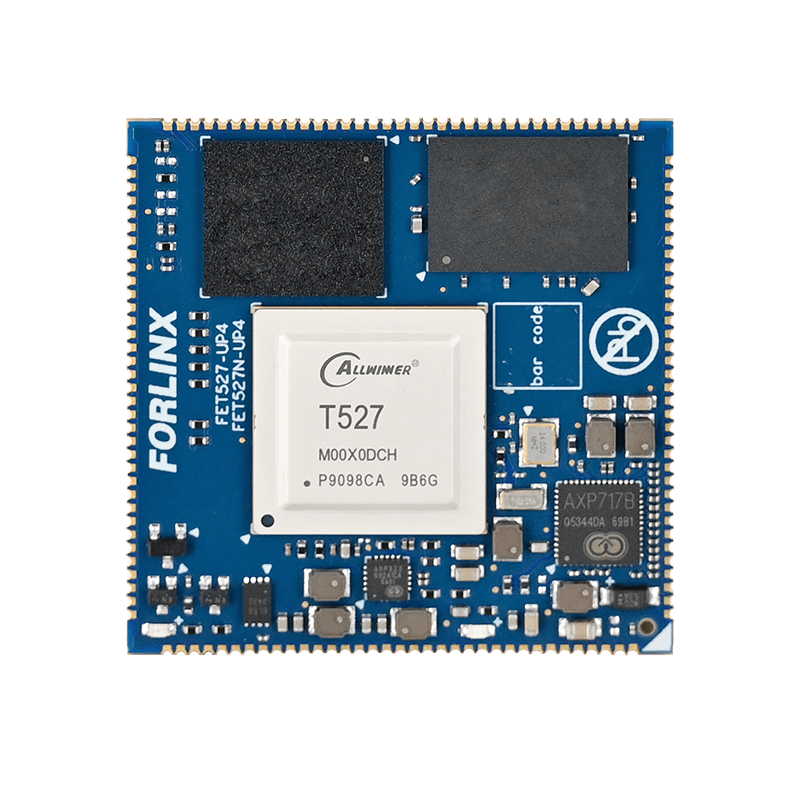

FET527N-UP4 SoM
| FET527N-UP4 SoM | FET527N-UP4 SoM |
|---|---|
|
|
SoM Parameter
| Feature/Function | Max Support | UP4 Standard | Notes/Details |
|---|---|---|---|
| Processor | - | Allwinner T527N | 4×[email protected] + 4×[email protected], RISC-V, DSP HiFi4 |
| GPU | - | ARM G57 MC1 | Graphics acceleration |
| VPU | - | 4K H.264/H.265 | Enc: 4K@25fps; Dec: 4K@60fps |
| AI Support | - | 2 TOPS NPU | INT8/INT16, 40+ operators |
| Memory/Storage | - | 2GB/4GB + 16GB/32GB | LPDDR4 / eMMC |
| Operating Temp | - | -40℃ ~ +85℃ | Industrial / Extended options |
| Working Voltage | - | DC 5V | System power supply |
| Connection | - | LCC+LGA | 487 pins, stamp hole pitch 1mm, LGA pitch 1.27mm |
| Parallel CSI | 1 | / | 8/10/12/16-bit, BT.656/BT.1120 |
| MIPI CSI | ≤4 | 3 | 4+2+2-lane. Max: 8M@30fps RAW12 |
| MIPI DSI | ≤2 | 1 | 4-lane, up to 1920x1200@60fps |
| RGB | ≤2 | / | DE/SYNC mode, up to 1080p60 |
| LVDS | ≤2 | 1 | Dual link 1080p60, single link 768p60 |
| eDP 1.3 | 1 | 1 | Up to 4K@30fps / 2.5K@60fps, with audio |
| HDMI 2.0 | 1 | 1 | 4K@60fps (2D), 4K@30fps (3D), with audio |
| USB | ≤3 | 3 | 1x USB 3.0 OTG, 1x USB 2.0 OTG, 1x USB 2.0 Host |
| PCIe 2.1 | 1 | / | RC mode, 1-lane, 5Gbps |
| SDIO | ≤2 | 2 | SDC0 (SD Card), SDC1 (SDIO 3.0), up to 200MHz SDR |
| GMAC | ≤2 | 2 | RMII/RGMII, 10/100/1000 Mbps |
| Audio Codec | 1 | 1 | 1x Stereo HP out, 2x Diff Line-out, 1x Diff MIC in |
| I2S/PCM | ≤4 | 1 | 8kHz - 384kHz sampling rate |
| DMIC | 1 | 2 | 8-channel, 8kHz - 48kHz |
| OWA IN/OUT | 1 | / | Single-wire audio |
| CAN | ≤2 | 2 | Up to 1Mbps |
| SPI | ≤4 | 2 | SPI2 (Master/Slave), SPI1 (SPI/DBI), up to 100MHz |
| TWI (I2C) | ≤8 | 3 | I2C compatible, 100/400 kbps |
| UART | ≤10 | 3 | 16450/16550 compatible |
| GPADC | 14 | 3 | 12-bit resolution, 1MHz max sampling |
| LRADC | 2 | 1 | 6-bit resolution, 2KHz (for key detection) |
| PWM | ≤30 | 3 | 0~24MHz or 0~100MHz |
| CIR TX/RX | 1 | / | IR TX/RX |

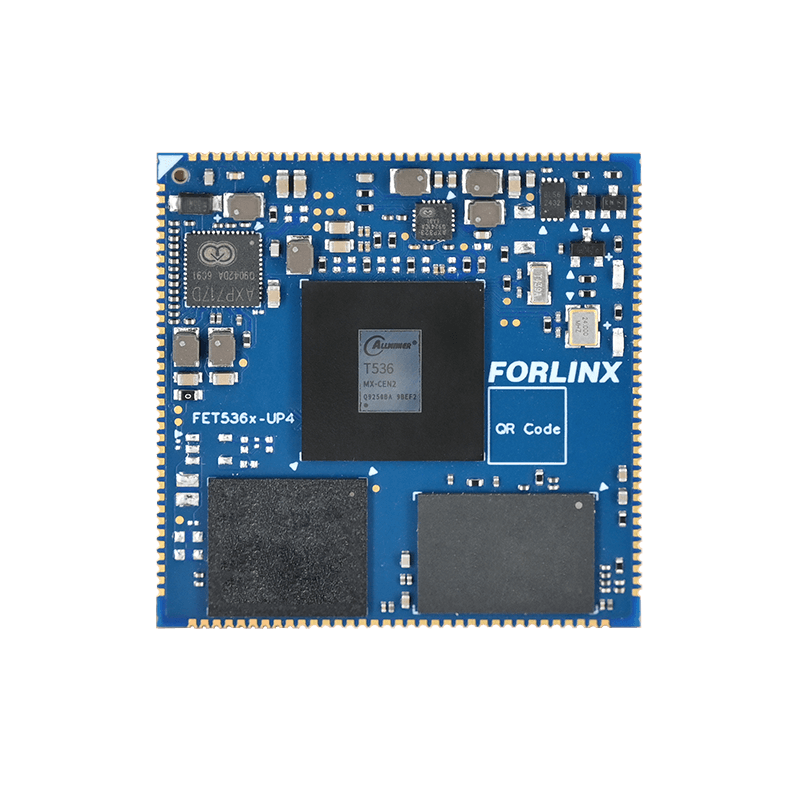

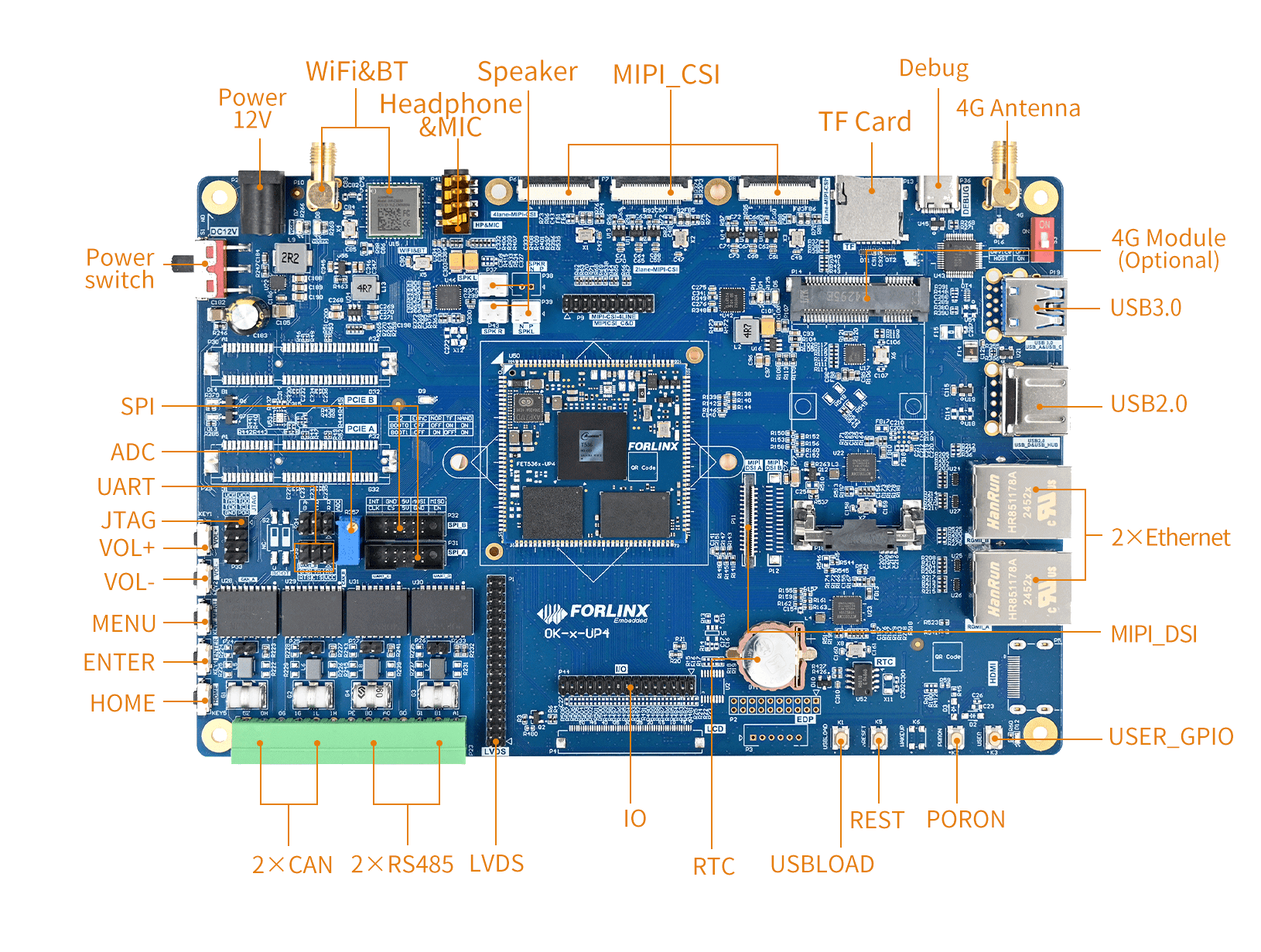

FET536-UP4 SoM
| FET536-UP4 | OK536-UP4 |
|---|---|
|
|
SoM Parameter
| Feature/Function | Max Support | UP4 Standard | Notes/Details |
|---|---|---|---|
| Processor | - | Allwinner T536 | 4×Cortex-A55 | RISC-V: XuanTie E907@600MHz |
| AI Support | - | 2 TOPS NPU | Integrated NPU |
| VPU | - | 4K Video Engine | Dec: MJPEG 4K@15fps; Enc: H.264 4K@25fps, JPEG 8Kx8K |
| Memory/Storage | - | 1GB/2GB/4GB + 8GB/16GB/32GB | LPDDR4 / eMMC |
| Operating Temp | - | -40℃ ~ +85℃ | Industrial grade |
| Working Voltage | - | DC 5V | System power supply |
| Connection | - | LCC+LGA | 487 pins, stamp hole pitch 1mm, LGA pitch 1.27mm |
| Parallel CSI | ≤1 | / | 8/10/12/16-bit, BT.656 up to 4x 720p30 |
| MIPI CSI | ≤4 | 4 | 8M@30fps RAW12, Config: 4+4 / 4+2+2 / 2+2+2+2-lane |
| MIPI DSI | ≤1 | 1 | 4-lane, up to 1920x1200@60fps |
| RGB LCD | ≤1 | / | DE/SYNC mode, up to 1920x1200@60fps |
| LVDS | ≤2 | 1 | Dual link 1080p60, single link 768p60 |
| SDIO | ≤2 | 2 | SMHC0 (SD), SMHC1 (SDIO), 1.8V only |
| USB 3.1 | ≤1 | 1 | OTG, 5Gbps |
| PCIe 2.1 | ≤1 | / | RC/EP mode, 1-lane, 5Gbps |
| USB 2.0 DRD | 1 | / | DRD (Master/Slave), 480Mbps |
| USB 2.0 HOST | 1 | 1 | Host only, 480Mbps |
| GMAC | ≤2 | 2 | RMII/RGMII, 10/100/1000 Mbps |
| Audio | ≤1 | 1 | Built-in codec, 1x Diff Line-out |
| I2S | ≤4 | 1 | Master/Slave, 8kHz - 384kHz |
| DMIC | ≤1 | / | 8-channel, 8kHz - 48kHz |
| OWA IN/OUT | ≤1 | / | Single-wire audio |
| CAN-FD | ≤4 | 2 | CAN-FD and CAN 2.0B |
| Local Bus | ≤1 | / | 8/16/32-bit, up to 100MHz |
| SPI | ≤5 | 2 | Master/Slave, up to 100MHz |
| TWI (I2C) | ≤8 | 3 | I2C compatible, 100/400 kbps |
| UART | ≤17 | 3 | 16450/16550 compatible |
| GPADC | ≤28 | 3 | 12-bit resolution, 2MHz max sampling |
| LRADC | 1 | 1 | 6-bit resolution, 2KHz (for key detection) |
| TPADC | ≤1 | / | 4-wire resistive touch, 12-bit SAR |
| PWM | ≤34 | 4 | 0~24MHz or 0~100MHz |
| LEDC | ≤1 | / | Programmable LED control, up to 800 kbps |
| IR TX | ≤1 | / | Infrared output |
| IR RX | ≤5 | / | Infrared receiving |
Forlinx Embedded Computer

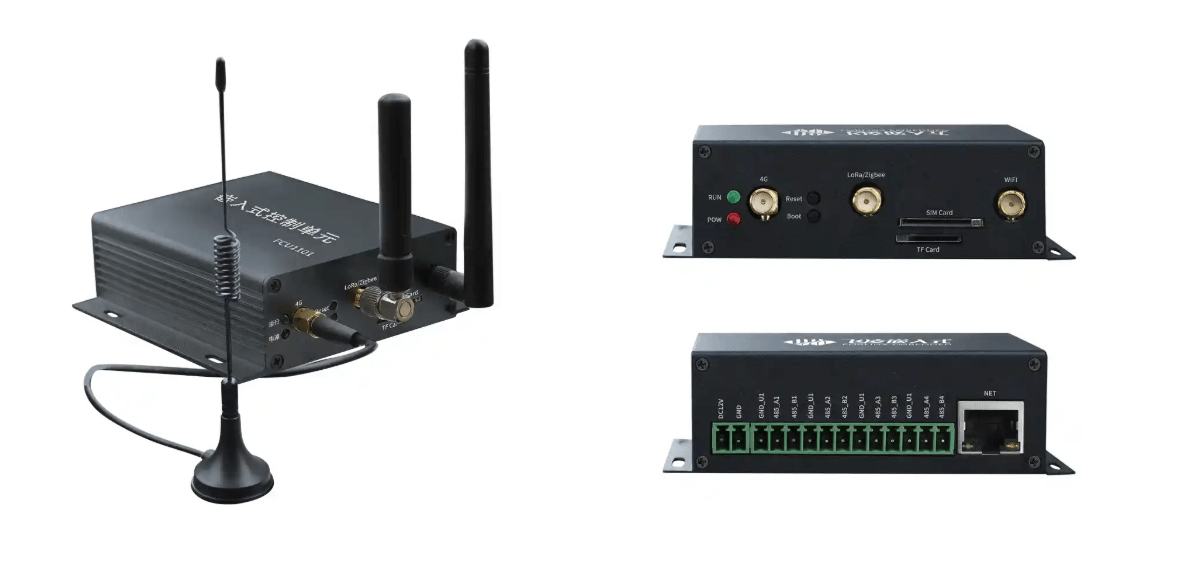

FCU1101 Basic Configuration 4G Gateway
ZigBee gateway, LoRa gateway, RS485 gateway
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6UltraLite, Cortex-A7, 528MHz | RTC |
On-board CR2032 battery,
power off for at least one year, NTP automatic timing |
| RAM | 256MB LvDDR3 | Encryption |
IIC interface, with an on - board encryption chip,
default to be un - soldered. |
| FLASH | 256MB/1GB NandFlash | Watchdog | Supports reset time setting |
| External Storage | Standard TF card interface | Indicator lights | Power indicator, status indicator |
| Mobile Communication | EC20 4G full - network compatibility | Software system |
Linux3.14, file system Yaffs2,
compiler arm - fsl - linux - gnueabi - gcc - 4.6.2 |
| Network |
1 x 10/100M port, self - adapting,
supports TCP/IP, UDP, etc. |
RS485 |
4 x isolated ports, 1.5KV,
supports Modbus RTU protocol |
| WiFi | RL-UM02WBS-8723BU, STA/AP mode | Power In |
DC12V input, DC9V - 36V, with reverse - connection
protection and over - current protection |
| Reset Button | 1 x, used for system reset | Dimensions | 105×100×33mm |
| BOOT Button |
Supports two boot modes:
NandFlash and SD card |
Installation | Fixed by screws |
| Working/Storage Environment |
Humidity 5 - 95%, no condensation;
working temperature - 35~+70℃; storage temperature - 40~+85℃ |
Product overview
- High - efficiency, reliable, and low - cost;
- Supports floating - point operations (hard floating - point);
- Integrates multiple resource interfaces to meet different application requirements;
- Harsh temperature tests ensure stable operation in the environment of - 35~+70℃.

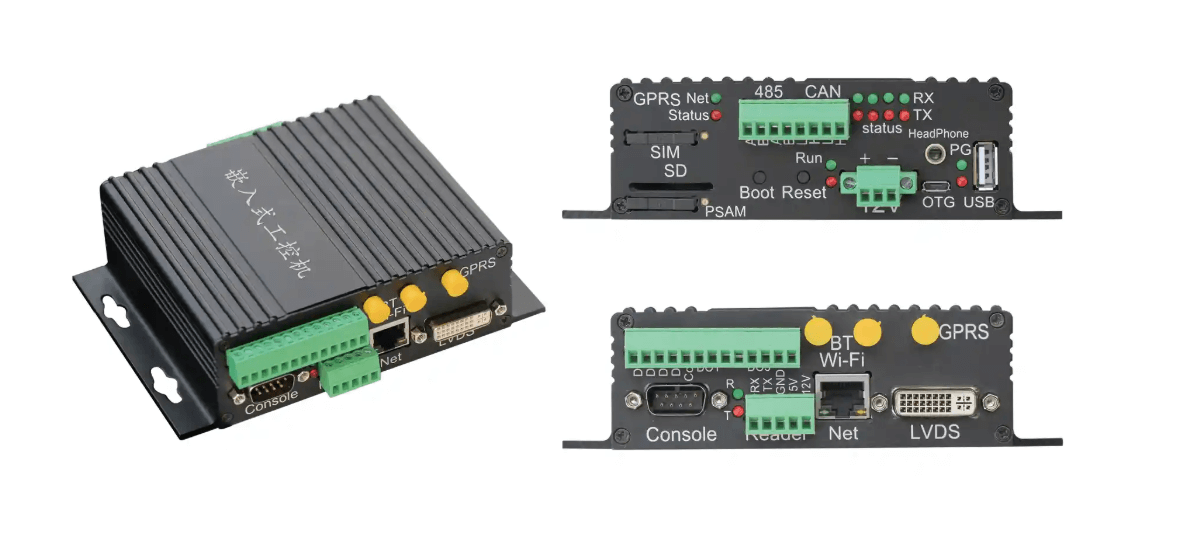

FCU1103 All - purpose 4G Gateway/Controller
Charging pile billing control unit (TCU), display, communication, data collection, and control
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6UltraLite, Cortex-A7, 528MHz | Audio |
1 x headphone port, 1 x built - in microphone,
and 2 x reserved speaker interfaces |
| RAM | 256MB/512MB LvDDR3 | CAN BUS | 2 x electrically isolated ports |
| ROM | 256MB/1GB NAND FLASH, 8GB eMMC | WiFi&BT | RL-UM02WBS-8723BU-V1.2 module |
| Ethernet |
1 x, expandable to 2 x,
10/100M self - adapting |
UART | 5 x |
| External storage |
Standard SD card interface,
up to 64GB SDXC |
RTC |
On - board CR2032 battery, keeps working
for at least one year after power - off |
| Mobile Communication | Supports GPRS/4G, 1 x mini SIM slot | USB | 1 x USB OTG, 1 x USB Host |
| ESAM | Supports ESAM chip, ISO7816 protocol | PSAM | Supports PSAM chip, 1 x mini SIM slot |
| Switching Output | 4 x , isolated by relays | Switching input | 4 x, isolated by optocouplers |
| Display | LVDS display interface (DVI - I socket) | Others | Customizable LOGO |
| Power In |
DC12V, supports DC9 - 15V,
with reverse - connection protection |
Power - off detection and maintenance |
Super capacitor maintains system
operation for at least 15 seconds |
| Dimensions | 147×103×42mm | Installation | Locked by bolts |
| Software System | Linux3.14, Linux4.1.15 | GCC | gcc-4.6.2-linaro-multilib |
Product overview
- Widely used in charging piles, communication gateways, data collection, and human - machine interaction;
- Aluminum alloy case with mounting holes, compact size, and easy to install.

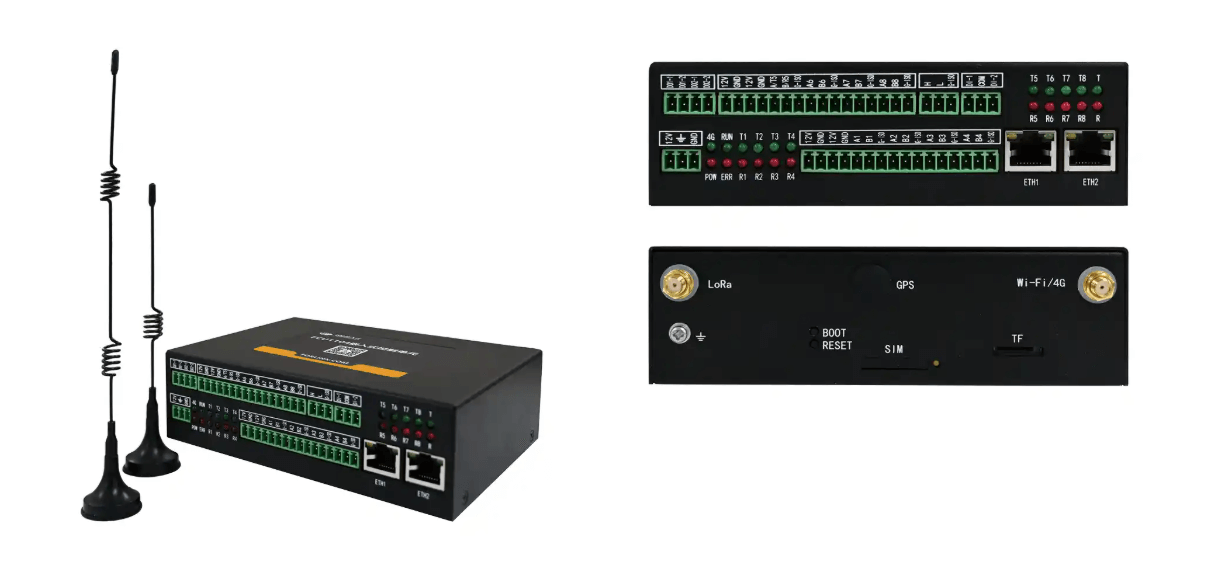

FCU1104 Extended 4G Gateway
LoRa gateway, 2 x Ethernet, 4 x RS485 (expandable to 8 ports)
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6ULL, ARM Cortex-A7 800MHz | 4G |
C200S (without GPS and voice functions),
supports China Mobile’s 4G/3G/2G, China Unicom’s 4G/3G/2G, and China Telecom’s 4G. |
| RAM | 256MB DDR3 (NAND) / 512MB DDR3 (eMMC) | WiFi |
Supports STA/AP mode (optional module,
choose either this or the 4G module). |
| ROM | 256MB (NAND) / 8GB (eMMC) | Ethernet |
2 x, 10/100Mbps, with isolation
protection, ESD 3. |
| RS485 | 8 x, 1.5KV isolation protection, ESD 4. | Power IN |
DC12V, supporting DC9 - 36V,
with reverse connection protection and over - current protection. |
| DI | 2 x dry contact inputs, with isolation protection. | RTC |
Supports clock retention during power - off
and NTP automatic time synchronization. |
| DO | 2 x relay outputs, contact capacity 5A/250VAC. | OS | Linux4.1.15, Yaffs2, GCC 4.6.2 |
| CAN | 1 x, 1.5KV isolation protection, ESD level 4. | Dimensions | 150×110×45mm |
| Buzzer | 1 x | TF card | Supports TF cards up to 32GB. |
| Reset Button | 1 x, used for system reset. | BOOT button | 1 x, used for system firmware update. |
| Working Environment |
Humidity 5 - 95%, no condensation.
Working temperature: - 25~+85℃ (eMMC) / - 40~+85℃ (NAND). |
Storage Temperature | -40~+85℃ |
Product Overview
- Low - cost, high - performance, and highly reliable;
- Supports multiple network protocols;
- Suitable for harsh industrial environments, enabling efficient and reliable data transmission.

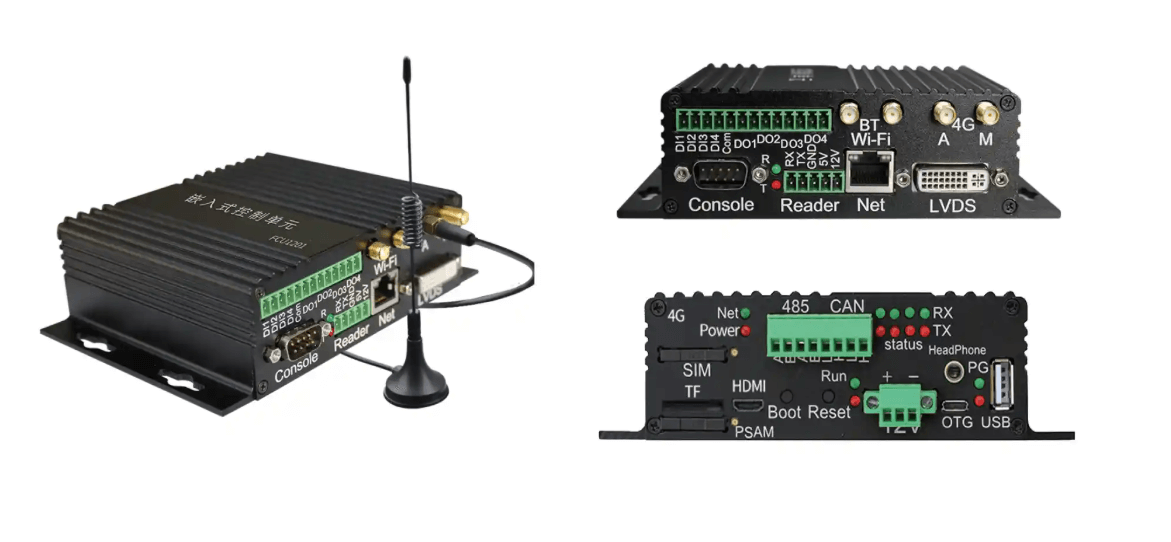

FCU1201 High - performance 4G Gateway/Controller
Charging pile billing control unit (TCU), dual - screen display, communication, data collection, and control
SoM Parameter
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | NXP i.MX6Q / i.MX6Dual Lite, ARM Cortex-A9 1GHz | RAM | 1GB DDR3 |
| ROM | 8GB eMMC | External storage | TF card interface, up to 64GB |
| Mobile Communication | Drawer - type mini SIM card slot | WiFi & BT | Supports IEEE 802.11b/g/n 1T1R WLAN, Bluetooth 2.1/3.0/4.0. |
| ESAM |
Supports ESAM chip, IO
simulates ISO7816 protocol |
PSAM | Supports PSAM, drawer - type mini SIM card slot. |
| Switching Output | 4 x relay isolation | Switching input | 4 x optocoupler isolation |
| HDMI | Mini HDMI interface, supports HDMI v1.4 | LVDS | LVDS interface, standard DVI - I. |
| UART |
2 x (1 x for debugging,
1 x for card reader) |
RS485 | 2 x, electrical isolation |
| CAN BUS | 2 x, electrical isolation | Ethernet | 1 x 10/100/1000M self-adaptive |
| Power Supply |
Rated at 12V, with reverse
connection protection |
RTC |
On - board CR2032, the clock
can keep running for at least 1 year during power - off. |
| Audio |
1 x headphone port, 1 x built - in microphone,
2 x reserved speaker ports |
Dimensions | 147×103×42mm |
| Software System | Linux3.0.35 / Android6.0 |
Product Overview
- A high - performance 4G gateway with rich interfaces, suitable for fields such as charging piles, advertising machines, new retail, security, vehicle - mounted systems, industrial control, and power communication;
- It can handle power - off protection and supports a super capacitor to maintain the system operation for at least 15 seconds;
- Supports multiple communication interfaces (WiFi, Bluetooth, Ethernet, CAN, RS485, etc.);
- Features low power consumption, high reliability, and an industrial - grade stable design.
FCU1501 Industrial Embedded Control Unit
RK3506 Tri-core IoT Gateway with Enhanced CAN FD & Multi-RS485 Connectivity
FCU1501 Industrial Gateway Parameters
| Item | Basic Version | Extended Version | Description / Details |
|---|---|---|---|
| Hardware Specifications | |||
| Processor | Rockchip RK3506J | Tri-core Cortex-A7 @ 1.5GHz | |
| Memory | 256MB DDR3 | 512MB DDR3 | High-performance industrial memory |
| Storage | 256MB NAND | 8GB eMMC | Industrial-grade flash storage |
| Operating Temp. | -40°C to +85°C | Wide temperature industrial grade | |
| Power Input | 9-36V DC Wide Input | Rated 12V/3A; Reverse polarity & overcurrent protection | |
| EMC Protection | Level 3 | Enhanced industrial electromagnetic compatibility | |
| Dimensions | 177 x 130.5 x 45 mm | 187 x 152 x 45 mm (incl. mounts, terminals & antenna) | |
| Cooling / Weight | 0.8 kg | 0.9 kg | Fanless / Passive cooling design |
| Mounting | 35mm DIN-Rail / Wall Mount | Dual-mounting options supported | |
| Interface Parameters | |||
| LED Indicators | 8 | 8 | PWR, RUN, ERR, 3x 4G, 2x User-defined |
| USB 2.0 | 1 | 1 | Type-A; Supports OS flashing via USB drive |
| Debug Port | 1 | 1 | Type-C interface for PC debugging |
| Ethernet | 2 | 2 | 10/100Mbps auto-sensing; Non-PoE |
| CAN FD | 1 | 2 | Compatible with CAN 2.0B; Independent digital ground |
| RS485 | 4 | 8 | Independent digital ground per channel |
| RS232 | 2 | 2 | Multiplexed with RS485; Independent digital ground |
| DI (Dry Contact) | 2 | 8 | Digital Input channels |
| DO (Relay) | 2 | 8 | NO (Normally Open); 5A 250VAC / 5A 30VDC |
| 4G LTE | 1 (Opt.) | 1 (Opt.) | Supports 4G Cat.1 module (Optional SKU) |
| SIM Slot | 1 | 1 | Push-push Nano SIM slot |
| Wi-Fi & Bluetooth | 1 | 1 | Dual-band Wi-Fi, BT 5.0 (Standard) |
| Reset Key | 1 | 1 | One-key network reset; Customizable function |
| Buzzer / RTC | 1 / 1 | 1 / 1 | Built-in buzzer; Internal battery-backed RTC |
| Watchdog | Supported | Supported | Hardware watchdog for system stability |
| DC OUT | 1 | 1 | Matches input voltage; Reverse polarity protected |
Product Overview
- A rugged, fanless industrial PC designed for harsh environments, featuring -40°C to +85°C operating temperature and 9-36V DC wide power input;
- High-density industrial I/O (up to 8x RS485, 2x CAN FD) with integrated 4G LTE, dual-band Wi-Fi, and flexible DIN-rail/Wall mounting;

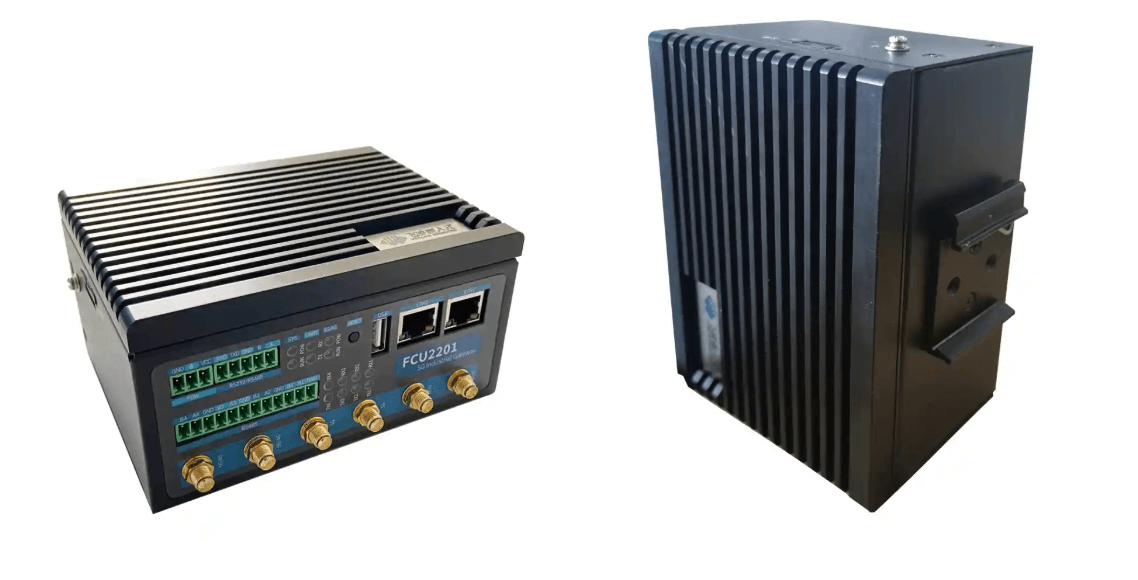

FCU2201 Cost - Effective 5G Industrial Gateway
Low cost, industrial grade, fanless, industrial routing
FCU2201 5G Industrial Gateway Parameters
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | Cortex-A53 (Single-core, 1 GHz) | RAM | 512 MB |
| ROM | 8 GB eMMC | OS | OpenWRT 21.02 |
| Management | SSH via Network Port | Storage | 1x TF Card Slot |
| Ethernet | 2x 10/100/1000 Mbps (Adaptive; EFT Level 4, ESD Level 3) | ||
| Serial Ports |
5x RS485 (1.5 kV Isolation; ESD Level 3, EFT Level 4); 1x RS232 (Multiplexed with RS485) |
||
| Wireless | 4G or 5G Cellular Support | Wi-Fi | Dual-band 2.4G/5G (AP/STA Modes) |
| USB | 1x USB Host (Type-A) | Indicators | LED Communication Status |
| System Hardware | Watchdog & RTC Support | Button | 1x Reset Button |
| Power Input |
12V DC (9V to 36V wide-range); Reverse polarity & Over-current protection; ESD Level 3, EFT Level 4 |
||
| Environmental |
Operating Temp: -40°C to +80°C; Storage: -40°C to +125°C; Humidity: 5% to 95% (Non-condensing) |
||
| Dimensions | 135 x 100 x 70 mm | Mounting | Wall-mount or DIN-rail |
| Cooling | Passive (Fan-less) | ||
Product Overview
- A high - cost - performance 5G industrial gateway with an industrial - grade fan - less design;
- Suitable for industries such as industrial Internet of Things, smart cities, smart power, smart agriculture, and security monitoring;
- Provides powerful edge computing capabilities and supports long - term stable operation;
- Open system API for easy secondary development.
FCU2303 High - performance 5G Industrial Gateway
Multiple network ports, high performance, a fan - less design, and is of industrial - grade, supporting both 4G and 5G.
Industrial Gateway Parameters
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| CPU | 4 x Cortex-A53 1.6GHz + 4 x Cortex-A72 1.8GHz | RAM | 2GB/4GB |
| ROM | 8GB eMMC | OS | OpenWRT 21.02 |
| Debug | 1 x RS232 port, 3.81 terminal | SSH | Network port |
| Hard Disk | 1 x M.2 NVMe SSD slot | Ethernet |
6/8 ports of 10M/100M/1000M
self-adaption, EFT 4, ESD 3 |
| RS485 | 8 x, 3kV isolation, ESD 3, EFT 3 | RS232 | 4 x, multiplexed with RS485 |
| DI | 2 x, optocoupler isolation | DO |
2 x, electromagnetic relay isolation;
Contact capacity: 5A 30VDC / 5A 250VAC |
| USB | 1 x USB HOST (USB Type - A), ESD 4 | 4G/5G | Either 5G or 4G function |
| Wi-Fi | Dual - band 2.4G/5G, supports AP and STA modes | Watchdog | Support |
| RTC | Support | Button |
1 x reset button;
1 x user-defined key |
| LED | Communication status indicator | Mechanical Dimensions | 232mm × 53mm × 155mm |
| Installation Method | Ear - hanging installation | Power Supply | DC 12V 5A |
| Working Environment |
Humidity: 5% - 95%, no condensation;
Working temperature: - 40℃ - 80℃; Storage temperature: - 40℃ - 125℃. |
Heat Dissipation Method | Passive heat dissipation, fan - less. |
Product Overview
- High - performance 5G industrial gateway with industrial - grade fanless design;
- Highly integrated, supporting powerful edge computing capabilities;
- Stable system operation, with open APIs for easy secondary development;
- Supports multiple communication interfaces and industrial protocols.
FCU2401 Economical ARM Industrial Computer
Charging pile billing control unit, multimedia terminal, Forlinx Desktop system
Industrial Gateway Parameters
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| CPU | 4 x Cortex-A7, 1.2GHz | RAM | 1GB/2GB |
| ROM | 8GB eMMC | OS | Linux 3.10 |
| Debug | 1 x RS232, 3.81 terminal | SSH | Network port |
| Hard disk | 1 x SATA drive bay inside the chassis | Ethernet |
1 x 10M/100M self-adaptive, EFT 3, ESD 4;
1 x 10M/100M/1000M self-adaptive, EFT 3, ESD 4 |
| RS485 | 2 x, 3kV isolation, EFT3, ESD4 | RS232 | 1 x, 3kV isolation, EFT3, ESD4 |
| CAN |
2 x CAN2.0B, 2.5kV signal isolation,
3kV power supply isolation, ESD 4, EFT3 |
DI | 4 x, dry contact inputs |
| DO |
4 x, relay output; contact capacity:
5A 250VAC, 5A 30VDC |
USB | 1 x USB OTG（Micro USB）, 2 x USB HOST（USB Type-A） |
| 4G/5G | 4G Cat4 | Wi-Fi | 2.4G, supports AP/STA modes |
| Watchdog | Support | Encryption Chip | Supports ESAM chip, ISO7816 protocol |
| RTC | Support | Positioning | Supports GPS and Beidou |
| Button | 1 x RESET, 1 x BOOT | LED | Power indicator |
| LVDS | 1 x LVDS port, using DVI - I socket | HDMI output | 1 x standard HDMI 1.4, supports 1080@60fps |
| TV input |
2 x analog camera inputs,
support NTSC and PAL formats |
Earphone/Speaker | 1 x speaker port, can connect to a 4Ω 1W speaker |
| Mechanical Dimensions | 236mm × 153mm × 53.3mm | Installation Method | Ear - hanging installation |
| Power Supply |
DC 12V, with reverse connection protection
and over - current protection. |
Working Environment |
Humidity: 5% - 95%, no condensation;
Working temperature: - 40℃ - 80℃; Storage temperature: - 40℃ - 85℃. |
| Power off Protection | Available | Heat Dissipation Method | Passive heat dissipation, fan - less |
Product Overview
- Economical ARM industrial computer with low cost and high performance;
- Rich in hardware peripherals, supports multi - screen display;
- Suitable for self - service terminals in edge computing, charging piles, advertising machines, new retail, etc.

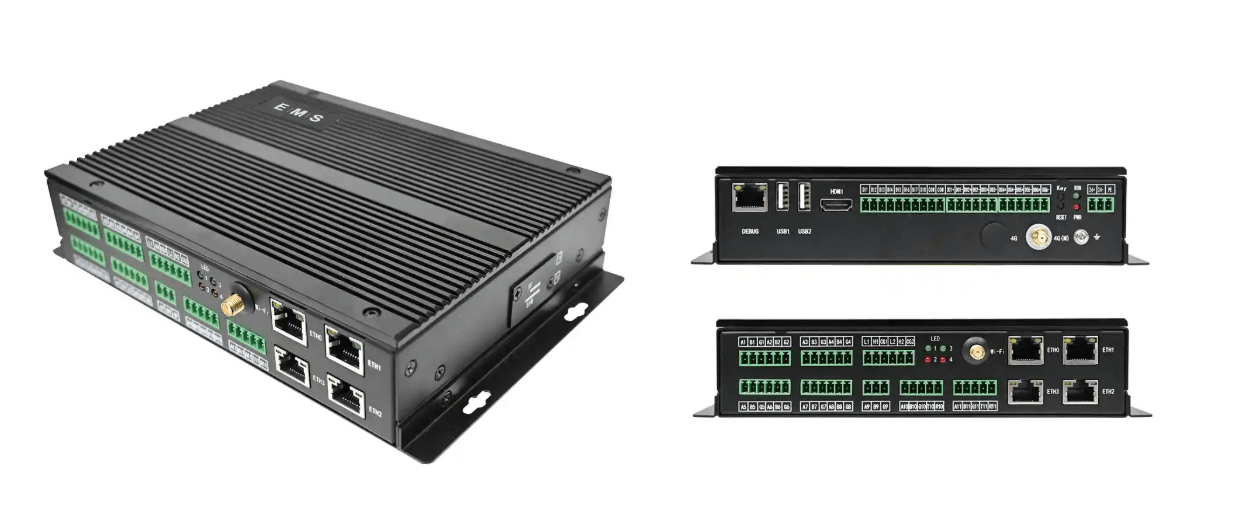

FCU2601 Energy Management System (EMS) Control Unit for Industrial and Commercial Energy Storage
High performance, multi-interface, low power consumption, industrial grade
Industrial Gateway Parameters
| Item | Specification | Item | Specification |
|---|---|---|---|
| CPU | 4x Cortex-A55, 1.8 GHz | RAM | 2GB / 4GB |
| ROM | 16GB / 32GB eMMC | OS | Linux 4.19 |
| System Hardware | Watchdog & RTC Support | Storage Extension | 1x mSATA Bay |
| Ethernet |
2x 10/100/1000 Mbps (EFT Level 4, ESD Level 4); 2x 10/100 Mbps (EFT Level 4, ESD Level 4) |
||
| Wireless | 4G Cat4 / Cat1 | Wi-Fi | Dual-band 2.4G/5G (AP/STA Modes) |
| Debug | 1x RS232 (RJ45 Port) | Management | SSH via Network Port |
| Industrial Serial |
11x RS485 (3kV Isolation; EFT Level 3, ESD Level 4); 2x RS232 (Multiplexed with RS485) |
||
| CAN Interface | 2x CAN 2.0B (3kV Power Isolation; ESD Level 4, EFT Level 4) | ||
| Digital I/O |
DI: 8x Dry Contact; DO: 6x Relay (Contact Capacity: 5A @ 250VAC / 5A @ 30VDC) |
||
| HDMI Output | 1x HDMI 1.4 (1080p@60fps, Up to 4K) | USB | 2x USB Host 2.0 (ESD Level 4) |
| User Interface | 1x RESET, 1x User-defined Key | Status Indicators | 2x System LED, 2x CAN LED, 2x User LED |
| Input Voltage | 24V DC (9V to 36V wide-range); Reverse polarity, Over-current, and Power-off protection | ||
| Environmental |
Operating Temp: -40°C to +75°C; Storage: -40°C to +85°C; Humidity: 5% to 95% (Non-condensing) |
||
| Dimensions | 214 x 140 x 45 mm | Cooling | Passive (Fan-less) |
| Mounting | Wall-mount (Ear-hanging) | ||
*These parameters are for the extended version. Please consult the sales for the basic version parameters.
Product Overview
- Designed for energy storage EMS, with highly reliable hardware and software;
- Supports multiple interfaces and protocols, suitable for industrial and commercial energy storage and grid - side energy storage;
- Passive cooling, fanless design, suitable for industrial environments.
FCU3011 AI Edge Computing Terminal with 5G Support
4G/5G network communication and enable "5G + AI"
AI Edge Computing Terminal Parameters
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| CPU | nVIDIA Jetson Orin Nano | RAM | 4GB / 8GB |
| ROM | 128GB NVMe SSD | OS | Forlinx Desktop 22.04 |
| AI Computing Power 4GB |
20TOPS, 512 NVIDIA® Ampere cores,
16 Tensor cores |
AI Computing Power 8GB | 40TOPS，1024 NVIDIA® Ampere cores，32 Tensor cores |
| Debug | Graphical configuration | SSH | Network port |
| Hard Disk |
1 x M.2 NVMe SSD hard drive bay inside the case,
with a default 128GB SSD at the factory |
Ethernet | 4 x 10M/100M/1000M self-adaptive, ESD3 |
| RS485 | 1 x, 1.5kV isolation protection | CAN | 1 x CAN2.0B, 1.5kV isolation protection |
| DI | 2 x, 1.5kV isolation protection | DO |
2 x, electromagnetic relay isolation;
Contact capacity: 5A 30VDC / 5A 250VAC |
| USB |
2 x USB3.0, 2 x USB2.0 (standard USB Type - A sockets);
1 x OTG (for system flashing), all with ESD3 protection |
4G/5G | Either 5G or 4G function |
| Wi-Fi |
Dual - band 2.4G/5G,
supports AP and STA modes |
Watchdog | Support |
| RTC | Support | Button | 1 x RECOVERY button |
| LED |
1 x SYS indicator,
1 x POW indicator |
HDMI Output | 1 x HDMI 2.0, supports up to 4K display |
| Mechanical Dimensions | 170mm × 110mm × 55mm | Installation Method | Ear - hanging installation |
| Power Supply | DC24V5A | Working Environment |
Humidity: 5% - 95%, no condensation;
Working temperature: 0℃ - 70℃; Storage temperature: - 20℃ - 125℃. |
| Power Consumption | 13.8W~21.9W | Heat Dissipation Method | Passive heat dissipation, fan - less. |
Product Overview
- High - performance AI edge computing terminal, supporting 5G and multi - interface expansion;
- Reserves multiple peripheral interfaces for AI computing in embedded and edge systems;
- Industrial - grade fanless design, suitable for deployment in complex environments;
- Supports high - definition video encoding/decoding and edge AI inference.

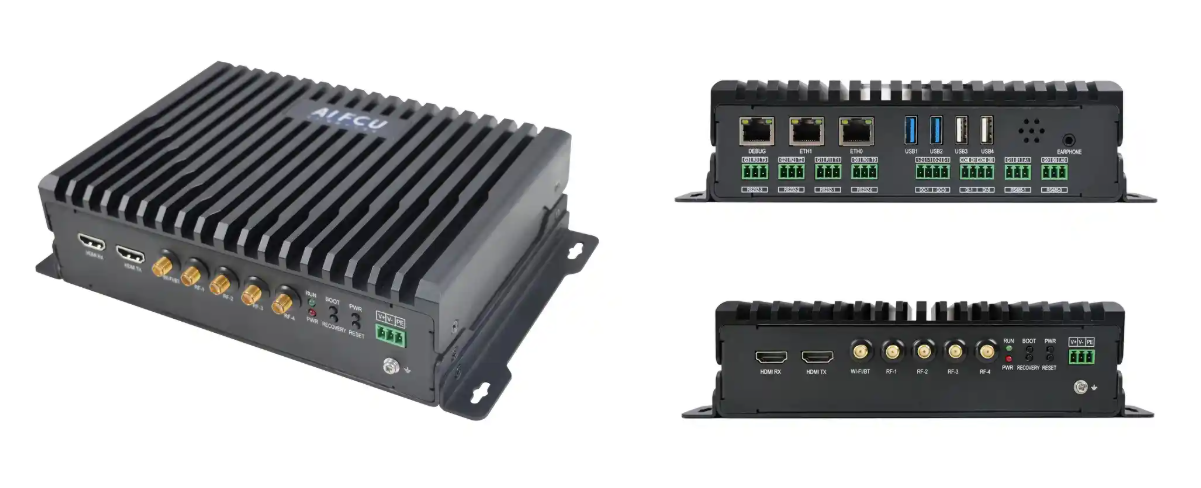

FCU3501 AI Edge Computing Terminal
8K video simultaneous editing and decoding: decode up to 8K @ 60fps
AI Edge Computing Terminal Parameters
| Item | Parameter Description | Item | Parameter Description |
|---|---|---|---|
| Main ControL | 4 × Cortex-A76 + 4×Cortex-A55, Rockchip RK3588J | RAM | 8GB/16GB |
| ROM | 64GB / 128GB eMMC | OS | Forlink Desktop 22.04 |
| AI Computing Power | RK3588J: 6TOPS | Extended Computing Power | Optional Hallo - 8 Computing Card: 26TOPS |
| Debug | 1 x RS232, RJ45 Interface | SSH | Network port |
| TF Card | 1 x TF card slot | Hard Disk | 1 x M.2 SSD hard disk bay at the bottom |
| Ethernet | 2 x 10/100/1000M self-adaptive | RS485 | 2 x, EMC 3 |
| RS232 | 4 x, EMC 3 | DI | 2 x, dry contact input |
| DO | 2 x, isolated by electromagnetic relays | USB | 2 × USB3.0 + 2×USB2.0（standard USB Type - A sockets） |
| 4G/5G | Either 5G or 4G | Wi-Fi | 2.4G, supports AP/STA modes |
| Watchdog | Support | RTC | Support |
| Button | RECOVERY / BOOT / RESET / PWR | LED | RUN indicator x1, POW indicator× 1 |
| HDMI Output | 1 x, up to 8K | HDMI Input | 1 x, up to 4K |
| Audio | 1 x earphone/speaker | Dimensions | 232.5mm × 140.5mm × 56.5mm |
| Installation Method | Ear - hanging installation | Power Supply | DC24V, wide - voltage DC 9~36V |
| Working Environment |
Humidity 5% - 95% Non - Condensing;
Temperature - 40℃ - +85℃; Storage - 40℃~+85℃ |
Heat Dissipation Method | Passive heat dissipation, fan - less |
Product Overview
- The FCU3501 embedded control unit features a fanless design that utilizes passive heat dissipation. It has successfully passed rigorous environmental and electromagnetic compatibility (EMC) tests, ensuring stable long-term operation. This unit is ideal for edge-side AI computing applications in various industries, including intelligent transportation, smart factories, and smart buildings.

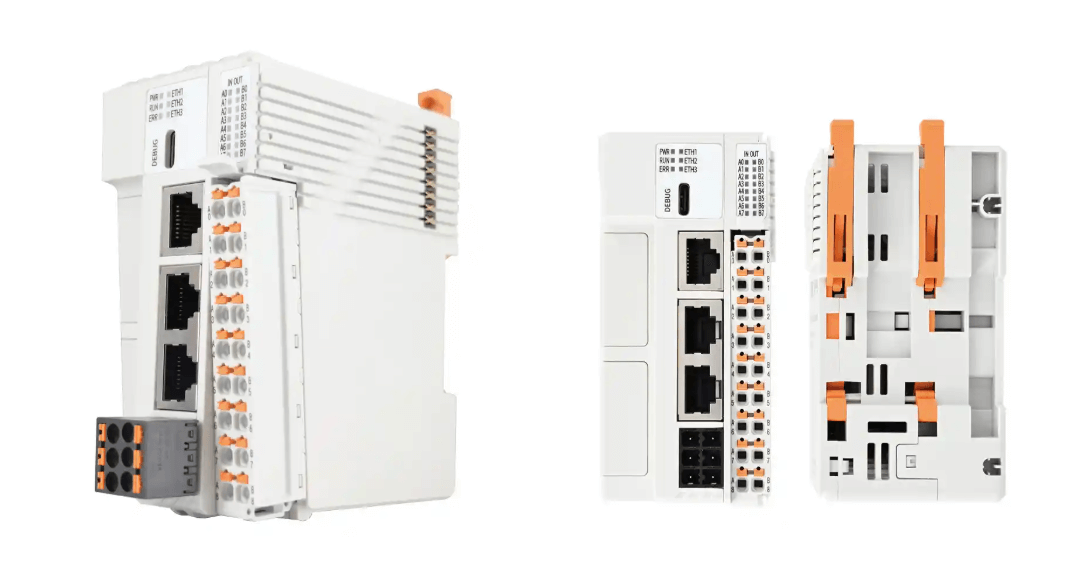

StarterKit
Phoenix Contact x Forlinx Embedded vPLCnext verification platform
StarterKit Parameter Table
| Item | Parameter Description | Item | Parameter Description |
|---|---|---|---|
| Main ControL | 4 × [email protected] | RAM | 2GB |
| ROM | 16GB eMMC | OS | Linux 6.1, supporting Phoenix Contact vPLC next |
| Debug | 1 x type - C | SSH | Network port |
| Ethernet | 3 x 10M/100M/1000M adaptive ports | DI | 8 x dry contact inputs |
| DO | 8 x relay outputs | USB | 1 x USB OTG (For System Flashing) |
| Wi-Fi | 2.4G, supports AP/STA modes | Watchdog | Support |
| RTC | Support | Button | 1 x reset switch |
| LED Indicator | 1 x PWR, 1 x RUN, 1 x ERR, 3 x network port indicators, 16 x IO indicators | Mechanical Dimensions | 100mm × 80mm × 57mm |
| Installation Method | Rail clip installation | Power Supply | DC 24V |
| Heat Dissipation Method | Passive heat dissipation, fan - less. |
Product Overview
- The Virtual PLCnext Control Starter Kit is designed for the industrial automation control sector. It natively supports Phoenix Contact's VPLCnext and offers containerized deployment using Podman. The kit includes 3 x Gigabit network ports and 16 I/O ports, enabling users to quickly get started and efficiently test and verify hardware designs from Forlinx, as well as the Phoenix Contact VPLCnext system.
