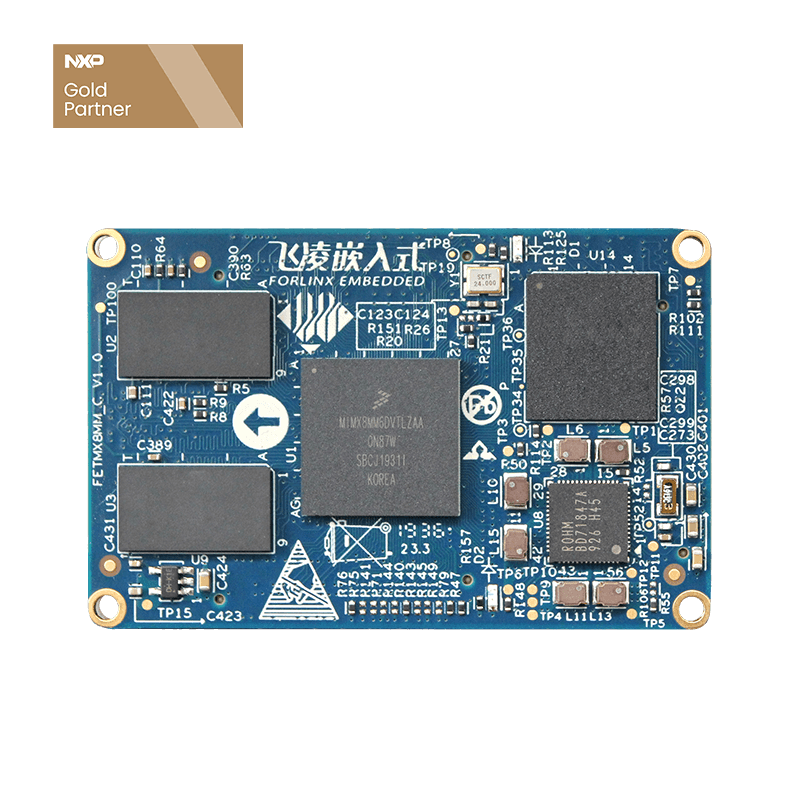

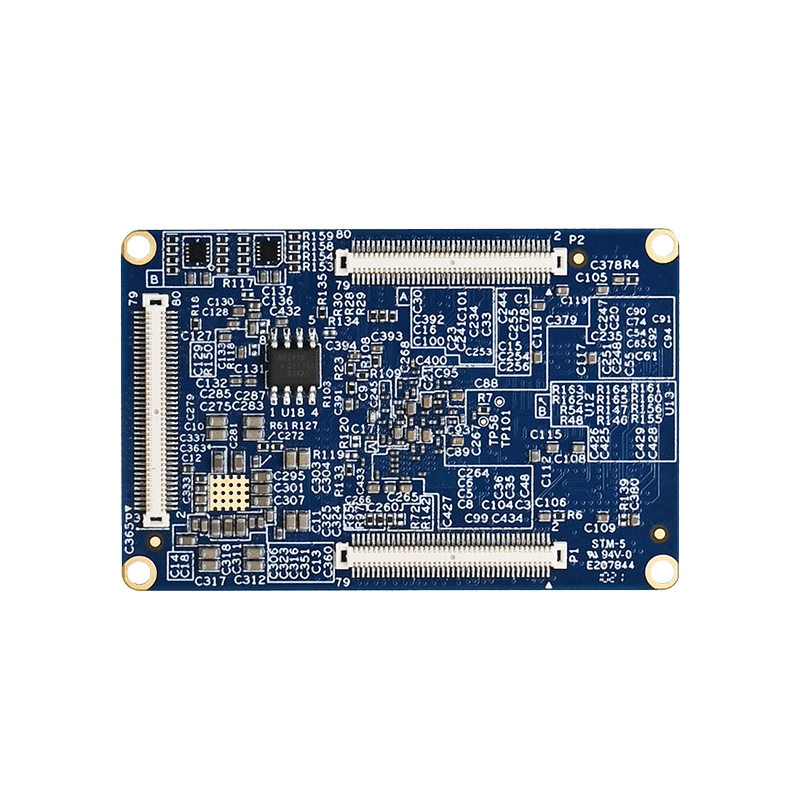

System on Module FETMX8MM-C based on i.MX8M Mini
FETMX8MM-C system on module (SoM) is based on NXP's i.MX8M Mini processor with 1.8GHz Cortex A53 quad core and single Cortex M4 core. i.MX8M Mini SoC built with advanced 14LPC FinFET process technology. This cutting-edge building block is tailor made for a wide range of IoT and industrial applications, featuring 2GB DDR4, 2 x USB 2.0, powerful network connectivity options including Bluetooth and optional WiFi, PCIe 2.0 and robust multimedia features including 7 audio channels (32bits), MIPI-DSI, and 1080p encoder and decoder.
It is NXP's first embedded multicore application processor built with advanced 14LPC FinFET process technology, delivering higher speeds and energy efficiency. i.MX8M Series is commercially and industrially certified and supported by NXP's Product Life Plan for any general industrial and IoT application.
Main features of i.MX8M Mini SoM
1. Heterogeneous Multi-core Processing Architecture;
2. Quad-core Cortex-A53 core up to 1.8GHz;
3. Cortex-M4 at speeds of 400+MHz;
4. 1080p video encode and decode;
5. Display and camera interfaces;
6. Multi-channel audio and digital microphone inputs;
7. Connectivity (I2C, SAI, UART, SPI, SDIO, USB, PCIe, Gigabit Ethernet);
8. Low-power and standard DDR memory support;
9. Multiple pin-compatible product offerings;
10. support Android9.0 and Linux4.14(QT5.10);
Superior Performance cool experience
1080p60 H.265 decode, 1080p60 H.264 encode
Reduce band width occupancy rate VP9 and H.265 decoder can support [email protected] 60Hz,
which is 50% more efficient, but bandwidth and capacity only 50% of H.264.
Operating Systems: Linux4.14+Qt5.10.1, Android9.0
SoM FETMX8MM-C can support Android9.0 and Linux4.14(QT5.10)
64-bit systems, which can take users higher security and better human-machine interactive experience.
Multiple Audio Interfaces
Support 5-ch SAI,IIS,AC97,TDM and S/DPIF digital audio interface,
suitable for Hi-fi Voice System and Speech Recognition.
Power Optimized Design
The HMP architecture can reduce the power even more by letting the Cortex-A53 cores sleep until needed.
The Cortex-M4 can wake them up on demand.
10 years of product longevity program
i.MX8M Mini processor's life time is more than 10 years, which ensures users of stability of product supplying.
OKMX8MM-C SBC Pin Diagram
OKMX8MM-C single board computer consists of SoM FETMX8MM-C and carrier board
▊ Product Video
Four Video Hard Decoding Demo Based on OKMX8MM-C SBC
▊ Hardware Features
|Overview of FETMX8MM-C System on Module|
|CPU||NXP i.MX 8M Mini|
|Architecture||Quad-core Cortex-A53+ single core Cortex-M4|
|Package||ultra thin connector(3*80pin, pitch of 0.5mm)|
|Working Temp Width||0℃~70℃|
|FETMX8MM-C System on Module Features|
|CAMERA||1||4-lane MIPI, up to 1.5Gbps|
|SD/SDIO||≤2||SD, SDIO, 1.8V mode and 3.3V mode|
|USB||2||USB 2.0( up to 480 Mbps), both can be configured to OTG|
|SAI||≤5||up to 5x SAI|
|UART||≤4||each up to 4.0 Mbps|
|eCSPI||≤3||full duplex strengthened synchronous serial interface, up to 52 Mbit/s, it can be configured to host/ slave mode|
|FlexSPI||1||support single pad/dual pad/quad pad mode|
|Display||1||4-lane MIPI display, up to 1.5Gbps|
|PDM||≤1||up to 4-wire 8 channels|
|OKMX8MM-C Single Board Computer Features|
|MIPI_DSI||1||4 data lanes, protocol V1.01r11; resolution up to WQHD(1920x1080p60, 24bpp)|
|MIPI_CSI||1||4 lanes; OV5640MIPI|
|Audio||1||1*MIC, 1*Phone, 2*Speaker|
|PDM||1||10-pin header with pitch of 2mm|
|SAI||1||26-pin header with pitch of 2mm|
|USB Host||2||expanded by hub, USB2.0( up to 480 Mbps)|
|USB OTG||1||standard micro USB connector, USB 2.0 OTG (up to 480 Mbps)|
|Ethernet||1||10/100/1000Mbps auto-negotiation, RJ-45 connector|
|Mini PCIe||1||can be mounted with 4G wireless module with mini PCIe interace, it also contains PCIe2.0 single channel|
WiFi standard: IEEE 802.11b/g/n ，2.4GHz
Bluetooth: V2.1+EDR/BT v3.0/BT v4.0
|TF Card||1||compatible with SD, SDHC and SDXC(UHS-I)|
|SDIO||1||20-pin header with pitch of 2mm, 8-bit|
|SPI||2||10-pin header with pitch of 2mm|
|QSPI||1||on-board 16MB QSPI NOR FLASH|
|PWM||1||display backlight adjusting|
|IIC||4||standard mode: 100kbits/s, fast speed mode: 320kbits/s|
UART3 is a 3-wire serial interface, 3.3V up to 4.0 Mbps
|UART Debug||1||UART2, RS232, DB9 male connector, default baud rate is 115200||A53 Debug|
|1||UART4, 3.3V, by a 10-pin header with pitch of 2mm||M4 Debug|
|RS485||1||isolated RS485, up to 500kbps|
Provides the modules and accessories used in Forlinx's i.MX8M Mini Sbc.
See here for communication modules, LCD screen, SBC expansion module and further accessories »
Forlinx provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.
Forlinx provides embedded hardware reference manual, embedded software reference manual, including NXP i.MX8M Mini embedded software Android system reference manual, and Linux system reference manual.
For more details on solution design with iMX8/iMX8MM SBC
▊ How to buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
