FET-MX8MPQ-SMARC System on Module

CPU: iMX8M Plus

Architecture: 4*A53+M7

Frequency: 1.6GHZ

RAM: 2GB/4GB LPDDR4

ROM: 16GB / 32GB eMMC

System: Linux 6.1.36

Brief Message Compare

FET-MX8MPQ-SMARC System on Module Based on NXP i.MX 8M Plus Processor

The FET-MX8MPQ-SMARC System on Module(SoM) / Computer on Module is based on the NXP i.MX 8M Plus processor and focuses on machine learning, vision, advanced multimedia and high-reliability industrial automation. It is aimed at applications such as smart cities, industrial IoT, smart healthcare, and intelligent transportation.

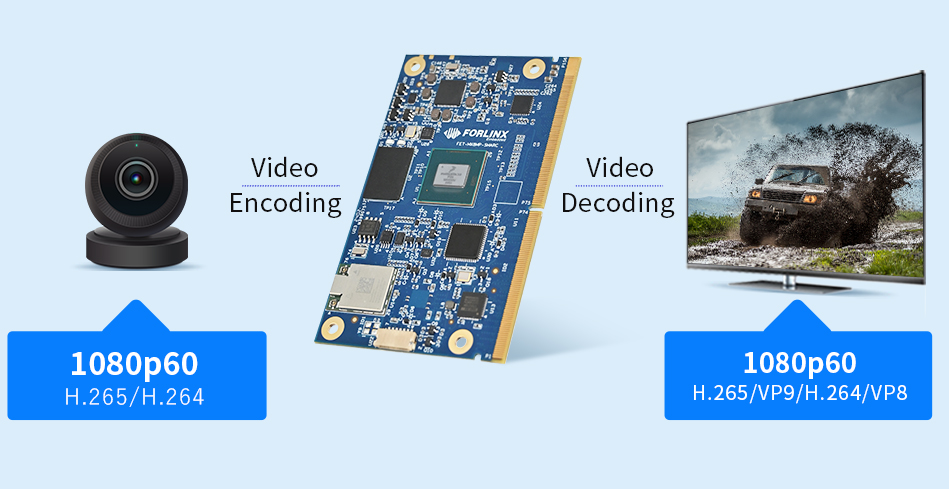

With powerful quad-core or dual-core ARM Cortex-A53 reaching up to 1.6GHz and an NPU achieving 2.3 TOPS, it integrates ISP and dual camera inputs for efficient advanced vision systems. Multimedia features include video encoding (including H.265) and decoding, 3D/2D graphics acceleration, and various audio and voice functions. Real-time control is achieved through Cortex-M7, with a powerful control network using CAN-FD and dual Gigabit Ethernet, supporting Time-Sensitive Networking (TSN). It features high-speed communication interfaces such as 2 x USB 3.0, 1x PCIe 3.0, and 1x SDIO 3.0, meeting the requirements of 5G networks, high-definition video, dual-band WiFi, high-speed industrial Ethernet, and other applications.

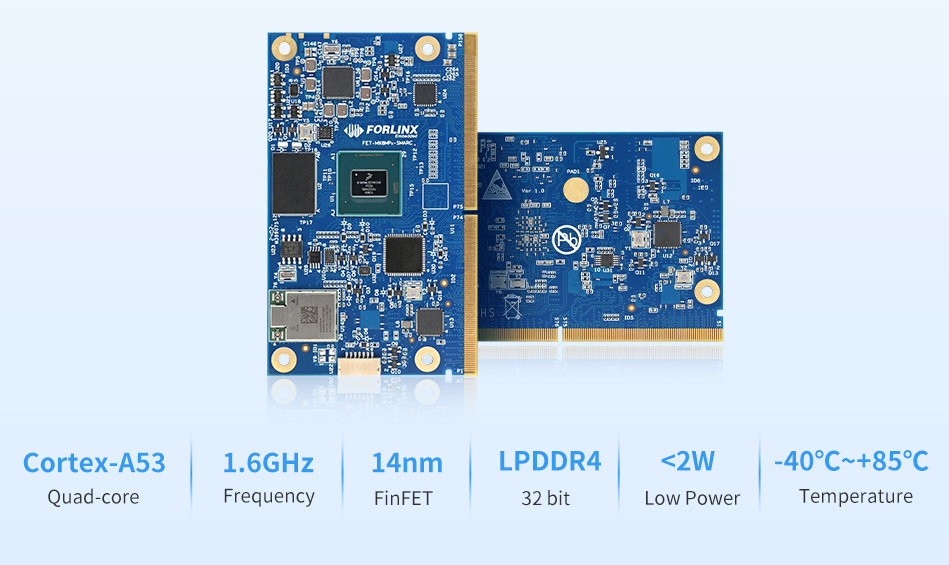

FET-MX8MPQ-SMARC SoM

NXP iMX8M Plus SMARC system on module(SoM)

High-speed Communication Interface

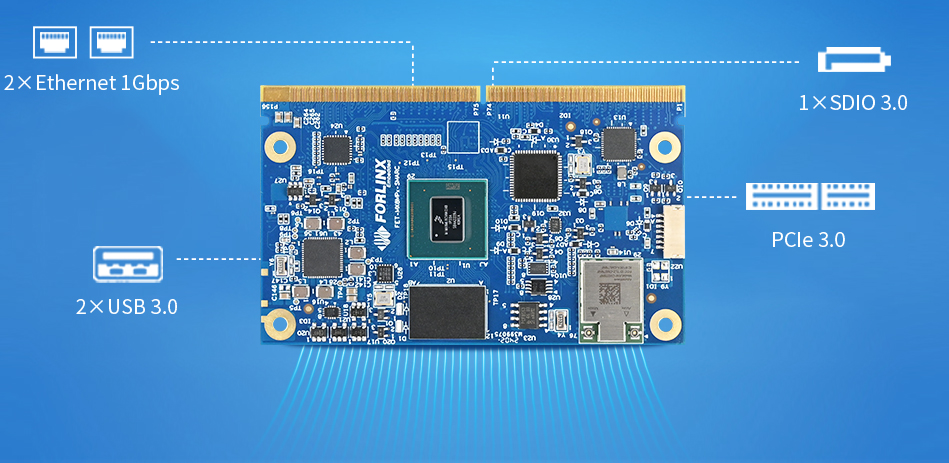

NXP iMX8M Plus SMARC system on module/single board computer High-speed Communication Interface

4K Picture Quality and HiFi Voice Experience

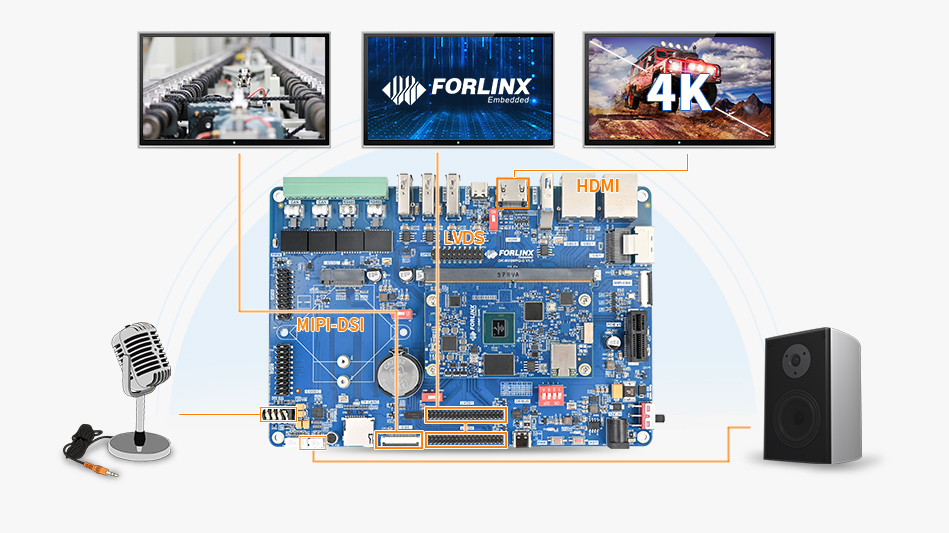

HDMI interface supports up to 4K display output; it also features LVDS, MIPI-DSI display interface, the latest audio technology,
Cadence® Tensilica® HiFi 4 DSP @ 800 MHz, 18x I2S TDM, DSD512, S/PDIF Tx + Rx, 8-channel PDM microphone input, eARC, ASRC.

NXP iMX8M Plus SMARC system on module/single board computer 4K Picture Quality and HiFi Voice Experience

Advanced Multimedia Technology

NXP iMX8M Plus SMARC system on module/single board computer Advanced Multimedia Technology

3D/2D Graphic Acceleration

NXP iMX8M Plus SMARC system on module/single board computer 3D/2D Graphic Acceleration

Machine Learning and Vision

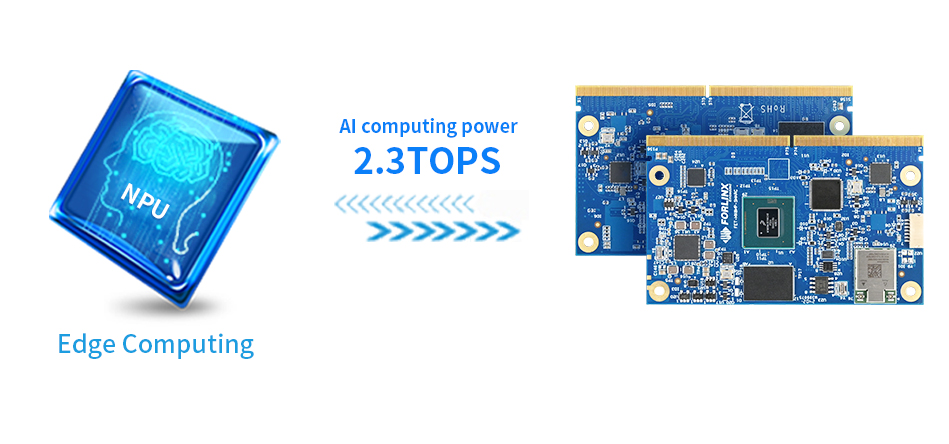

Built-in NPU with 2.3 TOPS of AI computing power to meet lightweight edge computing needs

NXP iMX8M Plus SMARC system on module/single board computer Machine Learning and Vision

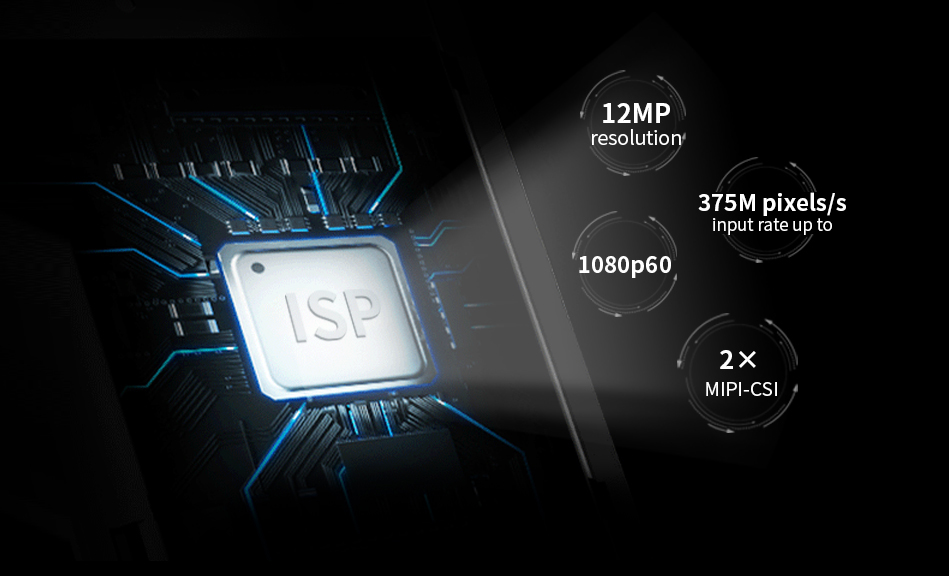

Dual Image Signal Processor (ISP)

NXP iMX8M Plus SMARC system on module/single board computer Dual Image Signal Processor (ISP)

Product Application

NXP iMX8M Plus SMARC system on module/single board computer Wide Range of Industry Applications

▊ Hardware Features

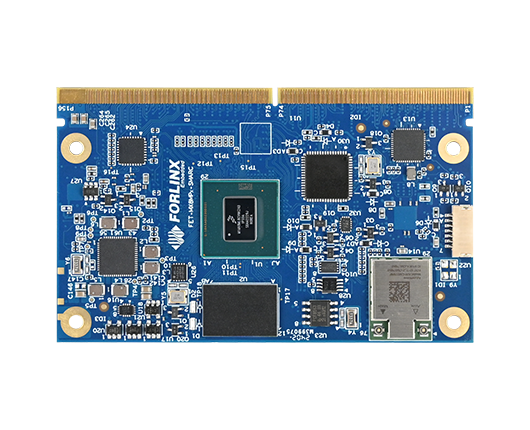

FET-MX8MPQ-SMARC System on Module Basic Features

CPU

NXP i.MX 8M Plus

Architecture

4x [email protected] + 1x Cortex-M7

RAM

2GB/4GB LPDDR4

ROM

16GB/32GB eMMC

Supply Voltage DC 5V

Operating temp

-40℃~+85℃

Connection

SMARC2.1, MXM3 Edge Connector(314 pins, 0.5mm pitch)

OS version

Linux 6.1.36

Dimension

82mm x 50mm


FET-MX8MPQ-SMARC System on Module Functional Parameters

Peripheral

NUM

Spec.

USB 3.0

2

Contains 2 USB3.0/ 2.0 controllers integrated with PHY

USB 2.0

5

Highspeed (HS), Full-speed (FS), and Low-speed (LS)

MIPI CSI

2

2x 4-lane MIPI-CSI, up to 1.5 Gbps

MIPI DSI

1

1x 4-lane MIPI-DSI, up to 1.5 Gbps

1080 p60 • WUXGA (1920x1200) at 60 Hz

1920x1440 at 60 Hz

UWHD (2560x1080) at 60 Hz

WQHD (2560x1440) by reduced blanking mode

LVDS

2

Up to 1920x1080p60

HDMI

1

Up to 4kp30

Ethernet

2

EMAC, 10/100/1000 Mbps, 1 is capable of TSN

PCIE x1

1

PCI Express Gen 3

CAN-FD

2

Complies with CAN 2.0B, ISO 11898-1

SDIO

1

SDIO 3.0

I2S

2

SAI, supports I2S, AC97, tdM and codec/DSP

SPI

2

Up to 52Mbit/s,master and slave are configurable

I2C

5

Up to 320kbps

UART

4

Up to 4Mbps

PWM

3

16-bit timer

GPIO

>14

General-purpose input/output (GPIO) modules with interrupt capability

WIFI & BT

1

WiFi 5 MIMO, Bluetooth 5.3, connected to processor by SDIO3.0 and UART

JTAG

1

IEEE 1149.1 testability (JTAG)

▊ Carrier Board

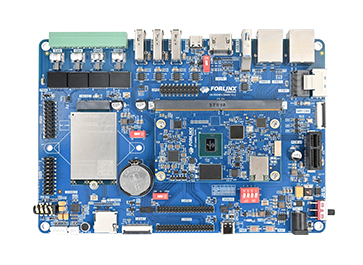

NXP i.MX 8M Plus SMARC Development Board
OK-MX8MPQ-SMARC Development Board

To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.
The OK-MX8MPQ-SMARC Single Board Computer from Forlinx is powered by the NXP i.MX 8M Plus processor, which features 4x [email protected] + 1x Cortex-M7, 2GB/4GB LPDDR4 RAM, and 16GB/32GB eMMC ROM. With a split design and 314 pins, it offers seamless functionality and easy customization, and supports the Linux 6.1.36 system. With an open system architecture design, it can provide technical information for your secondary development.

▊ Download


Catalog: Forlinx Catalog

Product Brief: FET-MX8MPQ-SMARC SoM and OK-MX8MPQ-SMARC SBC introduction

▊ Accessories


Please click here to get more information about the supported modules and accessories.

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.
