FET-MX95xx-C System on Module

CPU: NXP i.MX95xx

Architecture: 6x [email protected] + 1x Cortex-M7@800MHz + 1xCortex-M33@333MHz

Frequency: 333MHz ,800MHz,1.8GHz

RAM: 8GB LPDDR4x

ROM: 64GB eMMC

System: Linux

Brief Message Compare

FET-MX95xx-C System on Module Based on NXP i.MX95xx Processor

Forlinx Embedded, a Gold Partner of NXP, is leading the way with the NXP i.MX9 series System on Module(SoM) / Computer on Module based on the high performance NXP i.MX95xx series processors. The FET-MX95xx-C integrates six ARM Cortex-A55 cores alongside Cortex-M7 and Cortex-M33 cores. Besides, It has a powerful 2TOPS NPU to empower your AI applications. It features native support for 5 x CAN-FD, 1x 10 Gigabit network port, 2 x Gigabit network port, 2 x PCIE Gen3, 1 x USB3.0, 1x USB2.0 and other interfaces, plus a built-in ISP for 4K@30fps video and 3D/2D graphics acceleration. It is ideal for edge computing, automotive connectivity, smart cockpits, Industry 4.0, and IoT platforms.

NXP i.MX95xx SoM Features:

  • GPU Mali-G310 supports OpenGL ES 3.2, Vulkan 1.2, OpenCL 3.0;
  • Built-in 2TOPS NPU for edge computing;
  • Built-in ISP, supports 2x MIPI-CSI;
  • Various high-speed peripherals such as 1x USB3.0, 2x PCIe3.0;
  • 5x CAN-FD;
  • 1x 10G Ethernet, dual-Gigabit Ethernet, supports TSN;

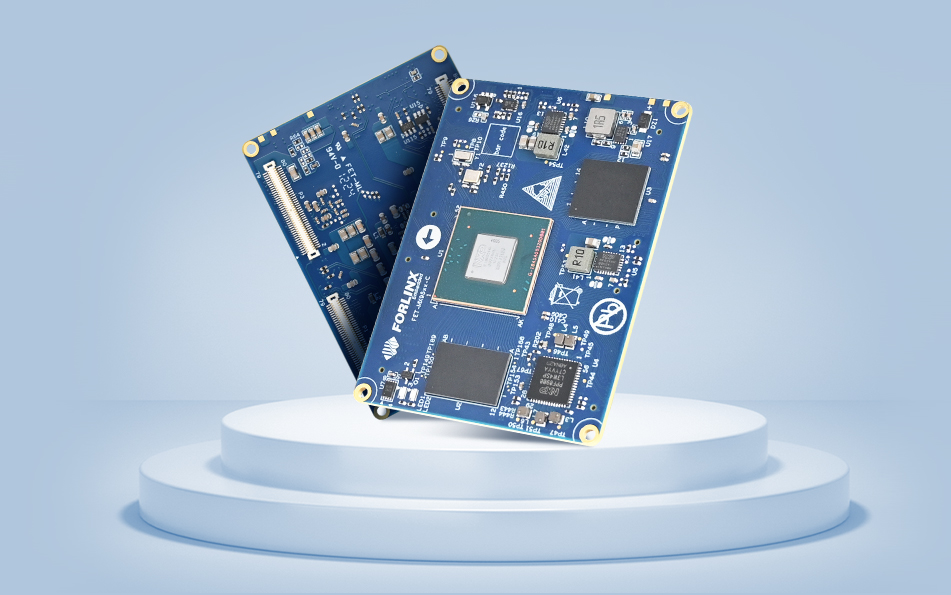

FET-MX95xx-C SoM

NXP i.MX95 system on module(SoM)

NXP New Flagship Chip

NXP i.MX95xx combines high performance application cores, independent MCU real-time domain, Energy Flex architecture,
advanced security supported by EdgeLock® secure zone, and dedicated multi-sensor data processing engines (graphics, image, display, audio, and voice),
to accelerate edge machine learning applications.

NXP i.MX95 system on module/single board computer NXP New Flagship Chip

High-performance GPU

New generation ARM Mali-G310 enhances support for high dynamic range and provides AFBC uncompressed buffer, selected ARM fixed-rate compression (AFRC),
and Foveation Rendering technology to enhance augmented/virtual reality effects, with support for OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0.

NXP iMX95 system on module/single board computer High-performance GPU

High Computing Power to Empower Edge Applications

The i.MX95xx chip integrates a built-in Neural Processing Unit (NPU) with a high computing power of up to 2 TOPS,
which enables excellent machine learning and deep learning capabilities, providing robust support for edge computing applications.

NXP iMX95 system on module/single board computer High Computing Power to Empower Edge Applications

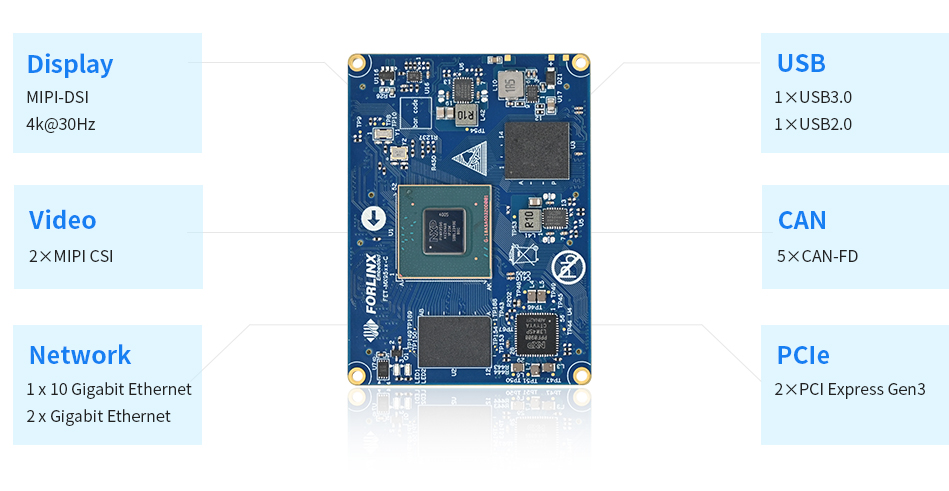

Rich CPU Interfaces

NXP iMX95 system on module/single board computer Rich CPU Interfaces

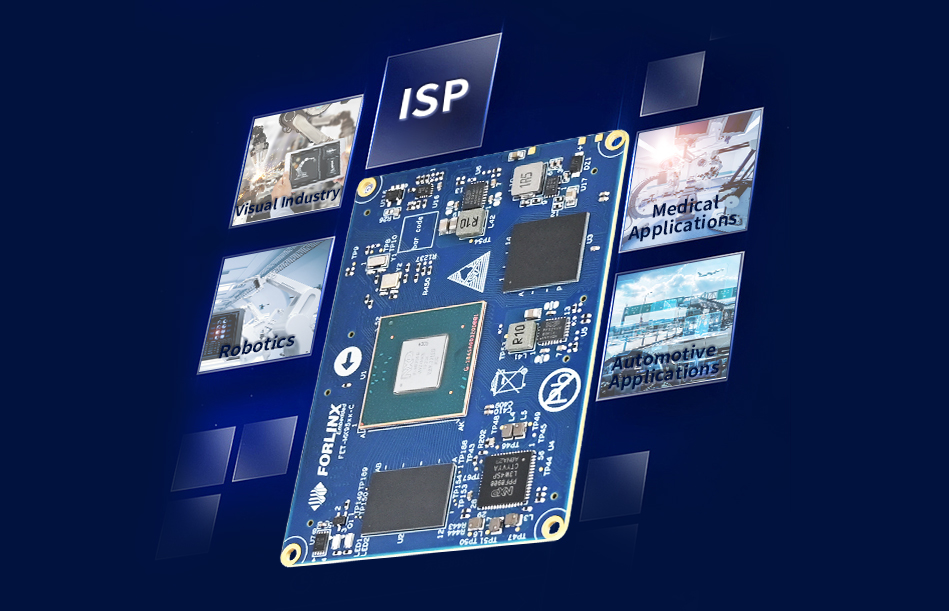

ISP Significantly Enhances Image Quality

The ISP technology integrated into the i.MX95xx chip supports various image sensors and is optimized for different application scenarios.
Whether it's for industrial inspection, robot vision or autonomous driving applications, the i.MX95xx can provide clear and accurate image data.

NXP iMX95 system on module/single board computer ISP Significantly Enhances Image Quality

High Definition Decoding and Display Enhancement

The i.MX95xx chip supports H.264 encoding & decoding and H.265 decoding with resolutions up to 4K, easily meeting the demands of playing high-definition videos.
At the same time, the chip also utilizes advanced display enhancement technology,
which can further improve the contrast and color saturation of the picture, giving users a more stunning visual experience.

NXP iMX95 system on module/single board computer High Definition Decoding and Display Enhancement

Safety Features

i.MX 95 series has safety features that comply with the ISO 26262 ASIL-B and IEC 61508 SIL-2 functional safety standards to support basic safety measures
in automobiles and functional safety in industrial control systems.

NXP iMX95 system on module/single board computer Safety Features

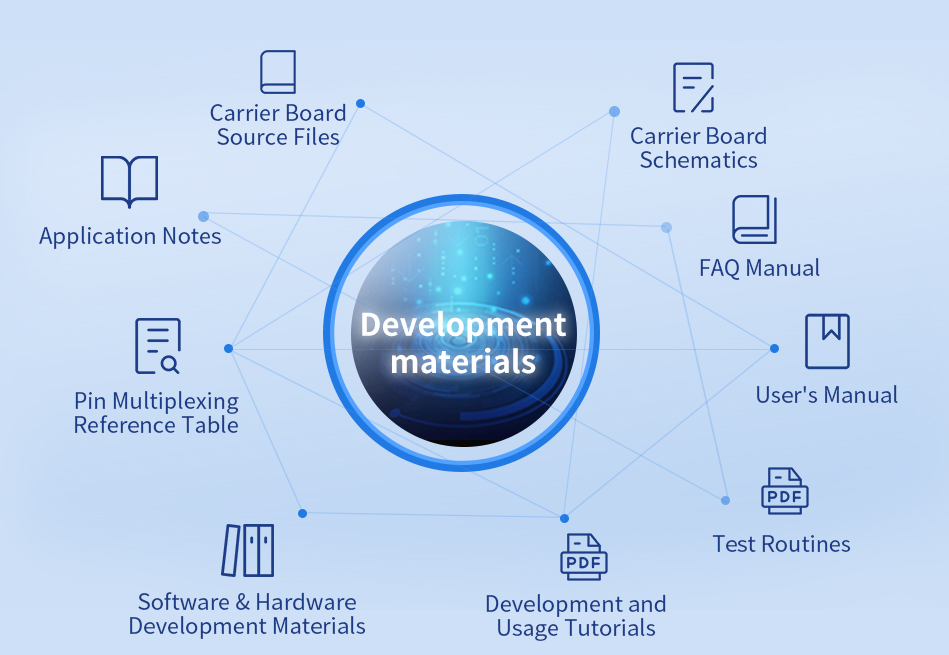

Continuously Updated User Profiles

NXP iMX95 system on module/single board computer Continuously Updated User Profiles

Broad Industry Applications

In multiple industries including industrial, medical, power, automotive transportation, environmental monitoring, smart cabins,
and IoT, the FET-MX95xx-C SoM, with its high performance, multifunctionality, and industrial-grade advantages, coupled with Forlinx's competitive pricing
and comprehensive after-sales technical support, will help your products quickly enter the market and stay ahead in the industry.

NXP iMX95 system on module/single board computer Broad Industry Applications

▊ Hardware Features



FET-MX95xx-C System on Module Basic Features

CPU

NXP i.MX9596

Clock:[email protected] + 1x Cortex-M7@800MHz + 1x Cortex-M33@333MHz

NPU: 2TOPS

GPU: Mali-G310; OpenGL ES 3.2, Vulkan 1.2, OpenCL 3.0

VPU:

  • Hard Decoding: H.264, H.265: up to 4K@30fps
  • Hard Encoding: H.264, H.265: up to 4K@30fps


RAM

8GB LPDDR4X

ROM

64GB eMMC

Voltage input DC 12V

Operating temp

-40℃~+85℃

Connection

Board to board connector(4x 80 pins, 0.5mm pitch, Stack Height: 2.0mm)

OS version

Linux

Dimensions

50mm x 68mm


FET-MX95xx-C System on Module Functional Parameters

Peripheral

NUM

Spec.

JTAG

1

4-pin (JTAG) for debug purpose

UART 1

≤8

Up to 5 Mbps

SPI

≤8

Master/ slave optional

XSPI

≤1

2x Serial NOR flash and Serial NAND flash

CAN-FD

≤5

Complies with ISO11898-1, CAN 2.0B

SAI

≤5


SD Card

≤1

SD card 3.0

SDIO

≤1

SDIO3.0

ADC

≤8

1x 12-bit 8-lane 1MS/s ADC

1 Gbps Ethernet

≤2

1.8 V RMII/RGMII, TSN

10 Gbps Ethernet

≤1

XFI, SGMII (2.5 G and 1G), and 10 G-USXGMII (10GE),TSN

USB3.0

1

USB host or USB device

USB2.0

1

USB host or USB device

PCIe

2

PCI Express Gen3

MIPI-DSI

≤1

1x 350 MHz 4-lane MIPI-DSI, up to 2.5 Gbps

Supports 4k@30Hz or 3840 x 1440@60Hz

MIPI CSI-2

≤2

Compatible with MIPI DSI v1.2 and MIPI D-PHY v1.2

LVDS

1

Up to 1080P@60Hz (2x 4-lane or 1x 8-lane)

I2C

≤7

PDM

≤1

8-lane MIC

SPDIF

≤1

PWM

≤6


GPIO

≤111


▊ NXP i.MX95xx Carrier Board

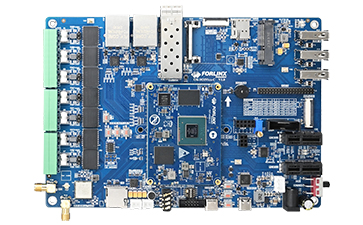

NXP i.MX95xx Development Board
OK-MX95xx-C Development Board

To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.
The OK-MX95xx-C Single Board Computer from Forlinx is powered by the NXP i.MX95xx processor, which features 6 ARM Cortex-A55 cores alongside Cortex-M7 and Cortex-M33 cores. With a SoM + Carrier Board split design and 320 pins, it offers seamless functionality and easy customization, and supports the Linux system. With an open system architecture design, it can provide technical information for your secondary development.

▊ Download


Catalog: Forlinx Catalog Manual

Product Brief: FET-MX95xx-C SoM and OK-MX95xx-C SBC introduction

▊ Accessories


Please click here to get more information about the supported modules and accessories.

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

Contact Us

Welcome to get in touch with us, our experts will reply to your email within 24 hours.

Reset

▊ How To Buy


1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment


1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.

▊ Other Forlinx Recommendations

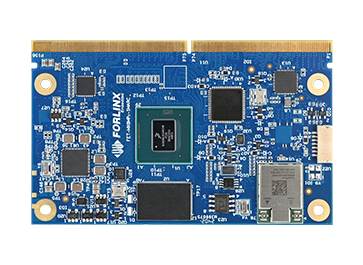

FET-MX8MPQ-SMARC System on Module
