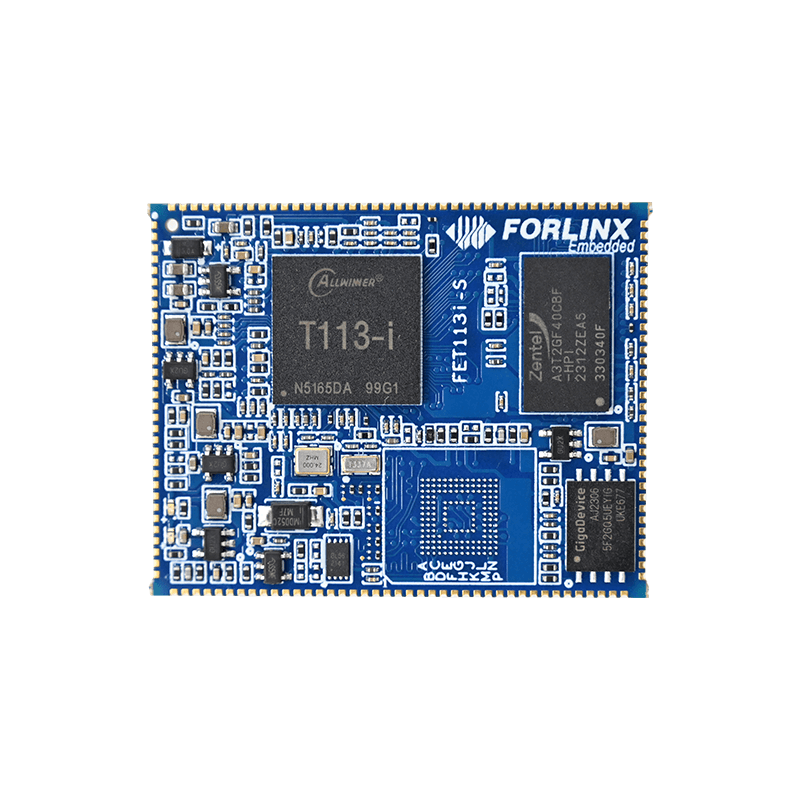

FET113i-S System on Module Based on Allwinner T113-i
FET113i-S system on module(SoM) carries Allwinner's T113-i an advanced application processor on-board. It integrates dual-core CortexTM-A7 CPU and single-core HiFi4 DSP to provide highly efficient computing power. It supports full format decoding and encoding. Integrated multi ADCs/DACs and I2S/PCM/DMIC/OWAaudio interfaces can provide the perfect voice interaction solution. T113-i has extensive connectivity to facilitate product expansion, such as USB, SDIO, UART, SPI, CAN, Ethernet, etc.
Forlinx Allwinner T113-i SoM Highlights:
- Industrial operating temperature width -40℃~+85℃;
- RAM 256MB/ 512MB optional;
- Combination of ARM+RISC-V+DSP, meeting complex application requirements;
- Advanced video codec performance;
- Supports Linux 5.4.61 system;

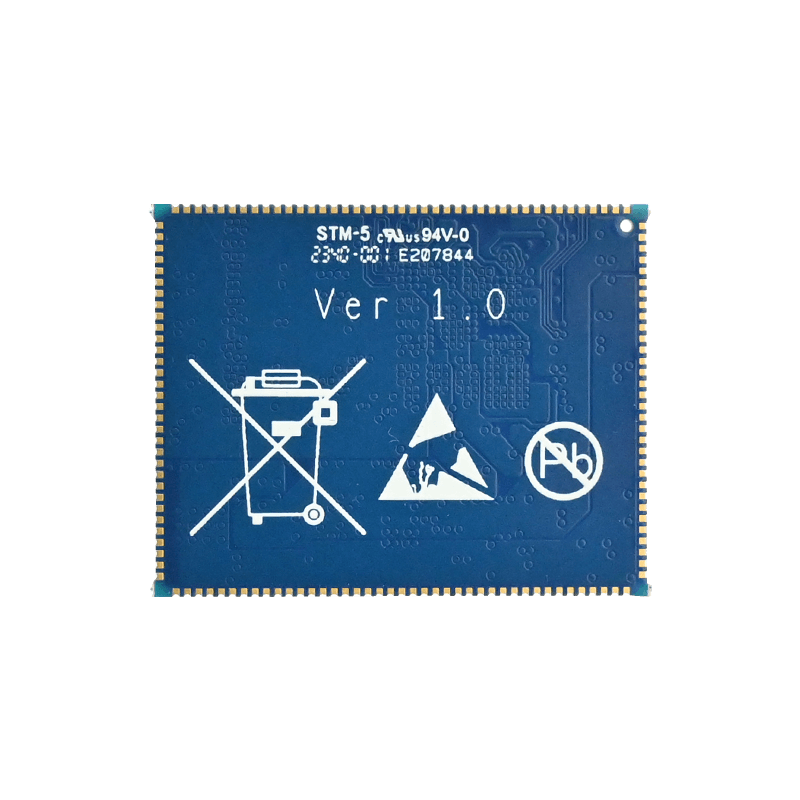

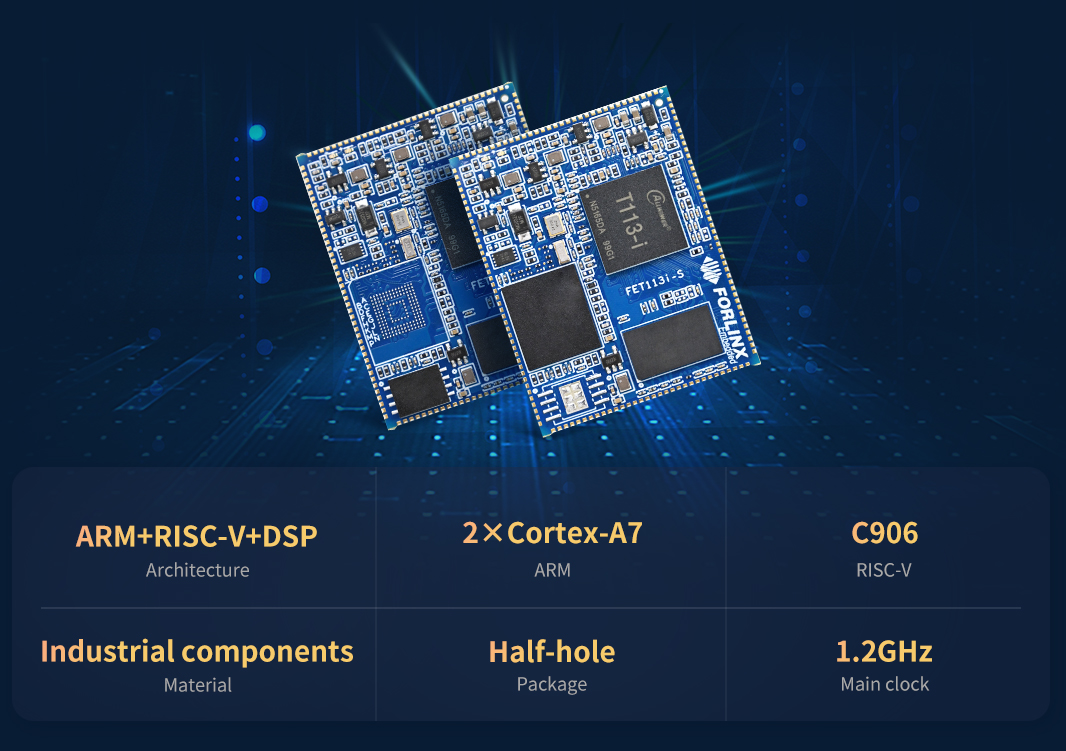

FET113i-S SoM
Cost-Efficient Industrial SoC
Compared with the equivalent T113-S3, T113-i is an industrial processor(operating temperature width -40℃~+85℃) up to 1.2GHz, making it applicable for typical industrial scenarios.
ARM, DSP, and RISC-V Multi-Core Running Together
T113-i SoM can be powered on or shut down by a determined program;
Besides, Cortex-A7, RISC-V and DSP multi-core can run together with DSP for multi-media and digital signal processing, and RISC-V for real-time tasks processing.

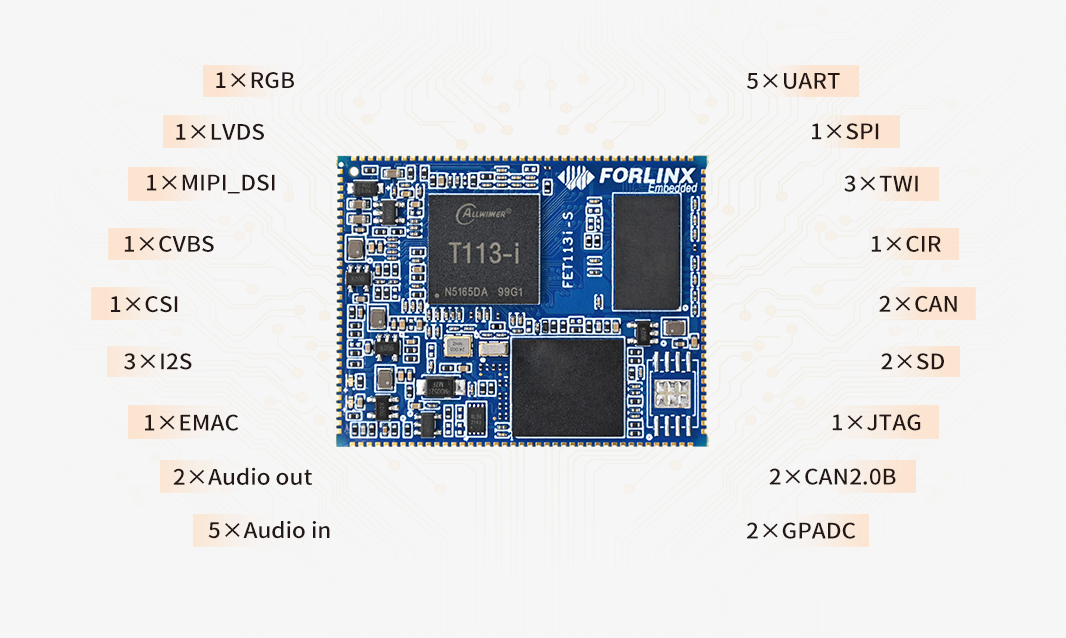

Interface Resources
Advancing Multi-Media Performance
T113-i supports multiple full format decoding such as H.265 (4K@30fps), MPEG-4 (1080p@60fps), JPEG (1080p@60fps), and so on, and supports JPEG/MJPEG( 1080p@60fps) encoding;

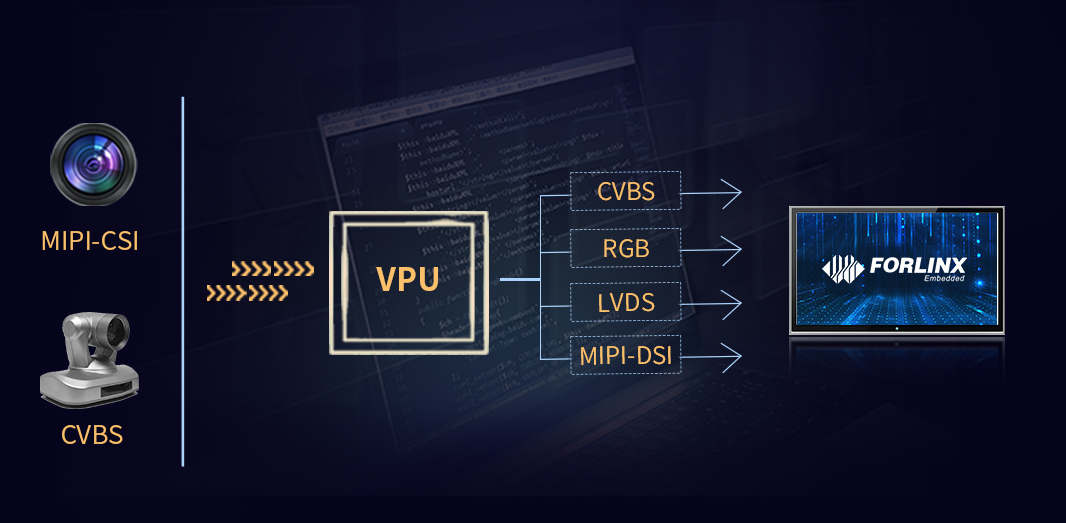

Besides, it supports 8-bit parallel CSI and CVBS video input, CVBS, RGB, 2-lane LVDS and 4-lane MIPI-DSI video output;
A built-in DSP provides high-efficient audio computing power.
Target Applications
▊ Hardware Features
|
FET113i-S SoM Basic Features |
|
|---|---|
|
CPU |
Allwinner T113-i CPU: T113-i VPU:
• Video Decoding: • Video Encoding: JPEG/MJPEG up to 1080p@60fps RISC-V: C906@1008MHz DSP: 600MHz |
|
RAM |
512MB/256MB DDR3 |
|
ROM |
8GB eMMC/256MB SPI Nand Flash |
| Voltage input | DC 5V |
|
Operating temp |
-40℃~+85℃ |
|
Package |

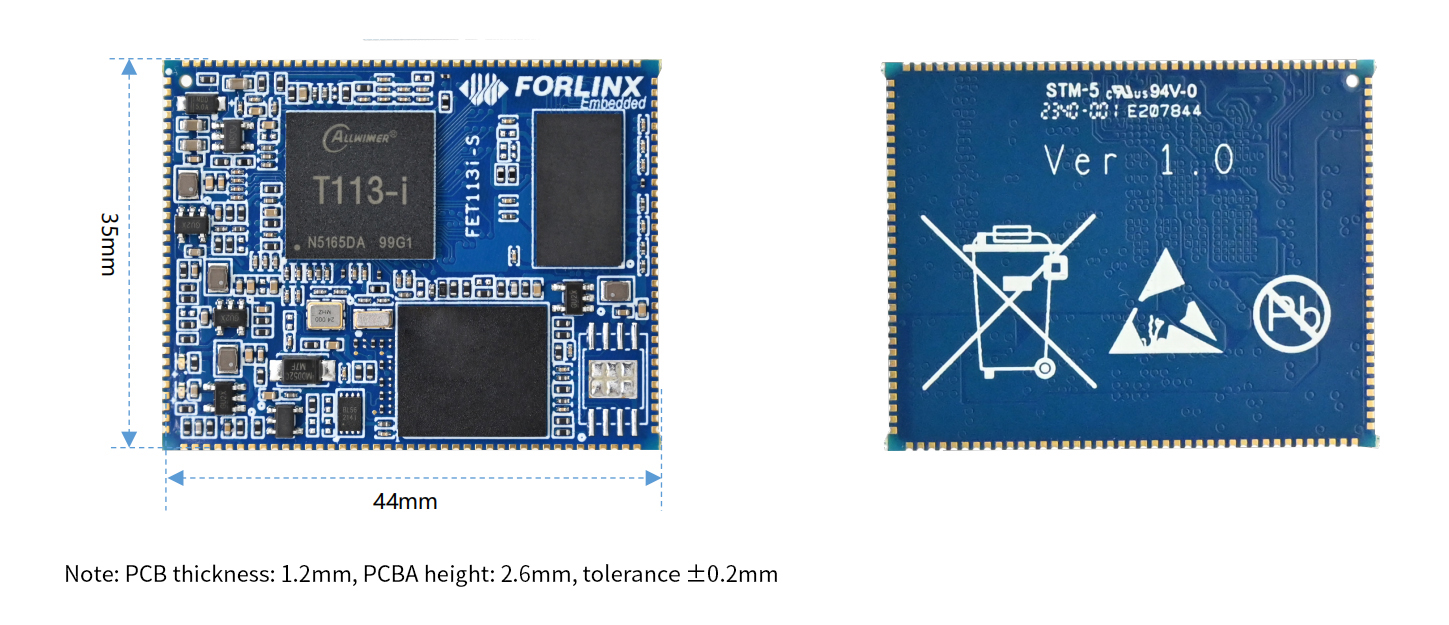

Half-hole soldering(146 pins, 1mm pitch) |
|
OS version |
Linux5.4.61 |
|
Firmware installation |
• TF card • USB OTG |
|
FET113i-S SoM Functional Parameters |
|||
|---|---|---|---|
|
Peripheral |
QTY |
Spec. |
|
|
RGB_LCD |
1 |
DE/SYNC, up to 1920x1080@60fps |
Muliti-plexed and alternative |
|
LVDS |
1 |
Single link, up to 1366×768@60fps; Dual link, up to 1920×1080@60fps |
|
|
MIPI-DSI |
1 |
4-lane, up to 1920×1200@60fps |
|
|
CVBS_OUT |
1 |
Supports NTSC and PAL, 10-bit pixel depth, YUV444 and HV output forms, up to 4K@60Hz |
|
| CSI | 1 |
8-bit digital camera, up to 148.5MHz |
|
| CVBS IN | 2 | Supports NTSC and PAL, 10-bit video ADCs | |
| Audio out | 2 | A pair of stereo headphone output, a pair of differential Lineout | |
| Audio in | 5 |
Three differential/ single MIC, a stereo LINEIN input, a stereo FMIN input |
|
| IIS | ≤3 | Host/ slave mode optional, sampling rate 8kHz to 384kHz | |
| DMIC | 1 |
PDM MIC, sampling rate 8kHz to 48kHz |
|
| OWA | 1 |
S/PDIF |
|
| USB DRD | 1 | Host mode up to 480Mbit/s, slave mode up to 480Mbit/s | |
| USB Host |
1 |
Host mode up to 480Mbit/s | |
|
EMAC |
1 |
10/100/1000 Mbit/s, supports RGMII and RMII | |
| UART |
≤5 |
Up to 4Mbit/s, except for DEBUG UART, there are 5 UART for users | |
|
SPI |
1 |
SPI0-SPI1, SPI0 is used by SoM, so only SPI1 can be used by users, SPI1 supports both SPI mode and DBI mode | |
|
TWI |
≤3 |
TWI0-TWI3, compatible with I2C, up to 400 kbit/s, TWI3 is used by SoM and not available | |
|
CIR |
1 |
Supports 1x infrared RX and 1x infrared TX | |
|
PWM |
≤7 |
PWM0-PWM7, PWM7 is used by SoM, output rating from 0 to 24MHz or 100MHz | |
|
GPADC |
≤2 |
SAR ADC, 12-bit resolution, 8-bit accuracy, sampling rate up to 1MHz, sampling power up to 1.8V | |
|
TPADC |
1 |
4-wire resistive touching panel input detecting | |
|
LRADC |
1 |
Low speed ADC input, for key detecting | |
|
CAN |
2 |
CAN2.0B | |
|
SD |
2 |
SDC0 is only available for 3.3V IO, it’s configured to SD card, SDC1 is only available for 3.3V IO | |
|
JTAG |
1 |
2x 5 pin headers with pitch of 2.0mm | |
▊ Allwinner T113i Carrier Board

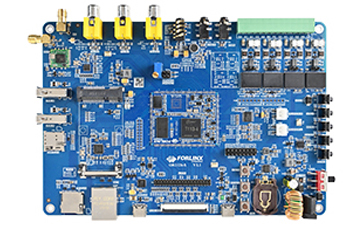

OK113i-S Development Board
To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.
OK113i-S Single Board Computer from Forlinx is based on industrial-grade T113-i processor from Allwinner with a 1.2GHz dual-core Cortex-A7 CPU, 64-bit XuanTie C906 RISC-V CPU and DSP, this board offers efficient computing power. Featuring a wide range of connectivity options, including USB, SDIO, UART, SPI, CAN, and Ethernet, and supports Linux 5.4.61 system. Featuring open system architecture design, it can provide technical information for your secondary development.
▊ Downloads
Catalog:
Forlinx Catalog Manual
Datasheet:
FET113i-S SoM and OK113i-S SBC introduction
|
Linux5.4.61 |
User manual, compiling guideline, GIT source, 3P tool and lib, reference files from StarFive, kernel source code, file system, OS image, VM ubuntu image, SD card making tool |
| Hardware | User manual, carrier board schematic, carrier board PCB(CAD), datasheet, carrier board and SoM DXF files, pinmux sheet |
▊ Accessories
Provides the modules and accessories used in Forlinx's OK113i-S development board.

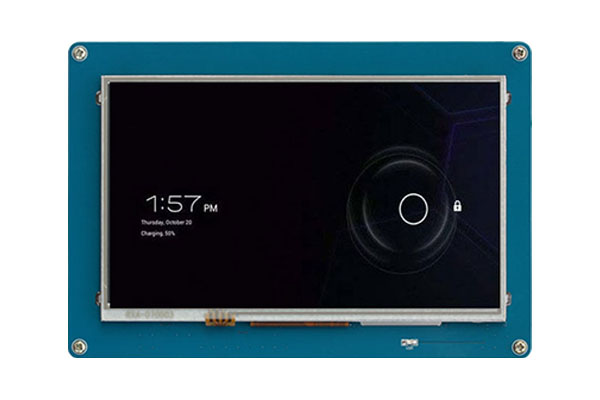

See here for communication modules, Evaluation Kit, LCD screen, SBC expansion module and further accessories »
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us to start ordering
2. Order offline
Pls send your inquiry to our mailbox [email protected];
3. Payment Terms
Samples(100% T/T in advance),Bulk Order(please contact with our sales)
▊ Shipment
1. Delivery: Goods will be sent out by express as requested.
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
