FCU3501 Embedded Computer
CPU: Rockchip RK3588/RK3588J
Architecture: 4x Cortex-A76+4x Cortex-A55
Frequency: [email protected]/1.6GHz, [email protected]/1.3GHz
RAM: 8GB LPDDR4x，16GB LPDDR4x
ROM: 64GB eMMC，128GB eMMC
System: Supports Hailo‑8 26 TOPS M.2 AI accelerator card

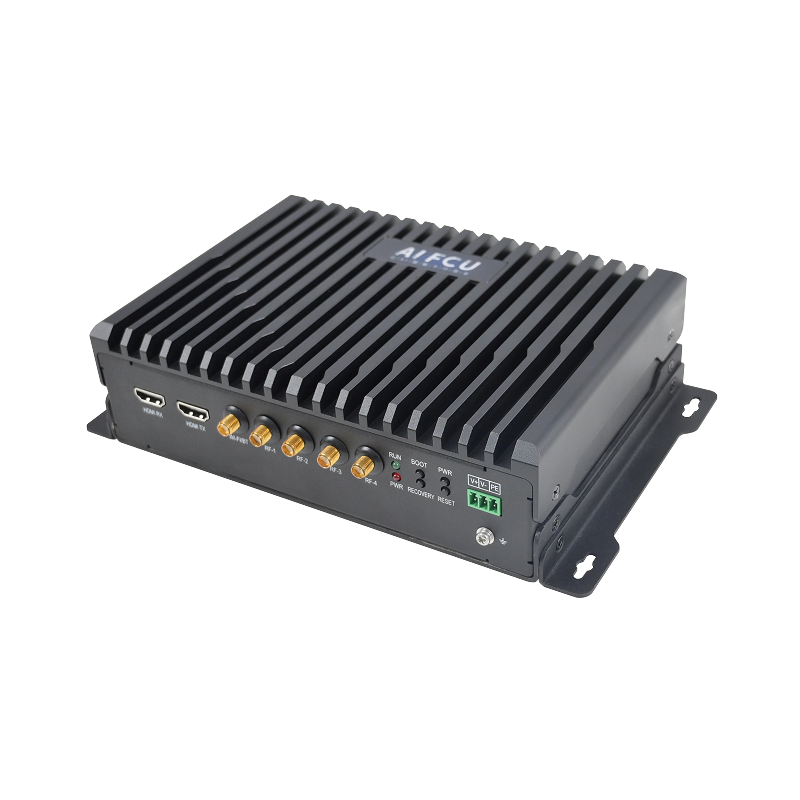

FCU3501 Rugged Fanless Embedded Computer
FCU3501 Embedded Computer is designed based on the Rockchip RK3588 processor, featuring 4 x Cortex-A76 cores at up to 2.4GHz and 4 x Cortex-A55 cores at up to 1.8GHz. It supports 8K video encoding/decoding and offers 6 TOPS NPU performance, with optional AI acceleration via a Hailo-8 26 TOPS M.2 module. Ideal for edge AI applications in smart transportation, smart factories, and smart buildings. The fanless, passive cooling design ensures stable, reliable operation, verified through rigorous environmental and EMC testing.
Key Features for the FCU3501 Embedded Computer / Embedded PC:
- Rugged Fanless Design – Silent, maintenance-free operation for harsh environments
- RK3588 Octa-core CPU – 4× Cortex-A76 @ 2.4 GHz + 4× Cortex-A55 @ 1.8 GHz
- Scalable AI Performance – 6 TOPS onboard NPU, expandable to 26 TOPS via Hailo-8 M.2
- 8K Video Encode/Decode – High-resolution edge video processing
- Wide Operating Temperature – -40 °C to +85 °C
- Edge AI Applications – Transportation, industrial, building, and unmanned systems
FCU3501 Embedded Computer

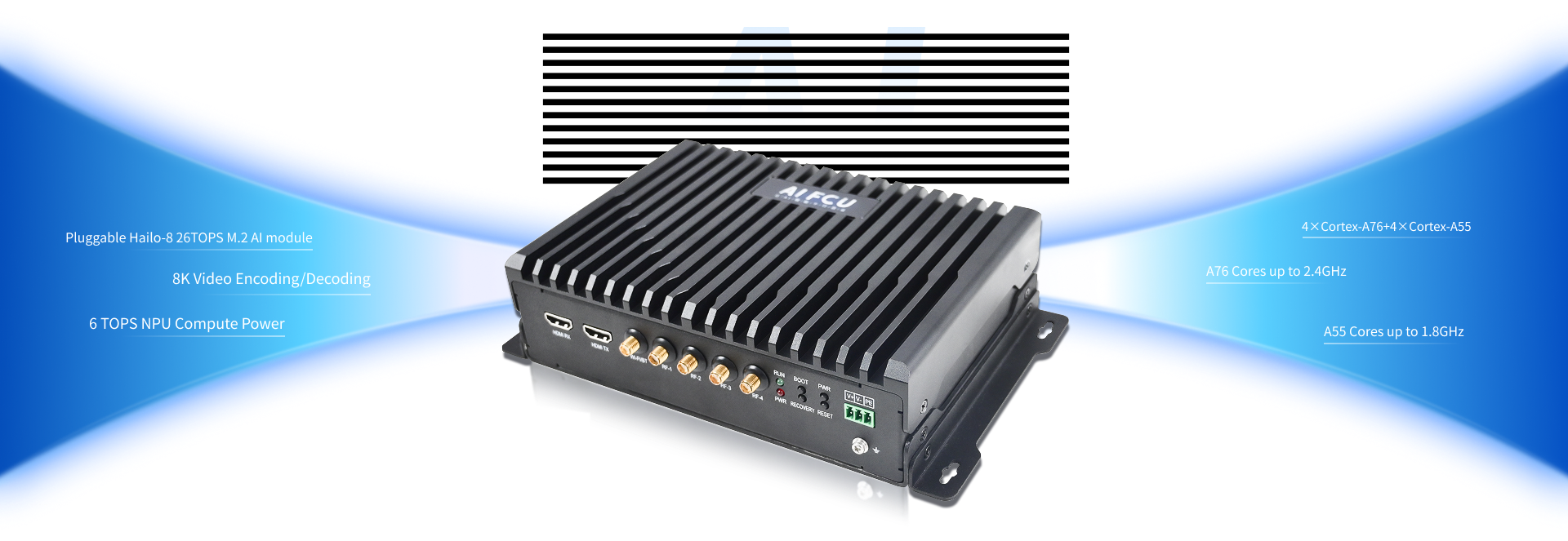

Powerful Processor Performance
It is designed based on the Rockchip RK3588 processor, featuring 4 x Cortex-A76 cores at up to 2.4GHz and 4 x Cortex-A55 cores at up to 1.8GHz, with a built-in NPU for edge AI computing.
Compute Power Expansion
Supports Hailo-8 computing card expansion. The expanded computing power with RK3588 can reach up to 26+6 TOPS, fully meeting AI edge computing needs.

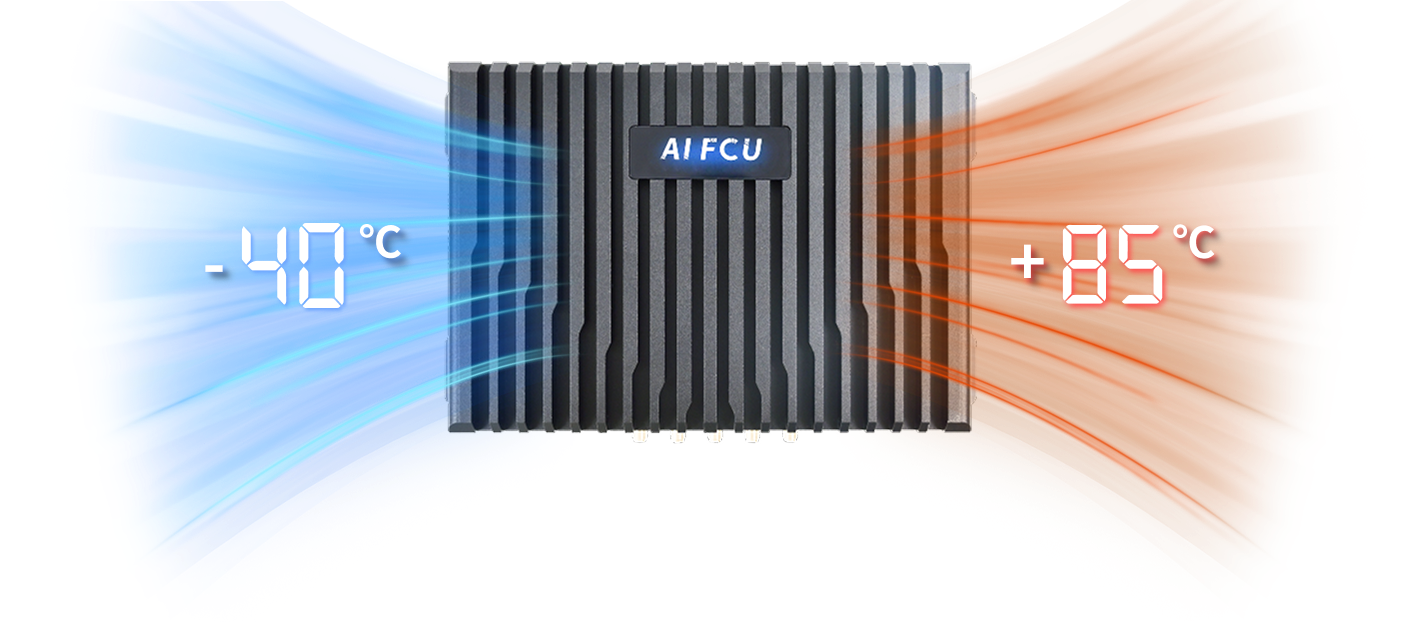

Passive Cooling Design
It features an industrial fanless design and can operate reliably for a long time in an ambient temperature range of -40°C to +85°C.
Comprehensive Certifications
CE, FCC, RoHS certifications and environmental test passes for ensured safety, quality, and smooth market entry.
Abundant Peripherals
It offers multiple storage expansion options, including M.2 SSDs and TF cards, allowing users to choose the most suitable configuration for different application scenarios. Optional 4G/5G modules are also supported for flexible deployment.

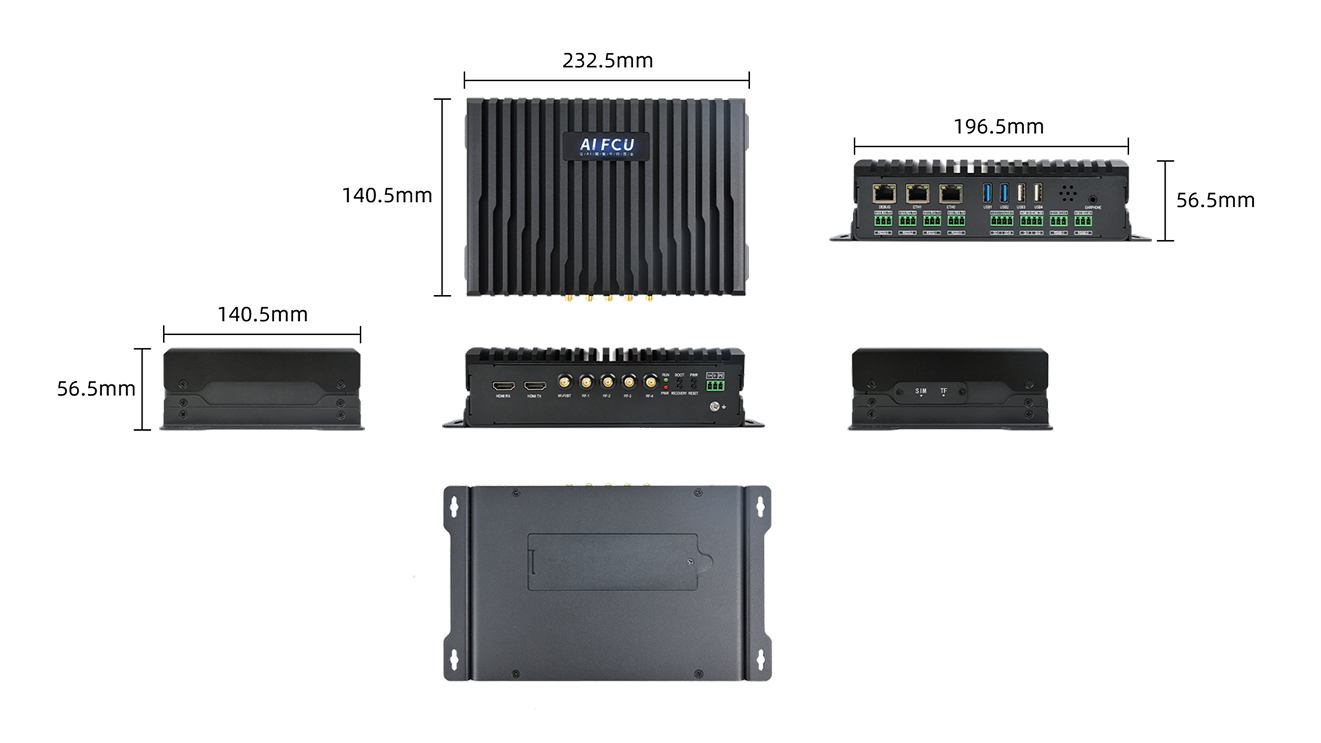

Product Dimensions

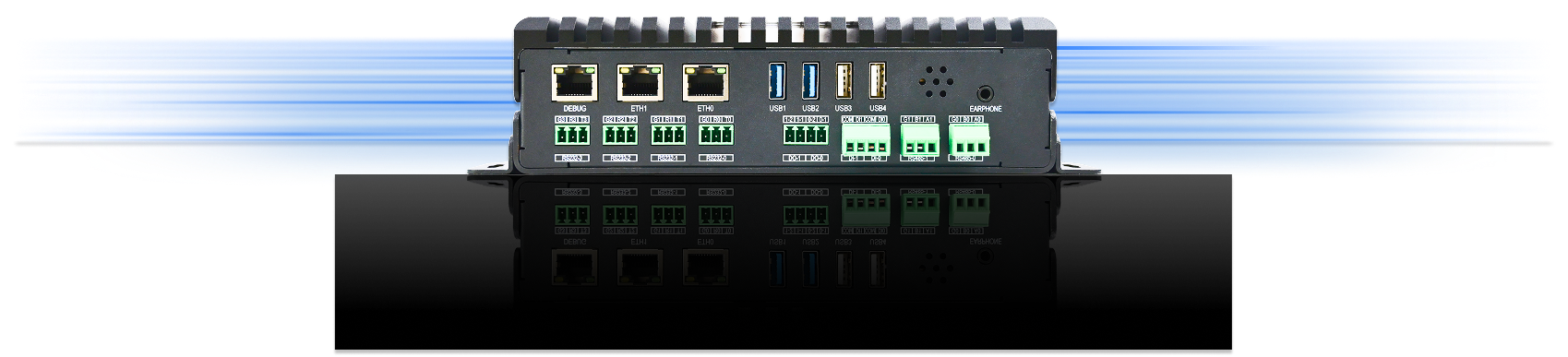

Interfaces

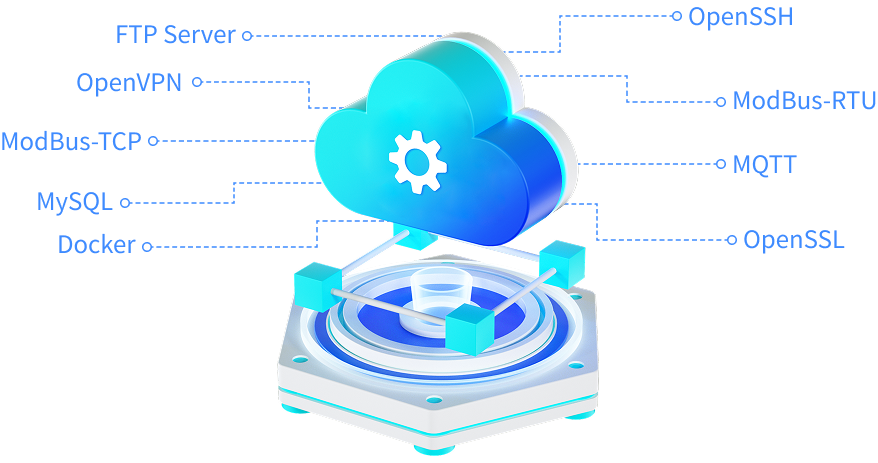

System Software
Application Scenarios
In multiple industries such as intelligent transportation, smart factories, intelligent buildings, unmanned vehicles/ships,
and unmanned consumption, with its comprehensive advantages of high performance, multi-functionality, and industrial-grade quality,
along with Forlinx’s complete after-sales technical support, the FCU3501 helps your products be quickly launched onto the market and stay at the forefront of the industry.
FCU3501 Embedded PC Video
Introduce All-New FCU3501 Embedded Computer With 32 TOPS NPU
▊ Hardware Features
|
FCU3501 Embedded Computer Basic Features |
||
|---|---|---|
|
Processor |
Rockchip RK3588/RK3588J RK3588 CPU：4×[email protected]+4×[email protected] RK3588J CPU：4×[email protected]+4×[email protected] NPU: 6 TOPS, supporting INT4/INT8/INT16/FP16 mixed operation GPU：Mali-G610 MP4, OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2 VPU： Hardware Decoding:
Hardware Encoding:
|
|
| RAM |
8/16 GB LPDDR4x |
|
|
ROM |
64/128 GB eMMC |
|
|
Operating Temperature |
-40℃~+85℃ |
|
|
Working Voltage |
Rated DC 24V, supporting wide voltage 9V-36V, with reverse connection protection and over current protection |
|
|
Complete Machine Size |
Dimensions: 196.5x140.5x56.5mm (232.5x140.5x56.5mm with mounting ears) |
|
|
Heat Dissipation |
Passive cooling, no fan |
|
|
Total Weight |
2.04kg (including 5G module and computing power card) |
|
|
FCU3501 Embedded Computer Functional Parameters |
||||
|---|---|---|---|---|
|
Function |
QTY |
Spec. |
||
|
EtherNet |
2 |
Support 10/100/1000 Mbps data transmission rate. |
||
|
USB3.0 |
2 |
Led out via Type-A connector, 5V/1A output. |
||
|
HDMI TX |
1 |
Led out via standard HDMI socket; |
||
|
HDMI RX |
1 |
Led out via standard HDMI socket; |
||
|
TF |
1 |
Support TF card for expanded storage and OS burning. |
||
|
DEBUG |
1 |
RJ45 connector, RS232 level. Connect to a computer via a console debugging cable for debugging. |
||
|
Audio |
1 |
Built-in speaker supporting headphone output. |
||
|
WiFi&BT |
1 |
Support WIFI4 and Bluetooth 4.2. |
||
|
M.2 |
1 |
4G/5G（EM05/RM500U） |
||
|
M.2 |
1 |
M.2 hard drive. |
||
|
M.2 |
1 |
Support HaiLo-8 computing power card. |
||
|
RS485 |
2 |
Isolated RS485 level converter, using 3-pin 15EDGK-3.81 green terminal block. |
||
|
RS232 |
4 |
Isolated RS232 level converter, using 3-pin 15EDGK-3.81 green terminal block. |
||
|
DI |
2 |
2 x optocoupler-isolated signal input, dry contact access. |
||
|
DO |
2 |
2 x relay-isolated output, dry contact output. |
||
|
KEY |
4 |
Four buttons : reset, power on/off, MASKROM, RECOVERY. |
||
|
LED |
2 |
1 x power supply normally on LED; |
||
