FET3568-C System On Module

CPU: Rockchip RK3568J/RK3568

Architecture: Cortex-A55

Frequency: 1.8GHz,2.0GHz

RAM: 1GB/2GB/4GB/8GB DDR4

ROM: 16GB eMMC

System: Linux4.19/5.10, Debian 11, Android 11, Forlinx Desktop

Brief Message Compare

FET3568-C System on Module Based on Rockchip RK3568

FET3568-C system on module (SoM) / Computer on Module carries Rockchip’s new generation AIoT processor RK3568 a 64-bit quad-core Cortex-A55 SoC equipped with NPU on board running speed at up to 2.0GHz but low power performance. The SoM has been proven to be robust and reliable through harsh ambient temperature tests, stress tests and long-run tests. Widely used in medical, industrial, transportation, cloud terminal, streaming media, security, AI application, energy management and other related applications.

Forlinx RK3568 SoM Highlights:

  • 38.4GFLOPS 800MHz GPU Mali-G52
  • 1TOPS NPU
  • Various high speed interface: 2x USB3.0, 2xPCIE3.0, 3x SATA3.0
  • 2x 1000Mbps Ethernet(GMAC), 3x CAN-FD, 10x UART
  • Multiple display interface, HDMI(up to 4K output), LVDS, MIPI-DSI, RGB, eDP, supports 3-screen playing sync/ async
  • Built in ISP: 12M, 1920x1080@60fps, input up to 375MP/S, and supports 2 MIPI-CSI input

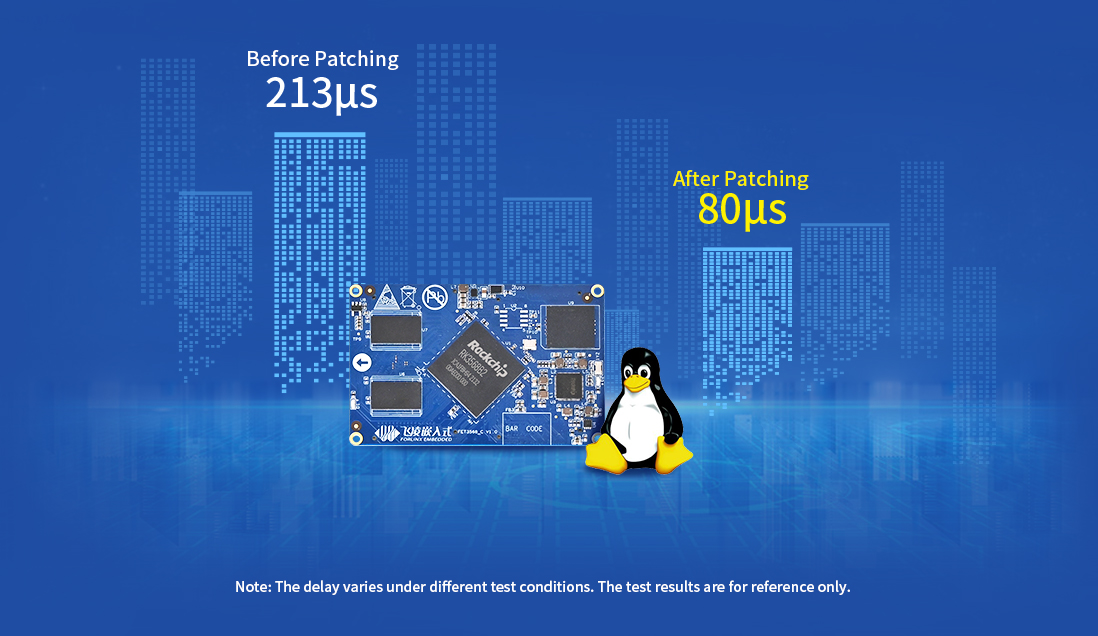

Advanced and robust

FET3568-C SoM is equipped with quad-core 64-bit Cortex-A55 processor with built in NPU based on advanced 22nm process technology,
running at up to 2.0GHz, and plenty of high-speed peripheral interfaces are available.

Quad-core Rockchip RK3568 Pc
Quad-core Rockchip RK3568 phone

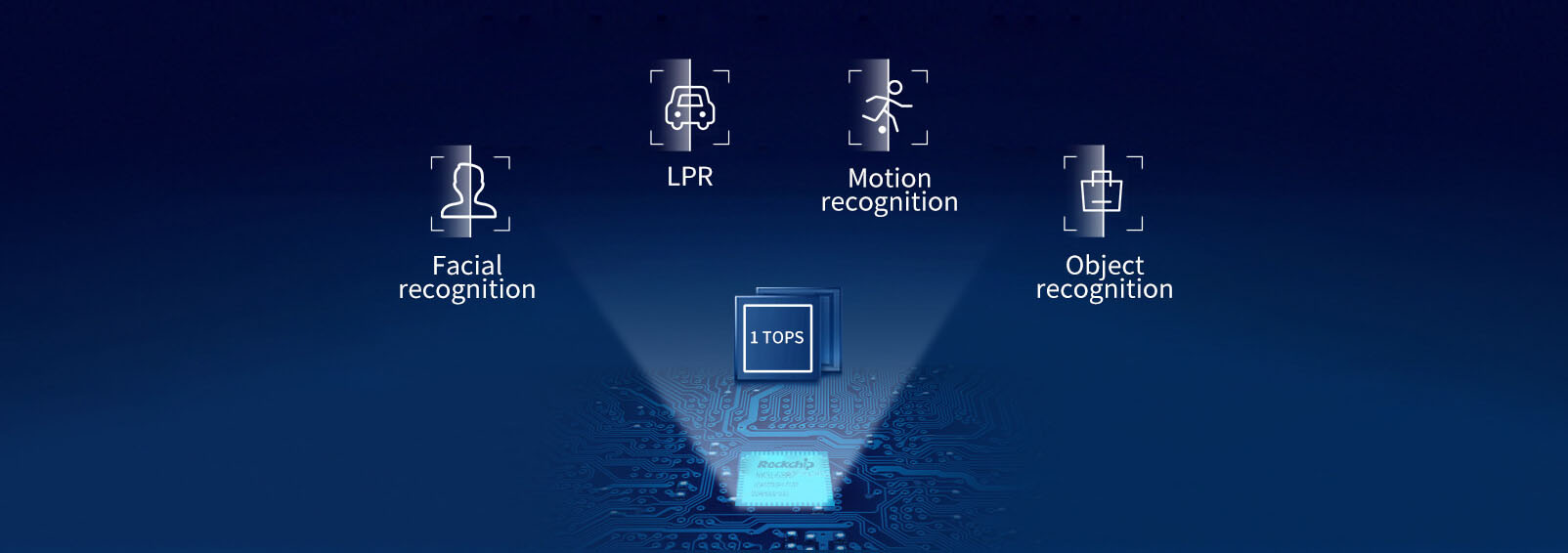

Built-in NPU

Neural network acceleration engine with processing performance up to 1 TOPS. Supports RKNN-Toolkit.
In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.

Rockchip RK3568 SoM 1tops Pc
Rockchip RK3568 SoM 1tops phone

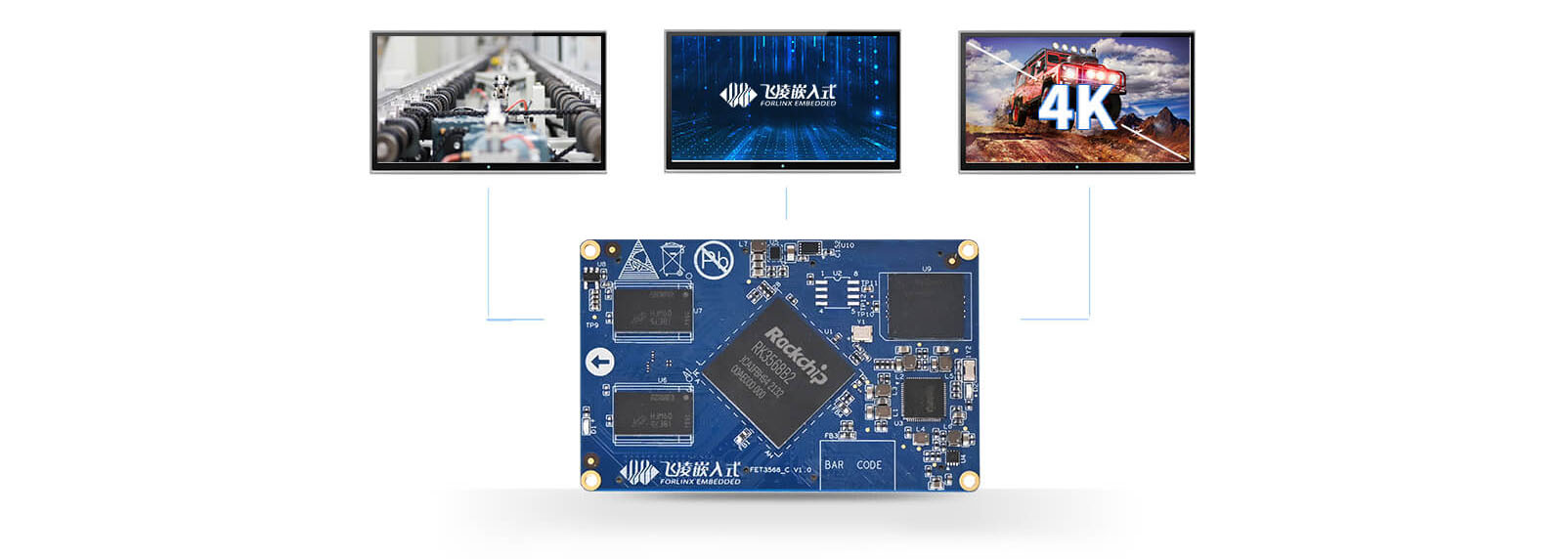

Various display interfaces, supports three displays with different frames

HDMI2.0, eDP, LVDS, RGB Parallel and MIPI-DSI are all well supported, besides, it supports three displays simultaneously output up to 4K,
which is preferable and applicable for PDA, cash register, multi-screen advertising machine, karaoke machine, electronic bus stop board, self-service machine, etc.

RK3568 SoM three-screen different display Pc
RK3568 SoM three-screen different display phone

Powerful video codec performance

Support 4K resolution H.264/H.265/VP9 and other formats high-definition hard decoding,
and can support multiple video sources decoding simultaneously, support HDR10 with excellent color and dynamic range performance;
FET3568-C SoM supports H.264 and H.265 format hardware encoding at 1080p60fps, and supports dynamic code rate, frame rate, and resolution adjustment.

RK3568 SoM 4K video codec Pc
RK3568 SoM 4K video codec phone

High-scalability

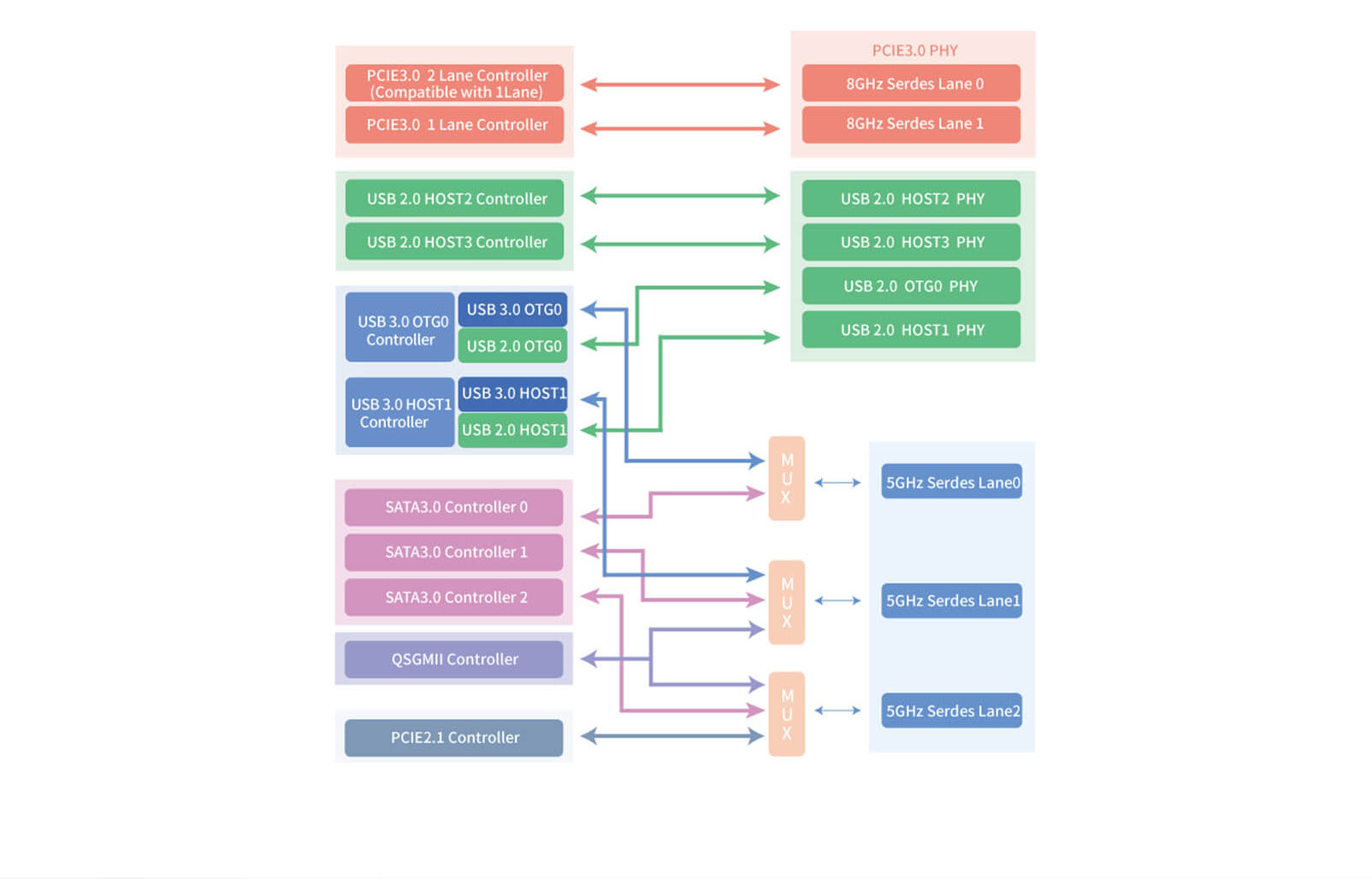

Equipped with 3 PCIe, 4 separate USB, 3 SATA controllers, and 2 builtin GMAC can support RGMII/ SGMII/ QSGMII(2MAC) to expand dual Gigabit Ethernet ports.

RK3568 SoM high-speed interface Pc
RK3568 SoM high-speed interface phone

▊ Video


Forlinx RK3568 SoM & Single Board Computer

▊ Specifications


FET3568-C SoM Basic Parameters

CPU

Rockchip RK3568 quad-core [email protected]
Rockchip RK3568J quad-core [email protected]

GPU

• Mali-G52-2EE
• OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.0,1.1, OpenCL 2.0

NPU

1TOPS, Support INT8/INT16/FP16/BFP16 mixed operation.

VPU

Decode:
• H.264, H.265, VP9: up to 4096x2304@60fps
• VP8: up to 1920x1088@60fps
• VC1, MPEG-4, MPEG-2, MPEG-1: up to 1920x1088@60fps
• H.263: up to 720x576@60fps

Encode:
H.264/AVC, H.265/HEVC: up to 1920x1080@60fps

RAM

1GB/2GB/4GB/8GB DDR4(Standard 2GB)

ROM

8/16/32GB eMMC

OS

Linux4.19/5.10+Qt5.12, Debian 11, Android 11, Forlinx Desktop

Working voltage

5

Package

board to board connector(4*80pin Spacing 0.5mm)

Working Temperature

0℃ ~ 70℃ / -40~85℃

Dimensions

45x70mm


FET3568-C SoM Function Parameter

Interface

QTY

Parameter



Display



3

quipped with 3 display controllers, supports 3 simultaneous output in RGB, LVDS, MIPI DSI, HDMI, eDP interface.
• RGB: Support RGB888, resolution up to 1280x800;
• LVDS: single-channel output, resolution up to 1280x800, and multiplexed with MIPI-DSI0 channel;
• MIPI-DSI: single-channel output, resolution up to 1920x1080@60Hz; dual-channel output resolution up to 2560*1440@60Hz;
• HDMI: Resolution up to 1080p@120Hz or 4096x2304@60Hz;
• eDP: Support eDP 1.3, resolution up to 2560x1600@60Hz;

Camera

2

1x DVP, 1x 4-lane MIPI-CSI.

Audio

4

1X 8ch I2S/TDM, 2X2ch I2S, 1x8ch PDM

SDIO

3

SDIO 3.0, data throughput up to 104MB/S

Ethernet

2

2GMAC, by RGMII / RMII

USB 2.0

2

USB2.0 Host, separate but not multiplexed with USB3.0.

USB 2.0

2

1 USB 2.0 Host, 1 USB 2.0 OTG from USB 3.0, can be used as 2 independent USB 2.0 when USB 3.0 is not needed.

USB 3.0

2

1 USB 3.0 Host, 1 USB 3.0 OTG



They share 3 sets of SerDes, in this case, only 3 functional interface of them could be used simultaneously.


SATA

3

SATA 3.0, up to 6.0Gb/s, supports eSATA.

PCIe2.1

1

PCIe 2.1 x1, up to 5.0Gbps, RC mode.


PCIe3.0


2

PCIe 3.0, 1x2Lanes or 2x1Lane, each lane up to 8.0Gbps.
1Lane only supports Root Complex (RC) mode.
2Lanes support both Root Complex(RC) and End Point(EP) modes.

UART

10

up to 4Mbps.

CAN

3

CAN2.0 B is well supported

SPI

4

Host mode and slave mode are optional and configurable

I2C

5

Supports 7bits and 10bits address modes, up to 1 Mbit/s.

PWM

16

32-bit timer/counter

▊ Evaluation Kit

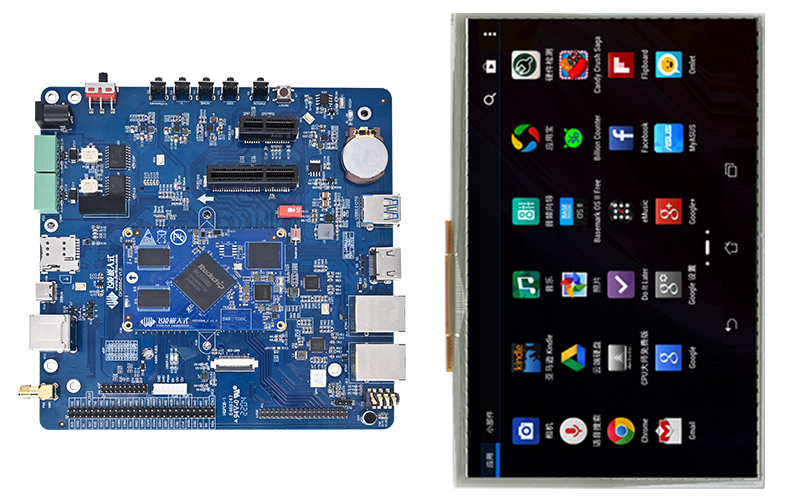

OK3568-C development kit
OK3568-C Evaluation Kit

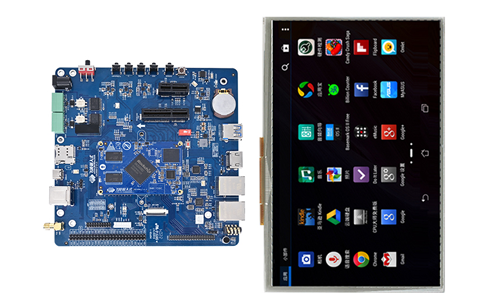

OK3568-C development kit and starter kit are complete development platforms for evaluation and application development. These kits are a good demonstration of FET3568-C SoM expansibility and performance.

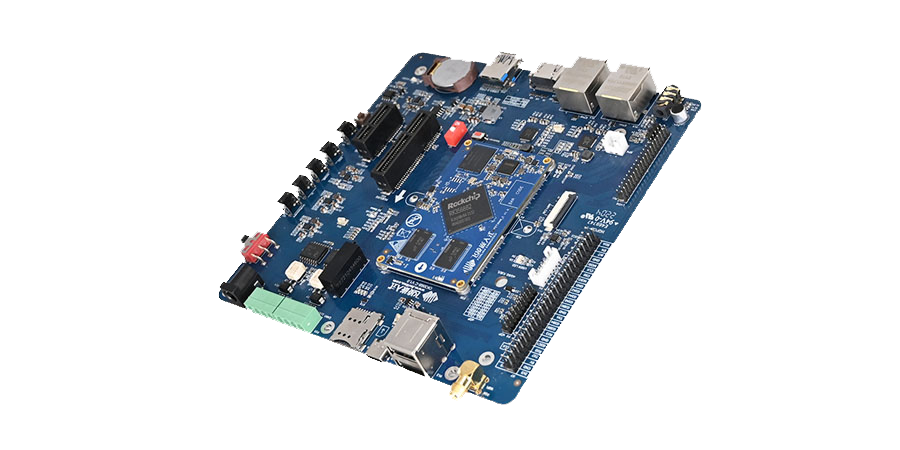

OK3568-C is a development kit of RK3568, consisting of a Forlinx carrier board and a SoM. In addition, this complete development kit is a complete package including a 10.1-inch LVDS Screen, power supply and all necessary cables.


Function ports of OK3568-C Carrier Board

Interface

specification





Display

HDMI 2.0

up to 1080p@120Hz or 4096x2304@60Hz;

eDP

eDP1.3, up to 2560x1600@60Hz;

LVDS

Single-channel output, up to 1280x800;

LCD

RGB888 up to 1280x800; multiplexed with SPI0, SPI2, UART3, UART4, UART5 and UART7.

MIPI-DSI

1 single-channel output up to 1920x1080@60Hz;

Camera

MIPI-CSI, tested and recommended model OV13850.

Audio

1x stereo headphone output; 1x 1.3W class D amplifier output; 1x MIC input.

TF Card

For storage expanding and OS firmware flashing.

Ethernet

2x 10/100/1000Mbps auto-negotiation, RJ45 connector.

4G/5G modem

M.2 Key-B, contains USB 3.0/2.0 for 4G/5G module expanding;
Tested and recommended model: EM05-CE (4G modem, compatible with EC20), RM500U-CN (5G modem)

WiFi&BT

On-board AW-CM358SM, 2.4G/5G dual-band Wi-Fi, BT5.0.
WiFi by SDIO; BT by UART

USB 2.0

2x USB 2.0 Host,Type-A

USB 3.0

1x USB 3.0 Host, Type-A

USB 2.0 OTG

contained in USB 3.0, can be used as slave mode for OS iamge flashing and ADB debugging.

PCIe 2.1

Standard PCIe x1 socket; multiplexed with SATA

PCIe 3.0

Standard PCIe x4 socket, can be configured as 2 PCIe x1.

UART

3x 3.3V TTL level, by pin headers with pitch of 2.54mm

CAN

2x CAN2.0; with isolation and ESD protection.

SPI

2x 3.3V TTL, by pin headers with pitch of 2.54mm

I2C

1x 3.3V TTL level, by pin headers with pitch of 2.54mm

RTC

CR2032

Key

8: reset, power on/off, OTG programming, Maskrom, VOL+, VOL-, HOME, ESC.

QSPI

On-board 32MB QSPI Nor Flash.

Debug

converted by USB, Type-C connector that convenient for laptop users

Power input

DC 12V

▊ Downloads


Catalog: Forlinx Catalog Manual

Product manual: FET3568-C System on Module Brief Introduction


Linux4.19

User manual, compiling guideline, kernel source code, file system, OS image, VM ubuntu image, SD card tool, USB OTG tool, QT demos and source code
Hardware User manual, carrier board schematic, carrier board PCB(AD), datasheet, carrier board and SoM DXF files, pinmux sheet

▊ Accessories


Please click here to get more information about the supported modules and accessories.


Optional Module
10.1 inch LVDS Screen
7.0-inch LCD Module with MIPI Display
MIPI OV13850(13.0MP) Camera Module
5G Module(RM500U)
4G Module(EM05)

▊ Technical Support


1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service
