FET335xS-II System on Module

CPU: TI AM3354

Architecture: Cortex-A8

Frequency: 600MHz

RAM: 128MB DDR3

ROM: 256MB NandFlash,1GB NandFlash

System: Linux3.2+QT4.8,WinCE6.0

Download Message Compare

FET335xS-II System on Module

FET335xS-II system on module(SoM) is based on TI Cortex-A8 AM3354 industrial-grade processor design, running at a main frequency of 600MHz, and an industrial-grade operating temperature range of -40°C to +85°C. The core board adopts 8-layer PCB immersion gold process design to ensure reliable electrical characteristics and electromagnetic compatibility characteristics. The stamp hole connection method has the advantages of anti-vibration, anti-oxidation, anti-interference, and low cost. OK335xS-II development board has a small backplane that can be directly embedded in the product for use, providing a wealth of common interfaces such as USB, CAN, RS485, etc. OK335xS-II development platform has passed CE/FCC certification to ensure that the product runs stably and reliably in a complex industrial-grade environment.

Main Feature

  • PowerVR SGX530 graphics processor;
  • Stamp Hole Connection(136 pin, spacing 1.27mm)
  • 1x IIS, 3x IIC, 6x UART, 2x CAN, 2x SPI;
  • 1x USB2.0 Device, 1x USB2.0 OTG;
  • Support EINT/GPIO;
  • 7x ADC, JTAG, 3x PWM, 3x SD/MMC/SDIO;
  • 2x 10/100/1000Mbps Ethernet;
  • ...


Quality Assurance:

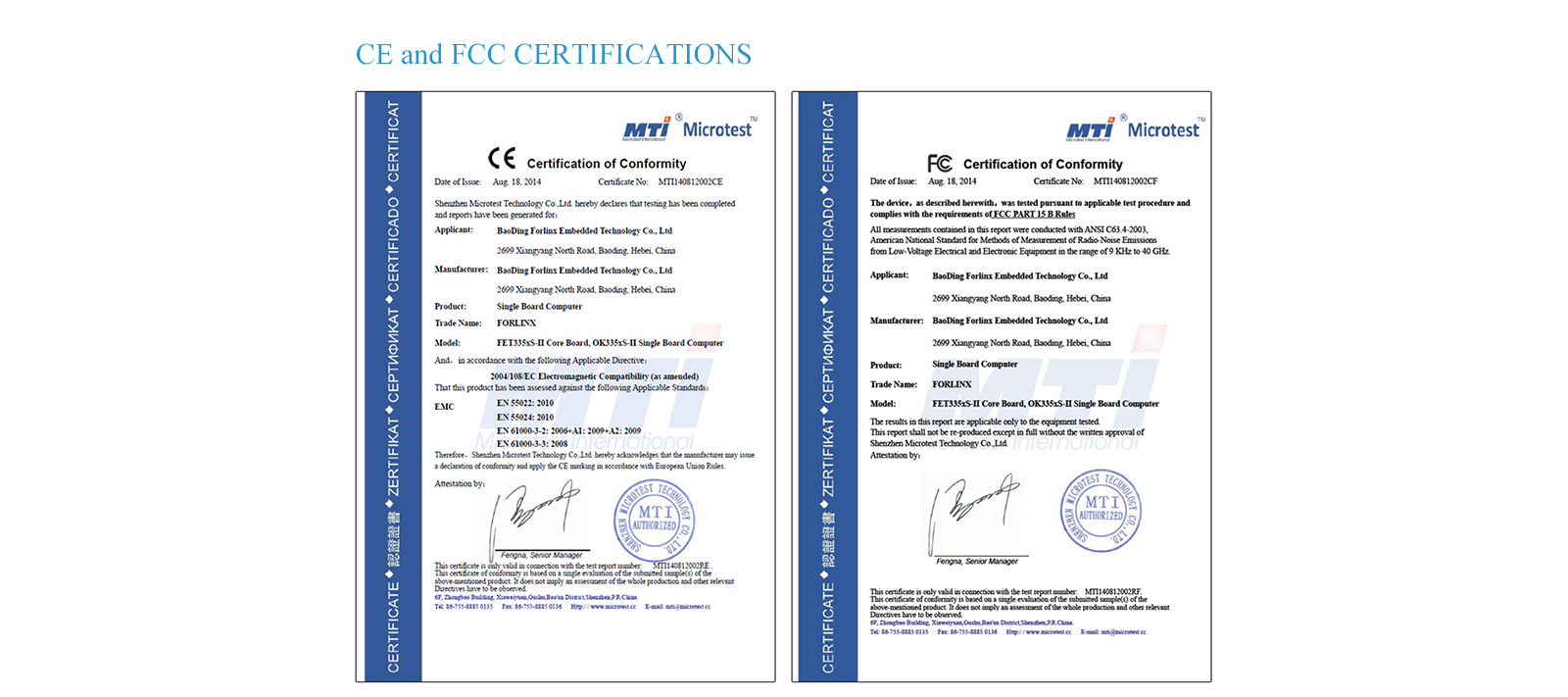

Forlinx Embedded OK335xS-II single-board computer(SBC) has passed the CE FCC international certification, representing that Forlinx OK335xS-II industrial-grade development board (core board) complies with international safety standards and communication standards.

AM3354 SoM Quality Assurance


▊ OK335xS-II Evaluation Kits


OK335xS-II Evaluation Kits

To reduce your development work, we offer starter kits that can be used as a complete development platform for evaluation and application development.


OK335xS-II is a development kit of AM335x, consisting of a carrier board (AM335x) and a SoM (FET335xS-II). In addition, this complete development kit is a complete package including a 4.3'' resistive LCD module, power supply and all necessary cables. These kits are a good demonstration of FET335x-II SoM expansibility and performance.


AM335x carrier board has the most common interfaces such as USB and dual gigabit Ethernet ports. A wide variety of interfaces allows it to be used as a complete development platform or as a stand-alone end product.



▊ Hardware Features

FET335xS-II System on Module Features
CPU TIAM3354
Architecture ARMv7 Cortex-A8
Frequency 600MHz
RAM 128MDDR3
Flash 256MB SLCNandFlash
Working Temperature -40℃~+85℃
Relative Humidity 10%~90%(non-condensing)
Voltage Input 5V
2D/3D supported
GPU PowerVR SGX530
PMU TPS650250
Dimensions 52mm*42mm
Package edge soldering
OS Linux3.2, WinCE6.0
LCD RGB24-bit
PWM 3x PWM, 1x user's definition, 1x backlight, 1x buzzer
I2C 3x IIC
SPI 2x SPI
CAN 2x CAN
USB OTG 1x USB OTG 2.0
USB DEVICE 1x USB DEVICE 2.0
SD/MMC/SDIO 3x SD/MMC
Ethernet 2x Gigabit Ethernet
UART/IrDA 6x UART/ IrDA
EINT/GPIO supported
ADC 7x ADC
VideoEncoder Software codec
JTAG 1x JTAG
EEPROM supported, for encryption
Audio IIS
SATA can be expanded by USB

▊ Software Features

OS Linux3.2
U-boot u-boot-2011.09
Kernel Linux-3.2.0








Driver

NIC LCD FrameBuffer
LED Resistive touch screen
LCD RTC
USB UART
PWM(backlight, buzzer) Key
Flash ECC verification Watchdog
Nand Flash IIC
UBI/Yaffs file system AD
TF card

OS WinCE6.0
BootLoader EBOOT flashed by SD card
OS Image Flashing by TF card
CE Version PB6.0








Driver

LED Key
GPIO RTC
I2C NANDFlash
SPI Display
UART NIC
Resistive touching USB(OTG/USB/HOST)
SD card Backlight
DMA AD
Audio PWM
Watchdog


▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(AM3354 reference manual), schematic documentations to help customer start their development rapidly.

For more details on solution design with AM3354 SOM
