FET335xD System on Module

CPU: TI AM3354

Architecture: Cortex-A8

Frequency: 800MHz

RAM: 512MB DDR3

ROM: 256MB NandFlash,1GB NandFlash

System: Linux3.2+QT4.8,Android2.3,Android4.2,LinuxRT,WinCE6.0,Win CE7.0

Download Message Compare

FET335xD System on Module

TI AM335x microprocessors is a simple and stable industrial development platform with main frequency up to 800MHz, operating temperature ranges from -40℃ to +85℃. Industrial interface options such as CAN, PROFIBUS, RS485 and dual gigabit Ethernets. 324 CPU pins in total, each pin and peripheral interface pins up to 8 functional configuration. 8-layer of CPU module PCB guarantees perfect electrical and interference. SMT to be used to make sure accurate connection. OK335xD base board pins out mostly industrial used interfaces with open source code. Approved by EMC/EMI testing to make it more competitive.

The FET335xD CPU Module series have three models with the same AM335x processors. For the complete AM335x product list, check out Forlinx’s AM335x System on Module product families.


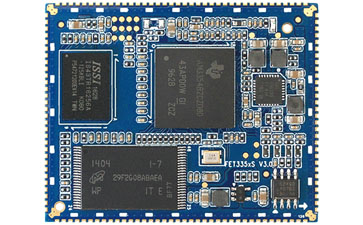

Small size, easy to plug and unplug

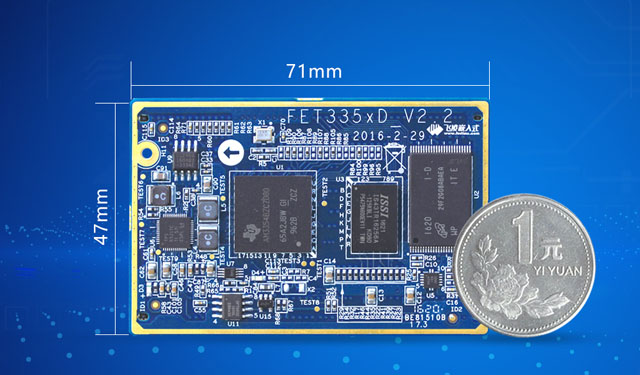

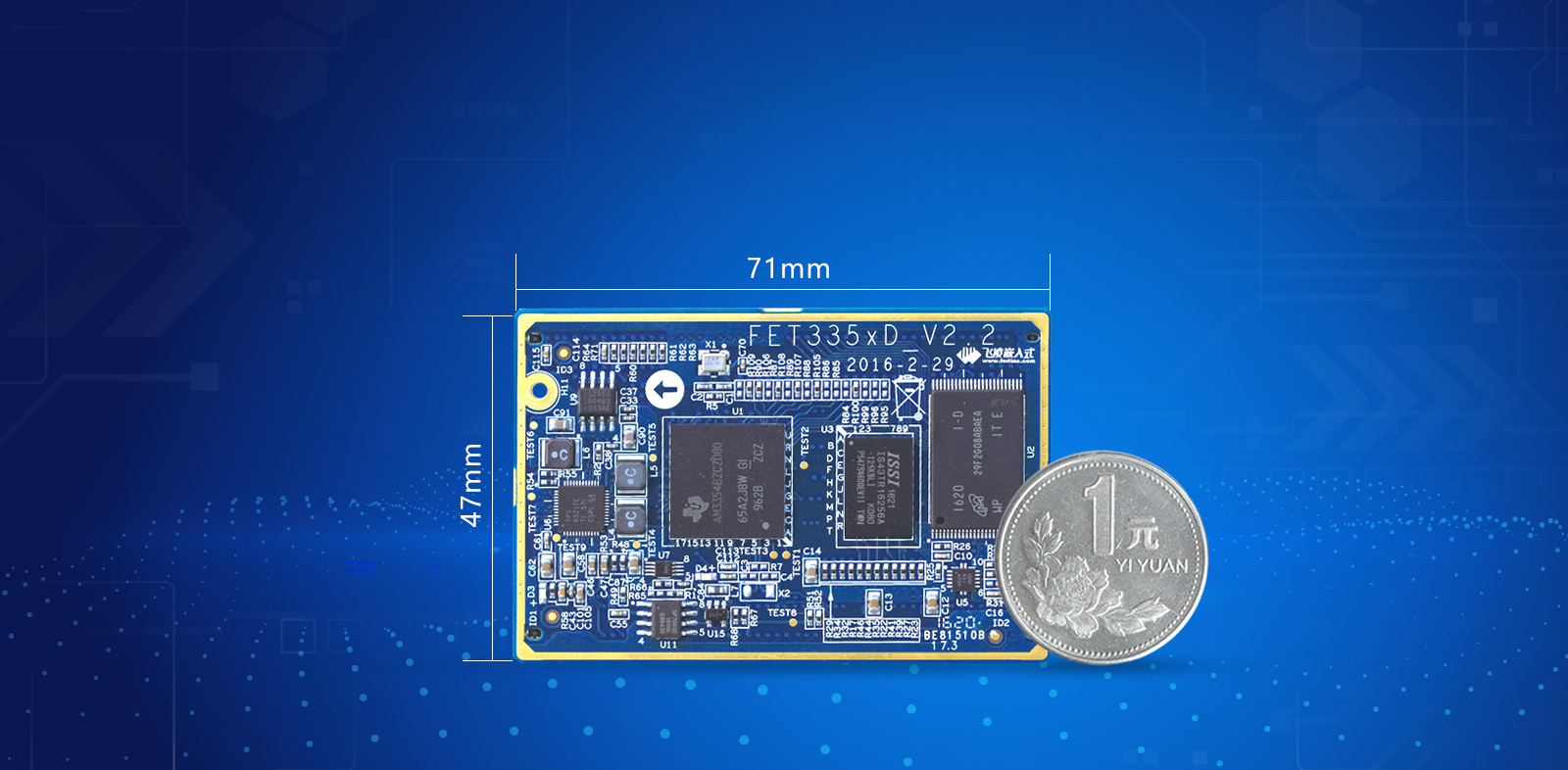

The overall size of the core board is 47*71mm, using an 8-layer PCB immersion gold process, and the connection method uses a 1.27mm pitch.

200 Pin double row anti-misplug pin connector design. Debugging, production, and maintenance are more convenient!

Small size, easy to plug and unplug
Small size, easy to plug and unplug

Industrial Grade Core Board

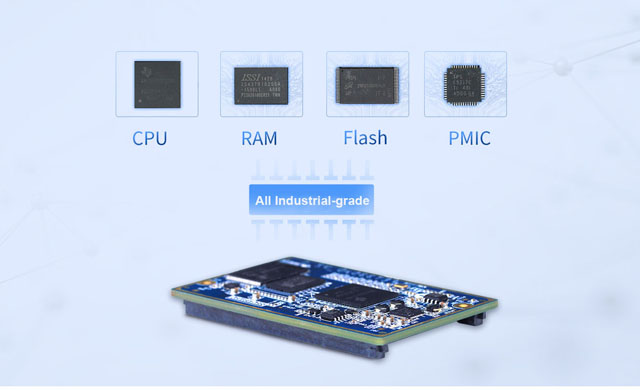

FET335xD core board chips are all made of industrial grade materials, and have undergone strict high and low temperature tests at -40℃~+85℃

FET335xD Industrial grade core board
FET335xD Industrial grade core board

Abundant pins, strong scalability

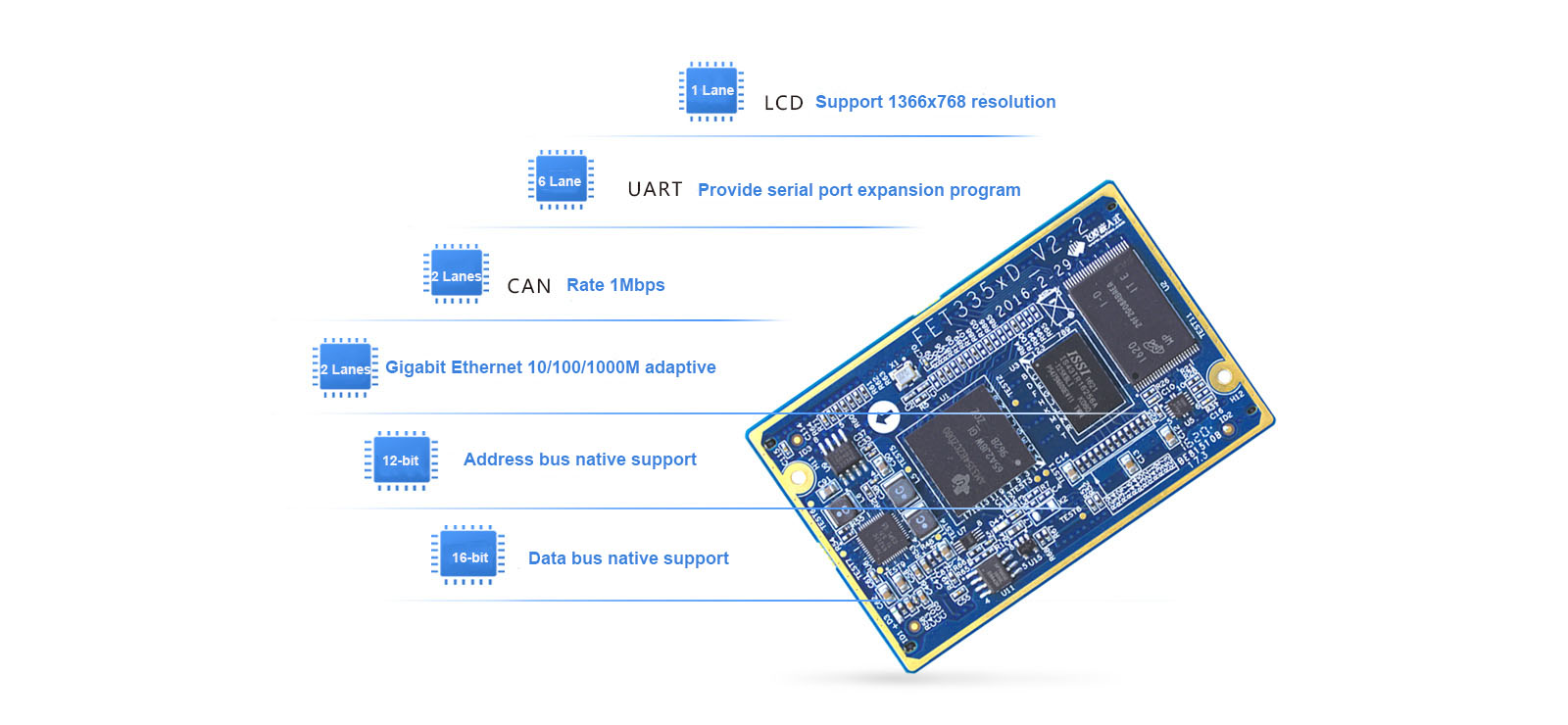

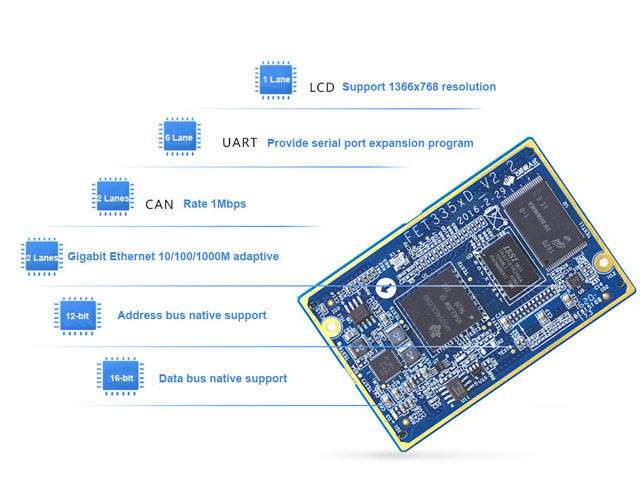

The core board leads to 200pin CPU pins, natively supports 6 UARTs, 2 CAN, 2 Gigabit networks, 1 LCD,

16-bit data bus, 12-bit address bus and other functions.

FET335xD Industrial grade core board
FET335xD Industrial grade core board

Support any combination of multiple communication modules

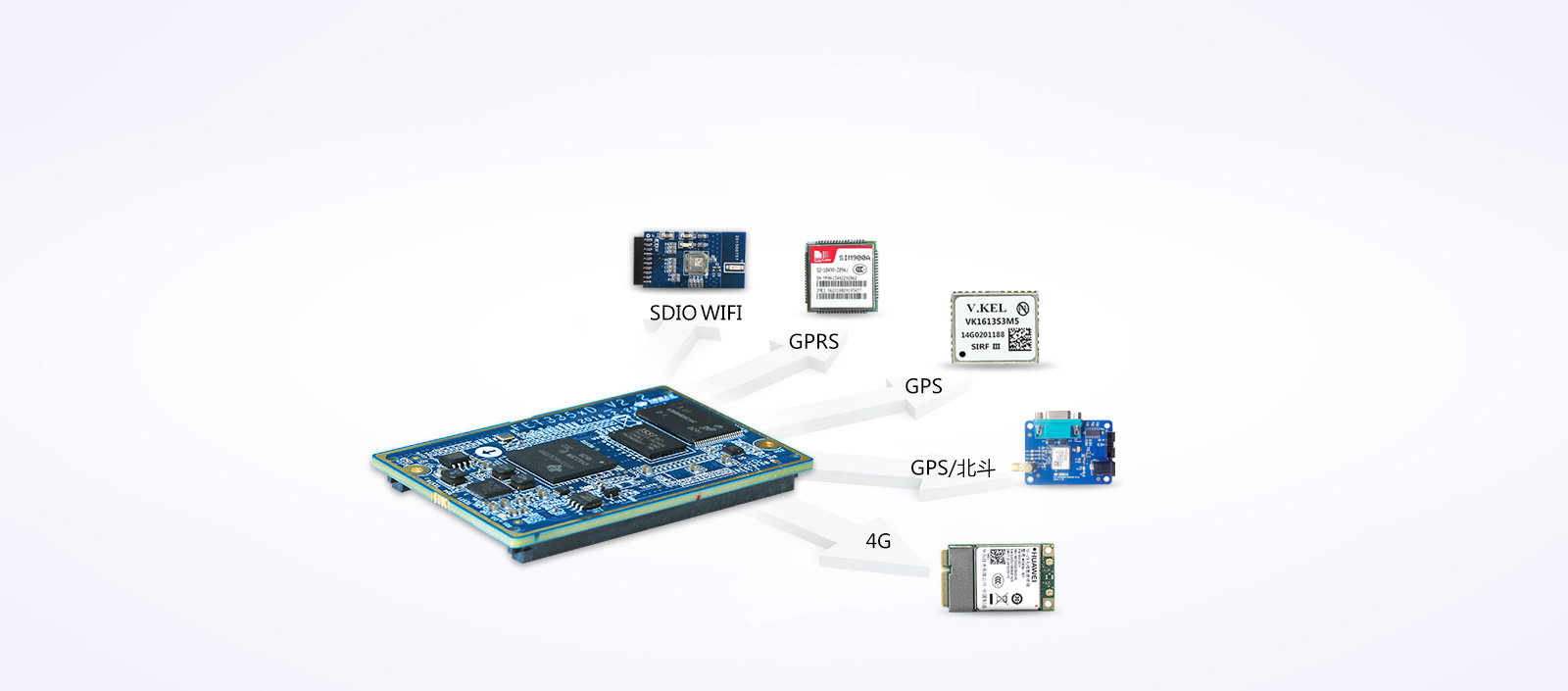

FET335xD core board supports 3G module, 4G module, GPRS module, GPS module,

WIFI module, Bluetooth module and other modules.

FET335xD Industrial grade core board
FET335xD Industrial grade core board

Real-time operating system

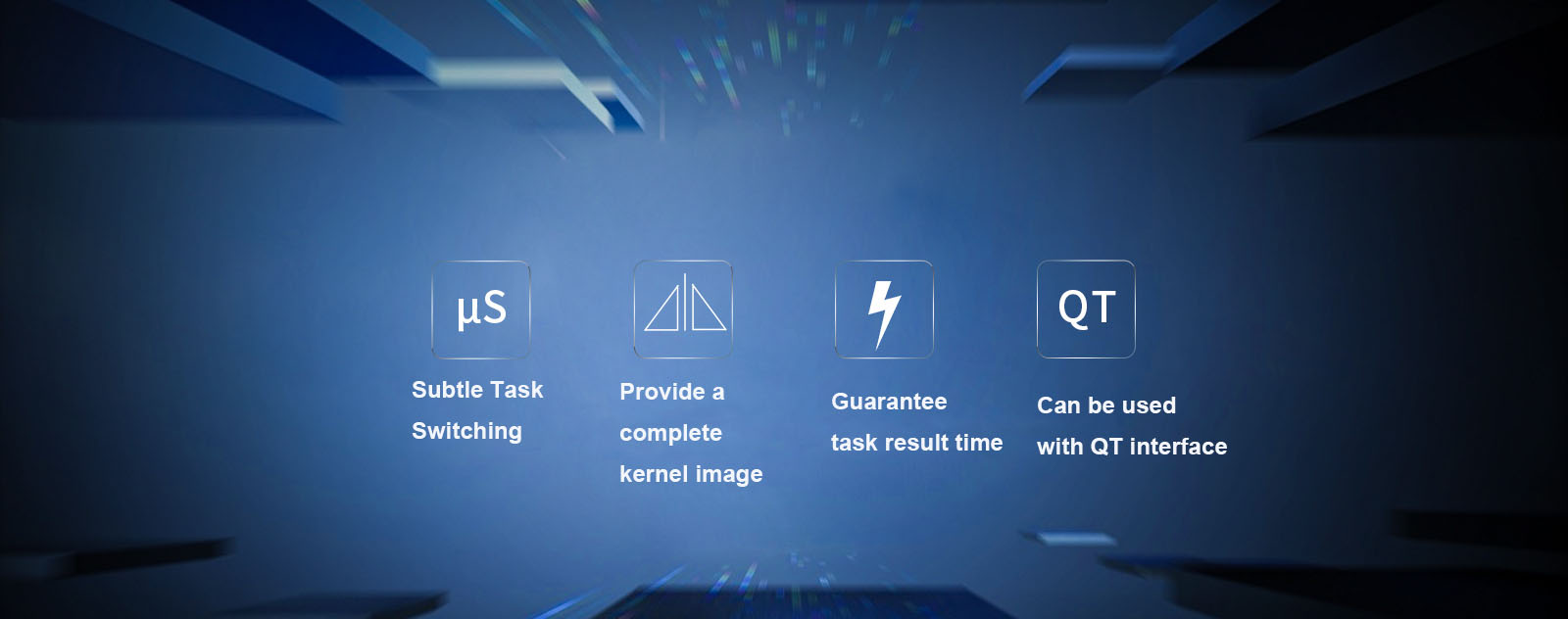

Support Linux RT-Preempt real-time operating system.

Linux RT-Preempt real-time operating system
Linux RT-Preempt real-time operating system

Support multiple mainstream operating systems

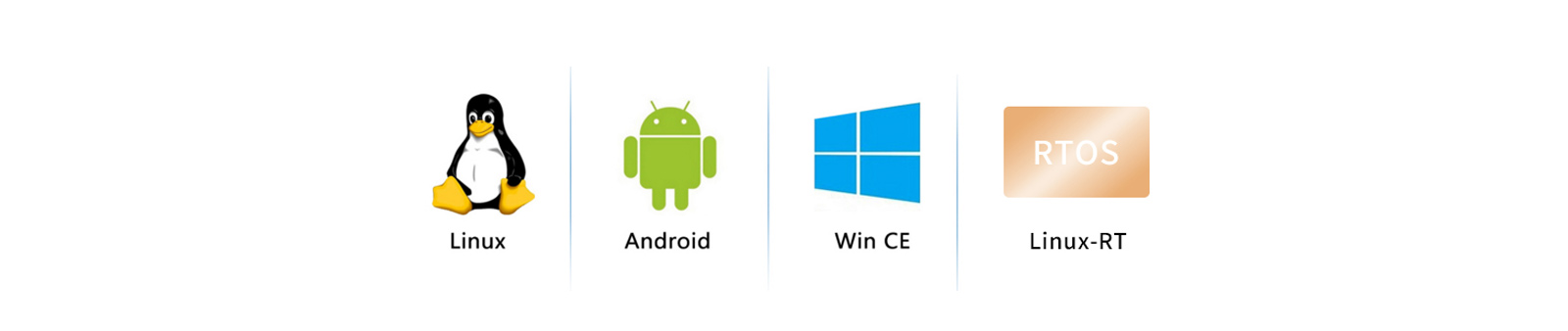

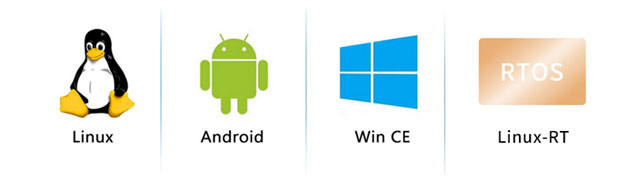

The FET335xD core board supports mainstream operating systems on the market,

Linux-RT, Linux3.2, Android2.3, Android4.2, WinCE7.0, WinCE6.0

Support multiple mainstream operating systems
Support multiple mainstream operating systems

Multiple safety certifications

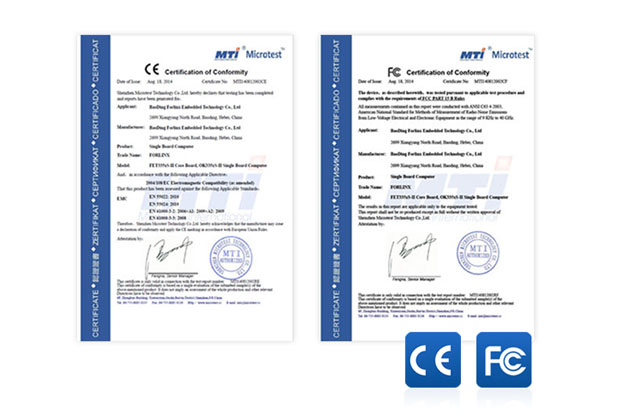

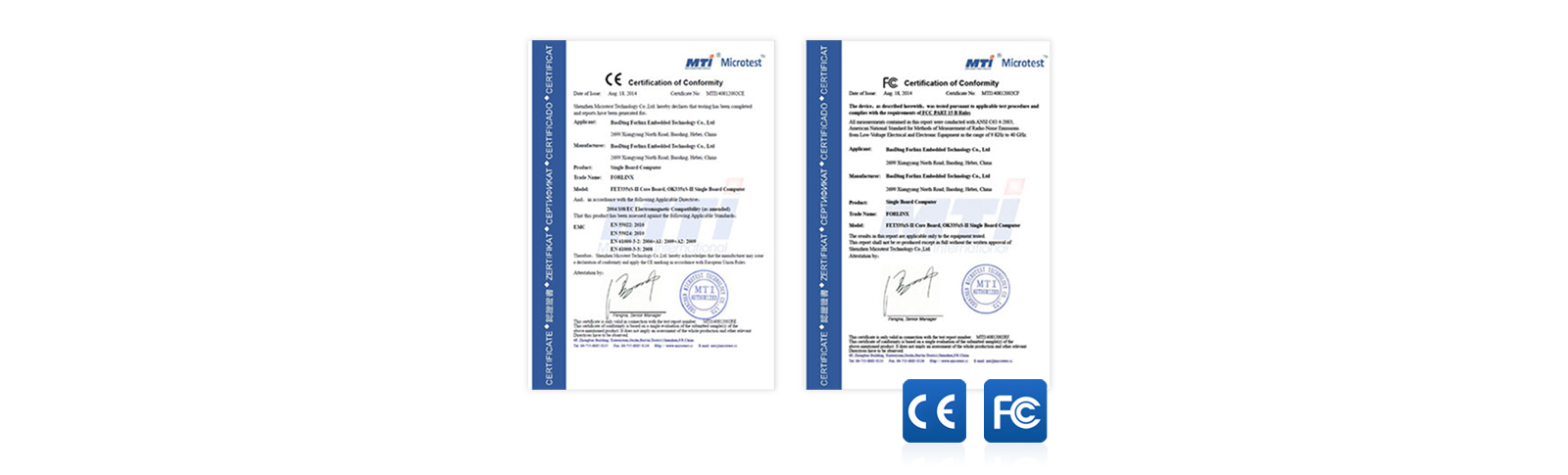

OK335xD development board has passed CE FCC RoHS certification, safer and more secure.

Multiple safety certifications
Multiple safety certifications

Industry Application

SoM can be widely used in industrial control , smart home, medical,
multimedia, security, automotive, finance, consumer electronics, handheld devices, display control, teaching, electricity, communications, charging piles and other fields

FET335xD core board Industry Application
FET335xD core board Industry Application

▊ OK335xD Evaluation Kits


OK335xD Evaluation Kits

To reduce your development work, we offer starter kits that can be used as a complete development platform for evaluation and application development.

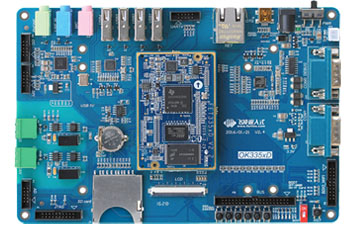

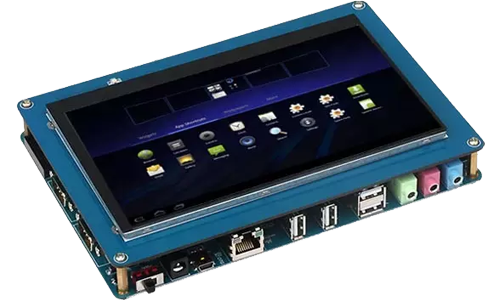

OK335xD Starter Kit Includes AM335x carrier board + FET335xD SOM + all relevant accessories to test its expansibility and performance. In addition, this complete development kit is a complete package including a 7'' TFT capacitive touch screen, power supply and all necessary cables. These kits are a good demonstration of FET335xD SOM expansibility and performance.


AM335x carrier board has the most common interfaces such as USB and dual gigabit Ethernet ports. A wide variety of interfaces allows it to be used as a complete development platform or as a stand-alone end product.



▊ Hardware Features



FET335xD System on Module Features
CPU TI AM3354 Cortex-A8
Architecture ARMv7 Cortex-A8
Frequency 800MHz
RAM 512M DDR3
Flash 256M SLC NandFlash(1GB optional)
Voltage Input 5V
2D/3D supported
GPU PowerVR SGX530
Hardware Watchdog SP706SEN
PMU TPS65217C
Dimensions 47mm*71mm
Package pin connectors
OS Linux3.2, Linux-RT, Android4.2/2.3, WinCE7.0, WinCE6.0, StarterWare
GPMC 16-0bit data bus, 12-bit address bus
Audio IIS
I2C 3x IIC
SPI 2x SPI
CAN 2x CAN
USB OTG 2x USB HOST 2.0
PWM 3x PWM
SD/MMC/SDIO 3x MMC
Ethernet 10/100/1000Mbps auto-negotiation
UART/IrDA 6x UART/ IrDA
EINT/GPIO supported
ADC 8x ADC
VideoCodec Software codec
LCD RGB24-bit
JTAG 1x JTAG
EEPROM supported, for encryption

▊ Software Features



OS Android
Android Android4.2/2.3
Kernel Linux-3.2.0
Flash OS Image Flashing By SD card
Cross-compiler arm-eabi-4.6
Development Environment Ubuntu12.04.2
System Compiling one key compiling









Driver

NIC RTC
LED SPI
LCD backlight UART(3)
USB(mouse, U-disk, etc.) Key
I2C Watchdog
Nand Flash RS485
UBI/Yaffs file system CAN
SD SDIO WiFi
LCD FrameBuffer USB WiFi
Resistive touching USB Camera
Capacitive touching Audio

OS Linux
Kernel Linux-3.2.0,  PSP: 04.06.00.10,  SDK: 05.07.00.00
OS Image Flashing OS image or a single file flashed to NAND flash by SD card
U-boot U-boot-2011.09
Cross-compiler cross-tools-am335x-4.5.3
Development Environment Ubuntu12.04
File ubifs
GPU QT4.8










Driver


NIC SPI
LED UART(3)
LCD backlight key
USB(U-disk, mouse, etc.) watchdog
I2C RS485
Flash ECC verification CAN
Nand Flash SDIO WiFi
UBI/Yaffs file system USB WiFi
SD card USB Camera
LCD FrameBuffer USB 3G
resistive touching USB BlueTooth
RTC audio











Command Line Testing

Key Backlight
USB RTC
Ethernet GPRS
UART USB 3G
Audio USB WIFI
Reset USB camera
RS485 SDIO-WIFI
CAN WIFI AP
SPI BT
Watchdog SD card
LED LCD









GUI Testing

Key RS485
USB SPI
NIC CAN
PING RTC
Audio Watchdog
Video GPRS
LED GPS
Backligh WEB
UART

OS WinCE6.0
BootLoader EBOOT flashed by SD card
OS Image Flashing by SD card
CE Version WinCE6.0
Development Environment VS2005









Driver

LED Key
GPIO RTC
I2C RS485
SPI EBOOT
UART Nand Flash
Touching Display
SD card NIC
DMA USB
Audio Backlight
Watchdog CAN

OS WinCE7.0
BootLaoder EBOOT can support USB2.0 high speed download mode
OS Image Flashing flash OS iamge or a single file by SD card
CE Version WinCE7.0
Development Environment VS2005 and VS2008







Driver

LED Touching screen
GPIO SD card
I2S BMAC
SPI USB
UART Key
Audio Backlight
Nand Flash DMA
Display


▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(AM335x reference manual), schematic documentations to help customer start their development rapidly.

For more details on solution design with FET335xD SOM



▊ How to buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering

2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.

▊ Other Forlinx's TI Products


FET335xS-II System on Module
FET335xS system on module
OK335xD Single Board Computer
FET335xS-II SoM FET335xS SoM OK335xD Single Board Computer
