OK335xS-II Single Board Computer

CPU: TI AM3354

Architecture: Cortex-A8

Frequency: 600MHz

RAM: 128MB DDR3

ROM: 256MB NandFlash,1GB NandFlash

System: Linux3.2+QT4.8,WinCE6.0

Datasheet Message Compare

OK335xS-ll Single Board Computer

OK335xS-II single board computer(SBC) is based on TI Sitara™ AM335x family of processors with high processing performance, low power consumption and highly integrated peripherals, while providing leading image processing performance and supporting real-time protocols. FET335xS-II is fully fitted to the base plate, has the best electrical connectivity, is more stable to operate, and provides easy-to-access interfaces such as USB OTG, dual gigabit mesh, CAN, RS485, etc. OK335xS-II development platform is CE FCC certified to ensure stable and reliable operation in complex industrial environments.

Advantage of AM335x SBC

  • The device is the most affordable Cortex-A8 processing chip, which is a crucial and even decisive factor for the Chinese market.
  • The most publicly available chip in TI's history.
  • An industrial control MCU with the clearest product positioning.
  • The only MCU that integrates 2 MACCs.
  • Currently the only support for Android 4.0, and supports 3 operating systems Linux, Android, WinCE at the same time.

Main Features

  • 1x RGB display, 1x IIS audio;
  • 1x 10/100M adaptive;
  • 3x UART, 1x RS232, 1x RS485;
  • 2x CAN, IIC, SPI;
  • USB2.0 Host, USB2.0 OTG;
  • ...

Target Applications

  • Automated industry
  • Power Systems
  • Medical instruments
  • Environmental monitoring
  • Instrumentation
  • Rail
  • HMI
  • AI
  • IoT
  • ...

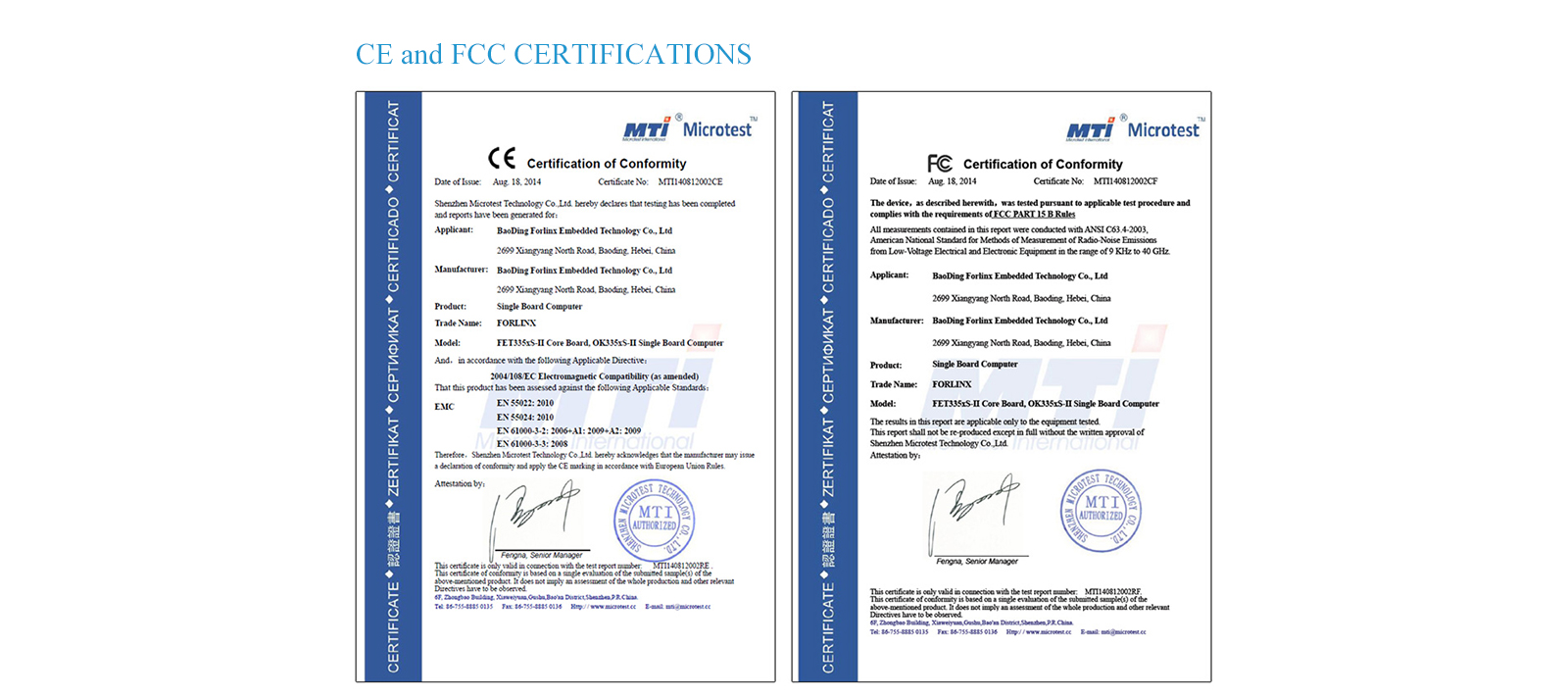

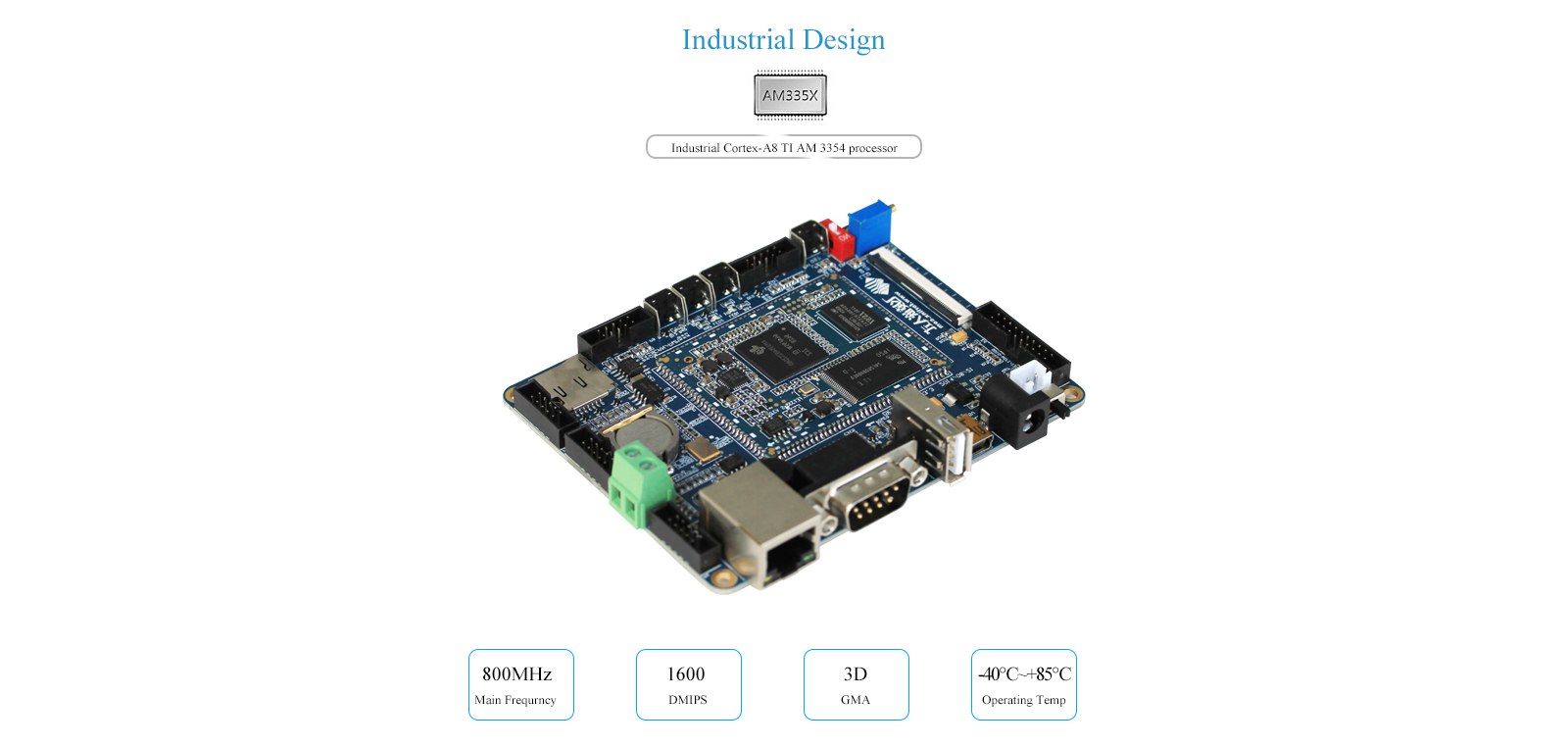

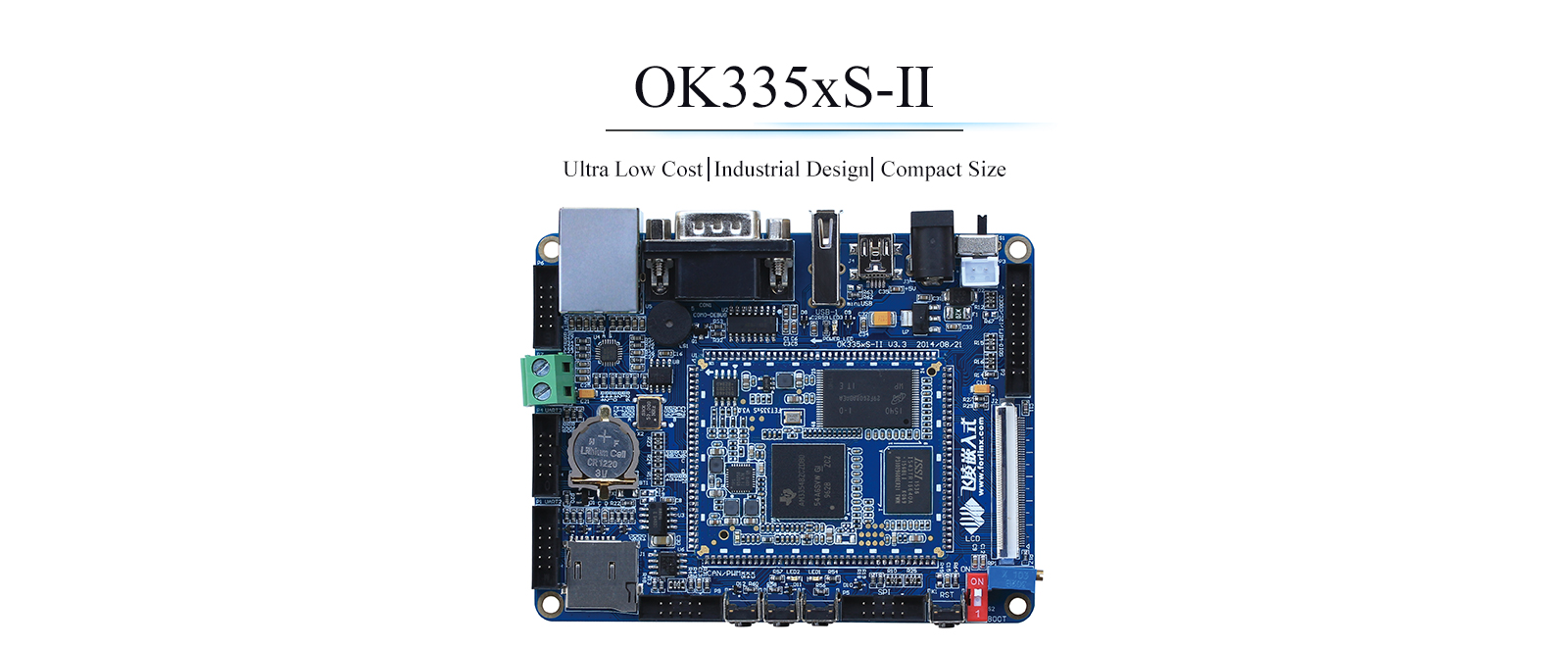

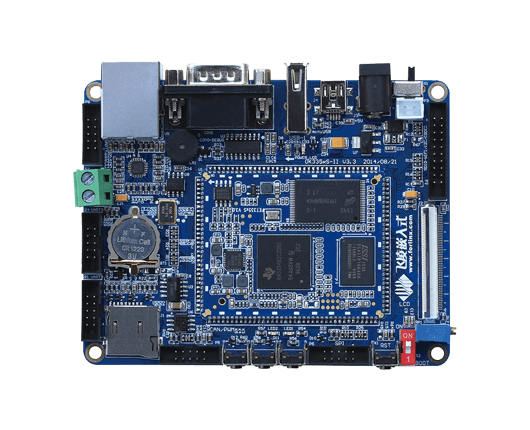

OK335xS-ll single board computer CE and FCC certification industrial AM3354 development board All-in-one industrial design

▊ Hardware Spec.

FET335xS-II System on Module Features
CPU TIAM3354, Cortex-A8
Architecture ARMv7 Cortex-A8
Frequency 600MHz
RAM 128MDDR3
Flash 256M SLC NandFlash
Working Temperature -40℃~+85℃
Relative Humidity 10%~90%(non-condensing)
Voltage Input 5V
2D/3D supported
GPU PowerVR SGX530
PMU TPS650250
Dimensions 52mm*42mm
Package edge soldering

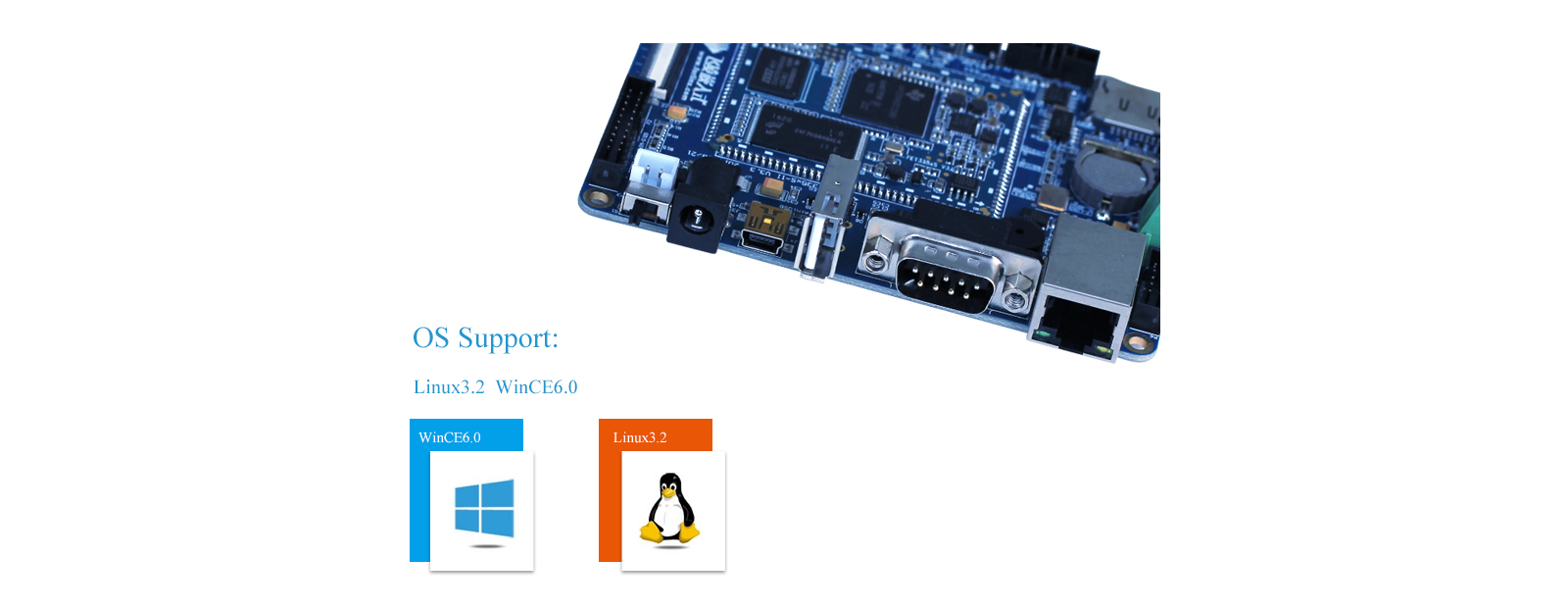

OS Linux3.2, WinCE6.0
LCD RGB24-bit
PWM 3x PWM, 1x user's definition, 1x backlight, 1x buzzer
I2C 3x IIC
SPI 2x SPI
CAN 2x CAN
USB OTG 1x USB OTG 2.0
USB DEVICE 1x USB DEVICE 2.0
SD/MMC/SDIO 3x SD/MMC
Ethernet 2x Gigabit Ethernet
UART/IrDA 6x UART/ IrDA
EINT/GPIO supported
ADC 7x ADC
VideoEncoder Software codec
JTAG 1x JTAG
EEPROM supported, for encryption
Audio IIS
SATA can be expanded by USB

OK335xS-II Development Board Features
I2C 1x IIC
SPI 1x SPI
CAN 2x CAN(no CAN transceiver)
RS485 1x RS485
SD/MMC/SDIO 1x SD/ MMC/ SDIO(1x SD card slot)
USB HOST 1x USB host, 2.0
USB DEVICE 1x USB device, USB2.0
Ethernet 1x Ethernet, 100M
UART 4x UART(1x debug, 3x LVCMOS
LCD 1x LCD(resistive touching), can be convertedto VGA output
ADC 7x ADC(2x users' definition, 1x slidingrheostat, 4x resistive touching)
RTC supported
Key 3x key
DIP Booting mode selection
Reset 1x reset
PWM 3x PWM
LED 2x LED
GPIO multiplex
SATA can be expanded by USB
GPS serial itnerface
3G AD3812(USB)
Power In 5V

▊ Software Spec.

OS Linux3.2
U-boot u-boot-2011.09
Kernel Linux-3.2.0








Driver

NIC LCD FrameBuffer
LED Resistive touch screen
LCD RTC
USB UART
PWM(backlight, buzzer) Key
Flash ECC verification Watchdog
Nand Flash IIC
UBI/Yaffs file system AD
TF card

OS WinCE6.0
BootLoader EBOOT flashed by SD card
OS Image Flashing by TF card
CE Version PB6.0








Driver

LED Key
GPIO RTC
I2C NANDFlash
SPI Display
UART NIC
Resistive touching USB(OTG/USB/HOST)
SD card Backlight
DMA AD
Audio PWM
Watchdog


▊ Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.

Forlinx provides embedded hardware reference manual, embedded software reference manual, including Ti AM335x embedded software Android system reference manual, and Linux system reference manual.

For more details on solution design with AM335x SBC
