OK335xS Single Board Computer

CPU: TI AM3354

Architecture: Cortex-A8

Frequency: 800MHz

RAM: 512MB DDR3

ROM: 256MB NandFlash,1GB NandFlash

System: Linux3.2,Android2.3,Android4.2,LinuxRT

Brief Message Compare

OK335xS Single Board Computer

OK335xS single board computer(SBC) integrates with TI AM335x processor and is the most simple and stable industrial development platform. Its main frequency reaches up to 800MHz, operating temp ranges from -40℃ to +85℃. And it support many industrial bus, such as: CAN, PROFIBUS, RS485, etc, support two gigabyte Ethernet port, 324-pin CPU module, each pin is multiplexed with up to 8 configured functions. FET335xS CPU modules have 512M DDR3 RAM and 256M Nandflash on it, could greatly help users to reduce the cost of product development.

OK335xS development board is specially designed for the industrial application, so RS485, CAN, and RS282 interfaces are available on the board for selection. Users could fully use PIN MUX to define functions on the base board. All boards must pass strict EMC/EMI test before leaving factory, could be directly applied into product manufacture.

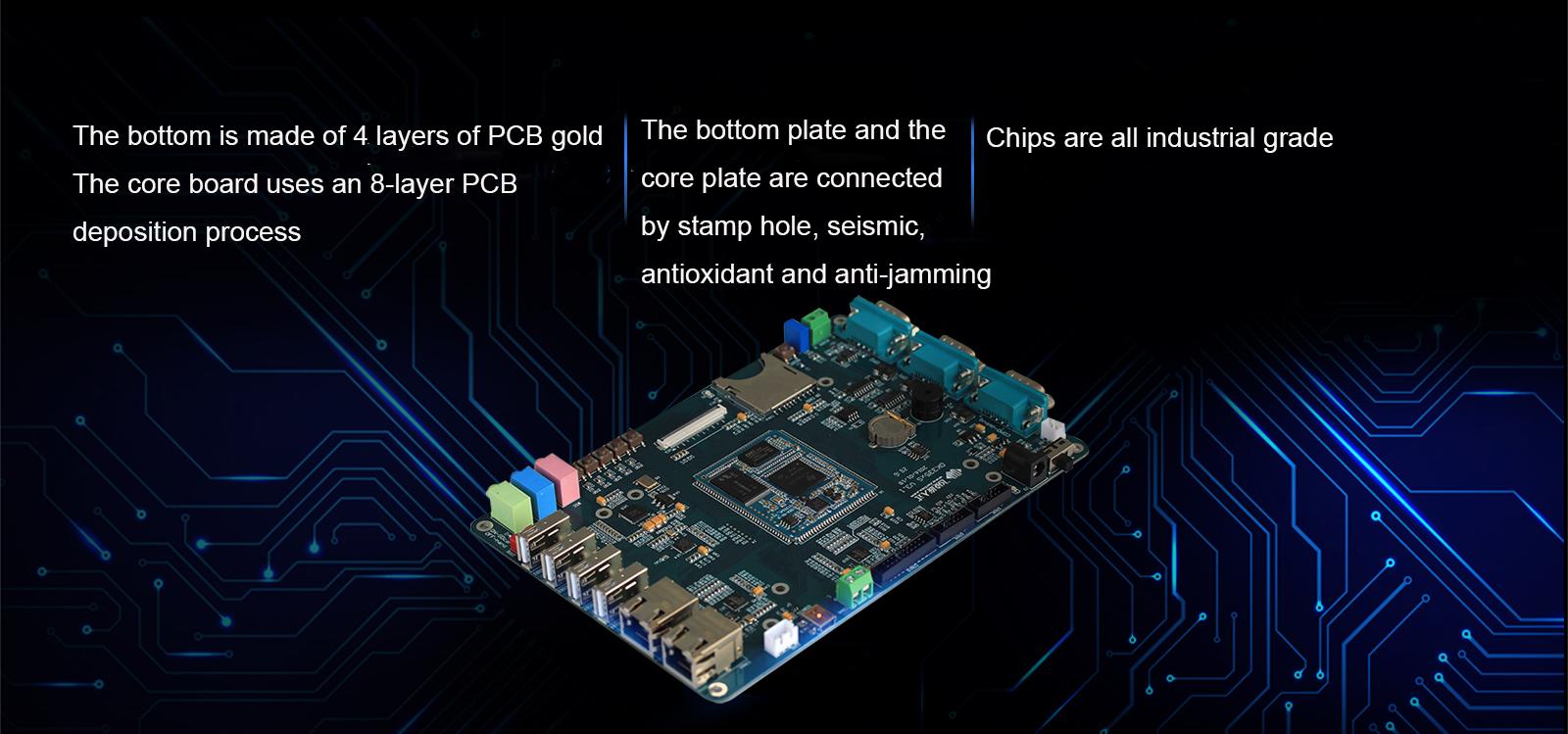

Stable Stamp Hole Connection

The core plate and the base plate are welded with a 1.27mm space between the stamp holes, which has the advantages of anti-seismic, antioxidant, anti-jamming and low cost;

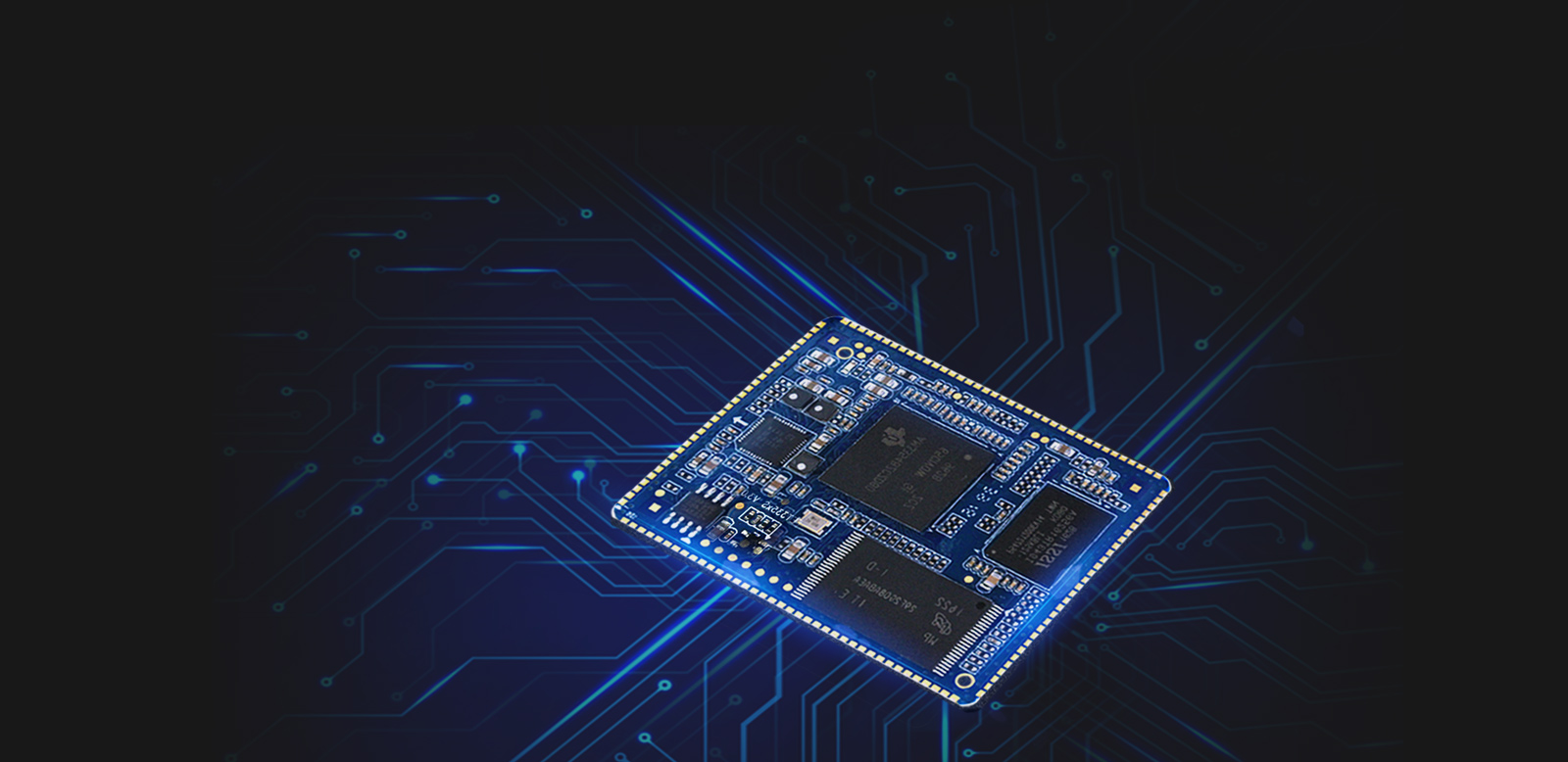

AM335x core board
AM335x core board

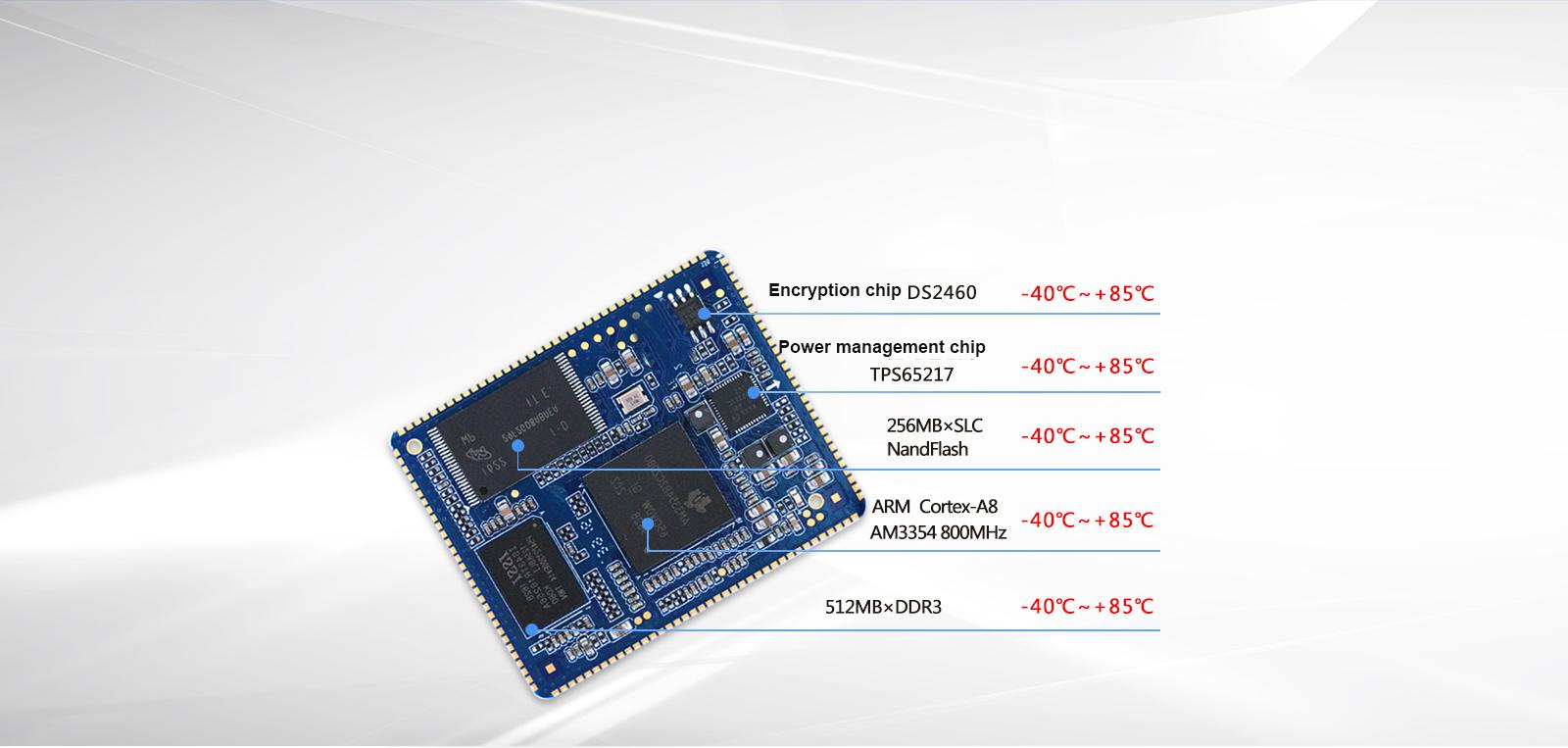

Industrial-grade Core Board

FET335xS core board chips are all industrial grade materials, and have undergone -40℃ to 85 ℃ of strict high and low temperature testing

Industrial-grade AM335x core board
Industrial-grade AM335x core board

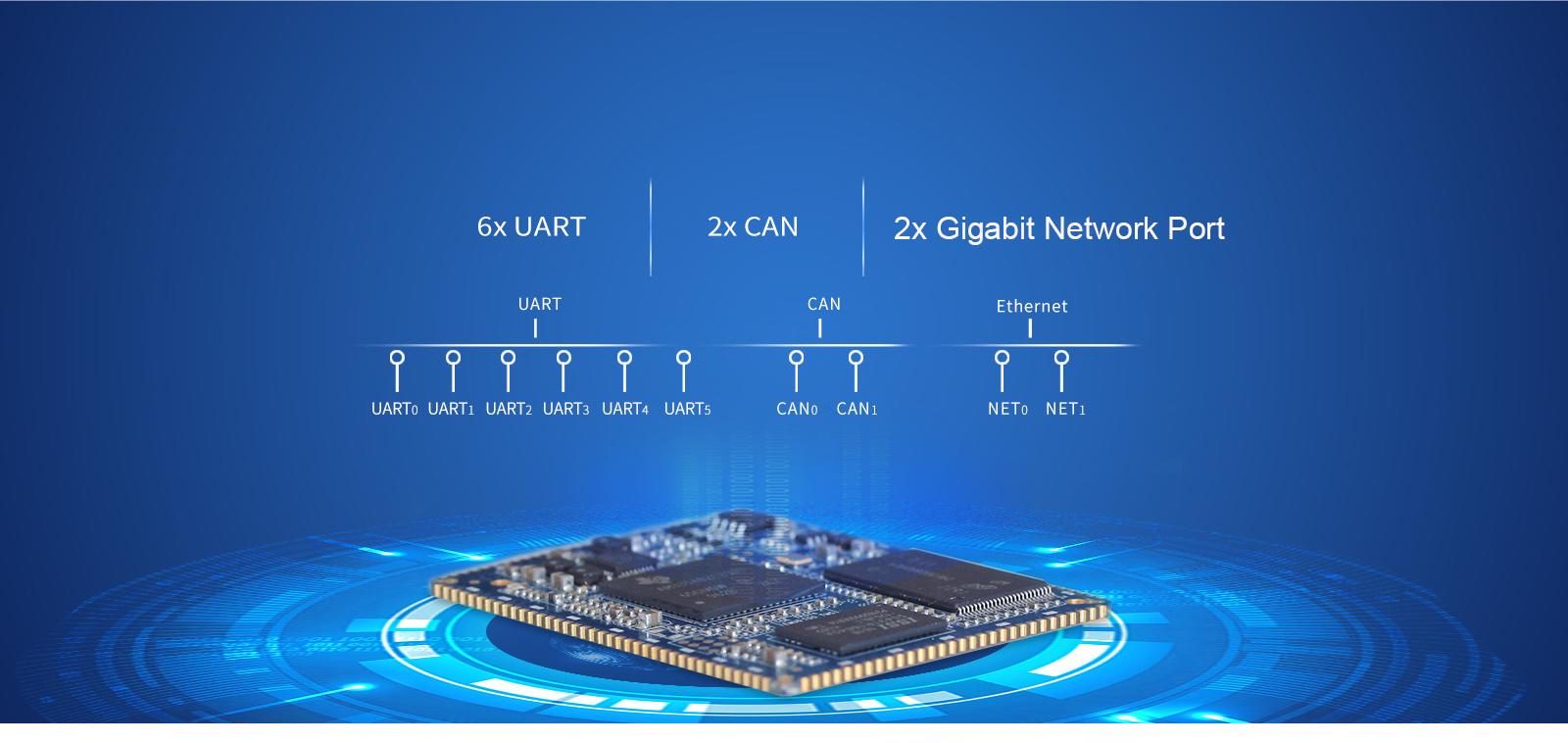

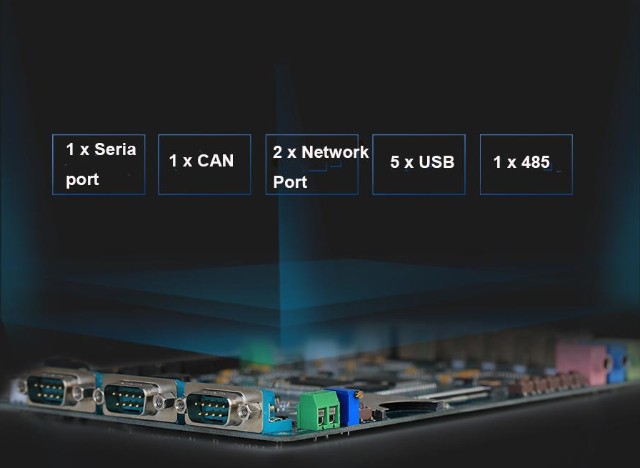

Rich Communication Interface

The core board leads to 136 CPU function pins, supporting up to 6X UART, 2X CAN, 2X gigabit networks

Industrial-grade AM335xD core board Interface
Industrial-grade AM335xD core board Interface

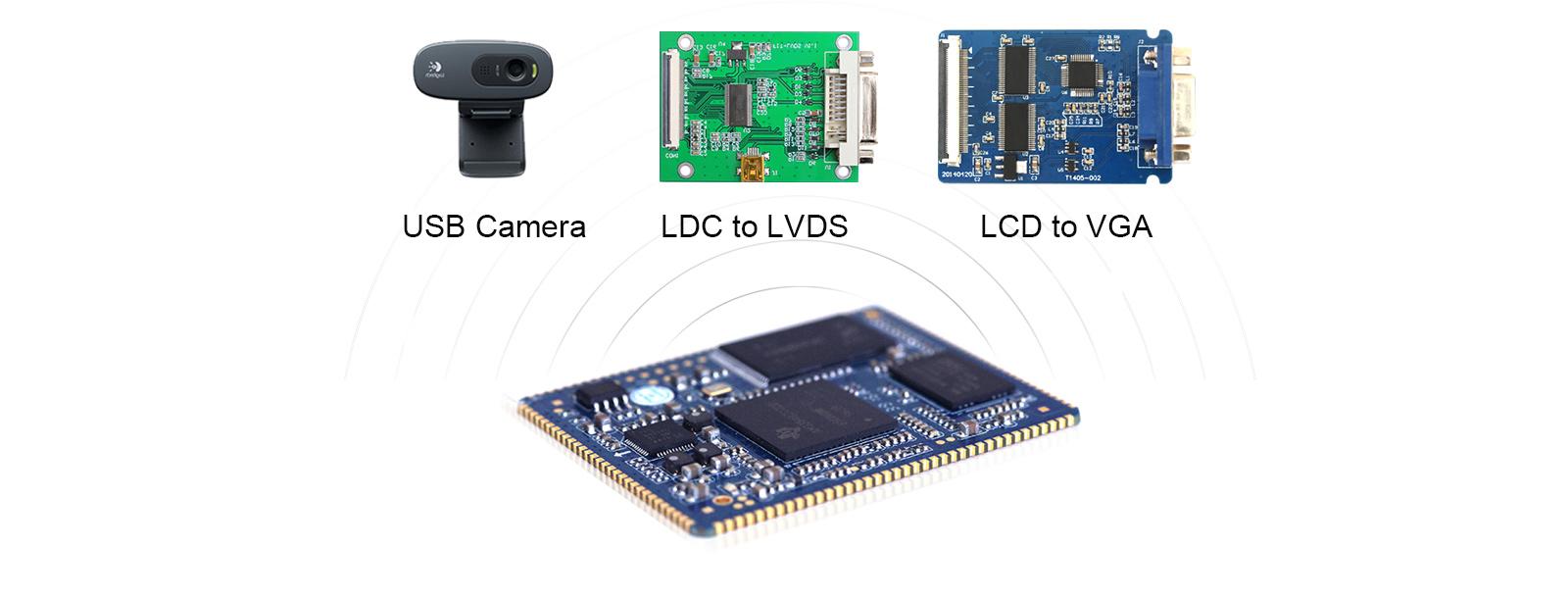

Multimedia is equally excellent

FET335xS core board supports RGB24-bit LCD, LCD-to-VGA, LCD-to-LVDS and other display interfaces.
The maximum resolution is 1366 x 768. Support for USB CAMERA, preview, take pictures, video.

Industrial-grade AM335xD core board Interface
Industrial-grade AM335xD core board Interface

Support for a variety of communication modules

FET335xS core board supports 3G modules, 4G modules, GPRS modules, WIFI modules, Bluetooth modules, GPS modules and many other modules

Industrial-grade AM335xD core board Interface
Industrial-grade AM335xD core board Interface

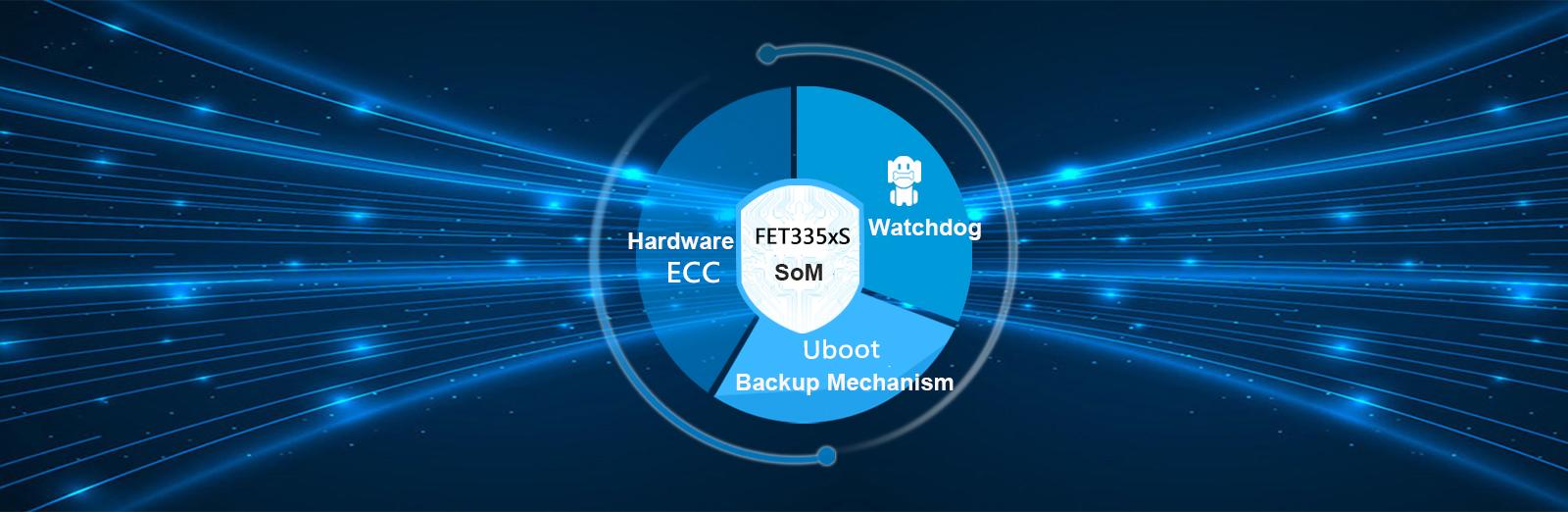

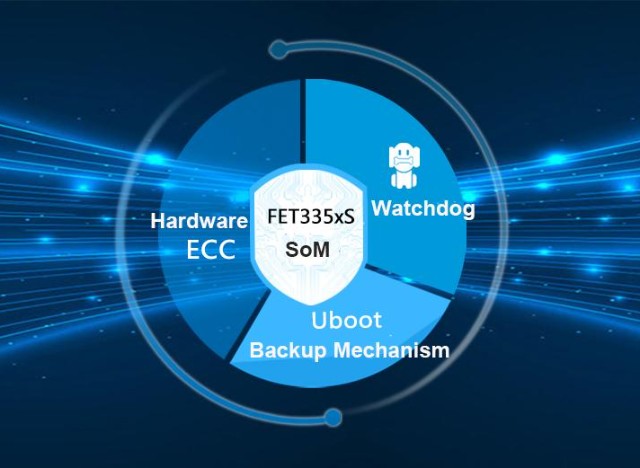

The system operates multiple protections

Core board supports hardware, software watchdog, Linux system supports NandFlash hardware ECC check,
Exclusive Uboot startup code burning multi-backup mechanism, so that your system more stable and smooth operation.

AM335xD core board Interface
AM335xD core board Interface

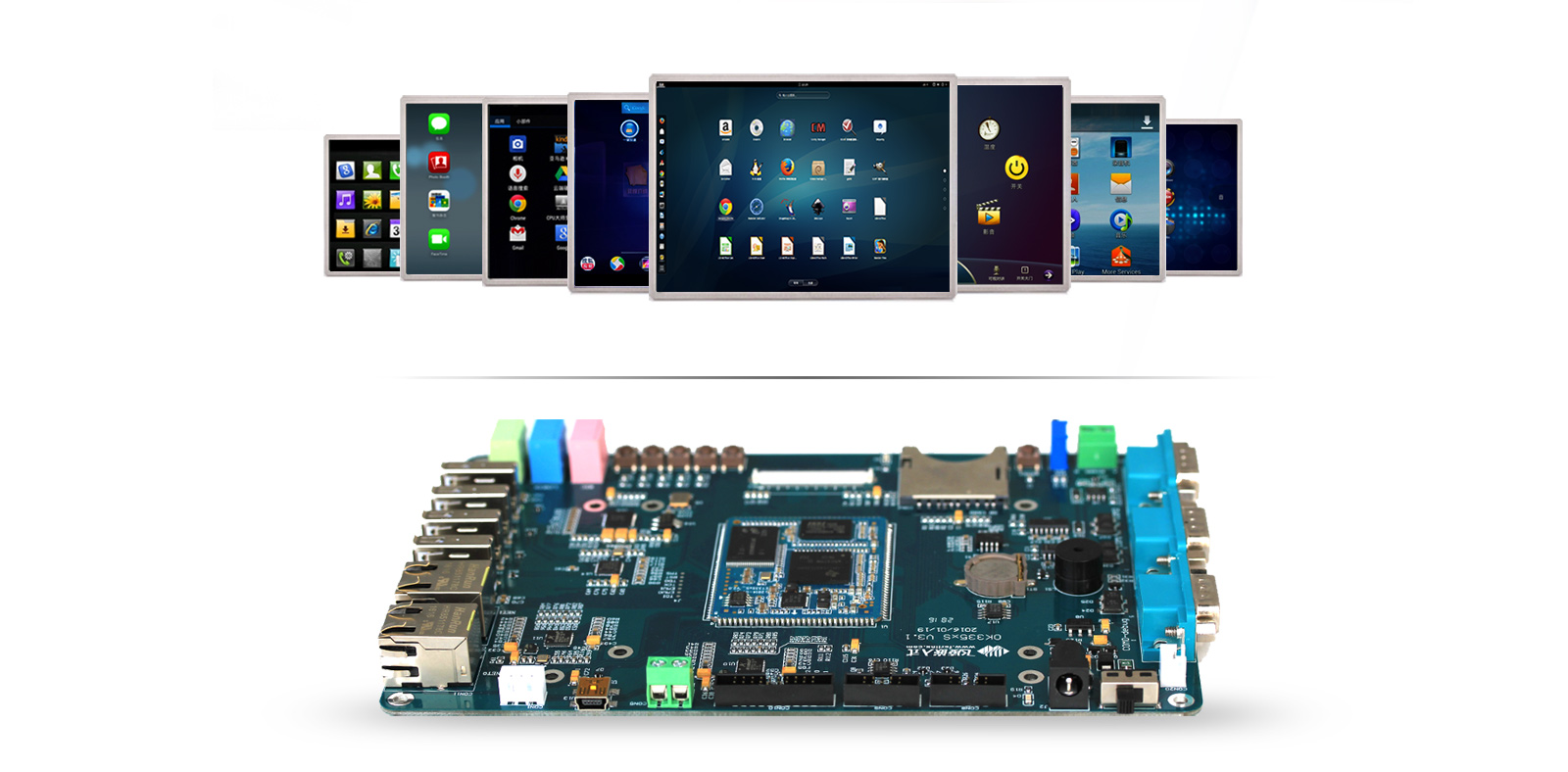

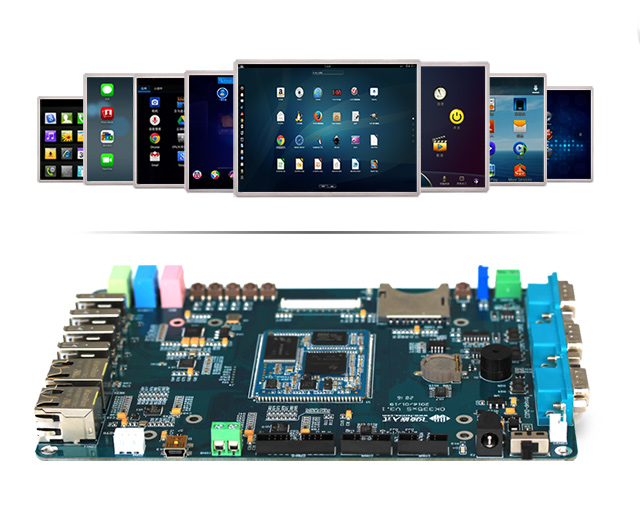

Supports a variety of mainstream operating systems

The FET335xS core board supports mainstream operating systems on the market.
Linux3.2, Android2.3, Android4.2, Win CE7.0, Win CE6.0

Industrial-grade AM335xD core board

Interface diagram display

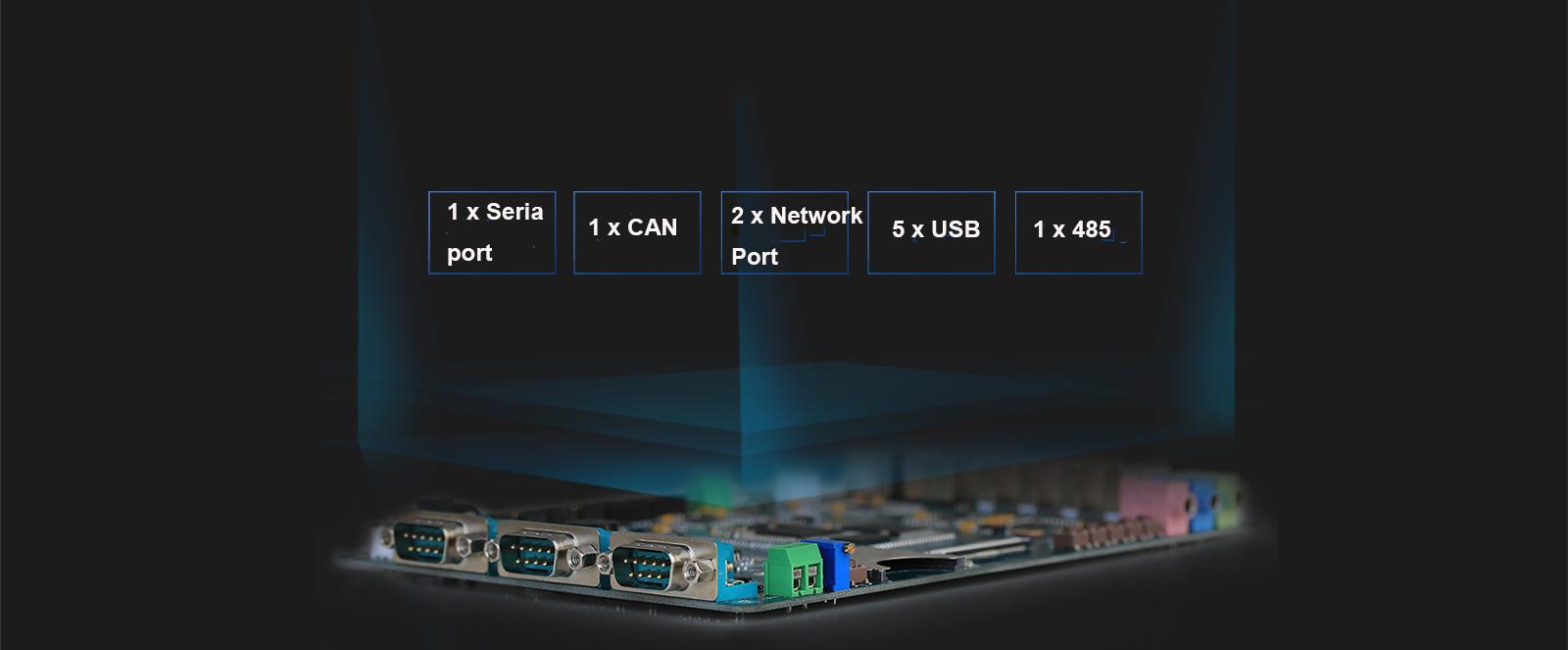

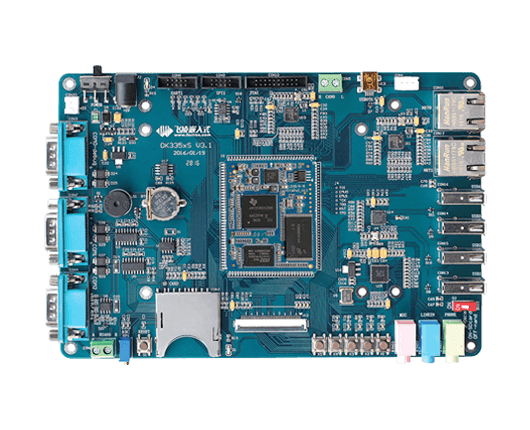

OK335xS single-board computer rich functional interface

Industrial-grade AM335xD development board interface
Industrial-grade AM335xD development board interface

Rich communication interface

The board is equipped with a rich communication interface for direct use

Industrial-grade AM335xD development board Interface
Industrial-grade AM335xD development board Interface

Supports screen displays in a variety of sizes and interfaces

4.3" RGB screen, 7" RGB screen, VGA display, 10.1 inch LVDS screen

Industrial-grade AM335xD development board screen
Industrial-grade AM335xD development board screen

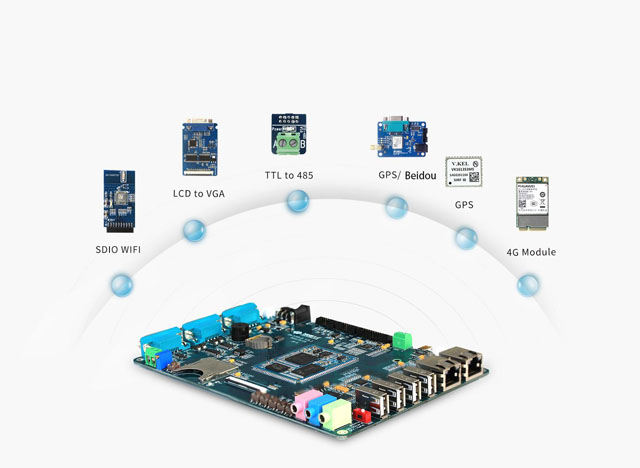

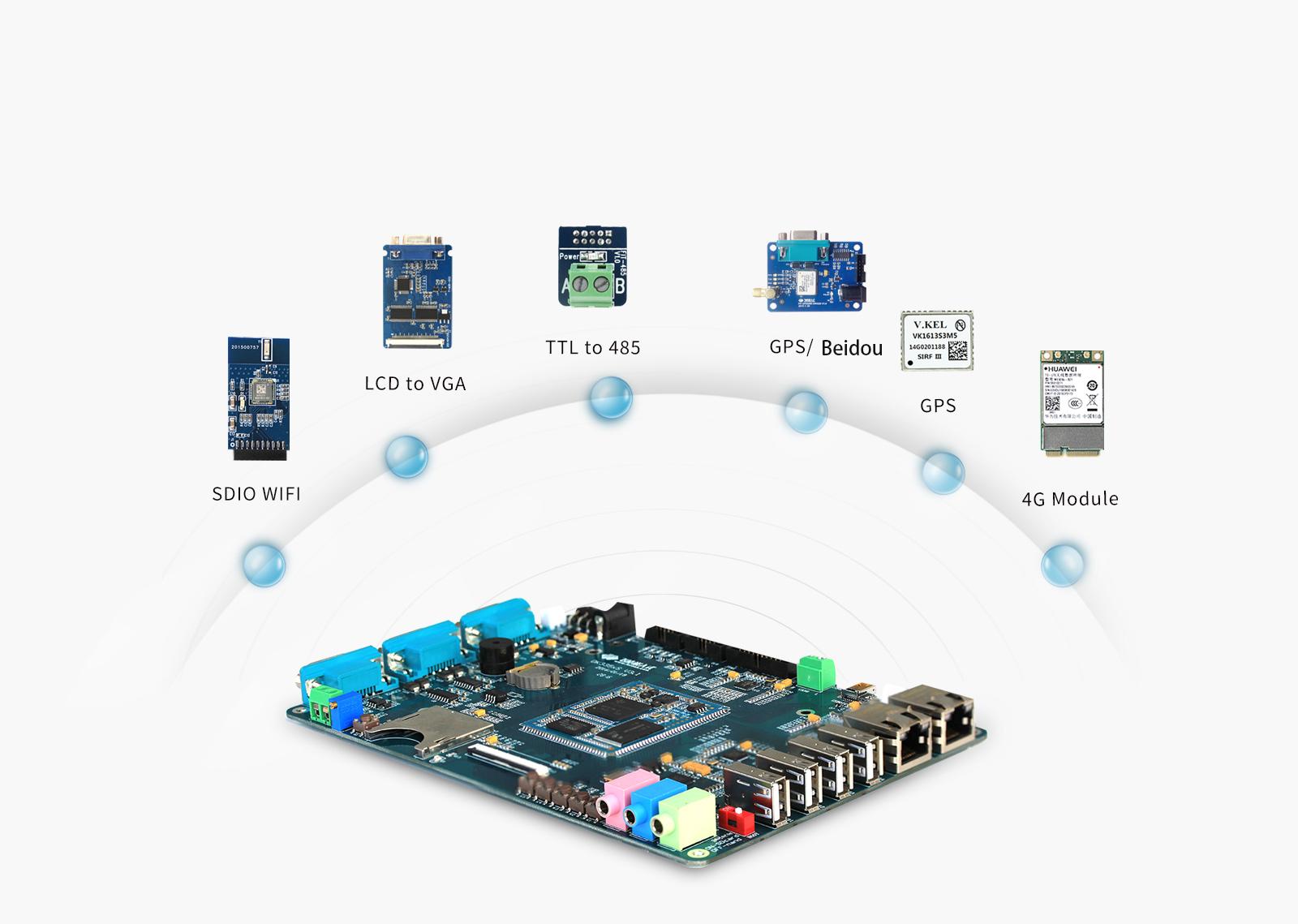

Supports a variety of external modules

SDIO WIFI, TTL to 232, TTL to 485, LCD to VGA, 3G/4G module, VGA module, etc

Industrial-grade AM335xD development board Interface
Industrial-grade AM335xD development board Interface

High Stability

Industrial-grade AM335xD development board
Industrial-grade AM335xD development board

▊ Hardware Features


FET335xS System on Module Features
CPU TI AM335x
Architecture ARMv7 Cortex-A8
Frequency 800MHz
RAM 512MDDR3
Flash 256M SLC NandFlash
Working Temperature -40℃~+85℃
Relative Humidity 10%~90%(non-condensing)
Voltage Input 5V
2D/3D supported
GPU PowerVR SGX530
PMU TPS65217C
Dimensions 52mm*42mm
Package edge soldering
OS Android2.3/4.2, Linux3.2, StarterWare
LCD RGB24-bit
Audio IIS
I2C 3x IIC
SPI 2x SPI
CAN 2x CAN
USB OTG 1x USBOTG2.0
USB DEVICE 1x USB DEVICE 2.0
SD/MMC/SDIO 3x MMC
Ethernet 2x Gigabit Ethernet
UART/IrDA 6x UART/IrDA
EINT/GPIO more than 20
ADC 8x ADC
VideoEncoder software codec
JTAG 1x JTAG
EEPROM supported, for encrytion
PWM 3x PWM
SATA None(can be expanded by USB)

OK335xS Development Board Features
AUDIO 3x audio(1x Phone, 1x MIC, 1x Line in)
I2C 1x IIC
SPI 1x SPI
CAN 1x CAN
RS485 1x RS485, multiplexed with Profibus
SD/MMC/SDIO 1x SD/ MMC/ SDIO(1x SD card slot)
USB Host 4x USB host, USB2.0
USB Device 1x USB Device, USB2.0
Ethernet 2x Gigabit Ethernet
UART 4x UART(3x RS232, 1x TTL)
Power In 5V
LCD 1x LCD, can support both resistive and capacitive touching, LCD can be converted to VGA or LVDS output
JTAG 1x JTAG
ADC 5(4 for resistive touching, 1 sliding rheostat)
Key 5x key
DIP booting mode selection
Reset 1x reset
PWM 2x PWM(1x backlight, 1x buzzer)
LED 1x LED
GPIO more than 20
RTC supported
SATA can be expanded by USB
GPS serial interface
3G USB interface

▊ Software Features

OS Android2.3/4.2
Android Android4.2
Kernel Linux-3.2.0
OS Flashing one-key to flash, or flash a single
Cross-compiler arm-eabi-4.6
Development Environment Ubuntu12.04.2










Driver

NIC touch(resistive/ capacitive)
LED AD
LCD RTC
USB2.0 audio(IIS)
watchdog CAN
PWM(backlight and buzzer) RS485
Flash ECC verification SPI
NandFlash UART(3)
UBI file system EEPROM
SD card Key
LCDFrameBuffer I2C

OS Linux3.2
U-Boot u-boot-2011.09
Kernel Linux-3.2.0, PSP:04.06.00.10, SDK:05.07.00.00
OS Image Flashing flash OS image to NAND Flash by SD card, or flash a single file to NAND Flash
Development Environment Ubuntu12.04.2









Driver

NIC(dual 1000M/100M) RTC
LED audio(IIS)
LCD SPI
USB2.0 UART(3)
PWM(backlight and buzzer) key
Flash ECC verification EEPROM
NandFlash watchdog
UBI file system AD
SD card RS485
LCDFrameBuffer CAN
precise touching(capactive/ resistive) I2C

▊ Download


Catalog: Forlinx Catalog Manual

Product Brief: FET335xS SoM and OK335xS SBC introduction

▊ Accessories


Please click here to get more information about the supported modules and accessories.
