Introduction to RK3399's Features

RK3399 chip uses a six-core CPU and the GPU uses The Mail-T864, which is one of the most powerful six-core chips in the RK system. Using the new six-core super-performance RK3399 motherboard solution, compared to the common single-core, dual-core, four-core, six-core, eight-core program on the market, there is a qualitative leap in performance, can play a variety of formats ultra-high-definition 4K x 2K video, can handle complex interactive operations.

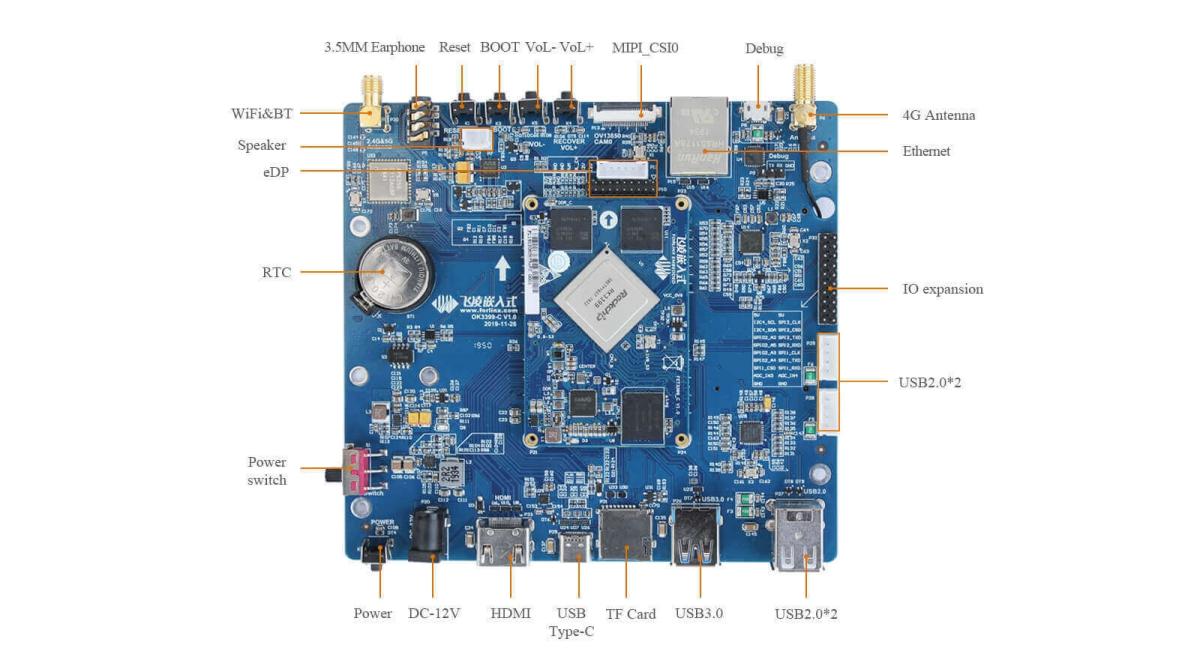

rk3399 single board computer

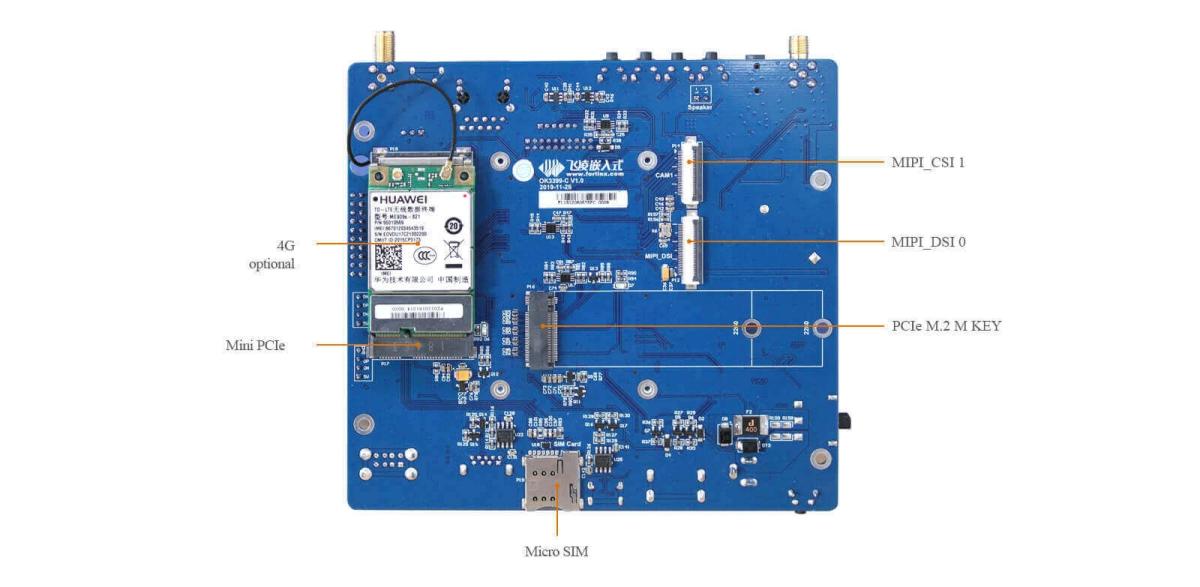

rk3399 single board computer back


High stability

RK3399 in hardware, software, add their own unique technology to ensure product stability, can make the final product to reach 7 x 24 hours unattended.

High degree of integration

The RK3399 features a military-grade TG170-10 layer ultra-high density PCB board with gigabit Ethernet, WiFi, Bluetooth 5.0.1, 6W amplifier, and TF card Extensions, PCIE extensions, TYPE C, USB 3.0, RS232, built-in 4G module interface, HDMI input, HDMI output, LVDS, eDP, microphone, and more simplify the design of the entire machine. Ultra-thin motherboard design, can make the whole machine design more beautiful.

High scalability

RK3399, 4 USB port, 5 serial port, 7 I2C interface, 4 IO expansion port can expand more peripheral equipment.

Introduction:

FET3399-C core board with 2 ARM Cortex-A72 cores, main frequency 1.8GHz, 4 ARM Cortex-A53 core, main frequency 1.4 GHz; GPU with Mali-T864, openGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11; On-board 2GB LPDDR3 RAM, 16GB eMMC ROM; With a variety of display interfaces, including HDMI2.0, MIPI-DSI, eDP 1.3, DP1.2, maximum resolution rate of 4K, support for dual-screen synchronous display, dual-screen asynchronous display, while providing a variety of peripheral interfaces, such as PCIe USB 3.0 Host, Type-C, MIPI-CSI, SPIF, 12C, SPI, UART, ADC, PWM, GPIO, I2S (support for 8 digital microphones) and Gigabit Ethernet. Suitable for self-service devices, edge computing, face recognition, 5G smart terminals, 3D printing, POS machines, 4K business display all-in-one machines, game boxes, TV-BOX, NAS, locomotives, thin clients, VOIP video conferencing, security/surveillance/police and IoT fields.

Overview of SoM RK3399





CPU

RK3399 hexa-core, Big.Little architecture
Cortex-A72 Core:
• 2x Cortex-A72
• up to 1.8GHz
• 64-bit Armv8
Cortex-A53 Core:
• 4x Cortex-A53
• up to 1.4GHz
• 64-bit Armv8





GPU

3D graphical engine:
• quad-core Mali-T860MP4
• can support OpenGL ES1.1/2.0/3.0/3.1
• can support OpenCL 1.2

2D graphical engine:
• source form:
ARGB, RGB888, RGB565, RGB4444, RGB5551, YUV420, YUV422(SupportYUV422SP10bit/YUV420SP10bit)
• target form:
ARGB, RGB888, RGB565, RGB4444, RGB5551, YUV420, YUV422(SupportYVYU422/420 output)

• maximum resolution: source 8192x8192, and target 4096x4096









VPU

Decode:
• H.265/HEVC, up to 4Kx2K @ 60fps
• VP9, up to 4Kx2K @ 60fps
• H.264/AVC, up to 4Kx2K @ 30fps
• MPEG-1,ISO/IEC 11172-2, up to1080P @ 60fps
• MPEG-2,ISO/IEC 13818-2, up to 1080P @ 60fps
• MPEG-4,ISO/IEC 14496-2, up to 1080P @ 60fps
• VC-1, up to 1080P @ 60fps
• MVC based on H.264 or H.265, up to 1080P @ 60fps

Encode:
• 1080p30 AVC/H.264
• 1080p30 VP8

RAM

• 2GB(optional 4GB)
• LPDDR3 1600

ROM

• 16GB(optional 32GB)

• eMMC 5.1 storage
• HS400 mode

Working Temperature

0℃~80℃

Dimensions

46mm x 70mm

Voltage Input

12V

OS

Android 7.1.Linux*

Functional Features

Functional Interface

Spec.

Display


dual-screen engine up to 4096x 2160 and 2560x 1600, can output from below ports:

MIPI-DSI ≤2
• CPU has 3 built-in MIPI PHY, MIPI0 can be only used as DSI, MIPI1 can be used as DSI or CSI, MIPI2 can be only used as CSI


• each DSI port has 4 data lanes, can support data transferring rate up to 6.0Gbps


• each DSI port can support output up to [email protected] 60FPS

• MIPI0 and MIPI1 combination can support output 2560x [email protected] 60FPS

eDPx1
• eDP V1.3


• RGB 6/ 8/ 10-bit

• 4 data lanes, each 2.7/ 1.62Gbps

• can support PSR

DP x1
• Display Port V1.2


• compatible with HDCP2.2(backward compatible with HDCP1.3)


• only has one built-in DP controller, can output from Type-C*


• support outputting up to 4Kx [email protected] 60Hz

HDMI x1
• HDMI1.4, HDMI2.0


• up to 18Gbps port trunks


• up to [email protected] 120Hz, 4Kx [email protected] 60Hz, [email protected] 120Hz


• HDCP1.4/ 2.2


Audio

I2S/PCM x3
• I2S0/I2S2 can support 8-channel TX/RX. I2S1 can support -channel TX/RX
• IIS2 internally connected to HDMI and DisplayPort, IIS0 and IIS1 are for peripherals
• audio resolution from 16-bit to 32-bit
• sampling rate up to 192KHz
SPDIF
• can support two 16-bit audio data stored in one 32-bit width location
• can support two-phase formed stereo audio output
• can support 16-bit to 31-bit audio data left or right justified in 32-bit width sampling data frame zone
• can support 16-bit, 20-bit, 24-bit audio data transferring in PCM mode
• can support none-PCM mode

Camera

MIPI CSI ≤2
• can support one 13.0MP camera or two 8.0MP cameras
• two internal ISP
• one ISP with resolution up to 14.0 MP
USB UVC
• USB UVC camera input

USB
Type-C

• USB Type-C x2(multiplexed with USB 3.0)
• USB Type-C 1.1
• can support USB3.0 Type-C and DP 1.2* can switch to USB Type-C mode
• USB3.0 up to 5Gbps
• DP1.2 up to 5.4Gbps(HBR2), can support 1/2/4 mode*
• DisplayPort with AUX channel*

USB OTG3.0

• USB OTG 3.0 x2( contains USB OTG 2.0 x2)
• compatible protocol: USB 3.0, USB 2.0, USB Host 1.1
• USB 3.0 in full-duplex mode up to 5Gbps band width

USB 2.0

• USB 2.0 Host x2(separated, not multiplexed with 3.0)
• compatible with USB 2.0
• can support high speed mode(480Mbps), full speed mode (12Mbps) and low speed mode(1.5Mbps)

SD/MMC

• SD/MMC x2
• can be configured to SD/MMC or SDIO
• compatible with SDIO 3.0
• 4-bit data bus

Ethernet

• Gigabit Ethernet x1
• RGMII is available for 10/100/1000-Mbps
• RMII is available for 10/100-Mbps

SPI

• SPI x5
• can support serial host and slave mode, software configurable
• operation based on DMA or interrupt
• TX and RX are 32x16-bit FIFO

UART

• UART x5
• operation based on DMA or interrupt
• TX and RX are 64Bytes FIFO
• each serial up to 4.0 Mbps

I2C

• I2C x7
• multi-host machine I2C
• standard mode up to 100 kbit/s
• fast mode up to 400 kbit/s

PCIe

PCIe x1
• compatible with PCI Express revised 2.1
• 4 full-plex channel
• each channel can support 2.5GT/s to each direction
• dual-operation mode: Root Complex(RC) and End Point(EP)

PWM

PWMs x3
• operation based on interrupt
• 32-bit timer/ counter
• can support capture mode
• can support continuous mode or one-time mode

ADC

ADC x5
• successive approaching ADC
• 10-bit
• switch rate up to 1MS/ s for sampling
