How To Modify The Boot Progress Bar on OKMX8MQ Linux5.4.3

First,download the psplash source code

Download psplash:git clone git://, which will be downloaded to the psplash folder in the current directory

forlinx@ubuntu:~/ imx8mq/OK8MQ-linux-sdk$ git clone git://

Cloning into 'psplash'...

remote: Enumerating objects: 11, done.

remote: Counting objects: 100% (11/11), done.

remote: Compressing objects: 100% (11/11), done.

remote: Total 306 (delta 2), reused 0 (delta 0), pack-reused 295

Receiving objects: 100% (306/306), 128.73 KiB | 4.44 MiB/s, done.

Resolving deltas: 100% (192/192), done.

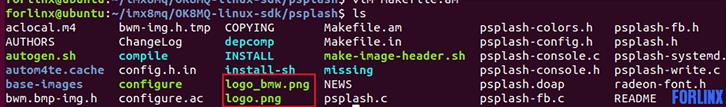

After download, generate a psplash folder in the current directory and enter it:

1. The main image logo_bmw.png:

Forlinx logo

2. Progress bar picture logo .png:

Second, production progress bar and LOGO

1. Production progress bar and LOGO

The following libraries need to be installed:

sudo apt-get install libgdk-pixbuf2.0-dev

sudo apt-get install build-essential libncurses5-dev

Make a logo

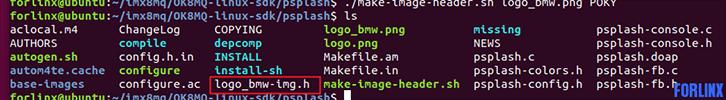

Execute the command: ./ logo_bmw.png POKY //logo_bmw.png is the picture that you want to start

Executing the above command generates a logo_bmw-img.h file

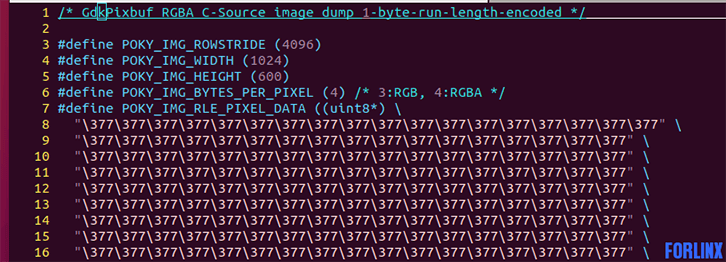

The POKY parameter is just a variable that is passed into the logo_bmw-img.h file and can be opened for viewing.

vi logo_bmw-img.h

2. Production progress bar

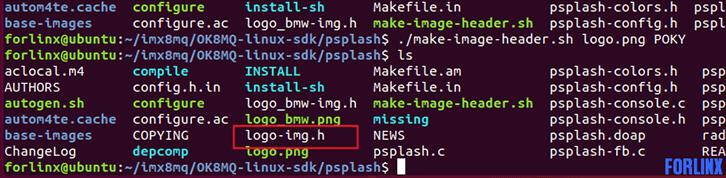

Execute the command: ./ logo.png BAR

Executing the above command generates a logo-img.h file

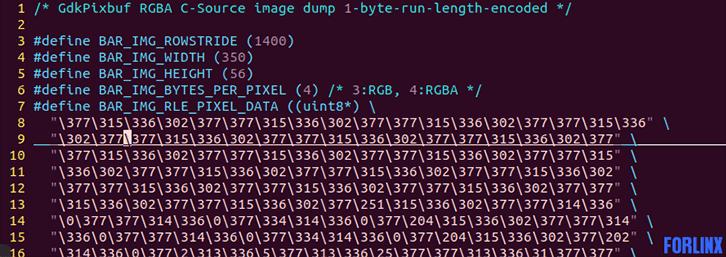

Similarly, we open the logo-img.h file. It must be with the BAR parameter added, as it will be elsewhere

Such a macro definition is used.

vi logo-img.h

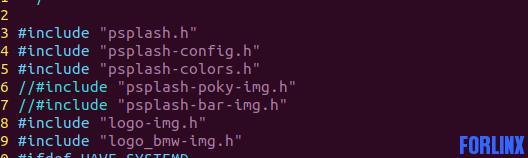

Locate the psplash .c file and open the commented out header file to add a reference to the header file you generated

After the modification is complete, save the exit psplash .c, return to the source directory, and make script to generate the Makefile

3. Make scripts

Make a script to build a Makefile, as follows


The script content is as follows:




automake --add-missing


Give executable permissions: chmod 777

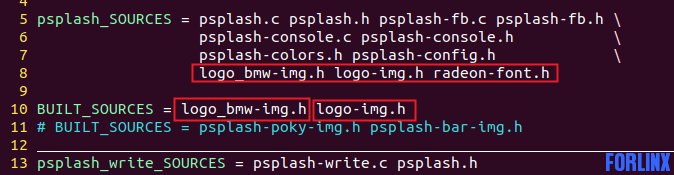

Modify, modify psplash-poky-img.h to logo_bmw-img.h, and psplash-bar-img.h

Changed to logo-img.h


The modified is shown in the following figure.

After modifying the, save and exit, and return to the source directory.

4. Configure cross-compiler environment variables

. /opt/fsl-imx-xwayland/5.4-zeus/environment-setup-aarch64-poky-linux

After the environment variables are enabled, you can execute the following instructions to configure the cross-compilation toolchain.

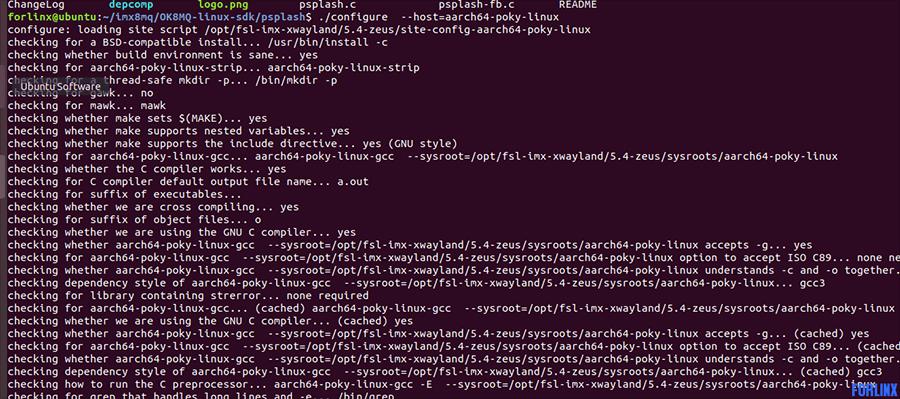

./configure --host=aarch64-poky-linux

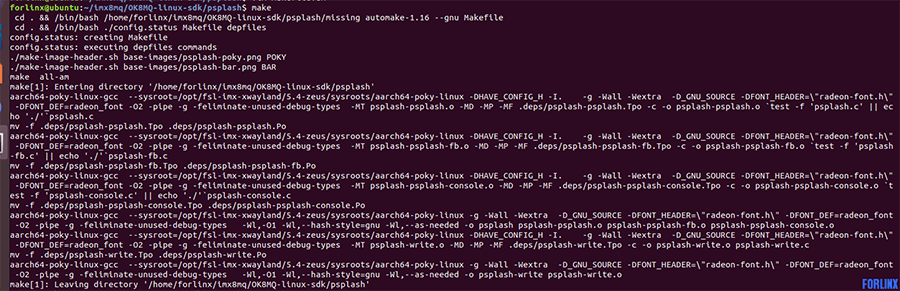

Execute the make directive to compile.


After compiling, the psplash and psplash-write files are generated in the source directory.

Third, replace the factory system progress bar and logo

Copy the compiled psplash and psplash-write files to the iMX8MQ SBC's factory file system/usr/bin directory.
