How to Burn iMX6ULL SBC System

This article is based on Forlinx Embedded OKMX6ULL-S SBC, which is divided into three parts, mainly explaining iMX6ULL SD card programming system and OTG programming system and the steps of updating the kernel in one step. With this article you can quickly implement the programming of Forlinx iMX6ULL single board computer system.

First. SD card burning system

Taking nand-sdburn as an example, burning NAND for operation instructions, And the Settings of Forlinx iMX6ULL DIP Switch are as follows.


To set the DIP switch:

Burning/Starting NO1 NO2 NO3 NO4 NO5 NO6 NO7 NO8
SD card burning 0 0 1 0 1 0 0 1
EMMC starts 0 0 1 0 0 0 0 0
NAND boot 0 0 0 1 1 0 0 1
OTG programming 1 1 X X X X X X

Note: In the table above, "1" stands for ON, "0" stands for OFF, and "X" stands for irrelevant.


1. Make SD card

Copy the file nand-burn sd to any directory on the Ubuntu system, assuming /home/neo/work.

User Profile\Linux\Burn Tool\nand-sdburn.zip, a 256M NAND file system.

User Profile\Linux\Burn Tool\emmc-sdburn.zip, a 4G EMMC file system.

iMX6ULL Make SD card

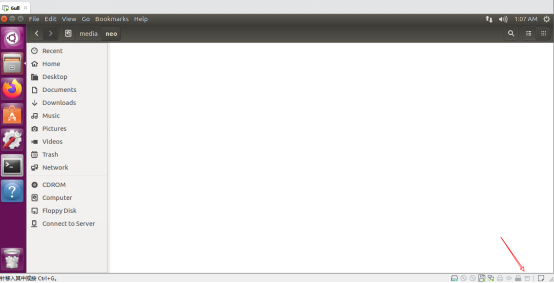

Step 3: After the virtual machine recognizes the SD card, the directory will pop up and then perform the following flash operation. Go to the /home/neo/work/nand-burnsd directory and execute the script:

neo@ubuntu:~/work/nand-burnsd$ sudo ./6ullsdburn.sh

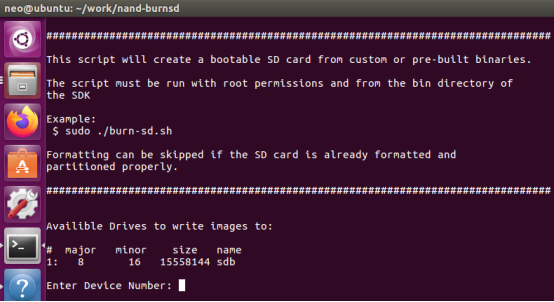

After executing the above command, the terminal will list the computer's hard disk or U disk, corresponding to select your own SD card, enter.

Note: Determine that their own U disk is sda/sdb/sdc can be judged according to the capacity, such as their own USB disk capacity of 4G, its size is 3872256 KB≈ 4G, it is recommended that users do not insert multiple USB disks at the same time when doing this, so as not to be confused.

Here's an example of our operation:

Select 1, Enter

Select y, enter, and wait until card making is complete.

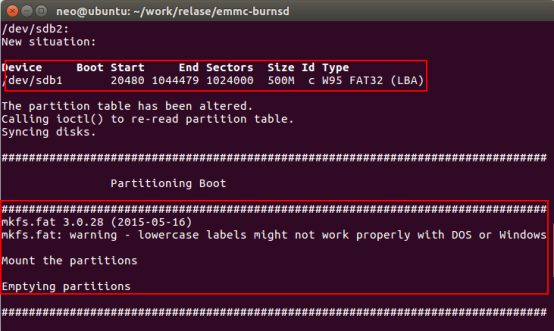

If the information identified in the red box in the following figure is not in the printed information, the SD card mounting fails, and you need to use Ubuntu to re-uninstall and mount it.

After the card is made, you can see that the boot partition contains two directories, sdrun and target. The contents of the sdrun folder are used to boot the system to be programmed without modification; the target directory contents are burned to the flash chip. If you need to replace the image file, simply replace the corresponding file in the target directory, keep the same name, and then re-burn the system.

2. SD card flashing system

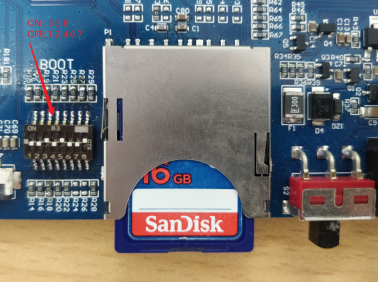

Insert the SD card made in the previous section and place the DIP switch as shown in the image below. 3, 5, 8 are ALL, 1, 2, 4, 6, 7 are OFF, as shown in the following figure. At this point, the contents of the target in the SD card are burned into the NAND.

SD card flashing system

  • lib/modules/4.1.15-00026-g407ada6-dirty/modules.softdep
  • lib/modules/4.1.15-00026-g407ada6-dirty/source
  • lib/modules/4.1.15-00026-g407ada6-dirty/modules.dep.bin
  • lib/modules/4.1.15-00026-g407ada6-dirty/modules.symbols
  • Update Complete!!!!!!!

At the same time, the LEDs on the iMX6ULL baseplate blink. The programming time is longer, wait for the system to complete the programming, and then print the information on the serial port:

After the programming is completed, the power is cut off, the dip switch is dialed to 4, 5, 8 are ALL ON, 1, 2, 3, 6, 7 are OFF, the iMX6ULL development board is re-powered, and the NAND starts.

3. OTG programming system

Note: iMX6ULL development board cannot be inserted into the SD card when using OTG burning.

mx6ull-4gemmc-512mddr-qt5.6.vbs , to burn 4GeMMC+512MDDR system

mx6ull-256mnand-256mddr-cmd.vbs , to burn 256MNAND+256MDDR system

a, First copy the programming tool Mfg tool to windows and decompress, the burning tool path is as follows: user information\Linux\burning tool\mfgtools.zip

b, 5V power supply is as shown in the figure, and the switch is dialed to the power supply port:

OTG programming system

c, DIP switch is set to 1, 2 is ON, and other states are arbitrary. As shown in the figure:

DIP switch

d.Double-click "mx6ull-256mnand-256mddr-cmd.vbs" (the script has been written, directly burned), as the following shows:

Double-click

e.Insert a USB OTG, as shown below:

Insert a USB OTG

Automatic recognition as HID, as shown in the figure:

Automatic recognition as HID

f. Click start, start burning the system, pop up the format dialog in the middle, click the "Cancel" formatting option, or ignore it until the burning is complete. As shown in the figure:

start burning the system

g. After the system programming is completed, "Done" appears, and then click "stop" to stop. Click "Exit" again to close the burning tool. Power off, dial the DIP switch to 4, 5, 8 are ALL, 1, 2, 3, 6, 7 are OFF, power on the iMX6ULL development board, NAND starts.


Second, step through the kernel

1. eMMC step-by-step update kernel

After the system boots, put the device tree to be replaced in the USB flash drive, insert it into the development board, and enter the command in HyperTerminal:

  • root@fl-imx6ull:~# cp /run/media/sda1/imx6ull-S-gpmi-1024x600c7.dtb /run/media/mmcblk1p1/imx6ull-S-gpmi-1024x600c7.dtb
  • root@fl-imx6ull:~# cp /run/media/sda1/zImage /run/media/mmcblk1p1/zImage
  • root@fl-imx6ull:~# sync
  • root@fl-imx6ull:~# reboot

After restarting, select the corresponding dtb at the uboot stage.

2. Nand step-by-step updates the kernel

Updating dtb as well as the kernel, logo, can use the nandwrite command, which is also packaged in the file system. When using, copy the dtb, logo, and zImage files to be programmed to a directory in the file system (/root in this example), then erase the old firmware in the corresponding partition, and then use the nandwrite command to write the new firmware to the corresponding partition. The reference command is as follows:

  • root@fl-imx6ull:~# flash_erase /dev/mtd4 0 0
  • Erasing 128 Kibyte @ 7e0000 -- 100 % complete
  • root@fl-imx6ull:~# nandwrite -p /dev/mtd4 /run/media/sda1/target/zImage
  • Writing data to block 0 at offset 0x0
  • Writing data to block 1 at offset 0x20000
  • Writing data to block 2 at offset 0x40000
  • ...

Update the kernel:


  • Update dtb:
  • root@fl-imx6ull:~# flash_erase /dev/mtd3 0 0
  • Erasing 128 Kibyte @ 2e0000 -- 100 % complete
  • root@fl-imx6ull:~# nandwrite -p /dev/mtd3 /run/media/sda1/target/imx6ull-S-gpmi-800x480c7.dtb
  • Writing data to block 0 at offset 0x0

Update logo:

  • root@fl-imx6ull:~# flash_erase /dev/mtd1 0 0
  • Erasing 128 Kibyte @ 1e0000 -- 100 % complete
  • root@fl-imx6ull:~# nandwrite -p /dev/mtd1 /run/media/sda1/target/logo.bmp
  • Writing data to block 0 at offset 0x0
  • Writing data to block 1 at offset 0x20000
  • Writing data to block 2 at offset 0x40000
