Training Your Own YOLOv5 Model

1. Environment Preparation

1.1 Install the Required Software

The following steps are performed in a Windows 11 environment:

Required Software:
Anaconda (Python virtual environment management tool)
Git (to clone the YOLO source code)
PyCharm (Python IDE)

Anaconda Installation:

https://blog.csdn.net/Natsuago/article/details/143081283?spm=1001.2014.3001.5501

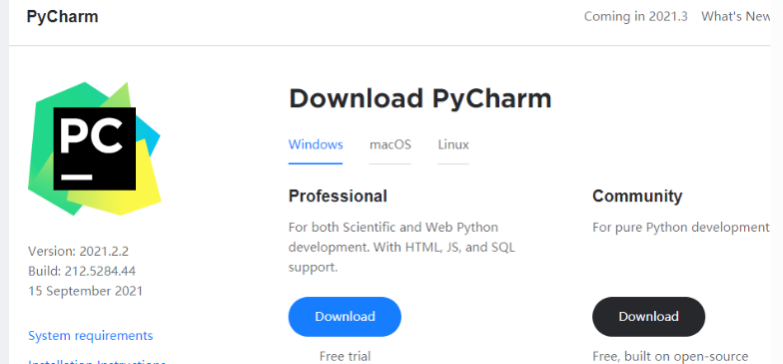

PyCharm Installation:

Git Installation: https://blog.csdn.net/weixin_45811256/article/details/130925392

1.2 Clone YOLO Repository

Navigate to the directory where you want to store YOLO on your Windows system, open the Command Prompt (cmd), and enter the following command to clone the repository:

git clone https://github.com/ultralytics/yolov5

1.3 Set Up a Virtual Python Environment and Install Dependencies

conda create -n gityolov5 python=3.8 -y //It is strongly recommended to use Python 3.8, as other versions may cause errors.

Install Dependencies: Navigate to the YOLO directory and activate the Python 3.8 virtual environment.

J:\yolov5>conda activate gityolov5 //Enter the environment just created
(gityolov5) J:\yolov5>pip install -r requirements.txt -i https://mirrors.huaweicloud.com/repository/pypi/simple //Install required dependencies

Setup is complete. Now test if it runs successfully:

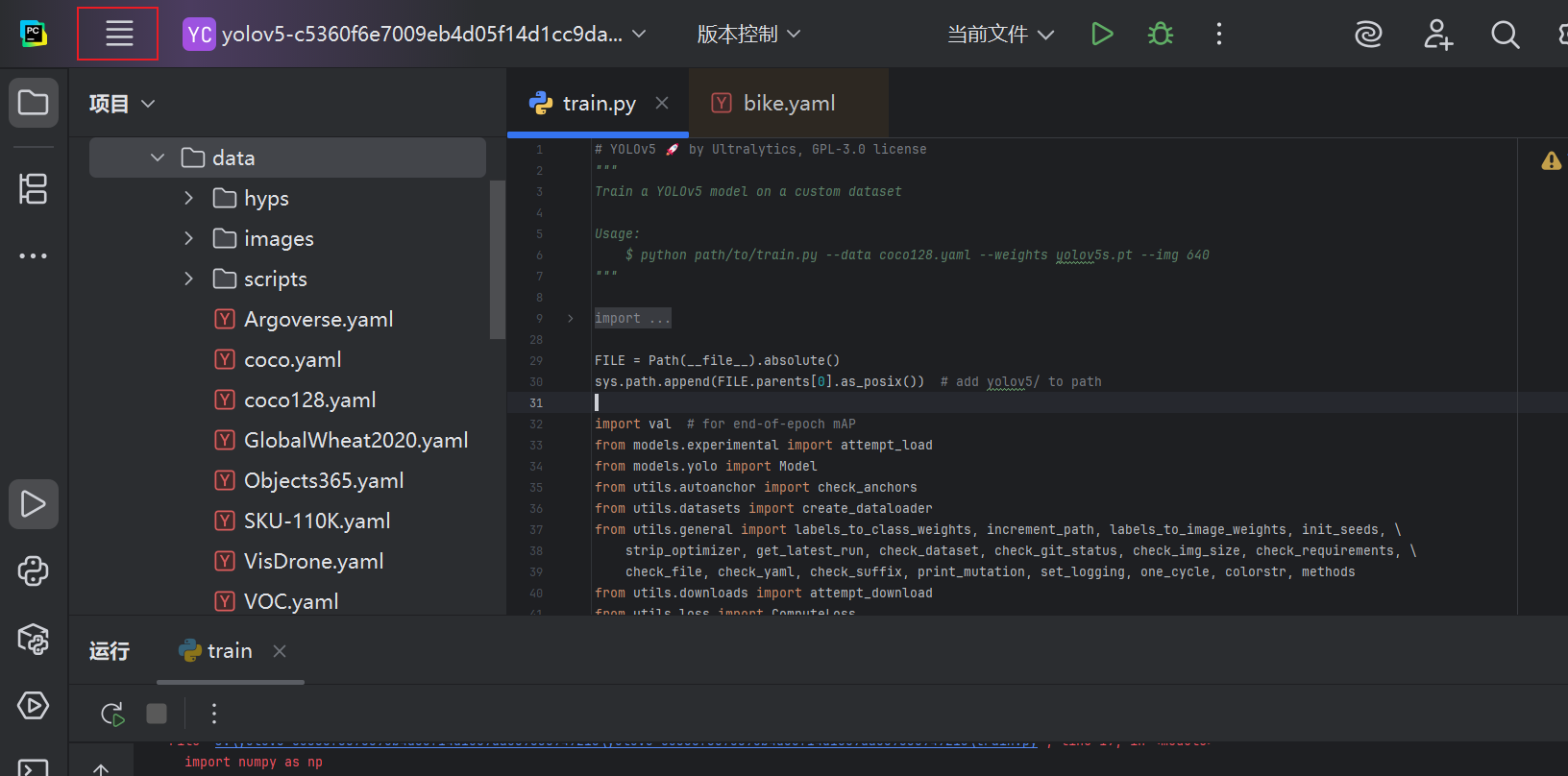

Open the downloaded yolov5 folder in PyCharm.

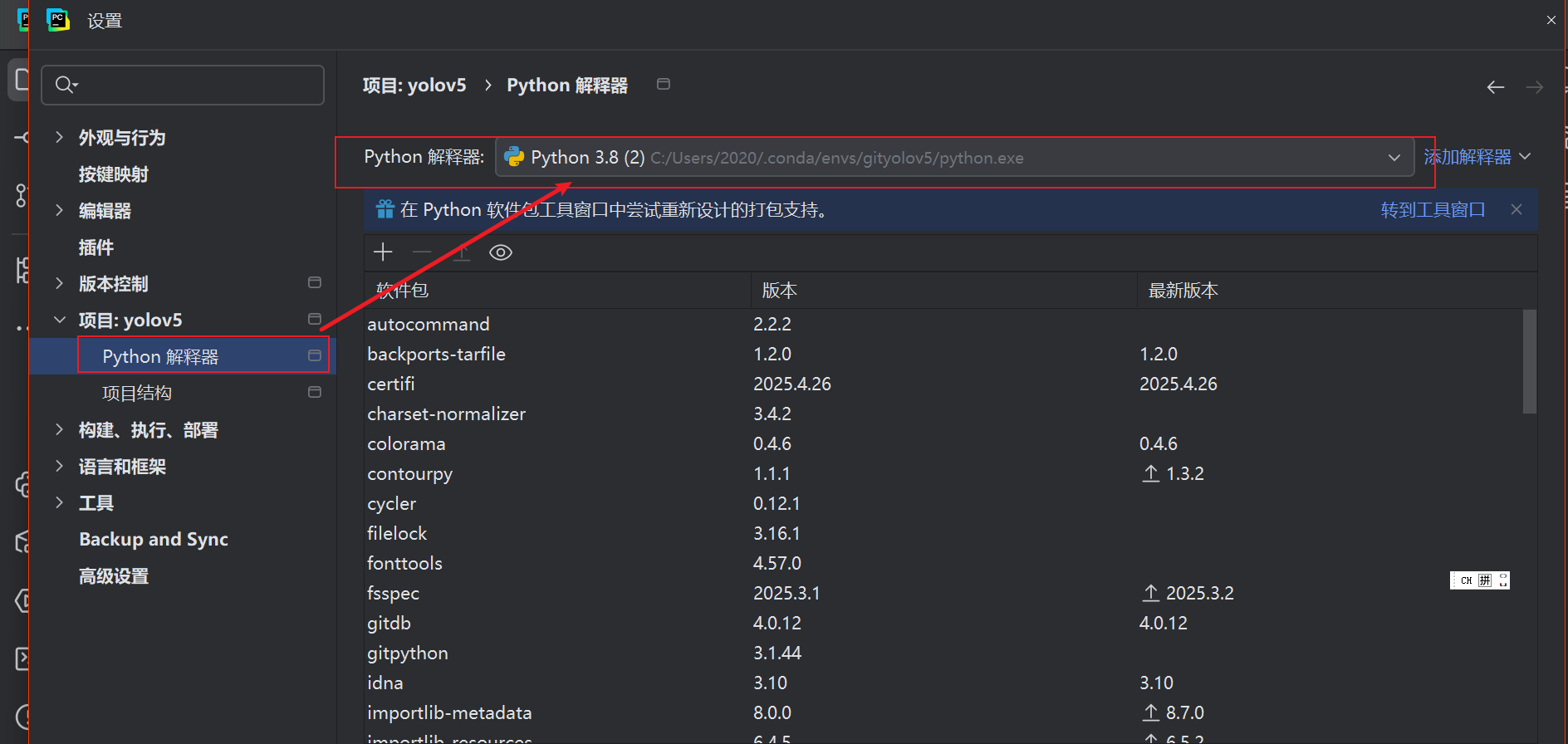

Open Settings and add a Python interpreter.

Note: It's usually under the directory where Conda is installed, or specifically under the envs folder of that path, containing the name of the virtual environment you created:

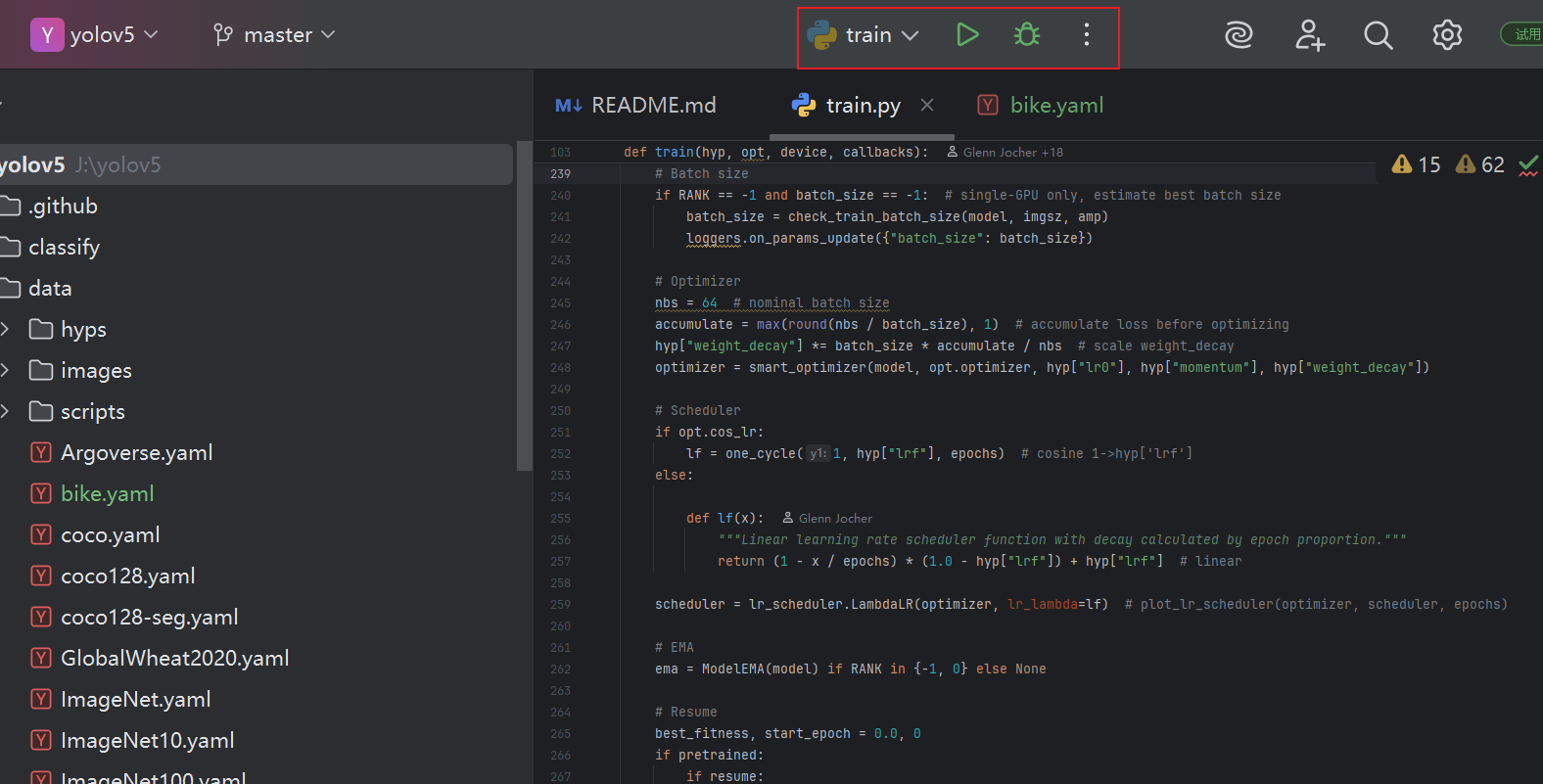

Open the train.py file and click ''Run''

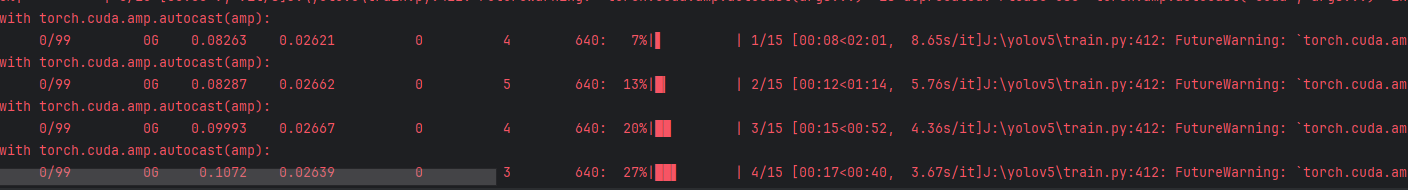

If you see results similar to the example image you have, the environment is successfully installed.

---

2. Dataset Preparation

Due to version compatibility issues, it is recommended to install a new Python 3.9 environment specifically for this step ( other versions may have conflicts; Python 3.9 is strongly recommended).

J:\yolov5>conda create -n label python=3.9 -y
J:\yolov5>conda activate label
(label) J:\yolov5>pip install labelimg -i https://mirrors.huaweicloud.com/repository/pypi/simple
(label) J:\yolov5>labelimg

The labeling tool LabelImg is now ready：

The following task involves labeling the material images and storing them.

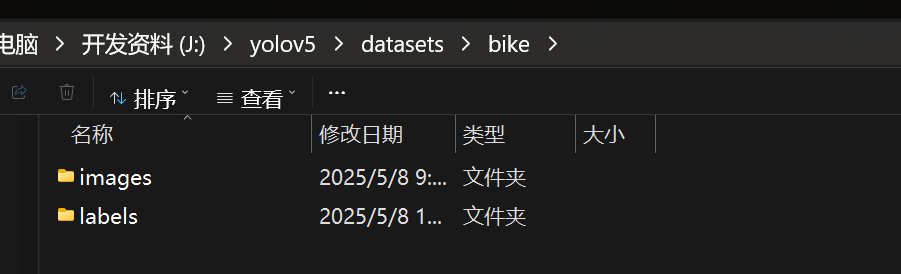

Create the following directory:

datasets -> (Project name, e.g., ''bike'' used here)

There are two folders under both the images and label directories. They are train and val. Train stores resources used for training, and Val stores resources used for validation. You can think of train as practice questions and Val as exam papers.

Images stores picture files, and labels stores annotation information. The labels are txt files containing coordinates.

The following is the annotation process:

C:\Users\2020>conda activate label
(label) C:\Users\2020>labelimg //Open the annotation tool

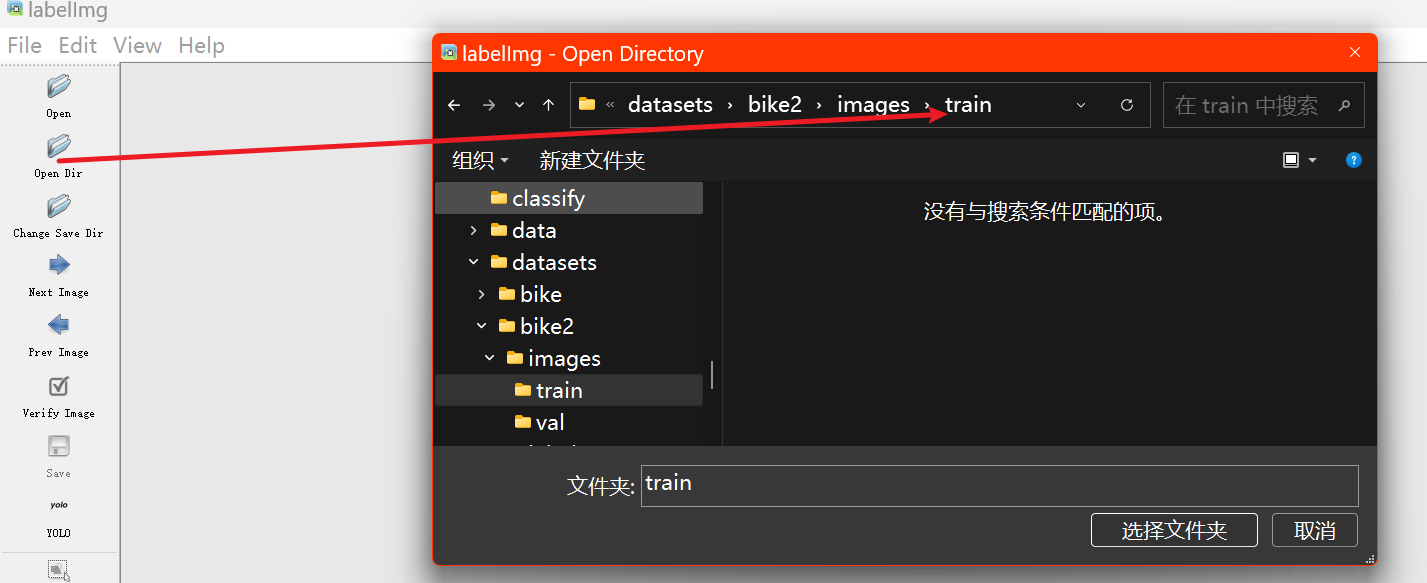

For the training set (train): Open the directory containing the training images.

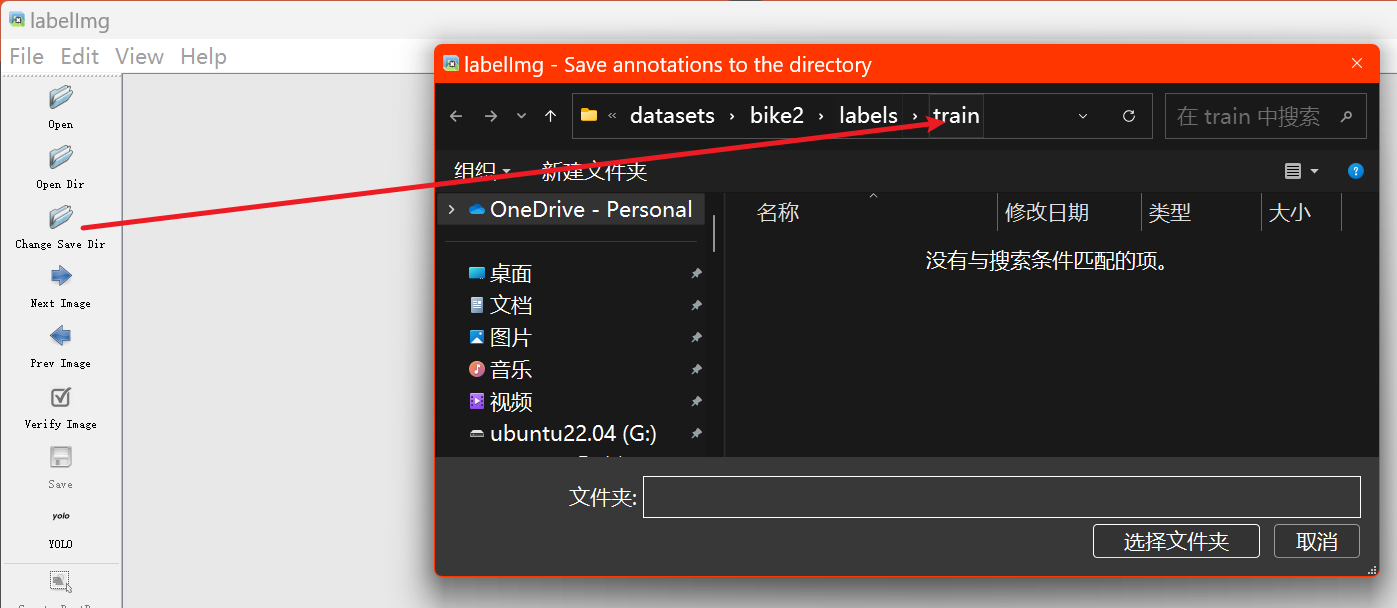

Open the directory for saving the training annotation files.

First, ensure the format is set to YOLO.
Then, click "Create RectBox" to draw a bounding box around the target object. Finally, set the object label.

Press Ctrl + S to save the annotation, then click the next image in the list at the bottom right corner. Repeat this process for all images. label

The annotation process for the Val (validation) set is the same.

---

Train the model

Create a configuration file in the yolov5/data directory.

# Train/val/test sets as 1) dir: path/to/imgs, 2) file: path/to/imgs.txt, or 3) list: [path/to/imgs1, path/to/imgs2, ..]
path: J:\yolov5\datasets\bike2 # dataset root dir
train: images/train # train images (relative to 'path')
val: images/val # val images (relative to 'path')
test: # test images (optional)
# Classes
nc: 1 # number of classes
names: ['bike'] # class names

Download YOLOv5 Pretrained Model:

https://github.com/ultralytics/yolov5/releases

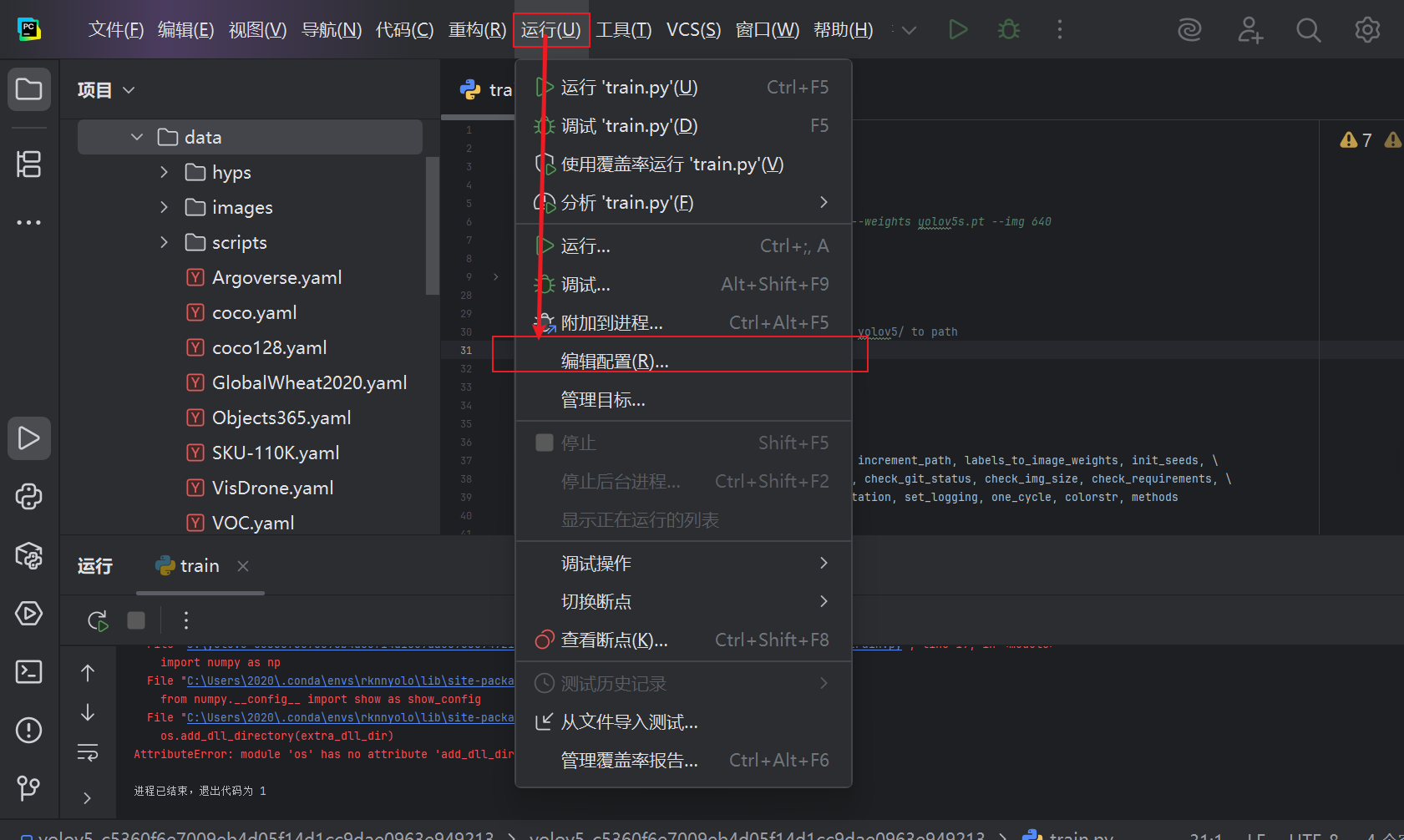

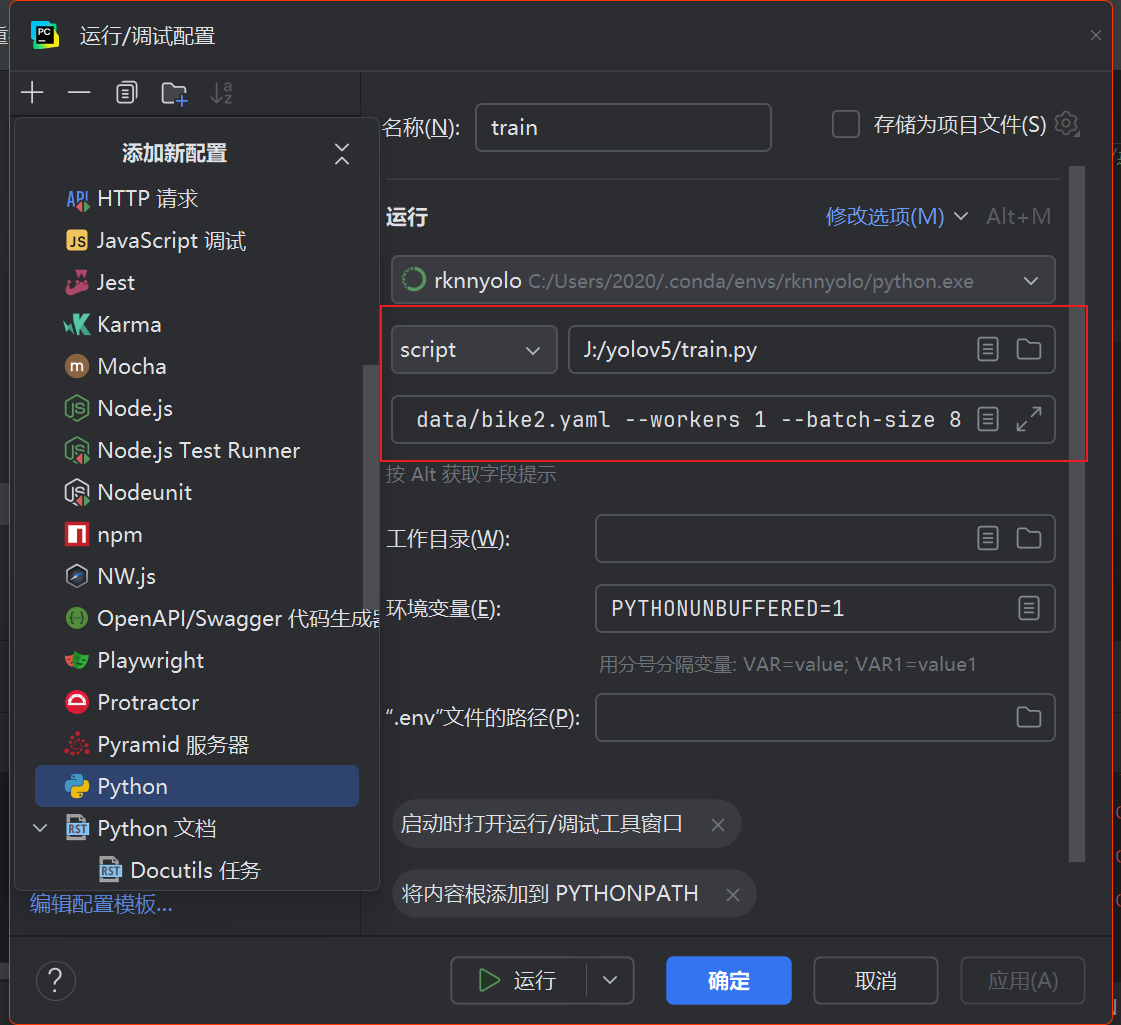

Edit Configuration:

In the red box, add the following:

--weights yolov5s.pt --data data/bike.yaml --workers 1 --batch-size 8

Click "Run" to start training.

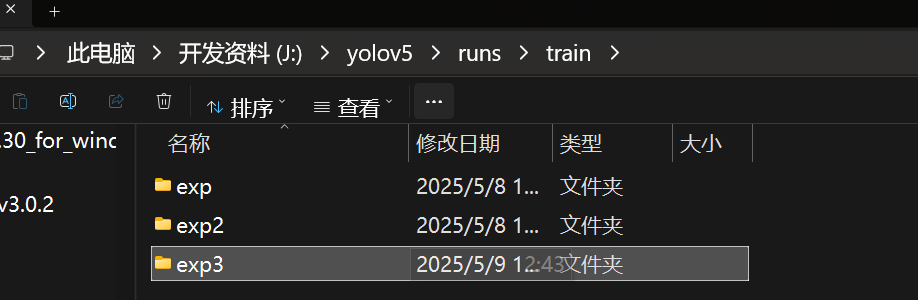

Output Location:

The model will be saved at exp3/weights/best.pt.

Manual Verification:

Place the best.pt file into the yolov5 folder.

J:\yolov5>conda activate rknnyolo
(rknnyolo) J:\yolov5>python detect.py --weights best.pt --source datasets/bike2/images/train

detect: weights=['best.pt'], source=datasets/bike2/images/train, data=data\coco128.yaml, imgsz=[640, 640], conf_thres=0.25, iou_thres=0.45, max_det=1000, device=, view_img=False, save_txt=False, save_format=0, save_csv=False, save_conf=False, save_crop=False, nosave=False, classes=None, agnostic_nms=False, augment=False, visualize=False, update=False, project=runs\detect, name=exp, exist_ok=False, line_thickness=3, hide_labels=False, hide_conf=False, half=False, dnn=False, vid_stride=1
YOLOv5 v7.0-418-ga493afe1 Python-3.8.20 torch-2.4.1+cpu CPU
Fusing layers...
Model summary: 157 layers, 7012822 parameters, 0 gradients, 15.8 GFLOPs
image 1/97 J:\yolov5\datasets\bike2\images\train\001.jpg: 384x640 1 bike, 59.2ms
image 2/97 J:\yolov5\datasets\bike2\images\train\002.jpg: 384x640 1 bike, 51.2ms
image 3/97 J:\yolov5\datasets\bike2\images\train\003.jpg: 384x640 1 bike, 52.3ms
image 4/97 J:\yolov5\datasets\bike2\images\train\004.jpg: 384x640 1 bike, 56.6ms

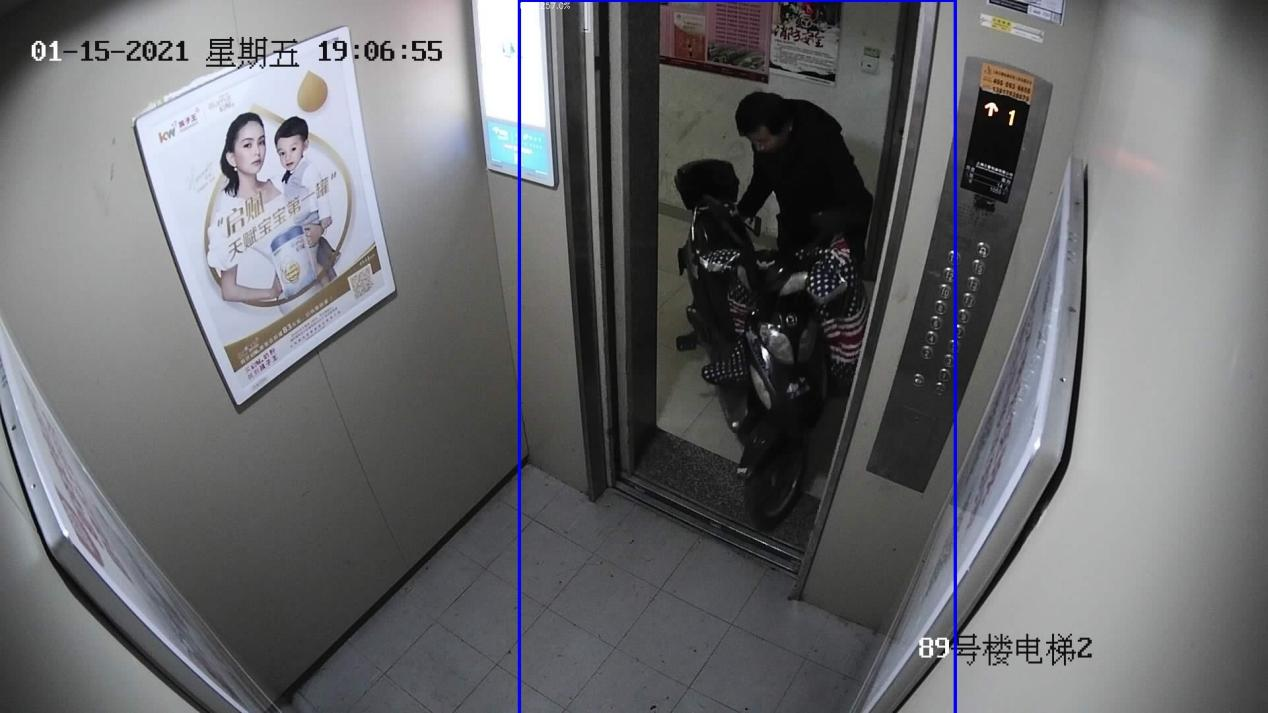

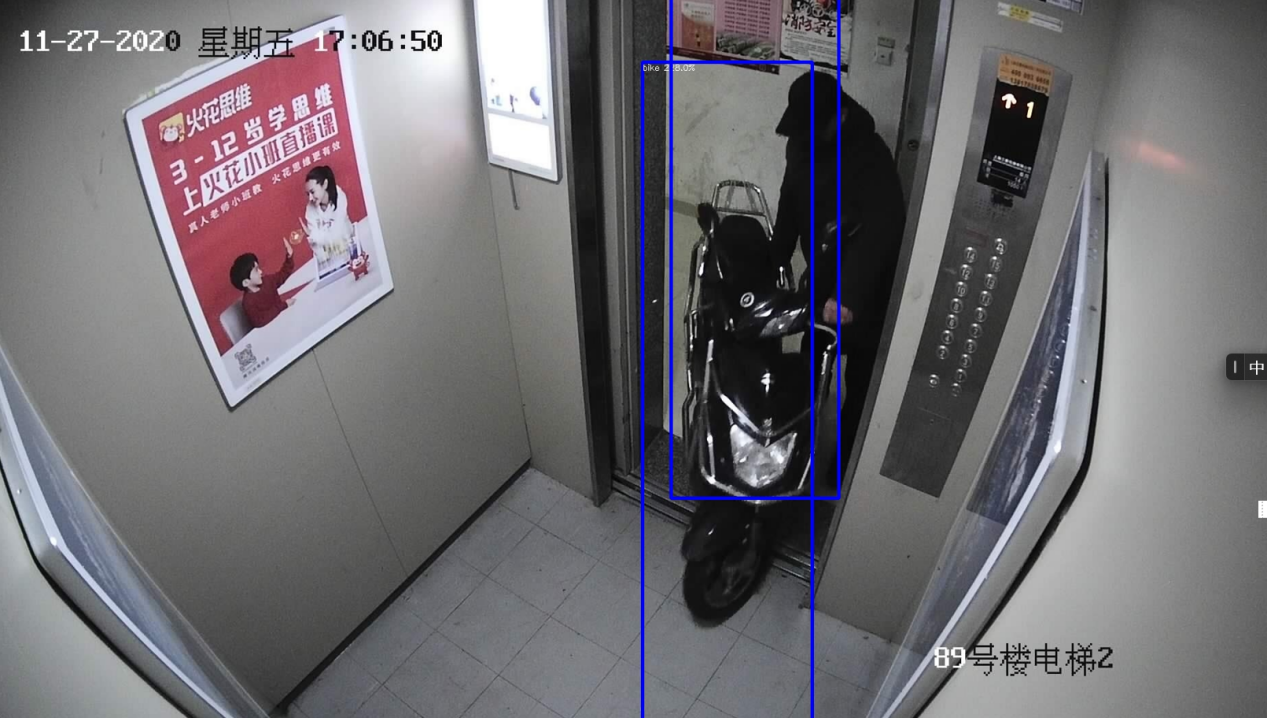

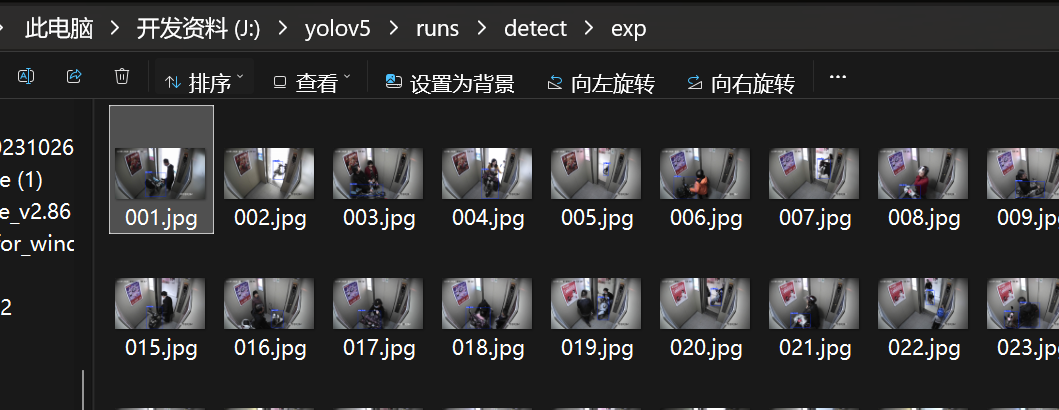

Test Results:

---

II. Deploy and Convert Model to RKNN

Use the following command to convert .pt to .onnx:

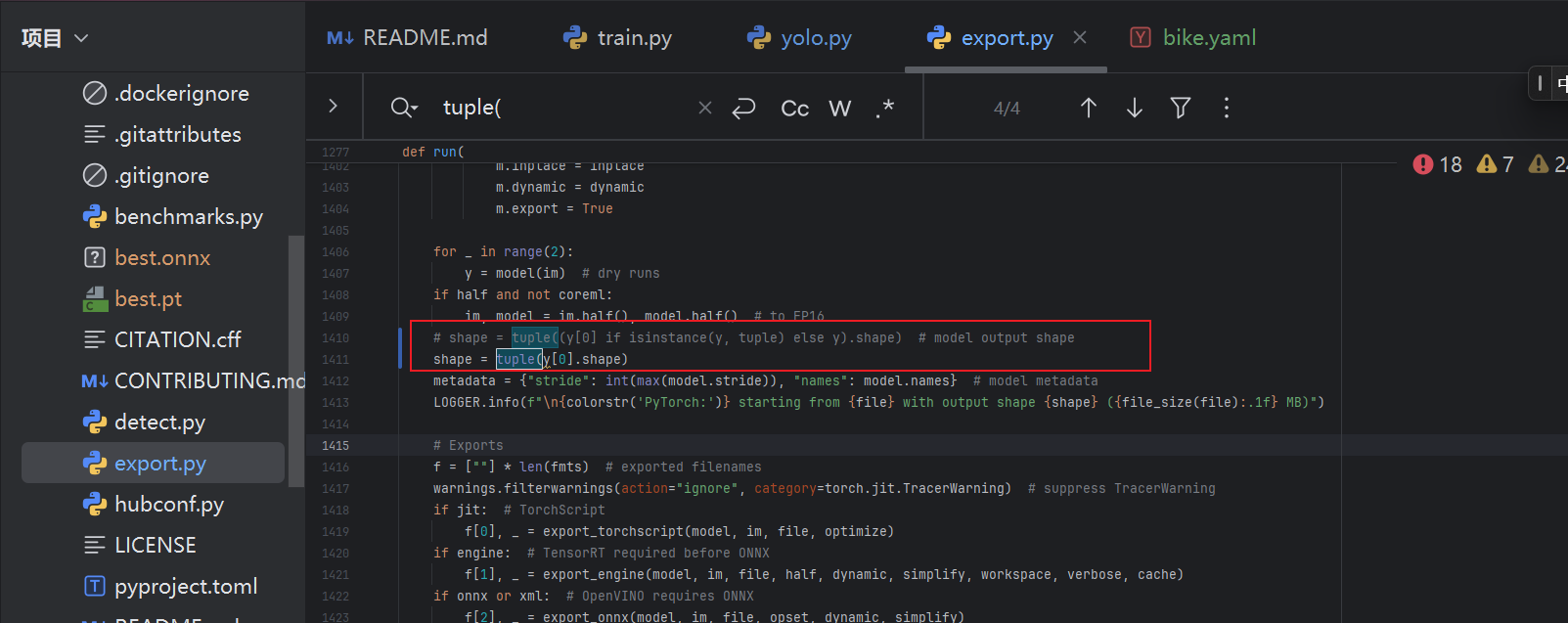

Modify the file:

Modify the file:

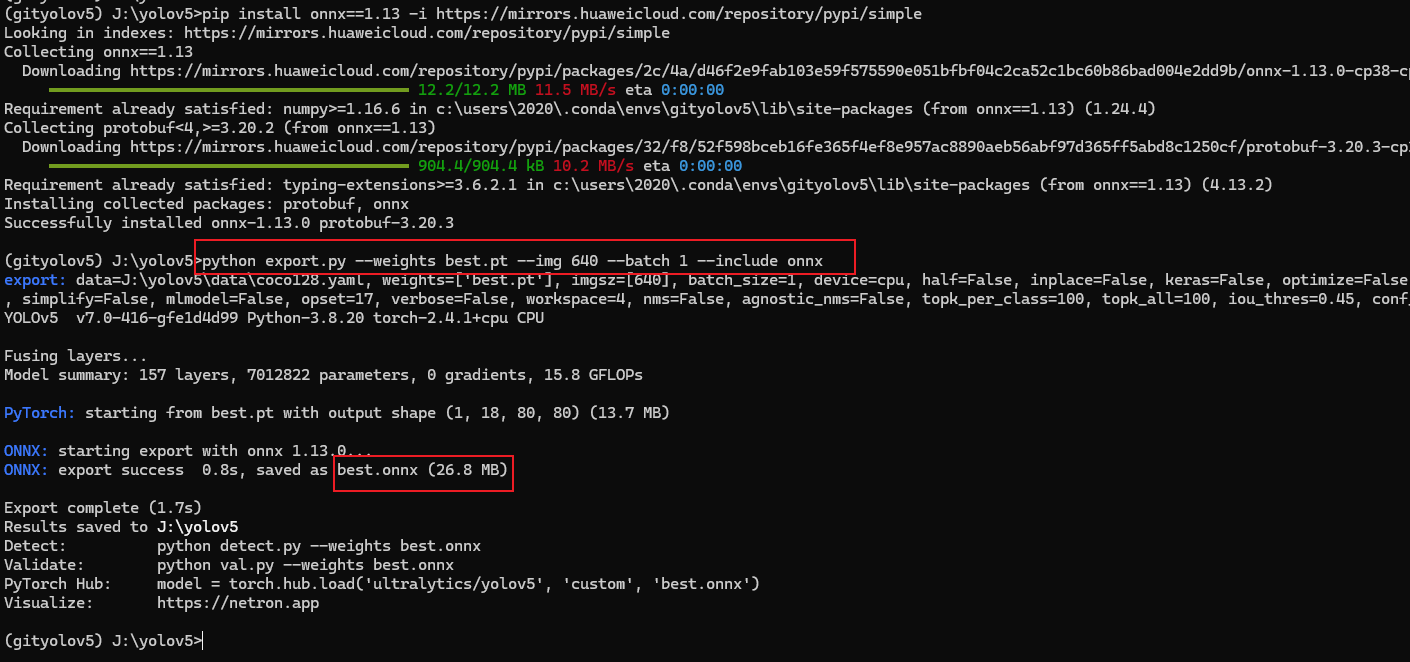

(gityolov5) J:\yolov5>pip install onnx==1.13 -i https://mirrors.huaweicloud.com/repository/pypi/simple
(gityolov5) J:\yolov5>python export.py --weights best.pt --img 640 --batch 1 --include onnx

Make the necessary modifications in the configuration file.

ubuntu22.04：

Install anaconda：

forlinx@ok3568:~$ sudo apt install libgl1-mesa-glx libegl1-mesa libxrandr2 libxrandr2 libxss1 libxcursor1 libxcomposite1 libasound2 libxi6 libxtst6
forlinx@ok3568:~$ sudo apt update
forlinx@ok3568:~$ wget https://repo.anaconda.com/archive/Anaconda3-2024.10-1-Linux-x86_64.sh
forlinx@ok3568:~$ bash Anaconda3-2024.10-1-Linux-x86_64.sh
Welcome to Anaconda3 2024.10-1
In order to continue the installation process, please review the license agreement.
Please, press ENTER to continue
>>> //Press Enter, and there will be many messages printed. Press 'q' to exit and view them.
Do you accept the license terms? [yes|no]
>>> yes //Enter yes to agree to the terms after exit
Anaconda3 will now be installed into this location: //Press Enter again
/home/forlinx/anaconda3
forlinx@ok3568:~/anaconda3/bin$ export PATH=~/anaconda3/bin:$PATH
forlinx@ok3568:~/anaconda3/bin$ source ~/anaconda3/bin/activate
(base) forlinx@ok3568:~/anaconda3/bin$ source ~/.bashrc
(base) forlinx@ubuntu22:~/anaconda3/bin$ conda create -n rknn python=3.8 //Or create a python 3.8 virtual environment
(base) forlinx@ubuntu22:~/anaconda3/bin$ conda activate rknn

Download and deploy the rknn related repository

(rknn) forlinx@ok3568:~$git clone https://github.com/airockchip/rknn-toolkit2.git --depth 1
(rknn) forlinx@ubuntu22:~/rknn-toolkit2/rknn-toolkit2/packages/x86_64$ pip install rknn_toolkit2-2.3.2-cp38-cp38-manylinux_2_17_x86_64.manylinux2014_x86_64.whl -r -i https://mirrors.huaweicloud.com/repository/pypi/simple

Conversion:

To modify a file test. py:

(rknn) forlinx@ubuntu22:~/rknn-toolkit2/rknn-toolkit2/examples/onnx/yolov5$ vi test.py
import os
import urllib
import traceback
import time
import sys
import numpy as np
import cv2
from rknn.api import RKNN
# Model from https://github.com/airockchip/rknn_model_zoo
ONNX_MODEL = 'best.onnx' //onnx model
RKNN_MODEL = 'best.rknn' //Generate rknn model
IMG_PATH = './test.jpg' //Test the image path
DATASET = './dataset.txt'
QUANTIZE_ON = True
OBJ_THRESH = 0.25
NMS_THRESH = 0.45
IMG_SIZE = 640
CLASSES = ("bike") //Label
if __name__ == '__main__':
# Create RKNN object
rknn = RKNN(verbose=True)
# pre-process config
print('--> Config model')
rknn.config(mean_values=[[0, 0, 0]], std_values=[[255, 255, 255]], target_platform='rk3568')
print('done')
# Load ONNX model
print('--> Loading model')
ret = rknn.load_onnx(model=ONNX_MODEL)
if ret != 0:
print('Load model failed!')
exit(ret)
print('done')
# Build model
print('--> Building model')
ret = rknn.build(do_quantization=QUANTIZE_ON, dataset=DATASET)
if ret != 0:
print('Build model failed!')
exit(ret)
print('done')
# Export RKNN model
print('--> Export rknn model')
ret = rknn.export_rknn(RKNN_MODEL)

(rknn) forlinx@ubuntu22:~/rknn-toolkit2/rknn-toolkit2/examples/onnx/yolov5$ python test.py
I rknn-toolkit2 version: 2.3.2
--> Config model
done
--> Loading model
I Loading : 100%|██████████████████████████████████████████████| 120/120 [00:00<00:00, 19261.28it/s]
done
--> Building model
D base_optimize ...
D base_optimize done.
D fold_constant ...
D fold_constant done.
D correct_ops ...
D correct_ops done.
Conversion completed, and best.rknn is generated in the current directory.

---

III. Deployment of the Development Board Runtime Environment:

forlinx@ok3568:~$sudo apt update
forlinx@ok3568:~$sudo apt install git cmake
forlinx@ok3568:~$git clone https://bgithub.xyz/rockchip-linux/rknpu2.git

Modify the file to change the label to bike only

forlinx@ok3568:~/rknpu2/examples/rknn_yolov5_demo$ vi model/coco_80_labels_list.txt

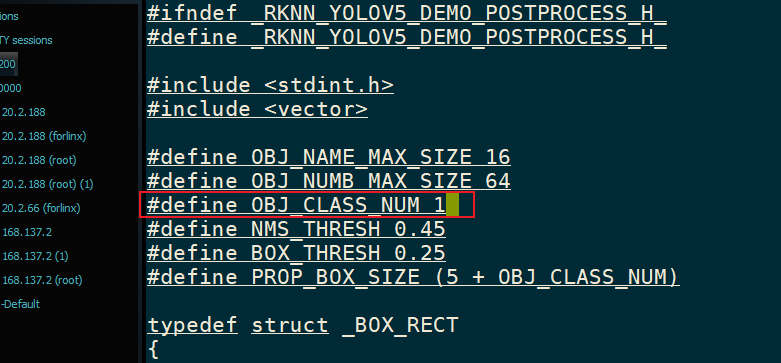

Modify this file and set the number of detection targets to one.

forlinx@ok3568:~/rknpu2/examples/rknn_yolov5_demo$ vi include/postprocess.h

forlinx@ok3568:~/rknpu2/examples/rknn_yolov5_demo$ bash build-linux_RK3566_RK3568.sh

At this point, the environment setup is complete.

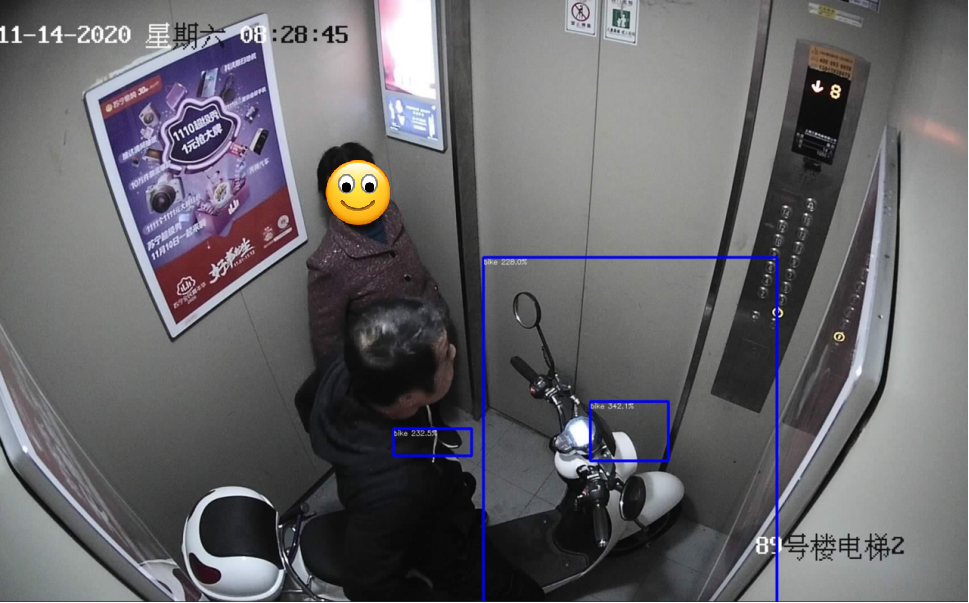

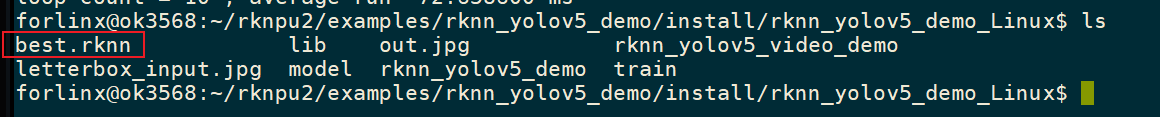

Copy the images for inference and the RKNN model to the development board. Execute the following command: An out.jpg file will be generated in the current directory.

forlinx@ok3568:~/rknpu2/examples/rknn_yolov5_demo/install/rknn_yolov5_demo_Linux$ ./rknn_yolov5_demo best.rknn train/006.jpg

---
