How to Implement USBNET on OK3568-C Development Board?

This article will introduce the method to implement USBNET mode using the Forlinx Embedded OK3568-C development board. Before that,we need to know what is USB Gadget.USB Gadget refers to an electronic device that is developed to connect to a host via USB in USB peripheral mode.

For example, when a mobile phone is plugged into a PC through a USB cable, the mobile phone is a USB Gadget. Similarly, in the article, the mobile phone is replaced by the OK3568-C development board.

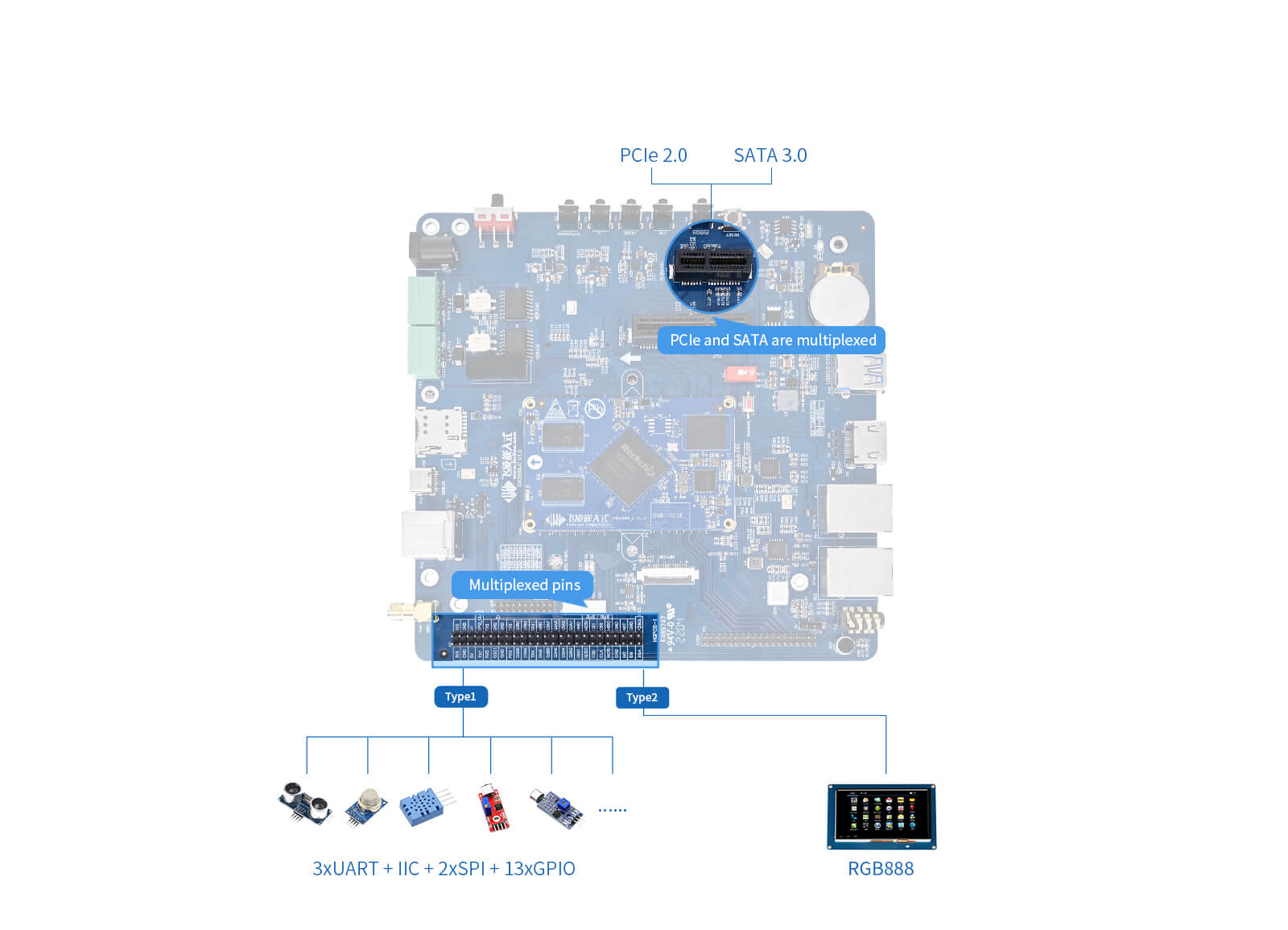

OK3568-C development board

The Gadget framework provides a set of standard APIs at the bottom layer,and the USB Device Controller (UDC) driver implements this set of APIs. Different UDC (usually part of the SoC) requires different drivers, and even different boards based on the same UDC need to modify the code. If we want to implement USBNET, we also need a driver, which is called RNDIS. The RNDIS driver is present in the kernel, you just need to find the configuration entry and compile it into the kernel.

First go to the source kernel directory and enter the menuconfig graphical configuration screen:

source kernel directory

When entering menuconfig, you need to specify the environment.Otherwise the graphical configuration interface entered by executing make menuconfig directly is for the X86.

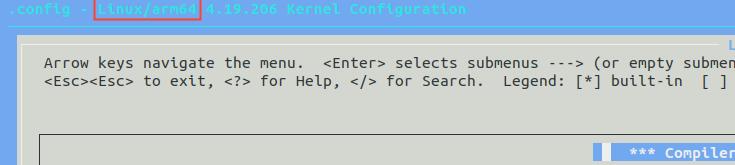

As shown in the figure below, the ARM architecture is the correct graphical configuration interface:

graphical configuration

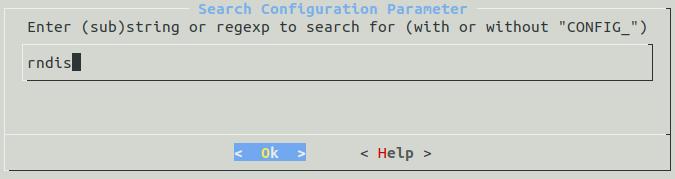

Press/to enter the search interface:

search interface

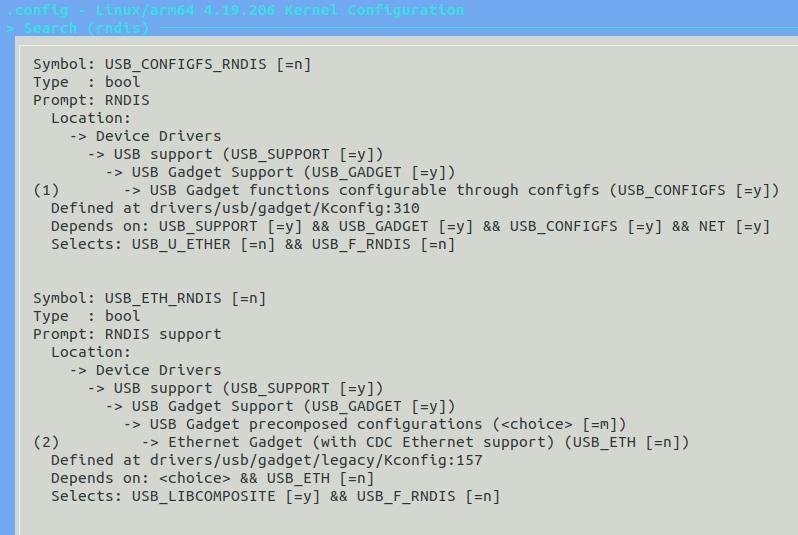

Directly search for rndis and find the directory with the word "USB Gadget". You can see that there are multiple paths. You can directly enter the USB Gadget directory to see that it is the option to configure RNDIS.

configure RNDIS

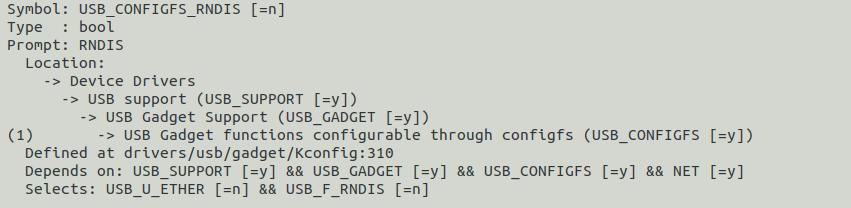

After searching, the final path is shown as follows:

final path

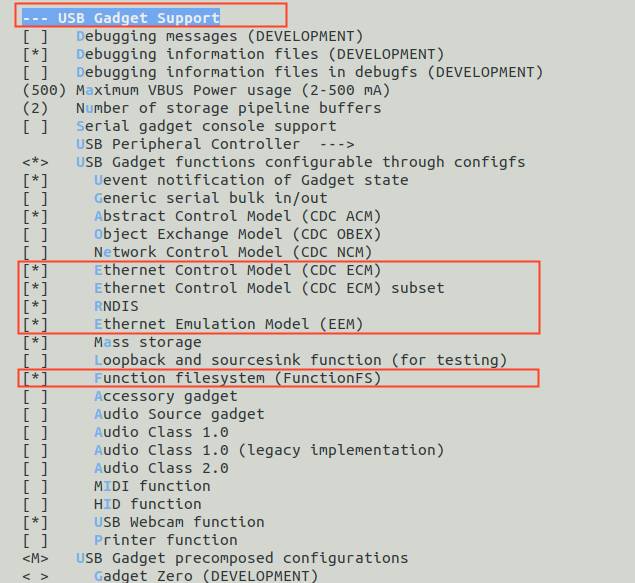

Turn on the RNDIS driver and select some network protocol configurations, as shown in the circle below:

network protocol configurations

Find the USB Gadget precomposed configurations and compile RNDIS into the kernel (if you choose to compile it into a module, compiling the kernel alone will not generate a.ko file. In order to save the tedious mounting steps, this article compiles RNDIS into the kernel).

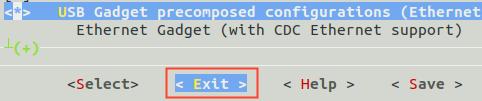

After the configuration is completed, press the Exit key to exit, and select yes for "Save or not":

configuration is completed

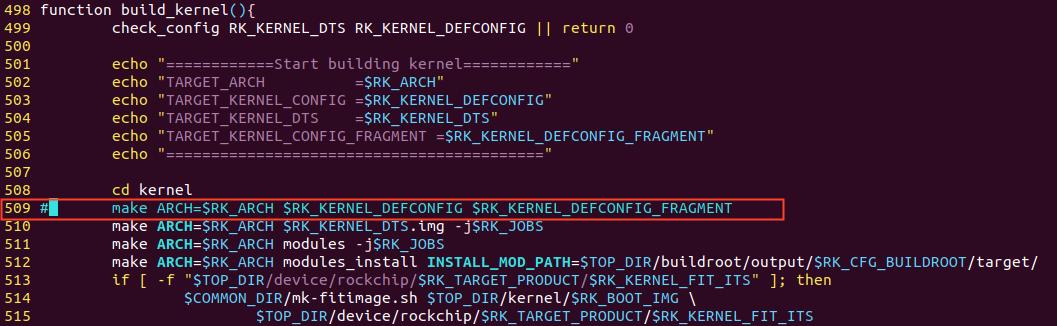

Return to the source code directory to enter the build. Sh script, and comment out the defconfig command to generate the.config file, so that the menuconfig configuration takes effect. The comment location is as follows:

menuconfig configuration

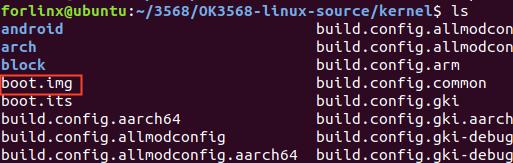

Save and exit, compile the kernel separately, and execute the./build. Sh kernel under the source code directory. After compilation, boot. IMG files are generated in the kernel directory.

kernel directory

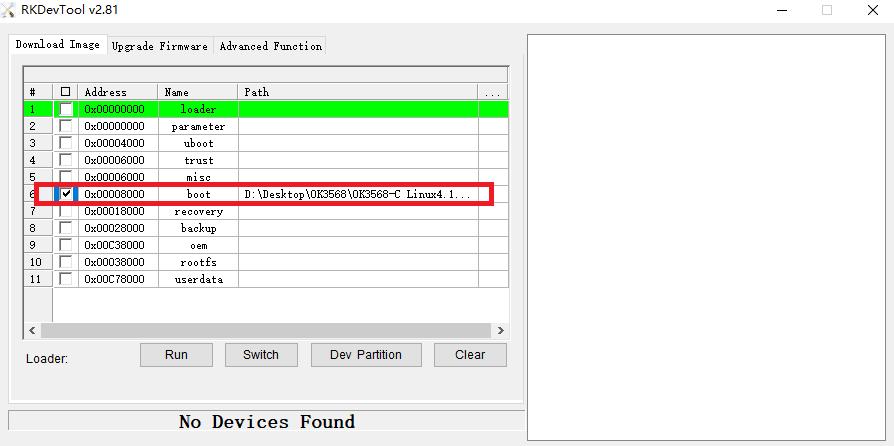

Use RKDevTool, the burning tool provided by Rockchip, to update the image in a single step. Press and hold the Recovery key and press Reset until the programming tool displays that a LOADER device has been found and then release the Recovery key.

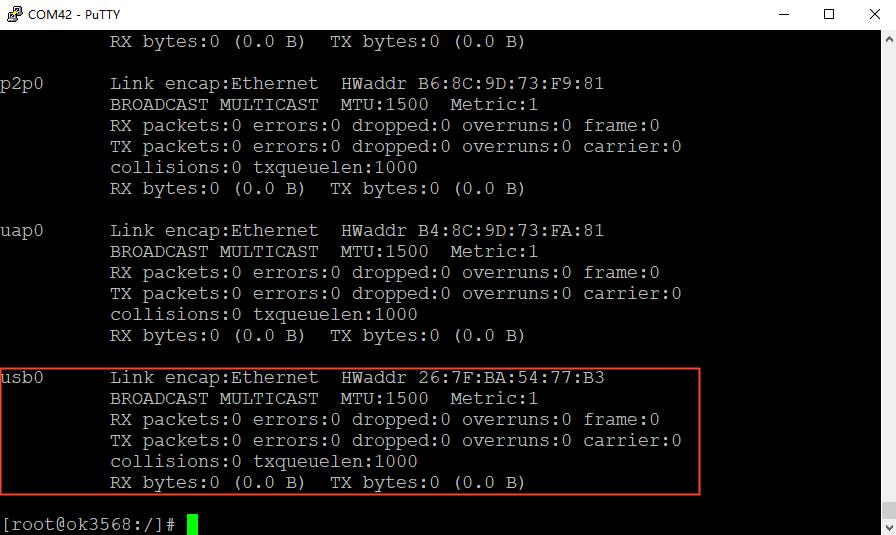

Replace the position in the figure, click the device partition table, and then click Execute. After the device restarts, the burning is completed, and there will be burning progress on the right side. After the development board restarts, ifconfig -a shows that the usb0 node is generated.

usb0 node

Some of the more interesting features can be achieved with the Linux USB Gadget device driver:

  • 1. A certain storage device in an embedded product, or a certain partition of a storage device, can be recognized by a PC as a U disk;
  • 2. After an embedded device is connected to the PC through USB, a new network connection will appear on the PC side. There will also be a network card device on the embedded device. You can configure their IP addresses and conduct network communication, commonly known as USBNET.

The USB 3.0 interface is used this time, so it is necessary to use“detect”to activate Type-C 5V to 3.3 V Type-A, and the hardware is changed to connect pin1 of p40 to the positive pole of C23. Set the dip switch to ON,and insert the dual-male USB cable;

Force USB output to device

echo peripheral > /sys/devices/platform/fe8a0000.usb2-phy/otg_mode

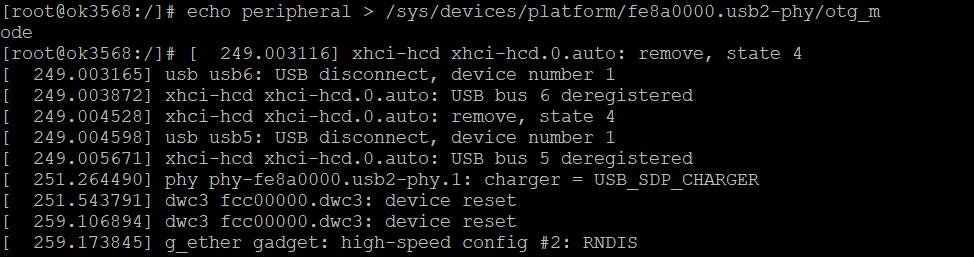

The print information is shown as follows:

print information

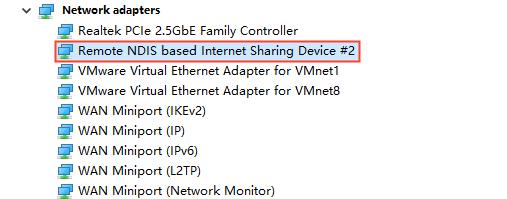

This node can be seen on the device manager network adapter to configure an IP

configure an IP

Check the network connection you can see an unrecognized network, configure this also with IP. Note that it needs to be in the same network segment as the IP configured on the OK3568-C development board:

OK3568-C development board

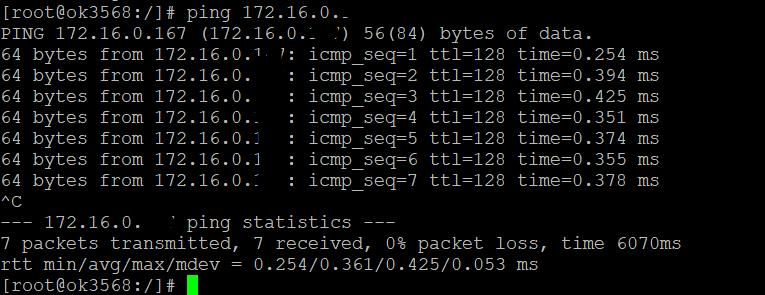

Use the OK3568-C development board to ping the IP configured by the computer just now, and find that it can be pinged.

ping the IP configured

We can see that OK3568-C development board has realized USBNET function and network sharing.
