New Release | 26+6 TOPS Powerful AI Performance! FCU3501 Embedded Computer Launched

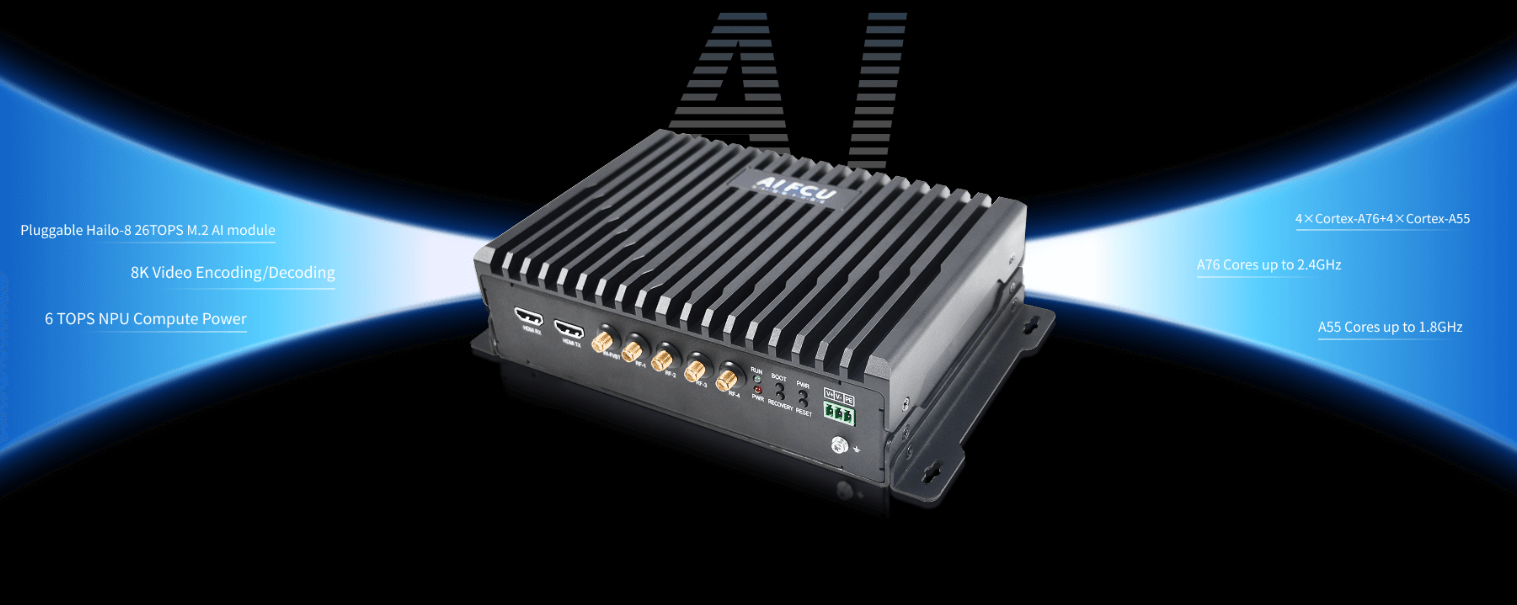

The Forlinx Embedded FCU3501 Embedded Computer is developed based on the Rockchip RK3588 processor, featuring a 4×Cortex-A76 + 4×Cortex-A55 architecture, with the A76 cores running at up to 2.4GHz and the A55 cores at up to 1.8GHz. It supports 8K video encoding and decoding and integrates a 6 TOPS NPU for AI acceleration. The system is also expandable via an M.2 interface for an optional Hailo-8 AI accelerator card, delivering an additional 26 TOPS, making it ideal for edge-side AI computing in applications such as intelligent transportation, smart manufacturing, and smart buildings.
Designed with a fanless passive cooling mechanism, the FCU3501 has undergone rigorous environmental and EMC testing to ensure stable and reliable operation in industrial environments.

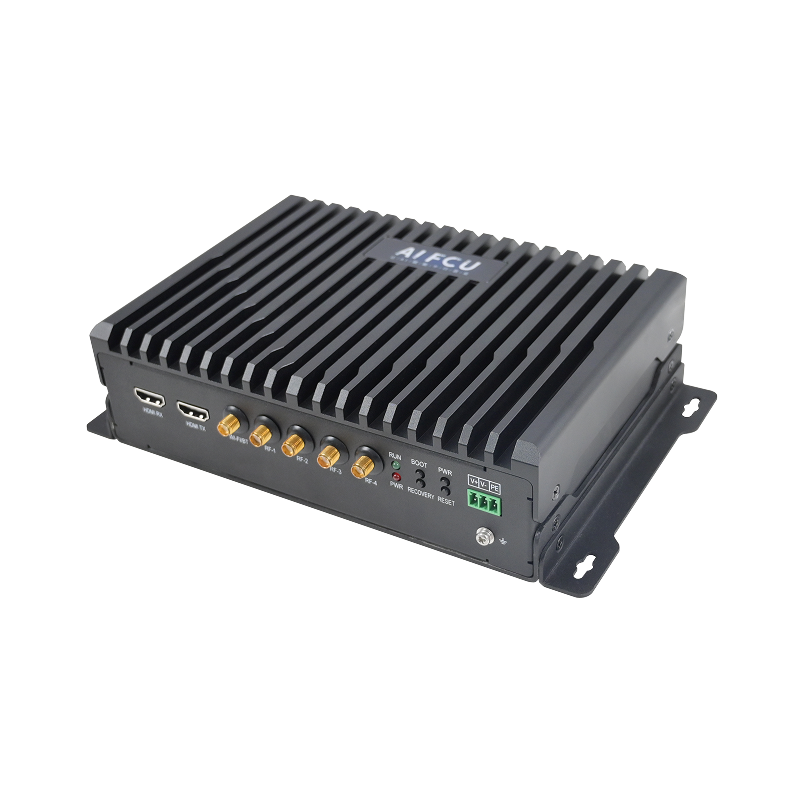

FCU3501 Embedded Computer
Powerful Processor Performance
It is designed based on the Rockchip RK3588 processor, featuring 4 x Cortex-A76 cores at up to 2.4GHz and 4 x Cortex-A55 cores at up to 1.8GHz, with a built-in NPU for edge AI computing.
Compute Power Expansion
Supports Hailo-8 computing card expansion. The expanded computing power with RK3588 can reach up to 26+6 TOPS, fully meeting AI edge computing needs.
Passive Cooling Design
It features an industrial fanless design and can operate reliably for a long time in an ambient temperature range of -40°C to +85°C.
Comprehensive Certifications
CE, FCC, RoHS certifications and environmental test passes for ensured safety, quality, and smooth market entry.
Abundant peripherals
It offers various storage expansion options, including M.2 hard drives and TF cards.Users can flexibly choose different storage methods according to their needs to meet the requirements of various application scenarios.It also supports optional 4G/5G modules for convenient deployment.
Product Dimensions
Interfaces
System Software
Application Scenarios
In multiple industries such as intelligent transportation, smart factories, intelligent buildings, unmanned vehicles/ships,and unmanned consumption, with its comprehensive advantages of high performance, multi-functionality, and industrial-grade quality,along with Forlinx’s complete after-sales technical support, the FCU3501 helps your products be quickly launched onto the market and stay at the forefront of the industry.
▊ Hardware Features
|
FCU3501 Embedded Computer Basic Features |
||
|---|---|---|
|
Processor |
Rockchip RK3588/RK3588J RK3588 CPU：4×[email protected]+4×[email protected] RK3588J CPU：4×[email protected]+4×[email protected] NPU: 6 TOPS, supporting INT4/INT8/INT16/FP16 mixed operation GPU：Mali-G610 MP4, OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2 VPU： Hardware Decoding:
Hardware Encoding:
|
|
| RAM |
8/16 GB LPDDR4x |
|
|
ROM |
64/128 GB eMMC |
|
|
Operating Temperature |
-40℃~+85℃ |
|
|
Working Voltage |
Rated DC 24V, supporting wide voltage 9V-36V, with reverse connection protection and over current protection |
|
|
Complete Machine Size |
Dimensions: 196.5x140.5x56.5mm (232.5x140.5x56.5mm with mounting ears) |
|
|
Heat Dissipation |
Passive cooling, no fan |
|
|
Total Weight |
2.04kg (including 5G module and computing power card) |
|
|
FCU3501 Embedded Computer Functional Parameters |
||||
|---|---|---|---|---|
|
Function |
QTY |
Spec. |
||
|
EtherNet |
2 |
Support 10/100/1000 Mbps data transmission rate. |
||
|
USB3.0 |
2 |
Led out via Type-A connector, 5V/1A output. |
||
|
HDMI TX |
1 |
Led out via standard HDMI socket; |
||
|
HDMI RX |
1 |
Led out via standard HDMI socket; |
||
|
TF |
1 |
Support TF card for expanded storage and OS burning. |
||
|
DEBUG |
1 |
RJ45 connector, RS232 level. Connect to a computer via a console debugging cable for debugging. |
||
|
Audio |
1 |
Built-in speaker supporting headphone output. |
||
|
WiFi&BT |
1 |
Support WIFI4 and Bluetooth 4.2. |
||
|
M.2 |
1 |
4G/5G（EM05/RM500U） |
||
|
M.2 |
1 |
M.2 hard drive. |
||
|
M.2 |
1 |
Support HaiLo-8 computing power card. |
||
|
RS485 |
2 |
Isolated RS485 level converter, using 3-pin 15EDGK-3.81 green terminal block. |
||
|
RS232 |
4 |
Isolated RS232 level converter, using 3-pin 15EDGK-3.81 green terminal block. |
||
|
DI |
2 |
2 x optocoupler-isolated signal input, dry contact access. |
||
|
DO |
2 |
2 x relay-isolated output, dry contact output. |
||
|
KEY |
4 |
Four buttons : reset, power on/off, MASKROM, RECOVERY. |
||
|
LED |
2 |
1 x power supply normally on LED; |
||
