AI Edge Computing Box FCU3001
AI Edge Computing Box FCU3001 is an AI Edge Computing Device based on the NVIDIA Jetson Xavier NX processor that delivers up to 21 TOPS computing power, making it ideal for high-performance computing and ARTIFICIAL in embedded and edge systems. FCU3001 has a variety of peripheral interfaces for easy access to cameras, displays, sensors, SSDs, etc. At the same time support 4G/5G network communication, for the "5G-AI" enabling.

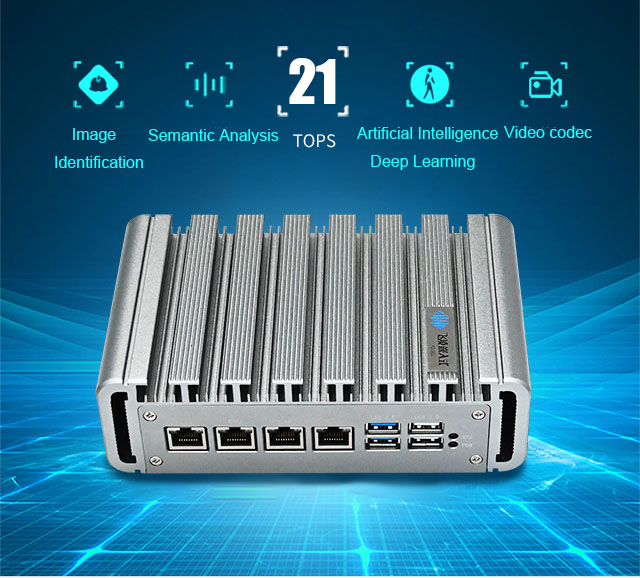

Powerful AI performance
In an embedded system, provides powerful performance support for edge computing and artificial intelligence, to meet a wide range of AI scenarios.

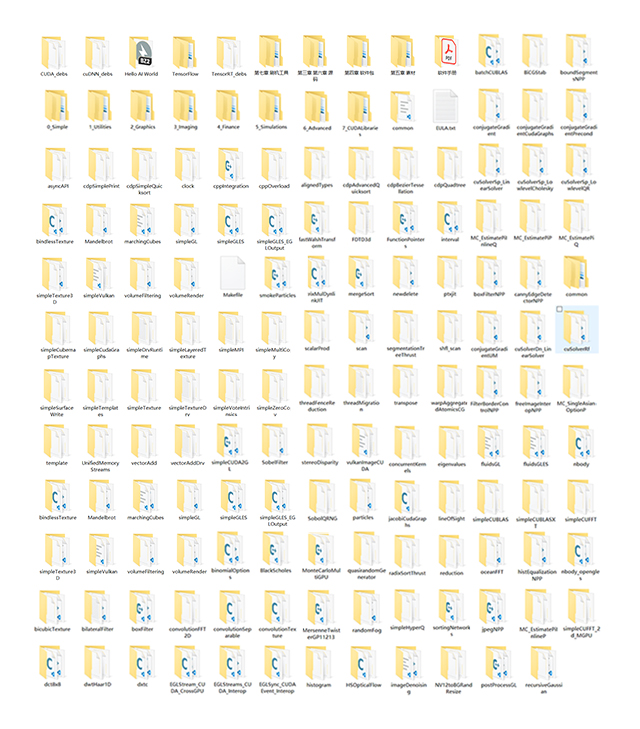

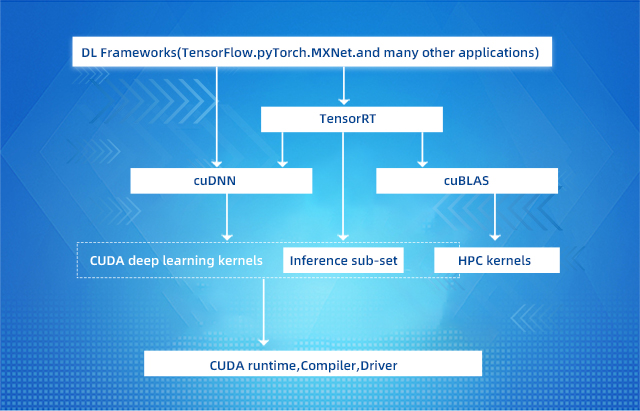

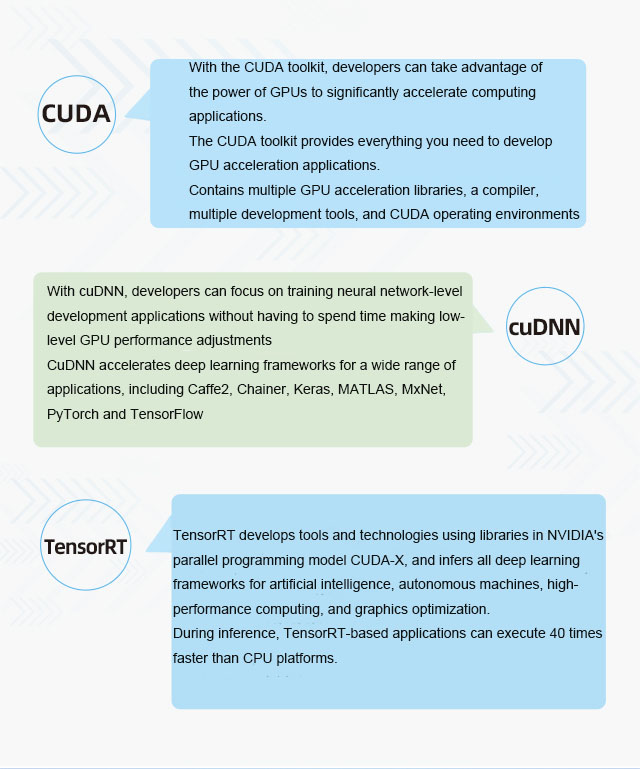

CUDA, cuDNN, and TensorRT assist AI to develop powerful performance

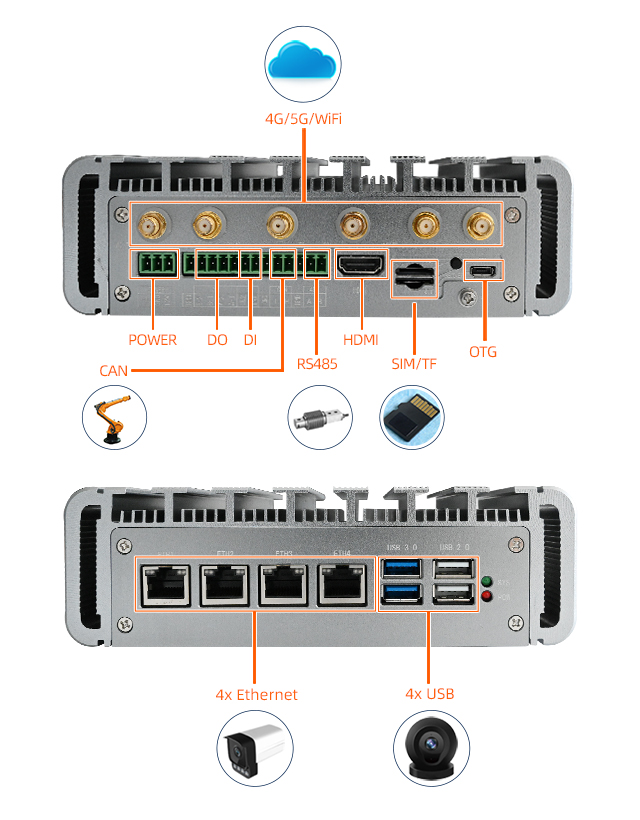

Rich functional interface One-stop operation and control
FCU3001 supports 4 Gigabit Ethernet interfaces and 4 USB interfaces for easy access to camera equipment and image acquisition.
Extended installation of TF, SSD storage devices, so that data storage is not limited. Support optional 4G/5G, dual-frequency WiFi modules, and more flexible communication with the cloud.
At the same time also support RS485, CAN industrial bus, to achieve visual recognition and equipment linkage one-stop control.

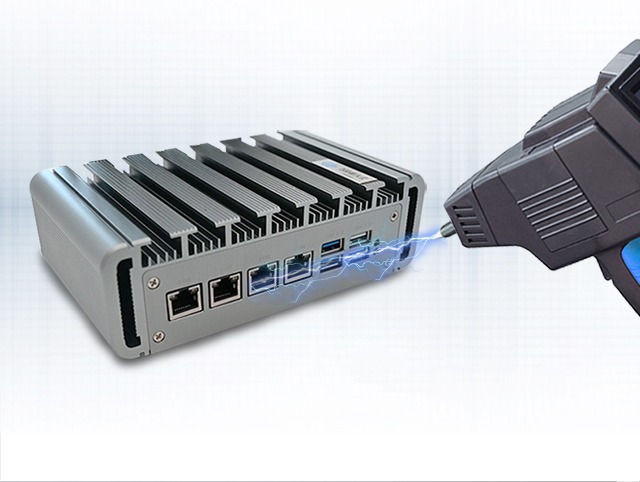

Interface static protection, more stable operation
Ethernet, USB, RS485, CAN interface all have ESD 4 level protection, contact discharge ± 8KV, air discharge ± 15KV.
It can meet the static protection requirements in most applications, so that the use and operation of equipment is more stable and reliable.
5G network holding, for AI inserted 5G wings
FCU3001 not only has a strong AI calculation, but also supports access to 5G networks, so that 5G-AI for the industry!

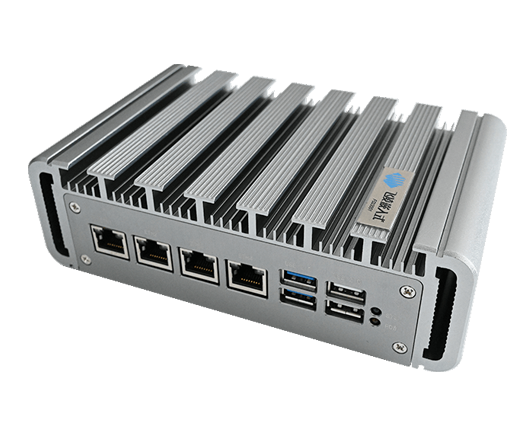

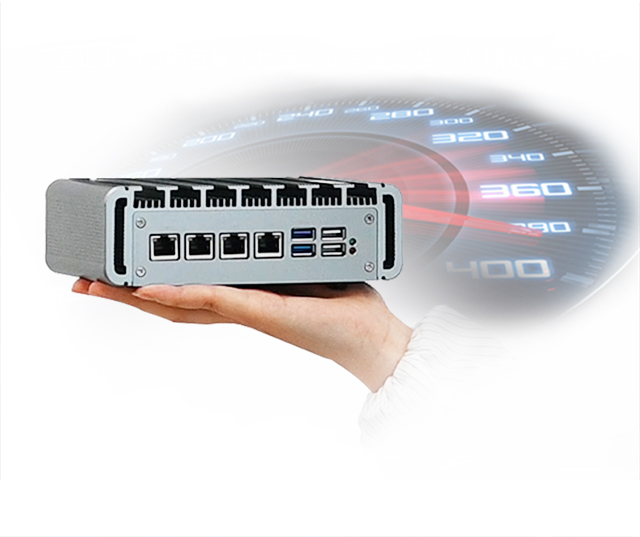

Small size, Fanless design
With rich functionality, the volume is compressed to an extreme size of only 178 x 110 x 55mm.
Optimized passive thermal design ,Ensures long, stable operation of the product at 21 TOPS.
Improve the design, convenient for users to product

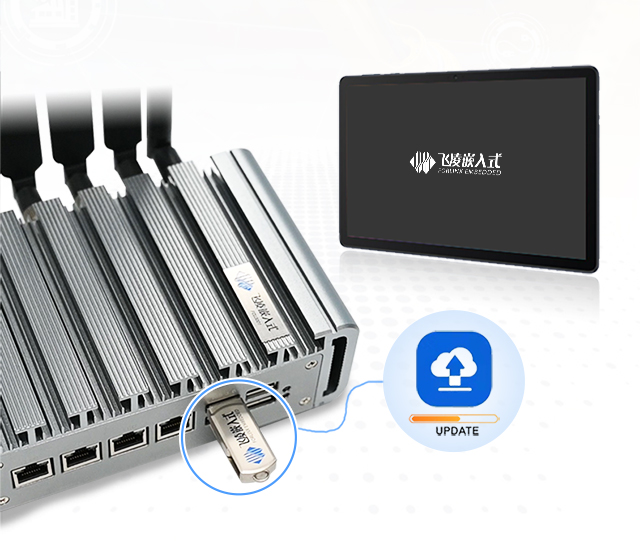

Developed based on the NVIDIA Jetson Xavier NX processor, the FCU3001 provides users with a way to update their USB drive (Windows) systems,
making it easier to develop and post-sales maintenance, except updating the operating system of the original OTG (Linux PC).Meanwhile,
Forlinx offers the user's LOGO modification with tools and operational guidance to meet the needs of enterprise customization.
FCU3001 is suitable for portable medical devices, AGVs, small commercial robots, intelligent road analysis,
visual inspection, smart factories and many other products and fields, while meeting the high computing needs of edge computing and artificial intelligence.
▊ Hardware Specifications
|AI Edge Computing Box FCU3001 Hardware Features|
|GPU||384 NVIDIA® CUDA® cores, 48 Tensor cores|
|CPU||6-core NVIDIA Carmel ARM®v8.2 64-bit CPU|
|Ethernet||4-Port Gigabit network, 10M/100/1000M adaptive, ESD 4-level protection|
|USB||2xUSB3.0, 2xUSB2.0, ESD 4-level protection|
|HDMI||1 xHDMI 2.0, supports up to 4K display|
|Mobile communication (optional)||5G module: Support Quectel RM500U/RM500Q module; 4G module: Support Quectel EM05 module;|
|WiFi||1 x M.2 PCIex1 2230 KEY E standard interface|
|SSD (optional)||1x M.2 PCIex4 2280/2260/2242 KEY M standard interface|
|TF||1 lane, support storage expansion|
|RS-485||1 lane, 3KV isolation protection, ESD4 level protection|
|CAN||1 lane, 2.5KV isolation protection, ESD4 level protection|
|Switch output||2 lanes, relay output; contact capacity: 5A 30VDC / 5A 250VAC|
|Switch input||2 lanes, 2.5KV optocoupler isolation;|
|Real Time Clock||Built-in CR2032 battery|
|Restore button||1 lane for system recovery|
|Power and power consumption||Rated voltage: 12V 5A|
|Install||Desktop type, ear mounting optional|
|working environment||Humidity: 5%-95%, no condensation. Working temperature: 0℃～70℃ Storage temperature: -20℃～125℃|
|operating system||Ubuntu 18.04|
