AI Edge Computing Box FCU3001

CPU: Jetson Xavier NX

Architecture:

Frequency: 1.4GHz

RAM: 8GB LPDDR4

ROM: 16GB eMMC

System: Ubuntu 18.04

Datasheet Message Compare

AI Edge Computing Box FCU3001

AI Edge Computing Box FCU3001 is an AI Edge Computing Device based on the NVIDIA Jetson Xavier NX processor that delivers up to 21 TOPS computing power, making it ideal for high-performance computing and ARTIFICIAL in embedded and edge systems. FCU3001 has a variety of peripheral interfaces for easy access to cameras, displays, sensors, SSDs, etc. At the same time support 4G/5G network communication, for the "5G-AI" enabling.


Product Video

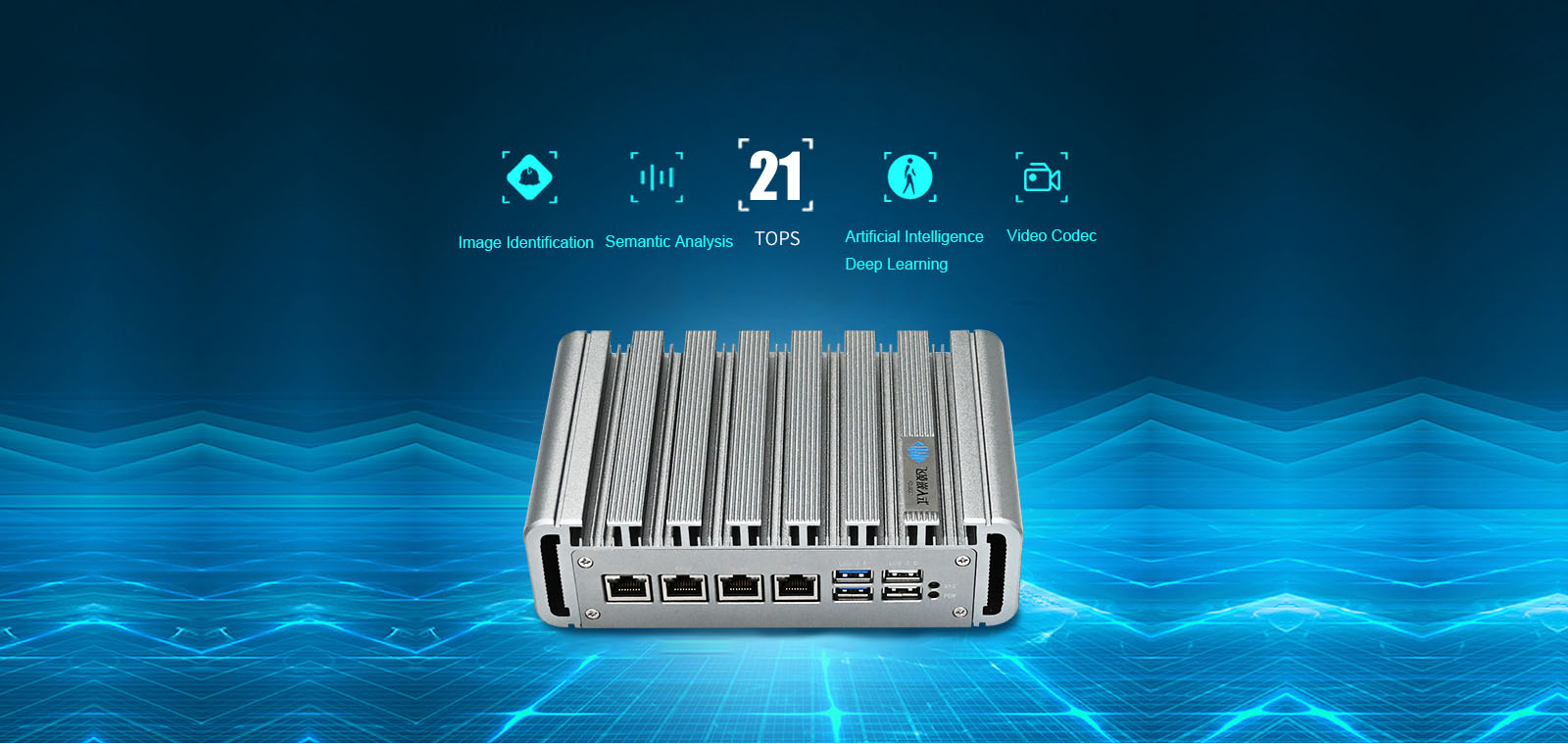

Powerful AI performance

In an embedded system, provides powerful performance support for edge computing and artificial intelligence, to meet a wide range of AI scenarios.

FCU3001 Powerful AI performance
FCU3001 Powerful AI performance

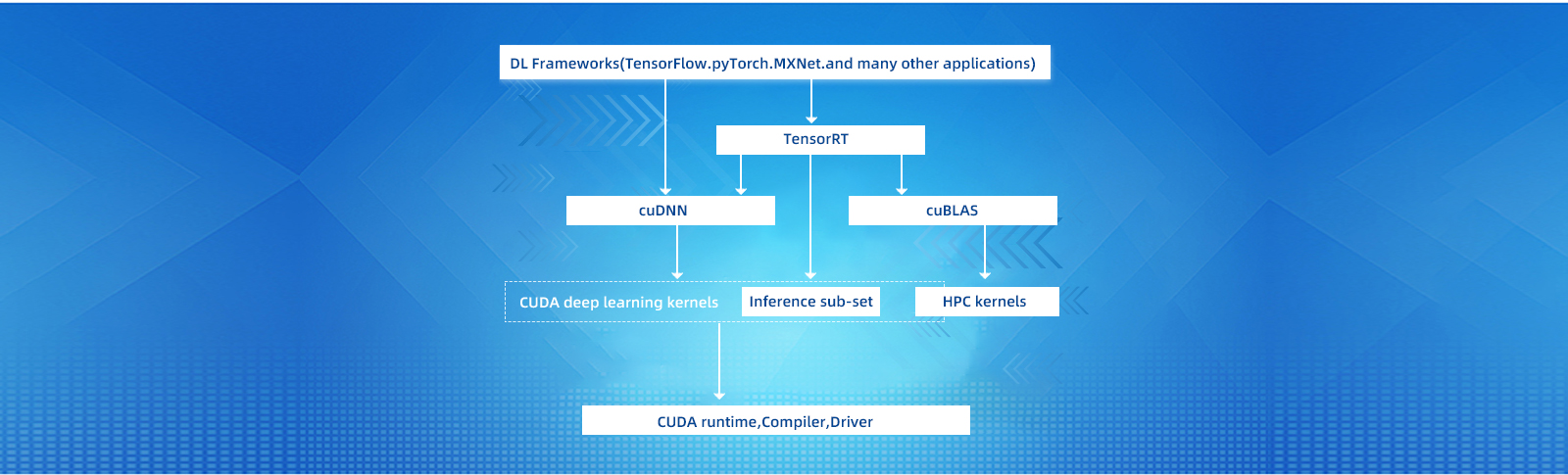

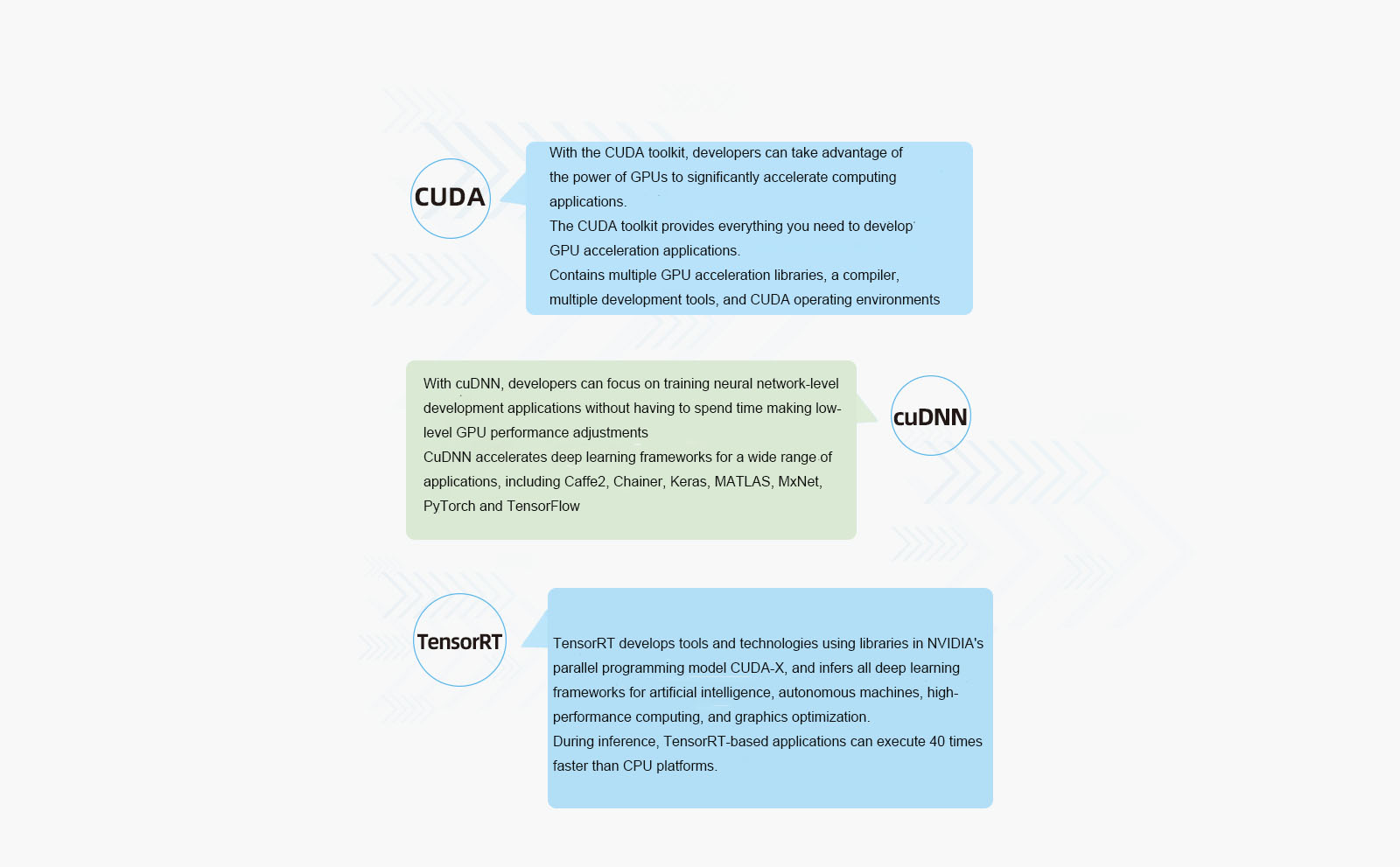

CUDA, cuDNN, and TensorRT assist AI to develop powerful performance

CUDA, cuDNN, and TensorRT assist AI to develop powerful performance
CUDA, cuDNN, and TensorRT assist AI to develop powerful performance
AI Edge Computing Terminal FCU3001
AI Edge Computing Terminal FCU3001

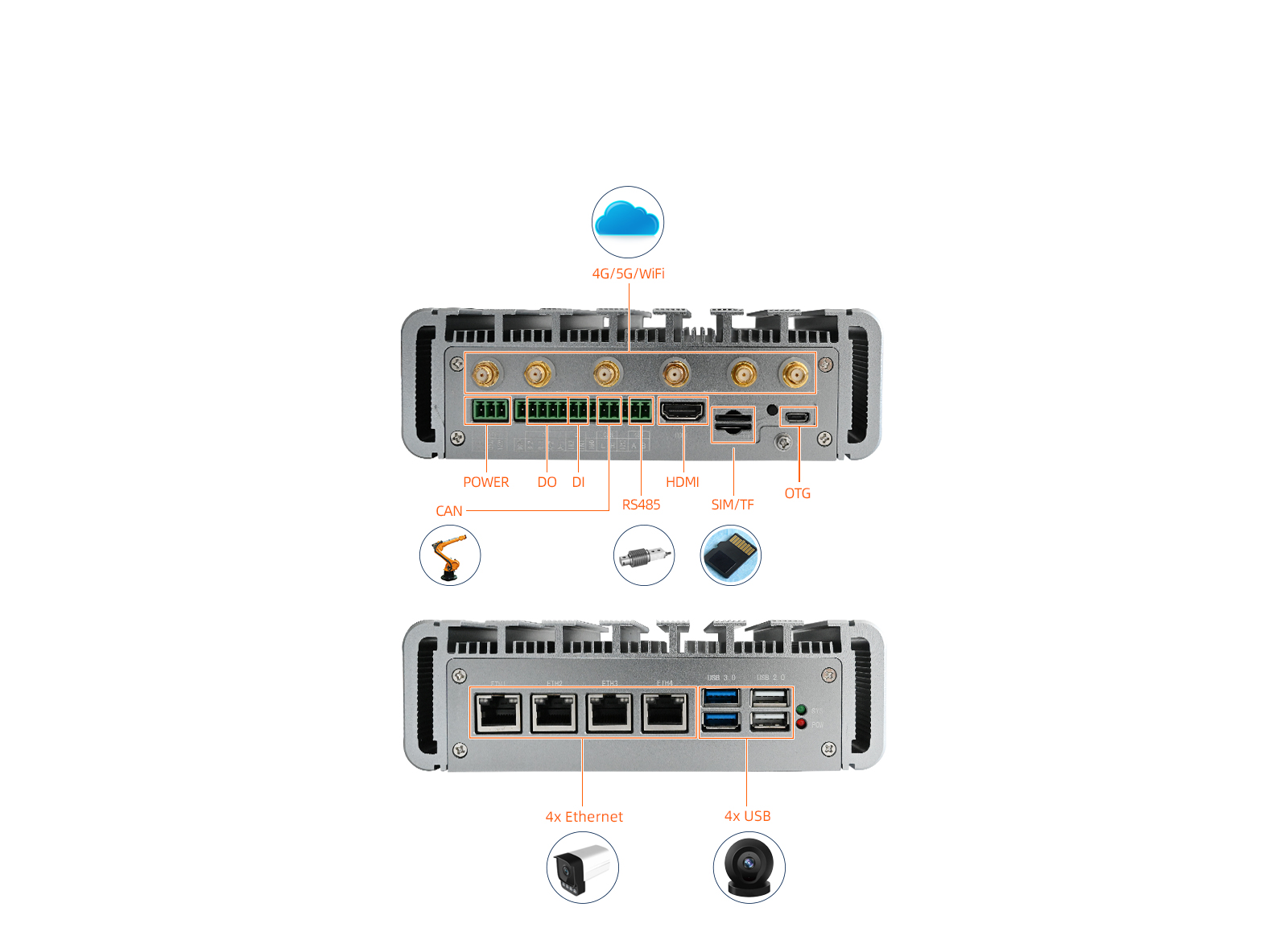

Rich functional interface      One-stop operation and control

FCU3001 supports 4 Gigabit Ethernet interfaces and 4 USB interfaces for easy access to camera equipment and image acquisition.
Extended installation of TF, SSD storage devices, so that data storage is not limited. Support optional 4G/5G, dual-frequency WiFi modules, and more flexible communication with the cloud.
At the same time also support RS485, CAN industrial bus, to achieve visual recognition and equipment linkage one-stop control.

FCU3301 Rich functional interface
FCU3301 Rich functional interface

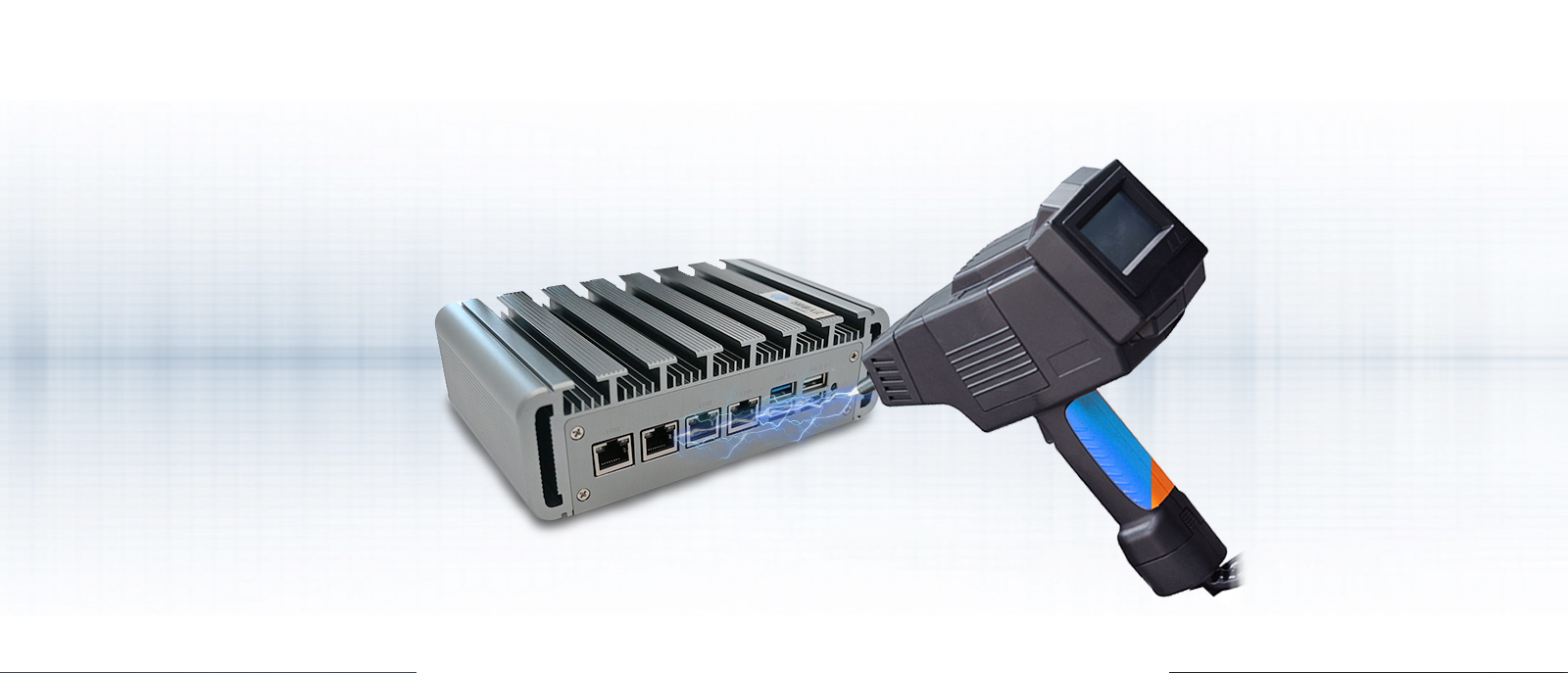

Interface static protection, more stable operation

Ethernet, USB, RS485, CAN interface all have ESD 4 level protection, contact discharge ± 8KV, air discharge ± 15KV.
It can meet the static protection requirements in most applications, so that the use and operation of equipment is more stable and reliable.

FCU3301 Interface static protection
FCU3301 Interface static protection

5G network holding, for AI inserted 5G wings

FCU3001 not only has a strong AI calculation, but also supports access to 5G networks, so that 5G-AI for the industry!

FCU3301 5G network holding
FCU3301 5G network holding

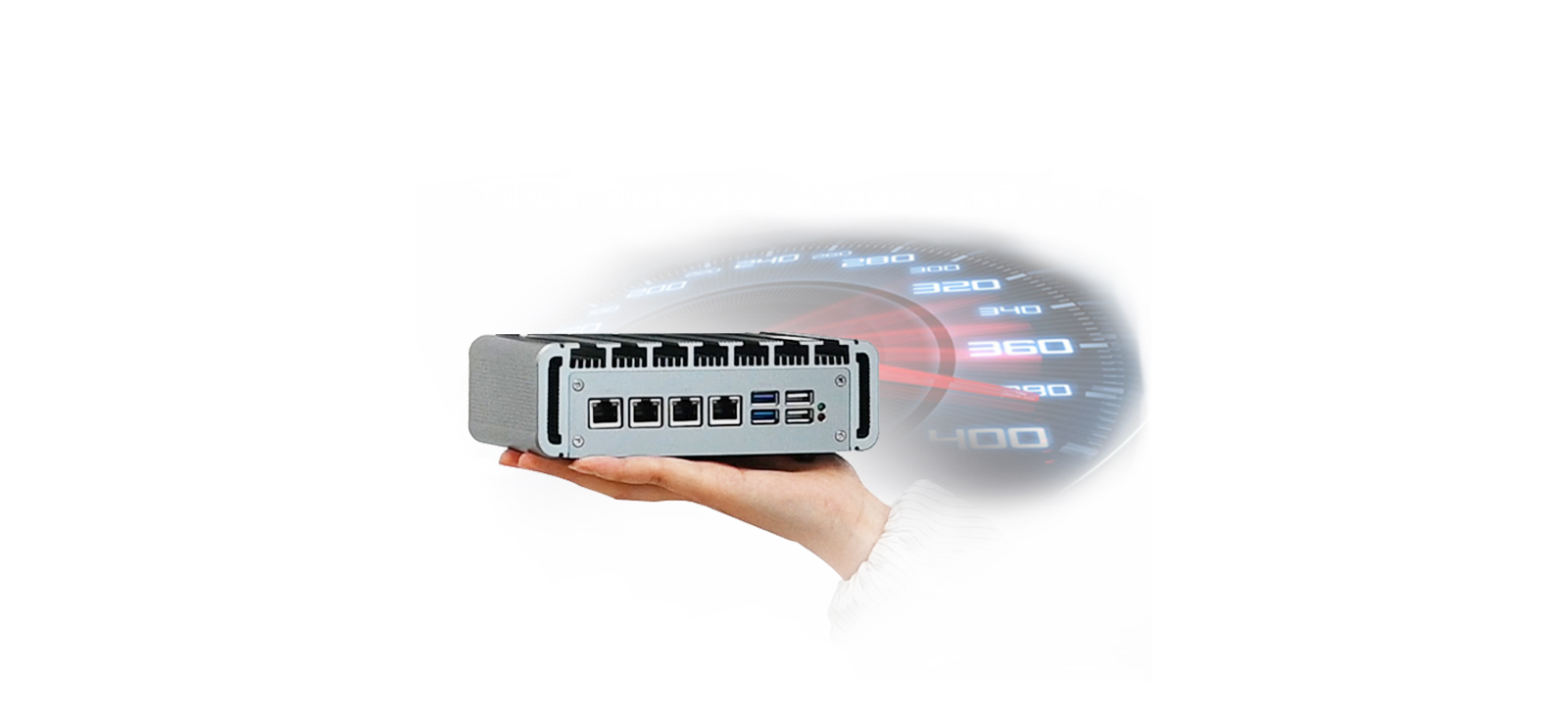

Small size, Fanless design

With rich functionality, the volume is compressed to an extreme size of only 178 x 110 x 55mm.
Optimized passive thermal design ,Ensures long, stable operation of the product at 21 TOPS.

FCU3301 Fanless design
FCU3301 Fanless design

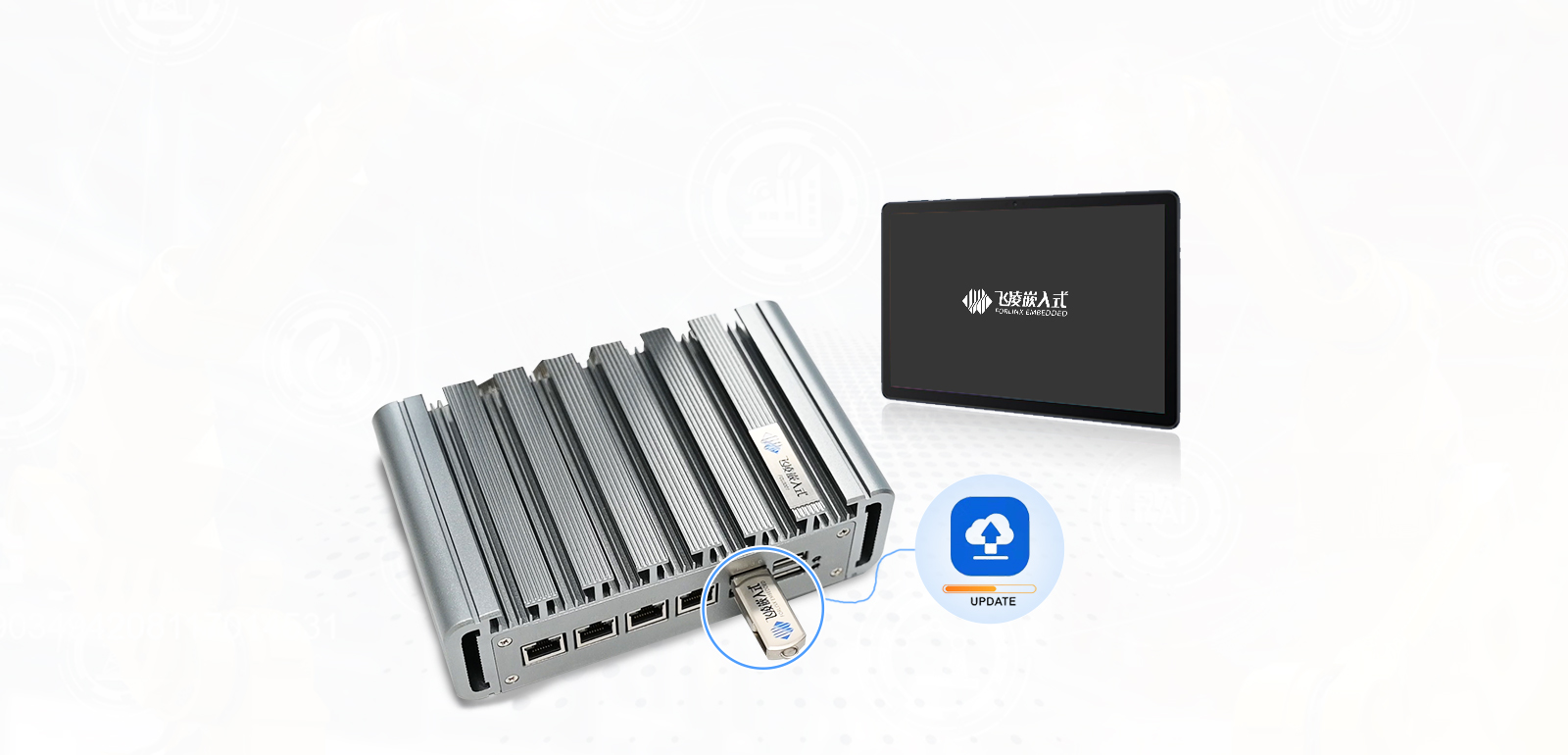

Improve the design, convenient for users to product

Developed based on the NVIDIA Jetson Xavier NX processor, the FCU3001 provides users with a way to update their USB drive (Windows) systems,
making it easier to develop and post-sales maintenance, except updating the operating system of the original OTG (Linux PC).Meanwhile,
Forlinx offers the user's LOGO modification with tools and operational guidance to meet the needs of enterprise customization.

Developed based on the NVIDIA Jetson Xavier NX processor
Developed based on the NVIDIA Jetson Xavier NX processor

Rich Databases

AI Edge Computing Terminal FCU3001 databases
AI Edge Computing Terminal FCU3001 databases

Application areas

FCU3001 is suitable for portable medical devices, AGVs, small commercial robots, intelligent road analysis,
visual inspection, smart factories and many other products and fields, while meeting the high computing needs of edge computing and artificial intelligence.

AI Edge Computing Terminal FCU3001 application
AI Edge Computing Terminal FCU3001 application

▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

▊ Hardware Specifications


AI Edge Computing Box FCU3001 Hardware Features
Item Spec.
GPU 384 NVIDIA® CUDA® cores, 48 Tensor cores
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
RAM 8GB  LPDDR4
ROM 16GB  eMMC
Ethernet 4-Port Gigabit network, 10M/100/1000M adaptive, ESD 4-level protection
USB 2xUSB3.0, 2xUSB2.0, ESD 4-level protection
HDMI 1 xHDMI 2.0, supports up to 4K display
Mobile communication (optional) 5G module: Support Quectel RM500U/RM500Q module; 4G module: Support Quectel EM05 module;
WiFi 1 x M.2 PCIex1 2230 KEY E standard interface
SSD (optional) 1x M.2 PCIex4 2280/2260/2242 KEY M standard interface
TF 1 lane, support storage expansion
RS-485 1 lane, 3KV isolation protection, ESD4 level protection
CAN 1 lane, 2.5KV isolation protection, ESD4 level protection
Switch output 2 lanes, relay output; contact capacity: 5A 30VDC / 5A 250VAC
Switch input 2 lanes, 2.5KV optocoupler isolation;
Real Time Clock Built-in CR2032 battery
Restore button 1 lane for system recovery
Power and power consumption Rated voltage: 12V 5A
size 178*110*55mm
Install Desktop type, ear mounting optional
working environment Humidity: 5%-95%, no condensation. Working temperature: 0℃~70℃ Storage temperature: -20℃~125℃
operating system Ubuntu 18.04
