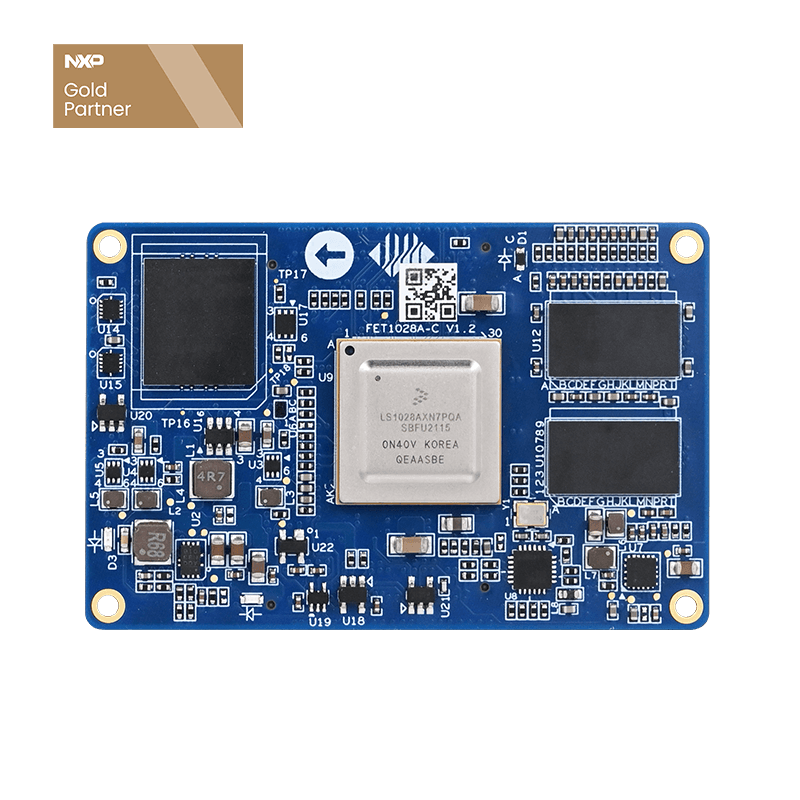

GPIO Multiplexed and Ethernet Subnet based on LS1028A Development Board

Multiplex GPIO

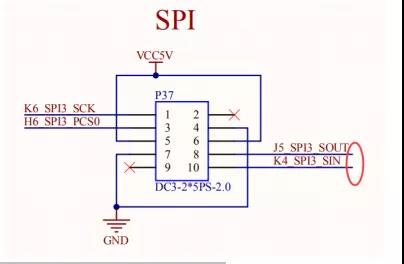

Here we take SPI multiplexed to GPIO for demonstration

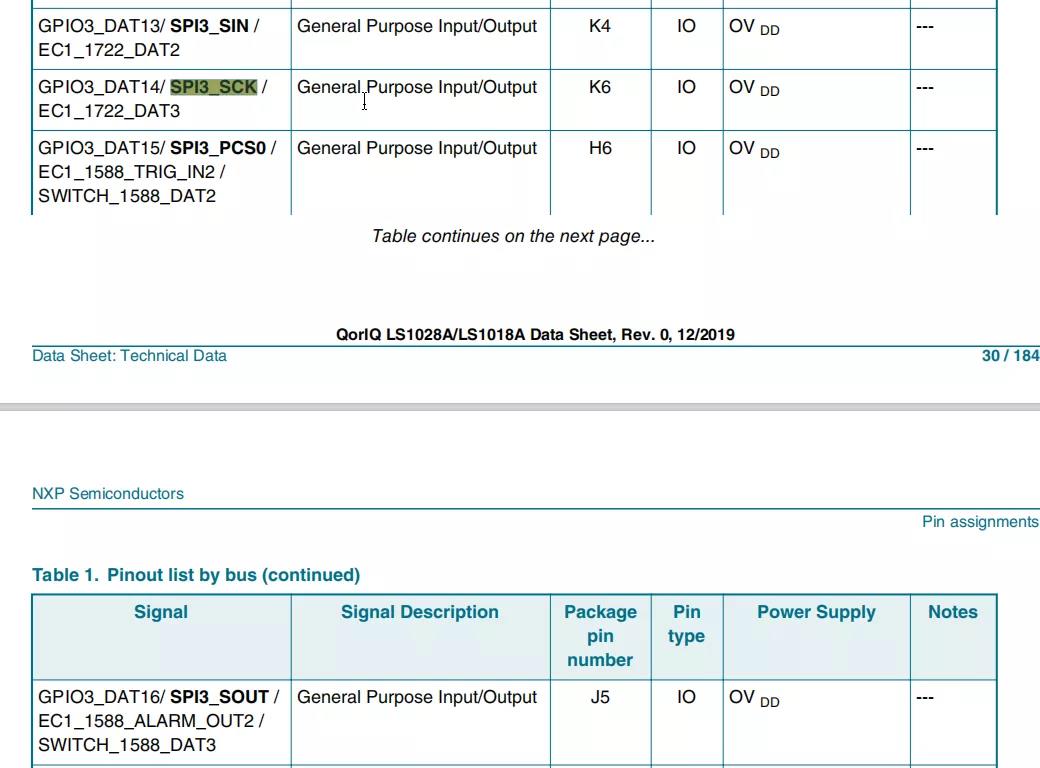

From LS1028A datasheet we can know that SPI_SIN could be multiplexed to GPIO_DAT13, SPI3_SCK could be multiplexed to GPIO3_DAT14, SPI_SIN could be multiplexed to GPIO3_DAT13 and SPI3_SOUT could be multiplexed to GPIO3_DAT16

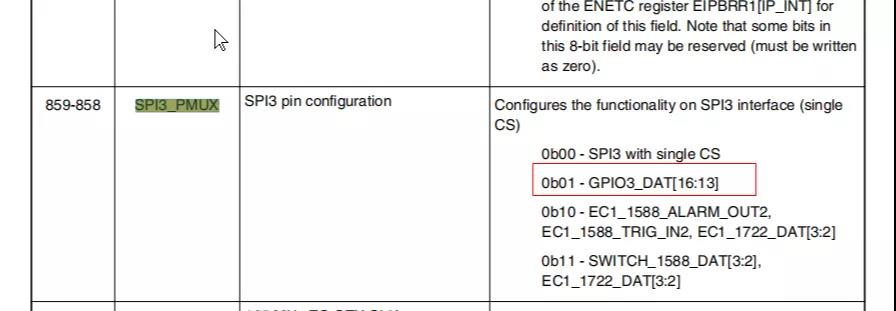

And we can also know that the RXW is SPI3_PMUX

From the sheet we can know that when SPI3_PMUX=1, the pin is configured to GPIO3_DAT[16:13], we just need change its RCW, then recompile and flash it to board.

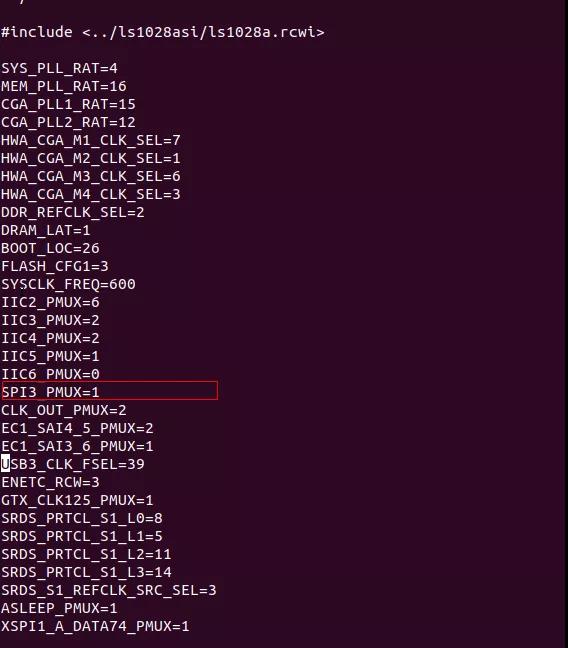

RCW path:

OK1028-linux-fs/packages/firmware/rcw/ls1028ardb/R_SQPP_0x85bb/rcw_1500_gpu600.rcw

Verify on board

[email protected]:~#ls /sys/class/gpio
export gpiochip416 gpiochip448 gpiochip480 unexport

execute the above command and we'll get four couples of gpiochip as below

Gpiochip480 for gpio1[];

Gpiochip448 for gpio2[];

Gpiochip416 for gpio3[];

users can refer to this to verify their target pin by GPIO3_DATx=gpiochip416+x,

here we take GPIO3_DAT14 for demonstration

[email protected]:~#echo 430 > /sys/class/gpio/export

[email protected]:~#echo out > /sys/class/gpio/gpio430/direction

[email protected]:~#echo 1 > /sys/class/gpio/gpio430/value

[email protected]:~#cat  /sys/class/gpio/gpio430/value

1

[email protected]:~#echo 0 > /sys/class/gpio/gpio430/value

[email protected]:~#cat  /sys/class/gpio/gpio430/value

0

voltage will be changed accordingly.

SPI3 will be multiplexed to GPIO completely, when SPI3_PMUX=1, the pin will be configured to GPIO3_DAT[16:13]

Ethernet on OK1028A-C

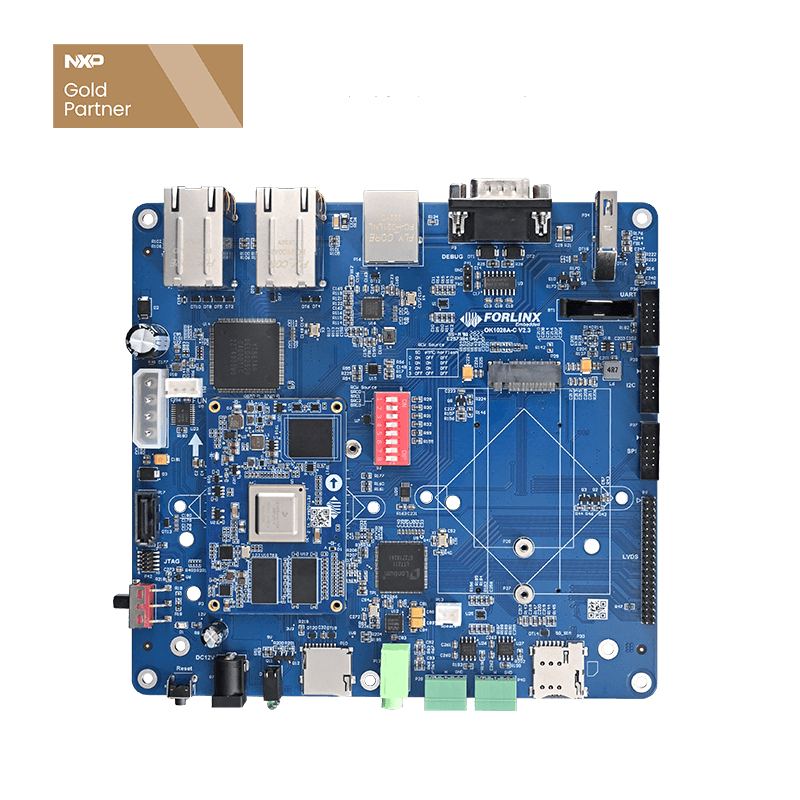

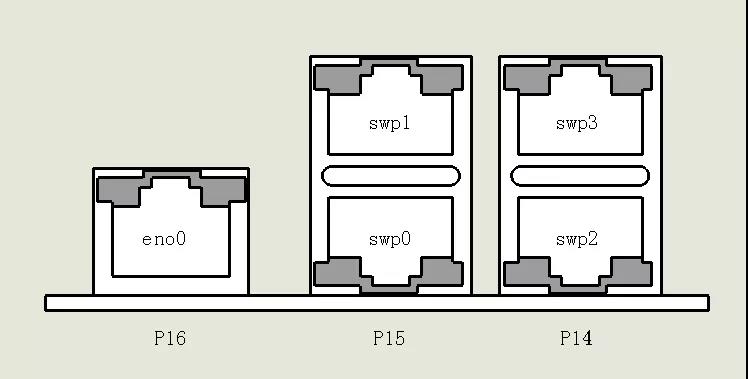

eno0 is SGMII1G-T protocol, and swp0-swp3 is QSGMII1G

About Switch

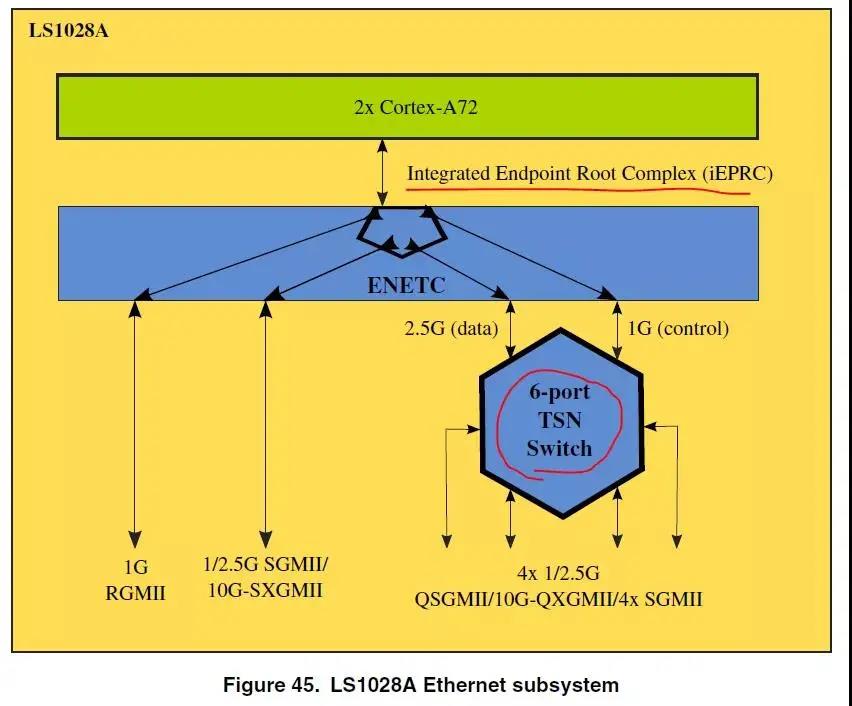

Ethernet system consists of ENETC and TSN enabled switch

ENETC is a virtical Ethernet controller with GbE and TSN enabled. ENETC provides fully integrated GbE MACs. It can support IP, TCP, UDP and ICMP.

The ENETC features

  • •Implements the full 802.3 specification withpreamble/SFD generation, frame padding generation, CRC generation andchecking.
  • •One 10/100/1000/2500 Mbit/s Ethernet port. ThroughSerDes, SGMII (1G/2.5G) and USXGMII (2.5G) MAC-PHY
  • specificationsare supported.
  • •One 10/100/1000 Mbit/s Ethernet port with RGMIIinterface.
  • •One 2500 Mbit/s Ethernet port connected internallyto TSN Switch for switch data transmission.
  • •One 1000-Mbit/s Ethernet port connected internallyto TSN Switch for switch management.
  • •Supports jumbo Ethernet frames with a size up to9600 bytes
  • •Supports double tagged VLAN frames according toIEEE 802.1Q
  • •Supports IEEE 802.1Qbu preemption
  • •PCI Express root complex integrated endpointdevice

LS1028A development board features

  • •Four external 10/100/1000/2500-Mbit/s Ethernetports. Through SerDes, SGMII (1G/2.5G) and USXGMII (2.5G) MAC
  • PHYspecifications are supported.
  • •One 2500 Mbit/s Ethernet port connected internallyto ENETC for data transmission.
  • •One 1000 Mbit/s Ethernet port connected internallyto ENETC for management.
  • •One internal CPU port, for frame extraction andinjection.
  • •128KB of integrated shared packet memory.
  • •Fully nonblocking wire-speed switching performancewith weighted random early detection (WRED) for all frame sizes.
Broadly speaking, LS1028A can support up to 6 Ethernet ports, and all are available for TSN.
