FET1028A-C System on Module

CPU: LS1028A

Architecture: Cortex-A72

Frequency: 1.5GHz

RAM: 2GB DDR4

ROM: 8GB eMMC

System: Ubuntu18.04+ QT5.9.5

Datasheet Message Compare

Forlinx is a Gold Partner of NXP, focusing on designing and manufacturing of cost-effective ARM board solutions.

Choose Forlinx, you will get more than just an embedded board and NXP SoC based ARM board solutions are especially recommended.

Moreover, Forlinx kinly provides customization service benefiting from 10+ years experience of desinging and supporting.

Anytime if you need, just please free to contact Forlinx.


System on Module FET1028A-C based on LS1028 A

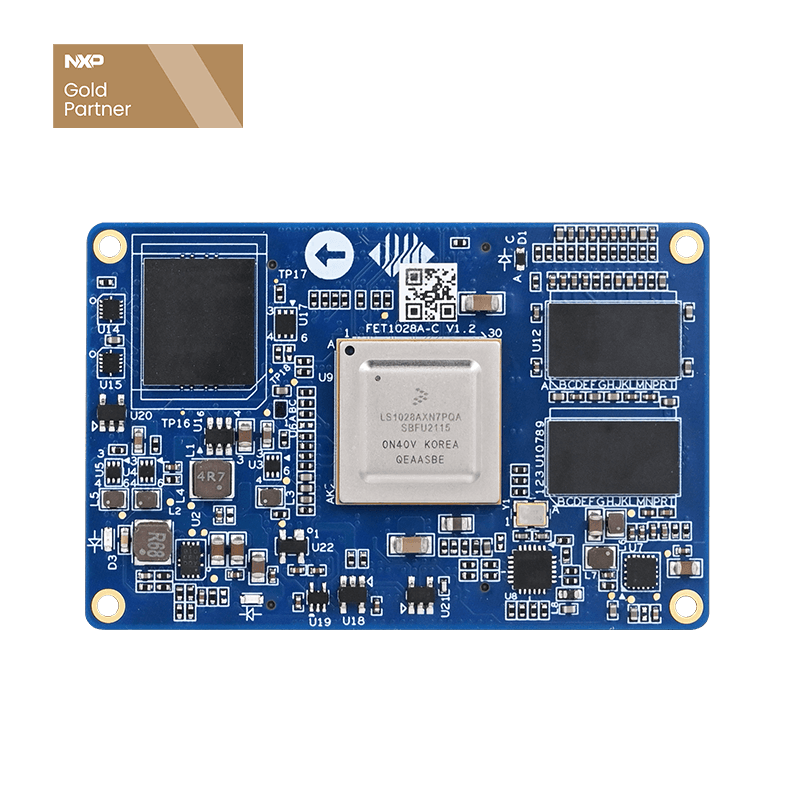

FET1028A-C is a system on module designed based on Cortex-A72 featuring dual-core processor LS1028A up to 1.5G Hz. It has functionality for Industry 4.0 including Time-Sensitive Networking (for deterministic Ethernet), 3D graphics for HMI and integrated security capabilities using NXP's Trust Architecture. The LS1028A is an SoC of the Layerscape family with integrated 3D GPU for HMI, and support for TSN in the integrated Ethernet switch and independent Ethernet controllers.

Key Features of the LS1028A:

  • 2GB DDR4 RAM
  • Support 6x Gbit Ethernet
  • Support TSN Ethernet switches and Ethernet controllers
  • Support converged IT and OT network
  • Support 2x CAN FD, 4x UART, 2x USB3.0, 2x PCIe3.0, 1x SATA3.0, 6x IIS, 6x IIC, 2x SPI and other common bus interfaces
  • Up to 4K resolution

Application:

  • Industrial IoT
  • TSN
  • SD-WAN
  • 5G CPE
  • edge computing gateway
  • IP-PBX
  • smart factory
  • information security
  • intelligent transport
  • power management
LS1028 evk
LS1028A evk

Various high speed peripheral interfaces

FET1028A-C can support up to 6 Gigabit Ethernet ports, PCIe3.0, SATA3.0, USB3.0, CAN-FD are also available, which are preferable for industrial IoT, 5G gateway related applications.

LS1028 6 Gigabit Ethernet ports, PCIe3.0, SATA3.0, USB3.0, CAN-FD
LS1028 PCIe3.0, SATA3.0, USB3.0, CAN-FD

Advanced computing performance

dual-core Cortex-A72, up to 1.5GHz preferable for edge computing, big data processing related applications

LS1028 dual Cortex-A72 cores
LS1028 1.5GHz
LS1028 Ethernet can support TSN
LS1028A Ethernet can support TSN

4K display output

Has one display interface, available for DP1.3 and eDP1.4,
output resolution up to 4Kp60

LS028 4K display output
LS028 4k display output

Ubuntu supporting

Ubuntu18.04 is well supported with apt-get installation, which makes development easy to go

ls1028 Ubuntu
ls1028 Ubuntu

Target applications

Industrial IoT, TSN, SD-WAN, 5G CPE, edge computing gateway,
IP-PBX, smart factory, information securiety, intelligent transport, power management, etc.

ls1028 application
ls1028 application

▊ Spec.


Overview of SoM FET1028A-C
CPU NXP LS1028A
Architecture Dual-core Cortex-A72
RAM 2GB DDR4
OS Ubuntu
Working temperature -40℃~ +85℃
Frequency 1.5GHz
ROM 8GB eMMC
Power input DC 12V
Dimensions 42mm×65mm


FET1028A-C System on Module Hardware Features
Interface QTY Spec.
Display Port ≤1 DP1.3 and eDP 1.4, up to 4Kp60
eSDHC ≤1 SD3.0
IIS ≤6
Ethernet ≤6 CPU has 6 native MAC
up to 2.5Gbps, can support TSN and one of them has a 4-port TSN switch;
5 Ethernet ports can be configured by SerDes
PCIe 3.0 ≤2 up to 8GT/s, configured by SerDes
SATA 3.0 ≤1 up to 6Gbps, configured by SerDes
USB 3.0 ≤2 up to 5Gbps
UART ≤4 can support 1x DUART or 4x UART
CAN FD ≤2
IIC ≤6
SPI ≤2
SerDes 1 1x 4Lane SerDes, available for SGMII, QSGMII, PCIe, SATA combinations as below:

A. SGMII+QSGMII+PCIe2.0 x1+SATA3.0

B. PCIe3.0 x1+QSGMII+PCIe3.0 x2

C. SGMII+QSGMII+PCIe3.0 x2

D. PCIe3.0 x2+PCIe3.0 x2

E. SGMII+QSGMII+PCIe3.0 x1+PCIe3.0 x1

F. PCIe3.0 x4

more details refer to SerDes list 'LS1028ARM.pdf'


▊ Accessories


Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »



▊ How to buy


1. Order Online

We have an online store on Alibaba, please contact us to start ordering

2. Order offline

pls send your inquiry to our mailbox [email protected];

3. Payment Terms

Samples(100% T/T in advance),Bulk Order(please contact with our sales)

▊ Shipment


1. Delivery: Goods will be sent out by express as requested

2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.

3. Shipping charge: buyers should bear related shipping cost.
