Ideas and Methods for Adjusting Touchscreen on the iMX6ULL Platform

The touchscreen driver usually employs the input subsystem driver framework, so the application layer interface must adhere to the interfaces of the input framework.

By entering ls -l /dev/input in the command line, you can see the current input devices available.

root@freescale ~$ ls -l /dev/input/
total 0
crw - r-----       1 root    root     13,    64  Jan    1  00:17  event0
crw - r-----       1 root    root     13,    65  Jan    1  00:17  event1
crw - r-----       1 root    root     13,    66  Jan    1  00:17  event2
crw - r-----       1 root    root     13,    63  Jan    1  00:17  mice
Lrwxrwxrwx      1 root   root             6  Jan	  1  00:18  ts0 -> event2
Lrwxrwxrwx      1 root   root             6  Jan	  1  00:18  ts2 -> event1
root@freescale ~$

View Touch Original Data

When there is an issue with the touch function, you can determine whether the problem lies in the driver layer or the application layer by checking the raw data. There are several methods to view the raw data:

1. cat /dev/event2

Directly using cat on the touch event will output garbled characters when you touch the screen.

2. hexdump

$ hexdump -d /dev/input/event0

0000000  15989  00000  18969  00004  00004  00004  00001  00009 # Other events
0000010  15989  00000  18969  00004  00001  00272  00001  00000 # BTN_MOUSE,press
0000020  15989  00000  18969  00004  00003  00000  16333  00000 # ABS_X
0000030  15989  00000  18969  00004  00003  00001  09599  00000 # ABS_Y
0000040  15989  00000  18969  00004  00000  00000  00000  00000 # Synchronous events
0000050  15989  00000  49415  00005  00004  00004  00001  00009 # Other events
0000060  15989  00000  49415  00005  00001  00272  00000  00000 # BTN_MOUSE,release
0000070  15989  00000  49415  00005  00000  00000  00000  00000 # Synchronous events

The fourth, third, and second-to-last lines correspond to type, code, and value, which are all defined in linux/input.h. The event types for input devices in Linux are:

#define EV_SYN 0x00 // Synchronous events
#define EV_KEY 0x01 // Key events
#define EV_REL 0x02 // Relative coordinates
#define EV_REL 0x03 // Absolute coordinates
#define EV_MSC 0x04 // Other events

Type is the event type, where 3 is the EV _ ABS = 0x03 and 0 is the EV _ SYN = 0x00 (as a separator of events).

The value of code depends on the event type. If the type is EV _ ABS, the value of code 0 is ABS _ X and the value of code 1 is ABS _ Y.

Then, the value represents the measurement under the premises of type and code. For example, if the type is EV_ABS and the code is 0 (which corresponds to ABS_X), then the value represents the absolute X-axis position of the touch point.

For example, if the type is EV_KEY, the code 272 corresponds to BTN_MOUSE, and code 330 corresponds to BTN_TOUCH; a value of 1 indicates a press, while a value of 0 indicates a release. For instance, if the type is EV_ABS and the code is 24 (which corresponds to ABS_PRESSURE), a value of 1 indicates that the screen is being pressed, while a value of 0 indicates it is released.

The tests show that the coordinate values generated by the touchscreen touch events have a range of X: 016384 and Y: 09600, and this touchscreen does not upload ABS_PRESSURE.

3. ts_print / ts_print_raw

The difference between the two is that ts _ print prints the data after tslib processing, while ts _ print _ raw prints the data before tslib processing.

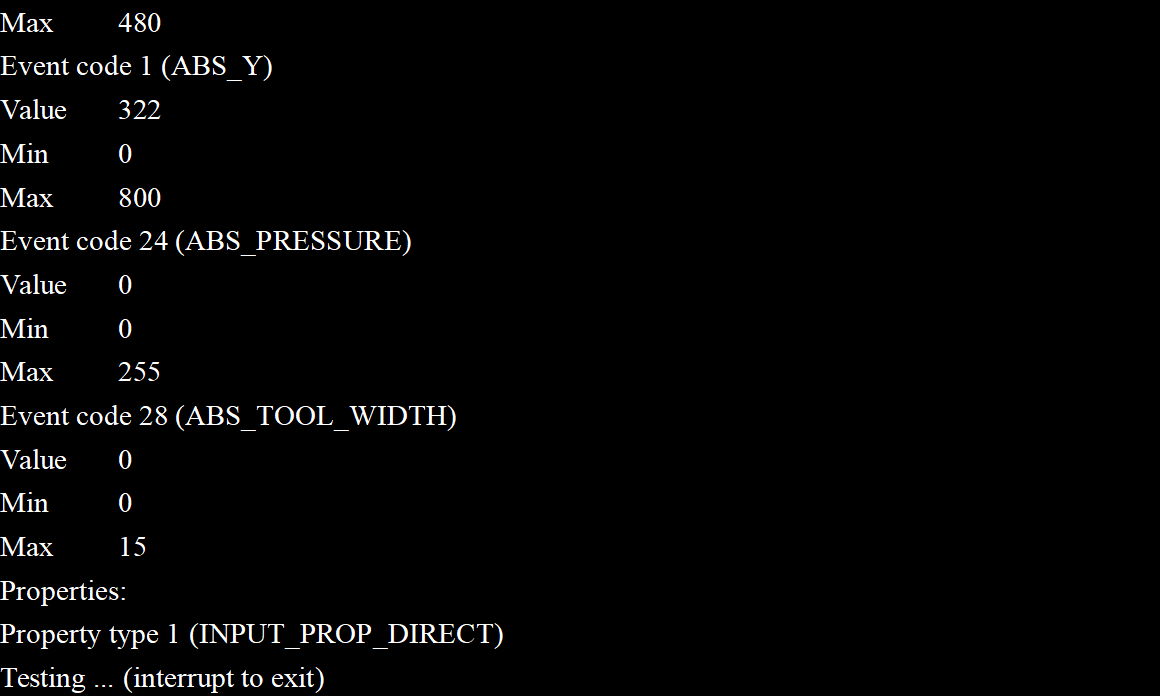

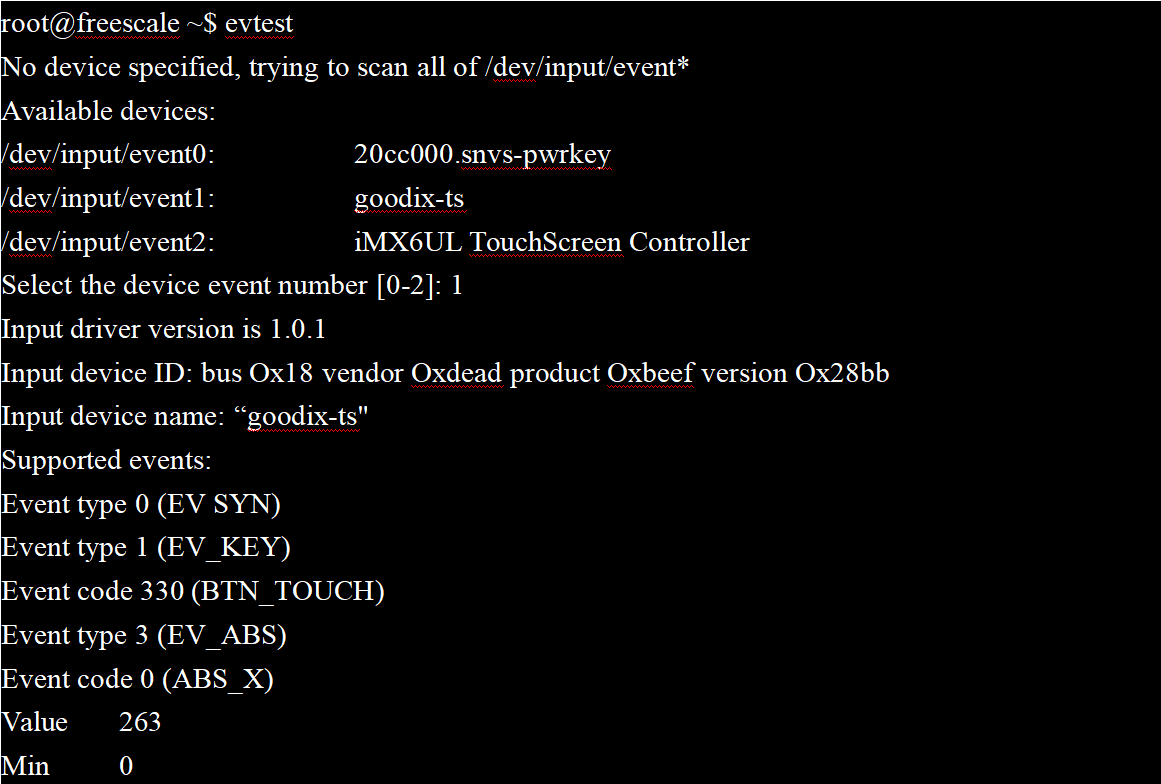

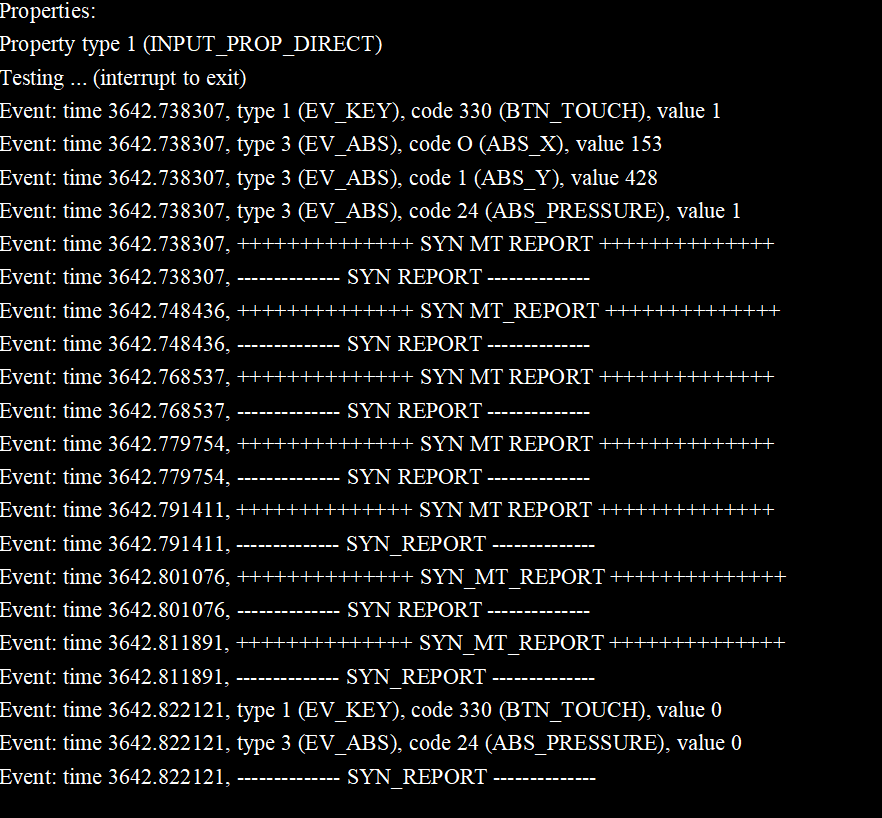

4. evtest

Evtest can not only print original, but it also allows you to see the event types.

Driving Layer Processing Idea

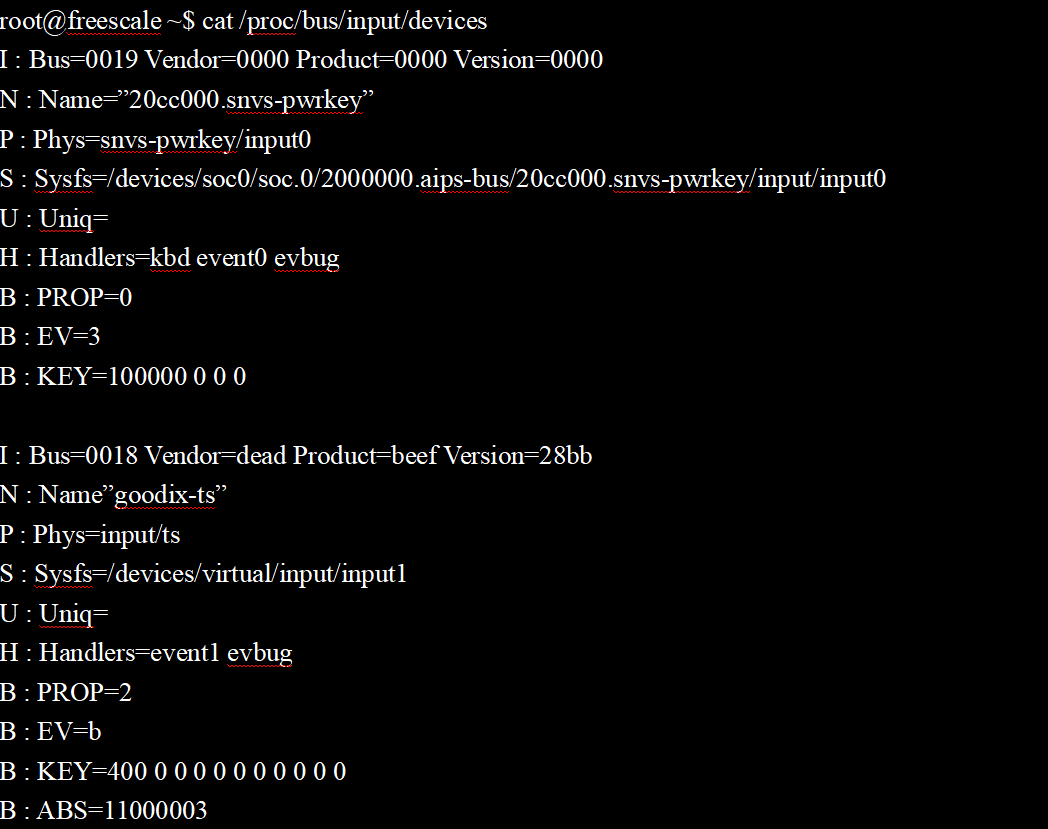

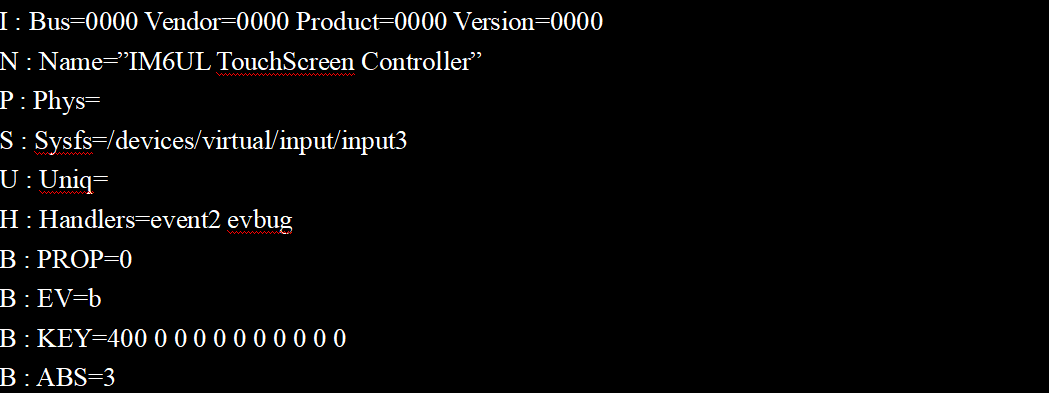

1. Find the corresponding driver in the kernel source code by checking the device information.

Kernel source code

Ideas and Methods for Adjusting Touchscreen on the iMX6ULL Platform

You can look for the corresponding string in the kernel source code;

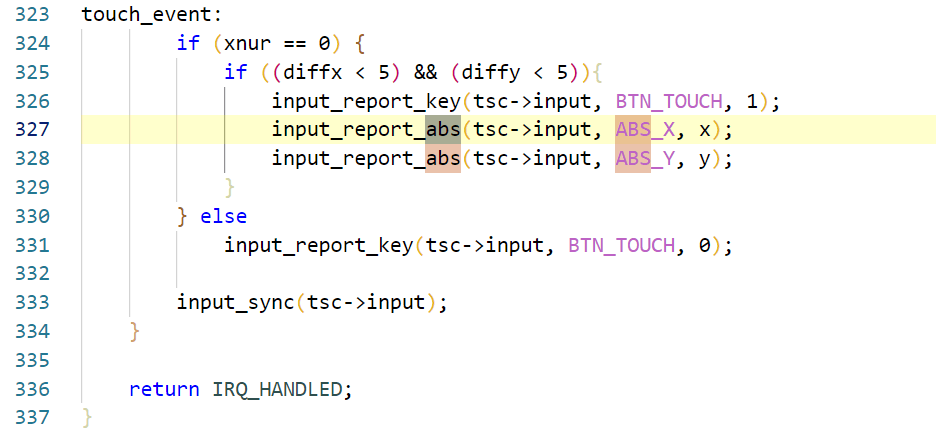

2. To locate the touch reporting position, you can search for the string ABS in the corresponding driver.

Touch driver for a resistive screen

The image above shows the touch driver for a resistive screen.

3. Add print statements for further processing.

Application Layer Processing

1. Use tools like ts_test to check if tslib is receiving data.

2. Change the version of tslib.

Capacitive Screen

In theory, capacitive screens do not require touch calibration; however, if they are not calibrated, there may be instances where the touch effects are opposite to the actual response, requiring the touch input to be inverted.

However, if the reported data on the screen does not match the actual resolution, lower versions of Qt may not be able to handle it, necessitating manual calibration.
